Powercom 1025VA, 2000VA, 3000VA, 1500VA, 1200VA User Manual
U P S
Line Interactive Simulated Sine Wave
1025VA - 3000VA
■ USER’S MANUAL■
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 2
1. Introduction ............................................................................................ 3
2. System Description .................................................................................. 3
3. Storage .................................................................................................... 4
4. Installation .............................................................................................. 4
4.1 Environment .................................................................................................. 4
4.2 Connection to mains and loads ........................................................................ 4

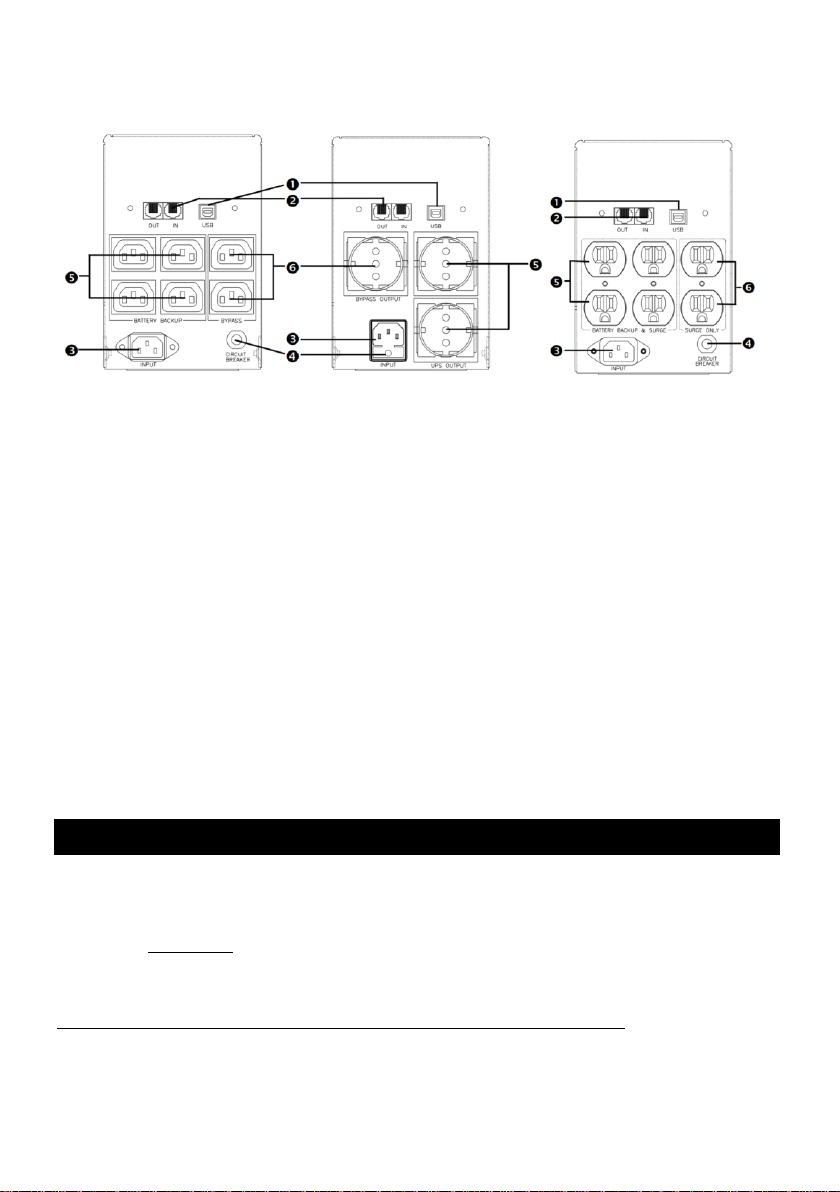

4.4 Rear panel view .............................................................................................. 6
5. UPS Monitoring Connection ..................................................................... 6
5.1 Connect UPS to Computer with USB / RS232 port .............................................. 6
6. Operations ............................................................................................... 7
6.1 Switch on with “Green Mode” Function ............................................................ 7
6.2 Switch on with “Disabled Green Mode” Function ............................................... 7
6.3 Switch off UPS ................................................................................................ 7
6.4 Silence Function ............................................................................................. 7
6.5 Self-test Function ........................................................................................... 7
7. Battery Maintenance ............................................................................... 7

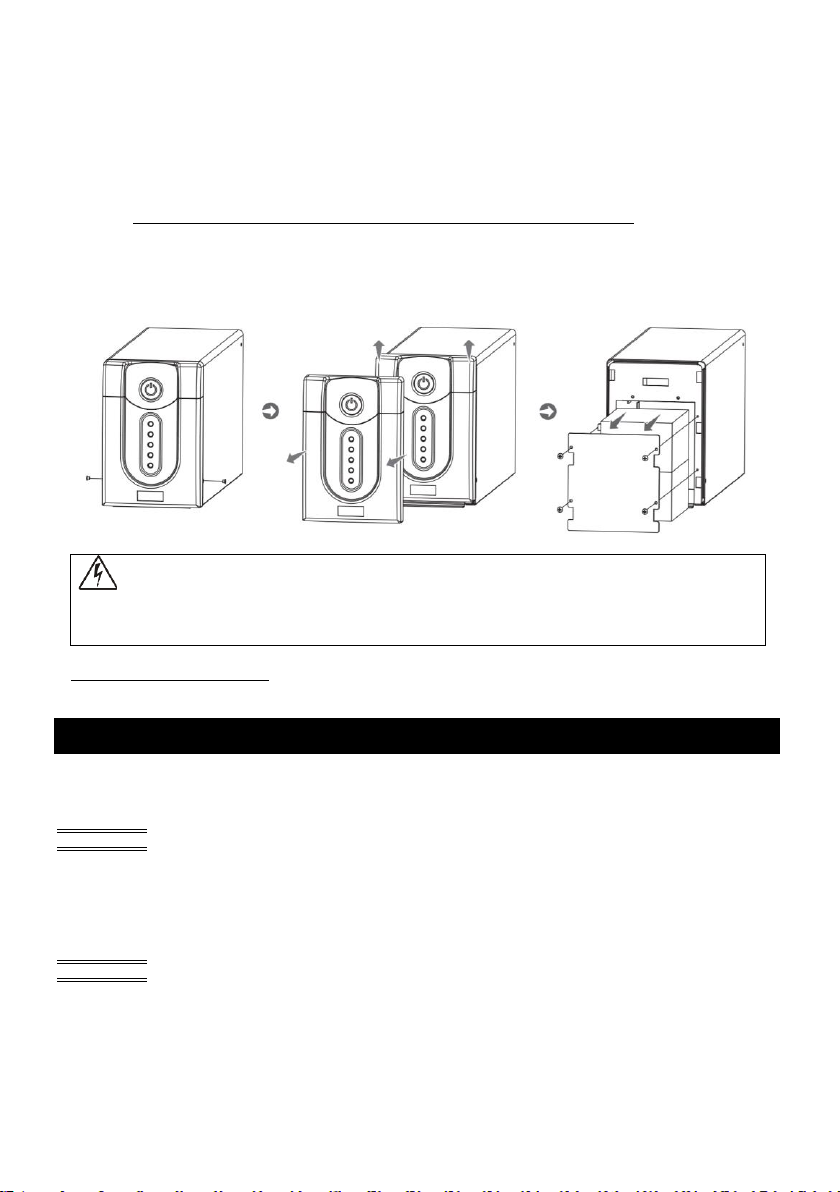

7.1 Battery Replacement Procedure ....................................................................... 8
8. Trouble Shooting ...................................................................................... 8
8.1 “BACKUP” (slow alarm) ................................................................................... 8
8.2 “LOW BATTERY” (rapid alarm) .......................................................................... 8
8.3 “OVER LOAD” (continuous alarm) ..................................................................... 8
8.4 Trouble shooting ............................................................................................ 9
9. Technical Specifications .......................................................................... 10
i
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING (SAVE THESE INSTRUCTIONS): This manual contains important
instructions that should be followed during installation and maintenance of the UPS
and batteries. The equipment can be operated by any individuals with no previous
experience.
WARNING: It is highly recommended to install the product in a controlled
environment; maximum ambient temperature is 40°C.
CAUTION (UPS has internal batteries): Risk of electric shock – Hazardous live parts
inside this unit is energized from the battery supply even when the input AC power is
disconnected.
CAUTION (No user serviceable parts): Risk of electric shock – do not remove cover,
no user serviceable parts inside. Refer service to qualified service personnel.
WARNING (Fuses): To reduce risk of fire, replace only with the same type and rating
of fuse.
WARNING: Do not disconnect battery connector under load.
ATTENTION: Hazardous through electrical shock. Also with disconnection of this unit
from the mains, hazardous voltage still may be accessible through supply from the
batteries. The battery supply should therefore be disconnected in the positive and
the negative pole when maintenance or service work inside the battery cabinet or
UPS is considered.
CAUTION (For any pluggable only): With the installation of this equipment it should
be prevented, that the sum of the leakage current of the UPS and connected
consumer does not exceed 3.5 mA.
CAUTION (For permanent connection only): HIGH LEAKAGE CURRENT, Earth
connection essential before connection supply.
CAUTION: Do not dispose of batteries to fire, the battery may explode.
CAUTION: Do not open or mutilate the battery, released electrolyte is harmful to
human skin, eyes, etc.
CAUTION: A battery can bring risk of electric shock and high short circuit current.
The following precaution should be observed when working on batteries:
A. Remove watches, rings or other metal objects.
B. Use only tools with insulated handles.
C. Wear rubber gloves and boots.
D. Do not lay tools or metal parts on top of batteries.
E. Disconnect charging source prior to connecting or disconnecting battery
terminals.
Servicing of batteries should be performed or supervised by personnel with
knowledge of batteries and the required precautions. Keep unauthorized personnel
away from batteries.
CAUTION: When replacing batteries, replace with the same type and number of
batteries.
CAUTION: To reduce risk of fire, use only No.26 AWG or larger telecommunication
line cable.
CAUTION: Do not apply for uses in a computer room as defined in the Standard for
the Protection of Electronic Computer / Data Processing Equipment, ANSI/NFPA75.
CAUTION: This UPS is not applicable for motors, hair dryers, speakers, and
fluorescent lamps.
User’s operations:
The only operations that users are permitted to do are:
• Turning the UPS unit on and off.
• Operating the users interface.
• Connecting data interface cables.
All such operations are to be performed exactly as instructed in this manual. The
greatest care possible must be taken for any of these operations and any change
thereof may prove very hazardous to the operator.
The instructions contained within this safety manual are deemed important and should
be closely followed at all times during installation and follow-up maintenance of the UPS
and batteries.
2
© All rights reserved. All trademarks are property of their respective owners.
SAVE THESE INSTRUCTIONS
Please read and save this manual
Thank you for selecting this uninterruptible power system (UPS). It provides you with a perfect
protection for connected equipment. The manual is a guide to install and use the UPS. It includes
important safety instructions for operation and correct installation of the UPS. If you should have
any problems with the UPS, please refer to this manual before calling customer service.
Please save or recycle the packaging materials
The UPS‘s shipping materials are designed with great care to provide protection within delivery.
These materials are invaluable if you ever have to return the UPS for service. Damage happened
during transit is not covered under the warranty.
1. Introduction
The UPS is a line interactive uninterruptible power system (UPS). When utility input is normal,
the UPS would provide surge protection and energy to charge the internal battery. If the utility
input is abnormal, the UPS can supply AC power to the loads immediately.
(1) Utilizes microprocessor based controls, it will minimizes the dependency on hardware. Beside
this, it maximizes system flexibility and optimizes the assurance of reliability.
(2) Automatic frequency selection to match with utility power.
(3) High-grade battery charger to prolong battery’s life and fully charge the battery.
(4) With actual overload protection both in line and battery mode.

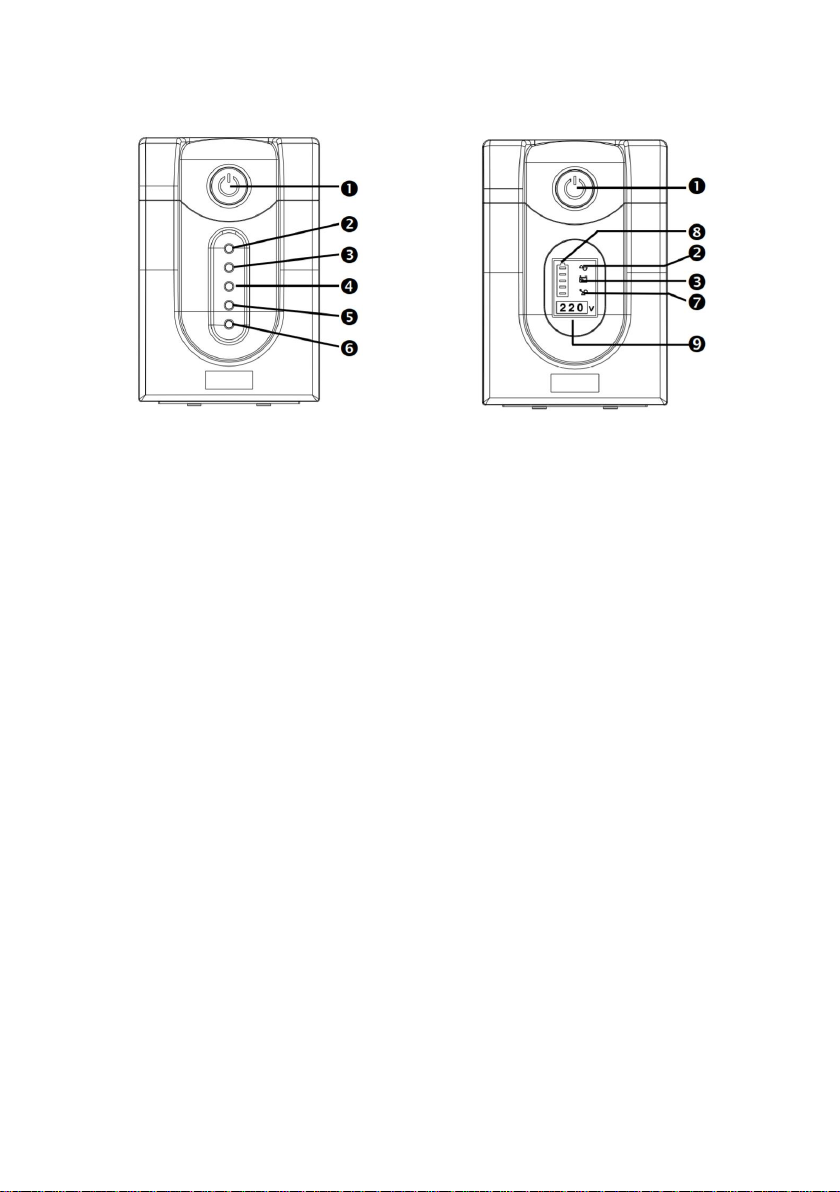

2. System Description
The product is an advanced line-interactive UPS based on microprocessor control. This means that
it operates with the newest technology, high performance and powerful function.
The line-interactive UPS is an intelligent protector and provides pure, reliable AC power to the
critical loads - protecting them from utility power blackout, swells, sags, surges and interference.
The loads could include sensitively medical instruments, computers, telecommunication systems,
and industrially automatic equipment. Under power normal condition, the line-interactive design
enables the system to adjust and filter power fluctuations continuously and automatically. In the
event of power failure, it can provide immediately back-up power from the batteries without any
interruption. Complete transference will be achieved within 4m seconds, with no interruption.
Beside this, when the utility power is connected, the charger would work automatically even
under power switch is OFF. Furthermore, in order to save the battery energy, UPS can be set to
turn it off under backup mode if none of the connected loads is operating.
The visual and audible indications of the UPS present the battery’s status including capacity degree
and battery condition. Self-test function let UPS detect a weak battery before it is put into service.
The UPS normally perform a self-test at power up and manual self-test condition. Self-test function
can be conducted manually with the ON/TEST switch at any time.
The line-interactive UPS and UPSMON series monitoring software (optional kits) make your
computer operate intelligent and provide you with the ability of perfect protection of your critical
devices. The software is available for most operation systems and is supplied with a
communication cable that connects to the UPS.
Intelligent microprocessor control
Advanced battery management
Advanced monitoring software
3
