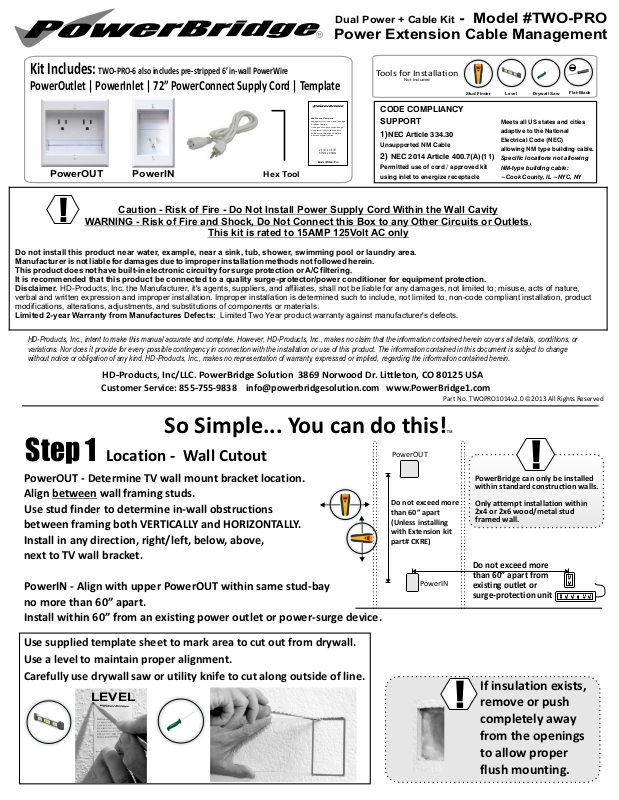

PowerBridge TWO-PRO User Manual
Dual Power + Cable Kit - Model #TWO-PRO
Caution - Risk of Fire - Do Not Install Power Supply Cord Within the Wall Cavity
WARNING - Risk of Fire and Shock, Do Not Connect this Box to any Other Circuits or Outlets.
This kit is rated to 15AMP 125Volt AC only
Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.
Manufacturer is not liable for damages due to improper installation methods not followed herein.
This product does not have built-in electronic circuitry for surge protection or A/C filtering.
It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.
Disclaimer. HD-Products, Inc. the Manufacturer, it's agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature,
verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product
modifications, alterations, adjustments, and substitutions of components or materials.
Limited 2-year Warranty from Manufactures Defects: Limited Two Year product warranty against manufacturer's defects.
Power Extension Cable Management
Kit Includes: TWO-PRO-6 also includes pre-stripped 6’ in-wall PowerWire
PowerOutlet | PowerInlet | 72” PowerConnect Supply Cord | Template
Wall Cut-out Template:
Lay against wall, use a level on edge
of paper to align.
Use a pencil to trace around edge.
Use drywall saw or sharp utility
knife cut on the edge of the line.
Remove drywall section.
2.1/4” x 3.5/8”
57mm x 93mm
Model #ONE/Pro
PowerOUT
PowerIN
Hex Tool
Tools for Installation
Not Included
Stud Finder
CODE COMPLIANCY
SUPPORT
1)NEC Article 334.30
Unsupported NM Cable
2) NEC 2014 Article 400.7(A)(11)
Permitted use of cord / approved kit
using inlet to energize receptacle
Level
Drywall Saw
Meets all US states and cities
adaptive to the National
Electrical Code (NEC)
allowing NM type building cable.
Specific locations not allowing
NM-type building cable:
~Cook County, IL ~NYC, NY
!
HD-Products, Inc., intent to make this manual accurate and complete. However, HD-Products, Inc., makes no claim that the information contained herein covers all details, conditions, or
variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change
without notice or obligation of any kind. HD-Products, Inc., makes no representation of warranty, expressed or implied, regarding the information contained herein.
HD-Products, Inc/LLC. PowerBridge Solution 3869 Norwood Dr. Littleton, CO 80125 USA
Customer Service: 855-755-9838 info@powerbridgesolution.com www.PowerBridge1.com
Part No. TWOPRO1014v2.0 2013 All Rights Reserved
Flat-Blade
So Simple... You can do this!
Step 1 Location - Wall Cutout
PowerOUT
!
PowerOUT - Determine TV wall mount bracket location.
Align between wall framing studs.
Use stud finder to determine in-wall obstructions
between framing both VERTICALLY and HORIZONTALLY.
Install in any direction, right/left, below, above,
Do not exceed more
than 60” apart
(Unless installing
with Extension kit
part# CKRE)
next to TV wall bracket.
PowerIN - Align with upper PowerOUT within same stud-bay
PowerIN
no more than 60” apart.
Install within 60” from an existing power outlet or power-surge device.
Use supplied template sheet to mark area to cut out from drywall.
Use a level to maintain proper alignment.
Carefully use drywall saw or utility knife to cut along outside of line.
LEVEL
PowerBridge can only be installed
within standard construction walls.
Only attempt installation within
2x4 or 2x6 wood/metal stud
framed wall.
Do not exceed more
than 60” apart from
existing outlet or
surge-protection unit
If insulation exists,
remove or push
!
completely away
from the openings
to allow proper
flush mounting.
Step 2
In-Wall Installation
A) Begin at the upper PowerOUT location.
Drop or wall-fish audio video cables and NM-type
PowerWire (ROMEX) to the PowerIN location below.
Pull all cables out lower cutout.
!
Use NM-type building wire.
14/2 size wire only.
Copper wire only
Wire Connection - Assembly
B) Strip NM-type PowerWire use Wire Strip Gauge on label.
Remove outer sheath and strip Black and White wires as shown.
C) Insert wire through funnel of back-box as shown.
D) Insert wires as shown on label into wire-ports of OUTLET.
E) Insert small black and white power-light wires with same
color PowerWires as shown on label into openings of INLET.
F) Tighten all three screws to 12 in-lbs. securing wires.
G) Bend all three wires toward the cable-brush.
H) Slide back-box onto back, secure with the 4 supplied screws
with supplied hex-tool
I) Insert tab into funnel, this snaps in place.
OUTLET
Black Wire >
BLACK Wire
Green Wire BARE Wire
<White Wire
WHITE Wire
Port Connectors
Push wire all the
way in.
F
G
CU
B
NOTE:
Kits supplied with
NM wire are
already pre-stripped
C
D
!
DO THIS FIRST
H
Wire Strip Gauge
1.5”
E
I
1/2”
Green Screw BARE Wire
TOP
INLET
J) Slide audio video cables through backside through CableBrush.
Allow for enough cable length out to connect to TV and Equipment.
K) Slide both wall plates into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Silver
WHITE Wire
Screw >
W
< Brass Screw
BLACK Wire
G
Careful to not over-tighten.
Plug supplied 6’ PowerConnect cord into PowerIN.
Plug other end into existing grounded outlet or surge protector.
Step 3
Plug it in
CAUTION-Risk of Fire-Only Use Cord Set Provided With This Kit
or equivalent.
The PowerBridge In-Wall Extension is now energized.
Plug TV power supply cord in to PowerOUT and connect AV cables to TV.
Follow wall mount manufacture instructions, install TV on wall bracket.
Surge Protector
Existing
Outlet
Plug in TV
Plug in Flat Angle Plug
