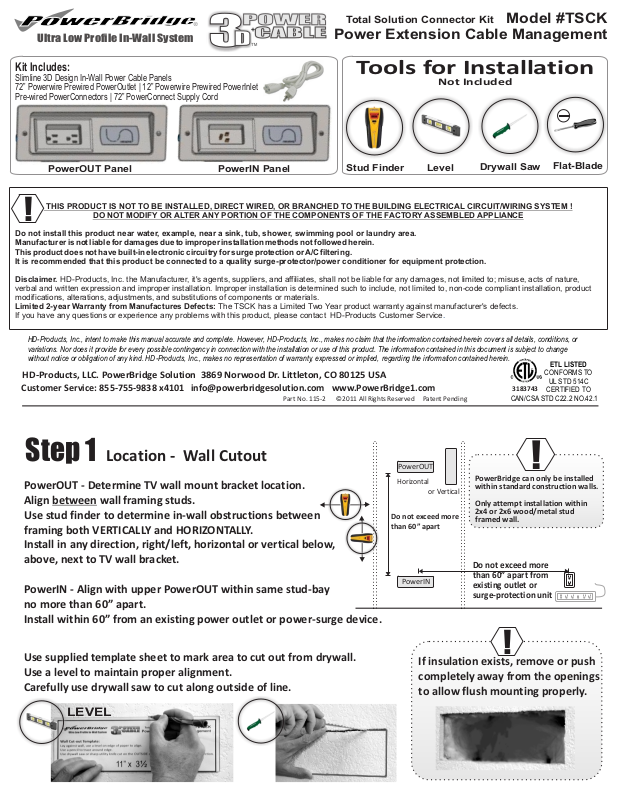

PowerBridge TSCK User Manual
THIS PRODUCT IS NOT TO BE INSTALLED, DIRECT WIRED, OR BRANCHED TO THE BUILDING ELECTRICAL CIRCUIT/WIRING SYSTEM !
DO NOT MODIFY OR ALTER ANY PORTION OF THE COMPONENTS OF THE FACTORY ASSEMBLED APPLIANCE
Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.
Manufacturer is not liable for damages due to improper installation methods not followed herein.
This product does not have built-in electronic circuitry for surge protection or A/C filtering.
It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.
Disclaimer. HD-Products, Inc. the Manufacturer, it's agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature,
verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product
modifications, alterations, adjustments, and substitutions of components or materials.
Limited 2-year Warranty from Manufactures Defects: The TSCK has a Limited Two Year product warranty against manufacturer's defects.
If you have any questions or experience any problems with this product, please contact HD-Products Customer Service.
Ultra Low Profile In-Wall System
3
POWER
CABLE
D
Total Solution Connector Kit Model #TSCK
Power Extension Cable Management
Kit Includes:
Slimline 3D Design In-Wall Power Cable Panels
72” Powerwire Prewired PowerOutlet | 12” Powerwire Prewired PowerInlet
Pre-wired PowerConnectors | 72” PowerConnect Supply Cord
PowerOUT Panel
PowerIN Panel
Tools for Installation
Not Included
Stud Finder
Level
Drywall Saw
!
HD-Products, Inc., intent to make this manual accurate and complete. However, HD-Products, Inc., makes no claim that the information contained herein covers all details, conditions, or
variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change
without notice or obligation of any kind. HD-Products, Inc., makes no representation of warranty, expressed or implied, regarding the information contained herein.
HD-Products, LLC. PowerBridge Solution 3869 Norwood Dr. Littleton, CO 80125 USA
Customer Service: 855-755-9838 x4101 info@powerbridgesolution.com www.PowerBridge1.com
Part No. 115-2 2011 All Rights Reserved Patent Pending
3183743
CAN/CSA STD C22.2 NO.42.1
CONFORMS TO
CERTIFIED TO
Flat-Blade
ETL LISTED
UL STD 514C
Step 1 Location - Wall Cutout
PowerOUT
PowerOUT - Determine TV wall mount bracket location.
Align between wall framing studs.
Use stud finder to determine in-wall obstructions between
framing both VERTICALLY and HORIZONTALLY.
Horizontal
or Vertical
Do not exceed more
than 60” apart
PowerBridge can only be installed
within standard construction walls.
Only attempt installation within
2x4 or 2x6 wood/metal stud
framed wall.
Install in any direction, right/left, horizontal or vertical below,
above, next to TV wall bracket.
PowerIN
PowerIN - Align with upper PowerOUT within same stud-bay
Do not exceed more
than 60” apart from
existing outlet or
surge-protection unit
no more than 60” apart.
Install within 60” from an existing power outlet or power-surge device.
Use supplied template sheet to mark area to cut out from drywall.
Use a level to maintain proper alignment.
Carefully use drywall saw to cut along outside of line.
LEVEL
If insulation exists, remove or push
completely away from the openings
to allow flush mounting properly.
!
!
|
Step 2
A) Begin at the upper PowerOUT location.
Drop or wall-fish audio video cables FIRST, to the PowerIN
location below.
REPEAT for PowerConnect cable with connector.
B) Slide audio video cables through backside of CableGate.
Optional:
Cable zip-tie straps can be used to secure cables through CableHoops.
Allow for enough cable length out to connect to TV and AV equipment.
C) Slide PowerOUT panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-tighten.
Wall Installation
!
Drop or wall-fish audio/video
cables within wall
BEFORE PowerConnect cable
D) At PowerIN location, connect both PowerConnect Cable
connectors together.
You should hear a click sound locking both connectors together.
Repeat step B with audio video cables.
To disconnect PowerConnectors, push-in end of Locking Latch on the clear side of both connectors.
Press with finger tips at the same time pulling apart connectors to disconnect from Locking Tabs.
!
E) Slide PowerIN panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-tighten.
Plug supplied 6’ PowerConnect cord into PowerIN.
Plug other end into existing grounded outlet or surge protector.
Step 3
Plug it in
Do not use another extension cord to extend the supplied cord.
The PowerBridge In-Wall Extension is now energized.
Locking Tab
Locking Latch
Surge Protector
Existing
Outlet
Plug TV power supply cord in to PowerOUT and connect AV cables to TV.
Follow wall mount manufacture instructions, install TV on wall bracket.
Plug in TV
Plug in Flat Angle Plug in the far right receptacle
