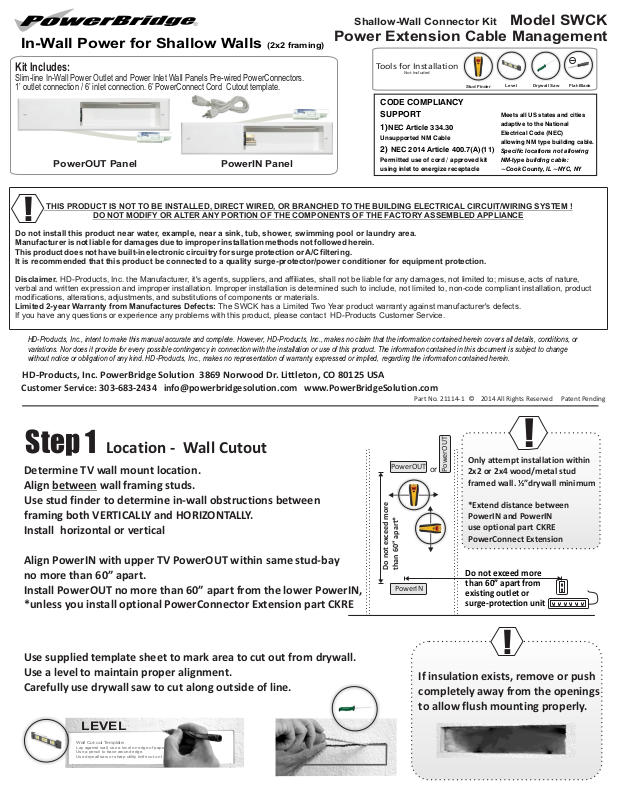

PowerBridge SWCK User Manual
THIS PRODUCT IS NOT TO BE INSTALLED, DIRECT WIRED, OR BRANCHED TO THE BUILDING ELECTRICAL CIRCUIT/WIRING SYSTEM !
DO NOT MODIFY OR ALTER ANY PORTION OF THE COMPONENTS OF THE FACTORY ASSEMBLED APPLIANCE
Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.
Manufacturer is not liable for damages due to improper installation methods not followed herein.
This product does not have built-in electronic circuitry for surge protection or A/C filtering.
It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.
Disclaimer. HD-Products, Inc. the Manufacturer, it's agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature,
verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product
modifications, alterations, adjustments, and substitutions of components or materials.
Limited 2-year Warranty from Manufactures Defects: The SWCK has a Limited Two Year product warranty against manufacturer's defects.
If you have any questions or experience any problems with this product, please contact HD-Products Customer Service.
In-Wall Power for Shallow Walls (2x2 framing)
Shallow-Wall Connector Kit Model SWCK
Power Extension Cable Management
Kit Includes:
Slim-line In-Wall Power Outlet and Power Inlet Wall Panels Pre-wired PowerConnectors.
1’ outlet connection / 6’ inlet connection. 6’ PowerConnect Cord Cutout template.
PowerOUT Panel
PowerIN Panel
Tools for Installation
Not Included
Stud Finder
CODE COMPLIANCY
SUPPORT
1)NEC Article 334.30
Unsupported NM Cable
2) NEC 2014 Article 400.7(A)(11)
Permitted use of cord / approved kit
using inlet to energize receptacle
Level
Drywall Saw
Meets all US states and cities
adaptive to the National
Electrical Code (NEC)
allowing NM type building cable.
Specific locations not allowing
NM-type building cable:
~Cook County, IL ~NYC, NY
!
HD-Products, Inc., intent to make this manual accurate and complete. However, HD-Products, Inc., makes no claim that the information contained herein covers all details, conditions, or
variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change
without notice or obligation of any kind. HD-Products, Inc., makes no representation of warranty, expressed or implied, regarding the information contained herein.
HD-Products, Inc. PowerBridge Solution 3869 Norwood Dr. Littleton, CO 80125 USA
Customer Service: 303-683-2434 info@powerbridgesolution.com www.PowerBridgeSolution.com
Part No. 21114-1 2014 All Rights Reserved Patent Pending
Flat-Blade
Step 1 Location - Wall Cutout
Only attempt installation within
PowerOUT
2x2 or 2x4 wood/metal stud
framed wall. ½”drywall minimum
*Extend distance between
PowerIN and PowerIN
use optional part CKRE
PowerConnect Extension
Do not exceed more
than 60” apart from
existing outlet or
surge-protection unit
Determine TV wall mount location.
PowerOUT
or
Align between wall framing studs.
Use stud finder to determine in-wall obstructions between
framing both VERTICALLY and HORIZONTALLY.
Install horizontal or vertical
Align PowerIN with upper TV PowerOUT within same stud-bay
Do not exceed more
than 60” apart*
no more than 60” apart.
Install PowerOUT no more than 60” apart from the lower PowerIN,
PowerIN
*unless you install optional PowerConnector Extension part CKRE
Use supplied template sheet to mark area to cut out from drywall.
Use a level to maintain proper alignment.
Carefully use drywall saw to cut along outside of line.
LEVEL
Wall Cut-out Template:
Lay against wall, use a level on edge of pape
Use a pencil to trace around edge.
Use drywall saw or sharp utility knife cut on t
If insulation exists, remove or push
completely away from the openings
to allow flush mounting properly.
!
!
|
Step 2
A) Begin at the upper TV PowerOUT location.
1) Drop / wall-fish audio/video cables to the
lower PowerIN location
2) REPEAT for PowerConnect cable with connector.
3) Pull PowerConnect cable and audio/video cables through lower PowerIN cutout.
B) Slide audio/video cables from the TV through cable slot in the top of the PowerOUT.
Leave enough length out to connect to TV.
C) Slide power panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-tighten screws
Wall Installation
Drop or wall-fish audio/video cables within wall
BEFORE PowerConnect cable
A1) Audio/Video Cables from TV
A2) PowerConnect (TV)
!
A3) PowerIN opening
D)
Connect the upper PowerOUT PowerConnect Cable connectors
together to the short 1’ top PowerConnect Cable of the PowerIN.
You should hear a click sound locking both together.
To disconnect PowerConnectors, push-in end of Locking Latch on the top side of both connectors.
Press with finger tips at the same time pulling apart connectors to disconnect from Locking Tabs.
!
E) Slide audio/video cables from the TV through cable slot in the top of the PowerIN.
Leave enough length out to connect to AV equipment.
F) Slide power panel into wall opening.
Use Flat-Blade screw driver to secure panel to wall.
Careful to not over-tighten screws
Plug supplied 6’ PowerConnect cord female end in to PowerIN.
Step 3
Plug it in
Plug other end into existing grounded outlet or surge protector.
CAUTION-Risk of Fire-Only Use Cord Set Provided With This Kit or equivalent.
The PowerBridge In-Wall Extension is now energized.
Locking Tab
Locking Latch
Surge Protector
Existing
Outlet
Plug TV power supply cord in to PowerOUT and connect AV cables to TV.
Follow wall mount manufacture instructions, install TV on wall bracket.
Plug in TV power cord
(Samsung) Flat Angle Plug
