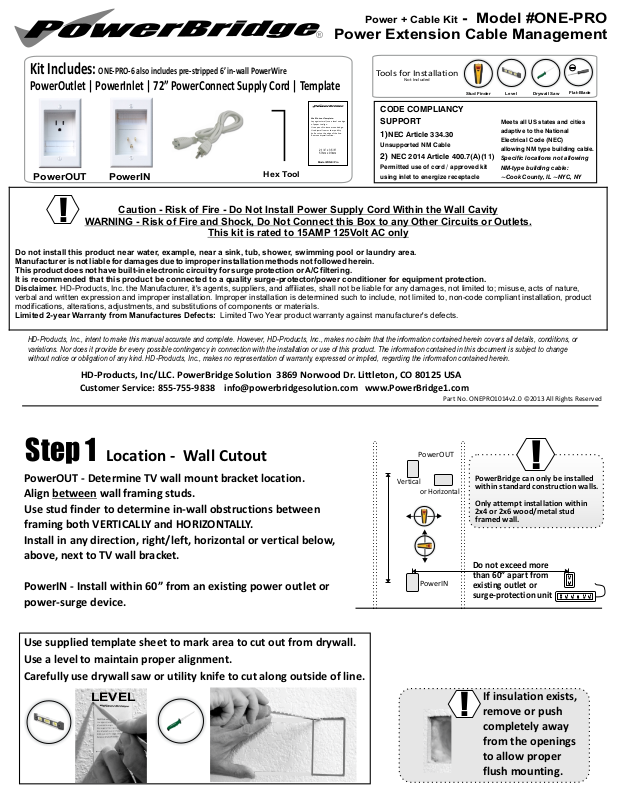

PowerBridge ONE-PRO User Manual

Power + Cable Kit - Model #ONE-PRO

Caution - Risk of Fire - Do Not Install Power Supply Cord Within the Wall Cavity

WARNING - Risk of Fire and Shock, Do Not Connect this Box to any Other Circuits or Outlets.

This kit is rated to 15AMP 125Volt AC only

Do not install this product near water, example, near a sink, tub, shower, swimming pool or laundry area.
Manufacturer is not liable for damages due to improper installation methods not followed herein.
This product does not have built-in electronic circuitry for surge protection or A/C filtering.
It is recommended that this product be connected to a quality surge-protector/power conditioner for equipment protection.
Disclaimer. HD-Products, Inc. the Manufacturer, it's agents, suppliers, and affiliates, shall not be liable for any damages, not limited to; misuse, acts of nature,

verbal and written expression and improper installation. Improper installation is determined such to include, not limited to, non-code compliant installation, product
modifications, alterations, adjustments, and substitutions of components or materials.
Limited 2-year Warranty from Manufactures Defects: Limited Two Year product warranty against manufacturer's defects.

Power Extension Cable Management

Kit Includes: ONE-PRO-6 also includes pre-stripped 6’ in-wall PowerWire

PowerOutlet | PowerInlet | 72” PowerConnect Supply Cord | Template

Wall Cut-out Template:

Lay against wall, use a level on edge

of paper to align.

Use a pencil to trace around edge.

Use drywall saw or sharp utility

knife cut on the edge of the line.

Remove drywall section.

2.1/4” x 3.5/8”
57mm x 93mm

Model #ONE/Pro

PowerOUT

PowerIN

Hex Tool

Tools for Installation

Not Included

Stud Finder

CODE COMPLIANCY

SUPPORT

1)NEC Article 334.30

Unsupported NM Cable

2) NEC 2014 Article 400.7(A)(11)

Permitted use of cord / approved kit

using inlet to energize receptacle

Level

Drywall Saw

Meets all US states and cities

adaptive to the National

Electrical Code (NEC)

allowing NM type building cable.

Specific locations not allowing

NM-type building cable:

~Cook County, IL ~NYC, NY

!

HD-Products, Inc., intent to make this manual accurate and complete. However, HD-Products, Inc., makes no claim that the information contained herein covers all details, conditions, or
variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change
without notice or obligation of any kind. HD-Products, Inc., makes no representation of warranty, expressed or implied, regarding the information contained herein.

HD-Products, Inc/LLC. PowerBridge Solution 3869 Norwood Dr. Littleton, CO 80125 USA

Customer Service: 855-755-9838 [e-mail] www.PowerBridge1.com

Part No. ONEPRO1014v2.0 2013 All Rights Reserved

Flat-Blade

Step 1 Location - Wall Cutout

PowerOUT

!

PowerOUT - Determine TV wall mount bracket location.
Align between wall framing studs.

Vertical
or Horizontal

Use stud finder to determine in-wall obstructions between
framing both VERTICALLY and HORIZONTALLY.
Install in any direction, right/left, horizontal or vertical below,
above, next to TV wall bracket.

PowerIN - Install within 60” from an existing power outlet or

PowerIN

power-surge device.

Use supplied template sheet to mark area to cut out from drywall.
Use a level to maintain proper alignment.
Carefully use drywall saw or utility knife to cut along outside of line.

LEVEL

PowerBridge can only be installed
within standard construction walls.

Only attempt installation within
2x4 or 2x6 wood/metal stud
framed wall.

Do not exceed more
than 60” apart from
existing outlet or
surge-protection unit

If insulation exists,
remove or push

!

completely away
from the openings
to allow proper
flush mounting.

Step 2

In-Wall Installation

A) Begin at the upper PowerOUT location.
Drop or wall-fish audio video cables and NM-type
PowerWire (ROMEX) to the PowerIN location below.
Pull all cables out lower cutout.

!

Use NM-type building wire.
14/2 size wire only.
Copper wire only

Wire Connection - Assembly

B) Strip NM-type PowerWire use Wire Strip Gauge on label.
Remove 1.5” of outer sheath. ½” off Black and White wires.
C) Insert wire through funnel of back-box as shown.
D) Insert small black and white power-light wires with same
color PowerWires as shown on label into back of OUTLET/INLET.
E) Tighten all three screws to 12 in-lbs. securing wires.
F) Bend all three wires toward the cable-brush.
G) Slide back-box onto back, secure with the 4 supplied screws
with supplied hex-tool.
H) Insert tab into funnel, this snaps in place.

TOP

OUTLET

Brass Screw >
BLACK Wire

W

Screw

< Silver
WHITE Wire

E

F

CU

B

NOTE:
Kits supplied with
NM wire are
already pre-stripped

C

!

DO THIS FIRST

G

D

Wire Strip Gauge

1.5”

H

1/2”

Green Screw BARE Wire

Green Screw BARE Wire

TOP

INLET

I) Slide audio video cables through backside through CableBrush.
Allow for enough cable length out to connect to TV and Equipment.

J) Slide both wall plates into wall opening.
Use Flat-Blade screw driver to secure panel to wall.

Silver
WHITE Wire

Screw >

W

< Brass Screw
BLACK Wire

G

Careful to not over-tighten.

Plug supplied 6’ PowerConnect cord into PowerIN.
Plug other end into existing grounded outlet or surge protector.

Step 3

Plug it in

CAUTION-Risk of Fire-Only Use Cord Set Provided With This Kit
or equivalent.

The PowerBridge In-Wall Extension is now energized.

Surge Protector

Existing

Outlet

Plug TV power supply cord in to PowerOUT and connect AV cables to TV.
Follow wall mount manufacture instructions, install TV on wall bracket.

Plug in TV

Plug in Flat Angle Plug
