Poulan CHD145H42C User Manual
Specifications and Main Features
- Model Number: CHD145H42C
- Engine power: 14.5 horsepower
- Mowing deck size: 1.07m
- Petrol requirement: 2 litres of unleaded petrol
- Oil If:
- SAE 30 (for temperature above 0 degrees)
- SAE 5W-30 (for temperature below 0 degrees)
- Oil amount:
- With a filter: 3.5 pints
- Without a filter: 3.0 pints
- Spark plus Used: Champion RJ1SLM (gap 0.030)
- Valve Adjustment:
- Distance from the intake to the valve seat: .005” – .007”
- Distance from the exhaust to the valve seat: .009” – .011”
- Tyre pressure:
- For the Front tyre: 14 psi
- For the Rear tyre: 10 psi
- System for charging:
- 3 Amps (Battery)
- 5 Amps (Headlight)
- Classification of the battery:
- Amp/hour: 25
- Minimum CCA: 190
- Case Size: U1R
- Blade bolt tension: 30-35 ft. lbs.
Frequently Asked Questions
Q1: What type of gasoline should be used in the tractor?
A1: The gasoline that the tractor uses can be unleaded and it should not be forgetting that it has a capacity of 2 gallons.
Q2: What is the recommended oil type for the engine?
A2: The oils type recommended are SAE 30 for temperatures more than 32 or above degree Fahrenheit and SAE 5W-30 for temperatures lesser than 32 degrees Fahrenheit.
Q3: What is the approximate the time interval for an oil change?
A3: Depending on the use of the equipment, oil should be replaced after every 25 hours or once a year in case the annual usage is less than 25 hours.
Q4: The engine does not start, what should I check?
A4: Ensure there is enough fuel, the choke is on, spark plug is working, battery charge is sufficient or not.
Q5: Is there any recommended tire pressure for a tractor?
A5: Yes, the recommended tire pressure for the front tires is 14 PSI and for rear tires is set to a minimum of 10 PSI.
Q6: In cases where I need to adjust the cutting height of the mower, what do I do?
A6: You should locate the attache lift lever which will enable you to raise or lower the mower deck. The ranges for the cutting height is within the limits of 1.5 and 4 inches.

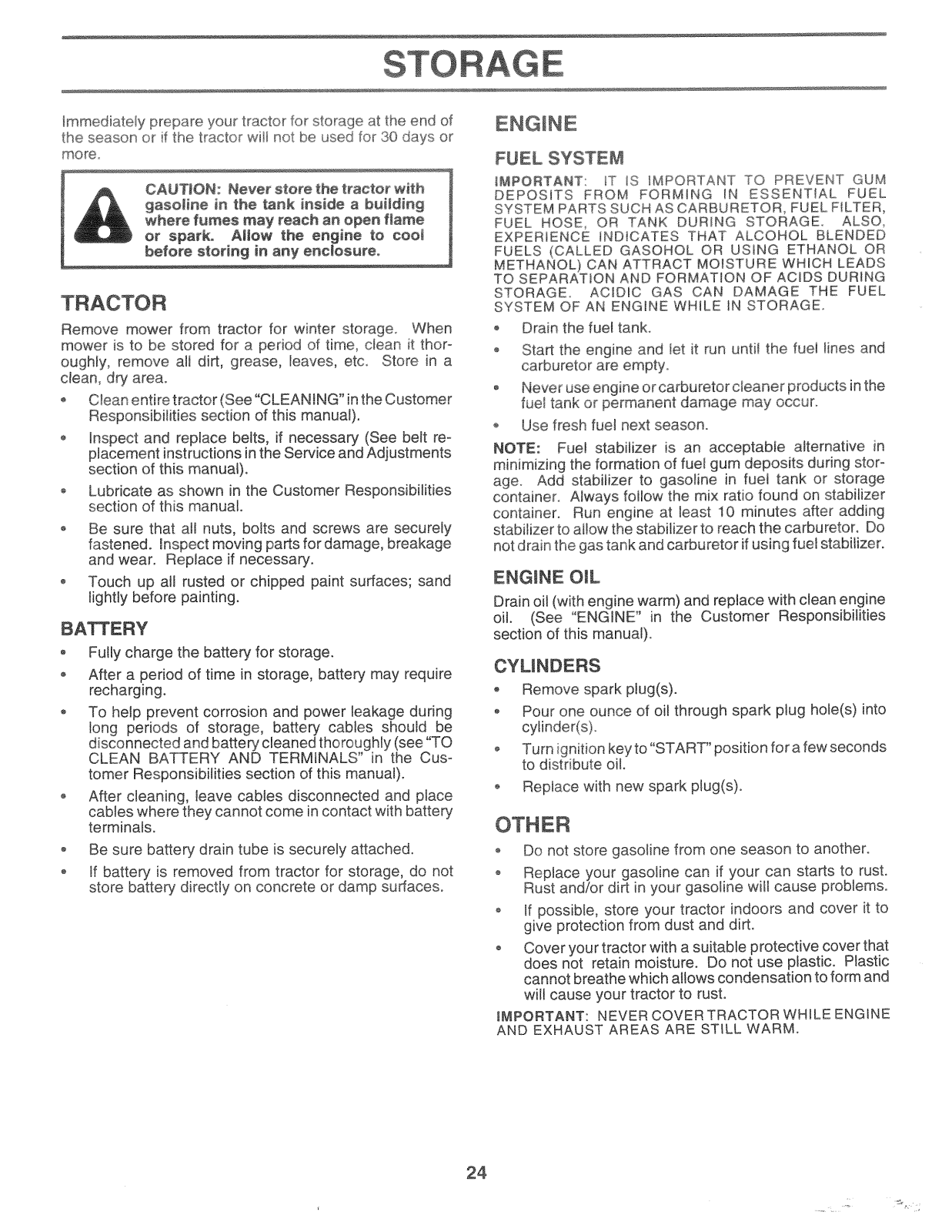

Q7: What steps should I take when storing the tractor during winter?
A7: Storage requires that you completely remove the mower, clean it, charge the battery, add stabilizing fuel into the fuel tank and perform belt lubrication maintenance.
