pottery barn kids
CAMERON CREATIVITY CART
PRE-ASSEMBLY:
• For your safety and ea se, assembly by two adults is reco mme nded.
• Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly
when used in conjunction with the assembly instructions.
• Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping
box provides and ideal work surface. Do not dispose of any contents until assembly is completed to avoid
accidentally discarding small parts or hardware.
• Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.
• Note: Do NOT fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause
the bolts to misalign during assembly.
• If using power tools to aid in assembly please use caution. Power tools can damage hardware or split wood.
PARTS INCLUDED:
(A) Front Side Panel – 1pc
C.
A.
(B) Rear Side Panel – 1pc
(C) Right Side Panel – 1pc
(D) Left Side Panel – 1pc
(E) Bottom Panel – 1pc
E.
B.
HARDWARE INCLUDED:
(F) Small Wood Screw 4 x 19mm
– 16pcs
(I) Caster – 4pcs
TOOLS REQUIRED:
Philips Screwdriver (Not included)
D.
(G) Long Wood Screw 4 x 38mm
– 16pcs
(H) Medium Wood Screw 4 x
30mm – 8pcs
Page 1/3
ASSEMBLY INSTRUCTIONS:
1. Align and attach the wooden dowels on the Front/Rear Side Panels (A & B) to the pre-drilled holes on the
Right Side Panel (C) using (8) Long Wood Screws (G). Make sure the slots on the Front/Rear Side Panels
face inwards (Figure 1).
G.
A.
B.
C.
2. Slide the Bottom Panel (E) into the slots on the assembled piece (Figure 2).
E.
Figure 1
Figure 2
A.
B.
C.
Page 2/3

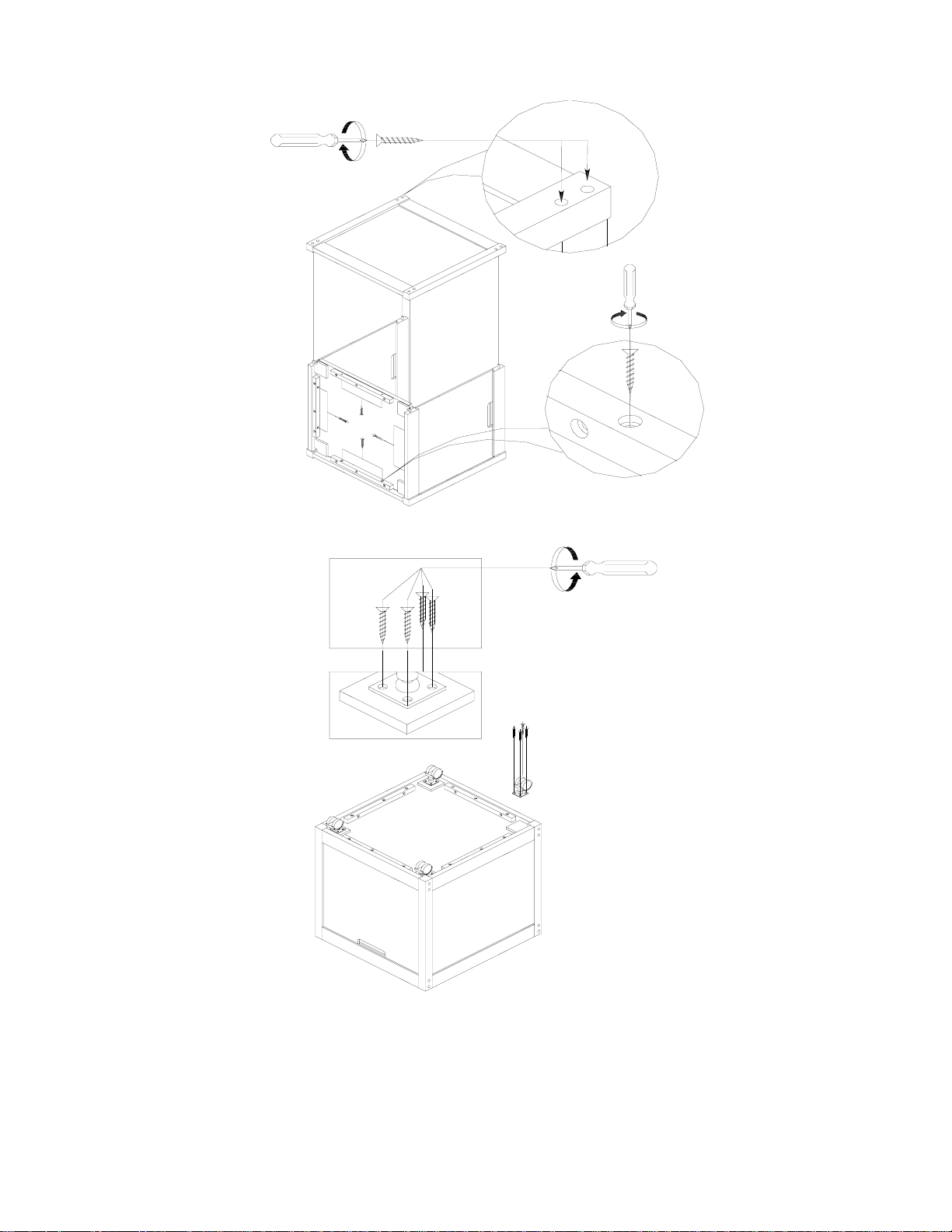

3. Align the predrilled holes on the Left Side Pane l (D) to the wo ode n dowels on the Front/Rear Side Panels.
Secure with remaining (8) Long Wood Screws (G). Attach the Bottom Panel (E) to the 4 Side panels using
(8) Medium Wood Screws (H) (Figure 3).
G.
D.
Figure 3
H.
B.
E
4. Place the assembled piece upside down on a carpeted, scratch-free work surface. Attach the (4) Casters (I)
to the pre-drilled holes on the Bottom Panel (E) using (16) Short Wood Screws (F).
F.
Figure 4
I.
E.
CARE INSTRUCTIONS:
• Dust often using a clean, soft, dry lint-free cloth.
• Blot sp i lls immediately , an d wi pe with a clean, damp, cloth.
• We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered
finish.
Thank you for your purchase.
stores | catalog | www.potterybarnkids.com
USA 1.800.290.8181
Page 3/3
