Pottery Barn Cameron Creativity Art Cubby Assembly Instruction

pottery barn kids

CAMERON ART CUBBY

IMPORTANT SAFETY INSTRUCTIONS: Please read all instructions carefully before assembling. For your safety, assembly by two people is recommended.
PART LIST
Top Panel
A
Bottom Panel
B
Shelf
C
Outer Side Board
D
Back Panel
E
Insert Shelf
F
Inner Side Board
G
(01 pc) (01 pc) (01 pc) (02 pcs) (01 pc) (02 pcs) (02 pcs)
Allen Key
H
Bolt 1/4" x 30mm
I
J
Flat Washer 1/4"
K
Connecting Bracket
L
Screw (for C.Bracket)
M
Plastic Restraint
N
Plastic Wall Bracket
O
Long Screw
P
Short Screw
Q
Square Bracket
S
Screw (for S.Bracket)
T
PRE-ASSEMBLY:
Remove all parts and hardware from the box and lay out on a clear, carpeted or scratch-free work surface. (The shipping box provides an ideal work surface), this will avoid damaging any parts during assembly. Do not dispose of any contents until assembly is completed to avoid accidentally discarding small parts or hardware.
Use the parts and hardware lists above to identify and separate each of the pieces included.
The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions.
Note: Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may cause
the bolts to misalign during assembly.
If using power tools to aid in assembly please use caution. Power tools can damage hardware or split wood.
ASSEMBLY INSTRUCTIONS:
1. Carefully attach Outer Side Boards (D) to Shelf (C) as shown in Step 1.
2. Slide the Back Panel (E) into the slots on the backside of the Outer Side Panels. Attach the Bottom Panel (B) as shown using (4) Allen Bolts (I), Flat Washers (K) & Spring Washers (J). Note: The correct order for the washers to go on the Allen Bolt is: Spring Washer first, Flat Washer second. Please see Step 2.
3. Set the Top Panel (A) on the already assembled pie ce s and secure with remaining 4 Allen Bolt s (I), Flat Washers (K) & Spring Washers (J). Please see Step 3.
4. Place the Insert Shelf (F) to the slots on the Inner Side Board (G) and slide into the bottom compartment of the assembled piece. Please see Step 4.
5. If connecting Art Cubby piece to Base piece use (12) Screws (M) and (2) Connecting Brackets (L) as shown. Screws are self-drilling and are designed to go into wood easily
6. If connecting Art Cubby piece to Cubby piece use (4) screws (T) and (1) Square Connecting Bracket (S) as shown. Screws are self-drilling and are designed to go into wood easily.
7. Fully tighten all the screws and bolts to complete the assembly.
8. For Anti Tip Kit, please see separate instruction s.
CARE INSTRUCTIONS:
Dust with a clean, soft cloth.
Avoid the use of chemicals and harsh cleaning a gents.
Do not climb on the Cubby.
Thank you for your purchase.
stores | catalog | www.potterybarnkids.com
HARDWARE LIST
(01 pc) (08 pcs) (08 pcs) (08 pcs) (02 pcs) (12 pcs)
(01 pc) (02 pcs)
(02 pc (02 pcs)
(01 pc) (04 pcs)
s)
Outer Side Board
D
Flat Washer
Spring Washer
K
J
Allen Key
Bolt
I
Outer Side Board
D
Connecting Bracket
L
H
Screw
M
Top Panel
A
C
Shelf
STEP 1
Back Panel
STEP 3
E
Inner Side Board
G
Inner Side Board
G
F
Insert She lf
STEP 2
B
Bottom Panel
STEP 4
Square Connecting
Wood screw
T
Bracket
S
Connecting Bracket
S
Wood screw
T

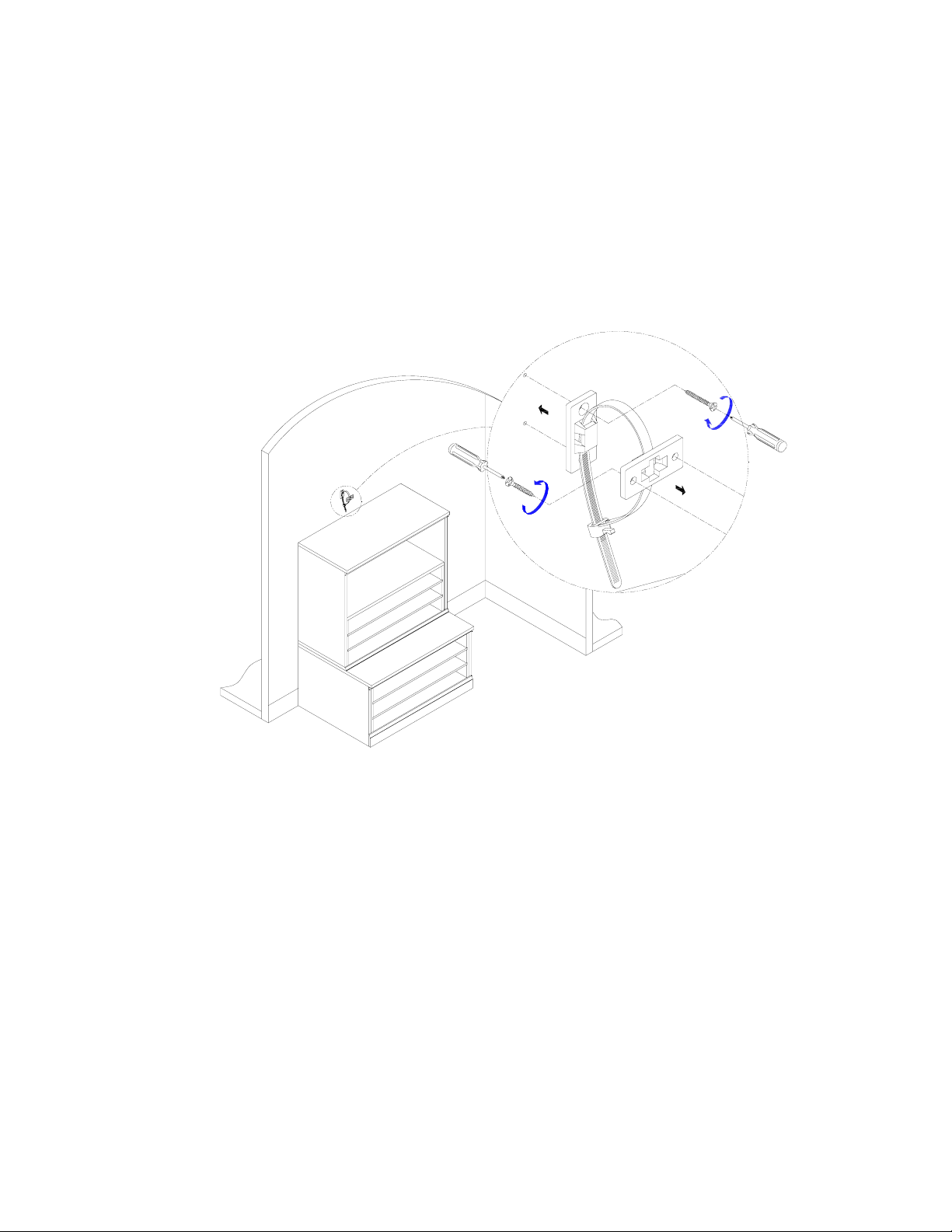

FURNITURE TIPPING RESTRAINT

Young children may be injured by tipping furniture. The use of a tipping restraint is highly recommended.
When properly installed, this restraint could provide protection against the unexpected tipping of furniture due to small tremors, bumping or climbing. We recommend mounting this restraint to a wall stud.
WARNING: This product is only a deterrent. It is not a substitute for proper adult supervision.
Installation Instructions:
1. Attach one of the mounting brackets near the top back edge of the furniture piece by inserting the shorter screw.
2. Determine the final position of the furniture piece. Mark location on the wall approximately 2” below the bracket mounted to the back of the furniture.
3. Drill a starter hole into the wall stud. If wall stud is not available, drill a hole into the wall and insert plastic anchor. Gently tap the anchor until the flange of the anchor is flush with the wall.
4. Attach the second bracket by inserting the longer screw through the bracket and into the wall.
5. Position the furniture so the bracket on the back edge is in line with the bracket on the wall.
6. Lace one end of the nylon restraint strap down through each bracket. Bring both ends together and slide the beaded end until it snap locks into the keyhole slot.
7. To double-lock, return the beaded end back through the keyholes, as shown.
8. Check to make sure the strap is securely laced and locked to the brackets. Do not
overtighten.
