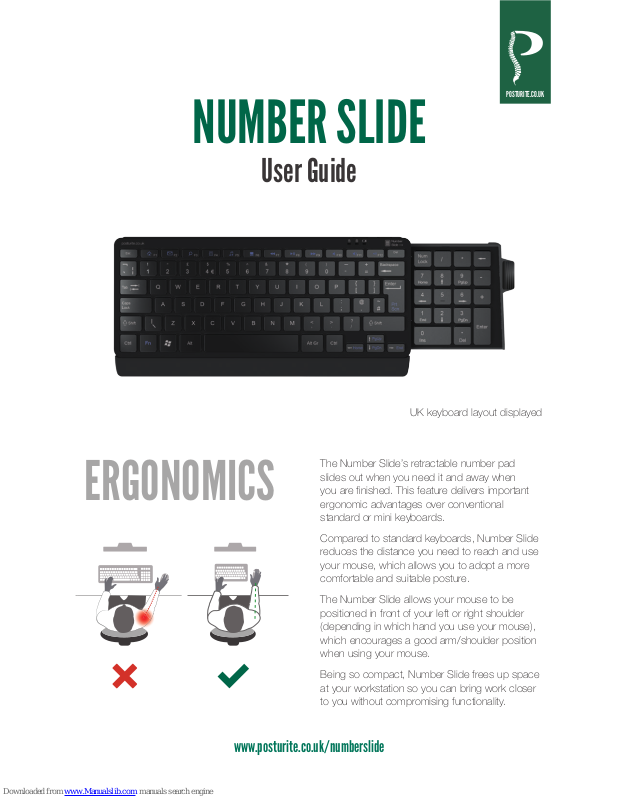

Posturite Number Slide User Manual

NUMBER SLIDE

User Guide

The Number Slide’s retractable number pad
slides out when you need it and away when
you are finished. This feature delivers important
ergonomic advantages over conventional
standard or mini keyboards.

Compared to standard keyboards, Number Slide
reduces the distance you need to reach and use
your mouse, which allows you to adopt a more
comfortable and suitable posture.

The Number Slide allows your mouse to be
positioned in front of your left or right shoulder
(depending in which hand you use your mouse),
which encourages a good arm/shoulder position
when using your mouse.

Being so compact, Number Slide frees up space
at your workstation so you can bring work closer
to you without compromising functionality.

ERGONOMICS

POSTURITE.CO.UK

www.posturite.co.uk/numberslide

UK keyboard layout displayed

WIRED VERSION

1. Insert USB cable into a spare USB port on your computer

2. There are two auxiliary USB ports on the rear of the keyboard for use with peripherals

Warning lights

a. Number lock (Number Lock key found on slide out number pad)

b. Caps lock

c. Scroll lock

BLUETOOTH VERSION With built in rechargeable Li-ion battery (charging cable included)

To pair with a Windows® PC

1. Turn on Bluetooth via the Control Panel on your PC and search for devices

2. On the keyboard rear edge, slide the keyboard ON/OFF switch to the ON position

3. Press the ‘CONNECT’ button on the rear edge. The power light should ash until pairing is

complete

4. On your PC control panel, select Posturite KB Number Slide

5. To un-pair at any time, simply delete from the list of Bluetooth items

USB ports
(Wired version)

Power
(Bluetooth version)

Connect
(Bluetooth pairing)

(a)

Tab - pull gently
to slide out
number pad

(b)

(c)
