Preface, Important Notice iQ User’s Manual

Preface

This manual explains how to set up and begin using your iQ printer. It also provides detailed information on configuring your printer, basic operations, care and troubleshooting.

Please read this manual carefully before using the POSTEK iQ printer.

Important Notice, Read Me First

The thermal printhead can be easily damaged due to its precision construction. A printhead damaged by misuse is not covered under the terms of the warranty. To ensure longevity of the printhead, please note the following:

1. DO NOT scrape or use tools that might damage the printhead surface.

2. To protect from corroding the printhead, DO NOT touch the printhead with bare hands.

3. DO NOT use thermal paper or thermal transfer ribbons which contain Na, K or Cl.

4. Keep printhead from any form of liquid or dampness.

5. Only use a cotton swab dipped in anhydrous isopropyl alcohol to clean the printhead.

6. Always use high-quality consumables:

 When the printhead module is closed, pressure is placed directly onto the printhead; dirt such as paper scraps, sand,

dust and glue can scrape or damage the printhead. Therefore, please always inspect consumables for high quality before purchasing. Any printhead damage caused by poor quality consumables is not covered under warranty.

1

Chapter 1: Introduction iQ User’s Manual

Mode

iQ/200

Printing method

Direct Thermal

Printing resolution

203 dpi (8 dots/mm)

Max printing speed

5 ips (127 mm/s)

Max printing width

4.09″(104 mm)

Max printing length

40″ (1016 mm)

Memory

8 MB FLASH ROM, 16 MB SDRAM

Media

Thermal paper Width：4.72″ (120 mm) max., 0.98” (25 mm) min. Supply roll: OD 5″ (127 mm) max., ID 1″ (25.4 mm) min.

Thickness: 0.003″～0.006″ (0.08～0.15 mm), including liner

Fonts

Five built-in dot matrix ASCII fonts, user-downloadable TrueType Fonts

Bar Code Types

1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128. 2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code.

Media sensor

Reflective (Adjustable)/Transimissive (Adjustable)

Interfaces

WIFI , RS-232 Serial, USB 2.0,

Power rating*

24 VDC, 2.5 A

Weight

1.8 kgs

Dimensions

W 8.3 x D 10.0 x H 5.9 inches (W 210 x D 255 x H 150 mm)

Operation environment

Temperature: 32 F ~ +104 F (0 C ~ 40 C) Relative humidity: 5% - 85% non condensing

Storage environment

Temperature: -40 F ~ +140 F (-40 C ~ 60 C) Relative humidity: 5% - 85% non condensing

Optional items

Guillotine Cutter, External Rewinder, Media Guide Adaptor, Bluetooth

Input

AC 100~240 V, 50~60 Hz

Output

DC 24 V, 2.5 A

Environment

0 C ~ 40 C

Chapter 1: Introduction

Printer Specifications

Specifications for Power Adapter

Contents of Box

Inspect the shipping carton(s) for possible shipping damage, if damage is discovered, notify the shipping company to

2

Chapter 1: Introduction iQ User’s Manual

iQ Printer

1 pc

Power Adapter

1 pc

USB interface cable

1 pc

Media Spindle

1 pc

Media Roll Guides

2 pcs

Quick Start Guide

1 pc

*CD-ROM pack

1 pc

report the nature and extent of the damage.

Please check the items according to the Packing List. If there are any items missing, notify your authorized reseller.

Packing List

*Note: CD-ROM pack includes the printer driver, label software, iQ User’s Manual, “How to install” video and

Programming Manual.

3

Chapter 1: Introduction iQ User’s Manual

iQ Printer

Media Spindle

Media Roll Guides

CD-Rom

Quick Start Guide

USB Cable

Power Adapter

External Media Stand

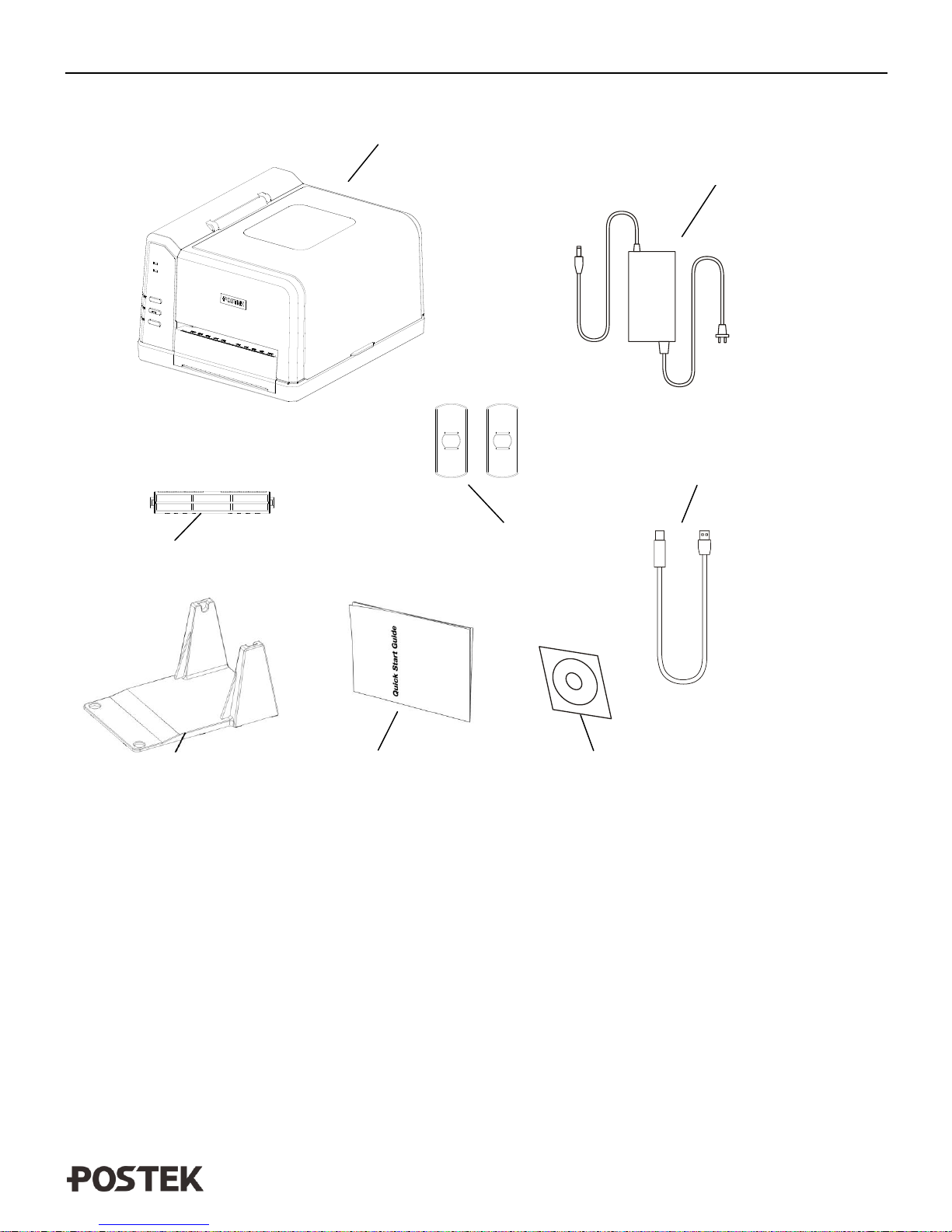

Figure 1: Printer and Accessories

4

Chapter 2: Setup and Use iQ User’s Manual

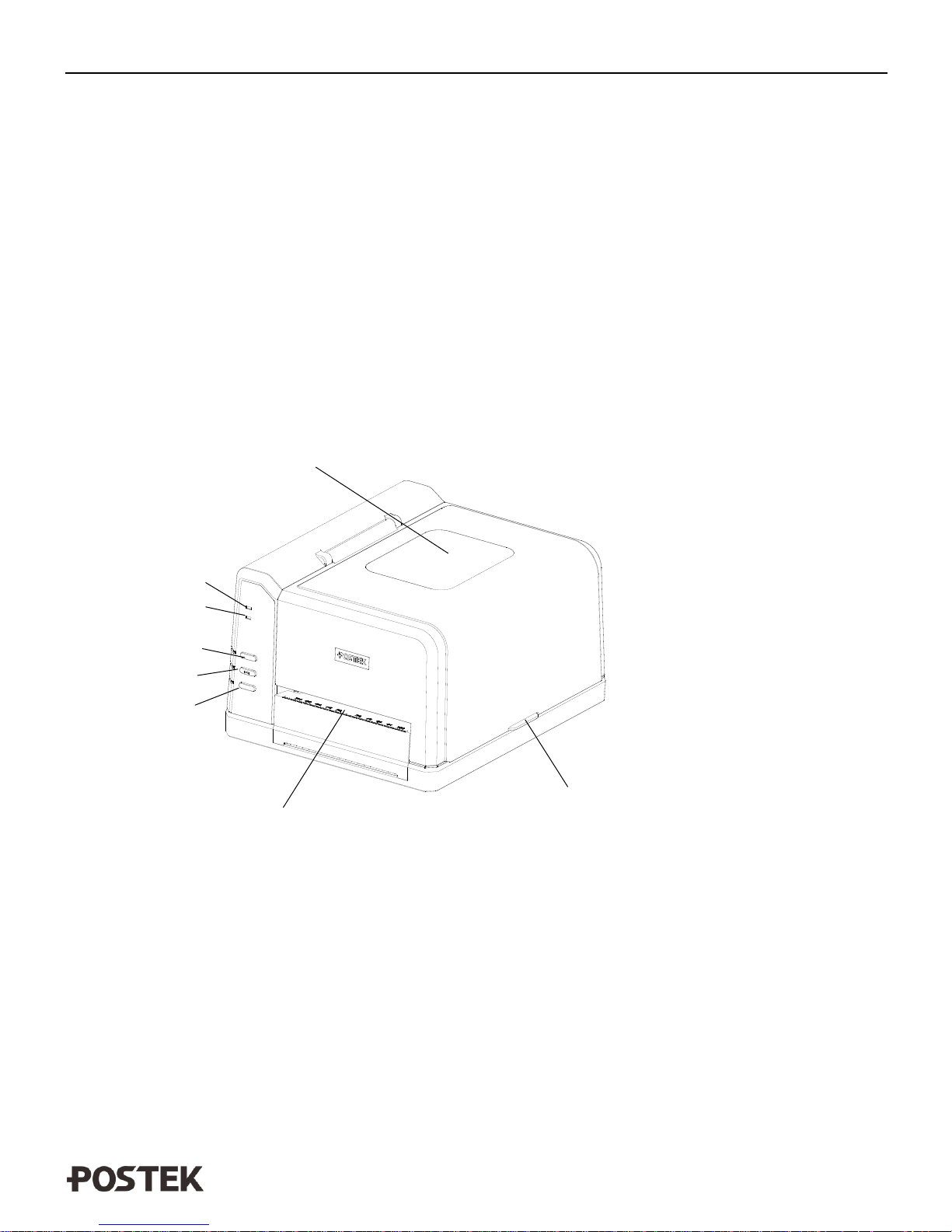

1. READY Indicator

4. FEED Button

7. Cover Handle

2. MEDIA Indicator

5. CANCEL Button

8. Observation Window

3. PAUSE Button

6. Media Exit

1 3 2

4 5 7

6

8

Chapter 2: Setup and Use

Setting up the Printer

Before setting up the printer consider the following:

1. Make sure there is adequate space around the printer for loading consumables and proper ventilation.

2. Make sure the printer is close to the host so the interface cable is easily accessible at either end.

Main Parts and Structures

5

Figure 2

Chapter 2: Setup and Use iQ User’s Manual

1. Handle

3. Tearbar

5. Media Guide

2. Platen Roller

4. Printhead Module

6. Media Compartment

1

2

3 5 6

4

Figure 3

6

Chapter 2: Setup and Use iQ User’s Manual

1. RS232 Serial Port

3. USB Port

5. Power Switch

2. DIP Switches

4. DC IN Port

1

2

3 5 4

Figure 4

Connecting the Printer

Warnings:

(1) Do not use the printer near liquids or corrosive chemicals. (2) Using the wrong power adapter may cause damage to your printer. POSTEK assumes no liability for any damage in

such cases. The rating for the printer is 24VDC.

1. Make sure the printer is switched OFF.

2. Connect the power cord to the Power Adapter

3. Connect the Power Adapter’s DC output plug to the DC IN port on the back of the printer.

4. Plug the power cord into a live wall outlet.

7

Chapter 2: Setup and Use iQ User’s Manual

Interface Connection

The iQ supports WIFI, RS-232 Serial, USB interface connections.

Note: When connecting the iQ printer to a computer via the USB interface cable, make sure to utilize the same USB port used during the driver installation process, which enables the printer to retrieve needed commands or data from the PC. If the same USB port is not available or not known, then in the printer’s Properties Dialogue Box, under the Ports tab, ensure the current port location is checked.

To connect:

1. Make sure the printer is powered OFF.

2. The printer will identify the communication port automatically.

3. The default values of printer port can be obtained from the self-test report. (See Chapter 2: Operation Basics/

Advanced Functions/ Self Test)

4. Cable configurations for Serial (RS-232C) interface is found in Appendix A of this guide.

5. Please take the following measures to reduce cable noise.

- Restrict the length of the interface cable to less than 6’ (1.83 M) if possible.

- Keep the interface cable separate from power cords.

8

Chapter 2: Setup and Use iQ User’s Manual

Loading the Media

iQ printers can be operated in two different modes: Standard mode and Cutting mode.

– In Standard mode, each printed label remains on the backing liner. – In Cutting mode, the printer automatically cuts the label after it is printed.

Standard Mode

To load media into the iQ while using Standard Mode:

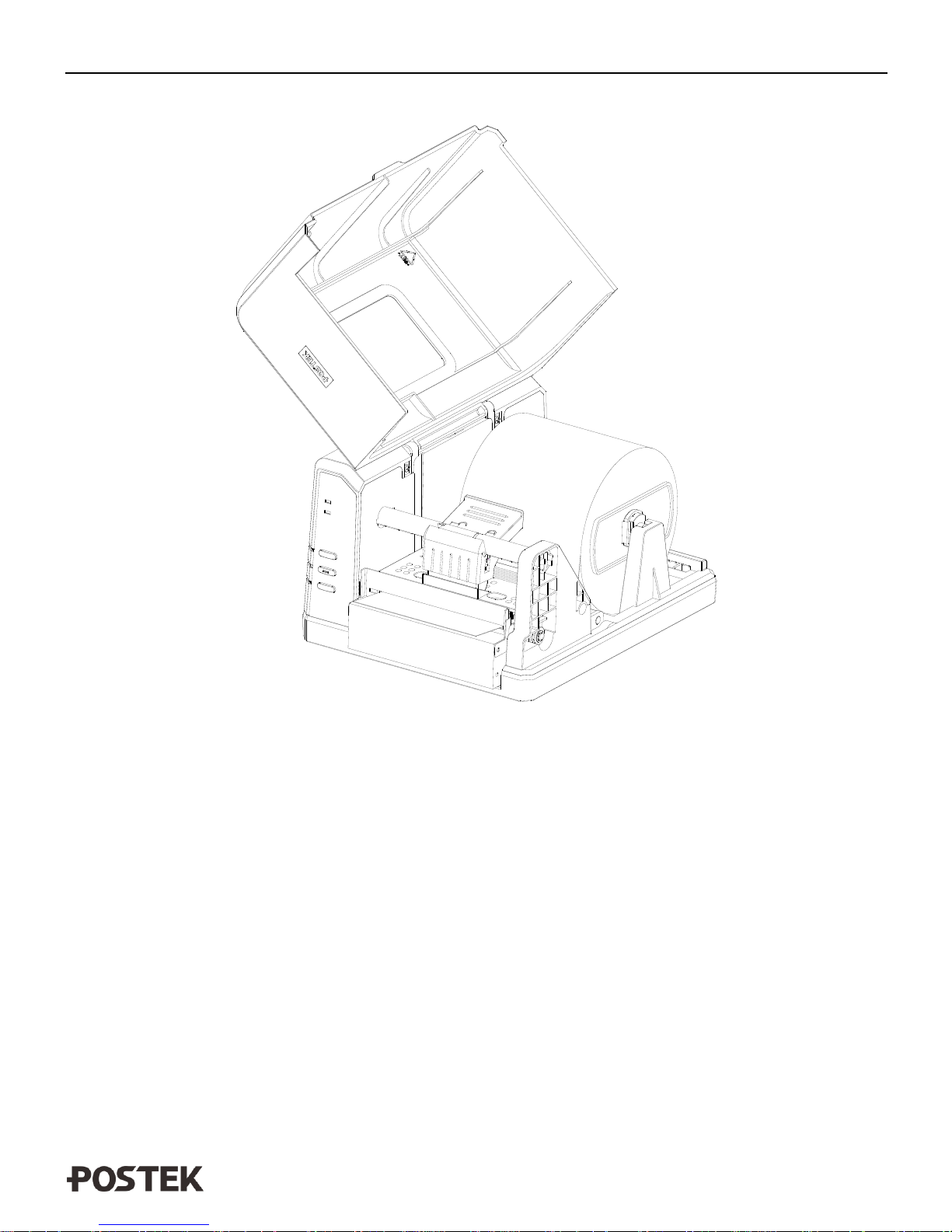

1. Lift up the top cover to expose the media compartment (see Figure 5-1).

2. Lift the Handle of the Printhead.

3. Take out the Media Spindle.

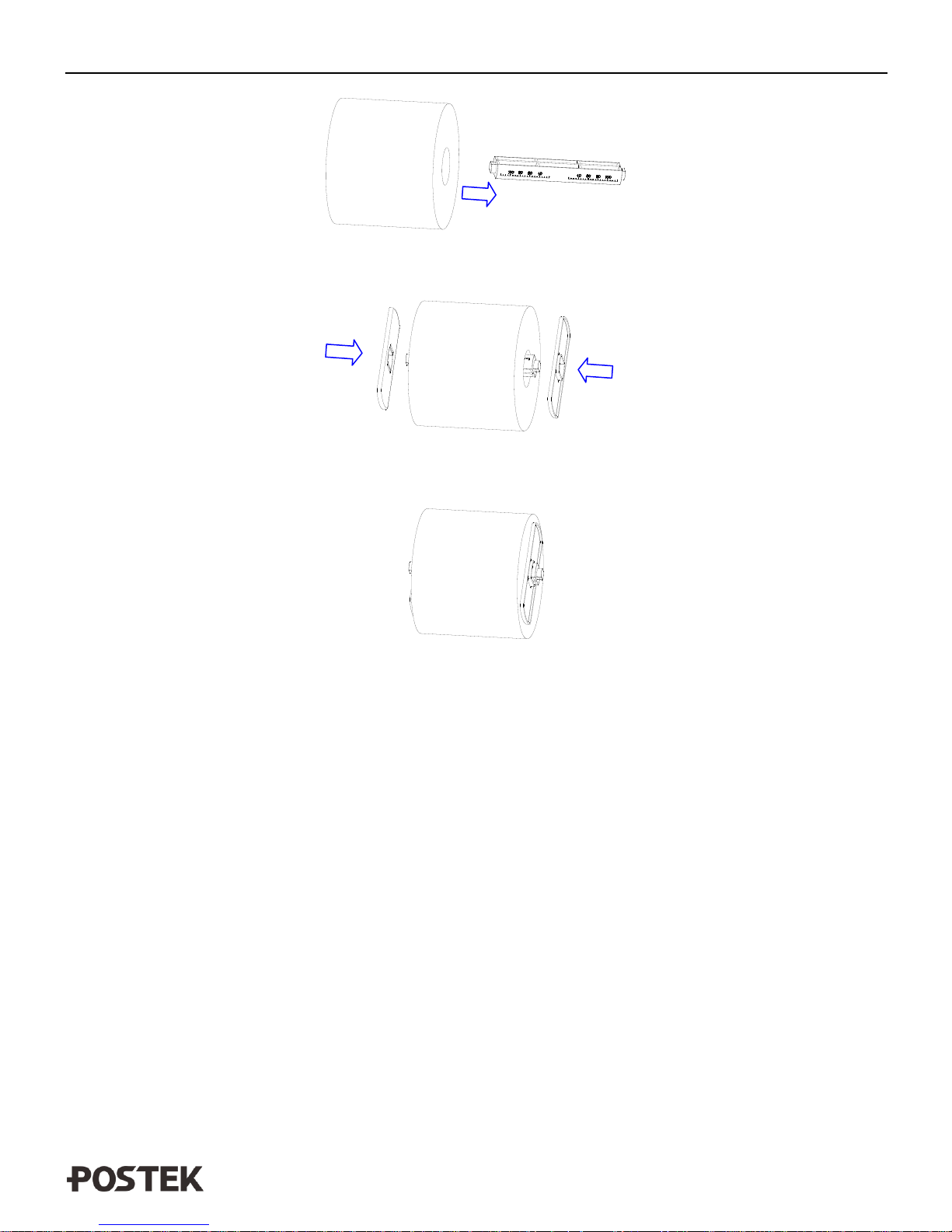

4. Load a roll of media (labels facing up) on the Media Spindle.

5. Slide the two Media Roll Guides, with smooth sides facing toward the media, onto the Media Spindle from each

end until snug against the media.

6. Insert the entire unit into the media compartment in the printer.

7. Position the media roll in the middle of the Spindle, using the scale for guidance.

8. Slide the Media Guide to the edge of the media.

9. Route the media through the bottom of the Media Guide Rod, and slide the Media Guides to the edge of the media;

don’t squeeze the labels, make sure they remain flat (see Figure 5-3).

10. Lead the media over and pass the Platen Roller to the front of the printer, and position the media in the middle of

the Platen Roller, using the scale for guidance.

11. Press down the Handle of the Printhead to lock the Printhead (see Figure 5-4).

12. Close the cover and press the “Feed” button to feed the media and ensure proper tracking. If the printer does not

correctly sense each label, it may be necessary to perform the Media Calibration procedure (found in the Operation

Basics section.)

9

Chapter 2: Setup and Use iQ User’s Manual

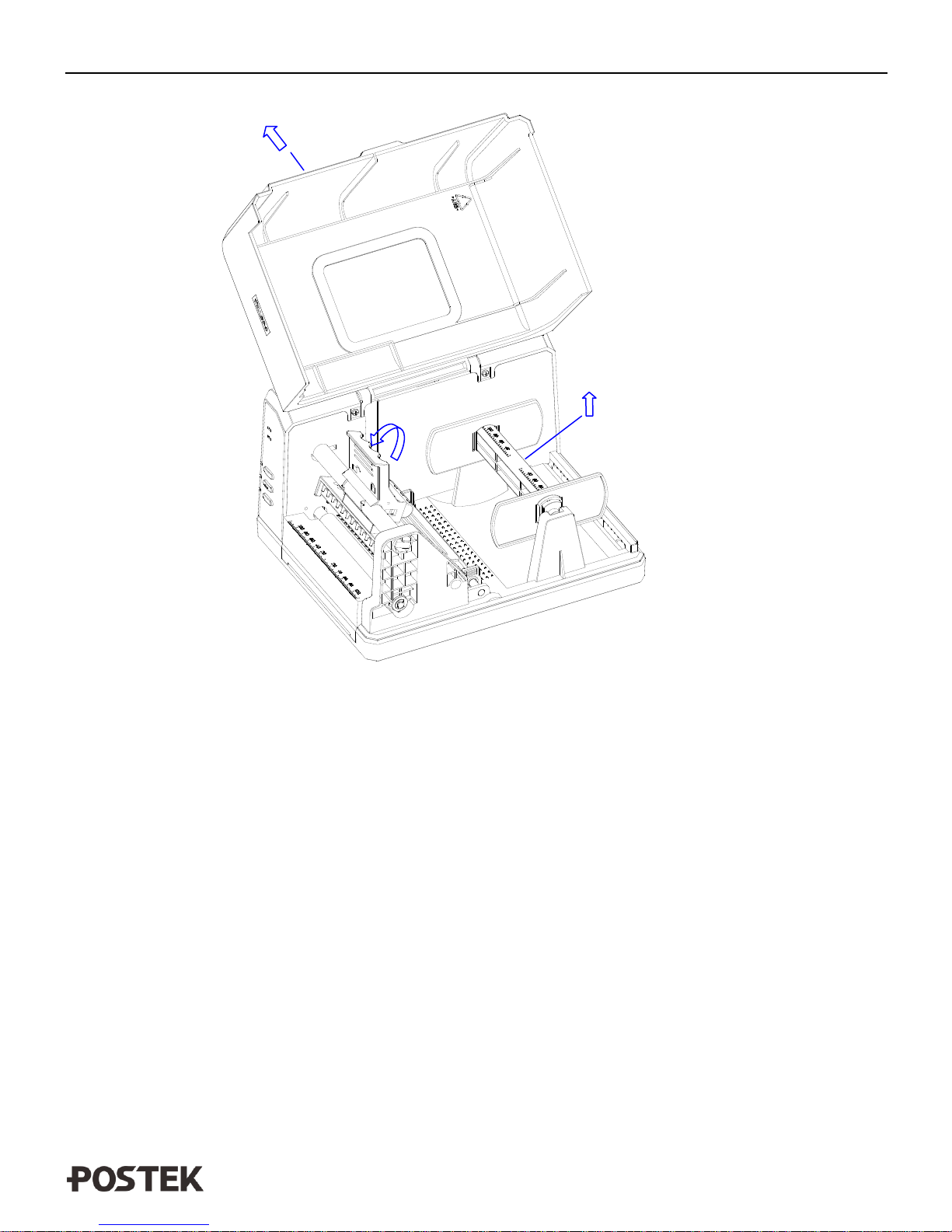

Figure 5-1

10

Chapter 2: Setup and Use iQ User’s Manual

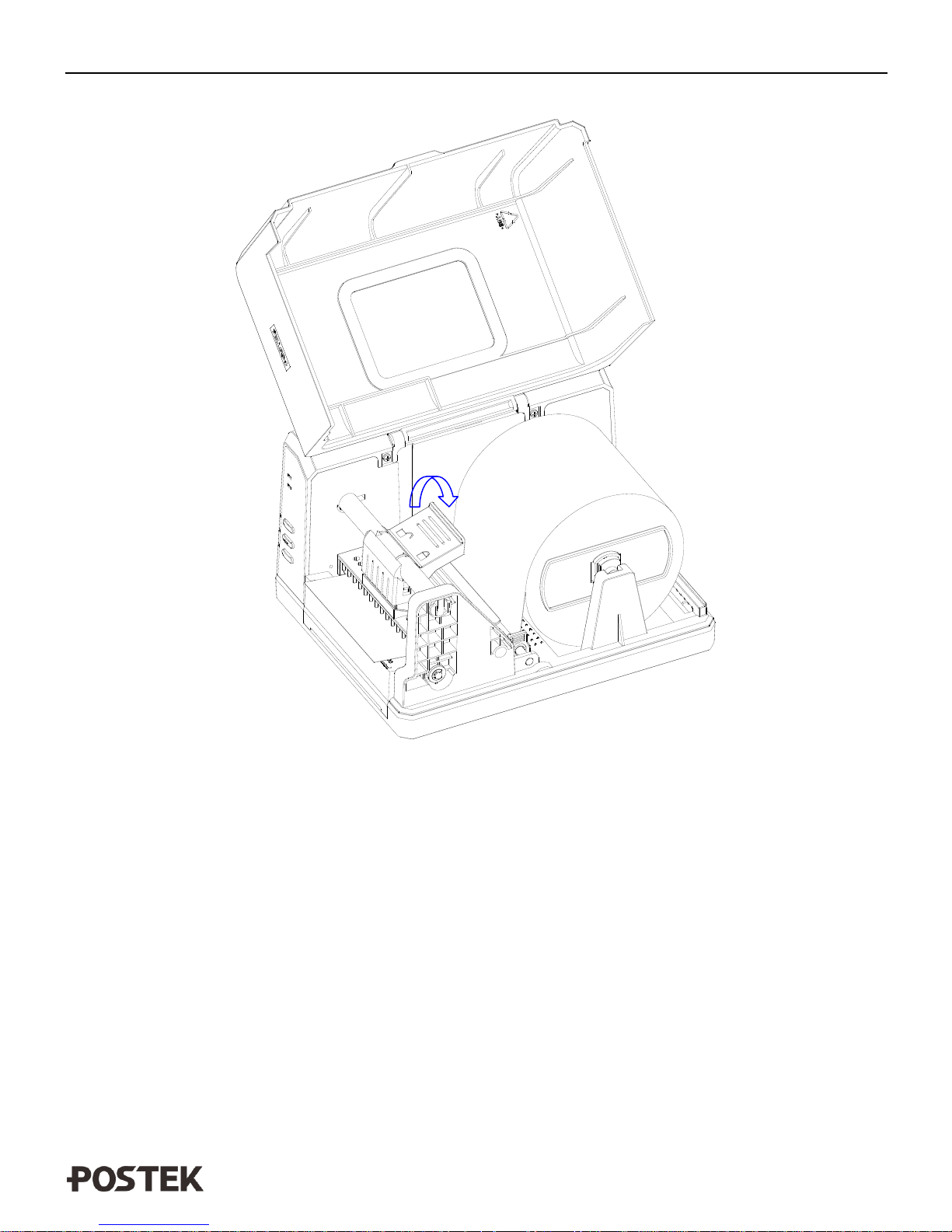

Figure 5-2

11

Chapter 2: Setup and Use iQ User’s Manual

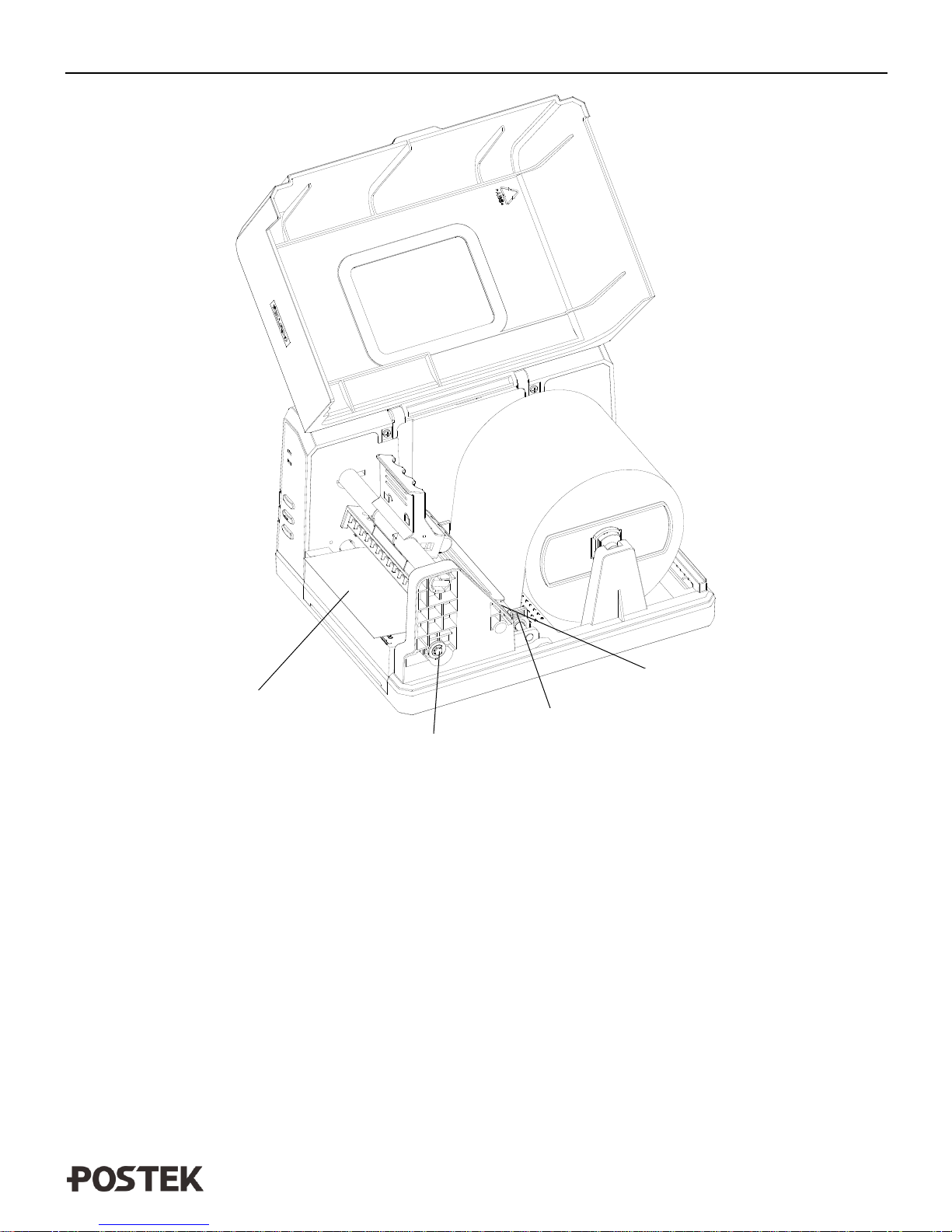

Media Guide

Platen Roller

Media Guide Rod

Media

Figure 5-3

12

Chapter 2: Setup and Use iQ User’s Manual

Figure 5-4

13

Chapter 2: Setup and Use iQ User’s Manual

Cutting Mode

Note: Operating the printer in Cutting mode requires the optional Guillotine Cutter.

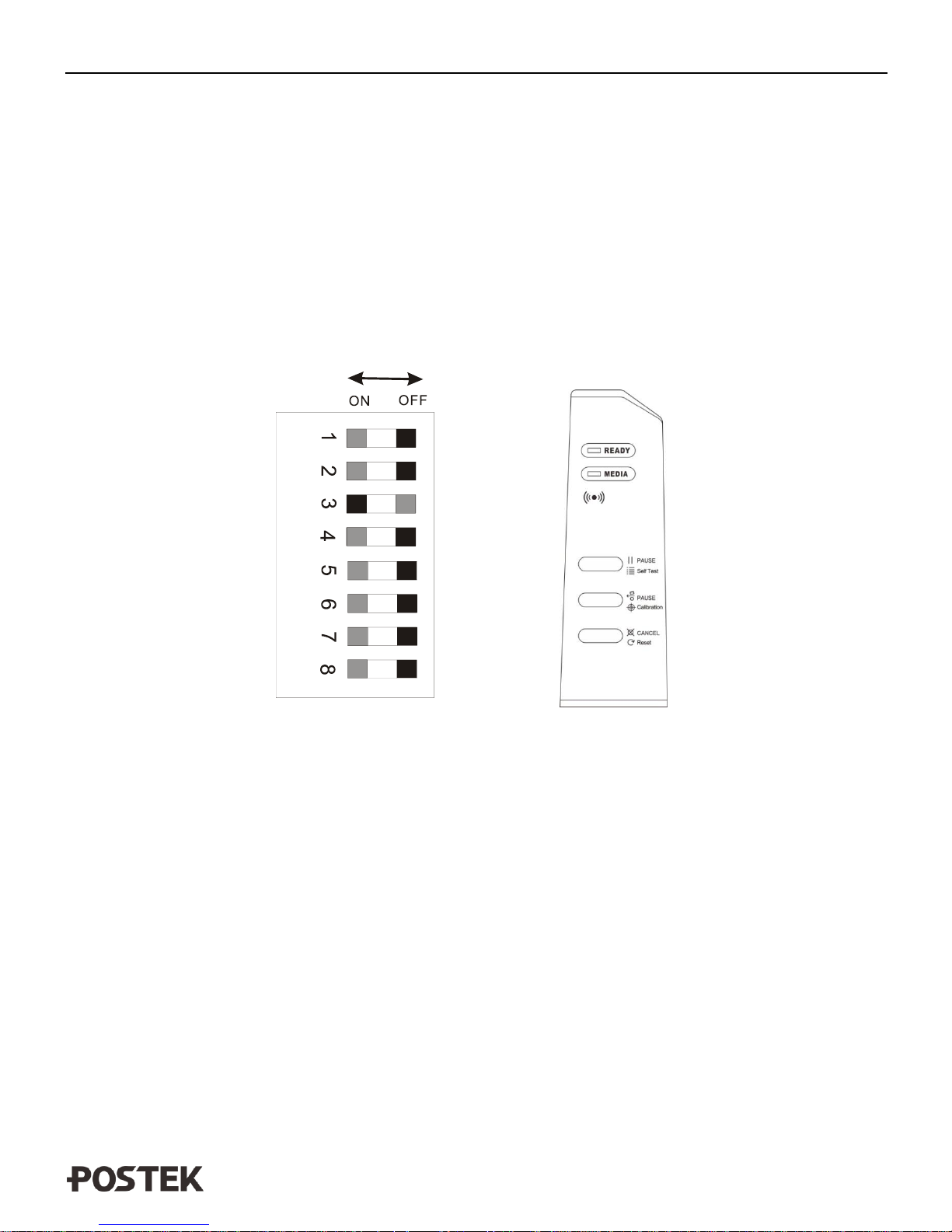

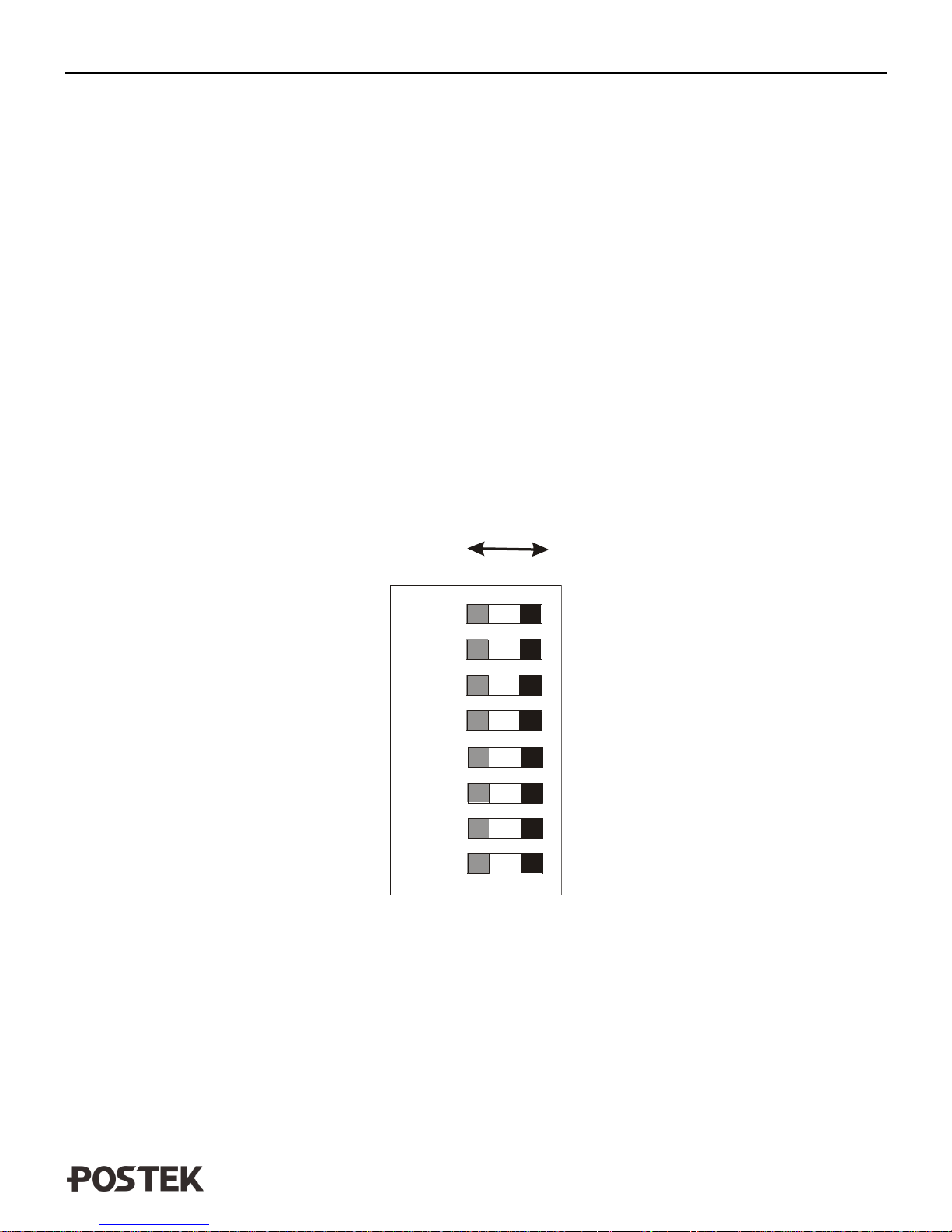

1. Set the 3rd DIP Switch to the ON position to enable the cutter function (see Figure 5-5).

2. Turn on the printer.

3. Reset the printer: Press and hold the “Cancel” button for 2 seconds, until the 2 indicator lamps begin to blink

simultaneously. Release the “Cancel” button and press it again one more time. The 2 indicator lamps stop blinking and remain lit. Reset is complete.

4. Load media as shown in Figure 5-7. The Guillotine Cutter is now ready to use.

Figure 5-5 Figure 5-6

14

Chapter 2: Setup and Use iQ User’s Manual

Figure 5-7

15

Chapter 2: Setup and Use iQ User’s Manual

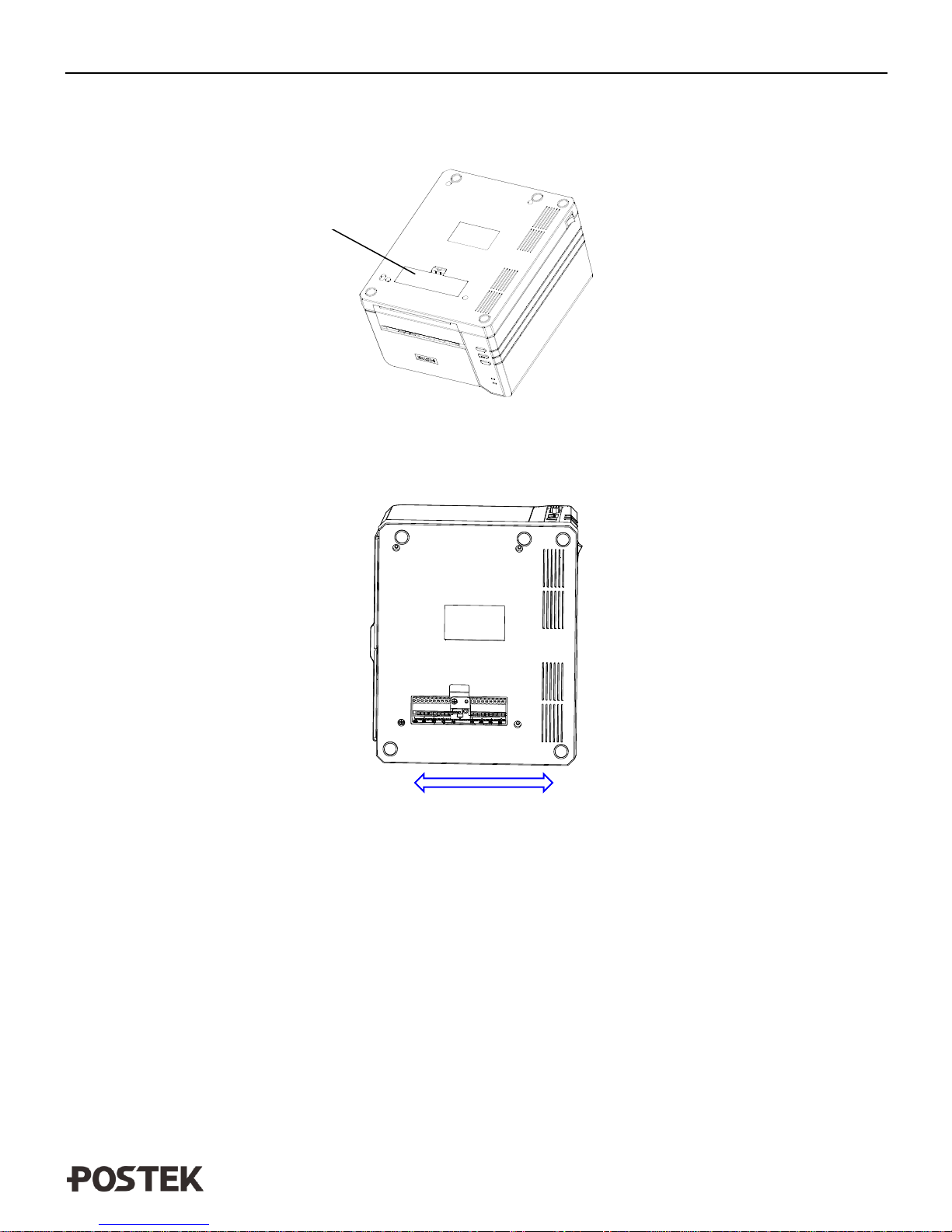

Media Sensor cover

Adjusting the Position of Media Sensor

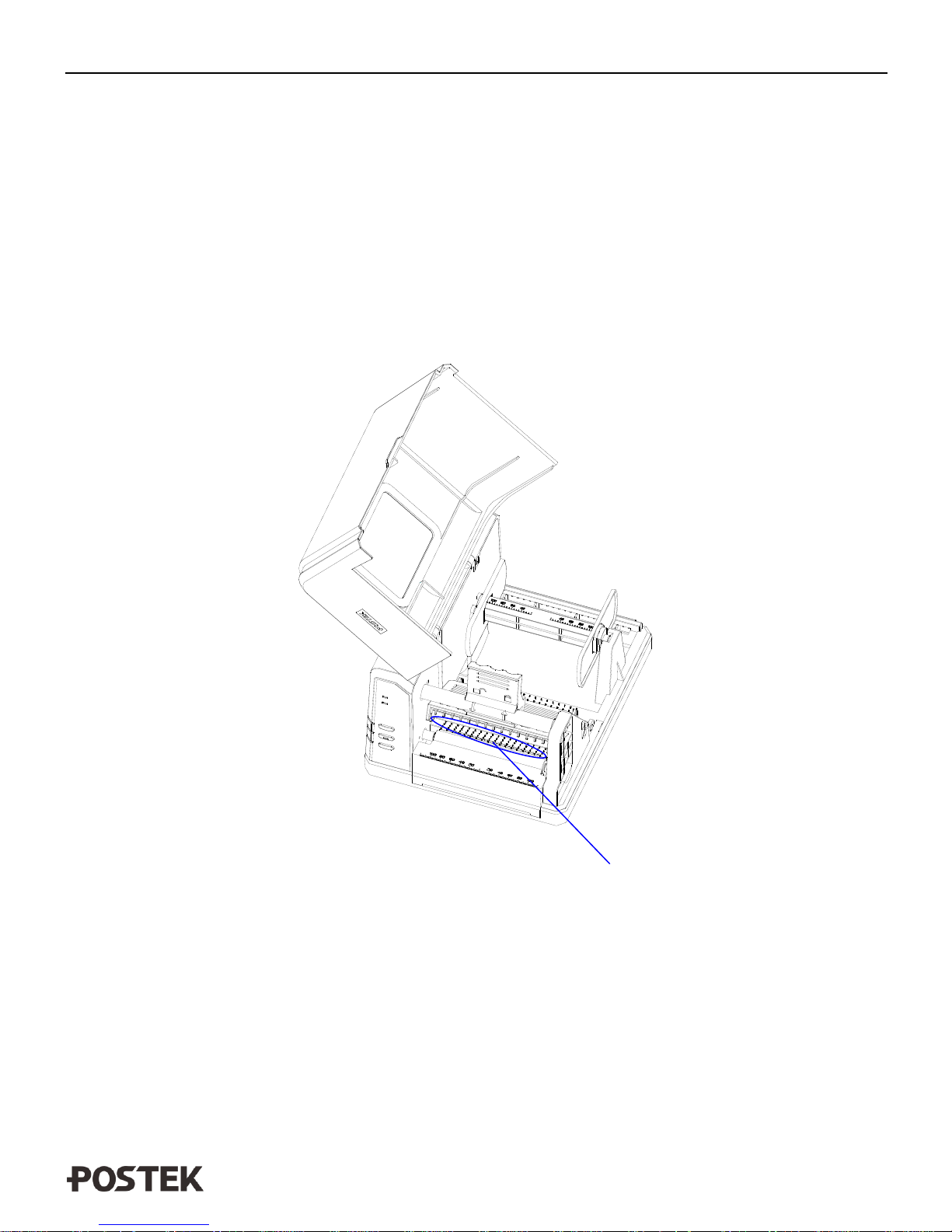

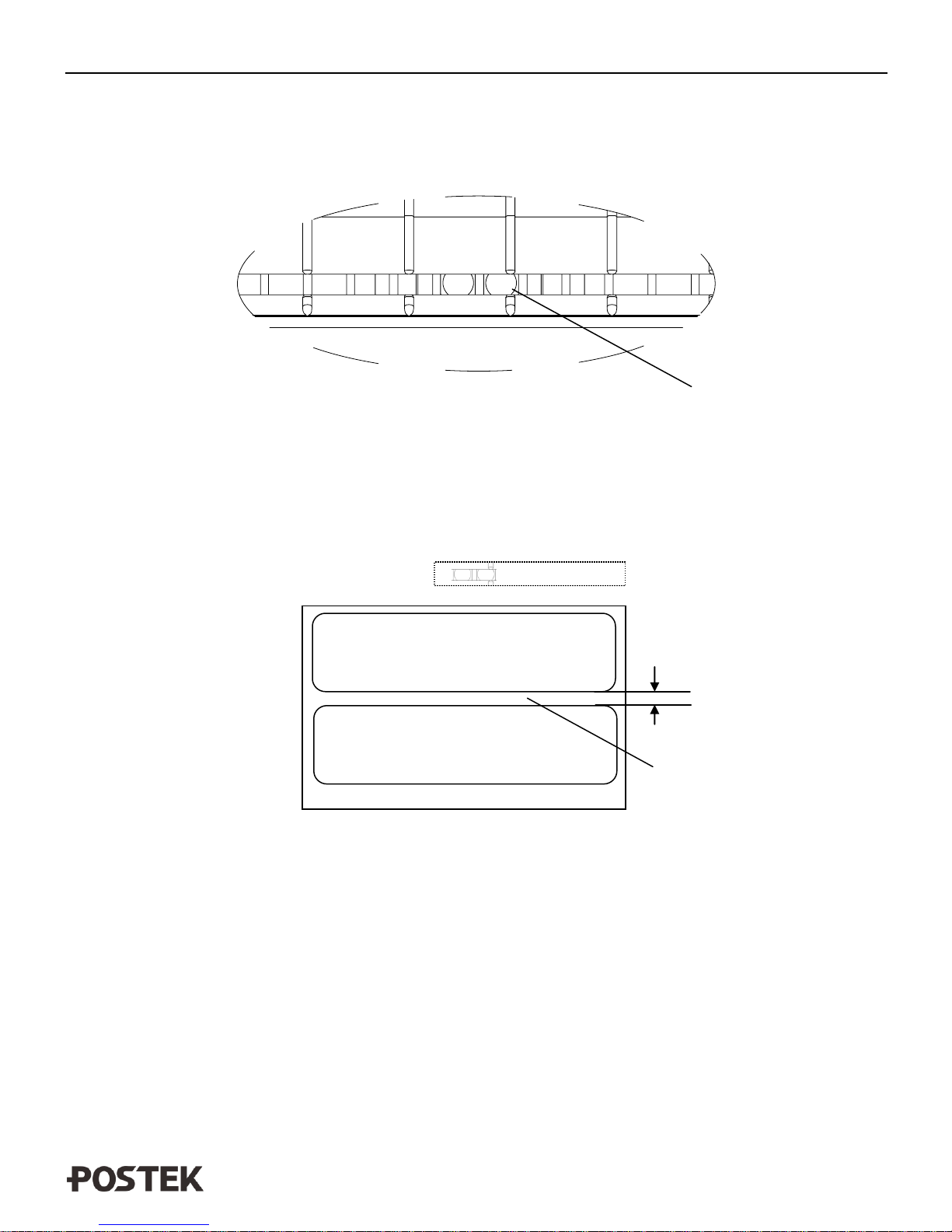

1. Lift the top cover (see Figure 6-1).

2. Lift the Handle of the Printhead to release the Printhead Module, then lift the Printhead Module to expose the Media

Sensor cover (see Figure 6-2).

3. Refer to Figure 6-3, 6-4 and 6-5, make sure the location of the Media Sensor.

4. Remove the Media Sensor cover( see Figure 6-6), remove the screw, adjust the Media Sensor to the appropriate

position, then fix the screw back (see Figure 6-7).

5. Replace the Media Sensor cover.

16

Figure 6-1

Chapter 2: Setup and Use iQ User’s Manual

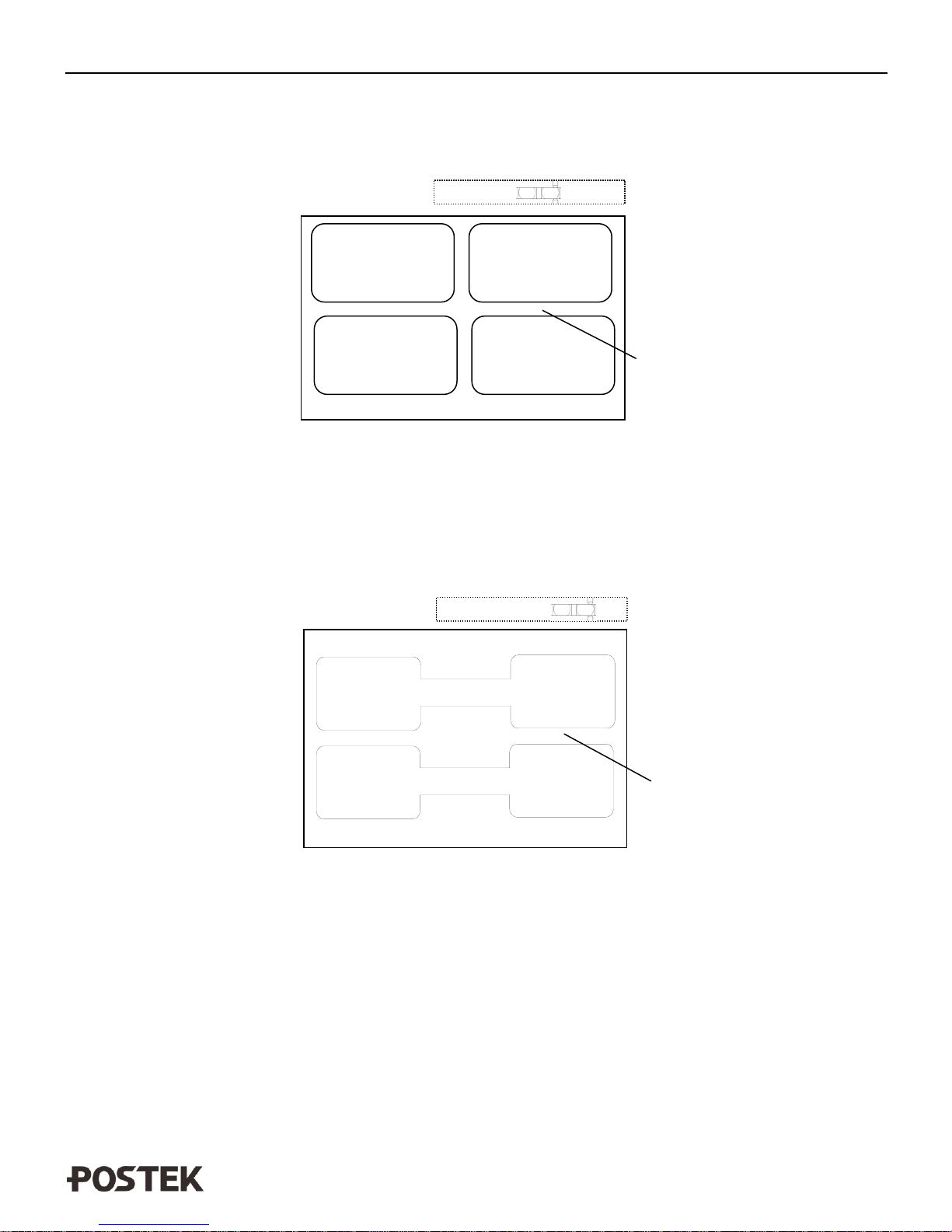

Media gap

2 – 5mm

Media Sensor

Figure 6-2

17

Figure 6-3

Chapter 2: Setup and Use iQ User’s Manual

Media gap

Figure 6-4

18

Figure 6-5

Chapter 2: Setup and Use iQ User’s Manual

Media Sensor Cover

Figure 6-6

Figure 6-7

19

Chapter 3: Operations and Settings iQ User’s Manual

READY

MEDIA

Chapter 3: Operations and Settings

Basic Operations

Power Switch

The power switch is on the back panel of the printer. The symbols on the switch are defined as follows:

━ — ON 〇 — OFF

The Front Panel

The Front Panel of the iQ printer consists of:

- Two Indicator Lamps: READY and MEDIA

- Three multi function buttons: PAUSE, FEED and CANCEL

Indicator Lamps

The two lamps indicate the status of the printer (please refer to Chapter 4: Troubleshooting, for error indicators).

- Solid: Indicates the printer is in the normal state.

- Blinking: Indicates the printer is in the ‘PAUSE’ state.

- Solid: Indicates the printer is in the normal state.

- Blinking simultaneously with READY: Running out of media.

20

Chapter 3: Operations and Settings iQ User’s Manual

Mode

Basic Functions

Advanced Functions

(see Advanced Functions below)

Feed/Calibration

Feed one label

Media Sensor Calibration

Pause/Self Test

- Press once to pause current print job

- Press a second time to resume printing

Self-test: The printer performs a self-test and prints out a

configuration report

Cancel/Reset

- Cancel current batch of labels

- Forces the printer to continue working after an error has been corrected

Reset: Resets the printer to factory default settings

Panel Buttons

The three buttons have different functions based on the mode of the operation is performed.

Advanced Functions

Media Sensor Calibration

It is necessary to accomplish Media Sensor Calibration after a new roll of media has been loaded.

1. Press and hold the Feed/Calibration button for about 2 seconds.

2. The printer will feed approximately 200mm of media.

3. The two indicators stop blinking and remain lit; the printer is back to a normal state.

Self Test

1. Press and hold the Pause/Self Test button for about 2 seconds.

2. The printer will print out a configuration report and the 2 indicators will stop blinking and remain lit. The printer is back

to a normal state.

The following information will be printed on the self-test report:

- Font list

- Hardware configuration and status

- DIP switch settings

- Label parameters

- Firmware version

21

Chapter 3: Operations and Settings iQ User’s Manual

1 2

3

4

5

6

7

8

OFF

ON

Reset – Reset the Printer to the Factory Default Settings

1. Press and hold the Cancel/Reset button for 2 seconds, the two lamps will blink simultaneously (the printer will return to normal state automatically if no operations are performed within 2 seconds).

2. Release and press the Cancel/Reset button again.

3. The two indicators stop blinking and remain lit. The printer is now in its normal state.

The following parameters have automatically been reset:

- Label

- Print darkness

- Speed

- Others

Note: The number of printed labels and printed length may not be reset.

DIP Switch Panel

Note: Turn off printer before setting DIP switches.

22

Chapter 3: Operations and Settings iQ User’s Manual

DIP Bit

Functions

Remarks

1

Reserved and not available

/

2

ON: Tear off position OFF: Edge of next label

Stop position setting Default: OFF

3

ON: Cutter installed OFF: Cutter not installed

Cutter setting Default: OFF

4

Reserved and not available

/

5

Reserved and not available

/

6

Reserved and not available

/

7

8 7 0 | 0 – 9600,n,8,1 0 | 1 – 19200,n,8,1 1 | 0 – 38400,n,8,1 1 | 1 – 57600,n,8,1

RS232 Serial Port baud rate setting 0: OFF, 1: ON Default: 00

8

 Windows 8

 Windows 7

 Windows 2000

 Windows Vista

 Windows NT

 Windows 98

 Windows XP

 Windows 2003

 Windows ME

Windows Driver

The iQ printer driver is packaged with the iQ in the CD-ROM pack, and is compatible with the following operating systems:

Drivers can also be downloaded from www.postek.com.cn and www.postektechnologies.com

Note: Before updating a driver, always first remove the old version(s) that may be loaded on your computer.

Label Software

Each iQ printer is packaged with powerful barcode label editing software. Note: Before downloading the software, always first remove any old version that may be loaded on your computer.

23

Chapter 4: Maintenance iQ User’s Manual

Chapter 4: Maintenance

Warnings:

(1) Make sure the printer is powered off before performing maintenance operations. (2) The Printhead may be hot due to recent printing. Wait until the Printhead cools before performing maintenance. (3) Use only anhydrous isopropyl alcohol to clean the print head.

Cleaning the Printhead

The Printhead is the mechanism that enables the ink to impact the label. Due to the Printheads precision construction and necessary location in the printer, it comes into contact with consumables and therefore is susceptible to dirt accumulation. If dirt is not removed, the Printhead may be damaged. To ensure longevity of the Printhead, follow the recommended maintenance guidelines below:

Note: A Printhead damaged by misuse is not covered under warranty.

Clean the Printhead after every (3) rolls of label media use. To clean the Printhead:

1. Turn off the printer;

2. Open the top cover of iQ printer;

3. Lift the Handle to release the Printhead, and lift the Printhead Moudule.

4. Use a cotton swab dipped in anhydrous isopropyl alcohol. Rub the swab along the Printhead until the swab no longer

accumulates ink

5. Let the Printhead dry before using the printer again

Cleaning the Platen Roller

The Platen Roller, located at the exit point and underneath labels, supports the labels as they feed out of the printer. The roller can accumulate debris from consumables, such as dirt, sand, dust or glue. To ensure longevity of the Platen Roller, follow the recommended maintenance guidelines below:

Clean the Platen Roller after every (3) rolls of label media used. To clean the Platen Roller:

1. Turn off the printer;

2. Open the top cover;

3. Lift the Handle of the Printhead, and then lift the Printhead Module to expose the Platen Roller;

4. Remove the media;

5. Use a cotton swab dipped in anhydrous isopropyl alcohol. Rub the swab along the Platen Roller while rotating the roller

until the swab no longer accumulates debris.

24

Chapter 4: Maintenance iQ User’s Manual

Cleaning the Printer Interior

Over time, the printer’s interior may collect dust or debris from the consumables. It is advised to periodically clean the printer’s interior in order to prevent the accumulated debris from damaging internal parts.

To clean the printer interior, use a cotton swabs dipped into anhydrous isopropyl alcohol and remove any debris.

25

Chapter 5 Troubleshooting iQ User’s Manual

Possible Cause

Postek IQ SERIES User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
