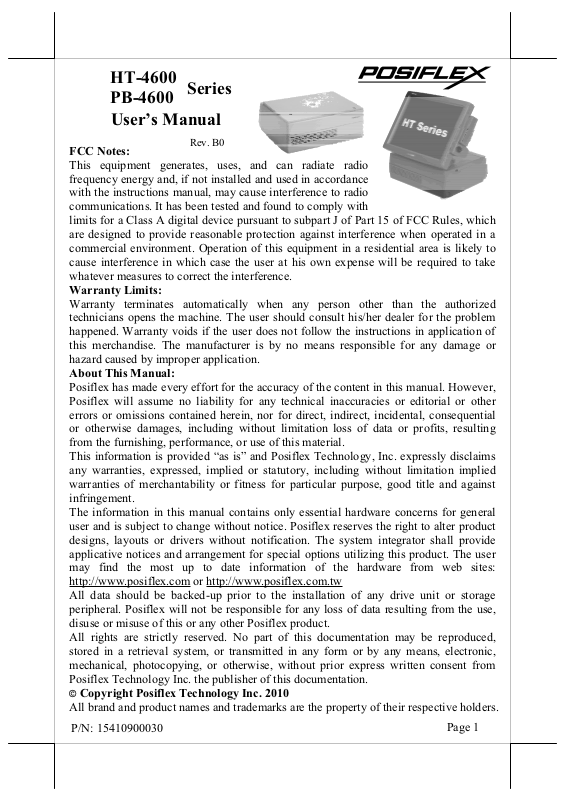

POSIFLEX HT-4600, PB-4600 User Guide
HT-4600
Series
PB-4600
User’s Manual
FCC Notes:
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with
limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which
are designed to provide reasonable protection against interference when operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference in which case the user at his own expense will be required to take
whatever measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However,
Posiflex will assume no liability for any technical inaccuracies or editorial or other
errors or omissions contained herein, nor for direct, indirect, incidental, consequential
or otherwise damages, including without limitation loss of data or profits, resulting
from the furnishing, performance, or use of this material.
This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims
any warranties, expressed, implied or statutory, including without limitation implied
warranties of merchantability or fitness for particular purpose, good title and against
infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technology Inc. the publisher of this documentation.
© Copyright Posiflex Technology Inc. 2010
All brand and product names and trademarks are the property of their respective holders.
Rev. B0
or http://www.posiflex.com.tw
P/N: 15410900030
Page 1
ALERT TO OUR HONORABLE CUSTOMERS:
zPlease always read thoroughly all the instructions and documents
delivered with the product before you do anything about it. Don’t
take any premature action before you have a full understanding of
the consequences.
DAILY MAINTENANCE GUIDE
For regular cleaning of the HT/PB-4600 systems, please use only soft haired
brush or dry soft cloth. You may use moist soft cloth to remove stains when
necessary. Apply only proper amount of mild neutral detergent for obstinate
stains. Please note that never use Acryl dissolving solvent or Polycarbonate
dissolving solvent. You may apply ammonia-based glass cleaner only on the
screen surface.
BRIEF INTRODUCTION
THE USER’S MANUAL
The purpose of this manual is to guide the user in the initial installation and
general use of the Posiflex HT/PB-4600 series of POS terminals. It does not
explain any application software that may be supplied with it.
We intend to provide our customers with all technology advantages available
by evolving the product design to incorporate appropriate changes and
improvements. So some detail differences may exist between this manual and
the equipment supplied.
For more detailed or technical information please refer to the CD-ROM disc
associated or consult our authorized dealers or visit our web site:
http://www.posiflex.com.tw/ or http://www.posiflex.com/
THE PRODUCT
The Posiflex range of HT/PB-4600 terminals have been designed and
manufactured to meet the high end demand on POS systems. It incorporates all
the advances of PC technology within a rugged housing designed for use in a
hostile retail environment. By providing an integrated design, it has retained
many of the secure features of a traditional ECR and has avoided the wiring
“spaghetti” associated with more traditional PC solutions. This Open Standard
Architecture ensures that this terminal can use the PC application software and
Page 2
development tools that are now inexpensively available and abundant.
For the HT-4600 series terminal is powered by most up to date CPU and
provides a color TFT LCD screen with a resistive type touch control panel on
sturdy and easily adjustable structure on top of the main unit. HT/PB-4600
series may be used as a self-content unit or as one of several terminals in a
network system controlled by a “back office” computer through the integrated
network interface. Versatile options besides the basic model selection can
apply to it as well. While PB-4600 is same as HT-4600 but without LCD
display.
THE STANDARD FEATURES
CPU: Intel Penryn 575 2.0G+
HDD: 80 GB or above.
RAM: DIMM socket x 2, DDR-2 667/800MHz, Max 4GB
Data storage device: SATA HDD 2.5” 80 GB or SDD HDD
Touch control functions: left/right button, double click, drag & draw
Ethernet Networking: One LAN port Ethernet 10/100/1000 Base T
with LAN status indicators on jack (green for link, yellow for data
transmission)
Serial Ports: There are 4 serial ports in a HT/PB-4600 system with +5V
(through BIOS setting) or +12V (by jumper setting) power on COM2/3
and it is default as no power at delivery.
Parallel Port: Each HT/PB-4600 system is equipped with a parallel port
that supports SPP/EPP/ECP.
VGA Port: There is a VGA connector for connection of external
monitor with + 12 V DC power supply included. It is default as no
power at delivery.
USB Ports: The HT/PB-4600 series is equipped with 6 USB type A
connectors for connection of USB (Universal Serial Bus) devices.
PS/2 KB Port: 1 PS/2 KB port
PS/2 Mouse Port: 1 mouse port
Audio Port: 1 Mic. in / audio line out port
CR Port: Capable of controlling 2 cash drawers max.
PCI Slot: 1 PCI extension slot.
Modem Ring-Up, LAN Or Alarm Wake-Up: The HT/PB-4600 series
can be turned on automatically upon an incoming COM port Modem call
or LAN status or data packet received on LAN or a preset
time/day/week/month.
Power supply control of COM2/3 and VGA port can be set up
through BIOS or jumper control.
Page 3
THE OPTIONAL ITEMS
Note: These items below must be installed by the qualified technician.
Attempt to apply them by end users is either too difficult or is likely to cause
damages. Italic items below are stand alone peripheral devices.
a) Data Storage: SSD kit (It can’t coexist with HDD)
b) Wireless LAN Adaptor(Optional): USB interface, IEEE 802.11b/g
c) Preload OS: Win XP Pro, WEPOS, POSReady or Linux.
d) Support CRT2 through internal interface.
e) Two VGA ports for PB-4600: One for main Display and another one
for second display.
f) Internal speaker(This must installed prior to delivery from factory)
g) +24V power supply for printer.
SYSTEM BOX CONTENTS
When you receive the system box you will find it contains several items:
zHT-4600 system unit with the 12.1” LCD panel integrated on top or
PB-4600 system unit.
zUser’s manual.
zRecovery DVD for preloaded OS or Posiflex Product Information
DVD for driver utilities without OS.
zOptional components installed to system unit as ordered.
zPower adaptor and power cord.
z PCI Extension slot.
INSTALLATION GUIDES
IMPORTANT
Please do not connect the power adaptor or turn on the main unit until you
have fully read the installation guides and followed the instructions!!!
TECHNICAL ENHANCEMENTS
Applicable technical enhancements in HT/PB-4600 series include serial COM
port power supply settings, VGA port power supply setting and DRAM
upgrades. All these technical enhancement operations require purchase of
applicable Technical Manual from Posiflex or consultation from Posiflex
authorized dealers and should be handled only by a qualified technician.
Page 4

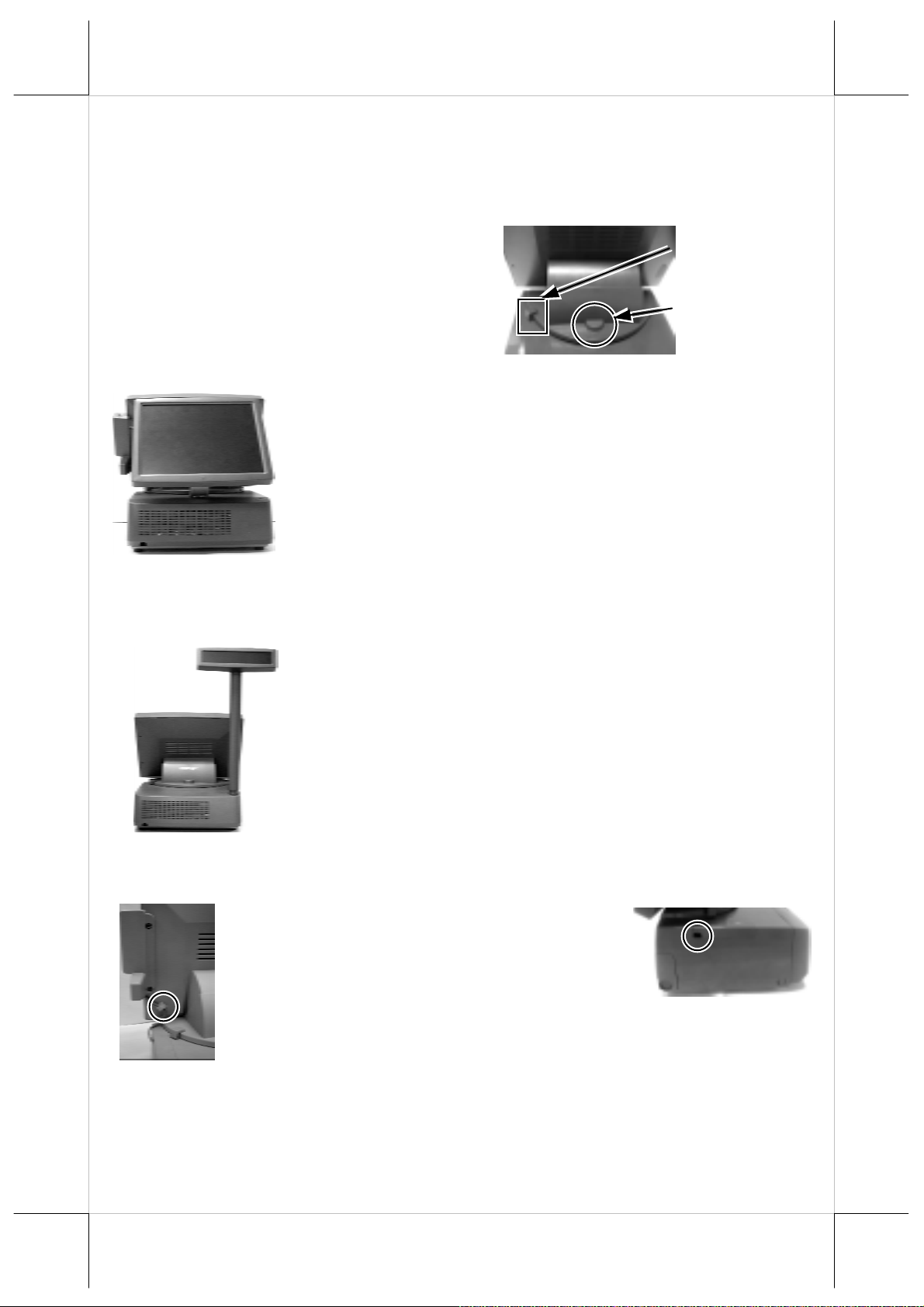

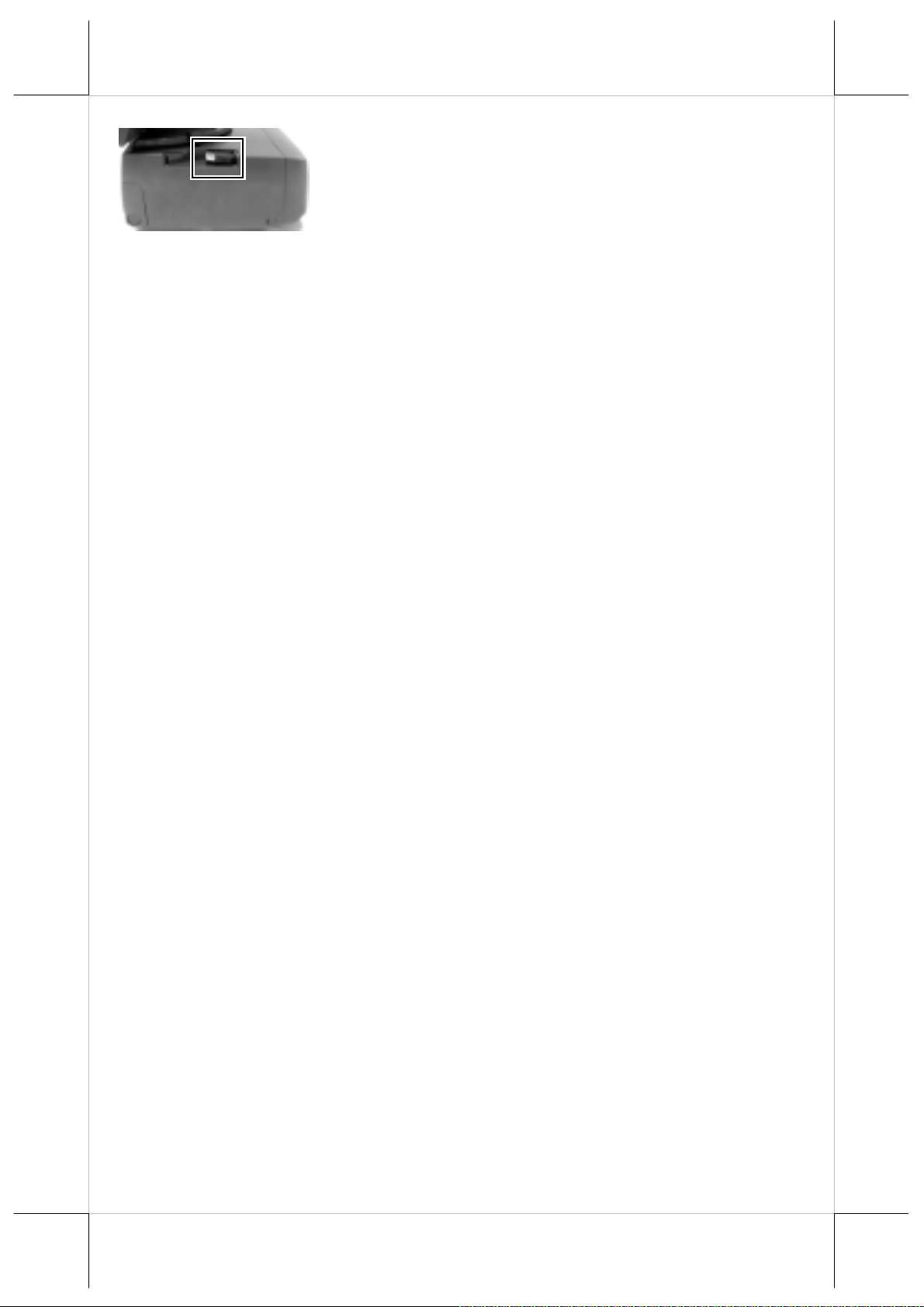

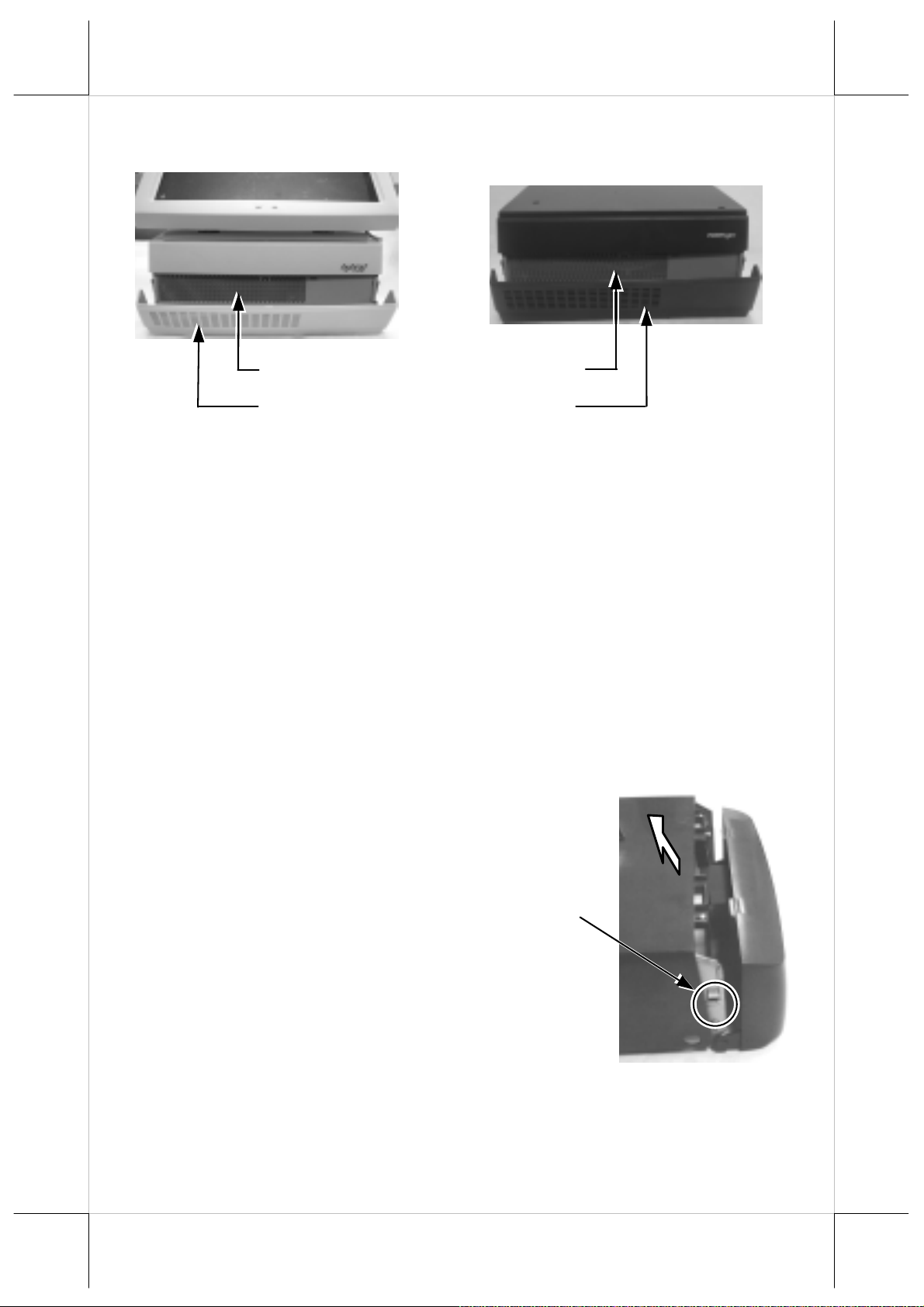

MAIN CONNECTION AREA
The HT/PB-4600 series is constructed for very easy maintenance. Press inward
both plastic buttons at lower rear corners on both sides of the system unit
(circled in right picture) to release the lower part of back cable cover. Please
note that there are 2 plastic hooks on top cover holding the back cable cover as
marked on upper part of the picture. Carefully release the back cable cover
from the hooks to show the main connection area.
Carelessly pressing on these 2 springs could cause damages. The user shall
be responsible for such kind of damage. For the HT-4600 system even the
maintenance technician must always put a piece of clean flat foam of sufficient
size in front of the system unit before pressing these 2 springs. The LCD and
touch panel may flip forward by gravity and get or cause damage by hitting
anything in front of the system
unit. For the PB-4600 system the
maintenance technician must
always pay attention to always
disconnect all power and cable
connections before pressing the 2
springs and not to cause any
damage either in the top cover
opening operation after pressing
the 2 springs or by leaving or
spilling any improper materials
inside after the opening operation.

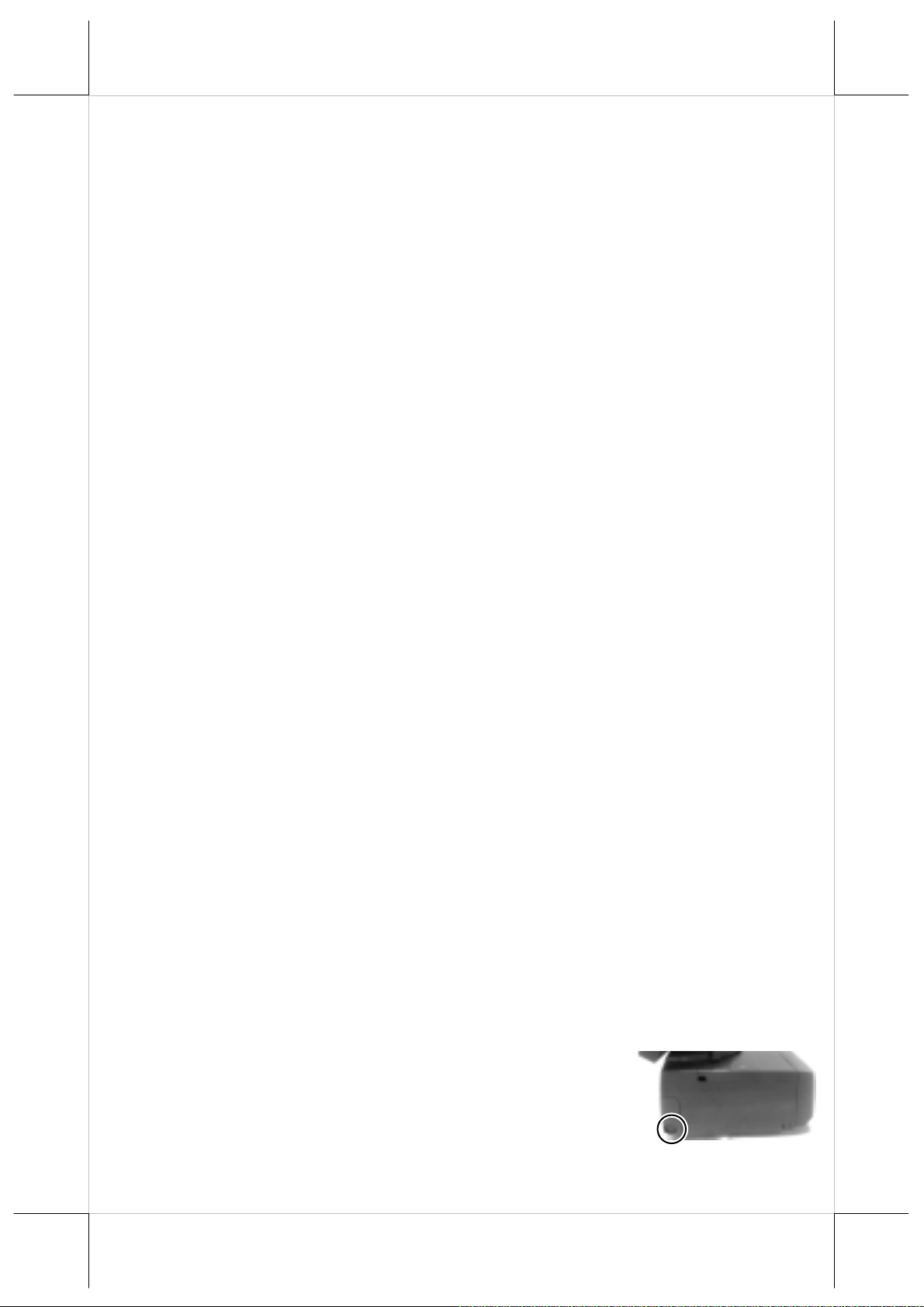

Push This Button
and also The One
on The Other
Side to Open
Cable Cover

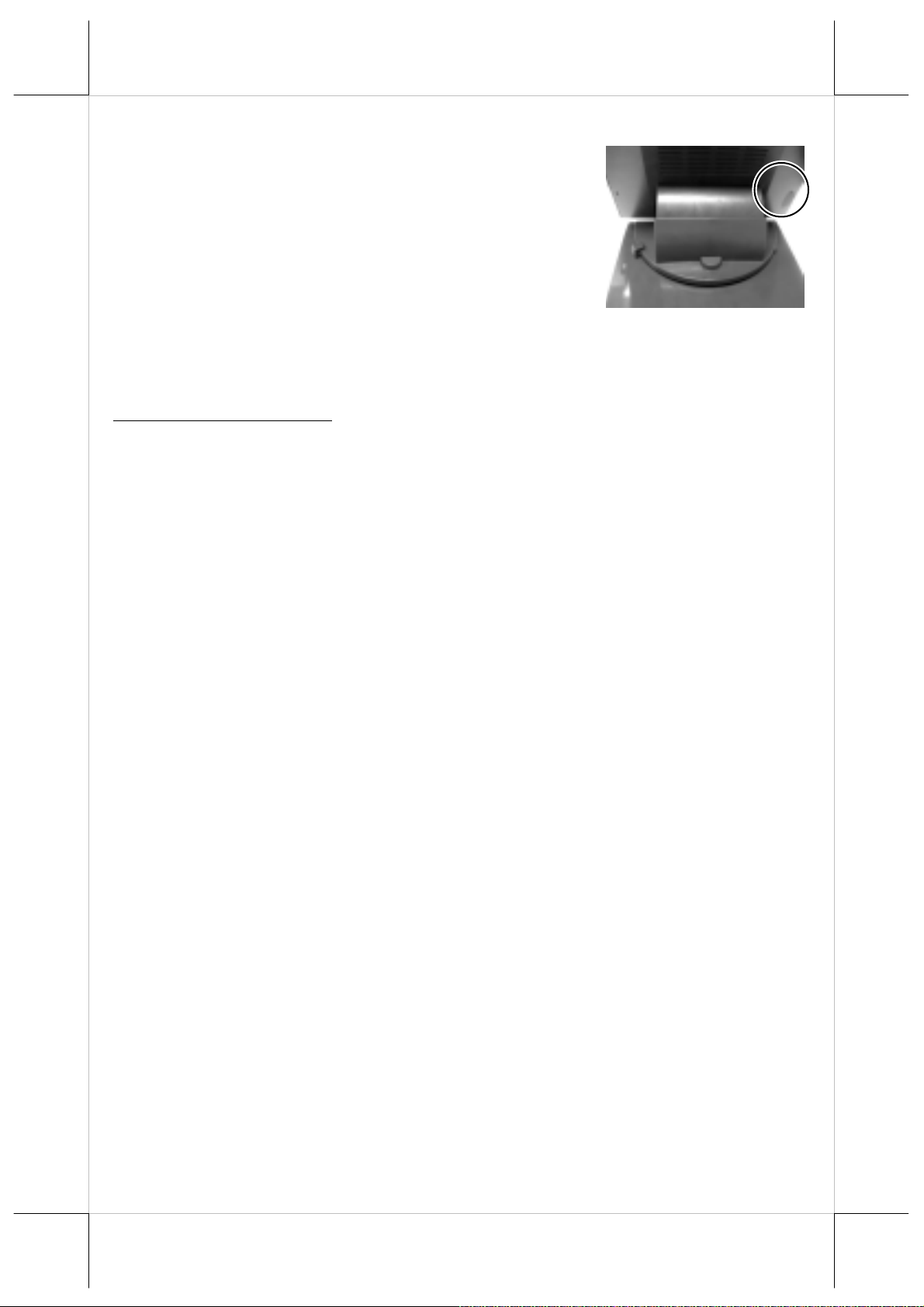

Note: Please DO NOT press the 2 springs on the metal walls as cross
marked in the picture.
WIRELESS LAN (OPTION)
When the wireless LAN option is ordered with the HT/PB-4600 system, this
option is already installed in the delivery inside the back cable cover with its
cable connected to one of the USB port. This cable must be disconnected
first if installed whenever the back cable cover is opened for any operation.

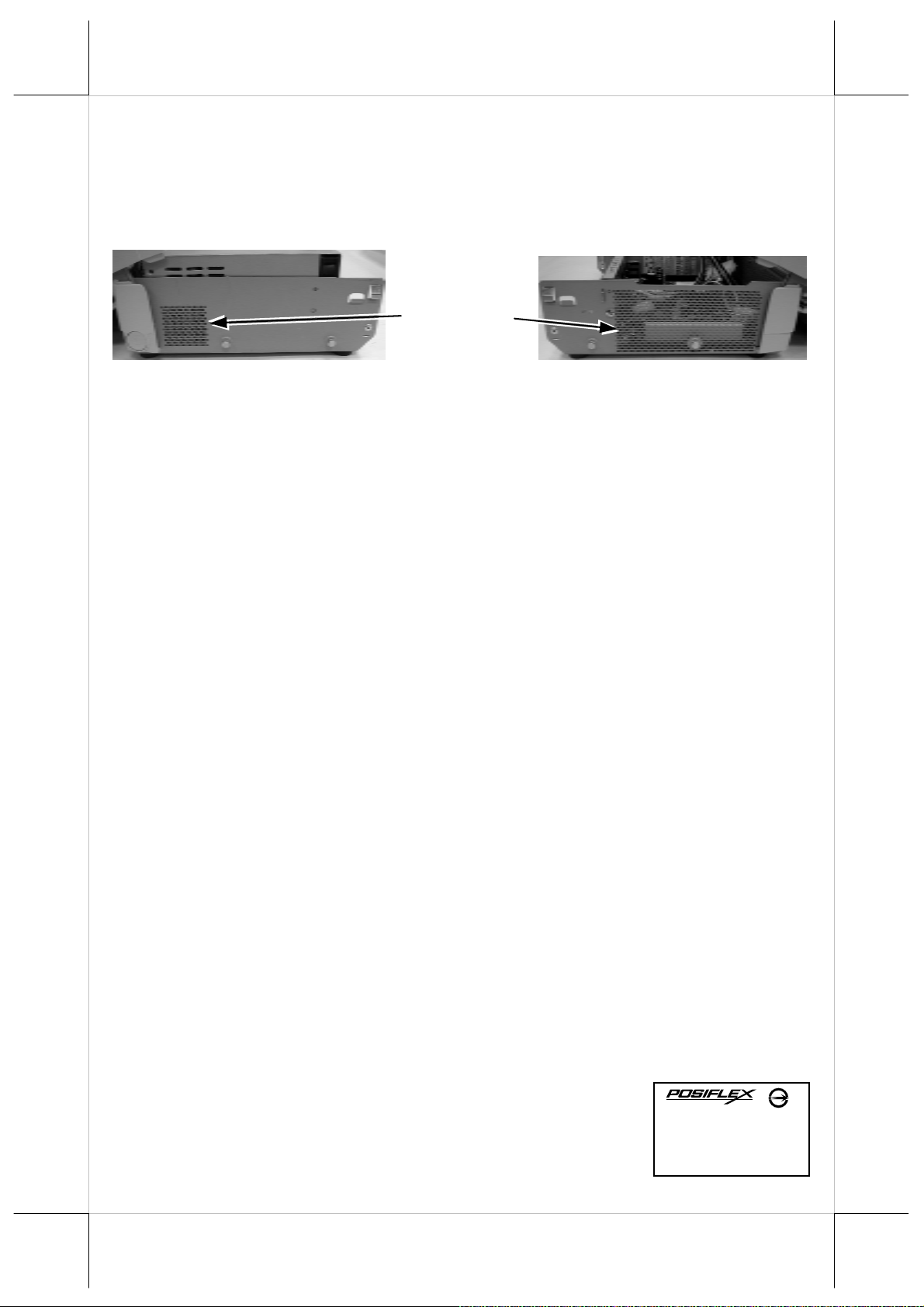

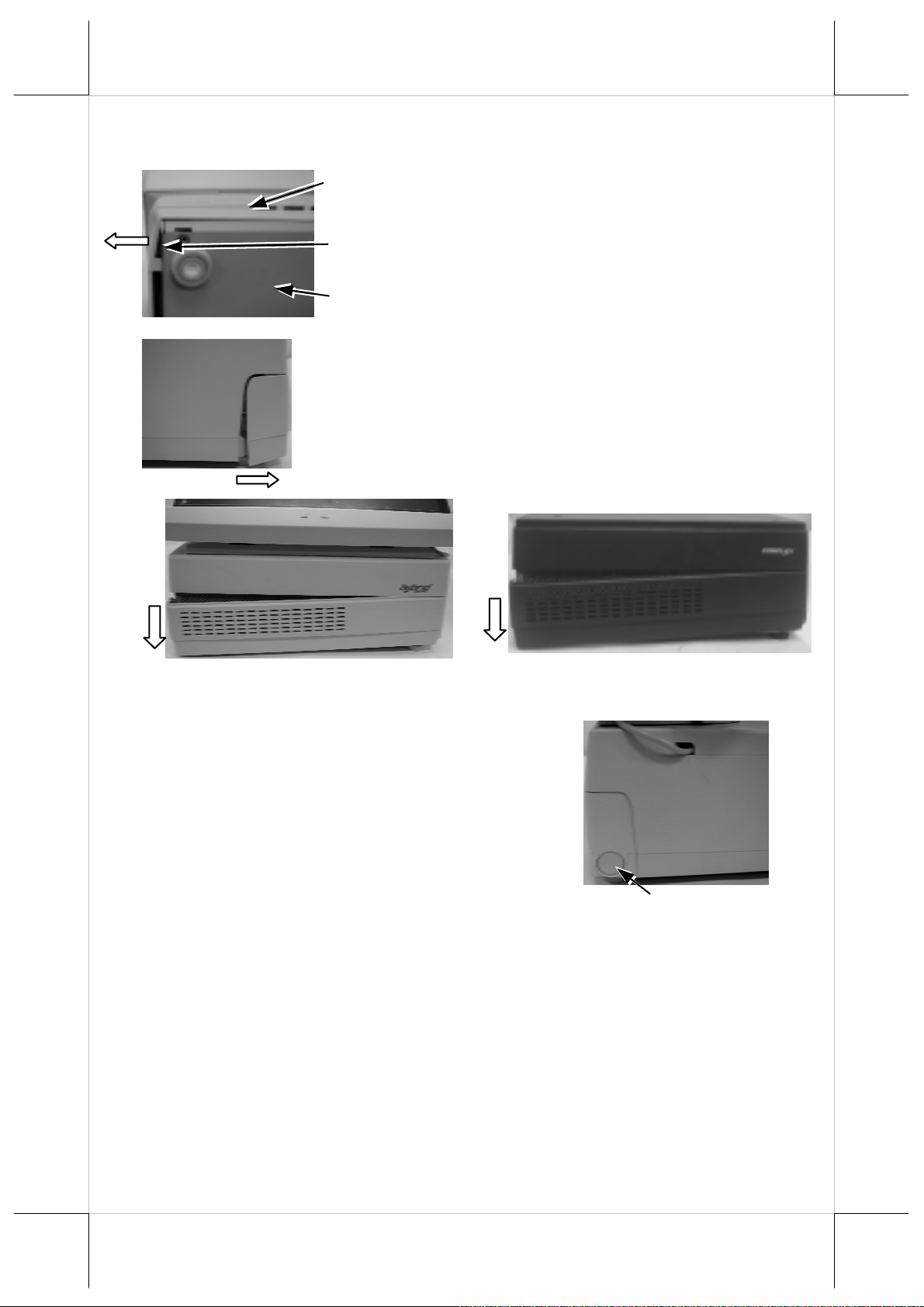

PCI EXTENSION CARD
The PCI extension card is not pre installed; therefore, it is a possibility to add a
PCI extension card. However, the whole operation will involve cautiously
accessing the interior of the system, replacing the slot window metal plate,
applying the card.
Page 5
