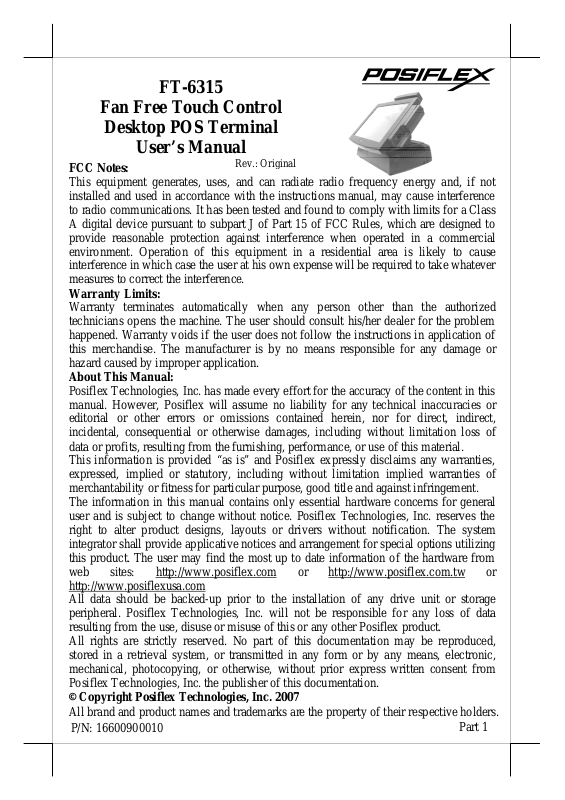

POSIFLEX FT-6000 User's Manual

Rev.: Original

P/N: 1660

09000

10

Fan Free Touch Control

Desktop POS Terminal

FCC Notes:

This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.

About This Manual:

Posiflex Technologies, Inc. has made every effort for the accuracy of the content in this
manual. However, Posiflex will assume no liability for any technical inaccuracies or
editorial or other errors or omissions contained herein, nor for direct, indirect,
incidental, consequential or otherwise damages, including without limitation loss of
data or profits, resulting from the furnishing, performance, or use of this material.
This information is provided “as is” and Posiflex expressly disclaims any warranties,
expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex Technologies, Inc. reserves the
right to alter product designs, layouts or drivers without notification. The system
integrator shall provide applicative notices and arrangement for special options utilizing
this product. The user may find the most up to date information of the hardware from
web sites: http://www.posiflex.com or http://www.posiflex.com.tw or
http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex Technologies, Inc. will not be responsible for any loss of data
resulting from the use, disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technologies, Inc. the publisher of this documentation.
© Copyright Posiflex Technologies, Inc. 2007
All brand and product names and trademarks are the property of their respective holders.

FT-6315

User’s Manual

Part 1

ALERT TO OUR HONORABLE CUSTOMERS:

l Please always read thoroughly all the instructions and documents

delivered with the product before you do anything about it. Don’t
take any premature action before you have a full understanding of
the consequences.

l This product contains inside a Lithium battery and maybe also a

sealed type Lead acid battery if the UPS battery option is ordered.
Please always follow local environmental protection laws /
regulations for disposal of used batteries and always replace only
with battery of same type.

l If you have an UPS battery installed in the product:

² Temperature above 40°C must be strictly avoided as it

could cause termination of battery life and unexpected result
even if the battery is not in work.

² Do not power off the system just by shutting off the AC

power leaving the battery supporting the whole system till
completely exhausted. Repeatedly using it up or improper
maintenance reduces the battery life dramatically.

² Always fully recharge the battery at least once every 3

months if the battery is not connected.

² Always disconnect the UPS battery from the system if the

system is to be left OFF for more than 72 hours to prevent
possible damage. Only connect the UPS battery back right
before you are going to re-power on the system.

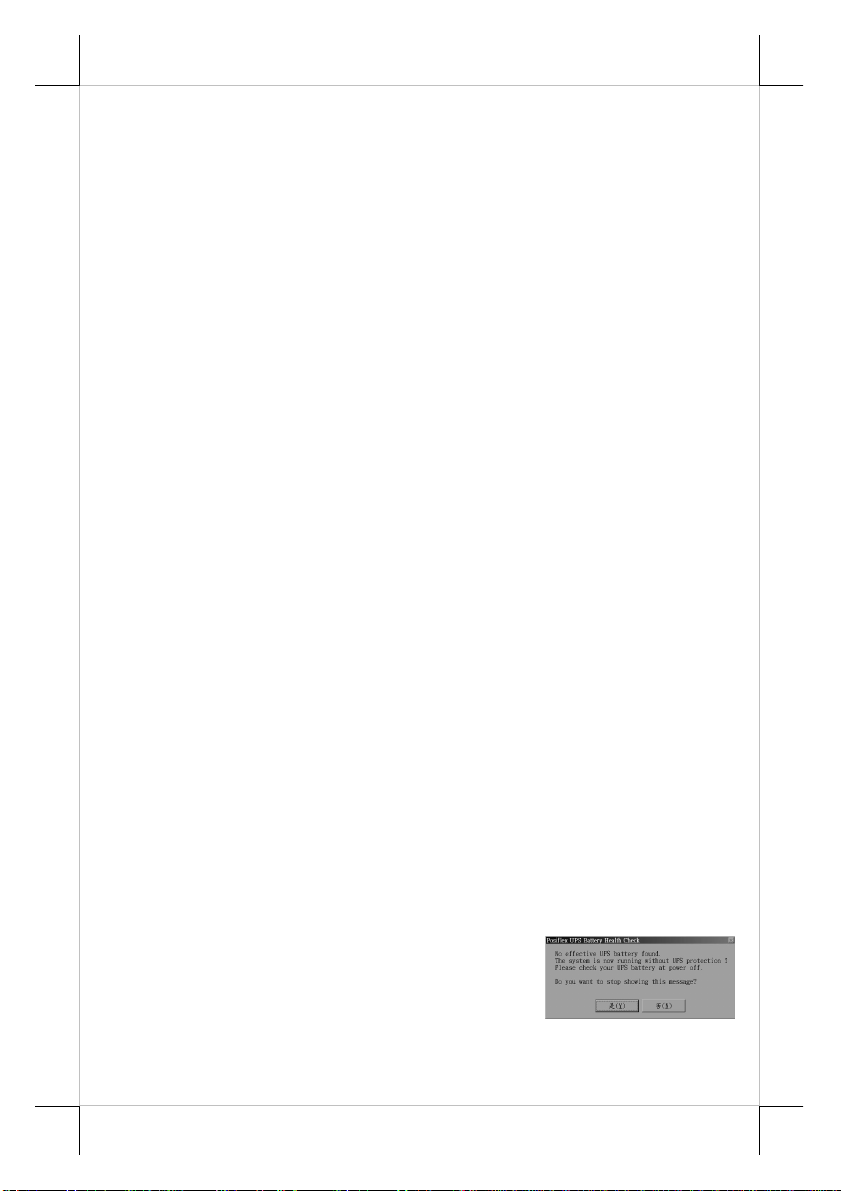

² Replace the battery as soon as the monitoring software

indicates the battery is out of service. Attempt to recharge a
dead battery is dangerous!

² A separate battery monitor is not required for this series.

DAILY MAINTENANCE GUIDE

For regular cleaning of the FT systems, please use only soft haired
brush or dry soft cloth. You may use moist soft cloth to remove stains when
necessary. Apply only proper amount of mild neutral detergent for obstinate
stains. Please note that never use Acryl dissolving solvent or Polycarbonate
dissolving solvent. You may apply ammonia-based glass cleaner only on the
screen surface.

Risk Of Explosion If Battery Is Replaced By An Incorrect Type

Dispose Of Used Batteries According To Local Regulations

CAUTION

Part 2

6 3 7 2 2 8 10 5 4 4 5 11 12 9 1 13 17 1 13 16 15 3 2 2 16 13 13 14 1 15 17

INTRODUCTION

PRODUCT PICTURES

Front Views

Side Views

Detail inside front cover

Part 3

Please no

te that the picture for inside front and back cover is for reference

only. The actual layout may disagree from this picture if there is any

difference in model or options selected or in the system revision. Please

2 13 3 18 24 29 26 21 20 32

31 22 27 19 39 40 41 37 36 33 38

35 30 34 28

CAUTION: DO NOT release the HDD compartment (items 37, 38

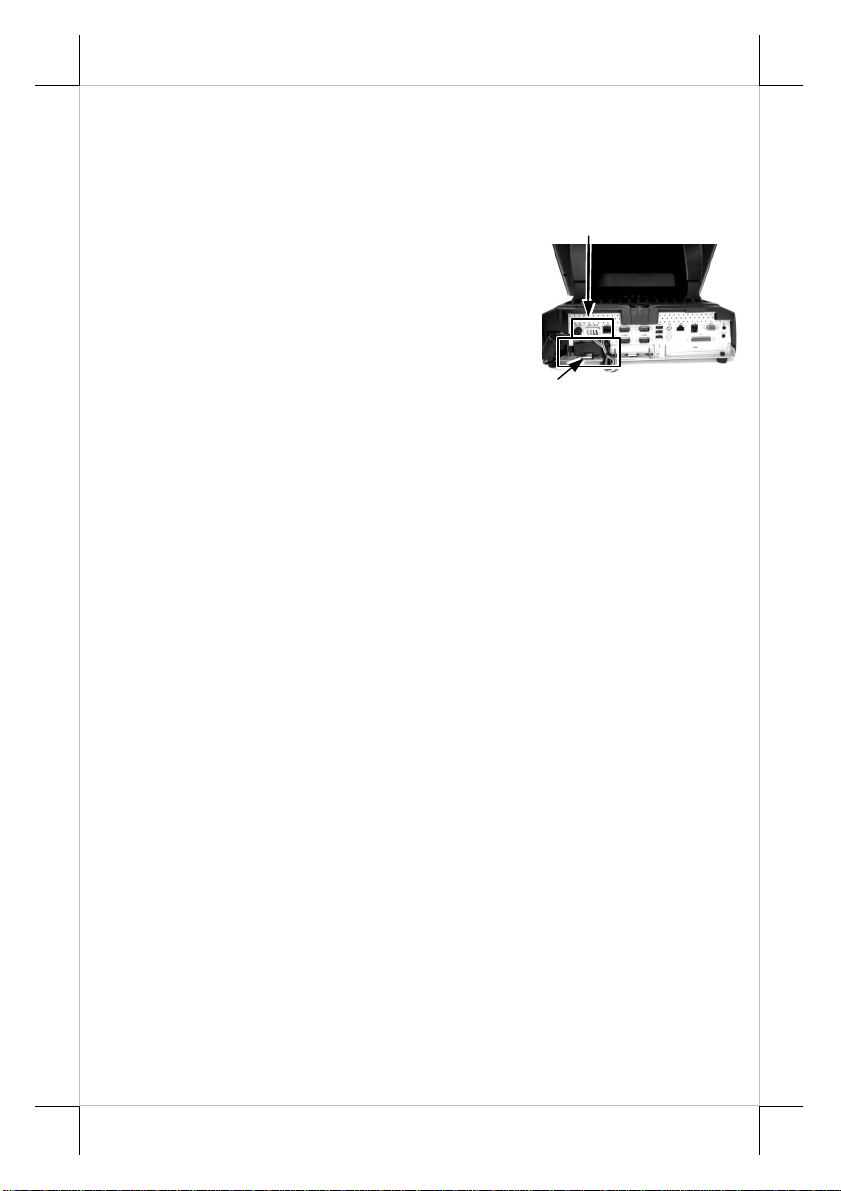

Rear Views

1

23

25

Detail inside back cover

follow the actual layout for cable connections in this case.

and 39) or system damage may occur.

PARTS IDENTIFICATION

1. Optional base mount kit

2. Touch panel / LCD panel

3. Optional side mount kit

4. LOGO & Power indicator

5. Base unit

6. Front cover

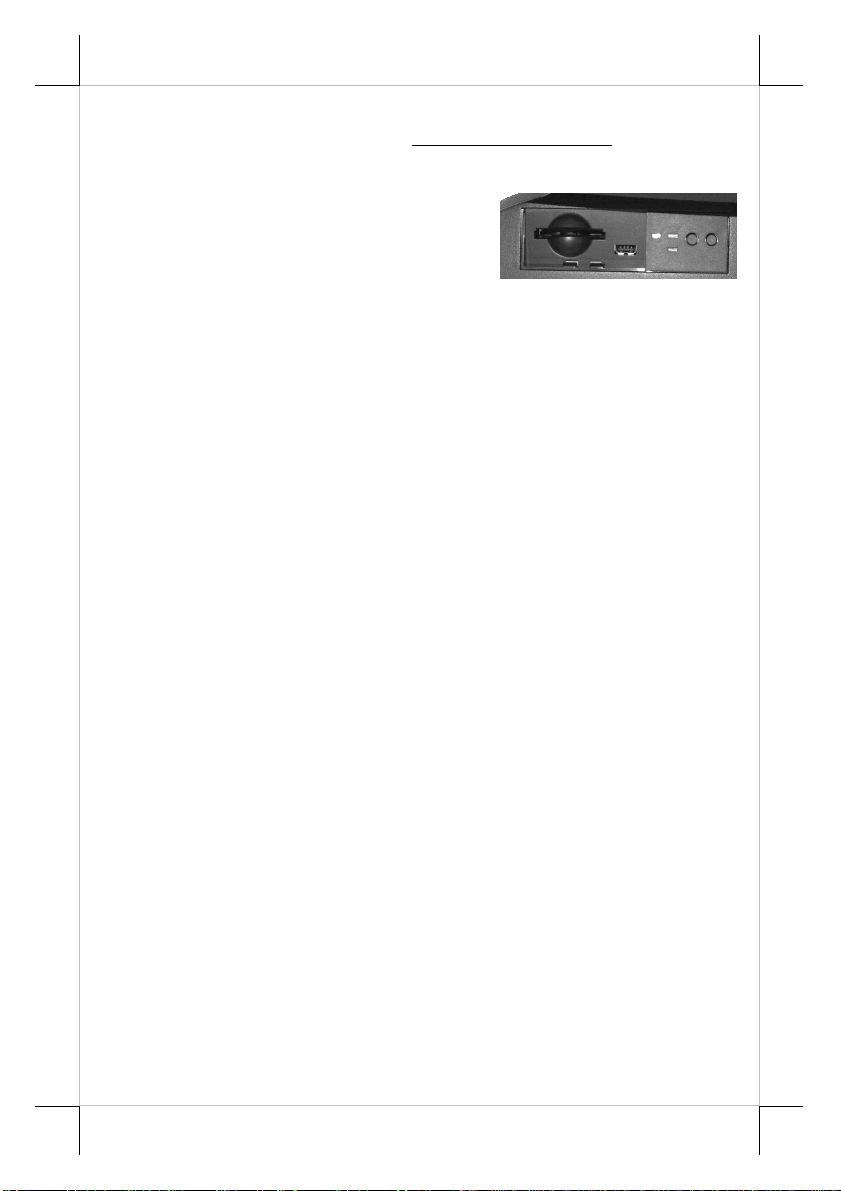

7. CF memory card reader slot in front cover

8. USB port in front cover

9. LAN status indicator

10. HDD status indicator

11. LCD brightness / contrast adjust buttons

12. CF reader status indicator

Part 4

13. LCD panel tilt adjust button

14. Power switch button

15. Acoustic vent

16. Back cover release button

17. Reserved back cover lockup screw hole

18. Back cover

19. External power connector for power adaptor

20. Power adaptor

21. Internal power connector

22. UPS battery connector

23. Additional serial COM port

24. Standard serial COM ports

25. USB ports in back

26. PS/2 KB port

27. LAN port

28. Cash drawer port

29. VGA port

30. Microphone input port

31. Audio line out port

32. LPT port

33. Semi-cut PCI plate window

34. PS/2 mouse port

35. PCI bracket

36. PCI bracket fixing screw

37. HDD bracket

38. HDD hold spring

39. HDD bracket handle

40. UPS battery hold spring

41. UPS battery compartment

PRODUCT FEATURES

Standard Features:

a) CPU: Celeron M 1.5 GHz
b) Fan free structure with Aluminum die cast main unit base casing for

harsh environment or metal

c) Data storage device: HDD 2.5” 40 GB with status indicator in base or

CF card.

d) Support Win 2000, Win XP Pro, WEPOS and Linux OS
e) High quality 15” TFT active matrix LCD panel.
f) Vertical type LCD panel with easy tilt angle adjustment from 10° to

45°

Part 5

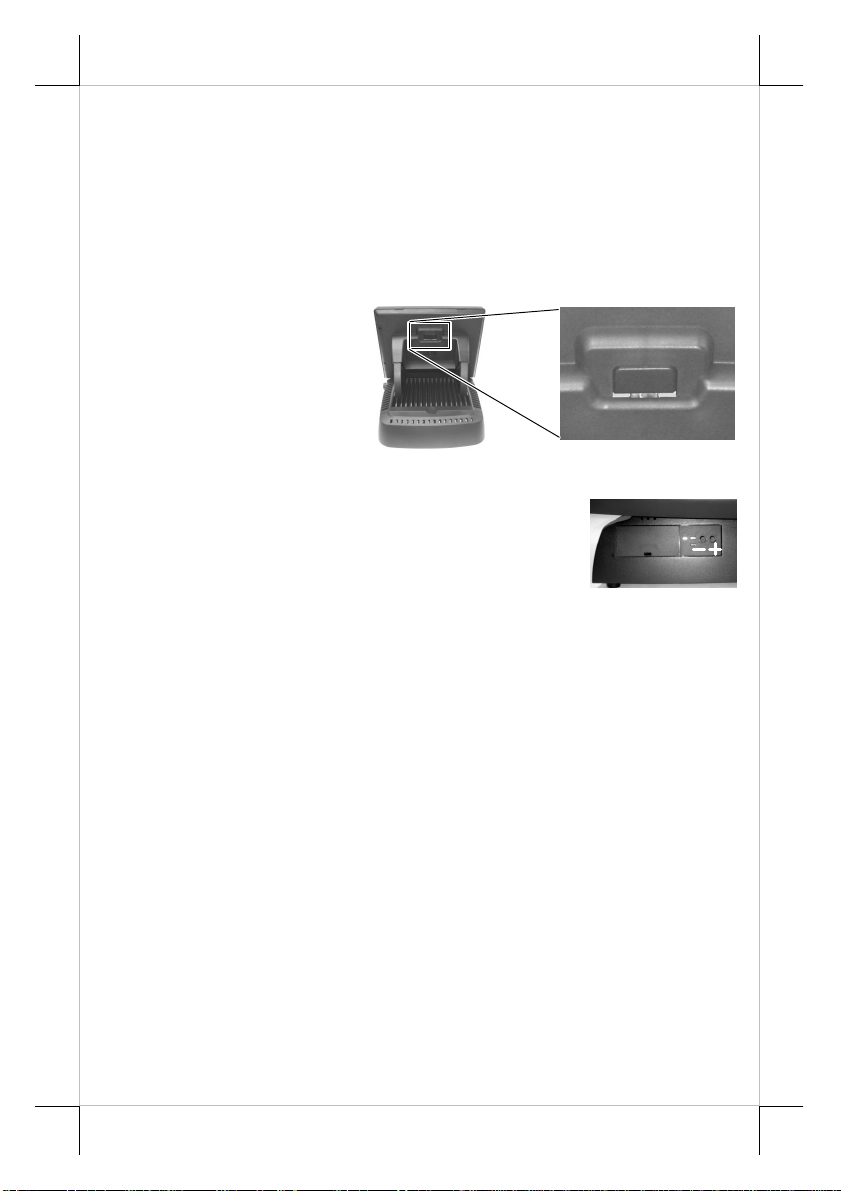

g) Brightness control by 2 push buttons in front side of base
h) Durable resistive type touch panel that endures 35 million touches min.

at same spot (leading edge Infra Red type optional)

i) Spill proof water resistant structure allowing easy cleaning
j) Easy maintenance construction
k) Various I/O ports supported, including:

1. one PS/2 KB port

2. one PS/2 mouse port

3. 4 serial ports with capability for +5V and +12V DC support in form
of DB9 connectors with one additional serial port in form of 10 pin
RJ45 modular jack.

4. one parallel port

5. 4 standard USB ports (1 in front, 3 in back) with 2 additional
internal used USB ports

6. one LAN port 10/100 base T Ethernet with LAN status indicators on
jack and one indication LED in front side of base (green for link,
orange for data transmission)

7. one external VGA monitor port

8. one PCI extension slot

9. one DIN 4 pin lock type DC 12 V power input connector

10. one UPS battery connector

11. one cash drawer connector for control over max. 2 cash drawers

12. one microphone input port

13. one audio line out port

14. one CF memory card reader slot on front side of base

l) Touch control functions: left/right button, double click, drag & draw
m) Dual display support (per OS capability)
n) VGA memory size shared from system memory (8 ~ 32 MB)
o) Support high performance DDR SDRAM with maximum memory size

2GB in 2 modules

p) Integrated structure for side mount upgrade kit like FA-200 with

software programmable MSR parameters for Win 2000 or Win XP pro

q) Built-in internal stereo speaker with 2 W audio amplifier
r) Built-in UPS function to support the system from intermittent power

failure (battery itself is an option)

s) Accidental power off protection – The power switch is safely located

inside a push-open cover, and it can be defined as a “ON” switch only
through software command

t) Preconditioned power up function – by alarm clock or COM port

MODEM ring or LAN

Part 6
