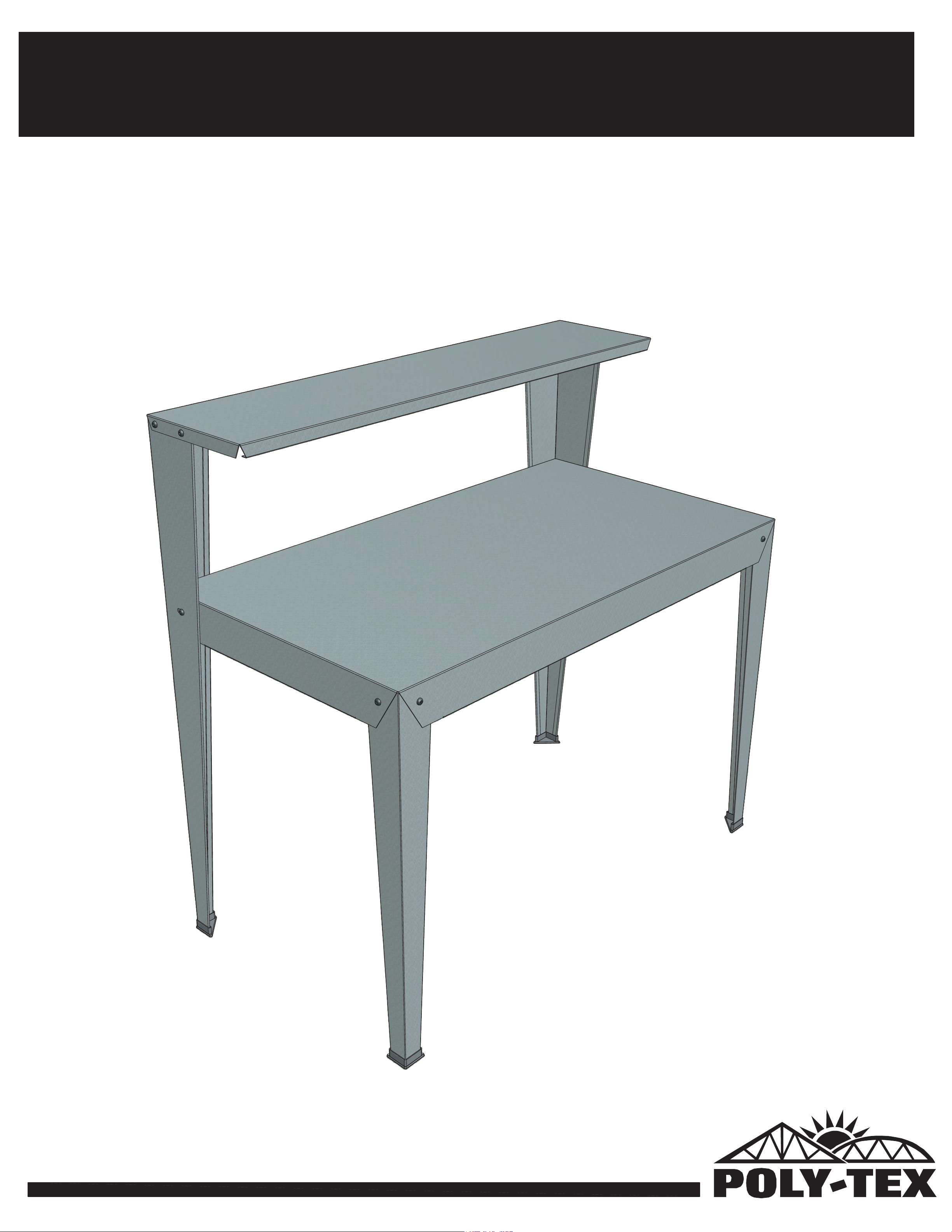

PTX2000
Heavy Duty Work Bench
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
9601 Newton Avenue South, Suite A
Bloomington, MN 55431
www.poly-tex.com
REV: AA120330
U.S. & Canada Toll Free
(844) 822-7009
(651) 463-7009
Page 2

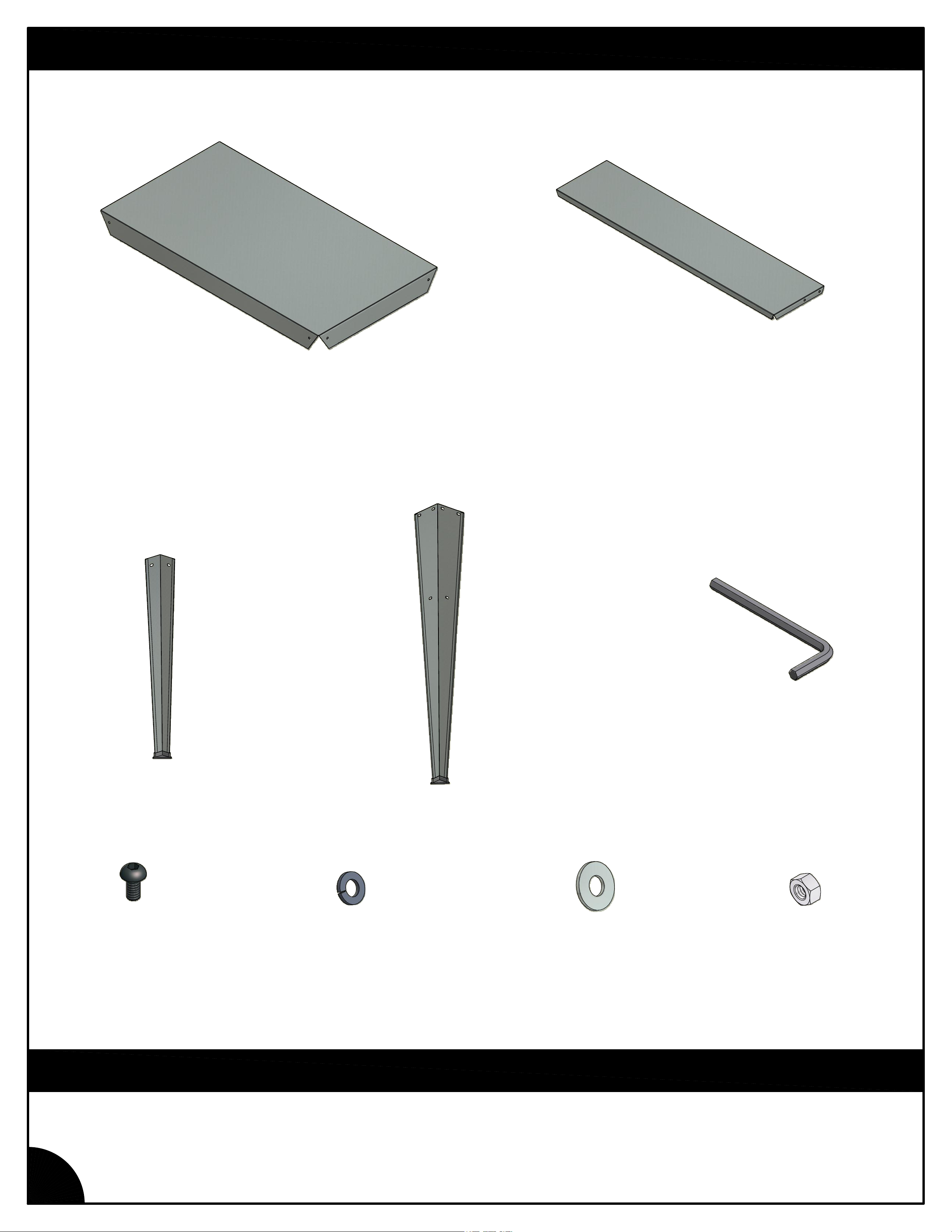

PARTS IDENTIFICATION
NT1000
24" x 44" TABLE TOP
(1)
NT1009
10" x 44" UPPER SHELF
(1)
NT1003
30" LEG
(2)
NT1013
43" LEG
(2)
NB1974
3/16" HEX WRENCH
(1)
NB1970
CAP SCREW
(12)
3/16" hex wrench & 1/2" open-end wrench are required to assemble this product.
NB1862
LOCK WASHER
(12)
FLAT WASHER
NB1886
(12)
TOOLS & EQUIPMENT REQUIRED
NB1872
HEX NUT
(12)
2
Page 3

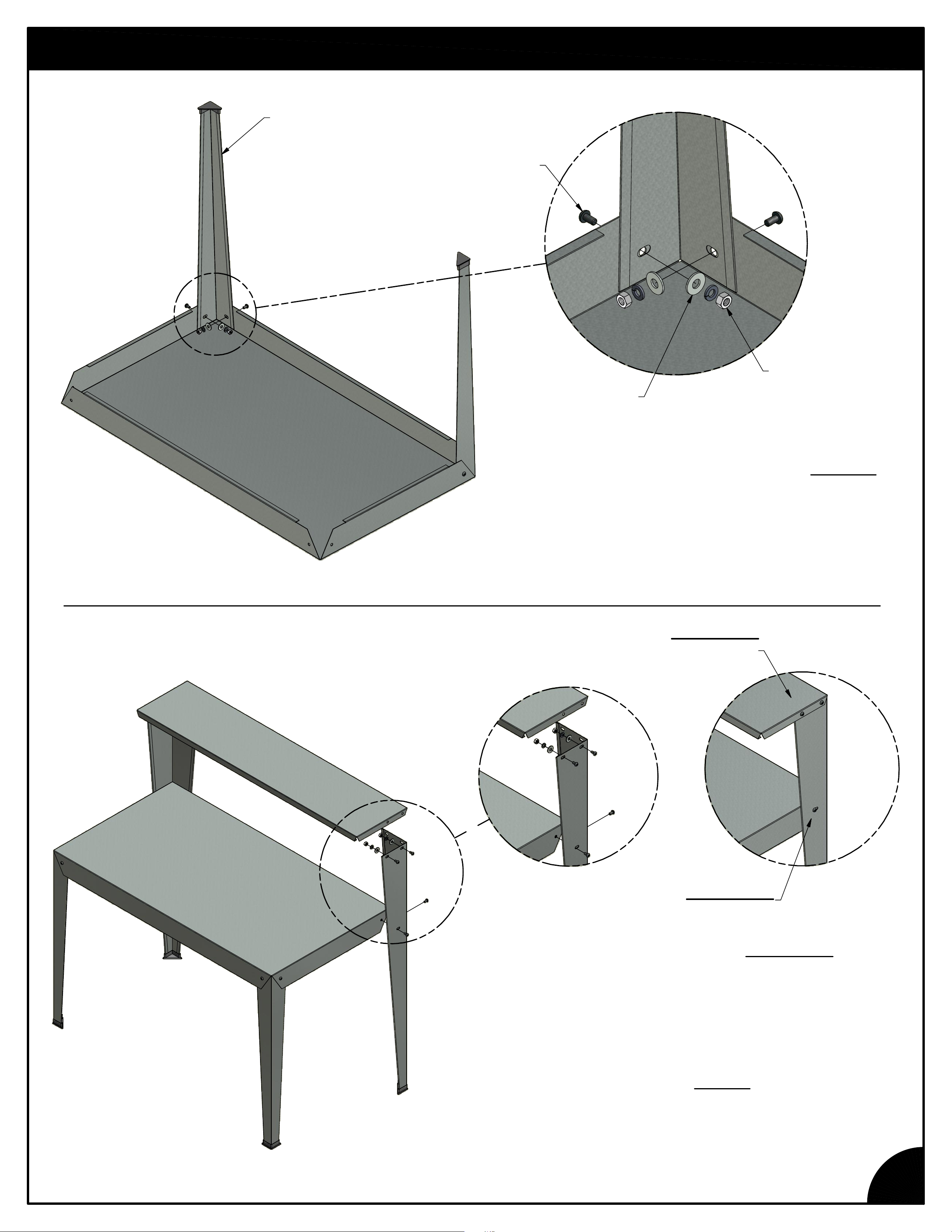

ASSEMBLY INSTRUCTIONS
30" LEG
CAP SCREW
HEX NUT
FLAT WASHER
1. PLACE 30" (SHORTER) LEGS INSIDE
TABLE TOP AS SHOWN.
2. FASTEN TO TABLE TOP USING CAP
SCREWS, FLAT WASHERS, LOCK
WASHERS, AND HEX NUTS.
DO NOT TIGHTEN AT THIS TIME.
SHELF IS ON OUTSIDE
OF 43" LEGS
LEG IS ON OUTSIDE
OF TABLE TOP
3. PLACE 43" (LONGER) LEGS OUTSIDE OF
TABLE TOP AS SHOWN.
4. FASTEN TO TABLE TOP USING CAP
SCREWS, FLAT WASHERS, LOCK WASHERS,
AND HEX NUTS. DO NOT TIGHTEN AT THIS
TIME.
5. PLACE UPPER SHELF OVER TOPS OF 43"
LEGS AND FASTEN USING HARDWARE
PROVIDED.
6. STRAIGHTEN LEGS AND TIGHTEN ALL
SCREWS SECURELY.
3
Page 4
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
CARE & MAINTENANCE
To clean, use a clean damp cloth to wipe off dirt and debris.
