FB3003 step bench display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AA-120329
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2
PARTS IDENTIFICATION
END STAND
FB2017
(2)
FB2537
STABILIZER
(2)
RF2552
NB1923
NYLON WASHER
(8)
NB1901
3/8" WING NUT
(8)
3' x 6' BENCH TOP
(1)
RF2554
1'-6" x 6' BENCH TOP
FT3600
NORSTAD CLIP
(6)
NB1924
THUMB SCREW
(6)
2
(2)
TOOLS & EQUIPMENT REQUIRED
No tools are required for the assembly of this product.
Page 3
ASSEMBLY INSTRUCTIONS
1'-6" x 6' BENCH TOP
3' x 6' BENCH TOP
NORSTAD CLIP
SEE FIGURE 1
1'-6 x 6'
BENCH TOP
STABILIZERS
END STAND
INSTRUCTIONS:
1. ATTACH BOTH STABILIZERS TO END STAND STUDS USING
NYLON WASHERS AND WING NUTS.
2. PLACE ALL BENCH TOPS ON END STANDS.
3. SECURE BENCH TOPS WITH NORSTAD CLIPS AND THUMB
SCREWS. SEE FIGURE 1
END STAND
BENCH SUPPORT
BENCH TOP
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD CLIP
THUMB SCREW
FIGURE 1
3
Page 4
OPTIONAL BASKET TOWER
FB2002
U-BRACE
(2)
PARTS IDENTIFICATION
FB2003
49" BASKET POST
(4)
NB1862
5/16" LOCK WASHER
(8)
4
FB2531
CANOPY PURLIN
(4)
NB1827
5/16" x 2"
CARRIAGE BOLT
(8)
NB1903
5/16" WING NUT
(8)
Page 5
OPTIONAL BASKET TOWER ASSEMBLY INSTRUCTIONS
CANOPY PURLIN
U-BRACE
49" BASKET POST
49" BASKET POST
INSTRUCTIONS:
ASSEMBLED FB3003
STEP DISPLAY

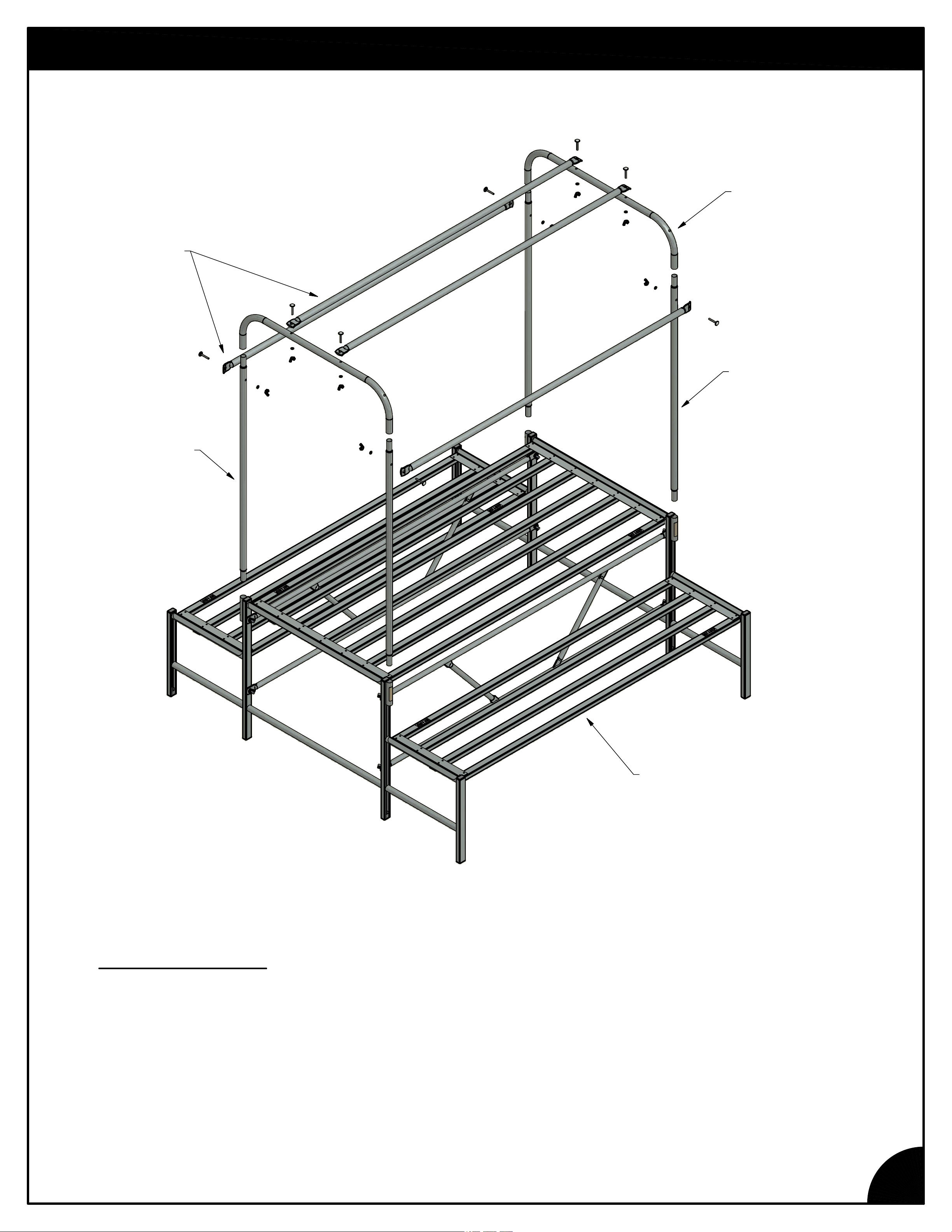

1. INSERT 49" BASKET POSTS INTO SOCKETS ON END STANDS.
2. ATTACH U-BRACES TO 49" BASKET POSTS.
3. ATTACH CANOPY PURLINS TO U-BRACES AND 49" BASKET POSTS
USING 2" LONG CARRIAGE BOLTS, LOCK WASHERS, AND WING NUTS.
5
Page 6
OPTIONAL BASKET TOWER CANOPY

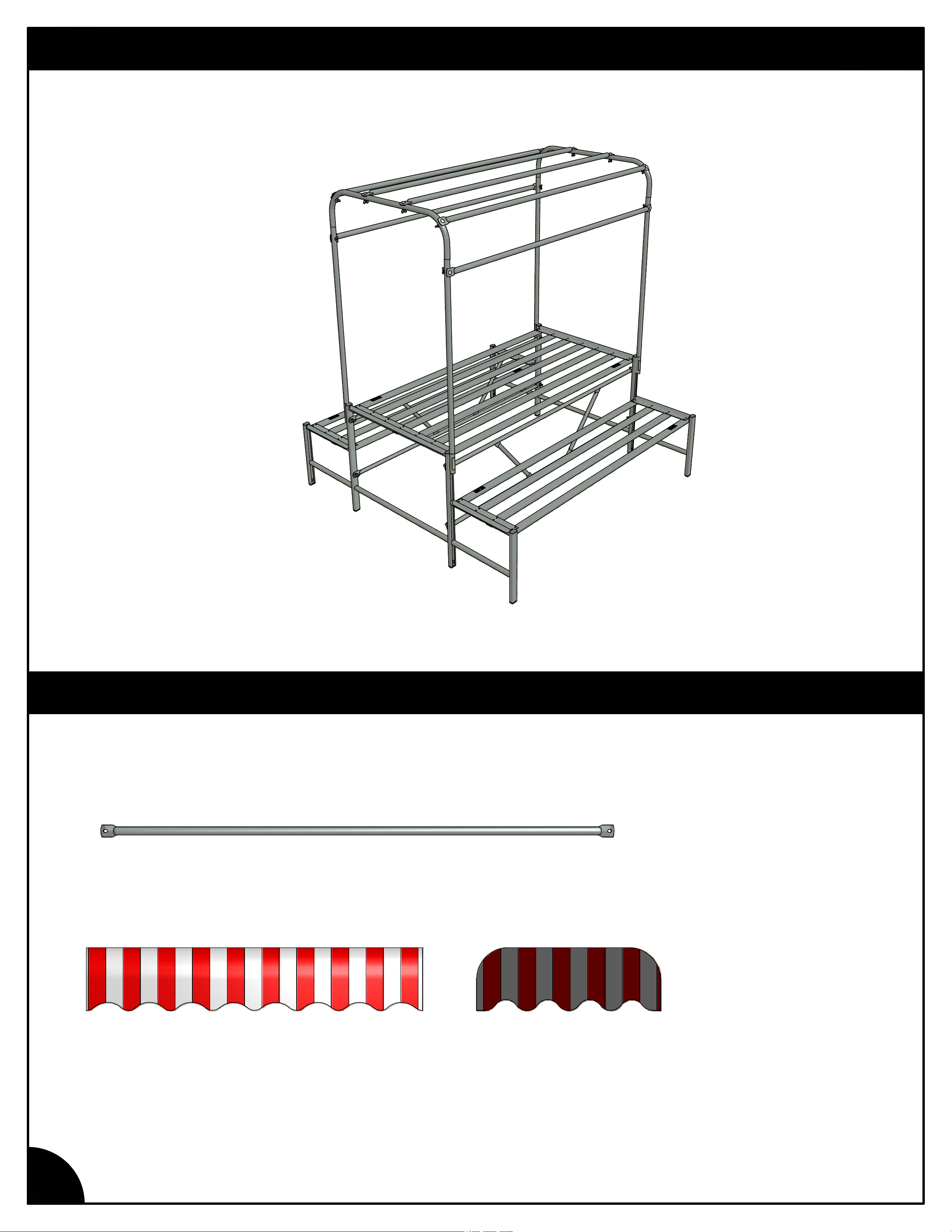

OPTIONAL BASKET TOWER CANOPY PARTS IDENTIFICATION
FB2531
CANOPY PURLIN
(2)
6
CANOPY
(1)
NB1827 - (4)
NB1862 - (4)
NB1903 - (4)
Page 7
OPTIONAL BASKET TOWER CANOPY ASSEMBLY INSTRUCTIONS
CANOPY
CANOPY PURLIN
49" BASKET POST
U-BRACE
49" BASKET POST
ASSEMBLED FB3003
STEP DISPLAY
W/ BASKET TOWER
INSTRUCTIONS:

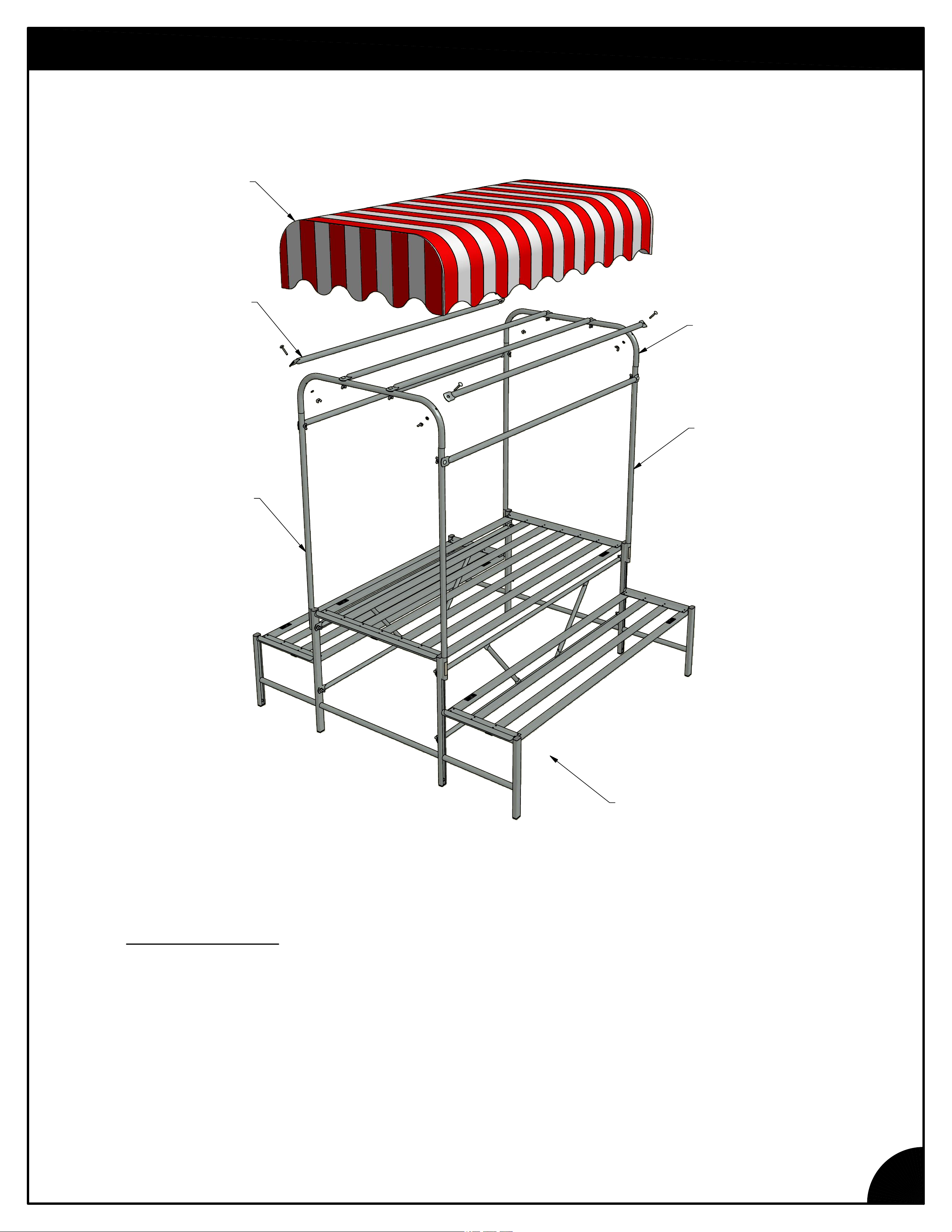

1. ATTACH CANOPY PURLINS TO U-BRACES USING 2" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND WING NUTS.
2. PLACE CANOPY OVER TOP OF CANOPY TOWER AND SECURE WITH
VELCRO STRAPS.
7
Page 8

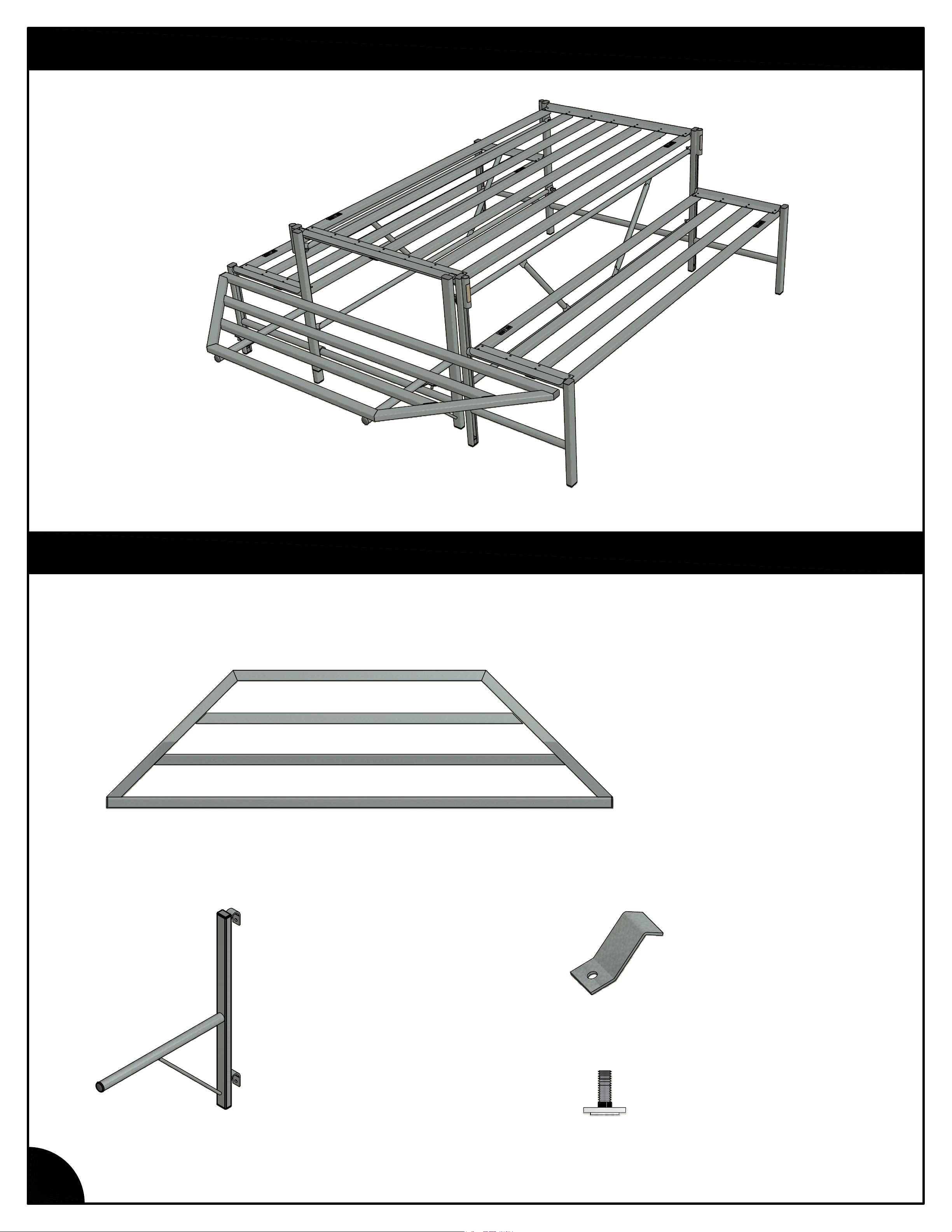

OPTIONAL ADD-A-BENCH
PARTS IDENTIFICATION
RF2554
1'-6" x 6' BENCH TOP
(1)
FB2002B
U-BRACE
OPTIONAL ADD-A-BENCH ASSEMBLY INSTRUCTIONS
(2)
1'-6" x 6' BENCH TOP
U-BRACE
NORSTAD CLIP
& THUMB SCREW
INSTRUCTIONS:

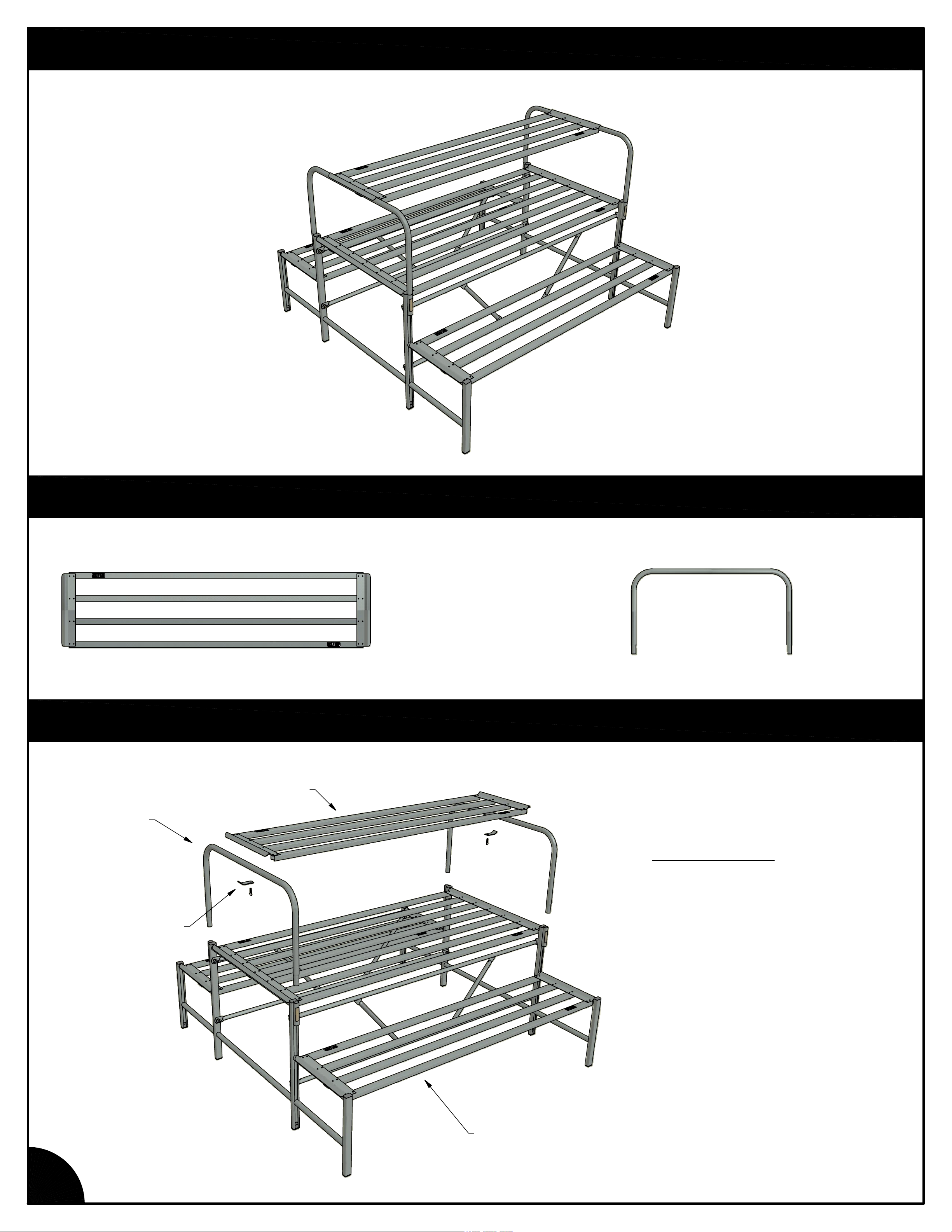

1. INSERT U-BRACE LEGS INTO
POCKETS ON END STANDS.
2. SET BENCH TOPS DOWN ONTO
U-BRACES.
3. SECURE BENCH TOPS WITH
NORSTAD CLIPS & THUMB
SCREWS.
8
ASSEMBLED FB3003
STEP DISPLAY
Page 9

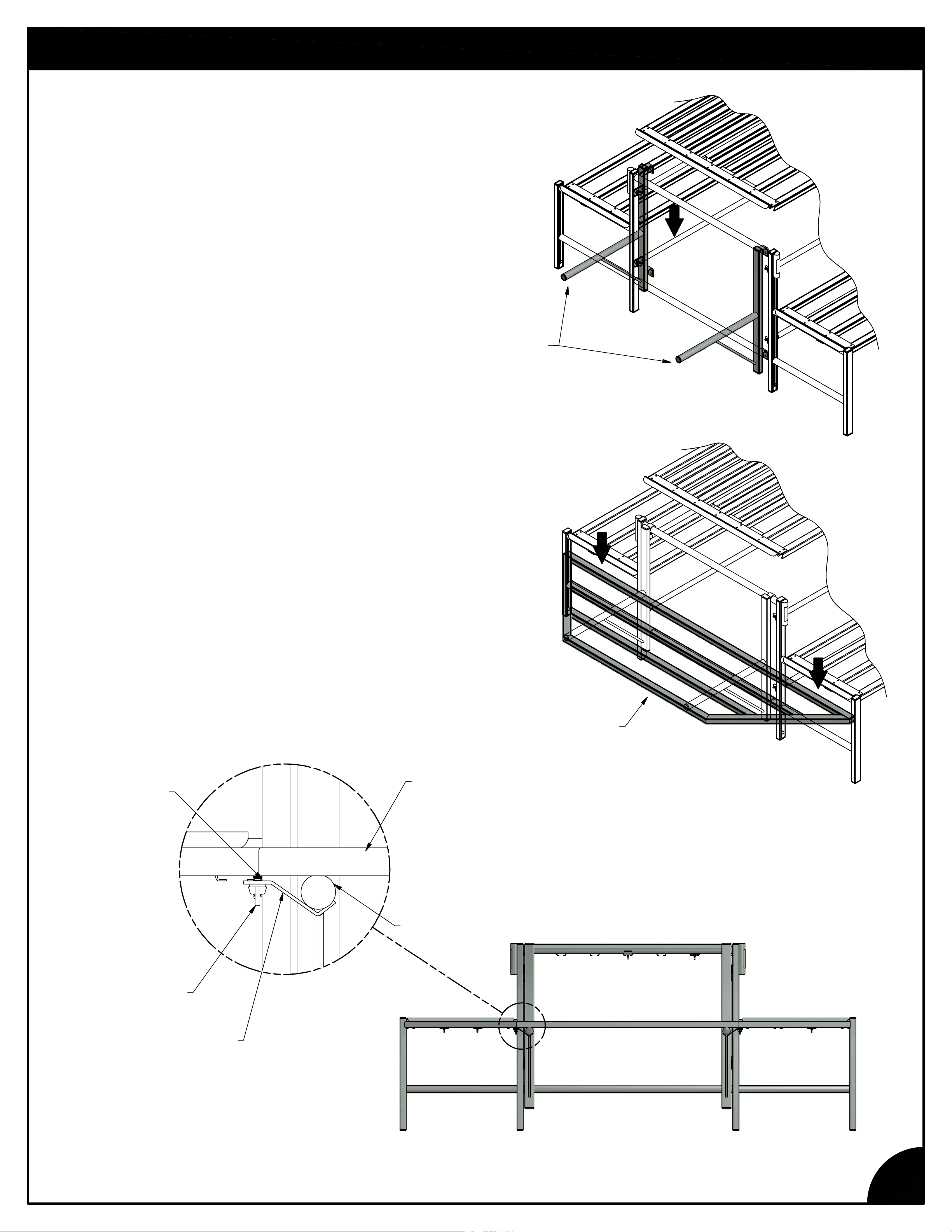

ASSEMBLY INSTRUCTIONS - CONNECTED RUNS
EXISTING UNIT
ADJOINING
STABILIZER
*
*
EXISTING
END STAND
ADJOINING
END STAND
INSTRUCTIONS:

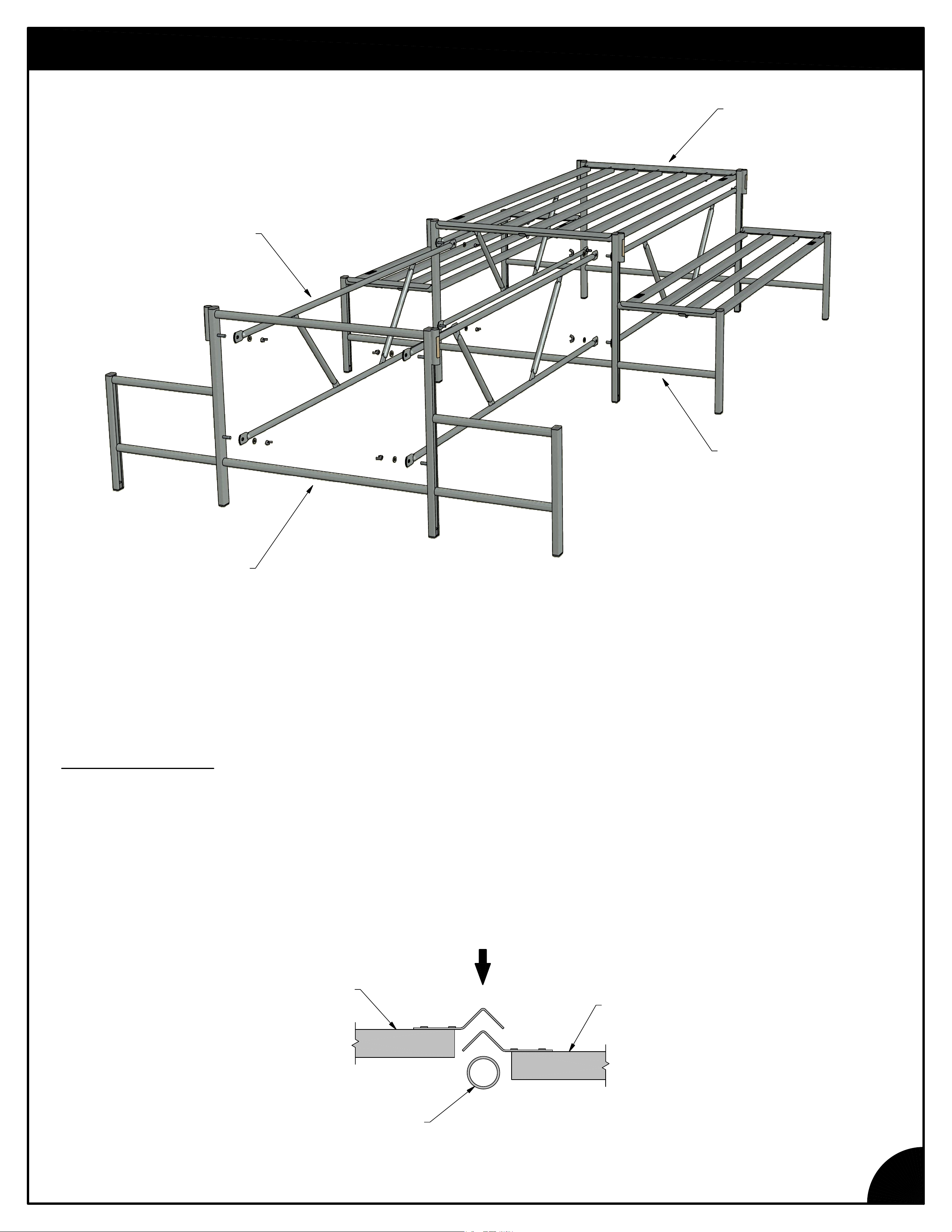

1. ATTACH ADJOINING UNIT'S STABILIZERS AND END STAND TO THE EXISTING UNIT'S
END STAND.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS SHOWN BELOW.
3. SECURE CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED TOGETHER ( ).
*
BENCH TOP
(ADJOINING)
BENCH END
BENCH TOP
SUPPORT TUBE
BENCH TOP
(EXISTING)
9
Page 10
OPTIONAL END CAP
PARTS IDENTIFICATION
FB3013
END CAP BENCH
(1)
FB3011
END CAP BRACKET
(2)
FT4030
END CAP CLIP
(2)
FT2570
STOP TAB
(2)
10
Page 11
OPTIONAL END CAP ASSEMBLY INSTRUCTIONS
1. WITH 3' x 6' BENCH TOP REMOVED,
PLACE END CAP BRACKETS ON
END STANDS AS SHOWN.
2. SET 3' x 6' BENCH TOP BACK
ONTO BENCH ASSEMBLY. SET
END CAP BENCH ONTO
BRACKETS.
END CAP
BRACKET
3. ATTACH END CAP CLIP WITH
STOP TAB, LOCK WASHER,
AND WING NUT AS SHOWN
IN DETAIL BELOW. REPEAT FOR
OTHER END CAP BRACKET.
STOP TAB
END CAP BENCH
END CAP BENCH
WING NUT
END CAP CLIP
END CAP BRACKET
11
Page 12
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with water from a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
