ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you begin to
assemble this greenhouse. Save instructions for future reference.
REV: AD-130626
Page 2
PLEASE READ THE INSTALLATION INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING THE
STRUCTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
This structure is intended to be self-supporting, provided it is constructed with all frames,
hardware, sheathing, sheeting, bracing, cables, and membrane in place, and secured to the
foundation as shown in the manual. Stability during construction, from winds and loads
imposed during erection, is the sole responsibility of the installer. Observe safety codes
required by your jurisdiction, and relevant safety practices for working at heights. Avoid the
risk of electrical shock from overhead lines or electrical storms. Poly-Tex recommends
contracting a licensed electrician to perform electrical work. Eye protection is recommended
under all circumstances and hearing protection is recommended when cutting components
with power tools.
Foundations
These instructions include minimum guidance for foundations based on the International
Building Code. These minimums are suitable for some areas of the country but not all. Obtain
a building permit if required in the local jurisdiction. Engineered and Certified foundation plans
may be required by a building official before issuing a permit. Even if not required, seeking
guidance from a qualified structural or civil engineer for the foundation design may improve
the life of the structure.
No part of this structure is engineered to function as an anchorage point for a fall arrest
system. Use a safety net or work from a safe work platform (i.e. scaffolding). Select a calm
day for work. Wind can be sufficient enough to knock materials or workers off of a work
platform or ladder, resulting in a potentially deadly fall.
Overview of assembly procedure
While each structure and site is unique, and may require special considerations, these
instructions are for a tilt-up method (where frames are assembled on the ground and tilted
onto ground stakes or anchor rods using ropes or lifts). If installer is not confident to erect the
structure, Poly-Tex suggests hiring a general contractor, carpenter, or similar licensed
business familiar with construction, to assemble and erect the structure.
Do not overload structure. Consult with a Poly-Tex representative prior to adding any
amount of weight over the specified capacity of this structure. Basket purlins, shelving or any
objects of significant weight shall not be hung, attached, or secured to roof or truss members
in a manner that will overload the structure.
Do not walk on polycarbonate sheets. If structure is to be covered with polycarbonate
sheets, always use scaffolding for the erection process to avoid damage to sheeting and to
ensure safety. Polycarbonate sheeting has UV coating protected with vinyl film on the exterior
surface. Install sheets with the film intact and toward the exterior. Remove film once the
sheet has been fastened in place.
REV: AD-130626
Page 3
REV: AD-130626
Page 4
CF1012
PT SIDE SECTION (111")
TUBE W/SWEDGE 2" x 14GA x 115"
CF1003 - TRUSS MEMBER
CF1004 - 107" GABLE END TUBE
HP3000
CF1013
PT PEAK SECTION (34")
CF1007 - DOOR FRAME EXT.
NB1843
CARRIAGE BOLT 3/8"x 2"
NB1863
WASHER FLAT 3/8" ZP
NB1749
NUT LOCK 3/8" ZP NYLON INSERT
NB1832
CARRIAGE BOLT 5/16"x1-1/4" GRD
NB1862
LOCK WASHER 5/16" ZP
NB1872
HEX NUT 5/16" ZP
NB1809
SELF-DRILLING SCREW 1/4"-14x1"
NB1802
SELF-DRILL SCREW #12-14x3/4"
NB1804
SELF-DRILL SCREW #12-14x1"
NB1805
SELF-DRILL SCREW #12-14x1-1/2"
HT1015-92 3/4" CHORD
CF1005 - 79" GABLE END TUBE
CF1006 - 8'-11" DIAGONAL WIND BRACE
CF1008 - 7'-5 1/2" DIAGONAL WIND BRACE
GS2400 GROUND STAKE 1.66" x 3'
NOTE: SEE LEG STANDS PG FOUR
HP3340-9'-8" TRUSS PURLIN W/SWAGE-RED
HT1064-65 1/2" CHORD W/SWAGE
GS2401 GROUND STAND 1.66" x 3'
RS5000
1 1/4" RND BLK PLUG
RS5002
1.375" RD BLK PLUG
CROSS CONNECTOR
FB2527
1" x 1 1/2" RECT BLK PLUG 16GA
FT2106
R.F. END STRAP
FT4040
FT1998
JAMB CLAMP
FT2108
1 1/2" UNI PIPE CLAMP
HY2027
C-BRACKET
FT1999
END CLAMP
KH1000
PURLIN FASTENER
FT4041
BRACE BAND
FT2079
LONG SPEED HOOK
REV: AD-130626
RR2109 9'-8" R.F. U CHANNEL W/SWAGE
SEE DOOR PARTS PGS TWO & THREE
FT2570
STOP TAB
FT2000
CORNER MOUNT
FT1990
"L" BRACKET
Page 5
NB1757
HEX BOLT 3/8" x 3" ZP G5
NB1864
LOCK WASHER 3/8" ZP
NB1874
HEX NUT 3/8" ZP
DR5012
SLIDING DR RAIL 10' COMM (RED)
SIDE DOOR GUIDE
#131490 HEAVY STAY ROLLER
DR5070
DOOR FRAME VERTICAL (88")
DR5071
DOOR FRAME HEADER (71")
DR3033
DOOR LATCH ASSEMBLY (SLIDING)
DR2500
HEADER SWEEP 7'
REV: AD-130626
NB1925
SNAPPER PIN
DR2502
JAMB SWEEP 7'
DR6004
3'2" x 6'8" RT SLIDING DOOR(RM)
NOTE: 6'-8" DOORS SHOWN. PLEASE CONSULT
PICKING LIST FOR YOUR DOOR SIZE AND HDWE #'S
DR6006
3'2" X 6'8" LT SLIDING DOOR(RM XA EM)
Page 6
DR3030
DOOR LATCH ASSEMBLY
DR5070
DOOR FRAME VERTICAL (88")
DR5071
DOOR FRAME HEADER (71")
REV: AD-130626
XA3923
DOOR CATCH
DR6002
3' x 6'8" GH DOOR (XA)
DR5502
HEADER PLATE (OFFSET)
Page 7
6'
5'-10 1/2"
432"
30'
6'-3"
5'-10 1/2"
6'
6'
SEE NEXT PAGE FOR DESCRIPTIONS
432"
5'-10 1/2"
30'
6'-3"
5'-10 1/2"
REV: AD-130626
6'
Page 8

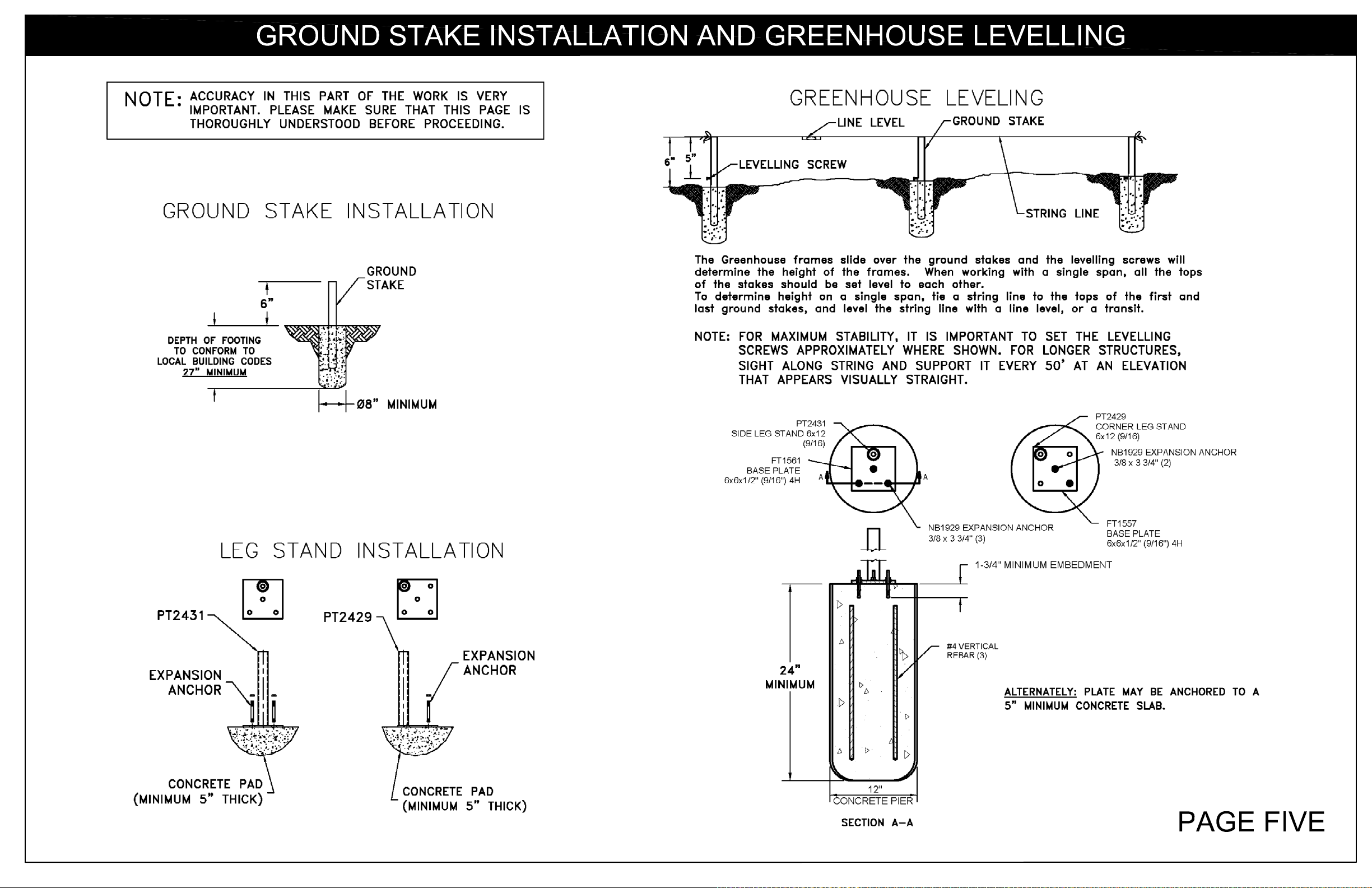

AD-130626
Page 9
CF1013
PT PEAK SECTION (34")
(2) #14 x 3/4"
SELF-DRILLING SCREW
NB1802
SIDE SECTION
HP3000
TUBE W/SWEDGE 2" x 14GA x 115"
TUBE SECTION
CF1012
PT SIDE SECTION (111")
REV: AD-130626

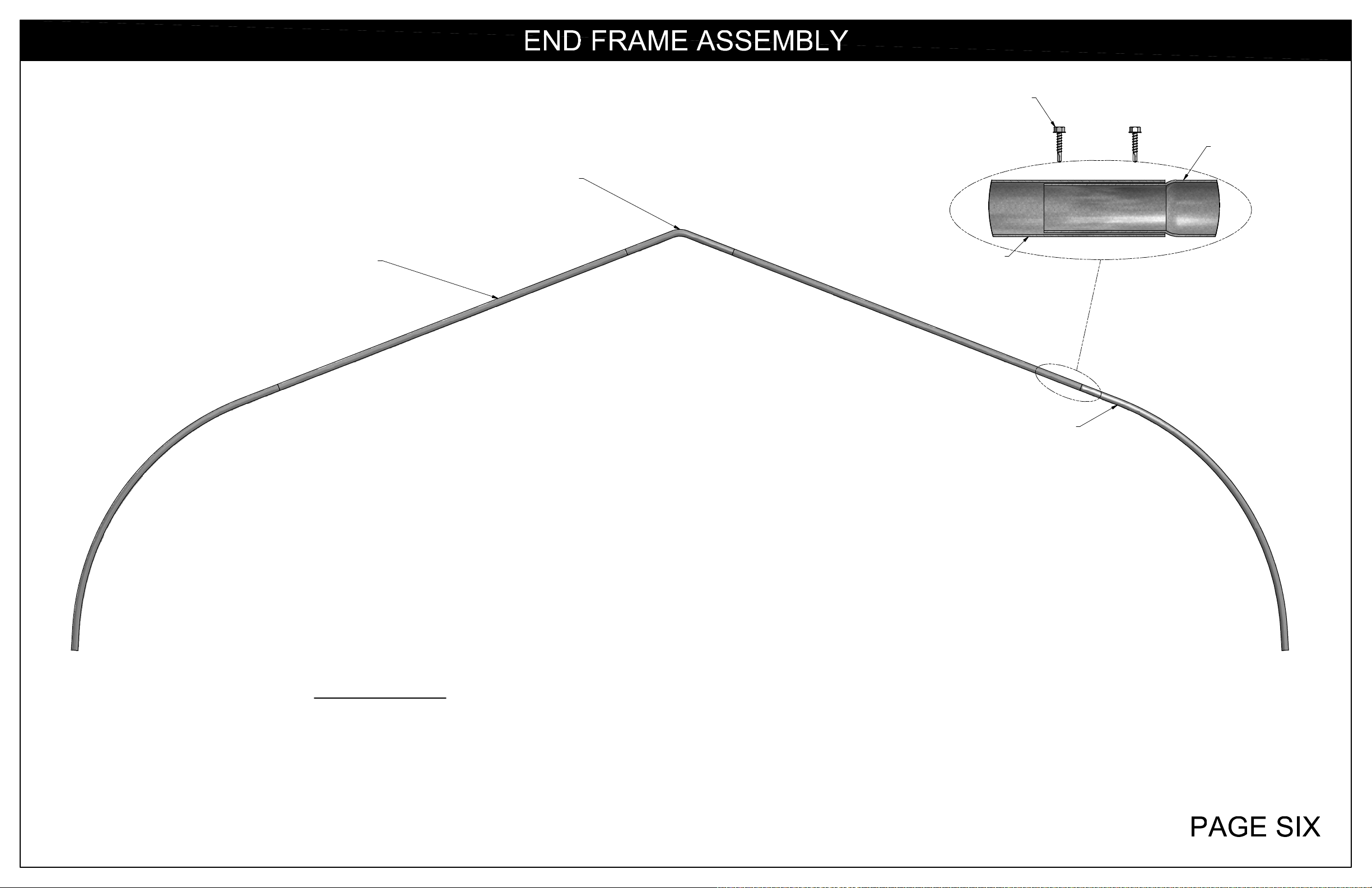

INSTRUCTIONS:
1. ASSEMBLE HOOPS ON A FLAT SURFACE.
2. SECURE HOOP SECTIONS USING (2) #14 X 3/4" SELF-DRILLING SCREWS.
3. DO NOT INSTALL TRUSS MEMBERS ON THIS FRAME ASSEMBLY

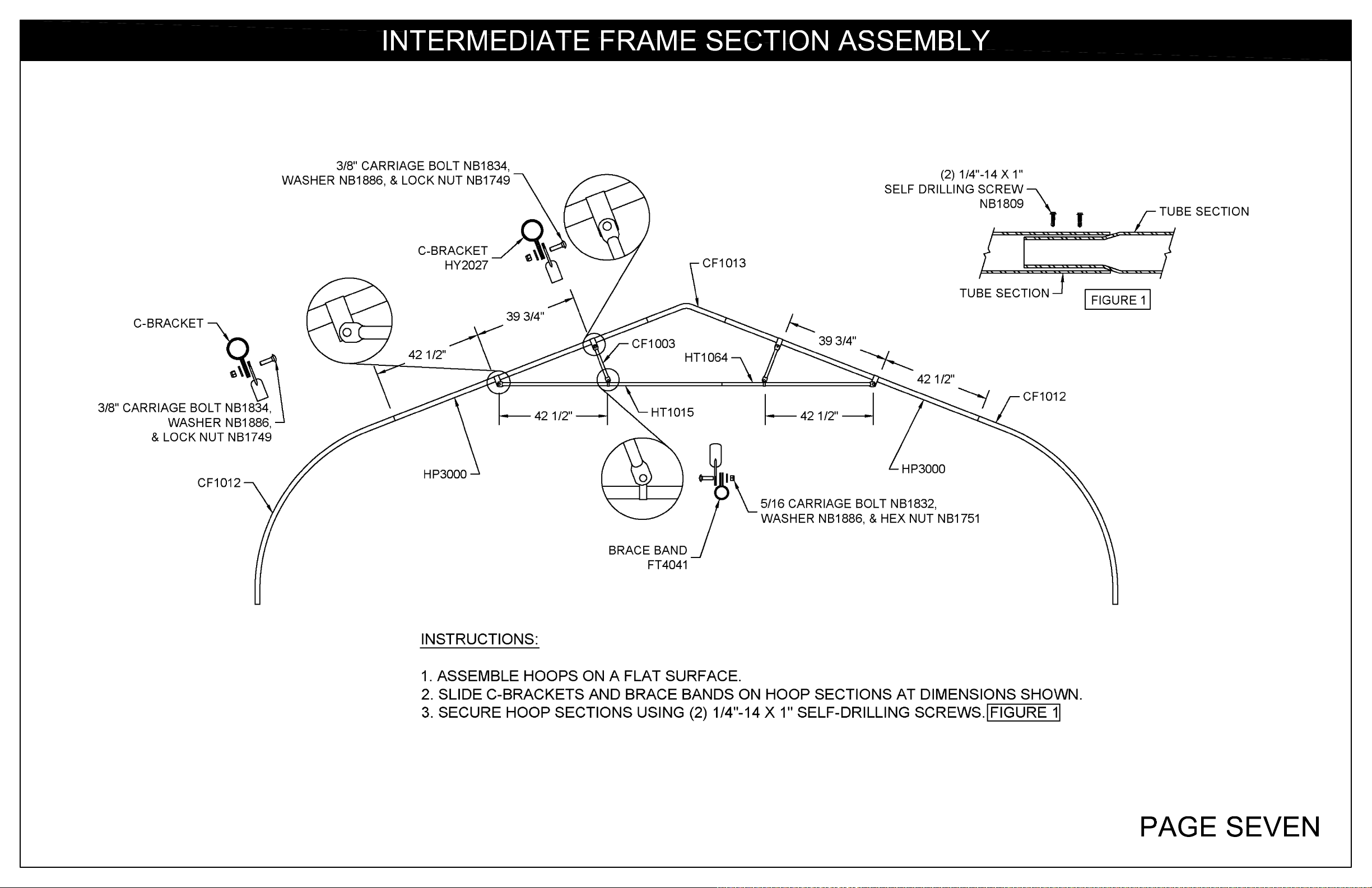

Page 10
REV: AD-130626

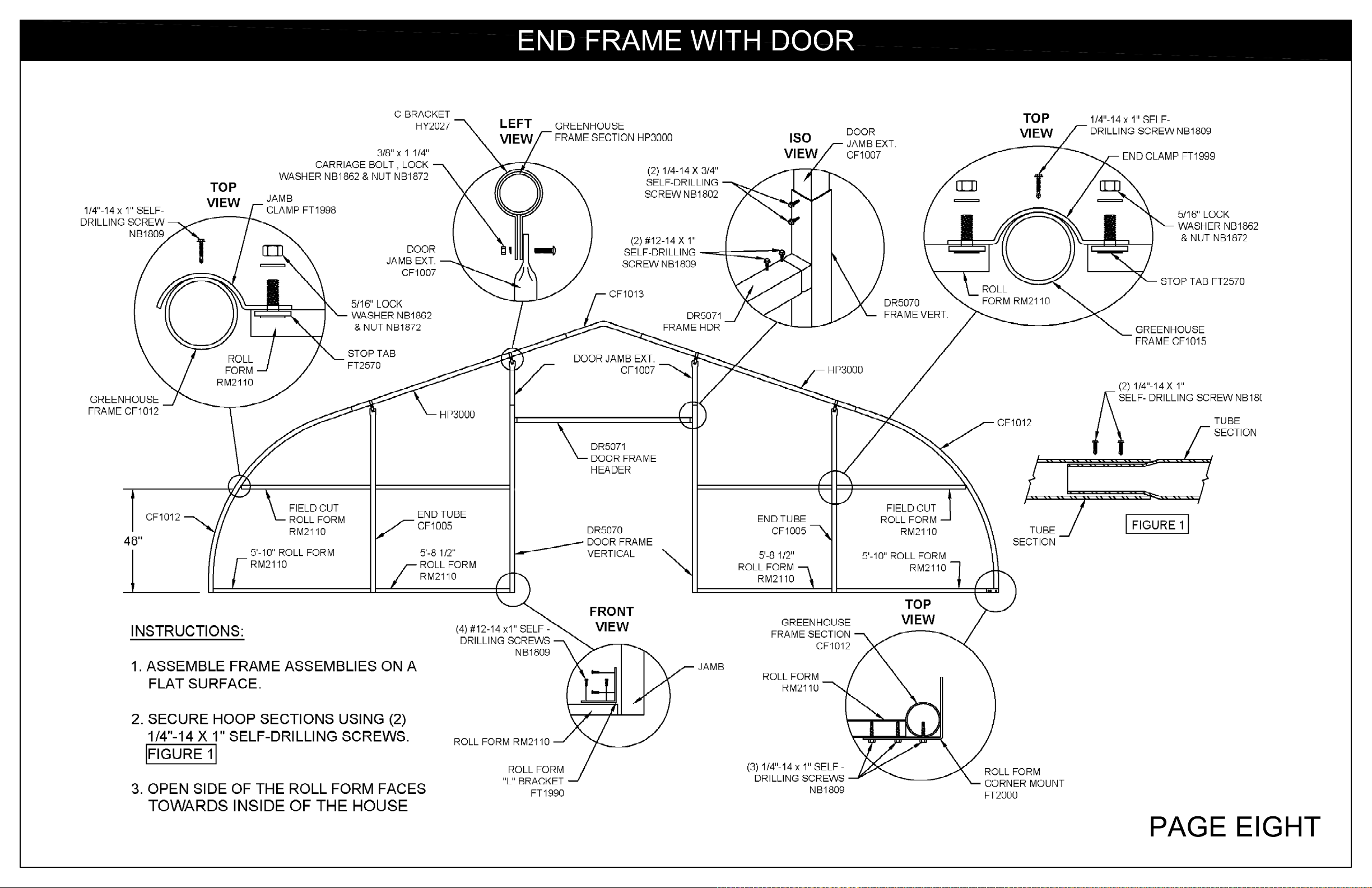

Page 11
REV: AD-130626
Page 12

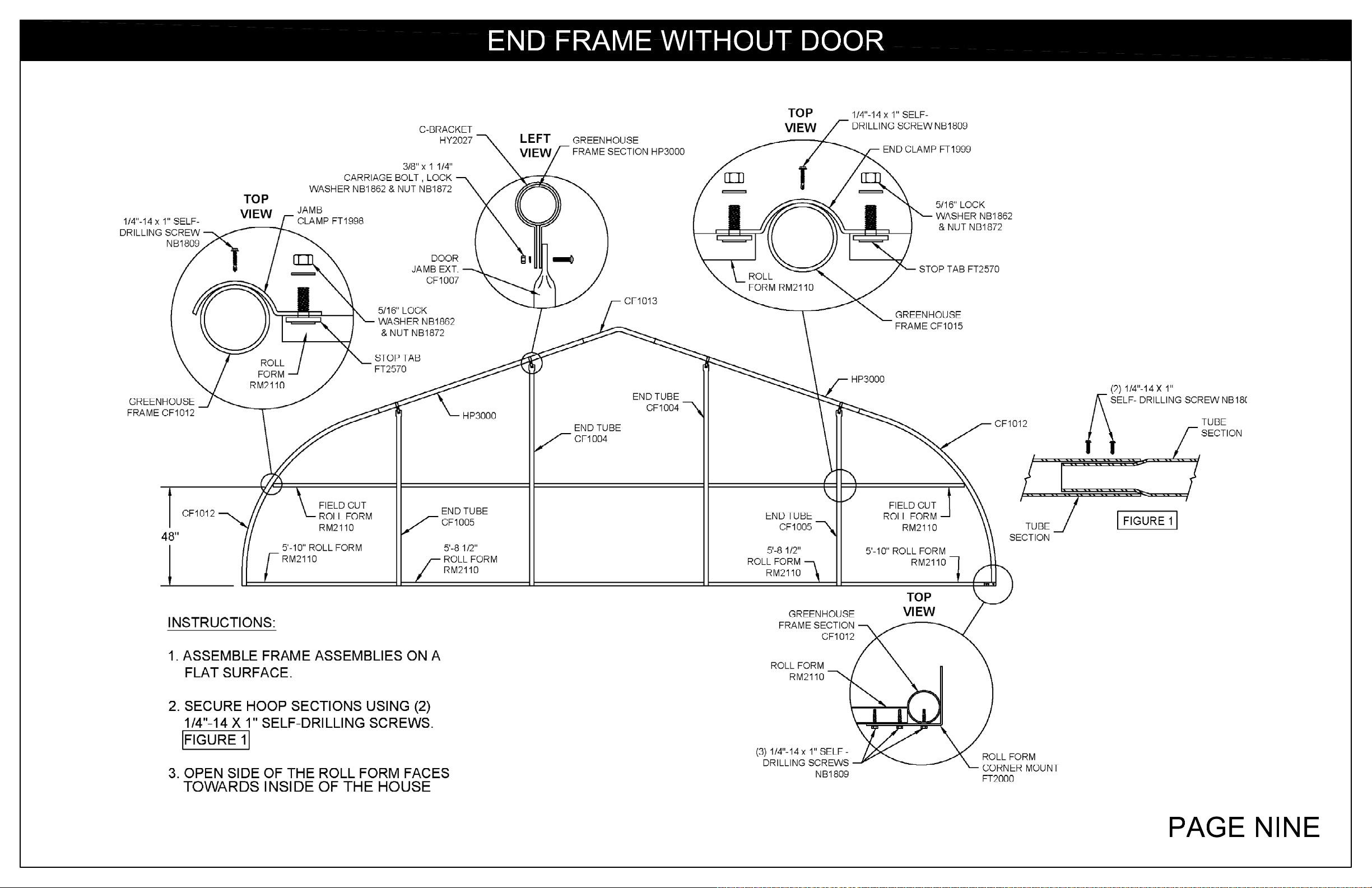

REV: AD-130626

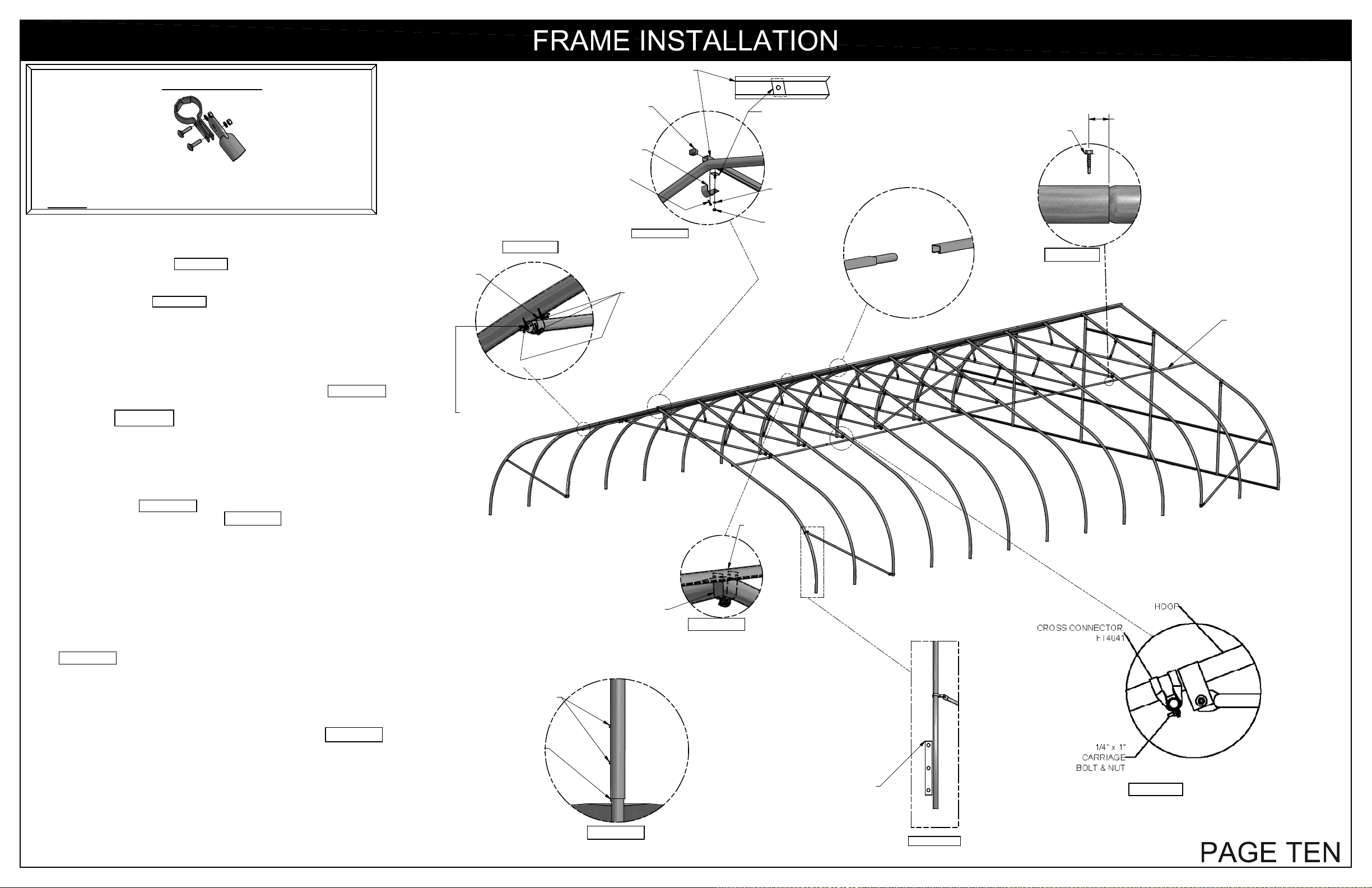

Page 13
IMPORTANT
ROLL FORM PURLIN
RR2109
PURLIN
ALL COMPONENTS ATTACHED TO LONG SPEED HOOKS
MUST BE MOUNTED ON THE OUTSIDE OF THE TABS.
NEVER INSTALL COMPONENTS BETWEEN TABS.
1. RAISE TWO FRAME SECTIONS, SLIDE INSIDE GROUND STAKES UNTIL
THEY REST ON THE SCREW INSTALLED IN THE GROUND STAKE
INSTALLATION, AND FASTEN TO GROUND STAKES WITH TWO 1/4"-14 x 1"
SELF DRILLING SCREWS. FIGURE 1
2. PLUMB FRAME SECTIONS AND ATTACH DIAGONAL BRACES USING
LONG SPEED HOOKS. FIGURE 2 NOTE: BRACE IS ATTACHED TO 3RD
FRAME SECTION ON 4' FRAME SPACING AND 2ND FRAME SECTION ON 6'
FRAME SPACING.
3. RAISE A THIRD FRAME SECTION, THEN ATTACH DIAGONAL BRACES
USING LONG SPEED HOOKS. ATTACH THE HP3340 PURLINS JUST BELOW
THE TRUSS CONNECTION USING CROSS CONNECTORS ON THE
INTERMEDIATE CONNECTIONS AND KH1000 ON ENDS. FIGURE 3 ATTACH
THE RIDGE PURLIN TO FRAME SECTIONS USING THE CROSS
CONNECTORS. FIGURE 3
4. USE PURLIN FASTENERS TO SECURE THE PURLIN TO THE END FRAME
SECTIONS ONLY. START WITH THE PLAIN END OF THE PURLIN FLUSH
WITH THE OUTSIDE OF THE FRAME SECTION. SECURE THE PURLIN
FASTENER WITH TWO #12-14 x 1" SELF-DRILLING SCREWS. SECURE THE
PURLIN TO THE PURLIN FASTENER USING ONE #12-14 x 1" SELF-DRILLING
SCREW AS SHOWN. FIGURE 4 ATTACH PURLINS TOGETHER WITH ONE
#12-14 x 1" SELF-DRILLING SCREW. FIGURE 5
TAP THE ROUND CAPS INTO THE END OF THE PURLINS WHEN DONE.
5. FOR PEAK PURLIN, USE END STRAP AND STOP TAB TO SECURE THE
PURLIN TO THE END FRAME SECTIONS ONLY. START WITH THE PLAIN
END OF THE PURLIN FLUSH WITH THE OUTSIDE OF THE FRAME SECTION.
SECURE THE PURLIN BY INSERTING THE STOP TAB INTO THE INSIDE OF
THE ROLL FORMED PURLIN (ONLY FITS ONE DIRECTION). SECURE THE
PURLIN TO THE END STRAP USING A 5/16" NUT AND LOCK WASHER
(STOP TAB IS SELF-TIGHTENING). DRIVE A #12-14 SELF-DRILLING SCREW
THROUGH THE HOLE ON THE STRAP AND INTO THE FRAME SECTION
( SEE FIGURE 6 ) ATTACH ADDITIONAL PURLINS TOGETHER WITH ONE
#12-14 x 1" SELF-DRILLING SCREW FOR EACH PURLIN.
FIGURE 4
KH1000
INSERT RS5000
ROUND PLUGS
INTO ENDS (4)
IMAGE IS 4ft ON CENTER
HOOP SPACING
RECT PLUG
FB2527
END STRAP
FT2106
SCREW
NB1809
END SECTIONS
#12-14 x 1"
SELF-DRILLING
SCREW NB1804
UNI-CLAMP
FT2108
FIGURE 6
ONLY
INTERMEDIATE
FIGURE 7
SECTIONS
STOP TAB
ST1021
LOCK WASHER
NB1862
HEX NUT
NB1872
PEAK
PURLIN
PEAK
PURLIN
#12-14 x 1" SELF
DRILLING SCREW
NB1804
FIGURE 5
1"
HP3340
9'-8" TRUSS PURLIN
W/SWG-RED (2)
6. FOR SECURING THE PEAK PURLIN TO INTERMEDIATE SECTIONS, TAKE
APART A UNI-CLAMP AND INSERT EACH CUT-OUT SIDE INTO THE PEAK
PURLIN ORIENTING THE BENT PARTS TO FIT AROUND THE FRAME
SECTION. RE-INSERT HARDWARE AND SECURE ( SEE FIGURE 7 ).
7. CONTINUE RAISING FRAME SECTIONS AND ATTACHING PURLINS UNTIL
DESIRED LENGTH OF STRUCTURE IS REACHED. ATTACH DIAGONAL
BRACES TO OPPOSITE END OF STRUCTURE AS MENTIONED ABOVE.
VERIFY THAT THE END FRAMES ARE PLUMB. CUT FINAL SECTIONS OF
PURLINS FLUSH WITH OUTSIDE OF LAST FRAME.
AD-130626
1/4"-14 x 1" SELF-
DRILLING SCREW
LEVELING
SCREW
FIGURE 1
LEVEL
FIGURE 3
FIGURE 2

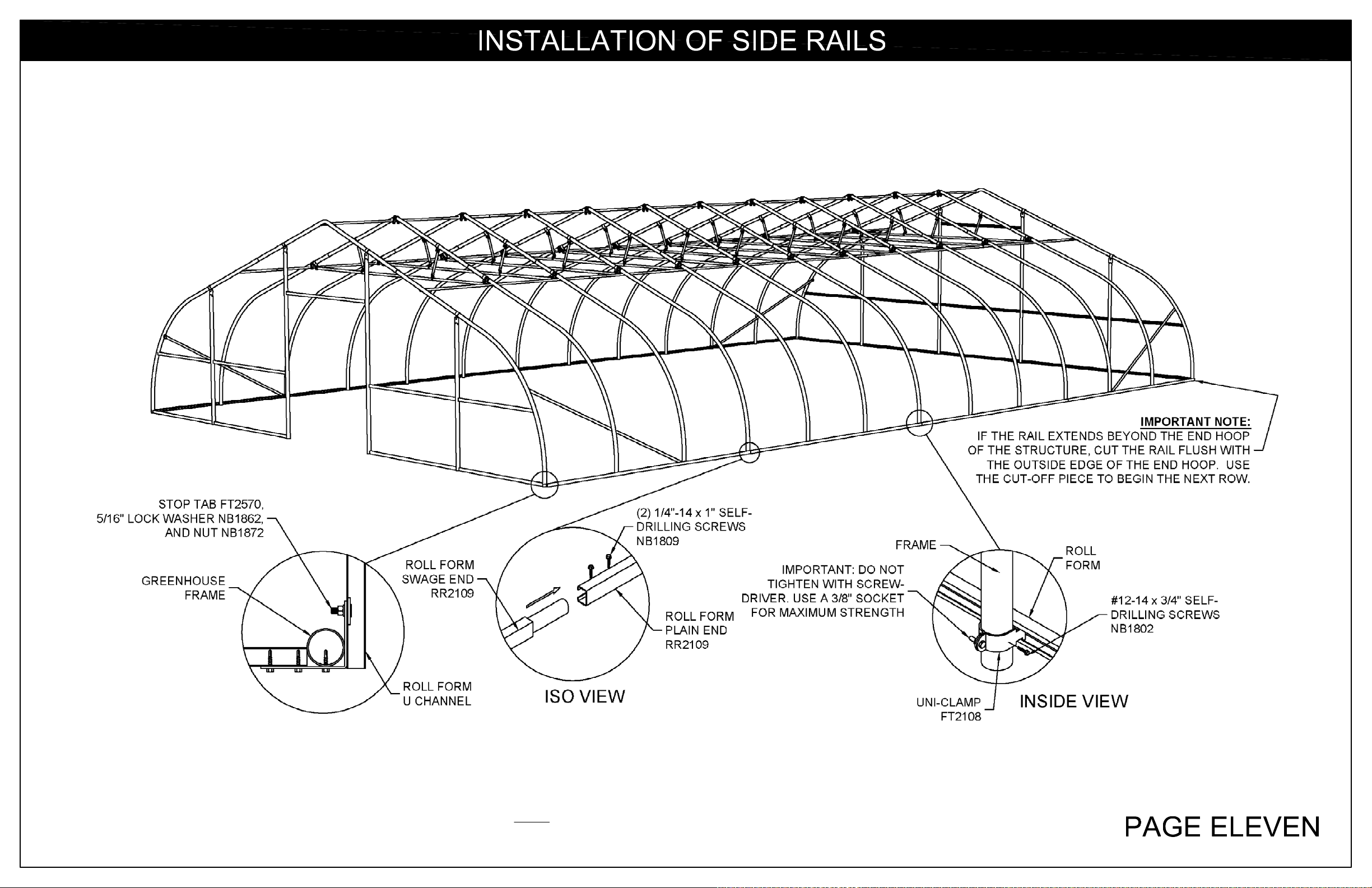

Page 14
REV: AD-130626
TOP VIEW
NOTE: WHEN ANY PART OF THE OVAL INSERT IS TOO NEAR A POST
TO ATTACH UNI-CLAMPS, CUT A PORTION (8" - 12") FROM THE PLAIN
END OF THE ROLL FORM AND PROCEED WITH THE INSTALLATION.
Page 15

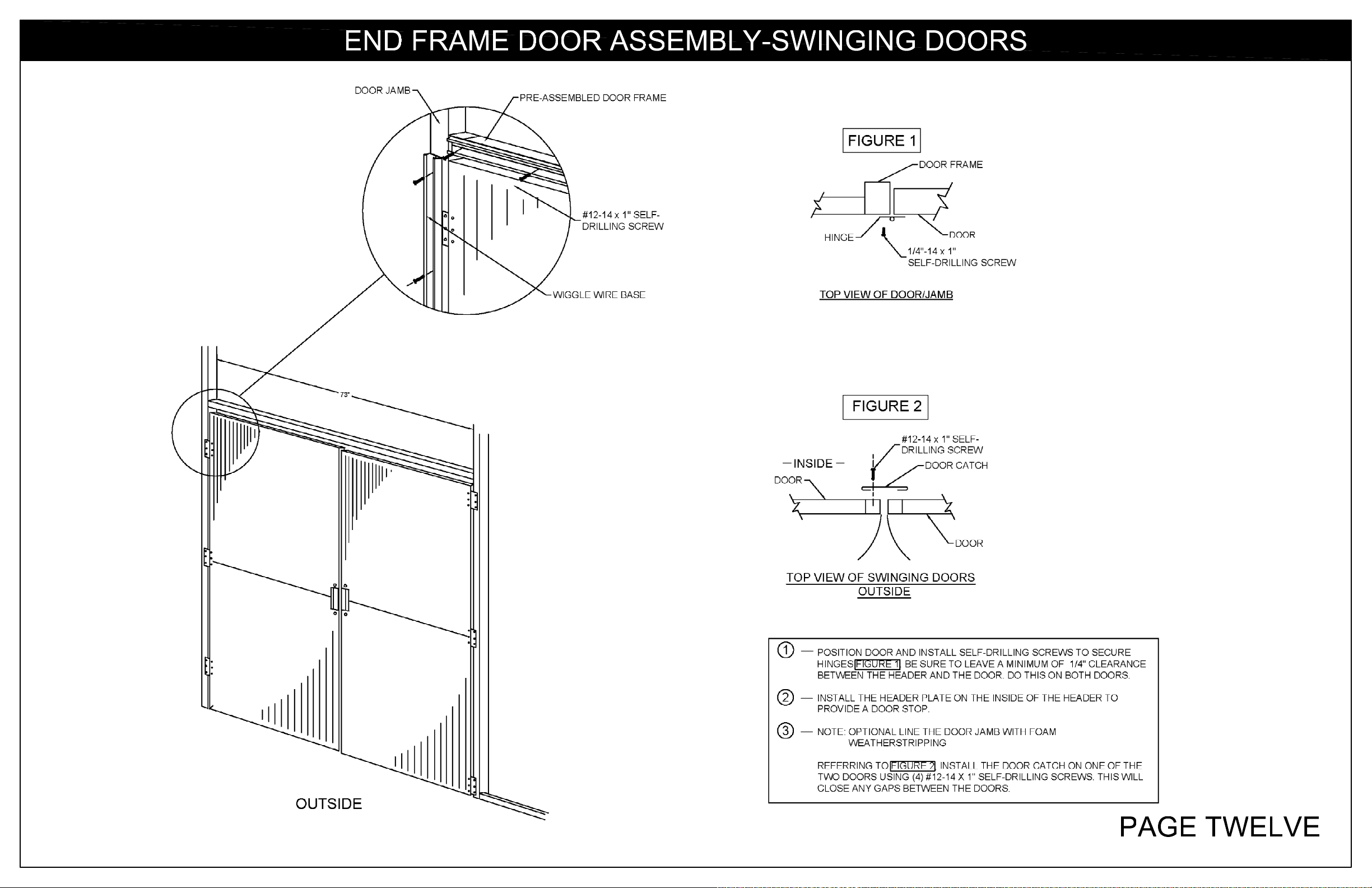

REV: AD-130626
Page 16

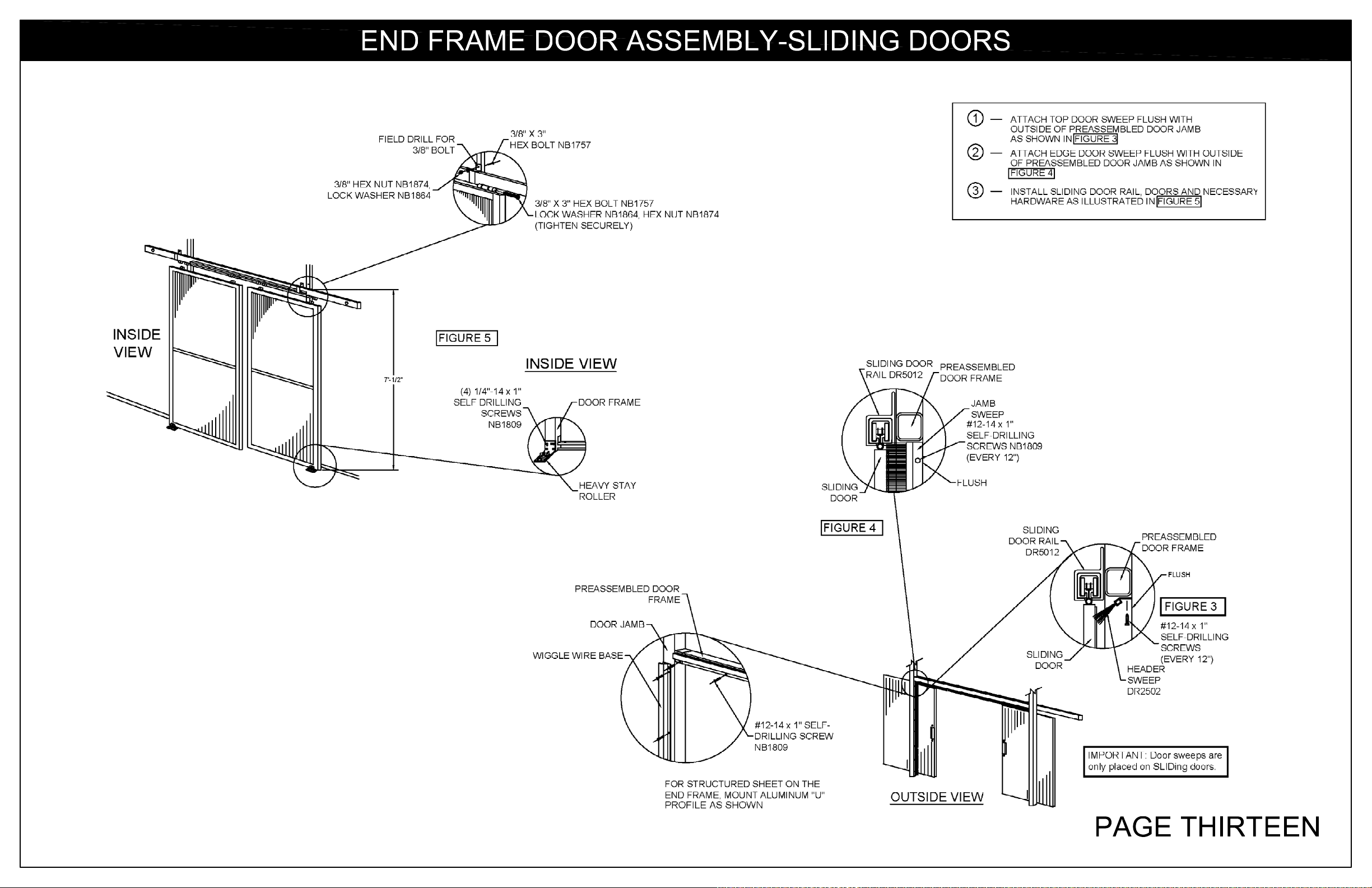

REV: AD-130626
Page 17

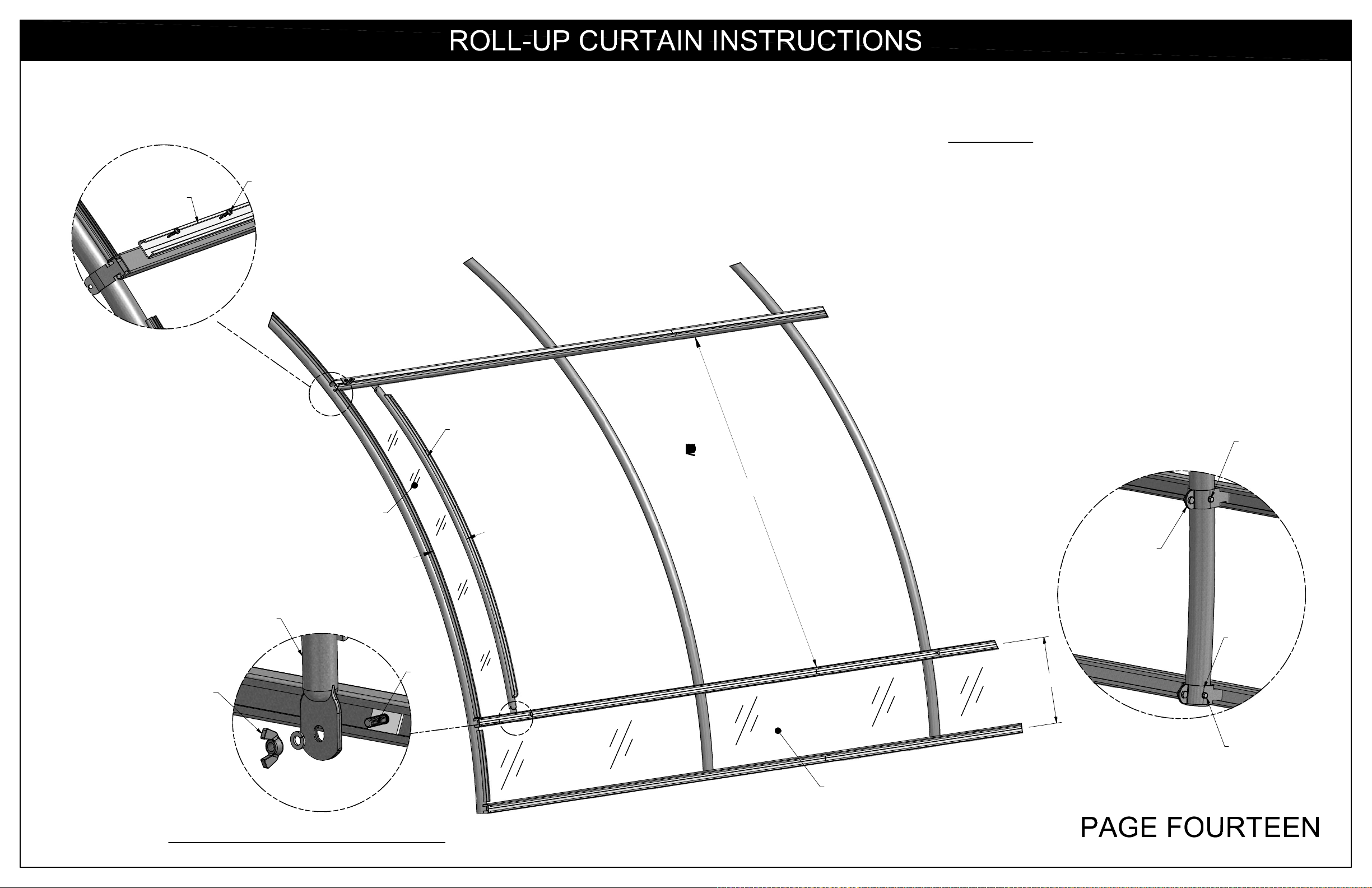

INSTRUCTIONS
1. ATTACH ROLL FORM RAILS TO FRAME ASSEMBLIES
WITH UNI-CLAMPS.
2. BOTTOM RAIL IS APPROXIMATELY 12" UP FROM BOTTOM
OF FRAME ASSEMBLY.
3. TOP RAIL IS 60" BETWEEN THE RAILS.
4. ATTACH WIGGLE WIRE BASE USING #12-14 x 1" SELFDRILLING SCREWS SPACED APPROXIMATELY 12" APART.
5. ATTACH SIDE RAIL WITH STOP TABS, LOCK WASHERS
AND HEX NUTS. SIDE RAIL IS 12" FROM INSIDE EDGE OF
CORNER HOOP.
6. INSTALL POLY ON 12" LOWER SECTION.
7. INSTALL POLY BETWEEN END FRAME AND SIDE RAILS.
8. INSTALL END FRAME POLY.
5/16 WINGNUTNB1903
SIDE RAIL
SIDE POLY
SIDE RAIL
12"
#12-14 x 1" SELF
DRILLING SCREW
NB1809
60"
UNI-CLAMP
FT2108
UNI-CLAMP
12"
#12-14 x 1" SELF
DRILLING SCREW
NB1809
REV: AD-130626
LOWER POLY
VIEW FROM INSIDE OF STRUCTURE
Page 18
#12-14 x 1" SELF-
DRILLING SCREW
NB1809
ROLL-UP TUBE CF1014
LENGTH AS
REQUIRED
74"
2"
3 11/16"
POLY CURTAIN

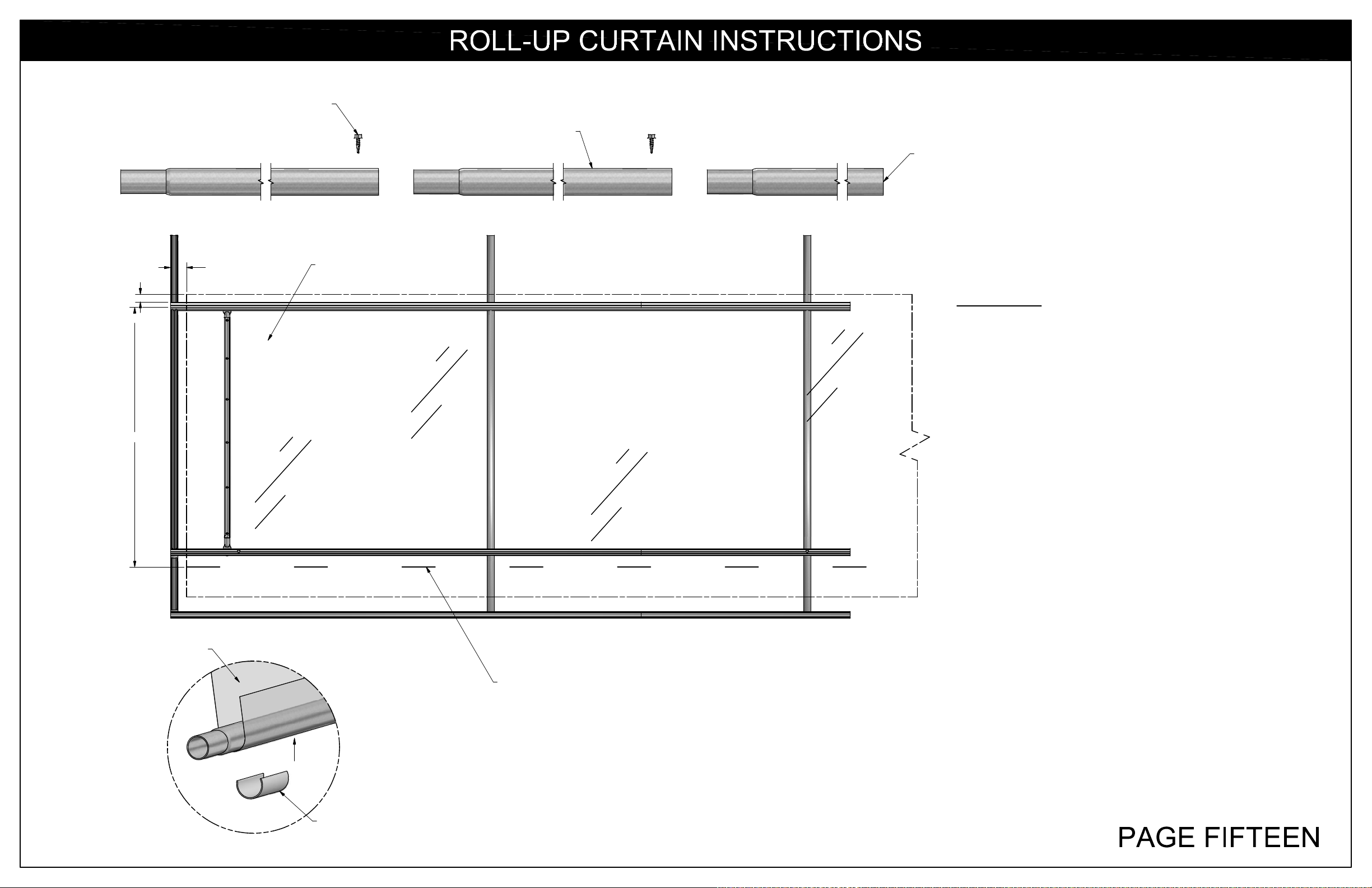

INSTRUCTIONS
9. ASSEMBLE BOTTOM TUBE. SECURE WITH #12-14 x 1" SELFDRILLING SCREWS.
10. INSTALL ROLL-UP CURTAIN POLY. EXTEND CURTAIN POLY ABOUT
2" BEYOND HOOP AND APPROXIMATELY 2" ABOVE UPPER RAIL.
KEEP AS EVEN AS POSSIBLE. AFTER POLY IS SECURE, MEASURE
DOWN 74" FROM TOP RAIL AND PLACE A MARK ON THE POLY
USING A MARKING PEN.
11. USE THE MARK TO ALIGN ROLL-UP TUBE WHILE FASTENING TUBE
CLIPS. FASTEN CURTAIN TO TUBE USING CLIPS EVERY 3' KEEPING
TUBE STRAIGHT WITH MARKS.
REV: AD-130626
POLY CURTAIN
MARK FOR
ROLL-UP TUBE
TUBE CLIP
Page 19

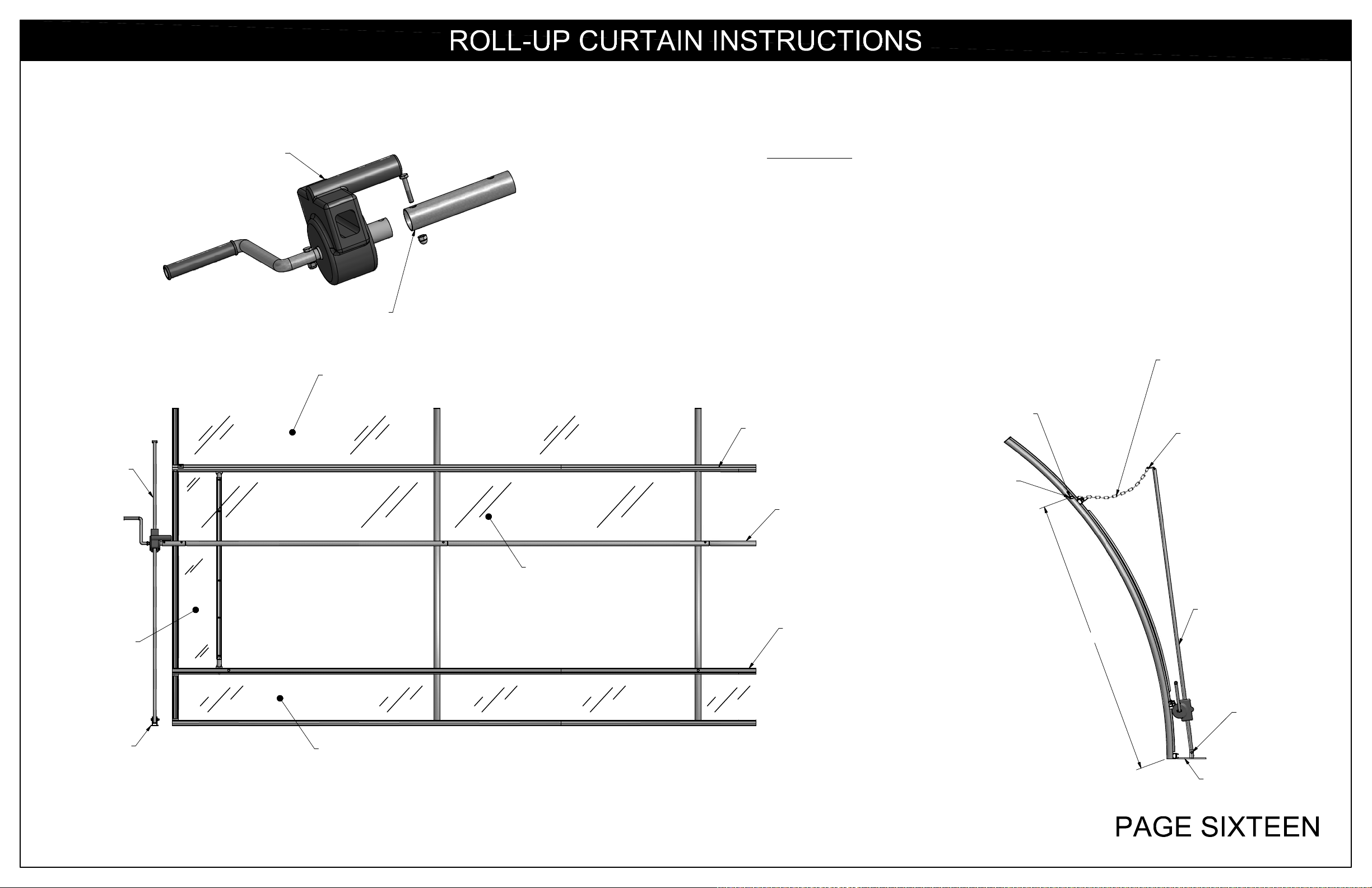

GEARBOX
GUIDE
BASE,
MV1000
GEARBOX
EXTENSION
RC1009
ROOF POLY
INSTRUCTIONS
12. ATTACH GEARBOX EXTENSION TO GEARBOX USING THE
BOLT PROVIDED. ATTACH GEARBOX TO TUBE ASSEMBLY
USING #12-14 x 1" SELF-DRILLING SCREW.
13. SLIDE GEARBOX GUIDE THROUGH GEARBOX AND BOLT
GUIDE TO GUIDE MOUNTING BRACKET.
14. ATTACH CHAIN TO HOOP BY DRILLING 3/8" HOLE THROUGH THE
SIDE OF HOOP APPROXIMATELY 77" UP FROM THE BOTTOM OF
THE HOOP. USE A 5/16" x 2-1/2" HEX BOLT, FLAT WASHER, LOCK
WASHER, AND HEX NUT TO ATTACH TO HOOP.
15. ATTACH CHAIN TO GEARBOX GUIDE USING 5/16" x 3/4" HEX BOLT,
FLAT WASHER, LOCK WASHER, & HEX NUT.
3/8" THRU HOLE
(FIELD DRILL)
UPPER RAIL
5/16" x 2-1/2" HEX
BOLT NB 1850,FLAT WASHER NB1886,
LOCK WASHER NB1862,
& HEX NUT NB1872
TUBE ASSEMBLY
CHAIN, RC1307
5/16" x 3/4" HEX BOLT NB1842,
FLAT WASHER NB1886, LOCK
WASHER NB1862, &
HEX NUT NB1872
SIDE POLY
GUIDE
MOUNTING
BRACKET
REV: AD-130626
12" LOWER POLY
ROLL-UP
CURTAIN
LOWER
RAIL
GEARBOX GUIDE
RC1305
77"
5/16" x 2" HEX
BOLT NB1848, LOCK
WASHER NB1862, &
HEX NUT NB1872
GUIDE MOUNTING
BRACKET RC1301
Page 20
INSTRUCTIONS

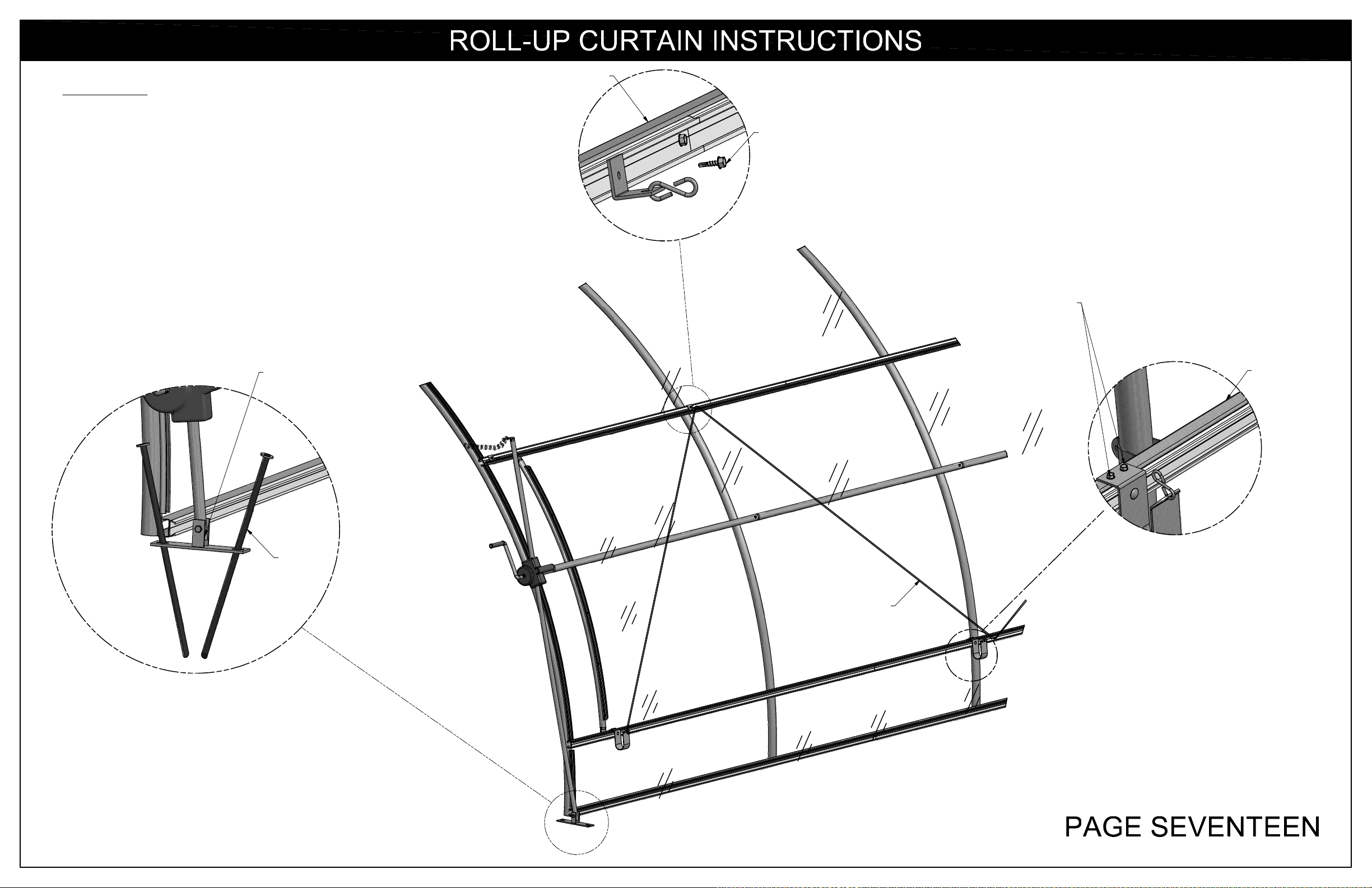

16. RAISE CURTAIN ABOUT HALFWAY UP. SET CRADLES JUST INSIDE THE
SIDE GUIDE ON BOTH ENDS OF THE HOUSE AND EVERY 12' THEREAFTER.
ATTACH CRADLES USING #12-14 x 1" SELF-DRILLING SCREWS.
17. ROPE BRACKETS ARE PLACED EVERY 12' BETWEEN THE CRADLES WITH
LARGE HOLE FACING DOWN. ATTACH USING #12-14 x 1 1/2" SELF-DRILLING
SCREW.
18. ROLL CURTAIN DOWN SO IT RESTS IN THE CRADLES. SECURE GUIDE
MOUNTING BRACKET TO THE GROUND USING 18" SPIKES.
19. THREAD ROPE THROUGH THE CRADLES & ROPE BRACKETS, CONTINUE
TO THE END OF THE HOUSE. ROPE SHOULD BE KEPT FAIRLY TIGHT.
ROLL FORM RAIL
#12-14 x 1-1/2" SELF-DRILLING SCREW NB1805
#12-14 x 1" SELFDRILLING SCREW
NB1809
GUIDE MOUNTING
BRACKET RC1301
18" SPIKE
BMS1130
ROLL FORM RAIL
ROPE
RS5049
REV: AD-130626
Page 21

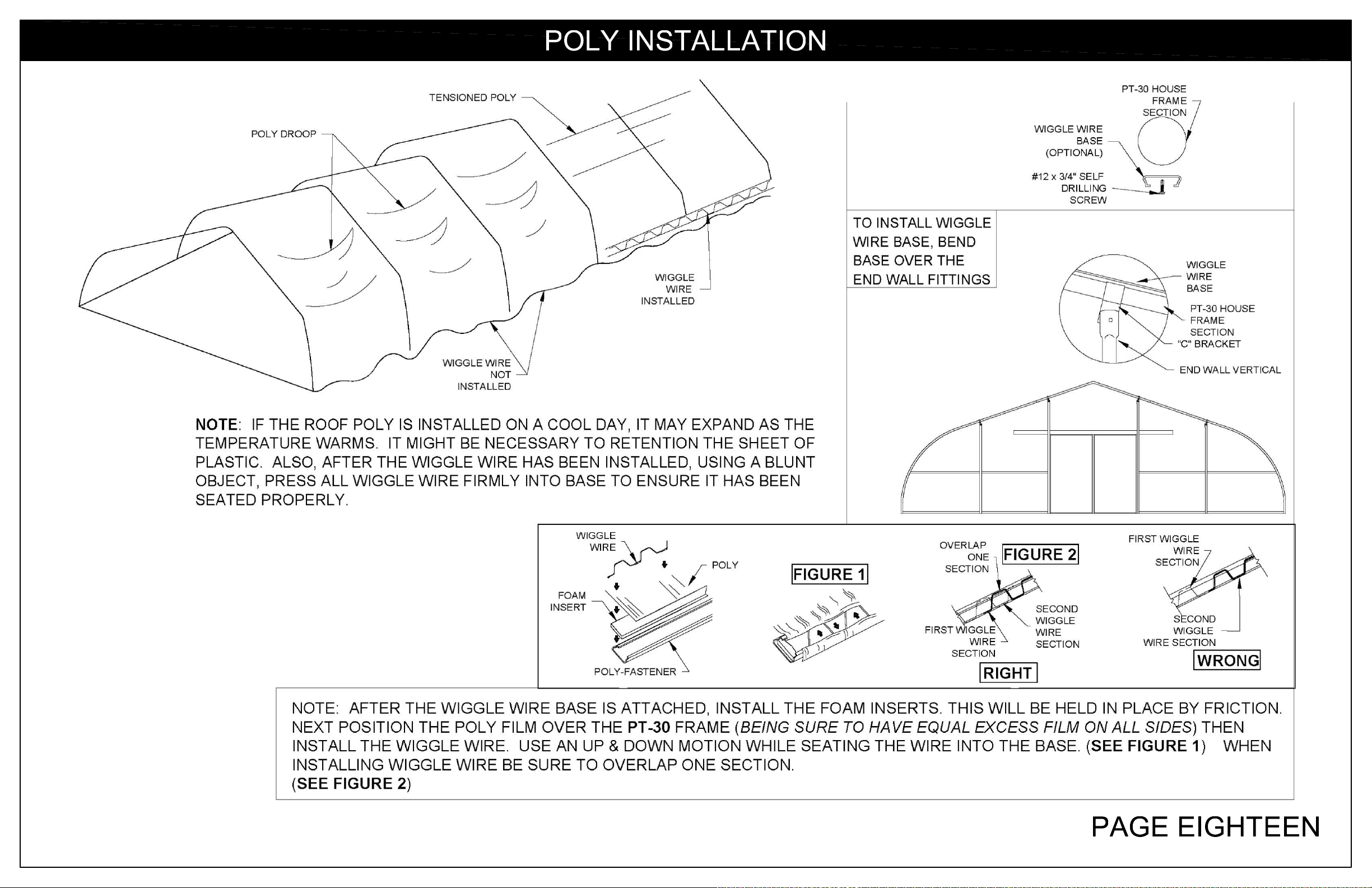

Page 22
NOTE:
SEE KIT NUMBER PT2415 FOR PARTS IN THIS DRAWING.
2
NOTE: Place two strips of quality greenhouse patching tape on the inside of
the outside layer where the air from the blower hits the film. This will
prevent rapid drying of the poly and will make it last longer.
3" FLEX HOSE
ROOF POLY
HOSE
(2) AIR
CLAMP
TRANSFER
AIR
GASKETS
OUTLET
(2) STOP TABS
ROOF
POLY
END POLY
JUMPER
TUBE
PLAN VIEW
OF
GREENHOUSE
INFLATION
BLOWER
END POLY
DOUBLE
POLY
ROOF &
SIDE POLY
ROOF POLY
FOAM GASKET
3" x 2'-0" JUMPER TUBE
END FRAME
SECTION
(POLY FASTENER
NOT SHOWN)
END
WALL
POLY
INFLATION
MOUNT
DAMPER
OUTSIDE
LAYER
GASKET
INSIDE
LAYER
GASKET

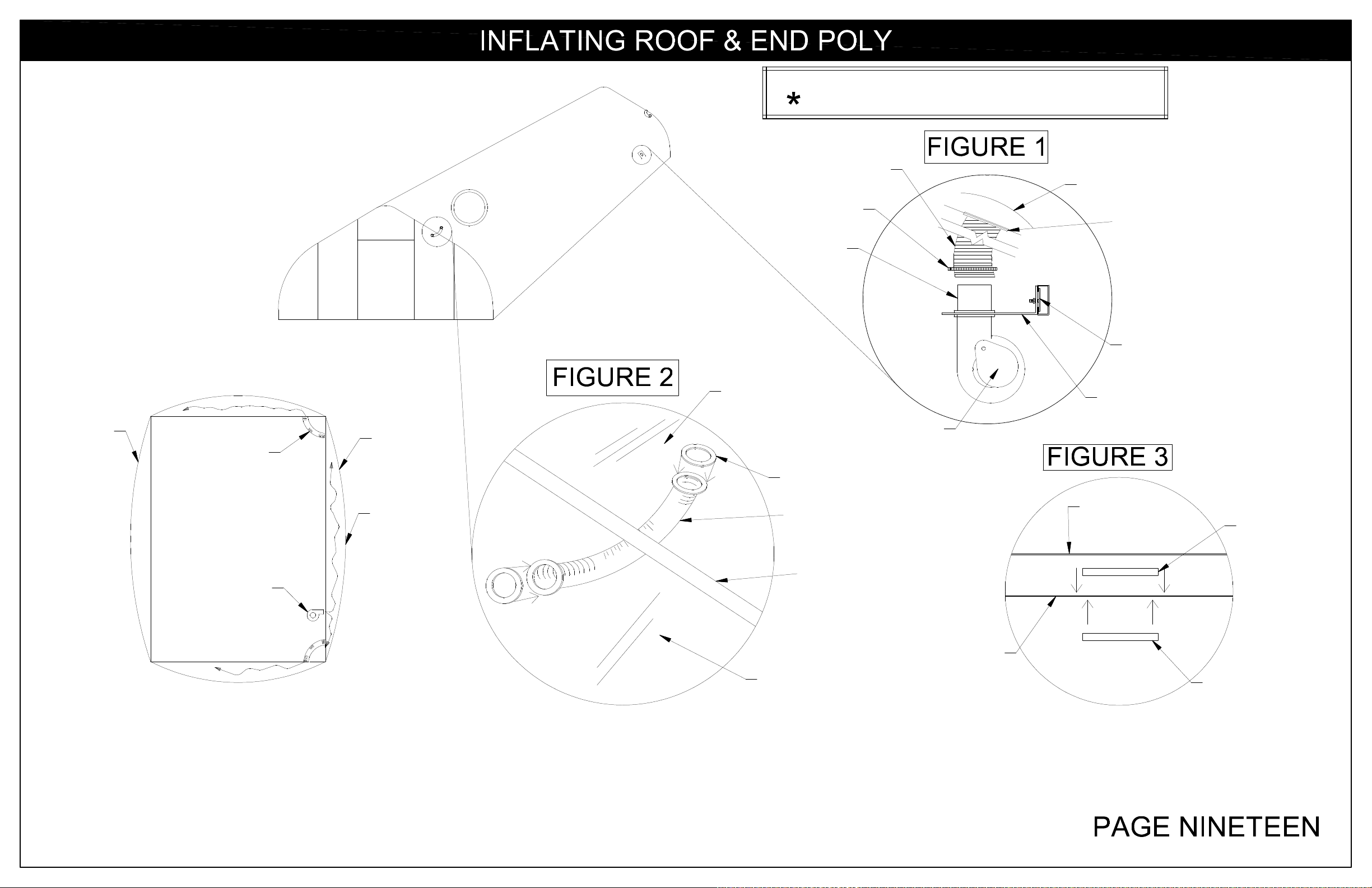

Install the inflation blower as the drawing indicates. (FIGURE 1) Location is optional, but, it must be located on a side wall. Next, install the jumper tubes approximately half way up the roof (FIGURE 2)
using the white foam gaskets provided. Four gaskets are required per jumper. One is to be located on the bottom of the inside layer. The other is located on the top of the inside layer. (FIGURE 2)
This can be accomplished by placing one gasket on the inside layer. Now cut the poly out of the gasket on the inside layer only. Use caution during this procedure. Do not cut the outside poly.
Next, insert another gasket (wax paper removed) through the center of the first gasket and stick it on top of the inside layer of poly. (FIGURE 3) You now have sandwiched the poly between the
gaskets and formed an air seal for the jumper.
Before you install the jumper, staple the gaskets together using an ordinary office stapler. Complete all jumpers and turn on inflation blower. The damper on this blower is commonly closed about half
way. Adjust damper to the desired poly tension, using an manometer as an inflation guide.
Page 23
VENT PARTS
RC1010
ROLL-UP TUBE CLIP 1.315" (2)
FT2070
ROLL-UP
CRANK RETAINER
RC1303
U-JOINT W/BOLTS
POCKET
U-JOINT W/BOLTS
RC1303
ROLL-UP DR/VENT TUBE (42")
HT1062
ROLL-UP CRANK
RC1319
WIGGLE WIRE
HT1062
ROLL-UP DR/VENT TUBE (42")
ROLL-UP CRANK (84")
RC1319
HT1070
GABLE VENT ASSEMBLY
WIGGLE WIRE BASE
WIGGLE WIRE BASE
TUBE CLIPS
RC1010
GABLE VENT ASSEMBLY
HT1070
WIGGLE WIRE

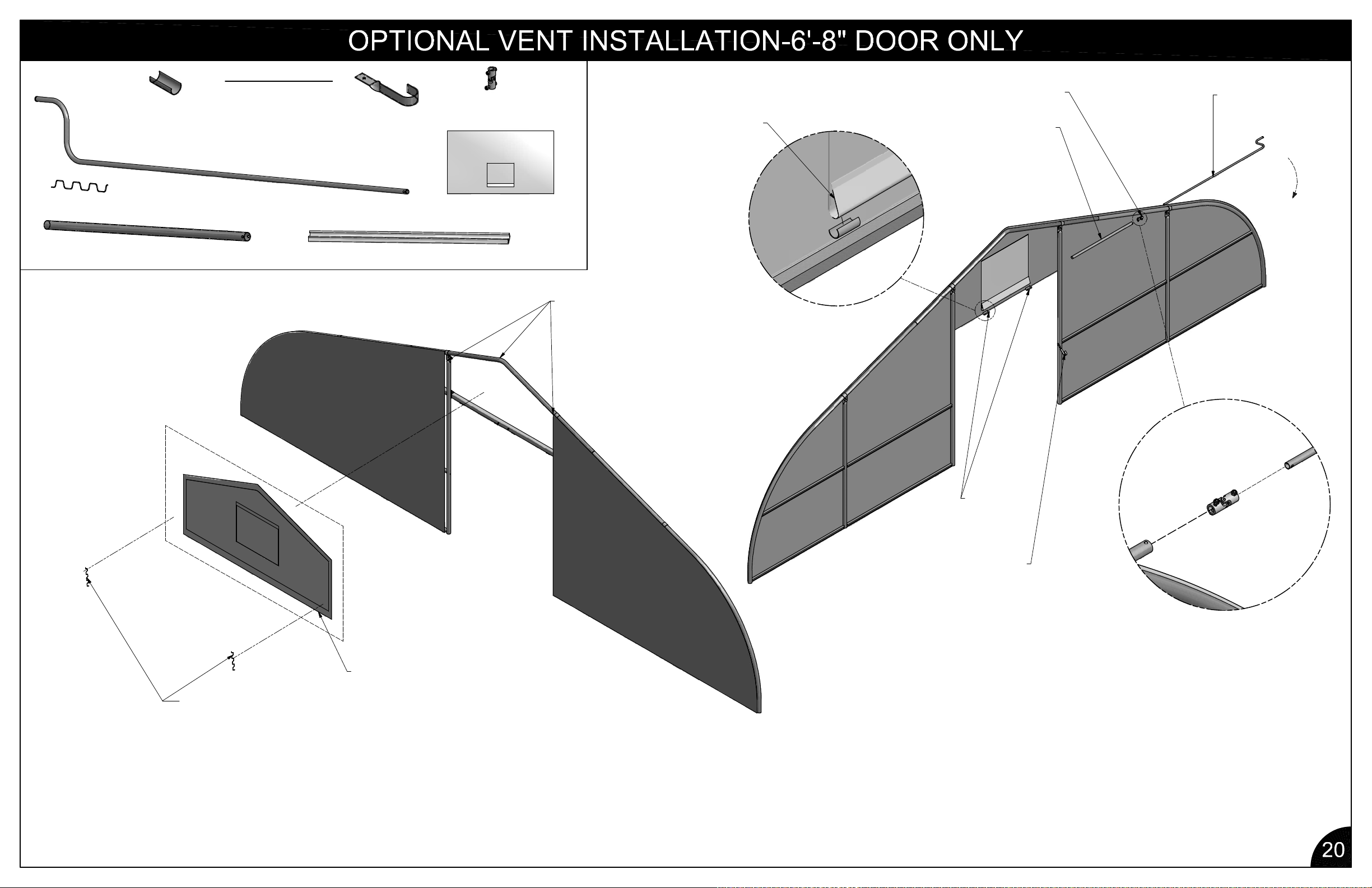

1. INSTALL WIGGLE WIRE BASE TO VENT OPENING WHERE SHOWN.
2. ATTACH HT1070 VENT ASSEMBLY PANEL TO END OF FIELDPRO ABOVE DOOR OPENING.
3. INSTALL WIGGLE WIRE ON SIDES, TOP AND BOTTOM.
4. TRIM HT1070 VENT ASSEMBLY PANEL TO APROXIMATE SIZE OF THE OPENING ABOVE THE DOOR.
AD-130626
ROLL-UP CRANK RETAINER
FT2070
5. SLIP HT1062 ROD END INTO POCKET.
6. CLIP ROLL-UP TUBE CLIP OVER ENDS OF POCKET ON HT1070 VENT ASSEMBLY OVER ROD.
7. ATTACH KNUCKLE RC1301 INTO ROD RC1319 AND TIGHTEN BOLTS.
8. ATTACH FT2070 ROLL-UP CRANK RETAINER ONTO DOOR VERTICAL APPROXIMATELY WHERE SHOWN
AND SET CRANK HANDLE INTO RETAINER.
Loading...
