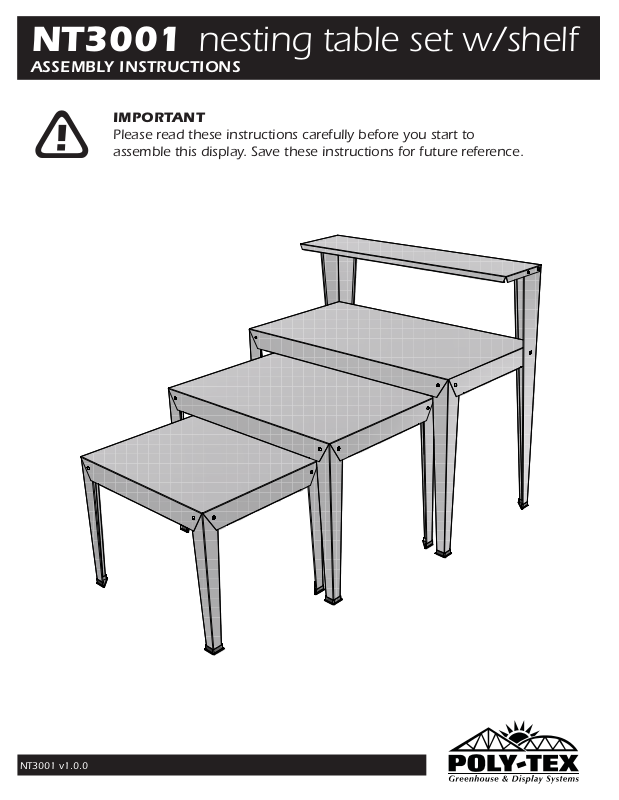

NT3001 nesting table set w/shelf
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
NT3001 v1.0.0
Page 2
NT1000
24" x 44" TABLE TOP
(1)
NT1013
43" LEG
(2)
NT1003
30" LEG
(2)
NT1001
24" x 36" TABLE TOP
(1)
NT1002
22" x 28" TABLE TOP
(1)
NB1974
3/16" HEX WRENCH
(1)
NT1005
21 1/2" LEG
(4)
NT1004
25 3/4" LEG
(4)
NT1009
10" X 44" UPPER SHELF
(1)
NB1970
CAP SCREW
(24)
3/16" hex wrench (included) & 1/2" open-end wrench are required to assemble this product.
2
NB1862
LOCK WASHER
(24)
NB1886
FLAT WASHER
(24)
NB1872
HEX NUT
(24)
Page 3
30" LEG
CAP SCREW
HEX NUT
LOCK WASHER
FLAT WASHER

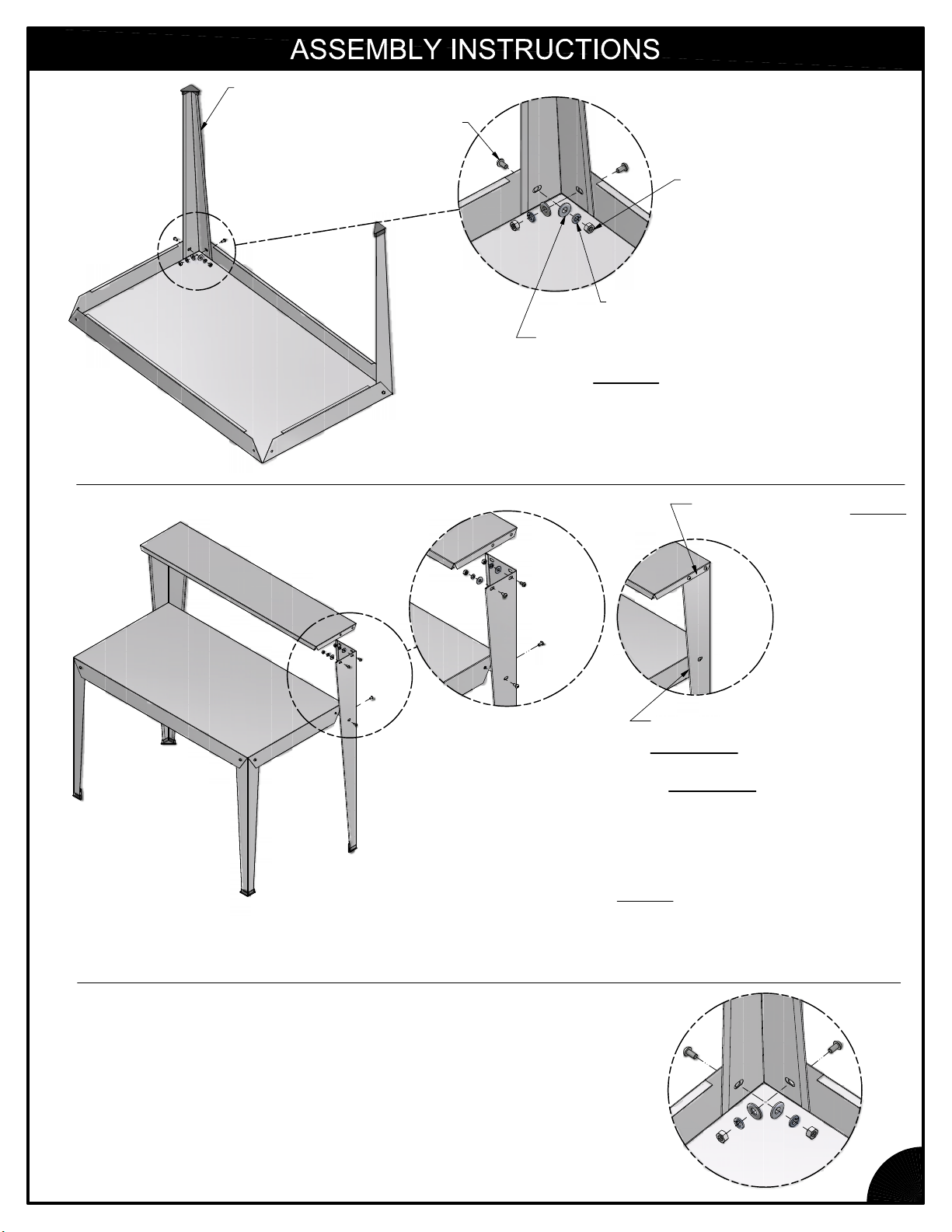

1. PLACE 30" LEGS INSIDE THE 24" x 44" (LARGEST)
TABLE TOP AS SHOWN.
2. FASTEN TO TABLE TOP USING CAP SCREWS,
FLAT WASHERS, LOCK WASHERS, AND HEX NUTS.
DO NOT TIGHTEN AT THIS TIME.
SHELF MOUNTS OVER
THEBACKLEGS
3. PLACE 43" (LONGER) LEGS OUTSIDE
AS SHOWN.
4. FASTEN TO TABLE TOP USING CAP SCREWS, FLAT
WASHERS, LOCK WASHERS, AND HEX NUTS.
DO NOT TIGHTEN AT THIS TIME.
5. PLACE UPPER SHELF OVER
FASTEN USING HARDWARE PROVIDED.
6. STRAIGHTEN LEGS AND TIGHTEN ALL SCREWS
SECURELY.
7. ASSEMBLE THE 24" x 36" AND 22" x 28" TABLES BY
PLACING THE LEGS INSIDE THE TABLE TOPS AND
FASTENING WITH THE HARDWARE PROVIDED. THE
24" x 36" TABLE TOP USES (4) 25 3/4" LEGS. THE
22" x 28" TABLE TOP USES (4) 21 1/2" LEGS.
BACK LEG MOUNTS
OUTSIDE THE TABLE TOP
OF TABLE TOP
THEBACKLEGSAND
3
Page 4
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
