Page 1

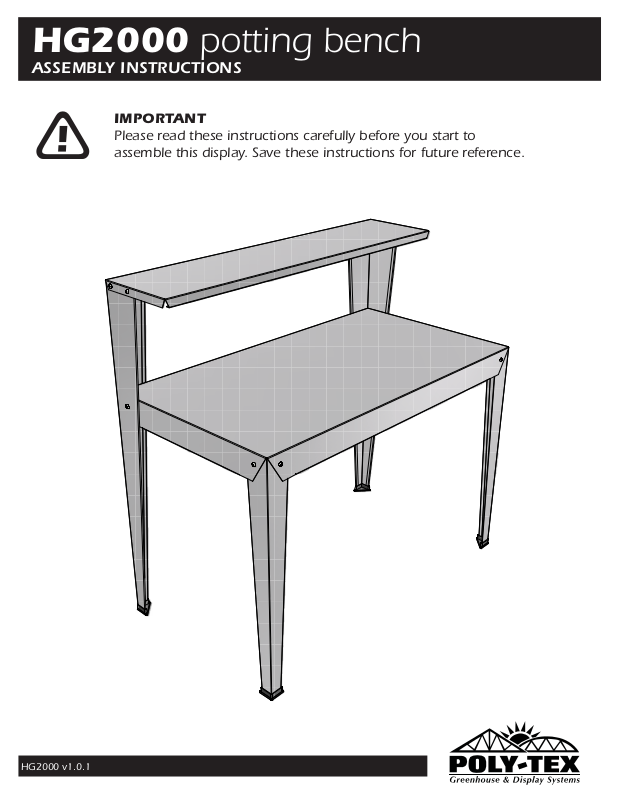

HG2000 potting bench
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
HG2000 v1.0.1
Page 2
NT1000
24" x 44" TABLE TOP
(1)
NT1003
30" LEG
(2)
NT1009
10" x 44" UPPER SHELF
(1)
NT1013
43" LEG
(2)
NB1974
3/16" HEX WRENCH
(1)
NB1970
CAP SCREW
(12)
3/16" hex wrench (included) & 1/2" open-end wrench are required to assemble this product.
2
NB1862
LOCK WASHER
(12)
NB1886
FLAT WASHER
(12)
NB1872
HEX NUT
(12)
Page 3
30" LEG
CAP SCREW
HEX NUT
FLAT WASHER
LOCK WASHER
1. PLACE 30" (SHORTER) LEGS INSIDE
TABLE TOP AS SHOWN.
2. FASTEN TO TABLE TOP USING CAP
SCREWS, FLAT WASHERS, LOCK
WASHERS, AND HEX NUTS.
DO NOT TIGHTEN AT THIS TIME.
SHELF IS ON OUTSIDE
OF 43" LEGS
LEG IS ON OUTSIDE
OF TABLE TOP
3. PLACE 43" (LONGER) LEGS OUTSIDE
TABLE TOP AS SHOWN.
4. FASTEN TO TABLE TOP USING CAP
SCREWS, FLAT WASHERS, LOCK WASHERS,
AND HEX NUTS. DO NOT TIGHTEN AT THIS
TIME.
5. PLACE UPPER SHELF OVER
LEGS AND FASTEN USING HARDWARE
PROVIDED.
6. STRAIGHTEN LEGS AND TIGHTEN ALL
SCREWS SECURELY.
TOPS OF 43"
OF
3
Page 4
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place t o prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
