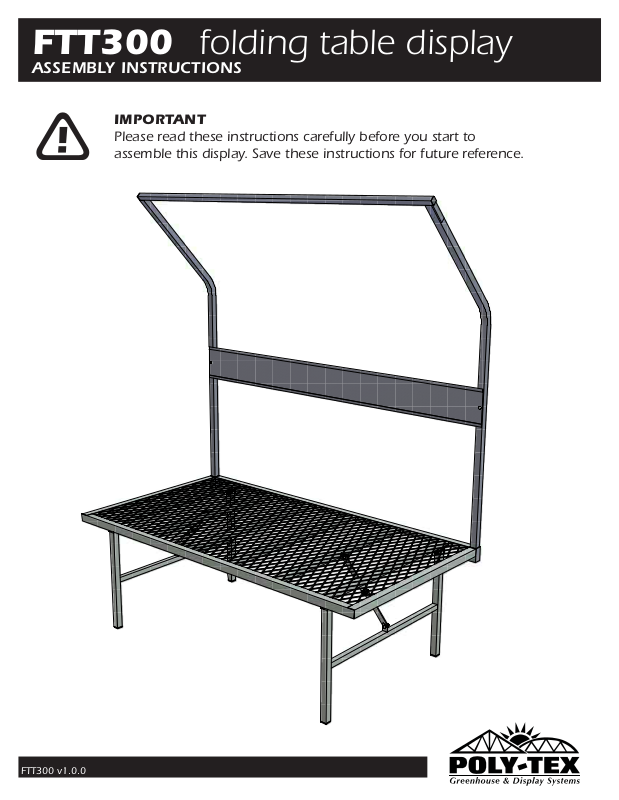

Page 1
FTT300 folding table display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FTT300 v1.0.0
Page 2
TABLE TOP
(FTT100)
qty (1)
TABLE LEG
(FTT111)
qty (2)
LOCKING BRACE
(FTT112)
qty (2)
PURLIN SUPPORT
(FTT103)
qty (2)
BASKET PURLIN
(FTT104)
qty (1)
SIGN HOLDER
(FTT105)
qty (1)
Page 3
1
UNFOLD LEGS.
SLIDE LOCKING BRACE
2
RING OVER BRACE ARMS
AS SHOWN.
INSERT PURLIN SUPPORTS
3
INTOTHESQUARETUBES
ON THE BACK OF THE
TABLE TOP.
4
INSERT BASKET PURLIN
INTO THE PURLIN
SUPPORTS.
4
4
5
(OPTIONAL)
OPTIONAL:
FASTEN SIGN HOLDER TO
5
PURLIN SUPPORTS USING
CARRIAGE BOLT, LOCK
WASHER & WING NUT.
3
3
2
1
Page 4
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and electrical
shockispossible.
Do not place this product on a slope that exceeds 10 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Pri
or to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Store folding table in a flat postion.
No tools are required to assemble this product.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a period of (1)
year from date of invoice. This warranty is provided to the original purchaser of the product and is not
transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex, but does assign any
nsferable manufacturer or supplier warranties. Should any defect be found, full repair or replacement
tra
will be rendered to the customer at no cost following inspection by a Poly-Tex representative and the
return of the defective product to our Castle Rock, MN factory. Expenses for removal or reinstallation of
defective products will not be covered by the warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL
DAMAGES, OR FOR ANY DELAY IN PERFORM
ANCE OF THIS WARRANTY BEYO
ND OUR
CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation, customer
modifications, customer negligence in performing normal maintenance, damage resulting from acts of
nature.
Contact information
Poly-Tex,Inc.POBox458
27725 Danv
Toll free (800) 852-3443 Fax (651) 463-2479
ille Ave Castle Rock, MN 55010
www.poly-tex.com
