FB6001 folding FOASB w/purlin
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
U.S. PATENTS
#5,553,551 & #6,817,302
FB6001 v1.0.0
Page 2
LEFT BENCH END
(FB1641)
qty (1)
FOLDING STABILIZER
(FB1642)
qty (1)
RIGHT BENCH END
(FB1640)
qty (1)
BASKET PURLIN
(FB1605)
qty (1)
17 1/4" BENCH TOP
(FB1603)
qty (1)
36" x 6' BENCH TOP
(RF2552)
qty (2)
NORSTAD CLIP
(FT3600)
qty (2)
THUMB SCREW
(NB1924)
qty (2)
PUSH NUT
(NB1612)
qty (4)
COTTER PIN
(NB1611)
qty (4)
FLAT WASHER
(NB1865)
qty (4)
Page 3
NOTE: THE FOLLOWING STEPS ON THIS PAGE ARE ONLY REQUIRED FOR INITIAL ASSEMBLY. AFTER WASHERS,
COTTER PINS, AND PUSH NUTS ARE INSTALLED, IT IS NOT NECESSARY TO REMOVE THEM FOR STORAGE. FOR
STORAGE, THE BENCH ENDS ARE SIMPLY FOLDED FLAT OVER THE STABILIZER.

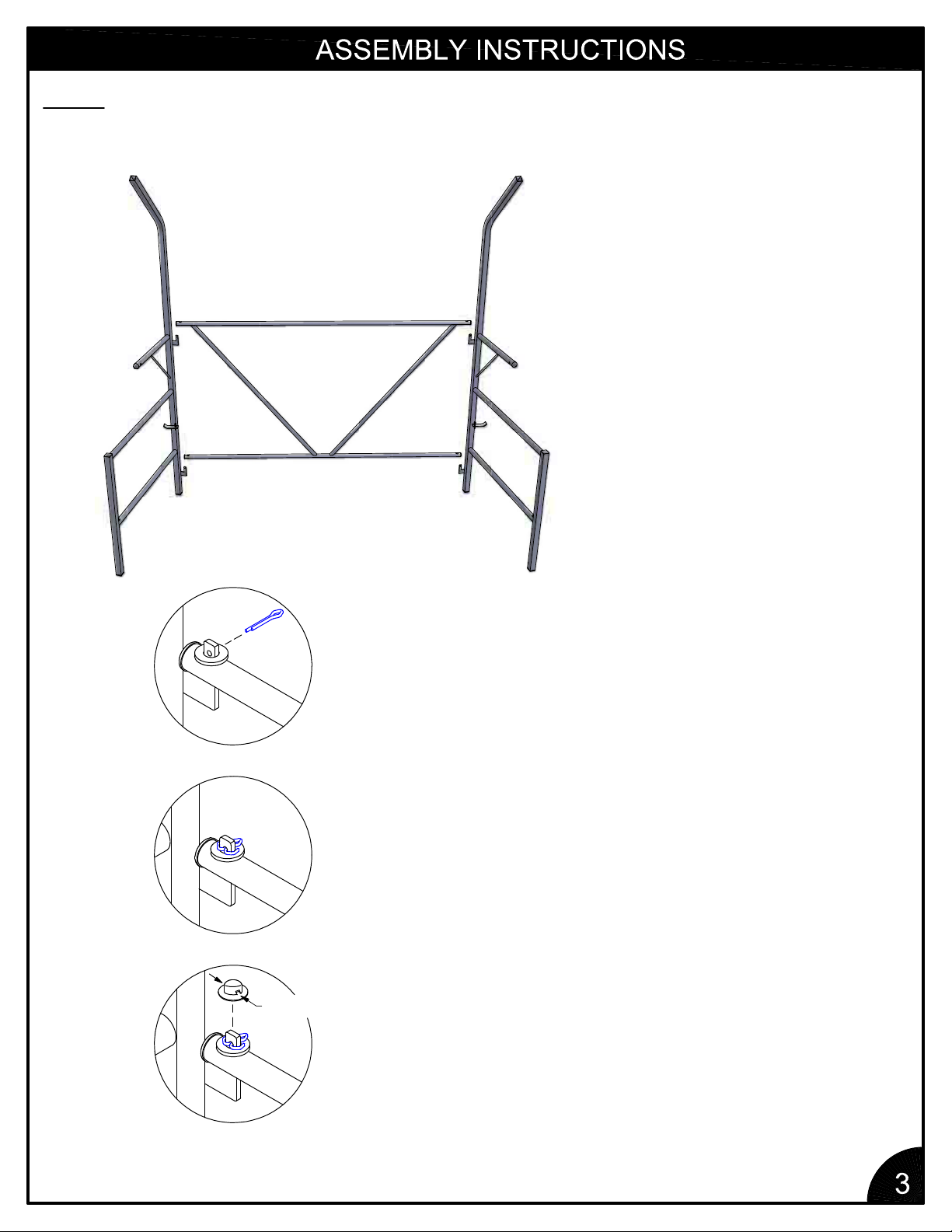

1. PLACE STABILIZER ONTO
HINGES AS SHOWN.
FRICTION
TABS
2. PLACE FLAT WASHER AS SHOWN AND INSERT COTTER
PIN THROUGH HOLE.
3. BEND ARMS OF COTTER PIN WITH PLIERS.
4. LINE UP FRICTION TABS ON PUSH NUT WITH THE SIDES
OF THE HINGE AND SEAT USING A HAMMER.
Page 4
SNAP BUTTON MUST
PROTRUDE THROUGH
HOLE IN BENCH END.
1
2
2
SLIDE BENCH
TOP UNDER
HOLDING TAB
3
NORSTAD CLIP
&THUMBSCREW
3

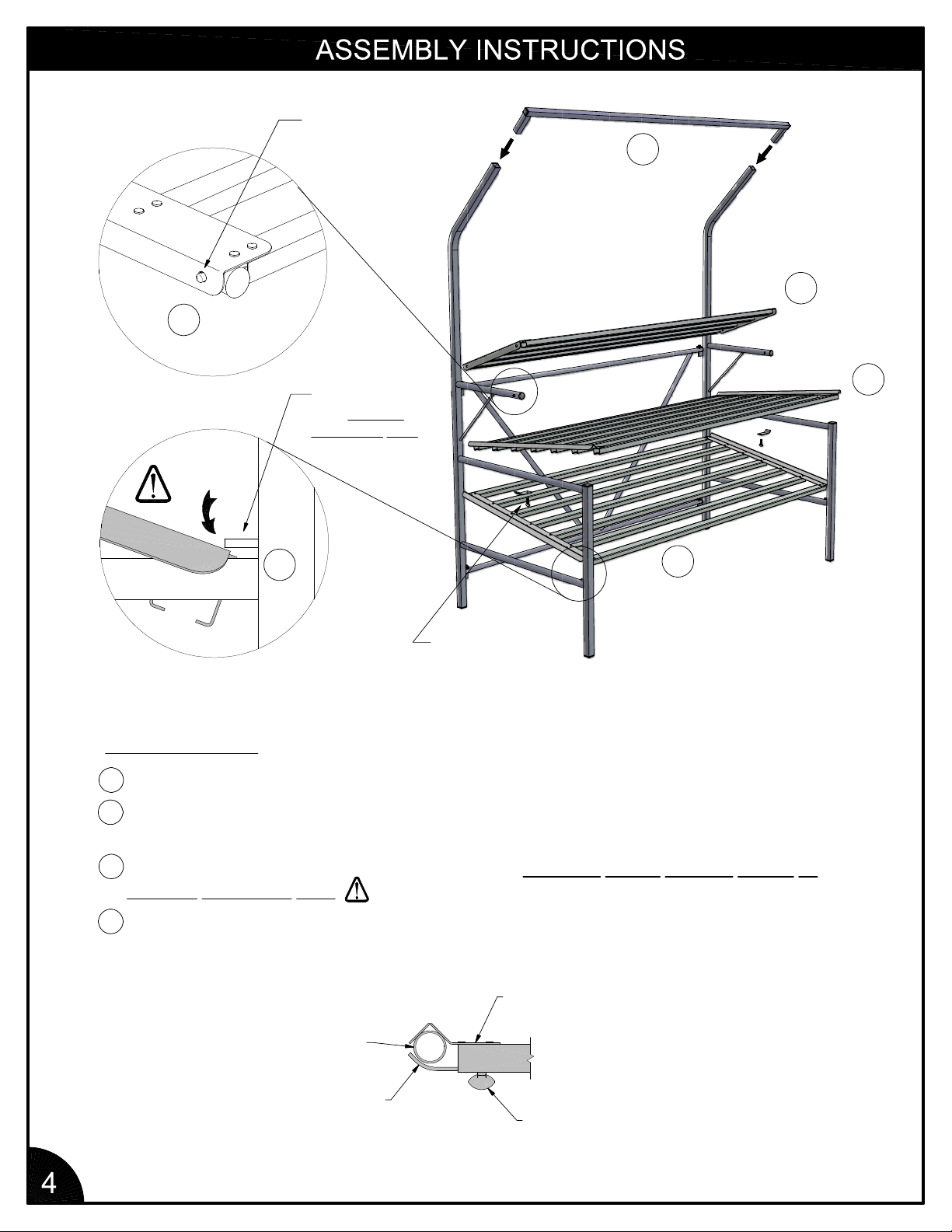

INSTRUCTIONS:
1 INSERT BASKET PURLIN INTO BENCH ENDS.
2 SET171/4"BENCHTOPONBENCHENDSMAKINGSURESNAPBUTTONS
PROTRUDE THROUGH HOLES IN BENCH ENDS.
4
3 SET LOWER 36" BENCH TOP INTO PLACE MAKING
SURE FRONT EDGE IS
UNDER HOLDING TAB.
4 SET UPPER 36" BENCH TOP INTO PLACE. SECURE TO BENCH ENDS WITH
NORSTADCLIPSASSHOWNBELOW.
BENCH TOP
BENCH END
SUPPORT TUBE
NORSTAD CLIP
THUMB SCREW
Page 5

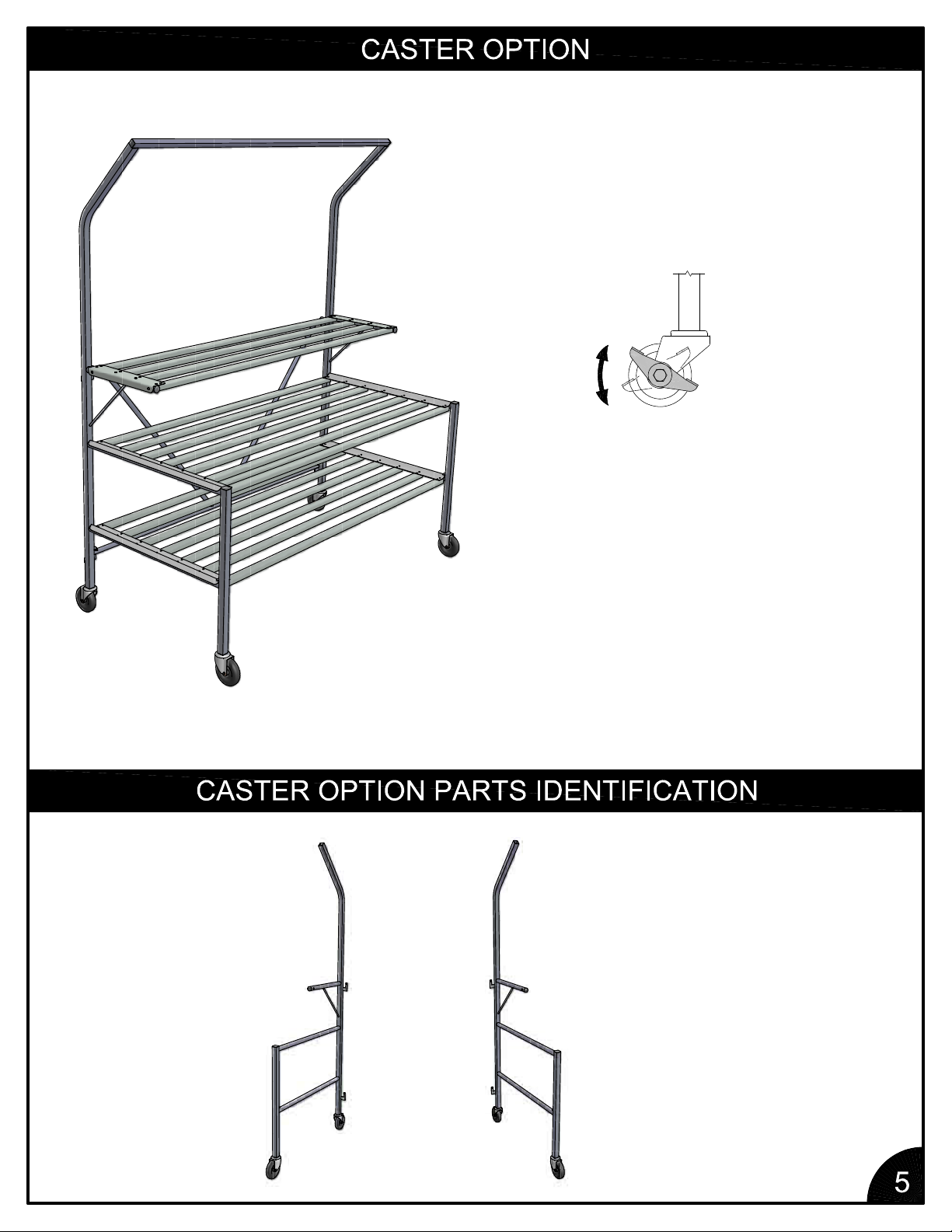

ONCEDISPLAYISINPLACE,
ALL CASTERS MUST BE LOCKED
TO PREVENT MOVEMENT. THE
BRAKE IS ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.
LEFT BENCH END
W/CASTERS
(FB1644)
qty (1)
RIGHT BENCH END
W/CASTERS
(FB1643)
qty (1)
Page 6
Donotclimb,siton,oruseth
is product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and electrical
shockispossible.
Do not place this product on a slope that exceeds 10 degrees.
If your display does not have casters, do not move this display after product is in place. Damage
to display and injuries may occur.
If your display does have casters, once in place, lock all casters to prevent movement.
To remove loose soil and debri
s, simp
ly spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Store folding frames in a flat postion.
Hammer, Pliers
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a period of
(1)yearfromdateofinvoice. Thiswarrantyisprovided to the original purchaser of the product and is
not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex, but does assign any
t
ferable manufacturer or supplier warranties. Should any defect be found, full repair or replacement
rans
will be rendered to the customer at no cost following inspection by a Poly-Tex representative and the
return of the defective product to our Castle Rock, MN factory. Expenses for removal or reinstallation of
defective products will not be covered by the warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL
DAMAGES, OR FOR ANY DELAY IN PERFORMANC
CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES
WHETHER IMPLIED, WRITTEN OR O RAL INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Thiswarrantydoesnotcoverdamagefromcustomerabuse, misuse, improper installation, customer
modifications, customer negligence in performing normal maintenance, damage resulting from acts of
nature.
Contact information
Poly-Tex,Inc.POBox458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
E OF THIS WARRANTY BEYOND OUR
