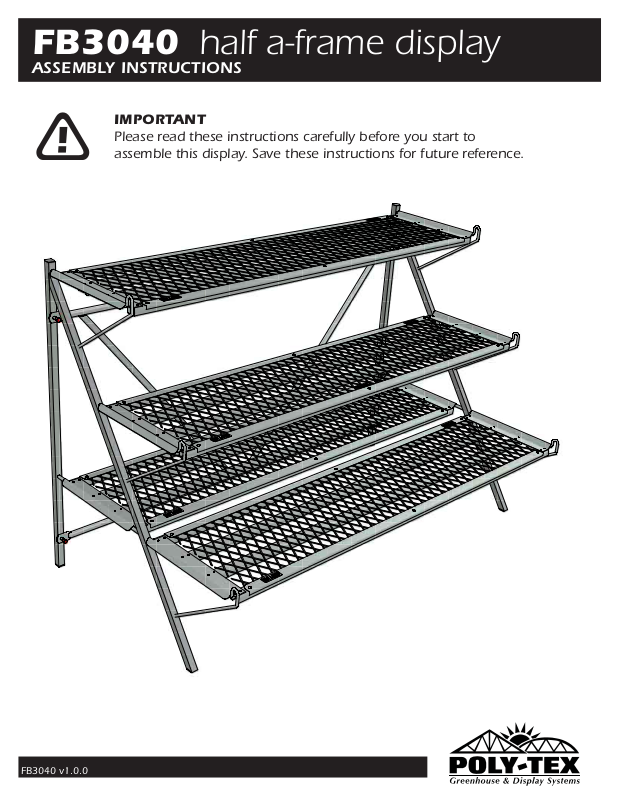

Page 1
FB3040 half a-frame display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3040 v1.0.0
Page 2
END FRAME
(FB3041)
qty (2)
STABILIZER
(FB2533)
qty (1)
STACKER CLIP
(FT3200)
qty (6)
1'-6" x 6' BENCH TOP
(FK1000)
qty (3)
THUMB SCREW
(NB1924)
qty (6)

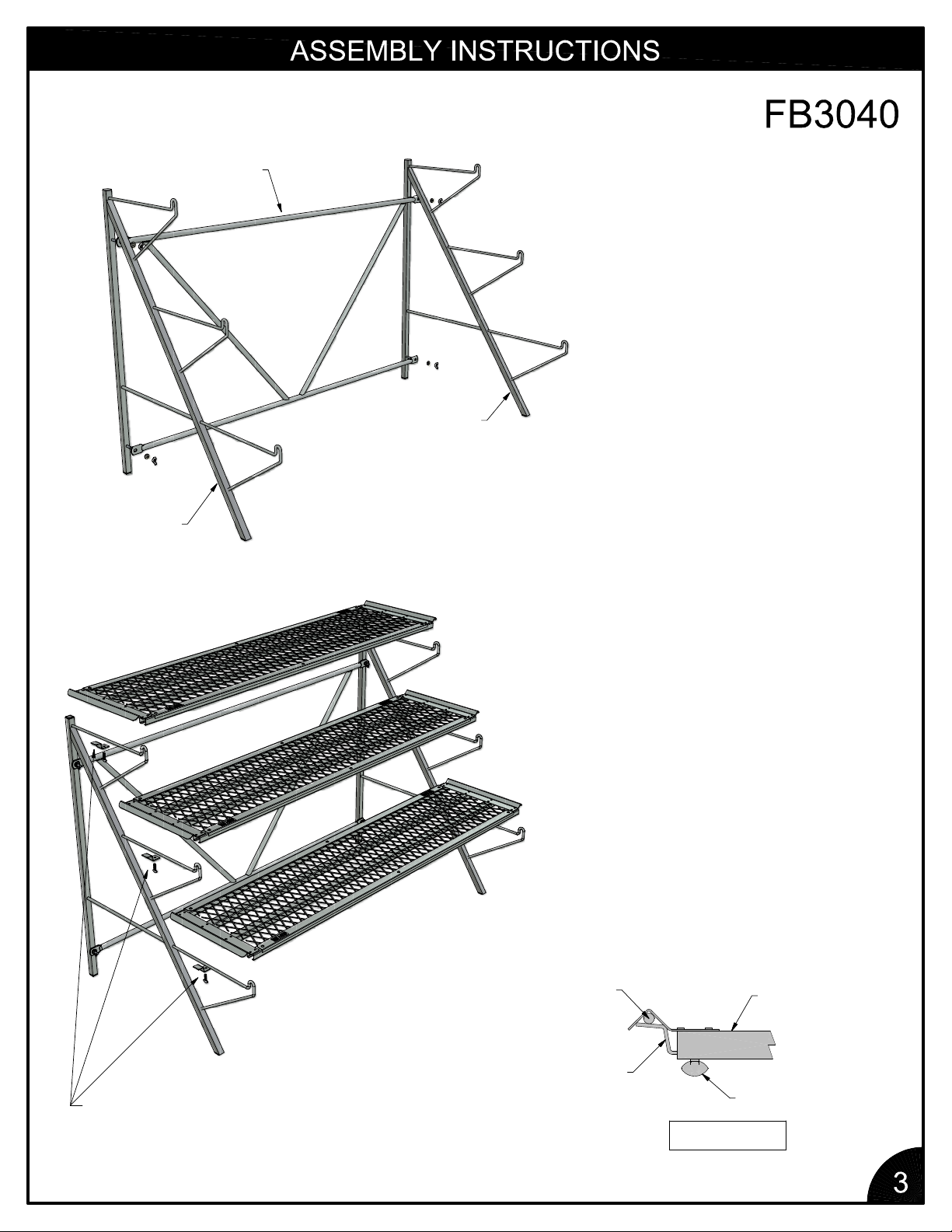

Page 3
END FRAME
HALF A-FRAME DISPLAY
STABILIZER
1. ATTACH STABILIZER TO END
FRAMES USING NYLON
WASHERS AND WING NUTS.
END FRAME
STACKER CLIP
2. SET BENCH TOPS ON END
FRAMES. SECURE TO END
FRAMES USING STACKER
CLIPS AND THUMB SCREWS
ASSHOWNINFIGURE1
BELOW.
END FRAME
BENCH SUPPORT
STACKER CLIP
BENCH TOP
THUMB SCREW
FIGURE 1

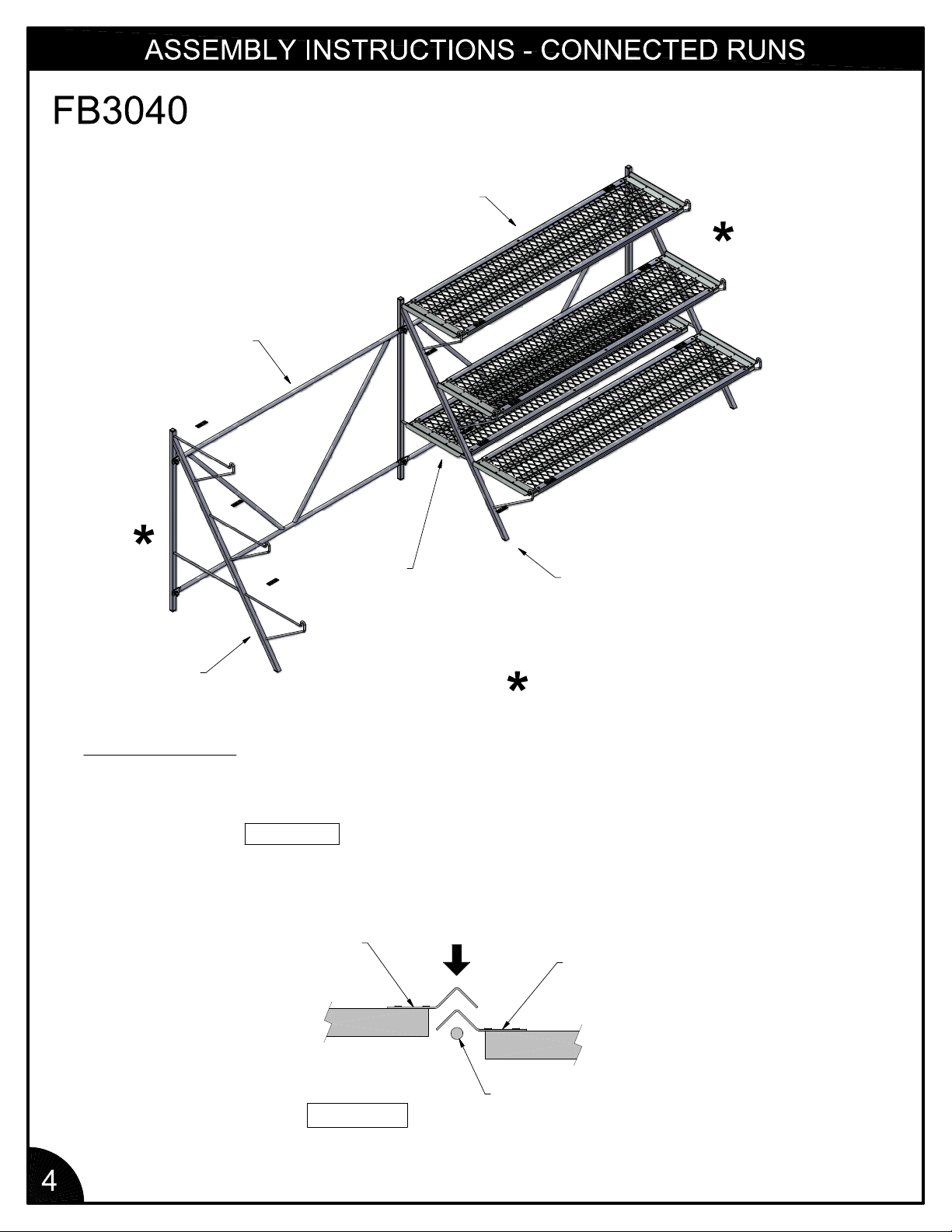

Page 4
HALF A-FRAME DISPLAY
ADJOINING UNIT
STABILIZER
BENCH TOP
EXISTING UNIT
OPTIONAL
EXISTING UNIT
END FRAME
ADJOINING UNIT
END FRAME
SECURE CLIPS ONLY ON END UNITS OF
MULTIPLE UNITS JOINED TOGETHER.
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND END FRAME TO THE EXISTING
UNIT'S END FRAME. SET BENCH TOPS OVERLAPPING EXISTING BENCH TOPS
AS SHOWN IN FIGURE 1
BENCH TOP
BENCH TOP
END FRAME
FIGURE 1
BENCH SUPPORT

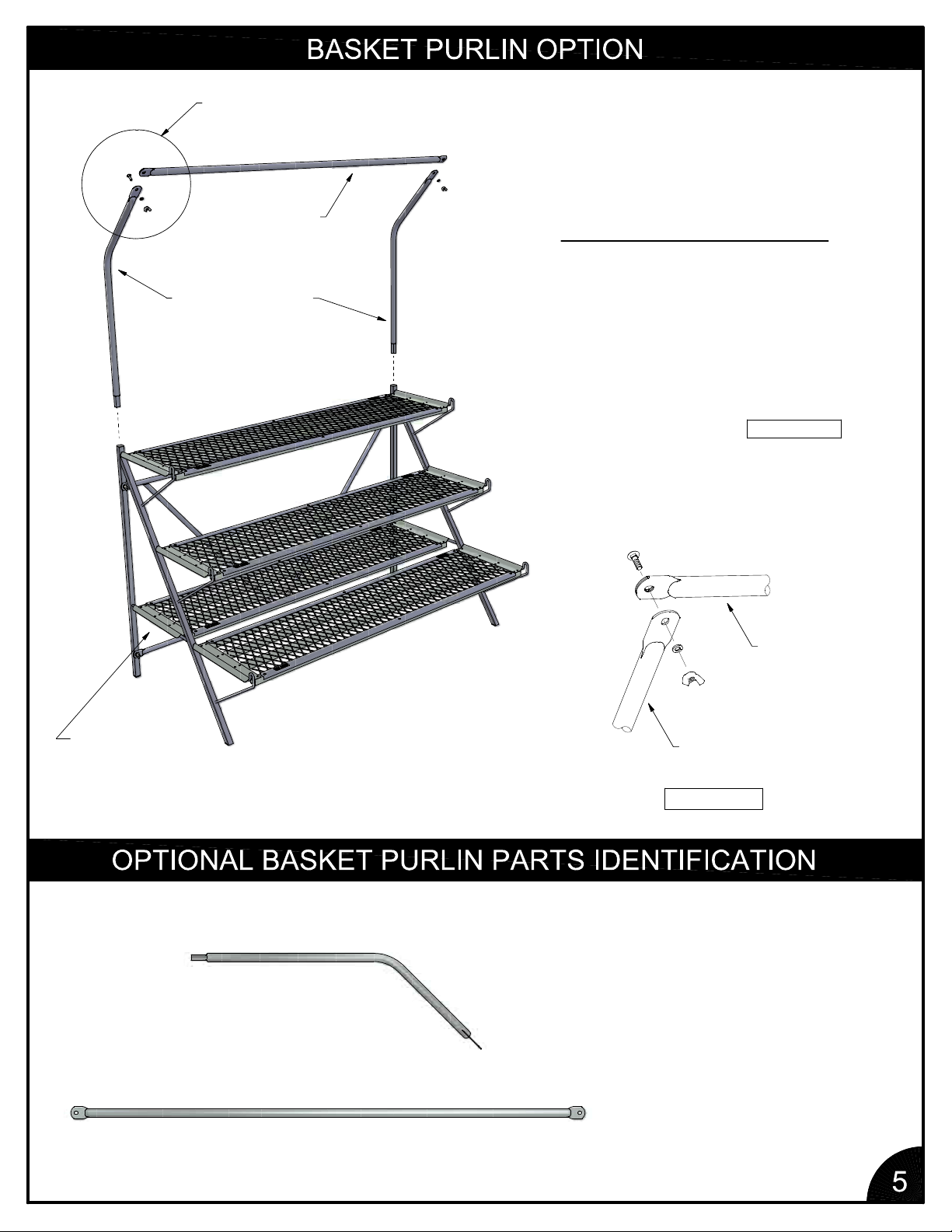

Page 5
SEE FIGURE 1
BASKET PURLIN
PURLIN SUPPORT
ASSEMBLY INSTRUCTIONS:
1. INSERT PURLIN SUPPORTS
INTO END FRAMES.
2. ATTACH BASKET PURLIN TO
PURLIN SUPPORTS USING
5/16" x 1" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND
WING NUTS. SEE FIGURE 1
BASKET PURLIN
OPTIONAL
BENCH TOP
PURLIN SUPPORT
FIGURE 1
PURLIN SUPPORT
(FB2031)
qty (2)
BASKET PURLIN
(GM4000)
qty (1)
Page 6
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and electrical
shock is possible.
Do not place this product on a slope that exceeds 10 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to s torage, all surfaces of this pro
duct sho
uld be sprayed down with water and allowed to dry
completely.
No tools are required to assemble this product.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost f
ollowi
ng inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL O THER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING
THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
hiswarrantydoesnotcoverdamagefromcustomer abuse, misuse, improper installation,
T
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
