Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3032 v1.0.1
Page 2
FB2033
BENCH END
(2)
FB2533
STABILIZER
(1)
FT3602
3/4" BENCH CLIP
(14)
No tools are required to assemble this product.
NB1924
THUMB SCREW
(14)
NB1901
3/8" WING NUT
(4)
FK1004
12" x 6' BENCH TOP
(7)
NB1923
3/8" NYLON WASHER
(4)

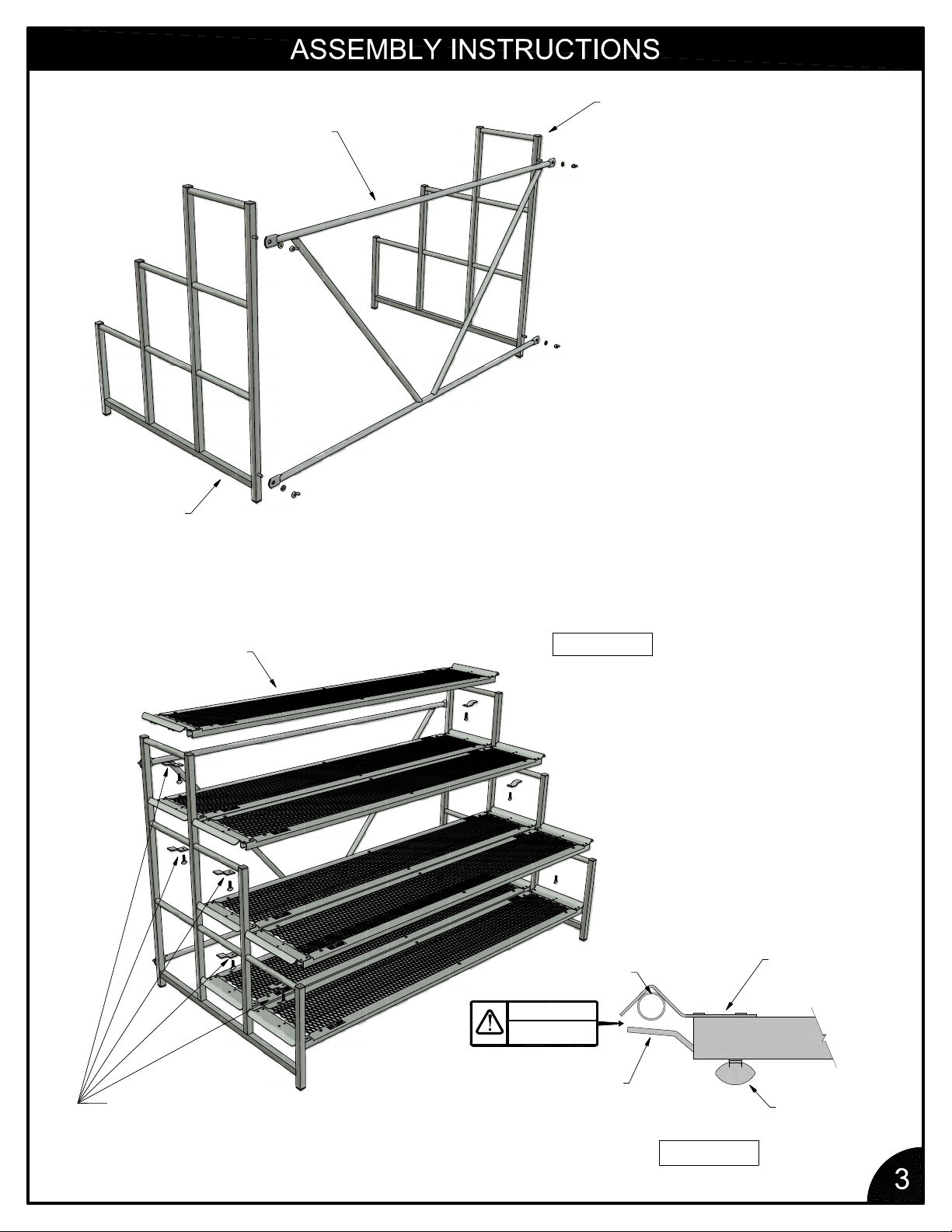

Page 3
BENCH END
BENCH END
STABILIZER
1. ATTACH STABILIZER TO BENCH
ENDS USING NYLON WASHERS
AND WING NUTS.
BENCH TOP
2. SET BENCH TOPS ON BENCH E NDS.
SECURE USING BENCH CLIPS AND
THUMB SCREWS AS SHOWN IN
FIGURE 1 BELOW.
BENCH END
CROSS TUBE
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
BENCH TOP
3/4" BENCH CLIP
3/4" BENCH CLIP
THUMB SCREW
FIGURE 1

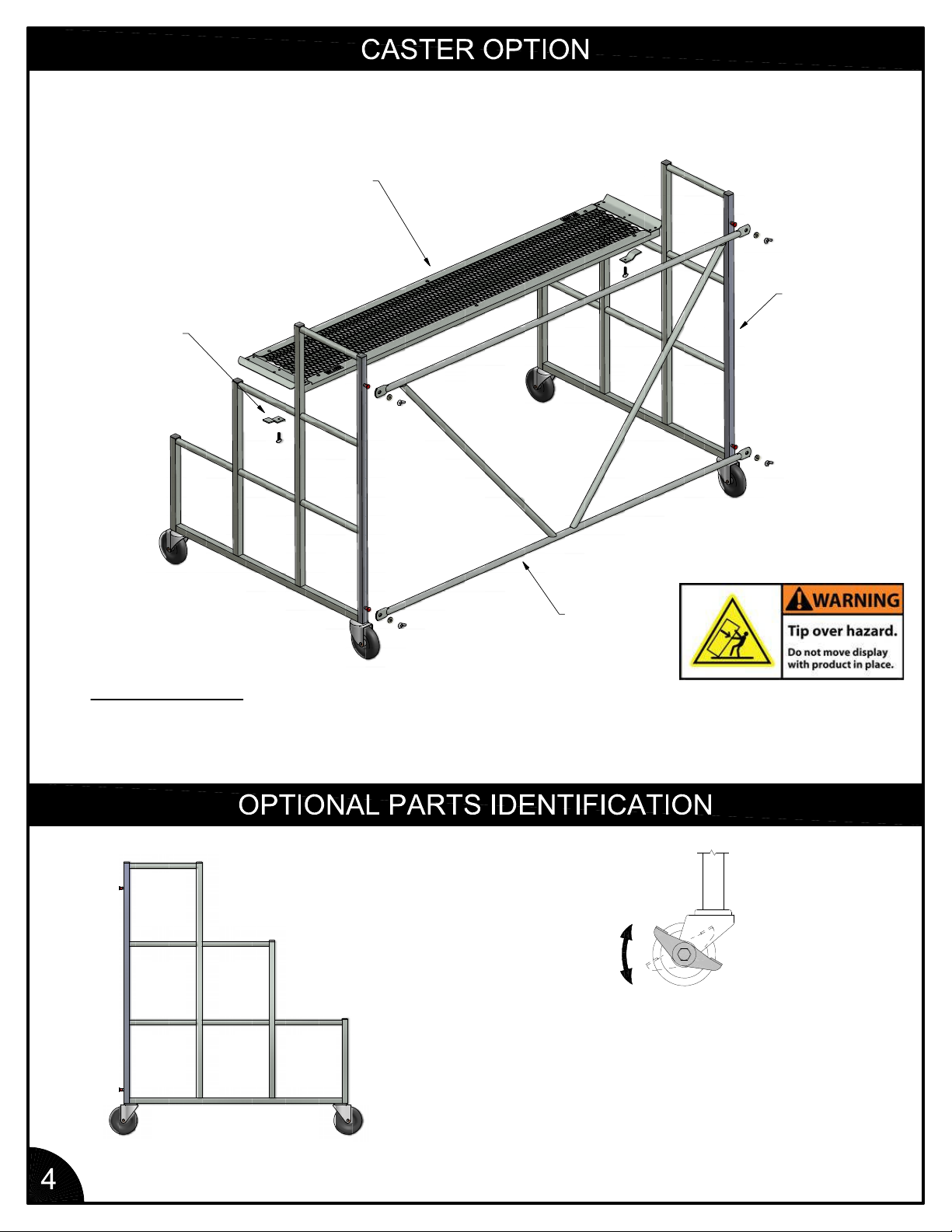

Page 4
3/4" BENCH CLIP
WITH THUMB
SCREW
BENCH TOP
(ONLY ONE
SHOWN)
BENCH END
WITH CASTERS
STABILIZER
INSTRUCTIONS:
1. ASSEMBLE DISPLAY AS YOU WOULD A STANDARD BENCH (SEE PAGE 3), BUT
ASSEMBLE USING BENCH ENDS WITH CASTERS (FB2034).
FB2035
BENCH END
W/CASTERS
(2)
ONCE DISPLAY IS IN PLACE,
ALL CASTERS MUST BE LOCKED
TO PREVENT MOVEMENT. THE
BRAKE IS ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.

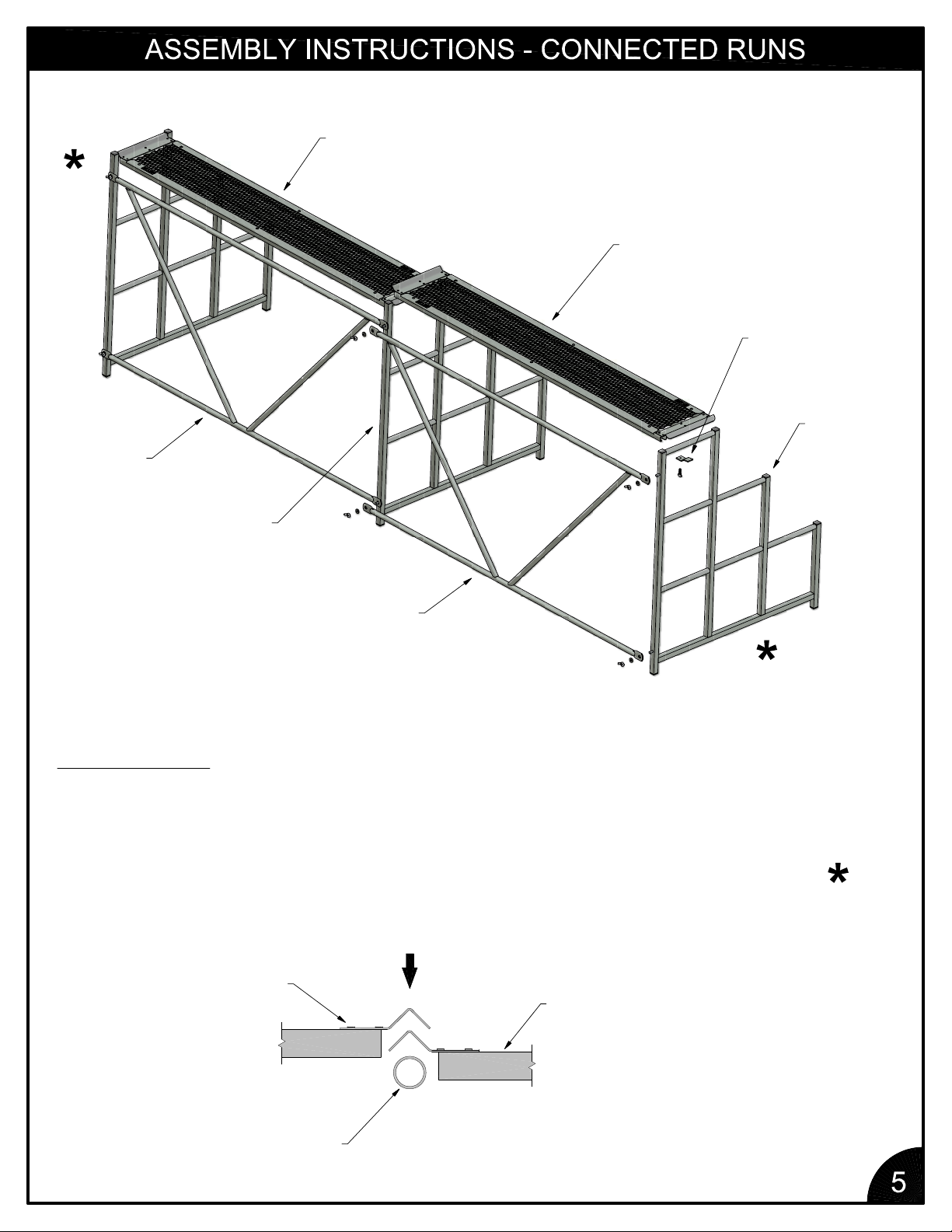

Page 5
EXISTING
STABILIZER
EXISTING BENCH END
EXISTING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
ADJOINING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
3/4" BENCH CLIP
W/THUMB SCREW
ADJOINING
BENCH END
ADJOINING
STABILIZER
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE EXISTING UNIT'S
BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS SHOWN BELOW.
3. SECURE CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED TOGETHER ( ).
BENCH TOP
(ADJOINING)
BENCH TOP
(EXISTING)
EXISTING
BENCH END
SUPPORT TUBE
Page 6
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
