Page 1
FB3030 2-tier display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3030 v1.0.0
Page 2
BENCH END
(FB2032)
qty (2)
STABILIZER
(FB2537)
qty (1)
12" x 6' BENCH TOP
(FK1004)
qty (4)
3/4" BENCH CLIP
(FT3602)
qty (6)
3/8" WING NUT
(NB1901)
qty (4)
THUMB SCREW
(NB1924)
qty (6)
3/8" NYLON WASHER
(NB1923)
qty (4)
Page 3
BENCH END
BENCH END
STABILIZER

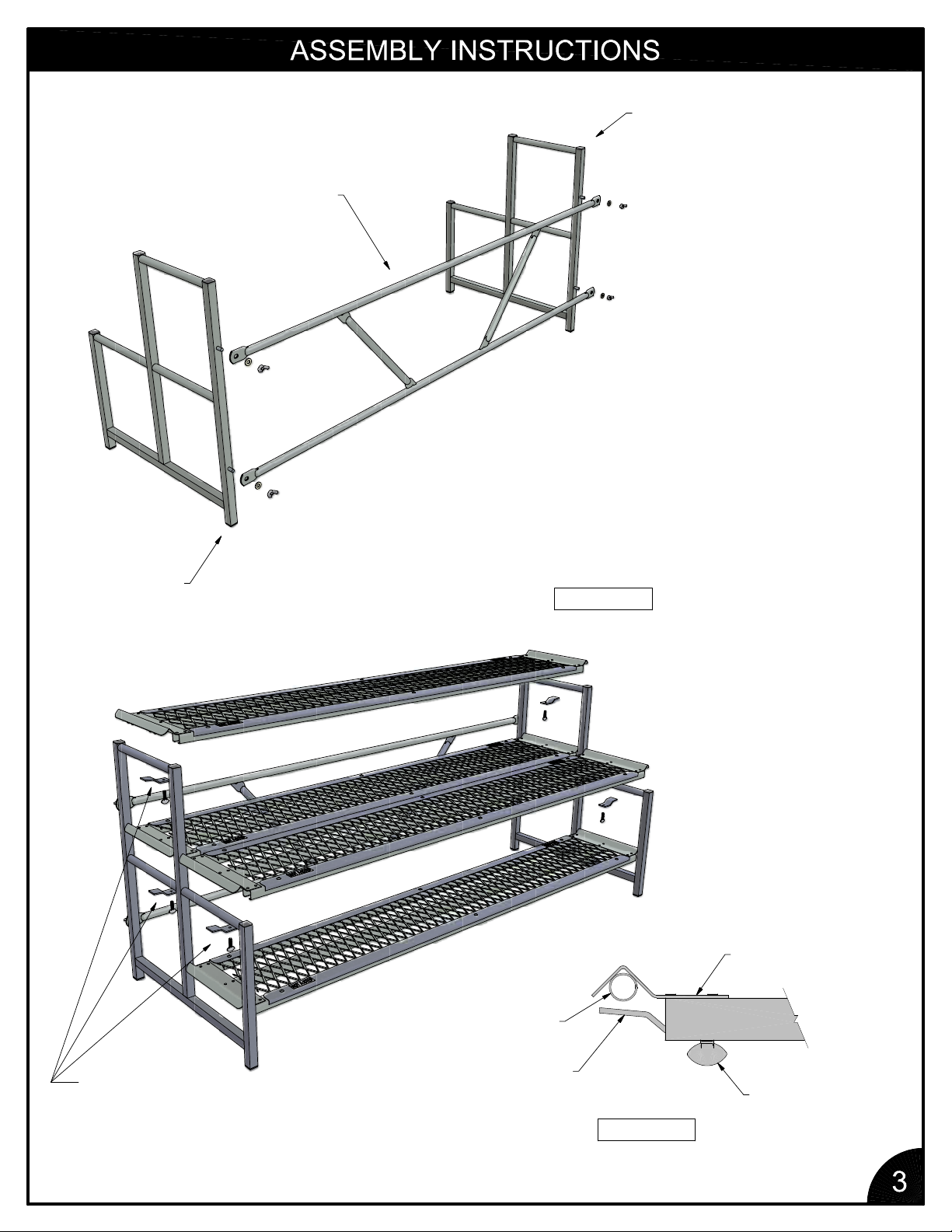

1. ATTACH STABILIZER TO BENCH
ENDS USING NYLON WASHERS
AND WING NUTS.
2. SET BENCH TOPS ON BENCH ENDS.
SECURE USING BENCH CLIPS AND
THUMBSCREWSASSHOWNIN
FIGURE 1 BELOW.
BENCH CLIP
BENCH TOP
BENCH END
CROSS TUBE
BENCH CLIP
THUMB SCREW
FIGURE 1
Page 4
BENCH TOP
(ONLY ONE
SHOWN)
BENCH END
WITH CASTERS
3/4" BENCH CLIP
WITH THUMB
SCREW
STABILIZER
INSTRUCTIONS:

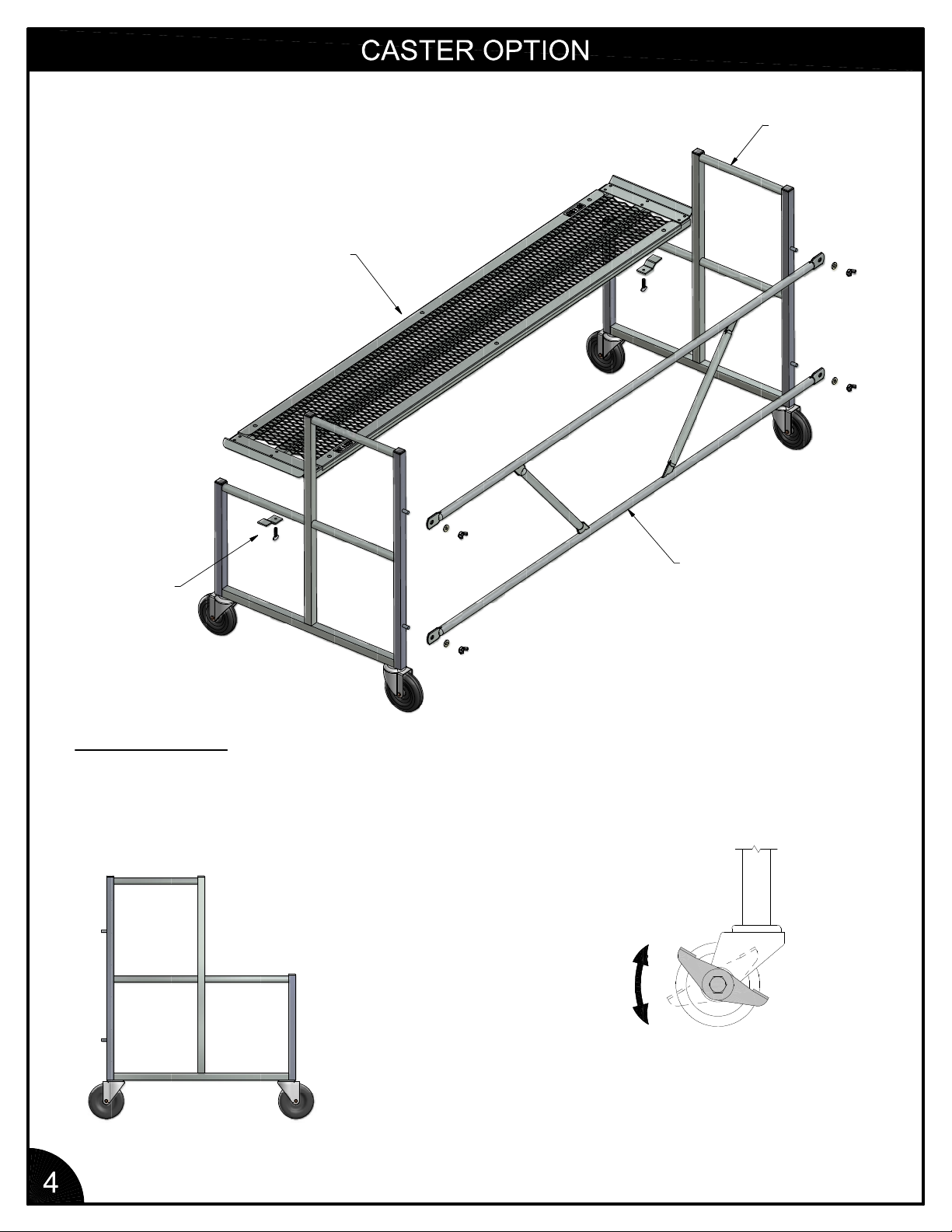

1. ASSEMBLE DISPLAY AS YOU WOULD A STANDARD BENCH (SEE PAGE 3), BUT
ASSEMBLE USING BENCH ENDS WITH CASTERS (FB2034).
BENCH END
WITH CASTERS
(FB2034)
qty (2)
ONCE DISPLAY IS IN PLACE,
ALL CASTERS MUST BE LOCKED
TO PREVENT MOVEMENT. THE
BRAKE IS ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.
Page 5
ADJOINING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
ADJOINING
BENCH END
EXISTING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
EXISTING STABILIZER
EXISTING BENCH END
ADJOINING STABILIZER
3/4" BENCH CLIP
W/THUMB SCREW

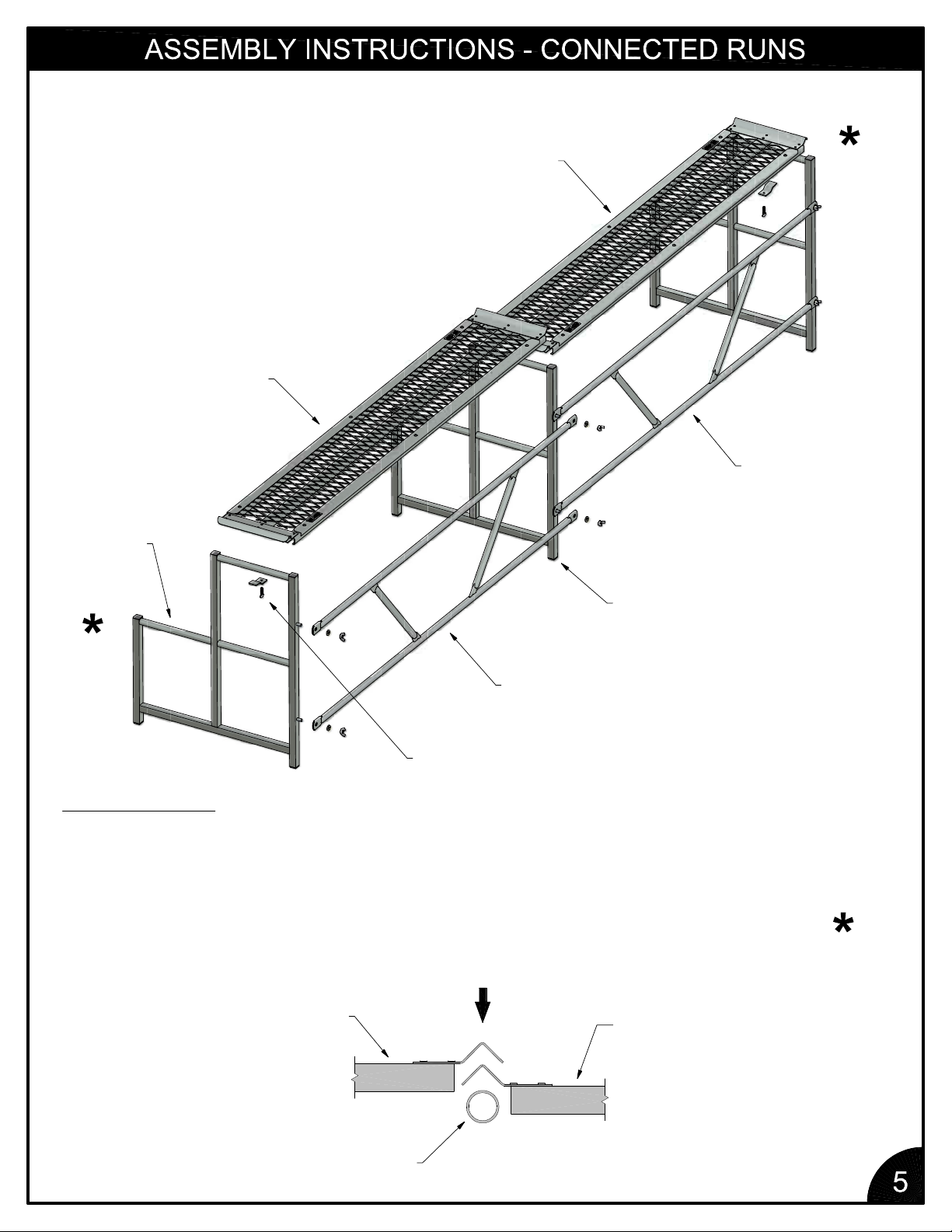

INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE EXISTING UNIT'S
BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS SHOWN BELOW.
3.SECURECLIPSONLYONENDUNITSOFMULTIPLEUNITSJOINEDTOGETHER( ).
ADJOINING
BENCH TOP
EXISTING
BENCH TOP
ADJOINING
BENCH END
SUPPORT TUBE
Page 6
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and electrical
shock is possible.
Do not place this product on a slope that exceeds 10 degrees.
If your display does not have casters, do not move this display after product is in place. Damage
to display and injuries may occur.
If your display does have casters, once in place, lock all casters to prevent movement.
o remove loose soil and debris, simply spray the soiled areas with a garden hose.
T
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
No tools are required to assemble this product.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost f
ollowi
ng inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING
THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
hiswarrantydoesnotcoverdamagefromcustomer abuse, misuse, improper installation,
T
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
