Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3026 v1.0.1
Page 2
FB3027
BENCH END
(2)
RF2545
12" BENCH TOP
(1)
RF2554
1'-6" BENCH TOP
(2)
FB3028
SIGN HOLDER
(1)
STABILIZER
NB1818
1/4" x 1 3/4" LONG
CARRIAGE BOLT
(2)
No tools required to assemble this product.
FB2533
(1)
NB1902
1/4" WING NUT
(2)
FT3600
NORSTAD CLIP
(6)
NB1923
NYLON WASHER
(4)
NB1924
5/16" x 1" THUMB SCREW
(6)
NB1860
1/4" LOCK
WASHER
(2)
NB1901
3/8" WING NUT
(4)
Page 3
BENCH
END
BENCH END
STABILIZER
NYLON WASHER
3/8" WING NUT
INSTRUCTIONS:
1. ATTACH STABILIZER TO BENCH ENDS USING 3/8" WING NUTS AND NYLON WASHERS.

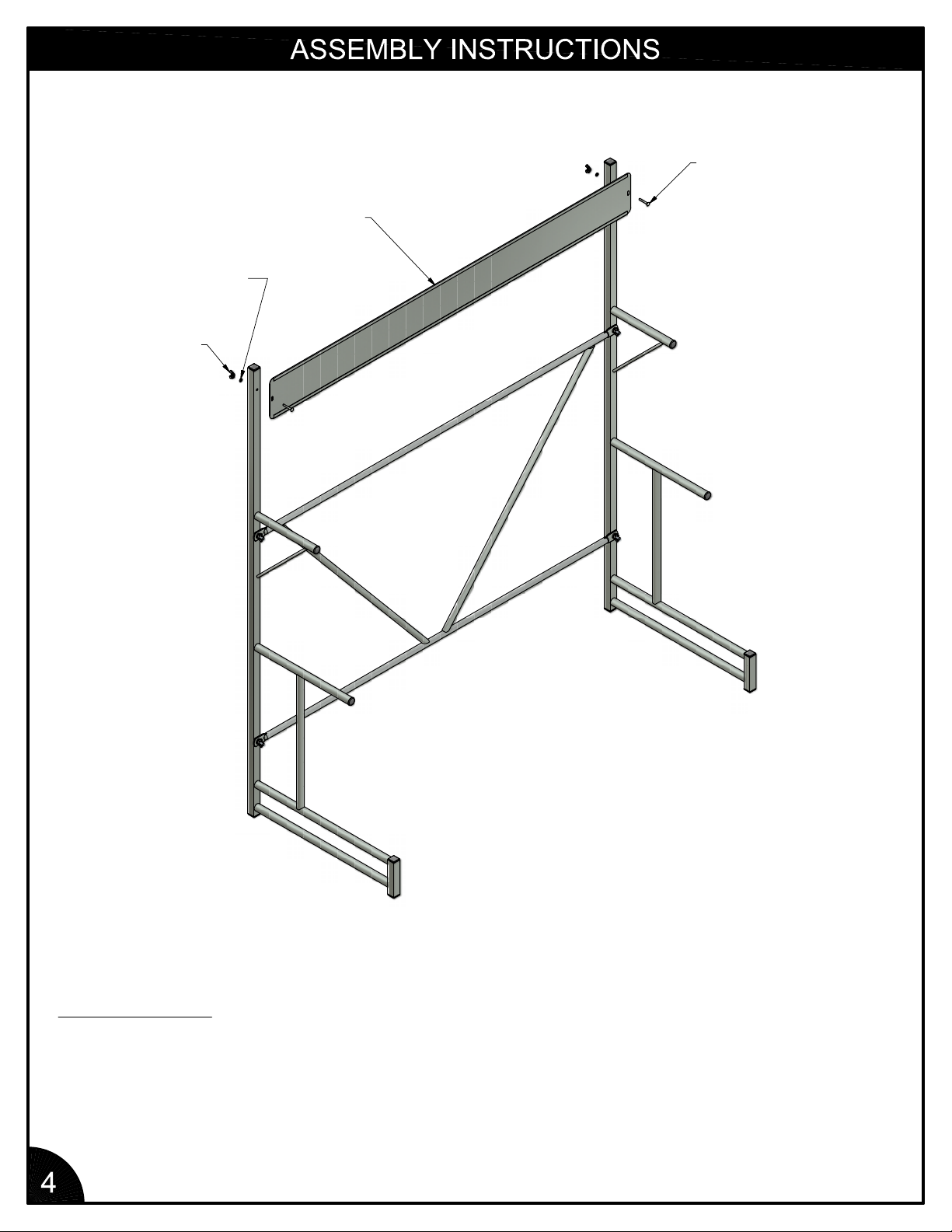

Page 4
SIGN HOLDER
1/4" LOCK WASHER
1/4" WING NUT
1/4" x 1 3/4" LONG
CARRIAGE BOLT
INSTRUCTIONS:
2. ATTACH SIGN HOLDER TO HOLES IN BENCH ENDS USING 1/4" x 1 3/4" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND 1/4" WING NUTS.

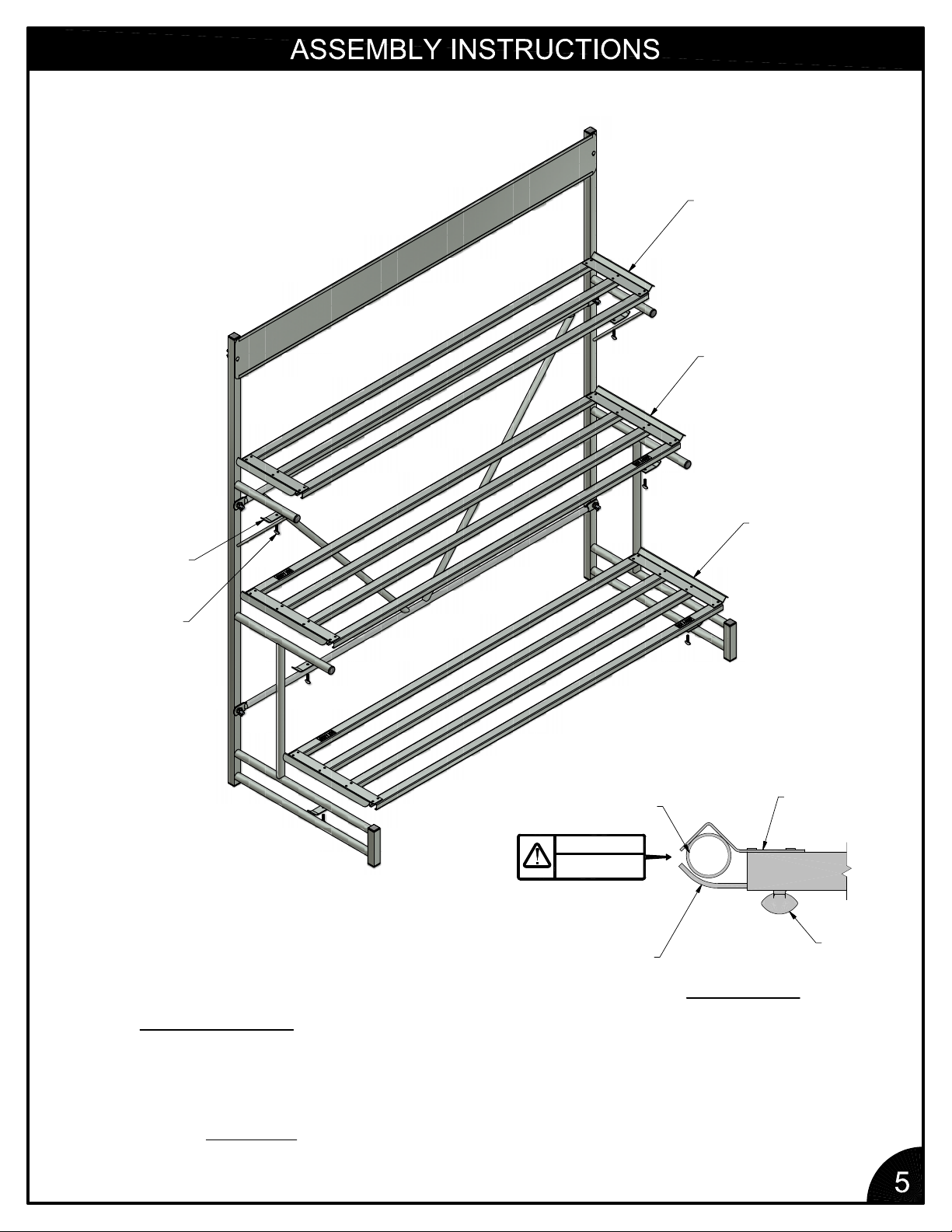

Page 5
12" BENCH TOP
1'-6" BENCH TOP
NORSTAD
CLIP
THUMB
SCREW
BENCH END
BENCH SUPPORT
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD
CLIP
1'-6" BENCH TOP
BENCH
TOP
THUMB
SCREW
FIGURE 1
INSTRUCTIONS:
3. PLACE BENCH TOPS ON THE BENCH END SUPPORT TUBES.
4. FASTEN TO BENCH ENDS USING NORSTAD CLIPS AND THUMB SCREWS.
SEEFIGURE1
.

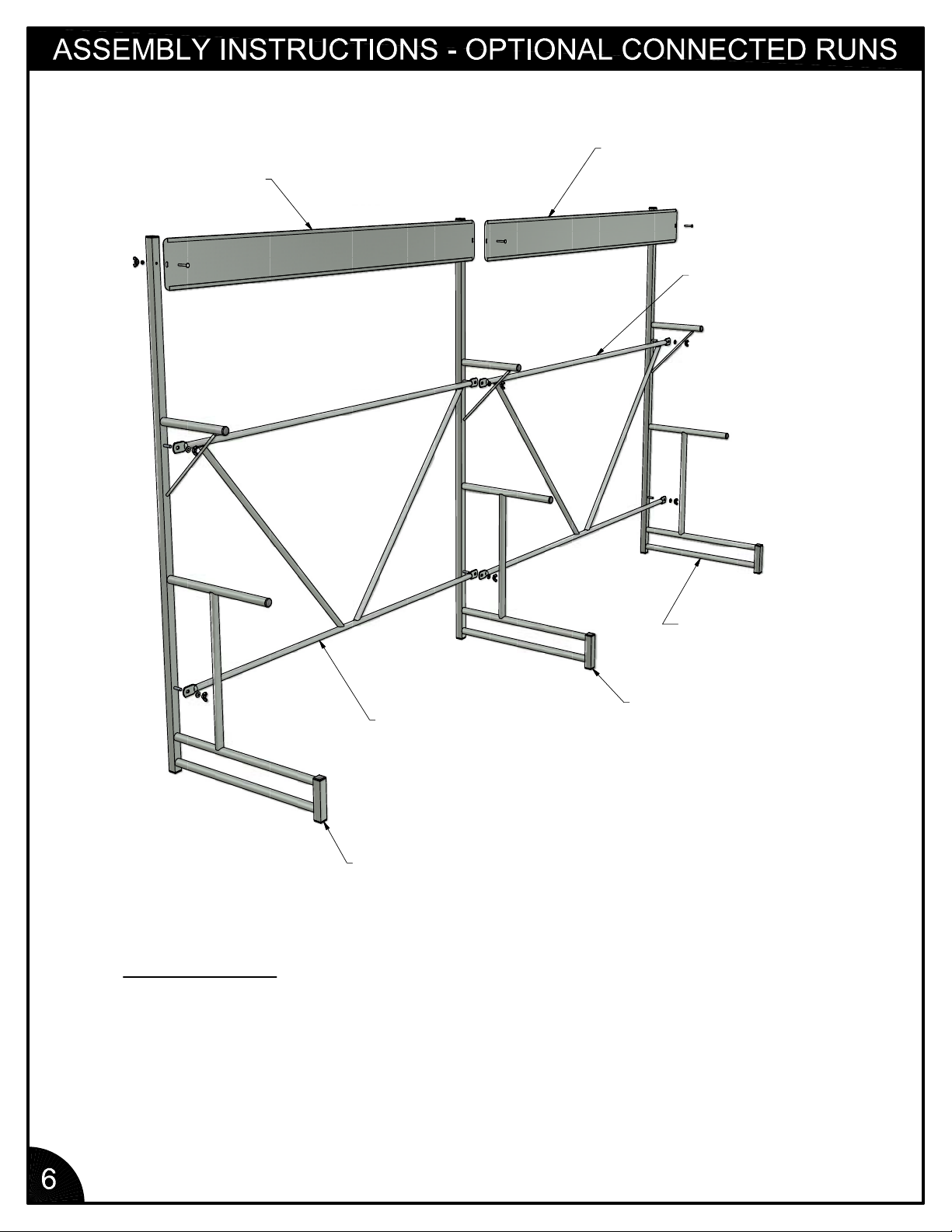

Page 6
EXISTING UNIT'S
SIGN HOLDER
ADJOINING UNIT'S
SIGN HOLDER
ADJOINING UNIT'S
STABILIZER
ADJOINING UNIT'S
BENCH END
EXISTING UNIT'S
EXISTING UNIT'S
BENCH END
STABILIZER
EXISTING UNIT'S
BENCH END
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE EXISTING
UNIT'S BENCH END.
2. ATTACH ADJOINING UNIT'S SIGN HOLDER TO THE EXISTING UNIT'S BENCH
END AND ADJOINING UNIT'S BENCH END.

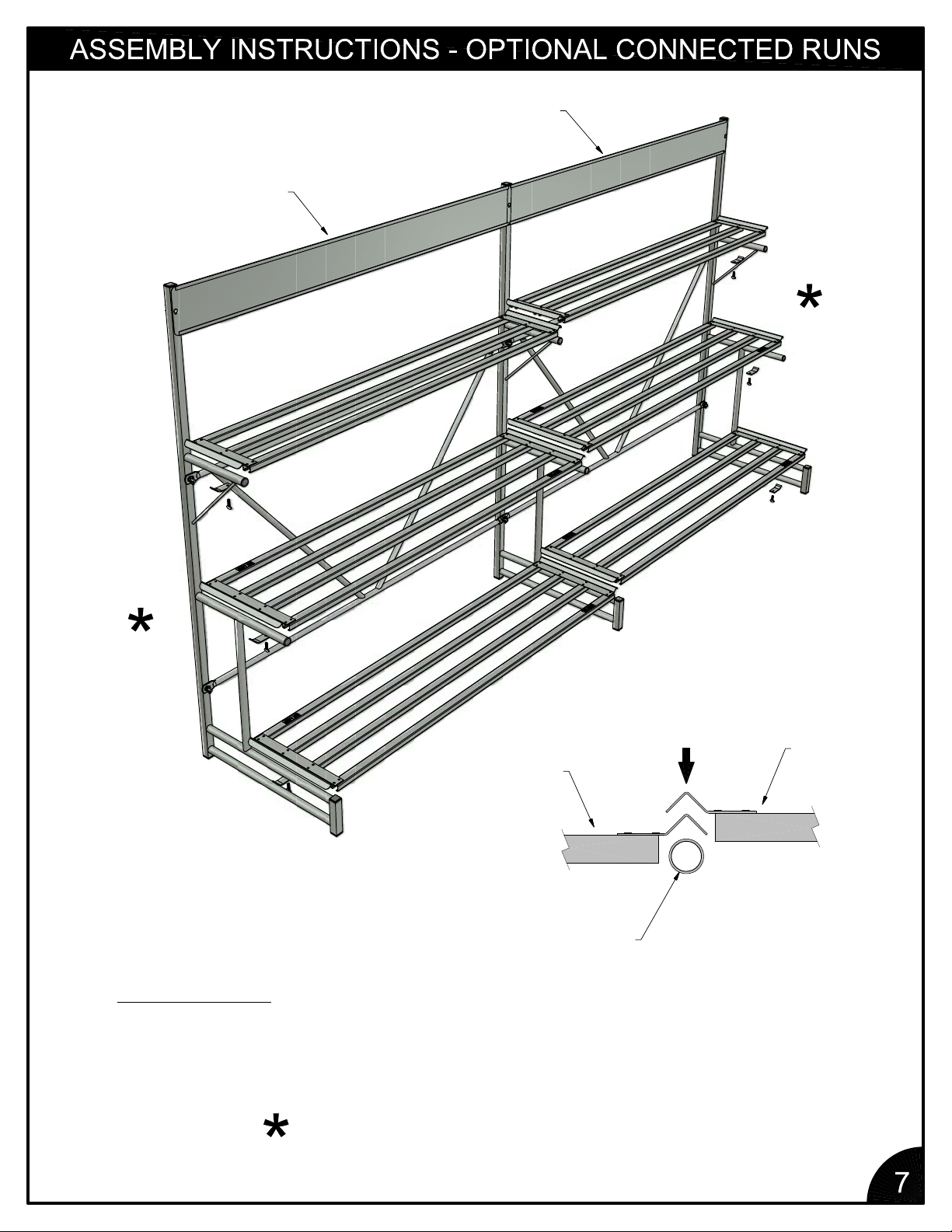

Page 7
EXISTING UNIT
ADJOINING UNIT
BENCH TOP
BENCH TOP
(EXISTING)
BENCH END
BENCH TOP
SUPPORT TUBE
INSTRUCTIONS:
3. SET BENCH TOPS DOWN OVERLAPPING EXISTING UNIT'S BENCH TOPS AS
SHOWN ABOVE.
4. SECURE NORSTAD CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED
TOGETHER ( ).
(ADJOINING)
Page 8
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
