Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3025-4 v1.0.0
Page 2
FB2023
BENCH END
(2)
FB2539
STABILIZER
FT3600
NORSTAD CLIP
(4)
FT3200
STACKER CLIP
(4)
(1)
NB1924
THUMB SCREW
(8)
RF2548
23" x 4' BENCH TOP
(2)
RF2543
18" x 4' BENCH TOP
(1)
RF2547
12" X 4' BENCH TOP
(1)
NB1901
WING NUT
(4)
NB1923
NYLON WASHER
(4)
No tools are required for the assembly of this product.
Page 3

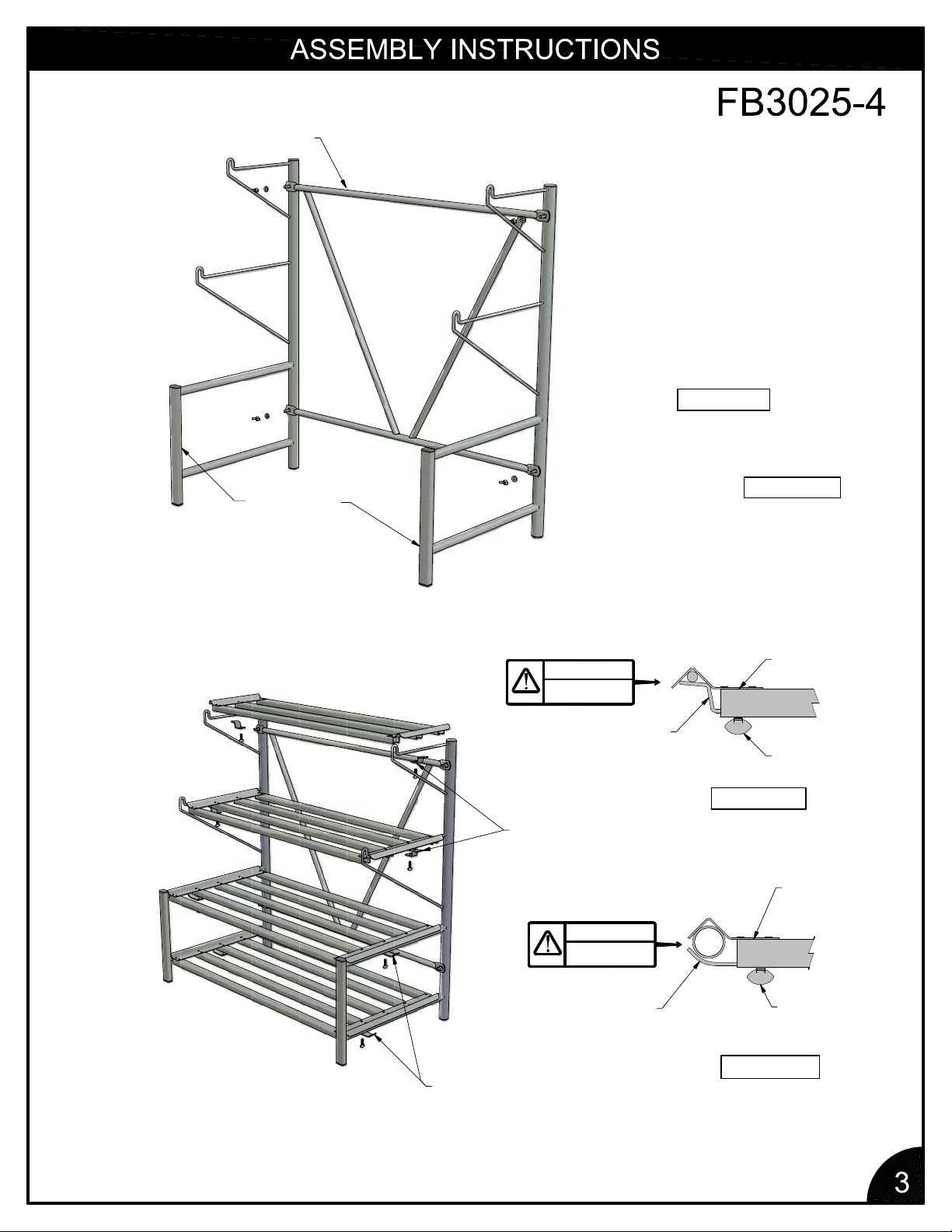

STABILIZER
BENCH END
FLAT MATE - 4'
1. ATTACH STABILIZER TO
THREADED STUDS ON
BENCH ENDS USING NYLON
WASHERS AND WING NUTS.
2. SET BENCH TOPS IN PLACE.
3. SECURE UPPER BENCH
TOPS WITH STACKER CLIPS.
SEE FIGURE 1
4. SECURE LOWER BENCH
TOPS WITH NORSTAD
CLIPS. SEE FIGURE 2
NORSTAD
CLIP
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
STACKER CLIP
STACKER
CLIP
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD CLIP
BENCH TOP
THUMB SCREW
FIGURE 1
BENCH TOP
THUMB SCREW
FIGURE 2
Page 4

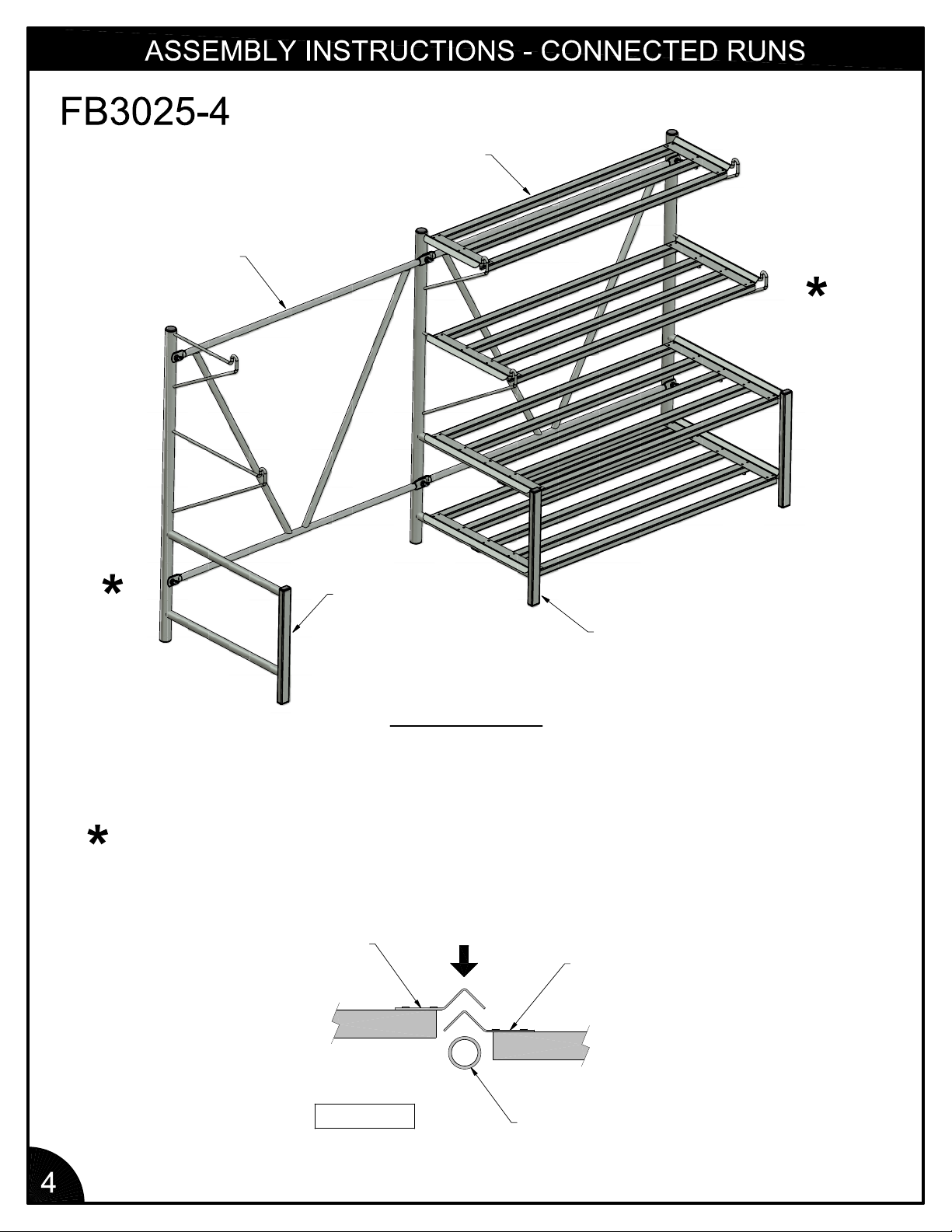

FLAT MATE - 4'
ADJOINING UNIT
STABILIZER
EXISTING UNIT
ADJOINING UNIT
BENCH END
EXISTING UNIT BENCH END
SECURE CLIPS ONLY ON END
UNITS OF MULTIPLE UNITS
JOINED TOGETHER.
BENCH TOP
FIGURE 1
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND
BENCH END TO THE EXISTING UNIT'S BENCH
END. SET BENCH TOPS OVERLAPPING EXISTING
BENCH TOPS AS SHOWN IN FIGURE 1
BENCH TOP
BENCH END
BENCH SUPPORT
.
Page 5

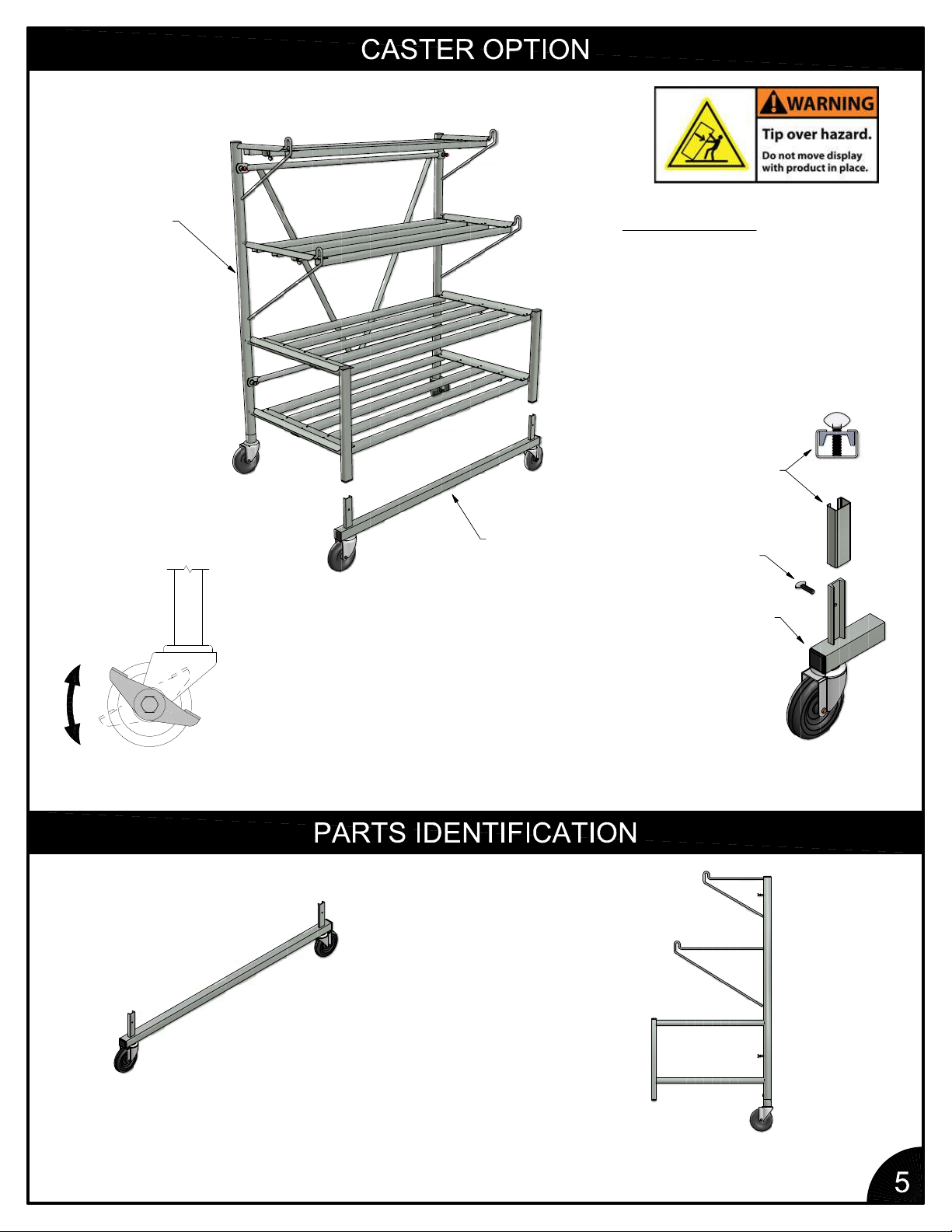

BENCH END
WITH CASTER
(FB2026)
CASTER RAIL
(FB2044)
INSTRUCTIONS:
1. SLIDE CASTER RAIL INTO
BOTTOM OF BENCH ENDS.
2. TIGHTEN THUMB SCREWS
TO LOCK INTO PLACE.
BENCH END LEG
THUMB SCREW
CASTER RAIL
ONCE DISPLAY IS IN PLACE,
ALL CASTERS MUST BE LOCKED
TO PREVENT MOVEMENT. THE
BRAKE IS ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.
FB2044
CASTER RAIL
(1)
FB2026
BENCH END
WITH CASTER
(2)
Page 6
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
