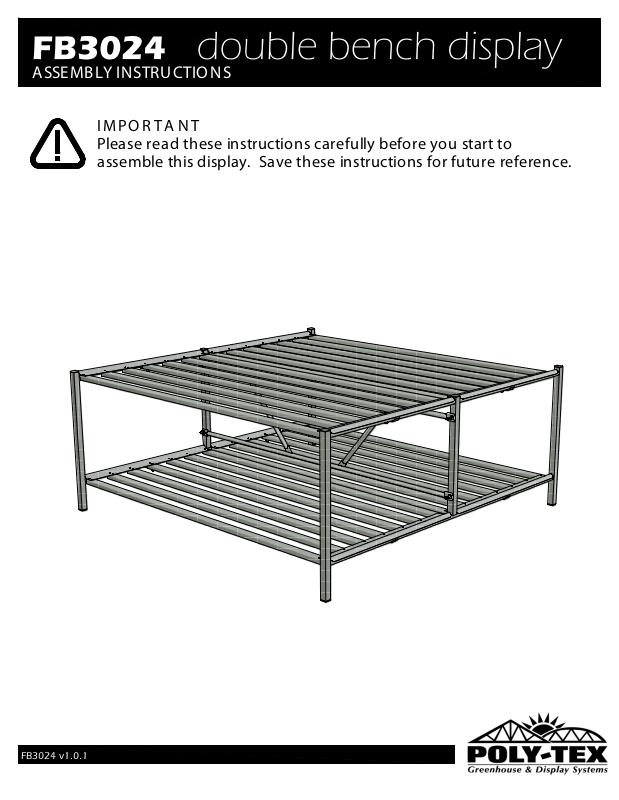

ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3024 v1.0.1
Page 2
FB1503
DOUBLE BENCH END
(2)
FB2537
15-1/2" STABILIZER
(1)
RF2552
3' x 6' BENCH TOP
(4)
NB1901
3/8" WING NUT
(4)
NB1923
3/8" NYLON WASHER
(4)
NB1924
THUMB SCREW
(8)
FK1002
3' x 6' BENCH TOP
W/EXPANDED METAL
(4)
FT3600
NORSTAD CLIP
(8)
No tools are required to assemble this product.
Page 3
BENCH END
STABILIZER
BENCH END
NYLON WASHER
WING NUT
INSTRUCTIONS:
1. ATTACH STABILIZER TO BENCH END STUDS USING
NYLON WASHERS AND WING NUTS.
Page 4
BENCH TOPS
NORSTAD CLIP
W/THUMB SCREW
(BOTH ENDS)

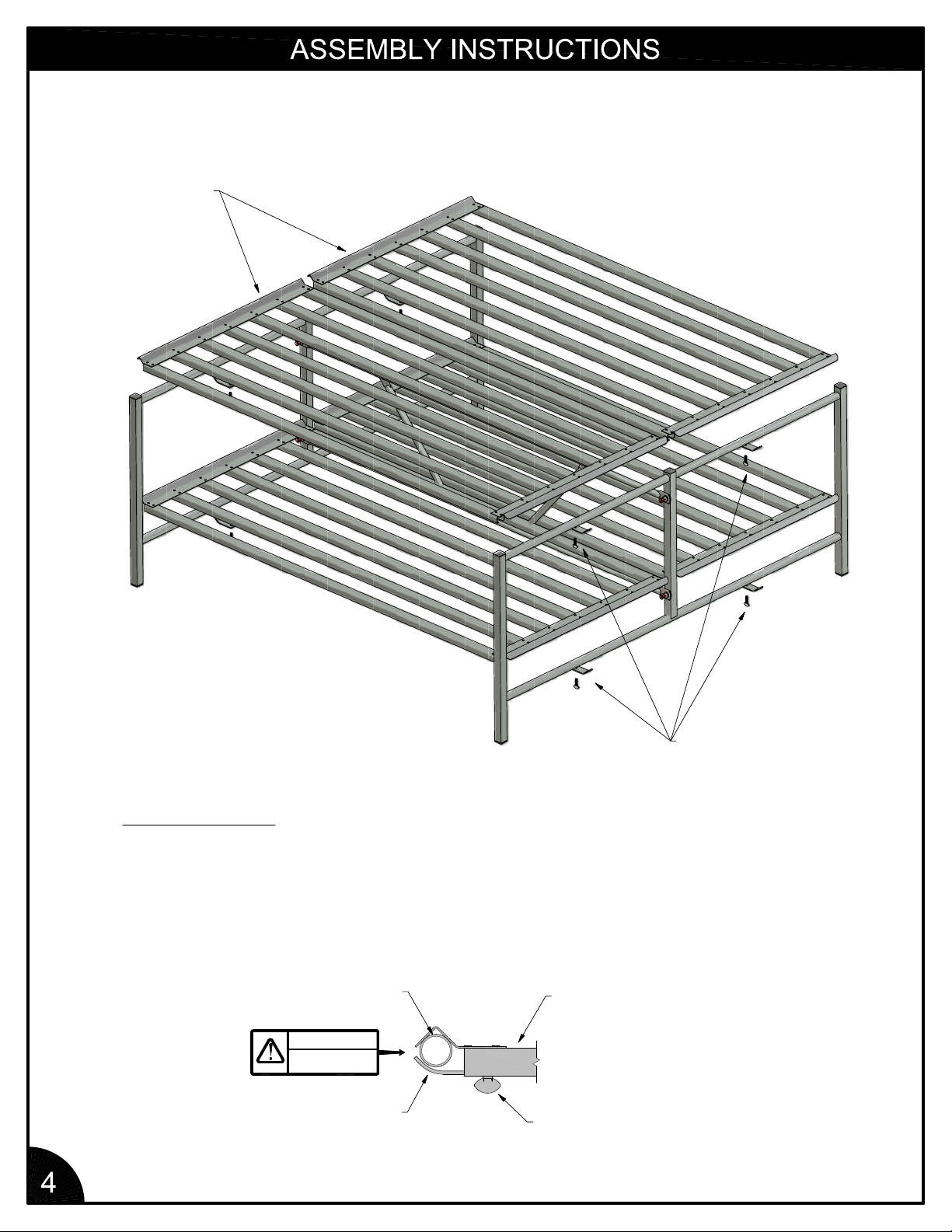

INSTRUCTIONS:
2.PLACEALLBENCHTOPSONBENCHENDS.
3. SECURE BENCH TOPS WITH NORSTAD CLIPS AND THUMB SCREWS PER
DETAIL BELOW:
BENCH END
BENCH SUPPORT
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD CLIP
BENCH TOP
THUMB SCREW
Page 5
EXISTING BENCH TOP
EXISTING STABILIZER
ADJOINING BENCH TOP
EXISTING BENCH END
ADJOINING STABILIZER
ADJOINING BENCH END

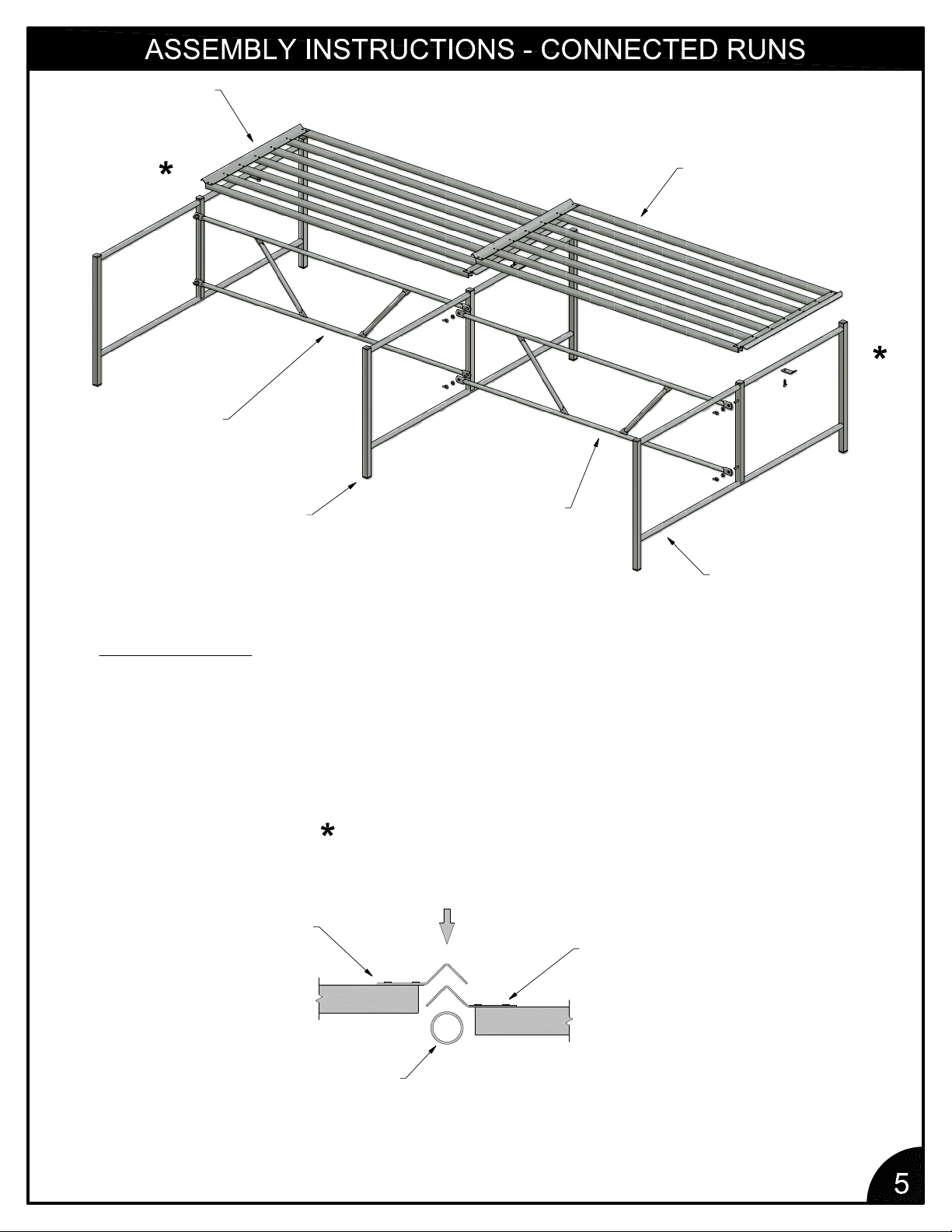

INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE EXISTING
UNIT'S BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS
SHOWN BELOW.
3. SECURE NORSTAD CLIPS ONLY ON END UNITS OF MULTIPLE UNITS
JOINEDTOGETHER( ).
BENCH TOP
(ADJOINING)
BENCH TOP
(EXISTING)
BENCH END
SUPPORT TUBE
Page 6

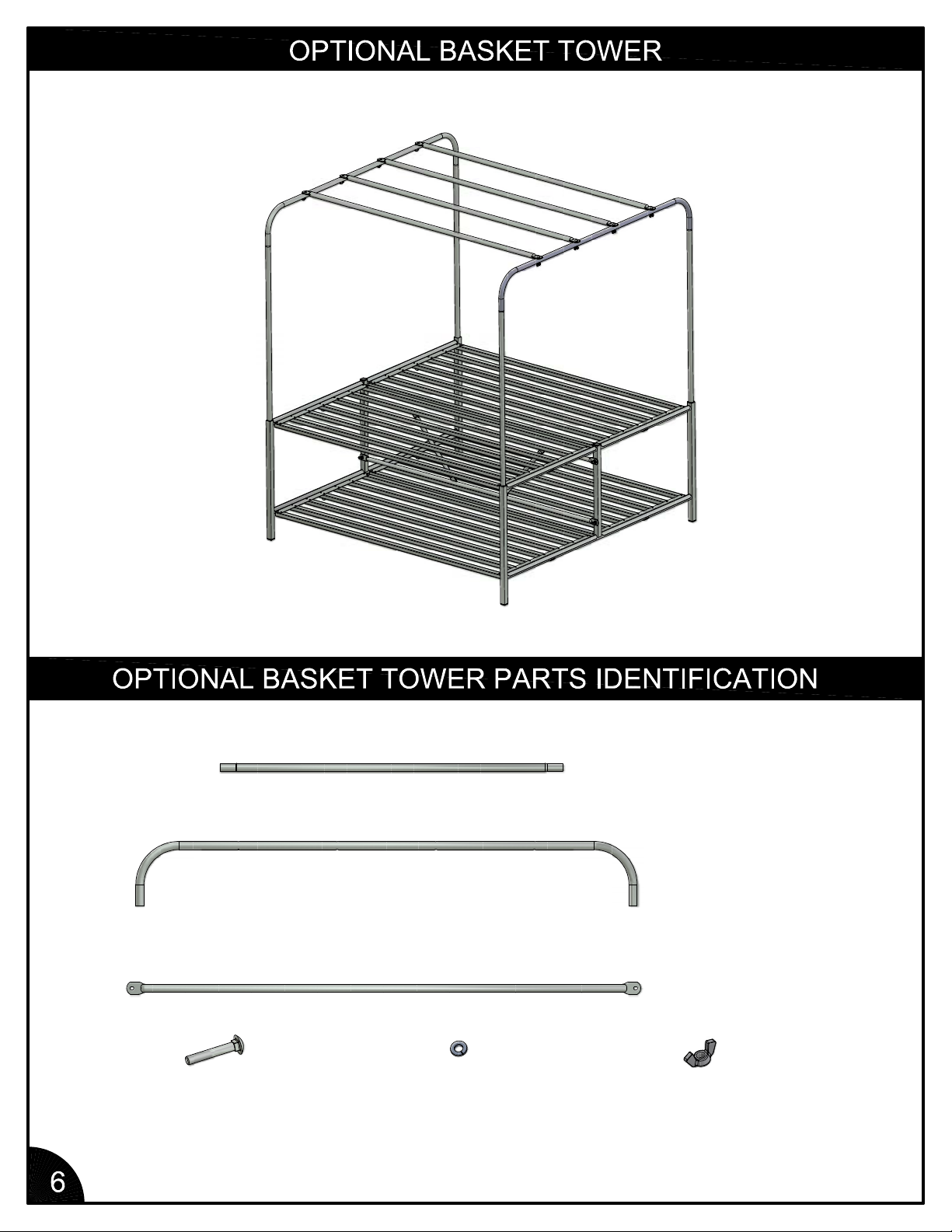

FB2038
49" BASKET POST
(4)
FB2002D
U-BRACE
(2)
GM4000
6'-1 1/2" BASKET
PURLIN
(4)
NB1827
5/16" x 2" LONG
CARRIAGE BOLT
(8)
NB1862
5/16" LOCK WASHER
(8)
NB1903
5/16" WING NUT
(8)
Page 7
U-BRACE
NOTE:
PAINTED ENDS
OF BASKET
POSTS MUST
BE AT THE TOP.
6'-1 1/2" BASKET PURLIN
49" BASKET POST
ASSEMBLED FB3024
DOUBLE BENCH DISPLAY

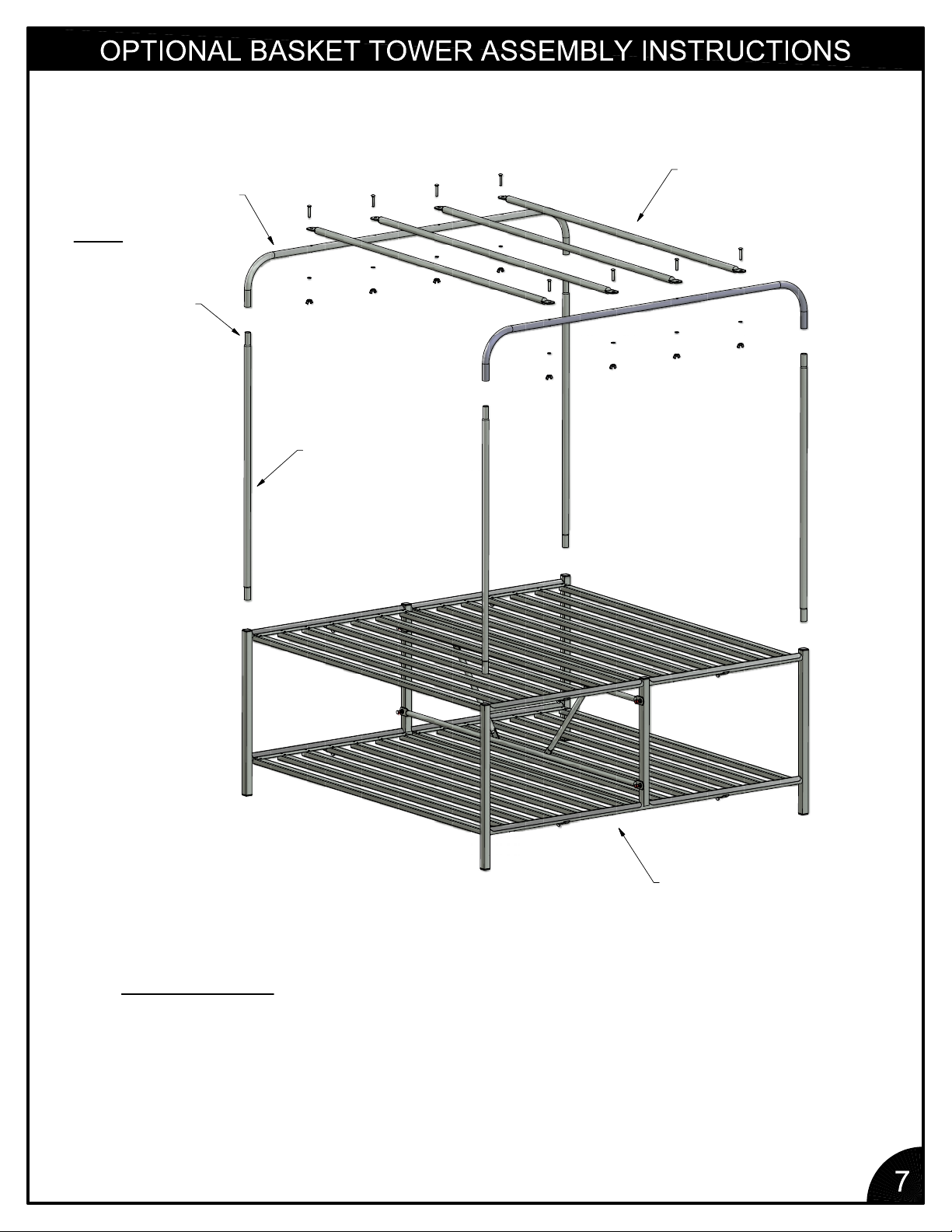

INSTRUCTIONS:
1. INSERT THE UNPAINTED END OF THE 49" BASKET POSTS INTO DOUBLE
BENCH END CORNER POSTS.
2. PLACE U-BRACES ON THE PAINTED END OF THE 49" BASKET POSTS.
3. ATTACH 6'-1 1/2" PURLINS TO U-BRACES USING 2" LONG CARRIAGE BOLTS,
LOCK WASHERS, AND WING NUTS.
Page 8
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
