Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3021 v1.0.1
Page 2
FB3022
BENCH END
(2)
FB2533
STABILIZER
(1)
RF2554
1'-6" BENCH TOP
(6)
FT3600
NORSTAD CLIP
(16)
NB1924
5/16" THUMB SCREW
(16)
NB1901
3/8" WING NUT
(4)
No tools are required to assemble this product.
NB1923
3/8" NYLON WASHER
(4)
RF2555
23" BENCH TOP
(2)
Page 3
STABILIZER
BENCH END
NYLON WASHER
WING NUT
BENCH END
INSTRUCTIONS:
1. ATTACH STABILIZER TO BENCH ENDS USING NYLON WASHERS AND WING NUTS.
Page 4
NORSTAD CLIP
1'-6" BENCH TOP
23" BENCH
TOP
1'-6"
BENCH
TOP
THUMB SCREW
BENCH END

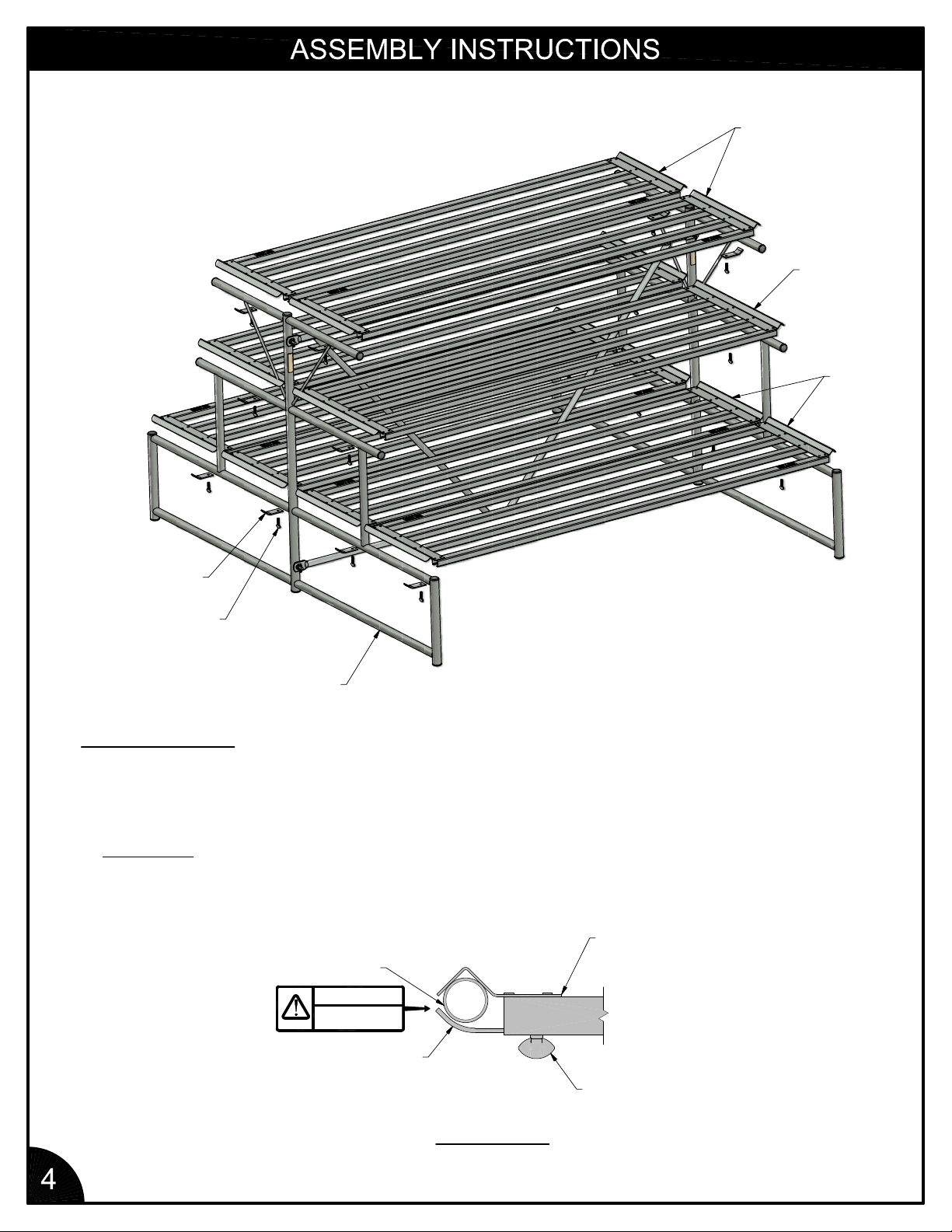

INSTRUCTIONS:
2. PLACE BENCH TOPS ON THE BENCH END SUPPORT TUBES AS SHOWN ABOVE.
3. FASTEN TO BENCH ENDS USING NORSTAD CLIPS AND THUMB SCREWS. SEE
FIGURE 1
BELOW.
BENCH END
BENCH TOP
BENCH SUPPORT
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD CLIP
FIGURE 1
THUMB SCREW
Page 5
1/4" WING NUT
1/4" LOCK WASHER
1/4" x 1 3/4" Long
CARRIAGE BOLT
INSTRUCTIONS:
BENCH TOPS NOT
SHOWN FOR CLARITY

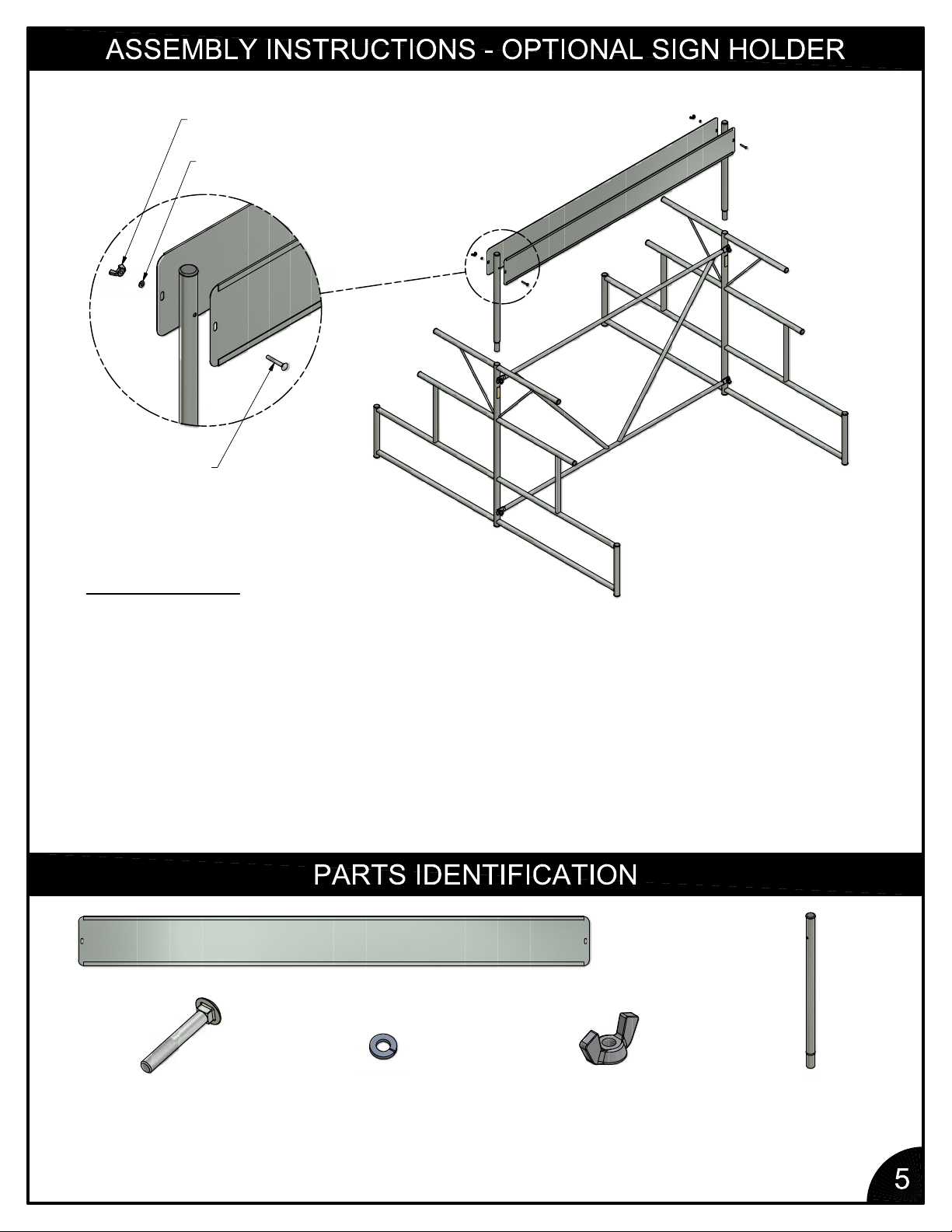

1. REMOVE BLACK PLASTIC CAPS FROM TOPS OF BENCH ENDS.
2. INSERT SIGN HOLDER POSTS INTO TOPS OF BENCH ENDS AS SHOWN.
3. PLACE ONE SIGN HOLDER INTO POSITION WITH HOLES ON POST. INSERT
CARRIAGE BOLTS.
4. PLACE OPPOSITE SIGN HOLDER OVER BOLTS ON OPPOSITE SIDE OF POSTS.
5. FASTEN WITH LOCK WASHERS AND WING NUTS.
FB3028
SIGN HOLDER
(2)
NB1818
1/4" x 1 3/4" Long
CARRIAGE BOLT
(2)
NB1860
1/4" LOCK WASHER
(2)
NB1902
1/4" WING NUT
(2)
FB3023
POST
(2)
Page 6
BASKET
PURLIN
PURLIN
ARM
CARRIAGE BOLT
LOCK WASHER
WING NUT
PURLIN
SUPPORT
BENCH TOPS NOT
SHOWN FOR CLARITY

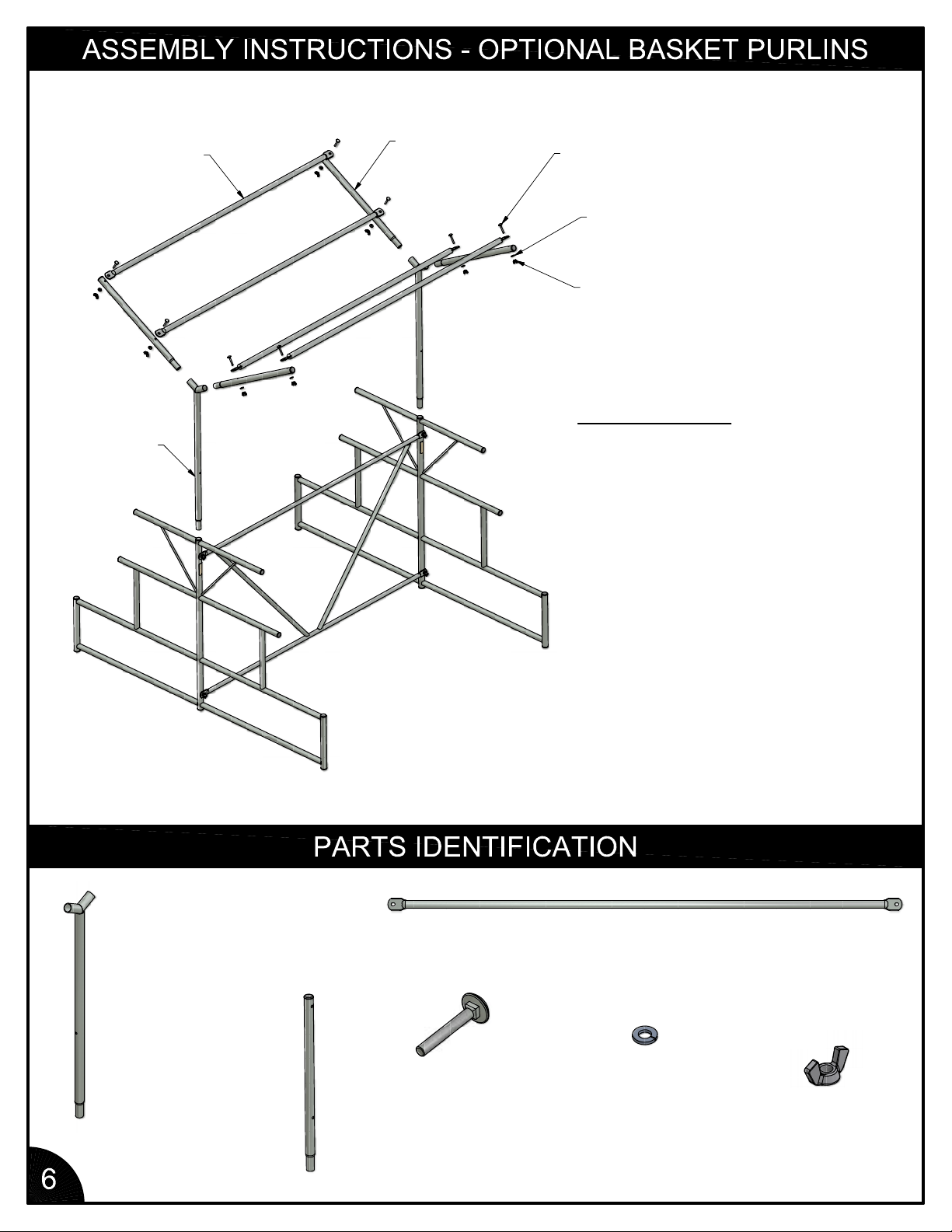

INSTRUCTIONS:
1. REMOVE BLACK PLASTIC CAPS
FROM TOPS OF BENCH ENDS.
2. SLIDE PURLIN SUPPORTS INTO
BENCH END VERTICAL TUBES.
3. SLIDE PURLIN ARMS INTO
PURLIN SUPPORTS.
4. FASTEN BASKET PURLINS TO
PURLIN ARMS USING CARRIAGE
BOLTS, LOCK WASHERS, AND
WING NUTS.
FB3033
PURLIN SUPPORT
(2)
FB3034
PURLIN ARM
(4)
NB1827
5/16" x 2" long
CARRIAGE BOLT
(8)
GM4000
BASKET PURLIN
(4)
NB1862
5/16" LOCK WASHER
(8)
NB1903
5/16" WING NUT
(8)
Page 7
EXISTING
BENCH END
3/8" NYLON WASHER
3/8" WING NUT
ADJOINING
BENCH END
ADJOINING
STABILIZER
EXISTING
STABILIZER
EXISTING
BENCH END

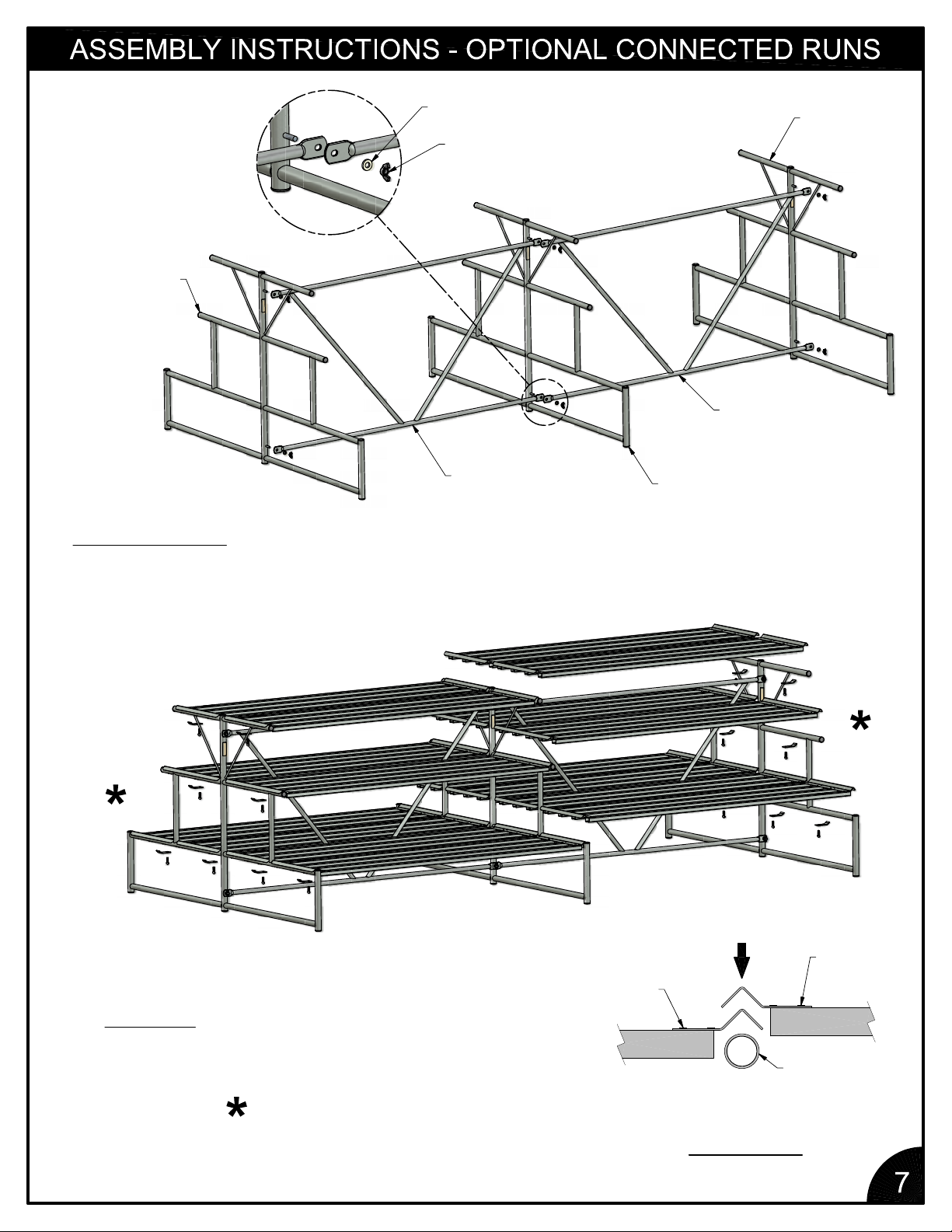

INSTRUCTIONS:
1. ATTACH ADJOINING STABILIZER AND BENCH END TO THE EXISTING BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING
EXISTING BENCH TOPS AS SHOWN IN
FIGURE 1
.
3. SECURE NORSTAD CLIPS ONLY ON END
UNITS OF MULTIPLE UNITS JOINED
TOGETHER ( ).
BENCH TOP
(EXISTING)
BENCH TOP
(ADJOINING)
BENCH END
BENCH TOP
SUPPORT TUBE
FIGURE 1
Page 8
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
