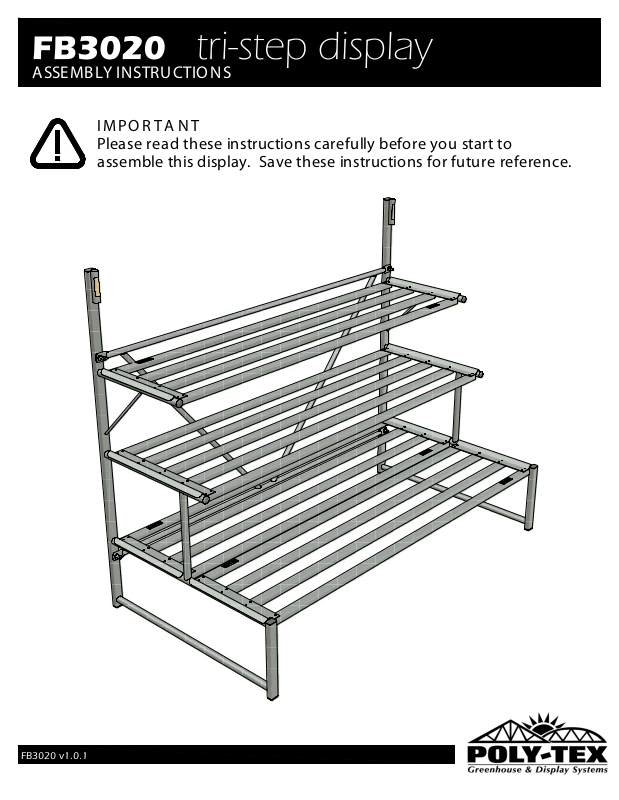

Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3020 v1.0.1
Page 2
FB2810
BENCH END
(2)
RF2554
1'-6" x 6' BENCH TOP
(3)
FB2533
STABILIZER
(1)
NB1901
3/8" WING NUT
(4)
NB1923
3/8" NYLON WASHER
(4)
FT3600
RF2555
23" x 6' BENCH TOP
NORSTAD CLIP
(8)
(1)
No tools are required to assemble this product.
NB1924
THUMB SCREW
(8)
Page 3
STABILIZER
BENCH END
1. ATTACH STABILIZER TO BOTH
BENCH ENDS USING NYLON
WASHERS AND WING NUTS.
BENCH END
2. SET BENCH TOPS ON ASSEMBLED
FRAME.
3. SECURE BENCH TOPS TO BENCH
ENDS USING NORSTAD CLIPS AND
THUMB SCREWS. SEE FIGURE 1
BENCH END TUBE
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
BENCH TOP
NORSTAD CLIP
FIGURE 1
Page 4
GM4000
6'-1 1/2" BASKET PURLIN
(1)
FB2007
BASKET PURLIN
SUPPORT
(2)
BASKET
PURLIN
SUPPORT
BASKET PURLIN
NB1830
5/16" x 2 1/4"
CARRIAGE BOLT
(6)
INSTRUCTIONS:
1. INSERT BASKET PURLIN
SUPPORTS INTO BENCH
ENDS.
2. ATTACH BASKET PURLIN
TO BASKET PURLIN
SUPPORTS USING 5/16"
x1"LONGCARRIAGE
BOLTS, LOCK WASHERS,
AND WING NUTS.
NB1901 - 6
NB1923 - 6
ASSEMBLED FB3020
TRI-STEP DISPLAY

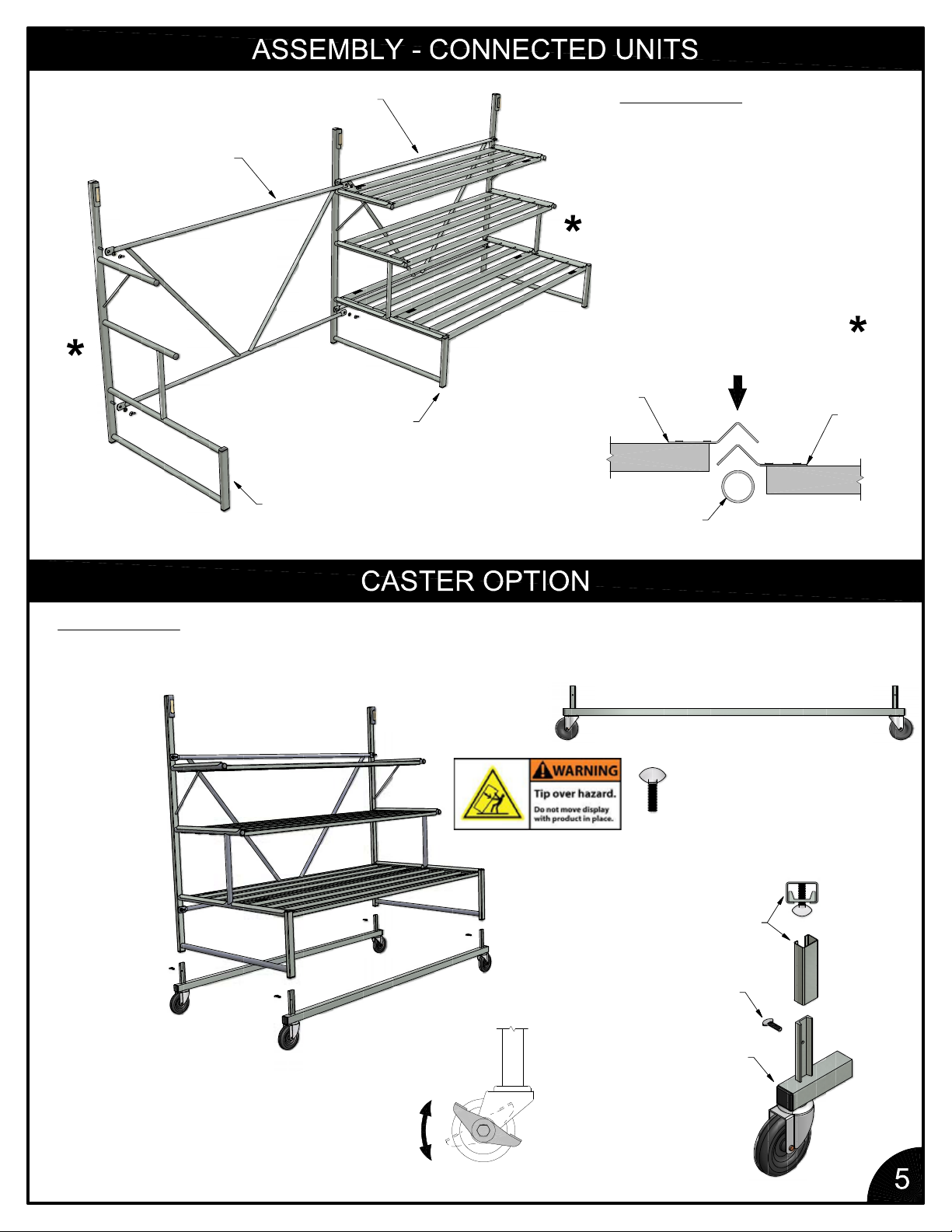

Page 5
EXISTING UNIT
INSTRUCTIONS:
ADJOINING UNIT
STABILIZER
EXISTING UNIT
BENCH END
ADJOINING UNIT
BENCH END
1. ATTACH ADJOINING UNIT'S
STABILIZER AND BENCH END
TO THE EXISTING UNIT'S
BENCH END.
2. SET BENCH TOPS OVERLAPPING EXISTING BENCH
TOPS AS SHOWN BELOW.
3. SECURE CLIPS ONLY ON
END UNITS OF MULTIPLE
UNITS JOINED TOGETHER ( ).
BENCH TOP
BENCH
TOP
BENCH END
BENCH SUPPORT
INSTRUCTIONS:
1. SLIDE CASTER RAILS INTO BOTTOM OF END FRAMES.
2. TIGHTEN THUMB SCREWS SECURELYTOLOCKINTOPLACE.
FB2004
CASTER ASSEMBLY
(2)
NB1924
THUMB SCREW
(4)
END FRAME LEG
THUMB SCREW
CASTER RAIL
ONCE DISPLAY IS IN PLACE, ALL CASTERS
MUST BE LOCKED TO PREVENT MOVEMENT.
THE BRAKE IS ACTIVATED BY ROTATING THE
LEVER FROM THE "OFF" POSITION TO THE
"ON" POSITION.
Page 6

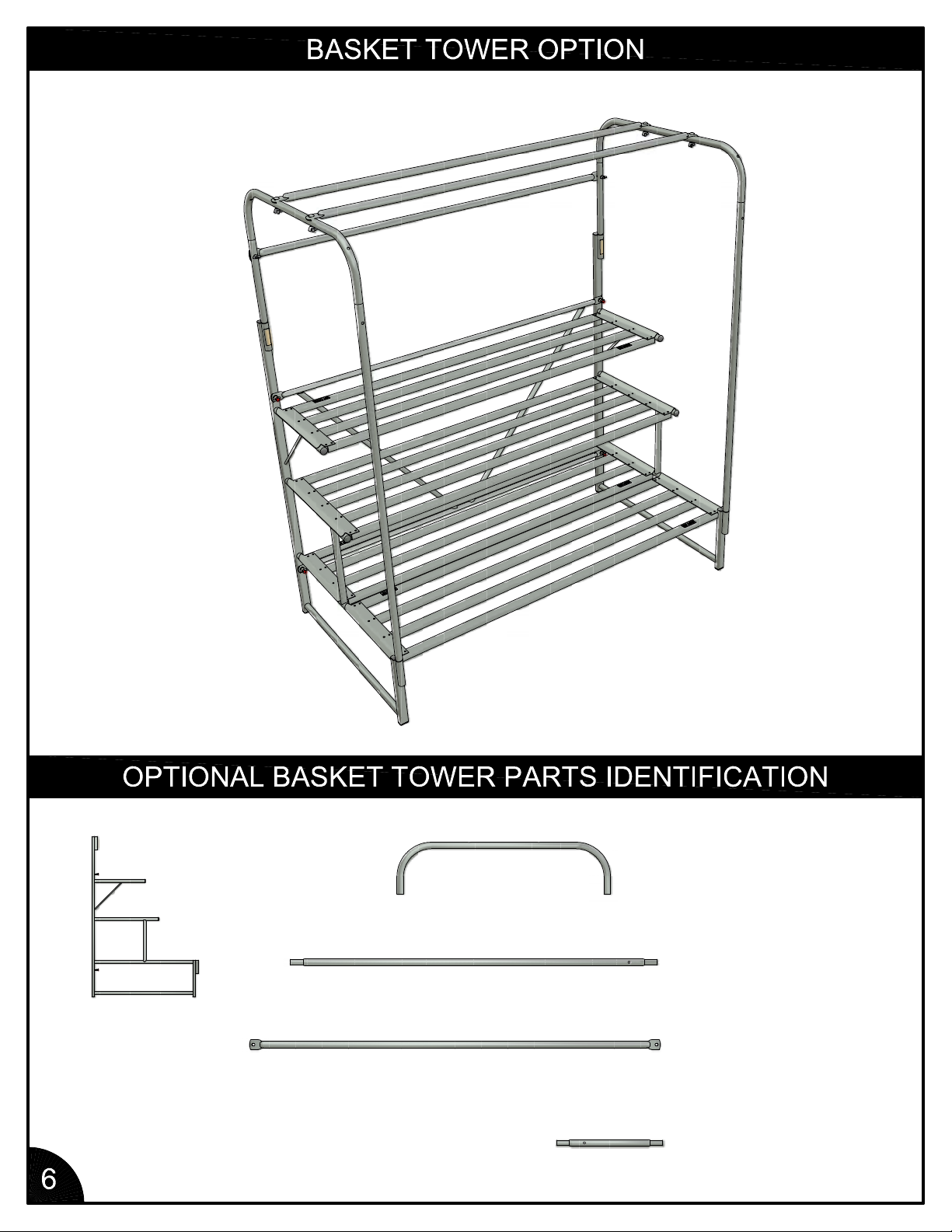

BENCH END
NB1830 - 6
NB1901 - 6
NB1923 - 6
FB2811
(2)
FB2002
U-BRACE
(2)
FB1999
65 1/2" BASKET POST
(2)
FB2531
CANOPY PURLIN
(3)
FB2003C
19" BASKET POST
(2)
Page 7

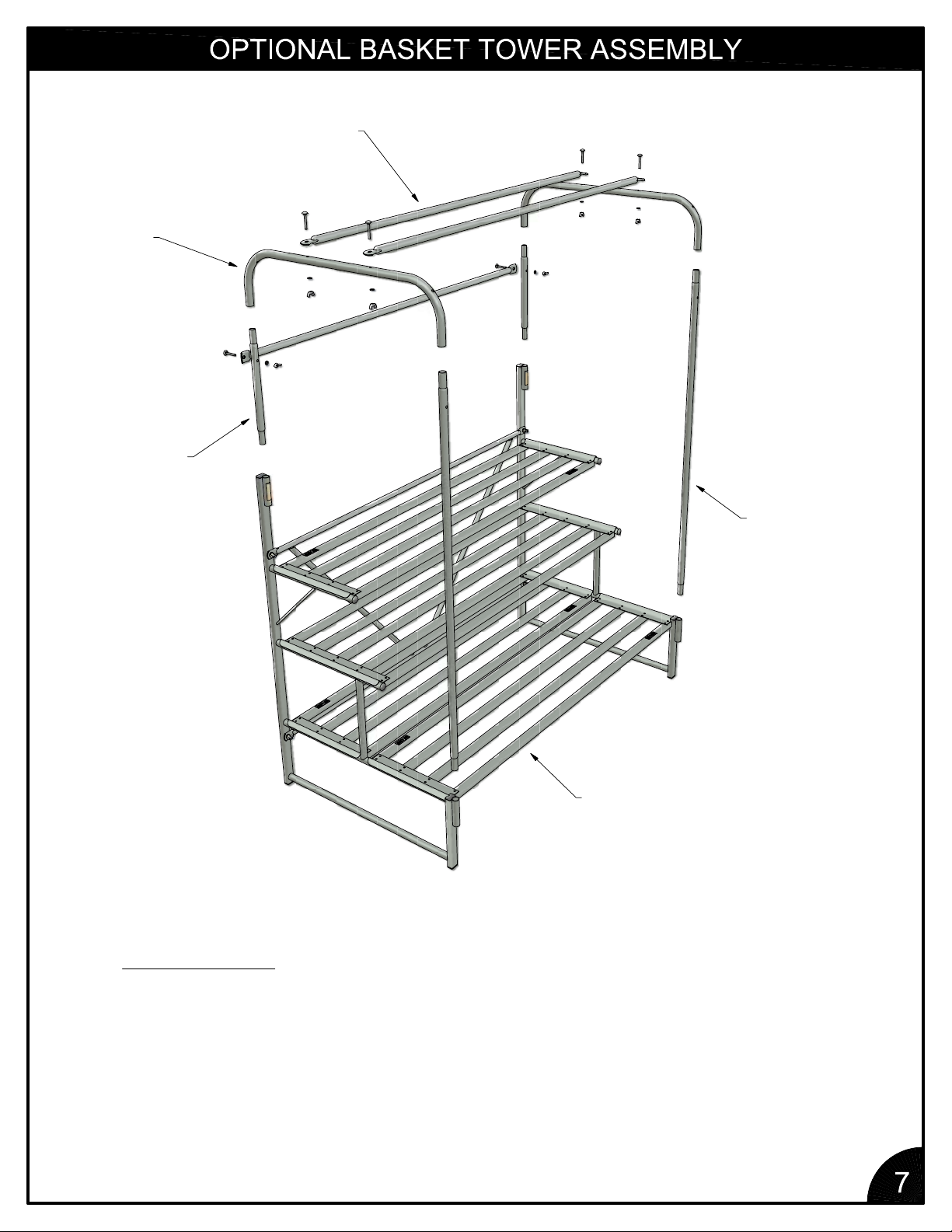

U-BRACE
19" BASKET POST
CANOPY PURLIN
65 1/2" BASKET POST
ASSEMBLED FB3020
WITH FB2811 ENDS
INSTRUCTIONS:
1. INSERT 19" BASKET POSTS INTO REAR POCKETS OF BENCH ENDS.
2. INSERT 65 1/2" BASKET POSTS INTO FRONT POCKETS OF BENCH ENDS.
3. SLIDE U-BRACES ONTO BASKET POSTS.
4. ATTACH CANOPY PURLINS TO U-BRACES AND BASKET POSTS USING
5/16" x 2" LONG CARRIAGE BOLTS, LOCK WASHERS, AND WING NUTS.
Page 8

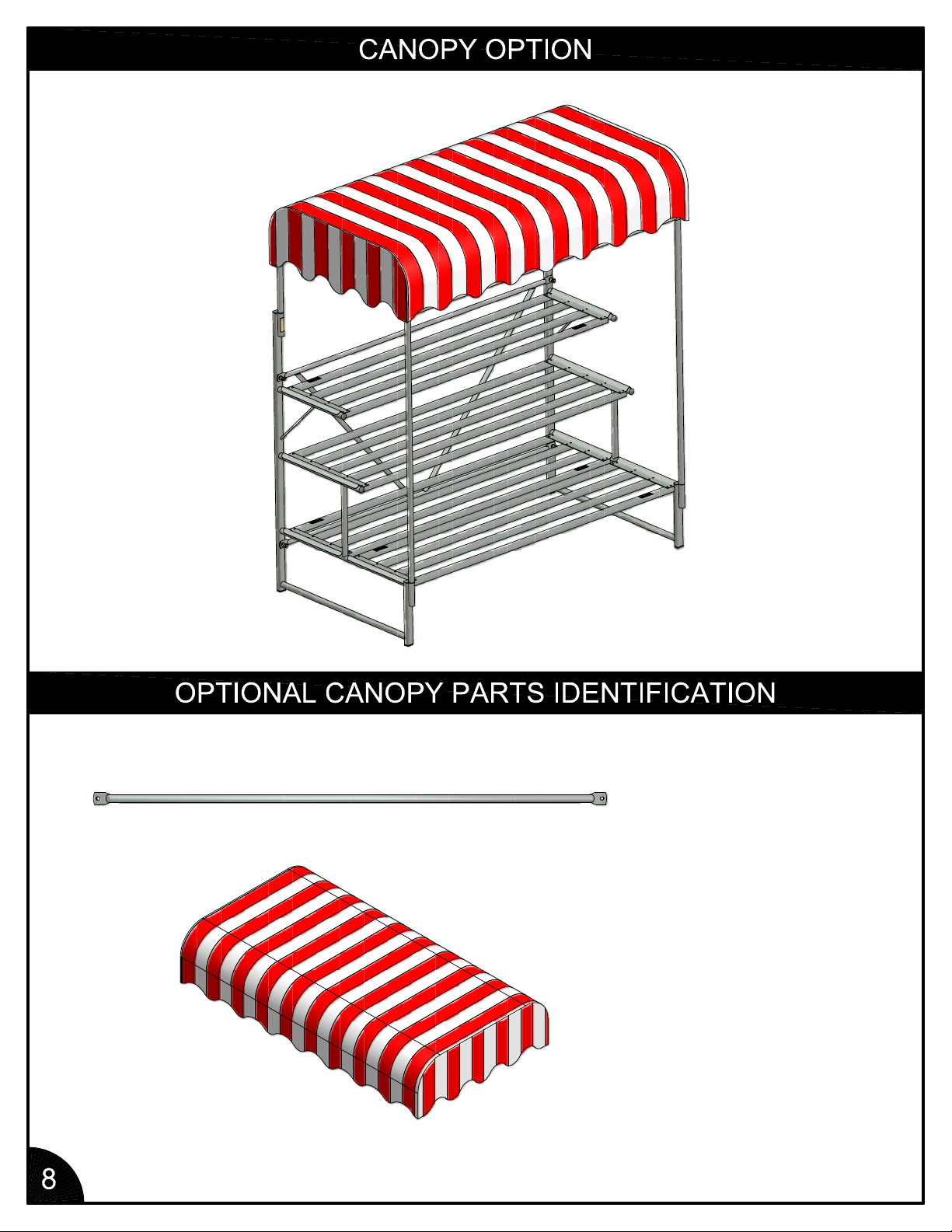

6'-1 1/2" CANOPY PURLIN
CANOPY
(1)
FB2531
(3)
NB1830 - 6
NB1901 - 6
NB1923 - 6
Page 9

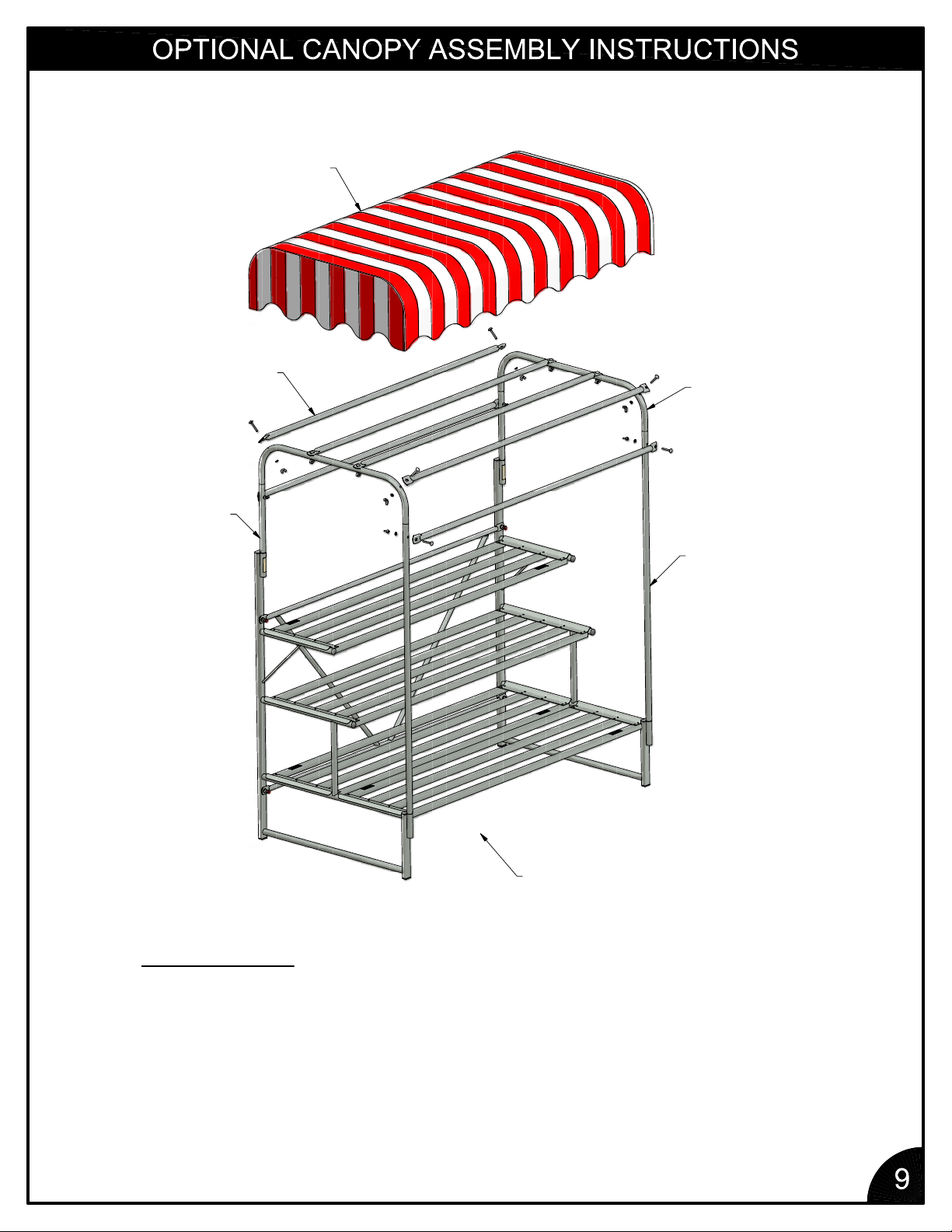

CANOPY
CANOPY PURLIN
19" BASKET POST
U-BRACE
65 1/2" BASKET POST
ASSEMBLED FB3020
TRI-STEP DISPLAY
WITH FB2811 ENDS
INSTRUCTIONS:
1. ASSEMBLE TOWER FIRST (PAGE 7).
2. ATTACH CANOPY PURLINS TO U-BRACES AND BASKET POSTS USING
5/16" x 2" LONG CARRIAGE BOLTS, LOCK WASHERS, AND WING NUTS.
3. PLACE CANOPY OVER TOWER AND SECURE WITH VELCRO STRAPS.
Page 10

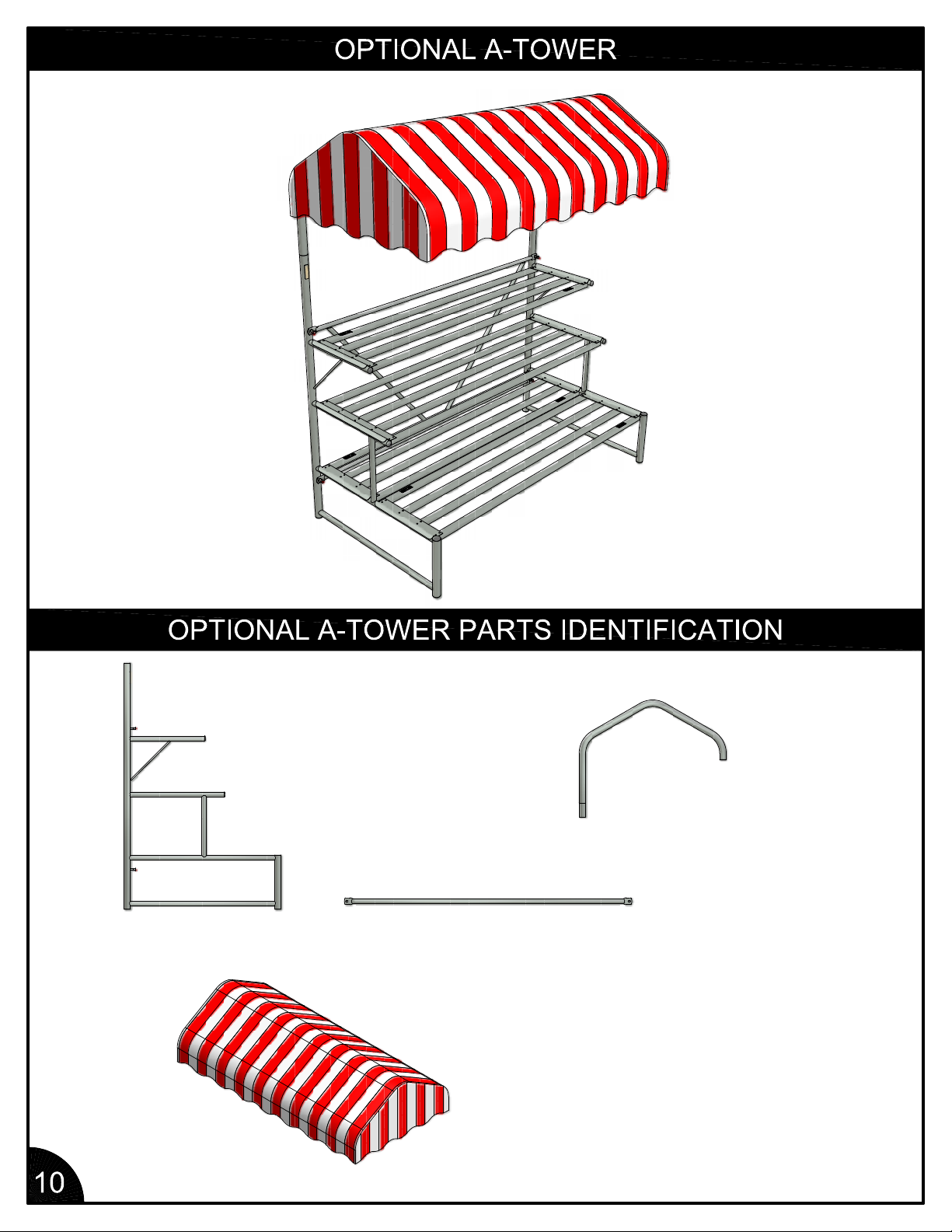

FB2812
BENCH END (1.66)
(2)
CANOPY "A"
(1)
FB2530
CANOPY BRACE
(2)
FB2531
6'-1 1/2" CANOPY PURLIN
(3)
NB1830 - 6
NB1901 - 6
NB1923 - 6
Page 11

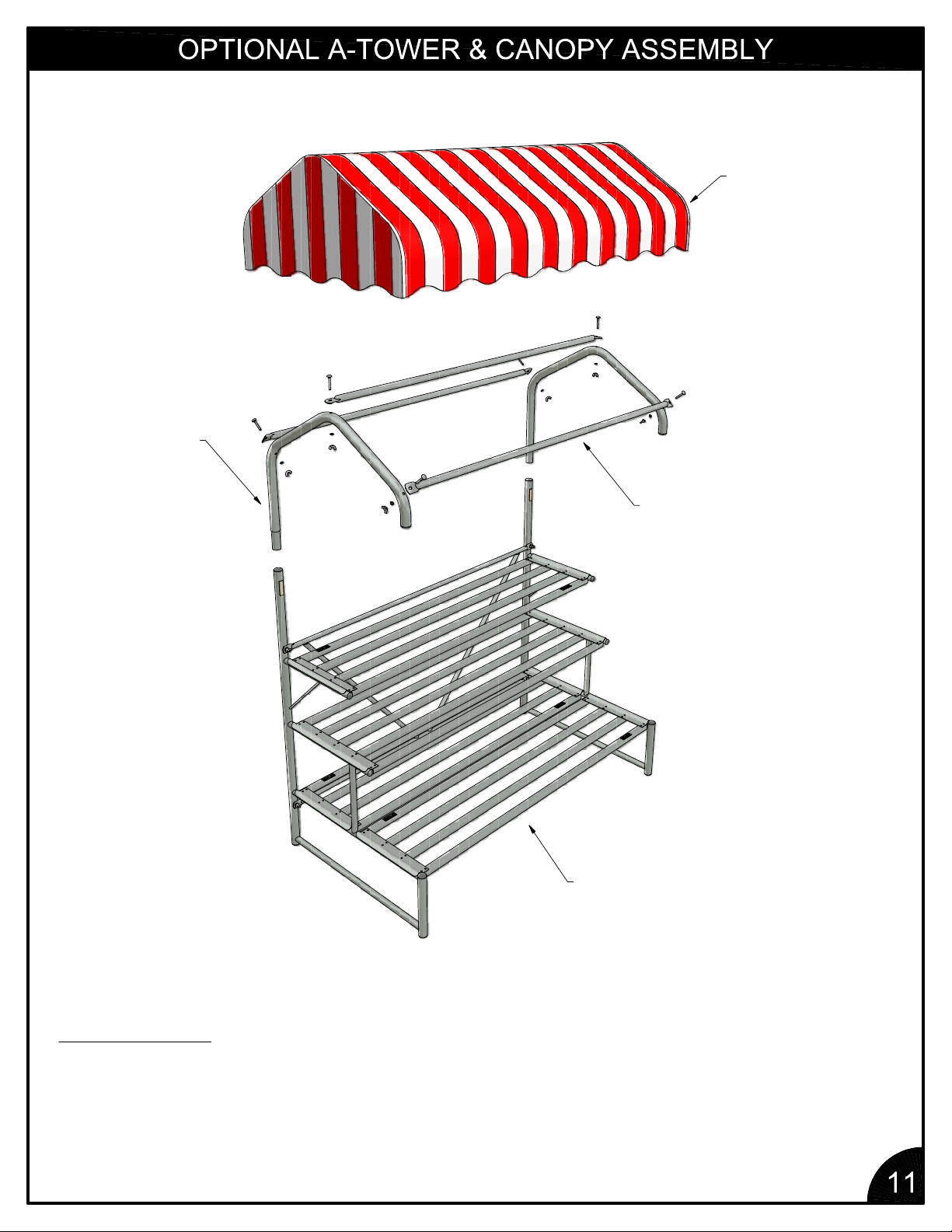

CANOPY BRACE
CANOPY
CANOPY PURLIN
ASSEMBLED FB3020 WITH
FB2812 BENCH ENDS
INSTRUCTIONS:
1. PLACE CANOPY BRACES INTO BENCH ENDS.
2. ATTACH CANOPY PURLINS TO CANOPY BRACES WITH 5/16" x 2 1/4" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND WING NUTS.
3. PLACE CANOPY "A" OVER TOWER AND SECURE WITH VELCRO STRAPS.
Page 12
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debr is, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer o r supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
