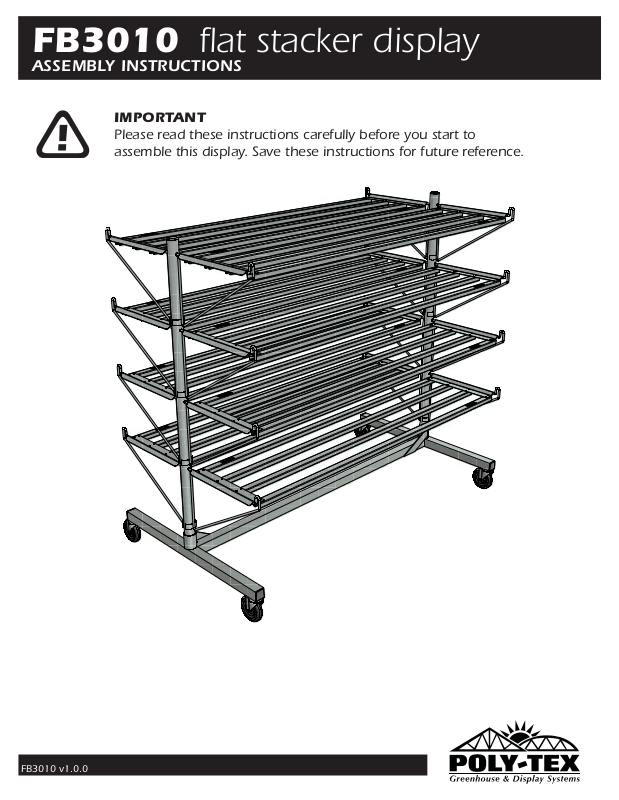

Page 1
FB3010 flat stacker display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3010 v1.0.0
Page 2
FB2600 - FLAT STACKER BASE WITH CASTERS
FB2601 - FLAT STACKER POST
BMS1120 - "V" BRACKET
FB2610 - FLAT STACKER BASE W/OUT CASTERS
FT3200 - FLAT STACKER CLIP
RF2554 - BENCH TOP
FB2602 - BENCH CARRIER
FB2611 - FLAT STACKER EXTENSION

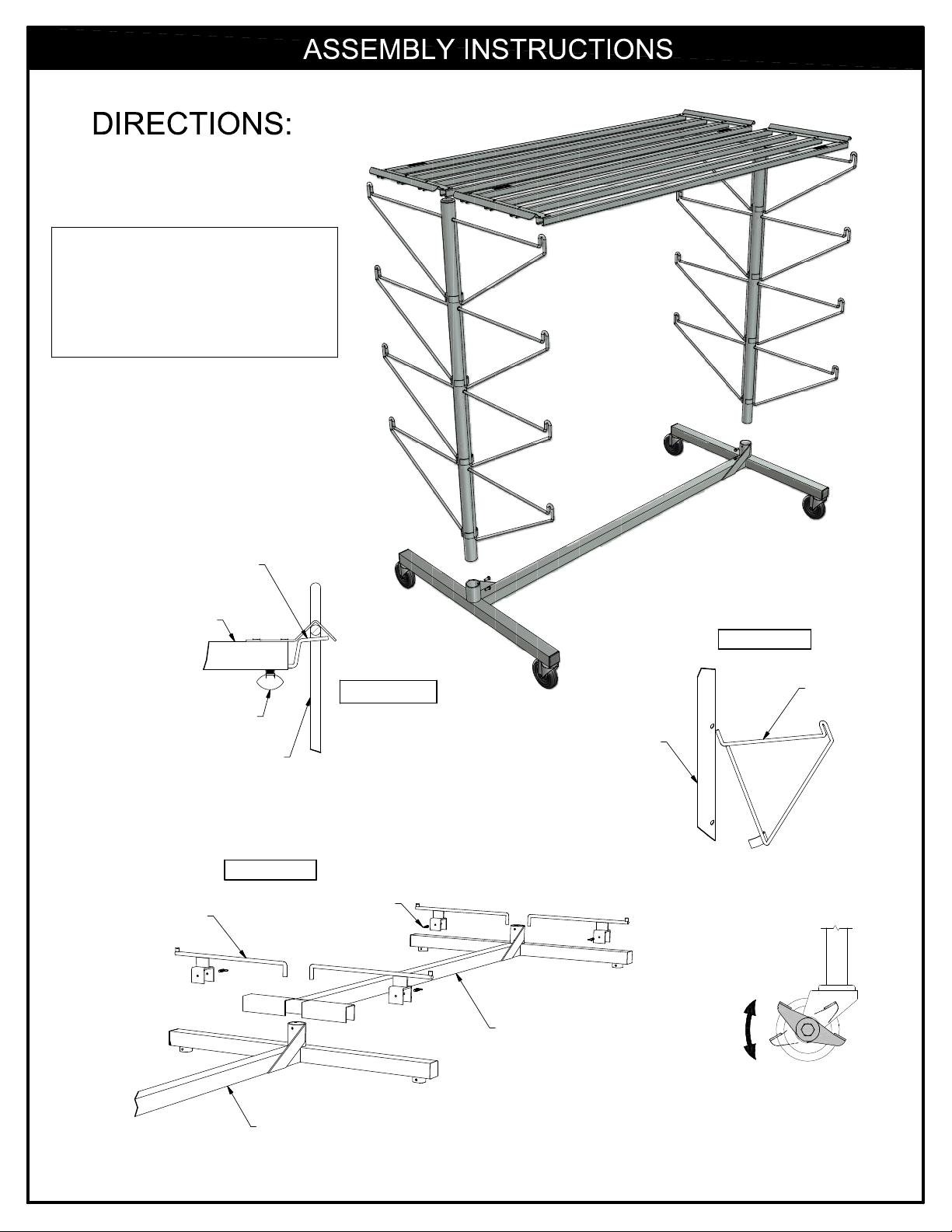

Page 3
1. PLACE FLAT STACKER POSTS
INTO FLAT STACKER BASE &
SECURE EACH WITH (2) 5/16" x 3/4"
HEX HEAD BOLTS.
IMPORTANT:
IF YOU HAVE EXTENSIONS, PLACE
THE EXTENSIONS AND BENCH
CARRIERS ONTO BASE BEFORE
INSTALLING "V" BRACKETS. FASTEN
BENCH CARRIERS WITH (1) THUMB
SCREW. (FIGURE 1)
2. INSERT "V" BRACKETS. (FIGURE 2)
3. PLACE BENCH TOPS ONTO "V"
BRACKETS.
4. SECURE BENCH TOPS WITH FLAT
STACKER CLIPS. (FIGURE 3)
FLAT STACKER
CLIP
BENCH TOP
THUMB SCREW
"V" BRACKET
BENCH
CARRIER
IGURE 1
IGURE 3
THUMB
SCREW
IGURE 2
"V" BRACKET
FLAT STACKER
POST
FLAT STACKER
EXTENSION
FLAT STACKE R
BASE
ONCE DISPLAY IS IN PLACE, ALL CASTERS
MUST BE LOCKED TO PREVENT MOVEMENT.
THE BRAKE IS ACTIVATED BY ROTATING THE
LEVER FROM THE "OFF" POSITION TO THE
"ON" POSITION.
Page 4
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock is possible.
Do not place this product on a slope that exceeds 10 degrees.
If your display does not have casters, do not move this display after product is in place. Damage to
display and injuries may occur.
If your display does have casters, once in place, lock all casters to prevent movement.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
1/2" wrench required to assemble this product.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost f
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
hiswarrantydoesnotcoverdamagefromcustomer abuse, misuse, improper installation,
T
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
ollowing inspection
