FB3009 angled bench display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3009 v1.0.0
Page 2
PARTS IDENTIFICATION
BENCH END
(FB3070)
qty (2)
STABILIZER
(FB2537)
qty (1)
23" BENCH TOP
(RF2555)
qty (1)
3' BENCH TOP
(RF2552)
qty (1)
NORSTAD CLIP
(FT3600)
qty (2)
2
THUMB SCREW
(NB1924)
qty (4)
NYLON WASHER
(NB1923)
qty (4)
FRONT RAIL
(FB3071)
qty (1)
WING NUT
(NB1901)
qty (4)
Page 3
ASSEMBLY INSTRUCTIONS
BENCH END
NYLON
WASHER
WING NUT
STABILIZER
THUMB
SCREW
FRONT RAIL
LIP POINTS
DOWNWARD
INSTRUCTIONS:
1. ATTACH STABILIZER TO BENCH ENDS USING
NYLON WASHERS AND WING NUTS.
2. ATTACH FRONT RAIL TO BENCH ENDS USING
THUMB SCREWS. LIP OF FRONT RAIL SHOULD
POINT DOWNWARD (SEE FIGURE 1 ).
FIGURE 1
3
Page 4

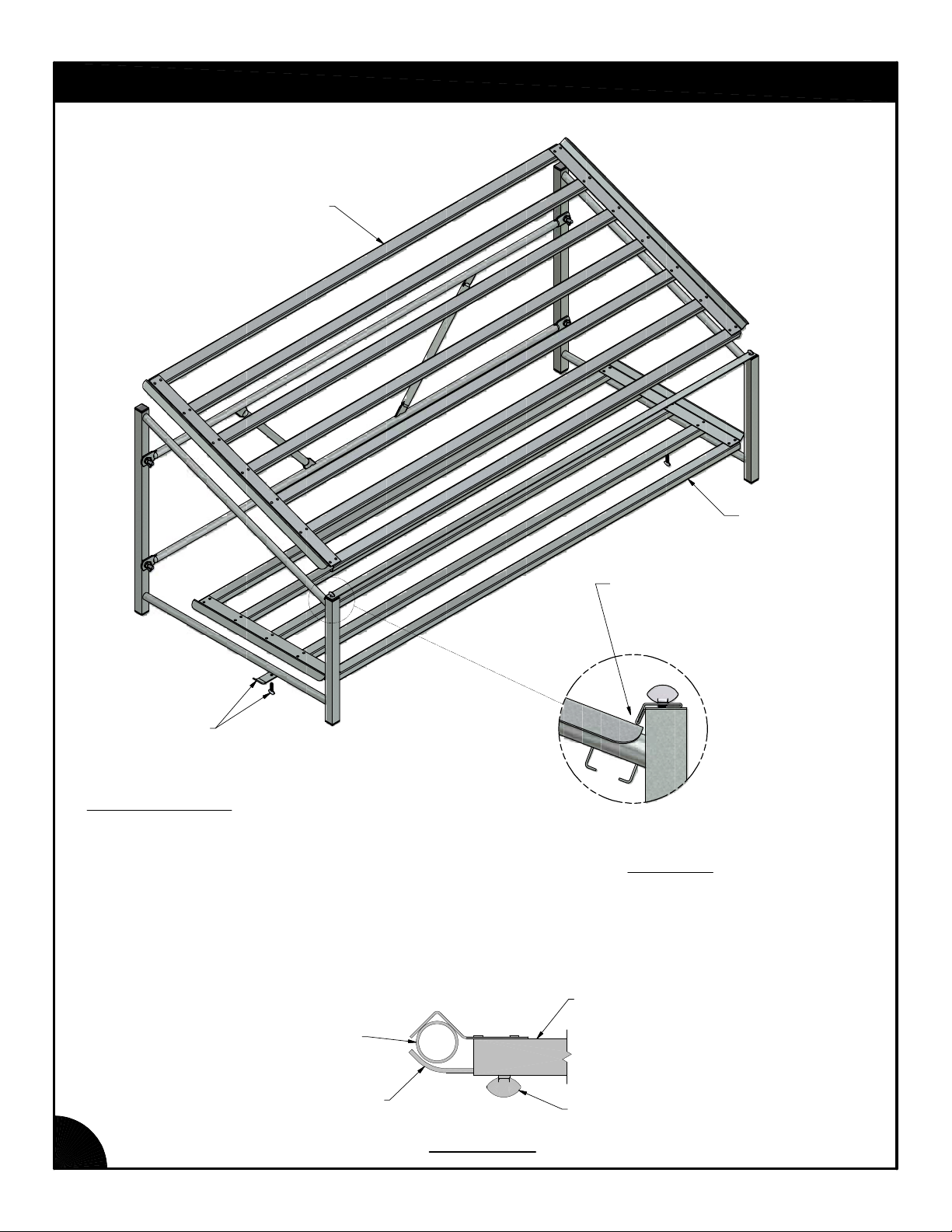

ASSEMBLY INSTRUCTIONS
3' BENCH TOP
23" BENCH TOP
BENCH TOP SHOULD REST
UNDERNEATH LIP OF FRONT
RAIL
NORSTAD CLIP
WITH THUMB
SCREW
INSTRUCTIONS:
1. PLACE 23" BENCH TOP ON LOWER LEVEL OF BENCH ENDS. FASTEN TO BENCH
ENDS USING NORSTAD CLIPS AND THUMB SCREWS. SEE FIGURE 1
2. PLACE 3' BENCH TOP ON UPPER LEVEL OF BENCH ENDS. BENCH TOP SHOULD
REST UNDER EDGE OF FRO NT RAIL, HOLDING BENCH TOP IN PLACE. SEE
DETAIL ABOVE.
BENCH TOP
BENCH END
BENCH SUPPORT
BELOW.
4
NORSTAD CLIP
THUMB SCREW
FIGURE 1
Page 5

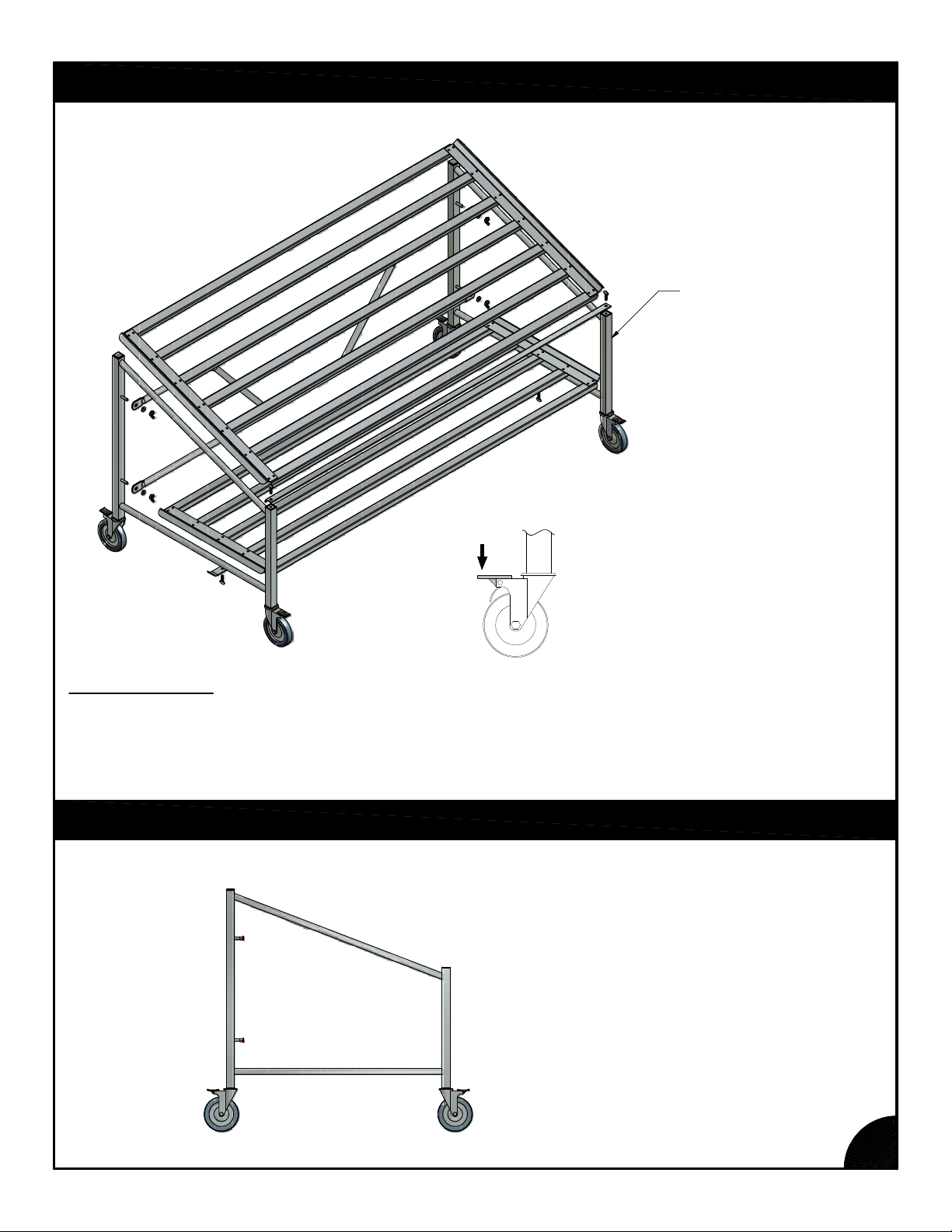

OPTIONAL CASTERS
BENCH END WITH
CASTERS
ONCE DISPLAY IS IN PLACE,ALL
CASTERSMUSTBELOCKEDTO
PREVENT MOVEMENT. THE BRAKE
IS ACTIVATED BY STEPPING
DOWN ON THE LEVER.
INSTRUCTIONS:
1. INSTALL PER STANDARD ASSEMBLY INSTRUCTIONS (PAGES 3 & 4) USING BENCH ENDS
WITH CASTERS (FB3073) INSTEAD OF BENCH ENDS WITHOUT CASTERS (FB3070).
PARTS IDENTIFICATION
BENCH END
WITH CASTERS
(FB3073)
qty (2)
5
Page 6
WING NUT
FLAT WASHER

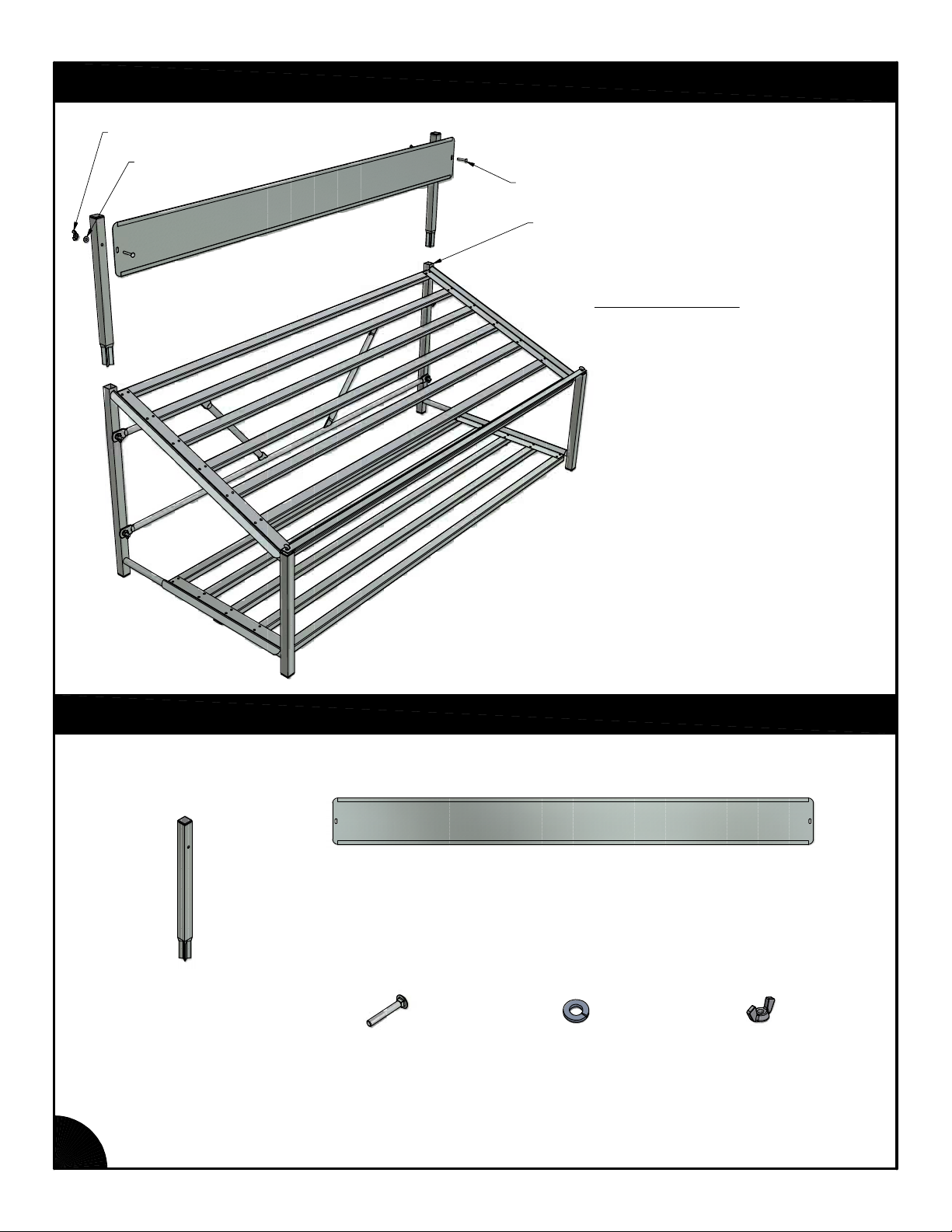

OPTIONAL SIGN HOLDER
CARRIAGE BOLT
REMOVE BLACK
PLASTIC CAP
INSTRUCTIONS:
1. REMOVE BLACK PLASTIC CAP
FROM TOP OF BACK LEG ON
EACH BENCH END.
2. INSERT POSTS INTO TOP OF
BACK LEG ON EACH BENCH
END MAKING SURE THE HOLE
FOR MOUNTING THE SIGN
HOLDER IS TOWARDS THE
FRONT AND BACK OF THE
DISPLAY.
POST
FB3072
qty (2)
PARTS IDENTIFICATION
SIGN HOLDER
FB3028
qty (1)
CARRIAGE BOLT
1/4" x 1-3/4"
NB1818
qty (2)
LOCK WASHER
NB1860
qty (2)
3. FASTEN SIGN HOLDER TO
POSTS USING CARRIAGE
BOLTS, FLAT WASHERS, AND
WING NUTS AS SHOWN.
WING NUT
NB1902
qty (2)
6
Page 7

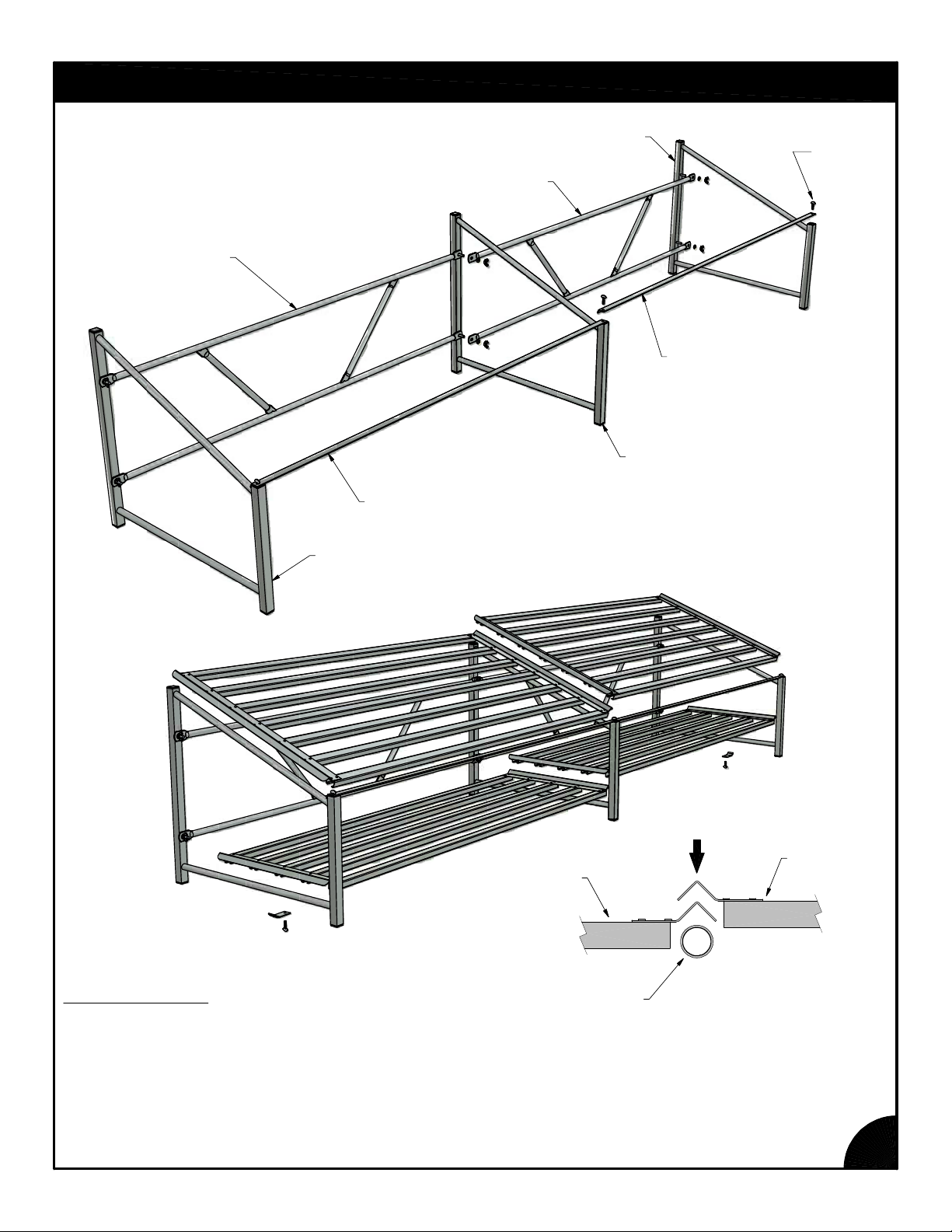

ASSEMBLY INSTRUCTIONS - CONNECTED RUNS
END UNIT
STABILIZER
ADJOINING BENCH END
ADJOINING STABILIZER
END UNIT
FRONT RAIL
END UNIT
BENCH END
THUMB
SCREW
ADJOINING
FRONT RAIL
END UNIT
BENCH END
*
BENCH TOP
BENCH TOP
(EXISTING)
*
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE END UNIT'S BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING END UN IT'S BENCH TOPS AS SHOWN ABOVE.
3. SECURE NORSTAD CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED
TOGETHER ( ).
BENCH END
BENCH TOP
SUPPORT TUBE
(ADJOINING)
7
*
Page 8
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock is possible.
Do not place this product on a slope that exceeds 10 degrees.
If y our display does not have casters, do not move this display after product is in place. Damage
to display and injuries may occur.
If y our display does have casters, once in place, all casters must be locked to prevent movement.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
TOOLS & EQUIPMENT REQUIRED
No tools are required to assemble this product.
