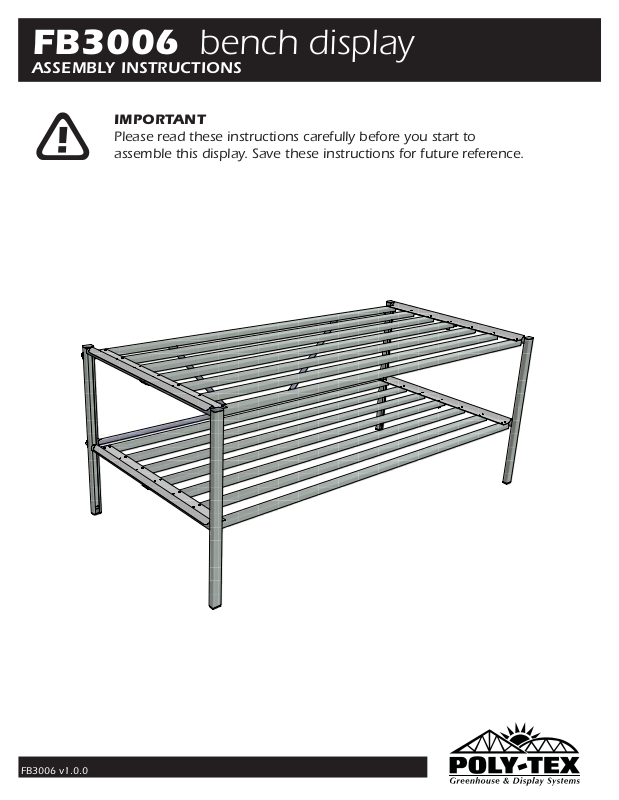

Page 1
FB3006 bench display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
FB3006 v1.0.0
Page 2

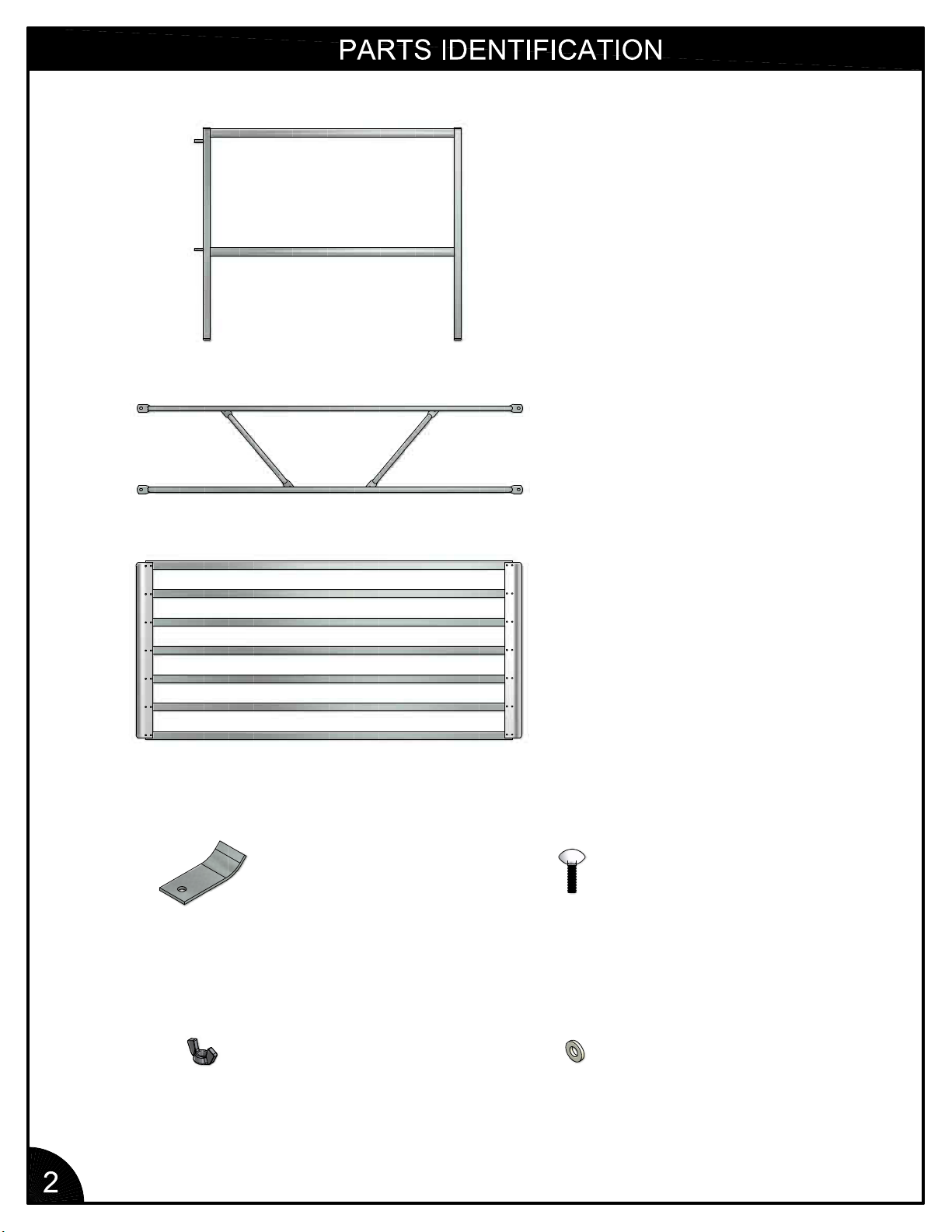

BENCH END
(FB2012)
qty (2)
STABILIZER
(FB2537)
qty (1)
BENCH TOP
(RF2552)
qty (2)
NORSTAD CLIP
(FT3600)
qty (4)
3/8" WING NUT
(NB1901)
qty (4)
THUMB SCREW
(NB1924)
qty (4)
3/8" NYLON WASHER
(NB1923)
qty (4)

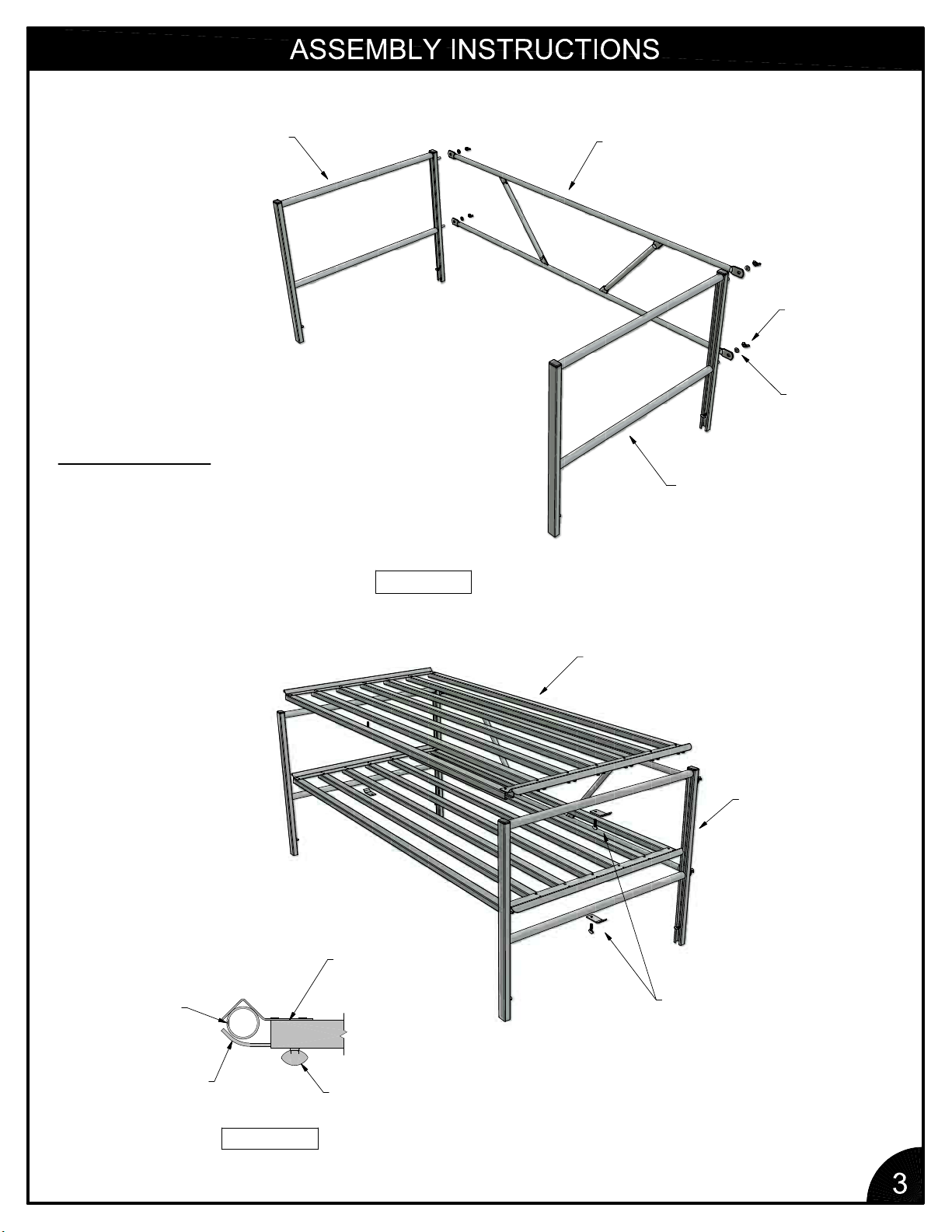

Page 3
BENCH END
INSTRUCTIONS:
STABILIZER
3/8" WING NUT
3/8" NYLON
WASHER
1. ATTACH STABILIZER TO BENCH ENDS USING
NYLON WASHERS & WING NUTS.
2. PLACE BENCH TOPS ON BENCH ENDS.
3. INSTALL NORSTAD CLIPS PER FIGURE 1 BELOW.
BENCH END
BENCH TOP
BENCH END
BENCH END
BENCH SUPPORT
NORSTAD CLIP
BENCH TOP
NORSTAD CLIP
W/THUMB SCREW
(BOTH ENDS)
THUMB SCREW
FIGURE 1

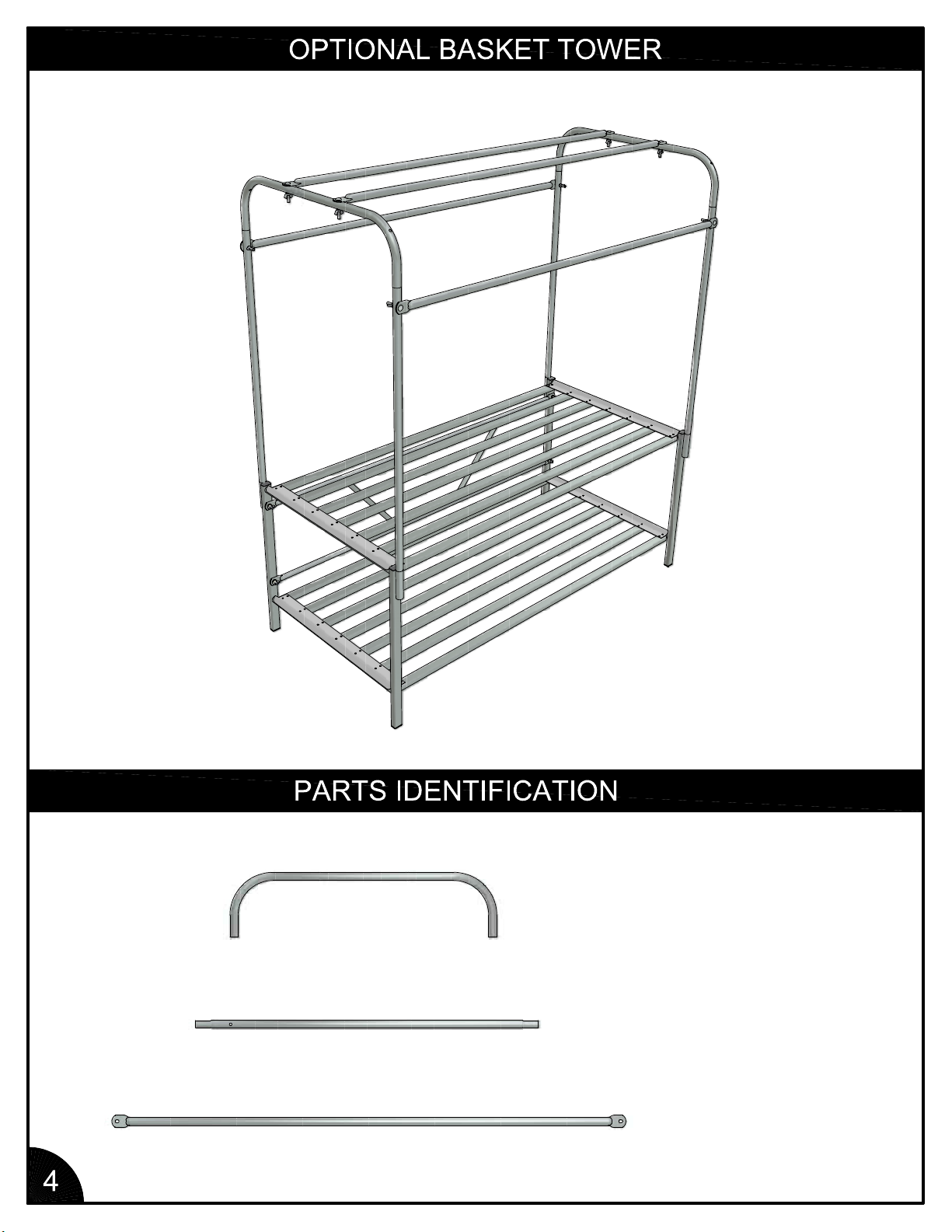

Page 4
U-BRACE
(FB2002)
qty (2)
49" BASKET POST
(FB2003)
qty (4)
BASKET PURLIN
(GM4000)
qty (4)

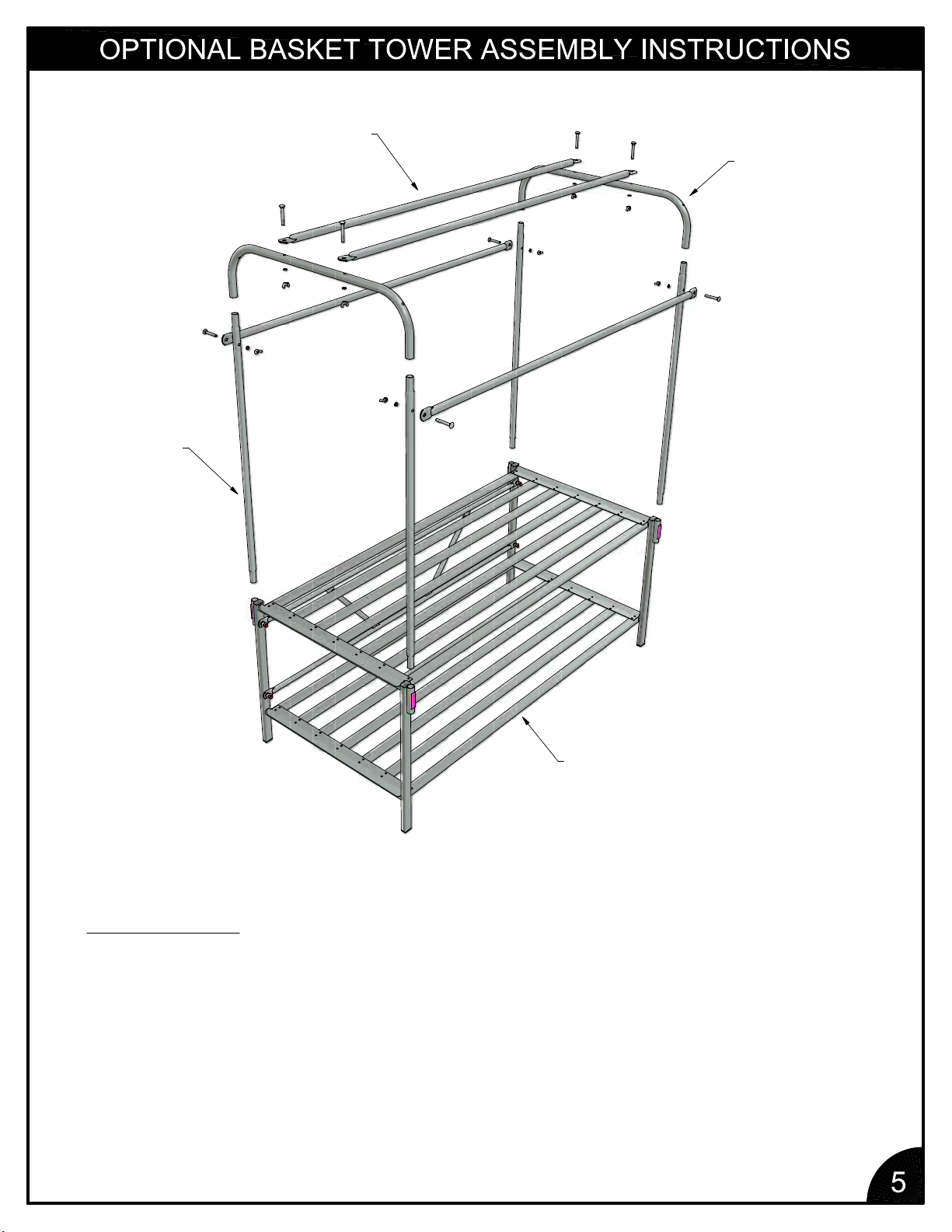

Page 5
49" BASKET POST
BASKET PURLIN
U-BRACE
ASSEMBLED FB3006
BENCH DISPLAY
INSTRUCTIONS:
1. PLACE 49" BASKET POSTS INTO BENCH ENDS.
2. PLACE U-BRACES ONTO BASKET POSTS.
3. ATTACH BASKET PURLINS USING 5/16" x 2" LONG CARRIAGE BOLTS, LOCK
WASHERS, AND WING NUTS.

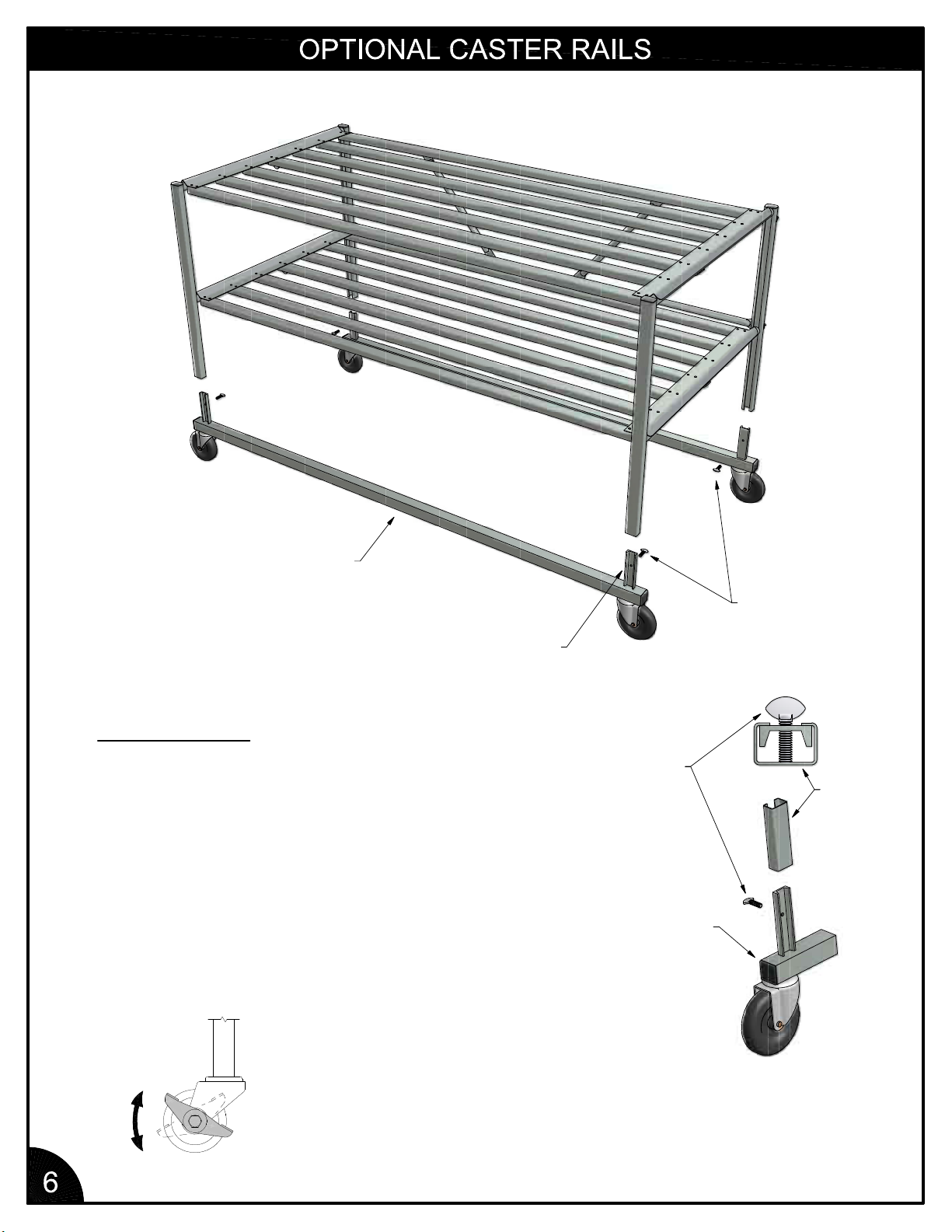

Page 6
CASTER RAIL ASSEMBLY
(FB2004)
OPEN SIDE
FACES OUT
INSTRUCTIONS:
TO INSTALL OPTIONAL CASTER RAILS, SLIDE
CASTER RAILS INTO BENCH ENDS. TIGHTEN
THUMBSCREWSSECURELYTOLOCKINTO
PLACE.
5/16" THUMB SCREW
(4) PLACES
THUMB
SCREW
END
FRAME
CASTER RAIL
ONCEDISPLAYISINPLACE,
ALL CASTERS MUST BE LOCKED
TO PREVENT MOVEMENT. THE
BRAKEISACTIVATEDBYROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.

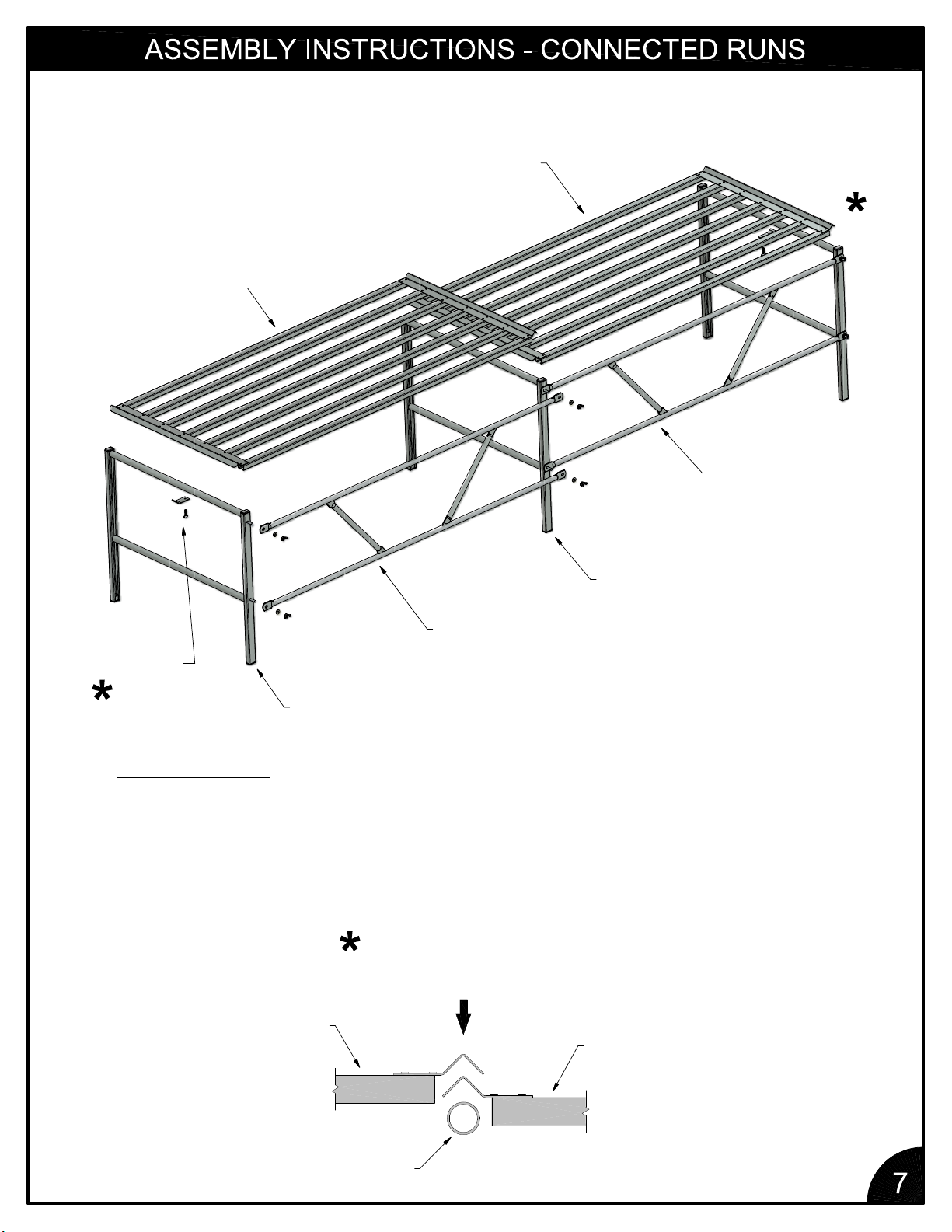

Page 7
ADJOINING BENCH TOP
END UNIT BENCH TOP
END UNIT STABILIZER
END UNIT BENCH END
NORSTAD CLIP
W/THUMB SCREW
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE END
UNIT'S BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING END UNIT'S BENCH TOPS AS
SHOWN BELOW.
3. SECURE NORSTAD CLIPS ONLY ON END UNITS OF MULTIPLE UNITS
JOINED TOGETHER ( ).
ADJOINING BENCH END
BENCH TOP
(ADJOINING)
ADJOINING STABILIZER
BENCH TOP
(EXISTING)
BENCH END
BENCH TOP
SUPPORT TUBE
Page 8
Do not climb, sit on, or use this product as a ladder due to possible injuries.
Do not place or install electrical items on this product. Wet conditions are typical and electrical
shock is possible.
Do not place this product on a slope that exceeds 10 degrees.
If your display does not have casters, do not move this display after product is in place. Damage
to display and injuries may occur.
If your display does have casters, once in place, all casters must be locked to prevent mo
vement.
To remove loose soil and debris, simply spray the soiled areas with a garden hose. You may
need to remove the flop sheets to spray water on the bench tops for cleaning.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
No tools are required to assemble this product.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost f
ollowi
ng inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
hiswarrantydoesnotcoverdamagefromcustomer abuse, misuse, improper installation,
T
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
