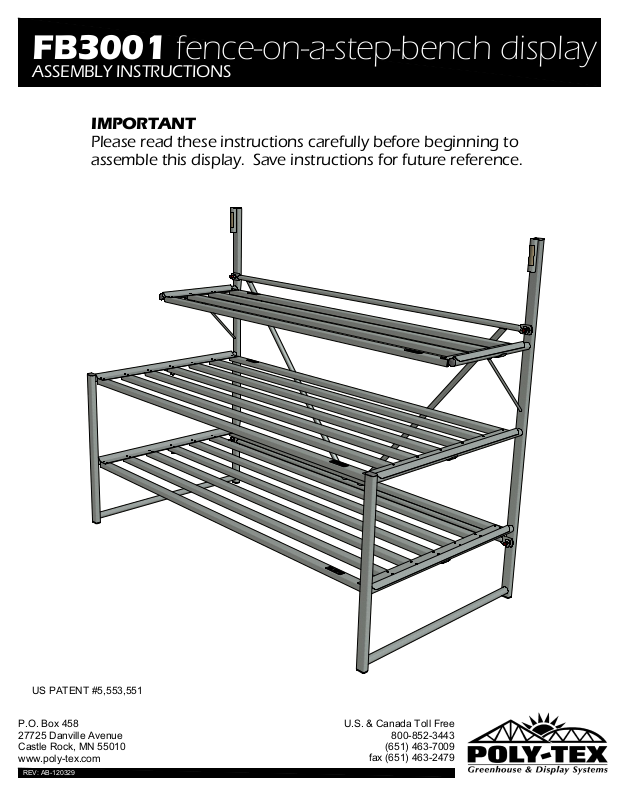

Page 1
FB3001 fence-on-a-step-bench display
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
US PATENT #5,553,551
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AB-120329
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2
PARTS IDENTIFICATION
FB2805
BENCH END
(2)
FB2533
36" STABILIZER
(1)
RF2552
3' x 6' R.F. BENCH TOP
(2)
NB1901
NB1923
3/8" WING NUT
NYLON WASHER
(4)
(4)
RF2554
1'6" x 6' R.F. BENCH TOP
(1)
NB1924
THUMB SCREW
(6)
FT3600
NORSTAD CLIP
(6)
2
TOOLS & EQUIPMENT REQUIRED
No tools are required for the assembly of this product.
Page 3
3/8" WING NUT
NYLON WASHER
ASSEMLBY INSTRUCTIONS
36" STABILIZER
ATTACH 36" STABILIZER TO BENCH
ENDS AND FASTEN WITH WING
NUTS & NYLON WASHERS.
PLACE BENCH TOPS IN POSITION.
BENCH END
INSTALL NORSTAD CLIPS IN THE
MIDDLE OF EACH BENCH END.
BENCH TOP
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
NORSTAD CLIP
1'-6" X 6' BENCH TOP
THUMB SCREW
3' X 6' BENCH TOP
3' X 6' BENCH TOP
3
Page 4
OPTIONAL BASKET PURLIN
4
GM4000
6'-1 1/2" BASKET PURLIN
(1)
PARTS IDENTIFICATION
NB1831
5/16" x 1"
FB2007
CARRIAGE BOLT
BASKET PURLIN SUPPORT
(2)
(2)
NB1903
5/16" WING NUT
(2)
NB1862
5/16" LOCK WASHER
(2)
Page 5
OPTIONAL BASKET PURLIN ASSEMBLY INSTRUCTION
5/16" X 1" CARRIAGE
BOLT, LOCK WASHER &
WING NUT
6'-1 1/2" BASKET PURLIN
BASKET PURLIN
SUPPORT
INSTRUCTIONS:
1. INSERT BASKET PURLIN SUPPORTS INTO SOCKETS.
2. ATTACH BASKET PURLIN USING 5/16" X 1" CARRIAGE BOLTS,
LOCK WASHERS, & WING NUTS.
5
Page 6

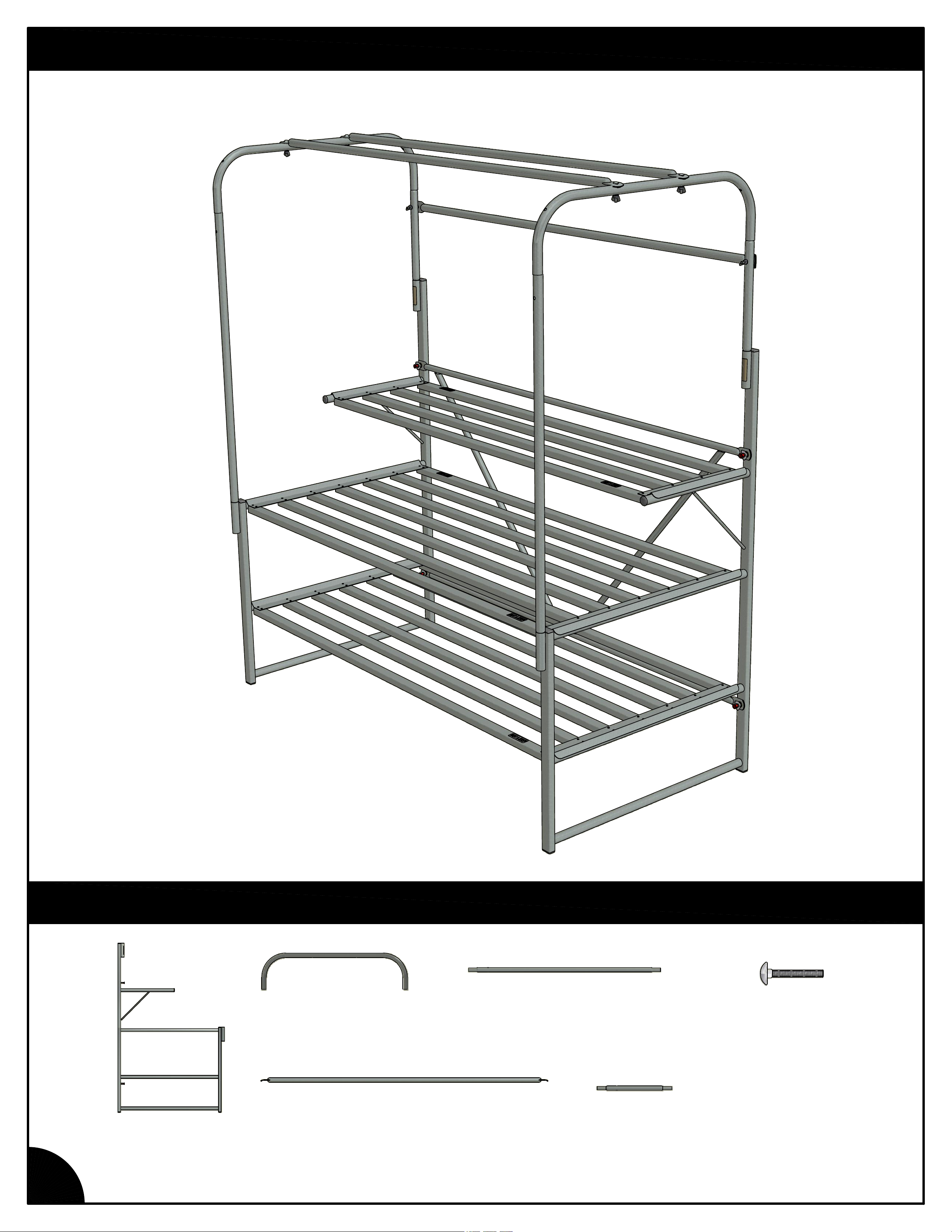

OPTIONAL BASKET TOWER
FB2806
BENCH END W/SOCKET
(2)
PARTS IDENTIFICATION
FB2003
FB2002C
49" BASKET POST
U-BRACE
(2)
(2)
FB2531
6'-1 1/2" CANOPY PURLIN
(3)
19" BASKET POST
FB2003C
(2)
NB1827
5/16" x 2"
CARRIAGE BOLT
(6)
NB1862 - 6
NB1903 - 6
6
Page 7

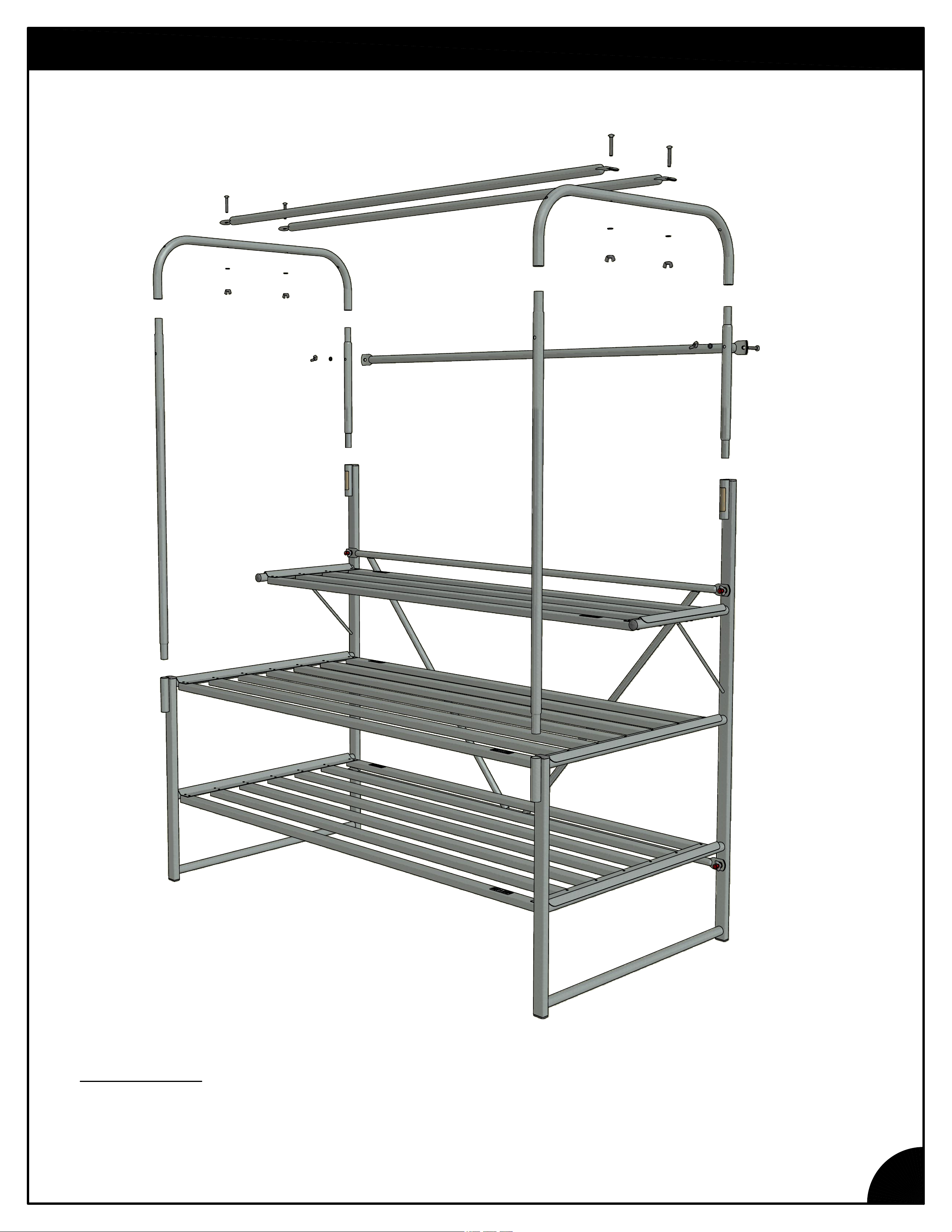

OPTIONAL BASKET TOWER ASSEMBLY INSTRUCTION
INSTRUCTIONS:
1. INSERT 49" BASKET POSTS INTO SOCKETS ON LOWER BENCHING & INSERT 19" BASKET POSTS
INTO UPPER SOCKETS.
2. ATTACH U-BRACES TO 49" & 19" BASKET POST.
3. ATTACH CANOPY PURLINS TO U-BRACES AND BASKET POSTS USING 2" LONG CARRIAGE BOLT,
LOCK WASHER AND WING NUT.
7
Page 8

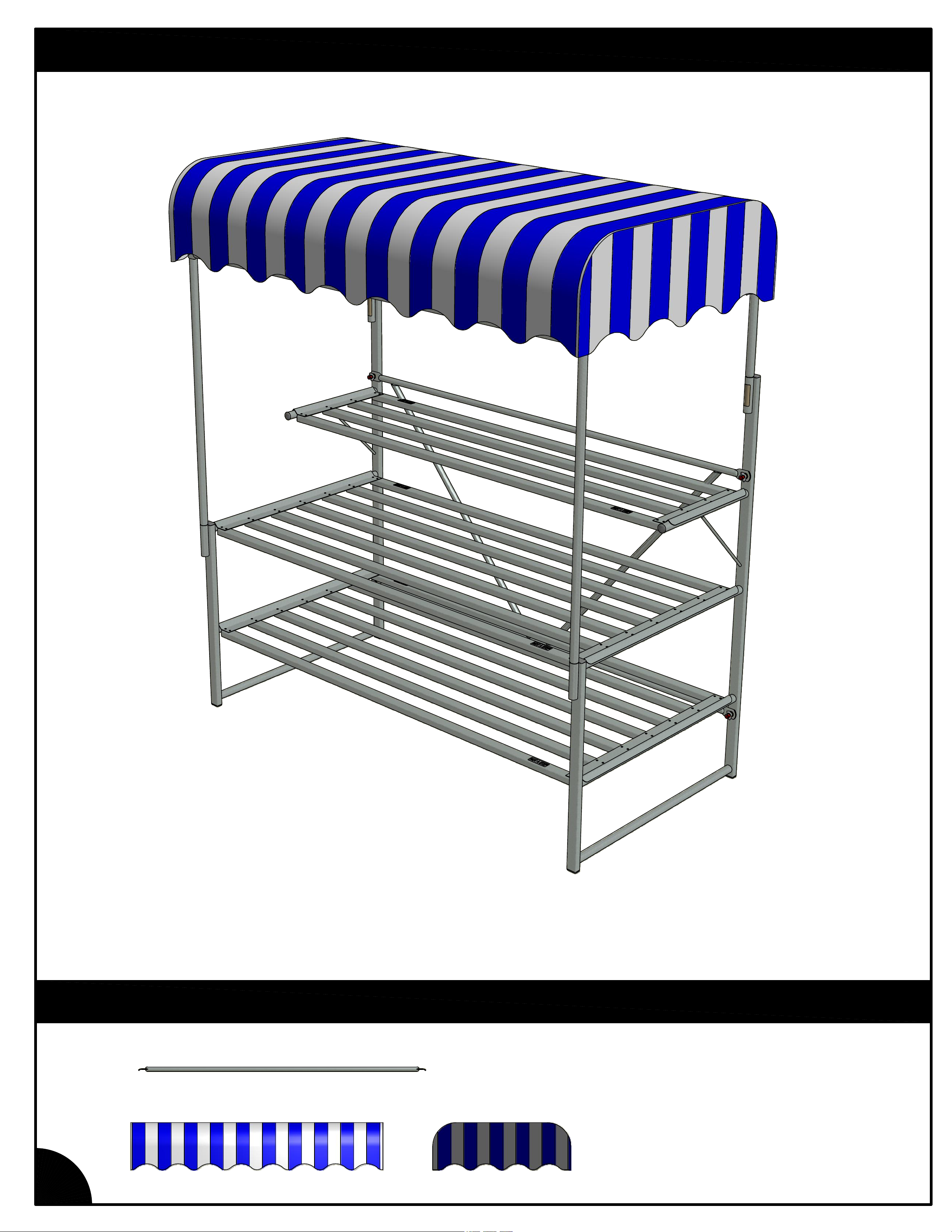

OPTIONAL BASKET TOWER CANOPY
8
PARTS IDENTIFICATION
FB2531
6'-1 1/2" CANOPY PURLIN
(3)
CANOPY
(1)
NB1827 - 6
NB1862 - 6
NB1903 - 6
Page 9

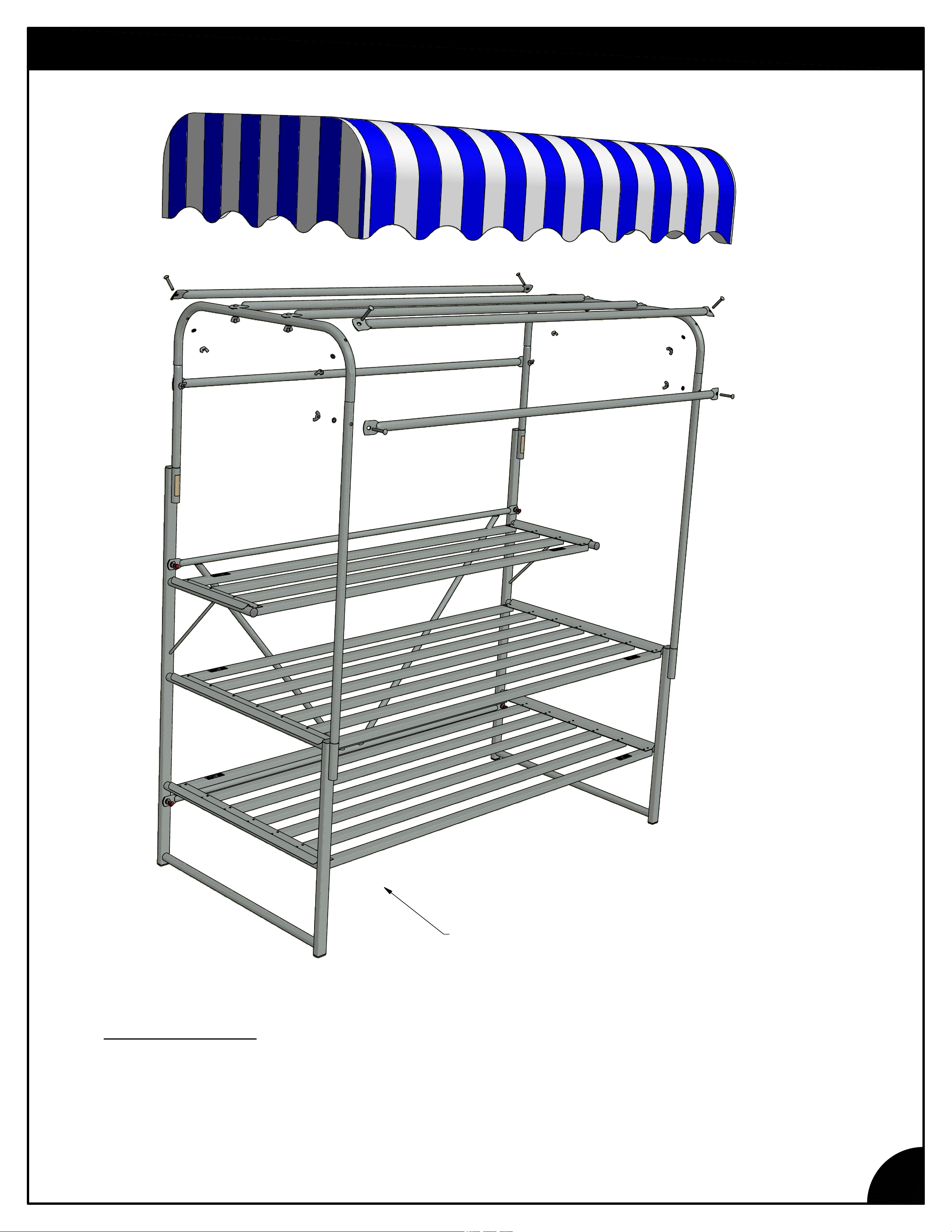

OPTIONAL BASKET TOWER CANOPY ASSEMBLY
ASSEMBLED FB3001
STEP DISPLAY
W/ BASKET TOWER
INSTRUCTIONS:
1. ATTACH CANOPY PURLINS TO U-BRACES USING 2" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND WING NUTS.
2. PLACE CANOPY OVER TOP OF CANOPY TOWER AND SECURE WITH
VELCRO STRAPS.
9
Page 10

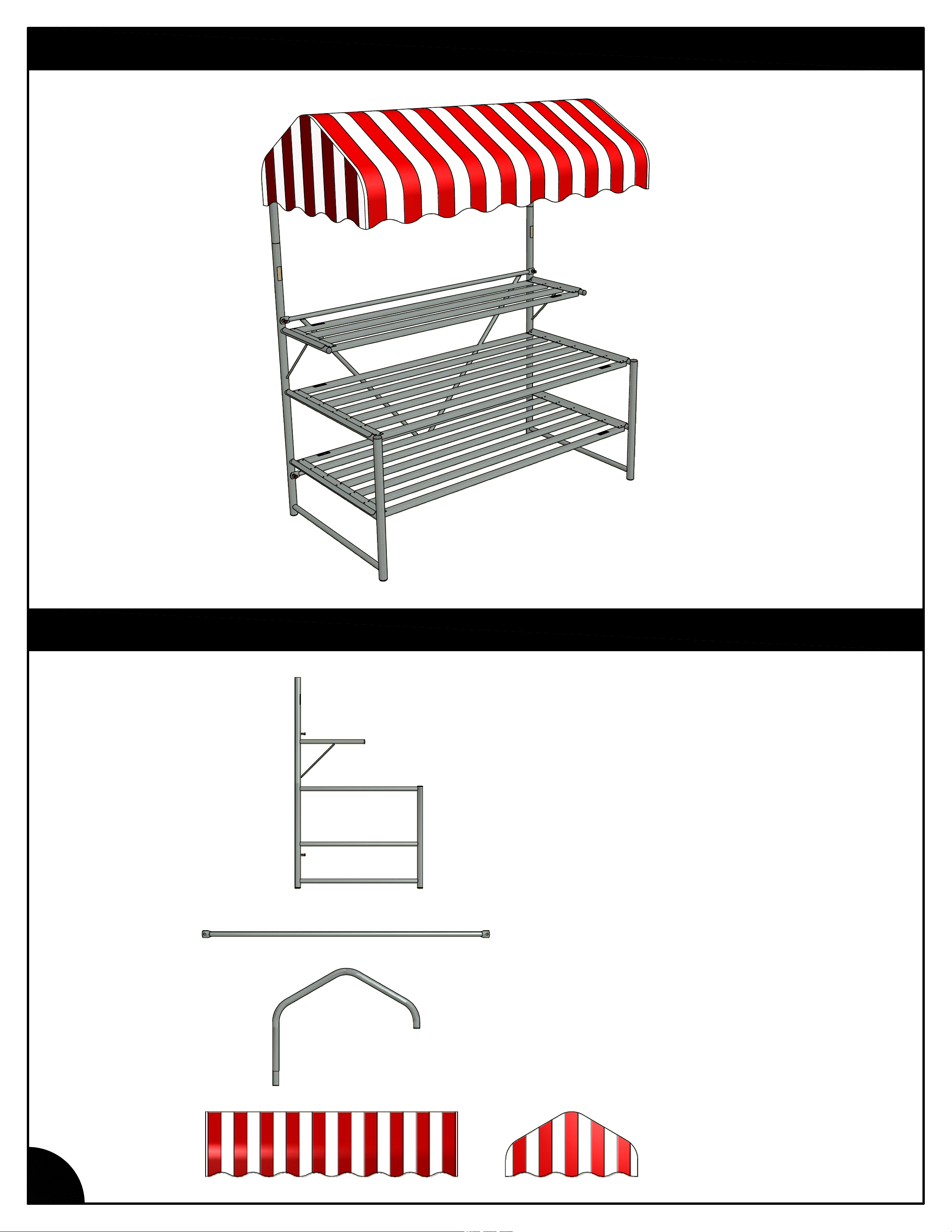

OPTIONAL A-TOWER
OPTIONAL A-TOWER PARTS IDENTIFICATION
FB2807
BENCH END (1.66)
(2)
NB1827 - 6
NB1862 - 6
NB1903 - 6
FB2531
6'-1 1/2" CANOPY PURLIN
(3)
FB2530
CANOPY BRACE
(2)
10
CANOPY
(1)
Page 11

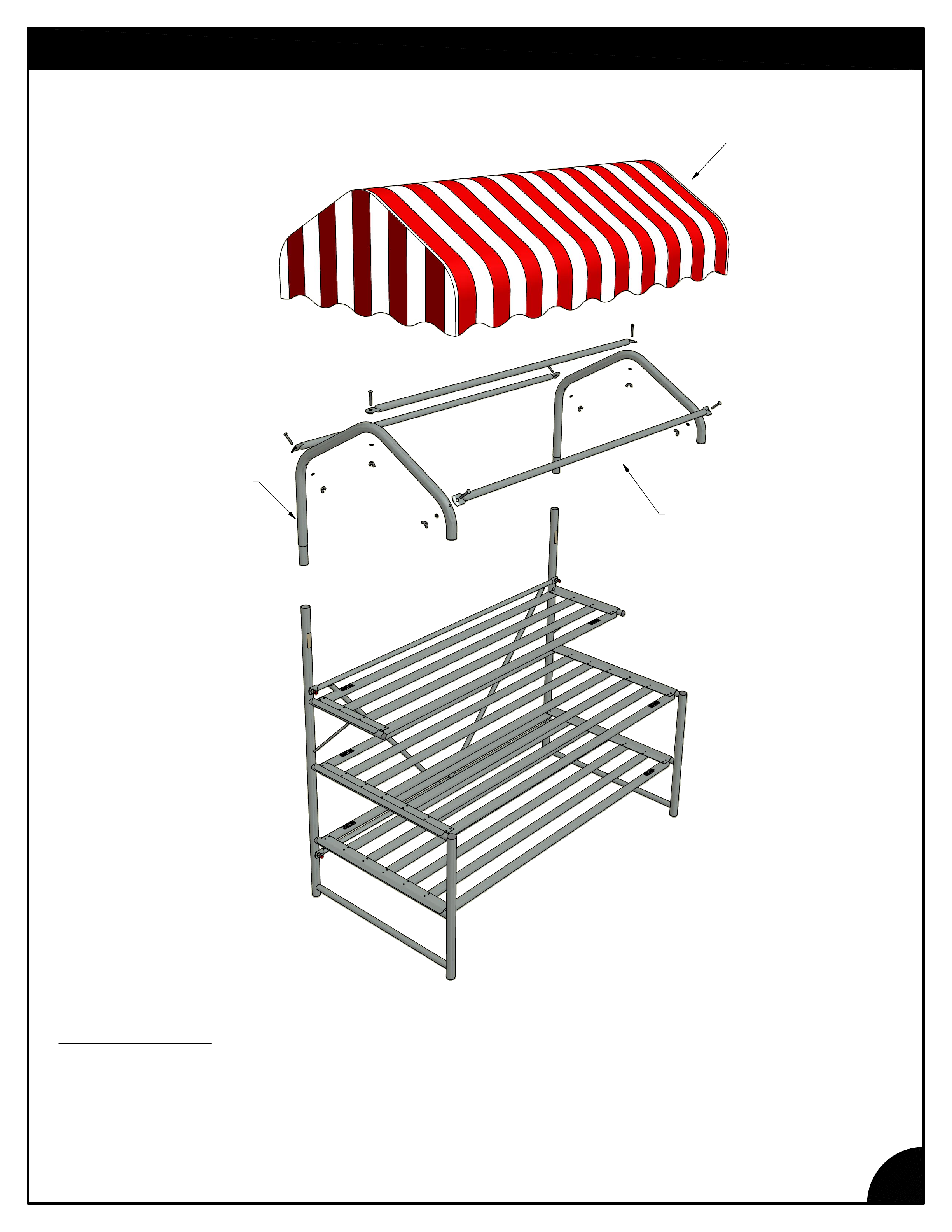

OPTIONAL A-TOWER & CANOPY ASSEMBLY
CANOPY
CANOPY BRACE
CANOPY PURLIN
INSTRUCTIONS:
1. PLACE CANOPY BRACES INTO BENCH ENDS.
2. ATTACH CANOPY PURLINS TO CANOPY BRACES WITH 5/16" x 2-1/4" LONG CARRIAGE
BOLTS, LOCK WASHERS, AND WING NUTS.
3. PLACE CANOPY OVER TOWER AND SECURE WITH VELCRO STRAPS.
11
Page 12

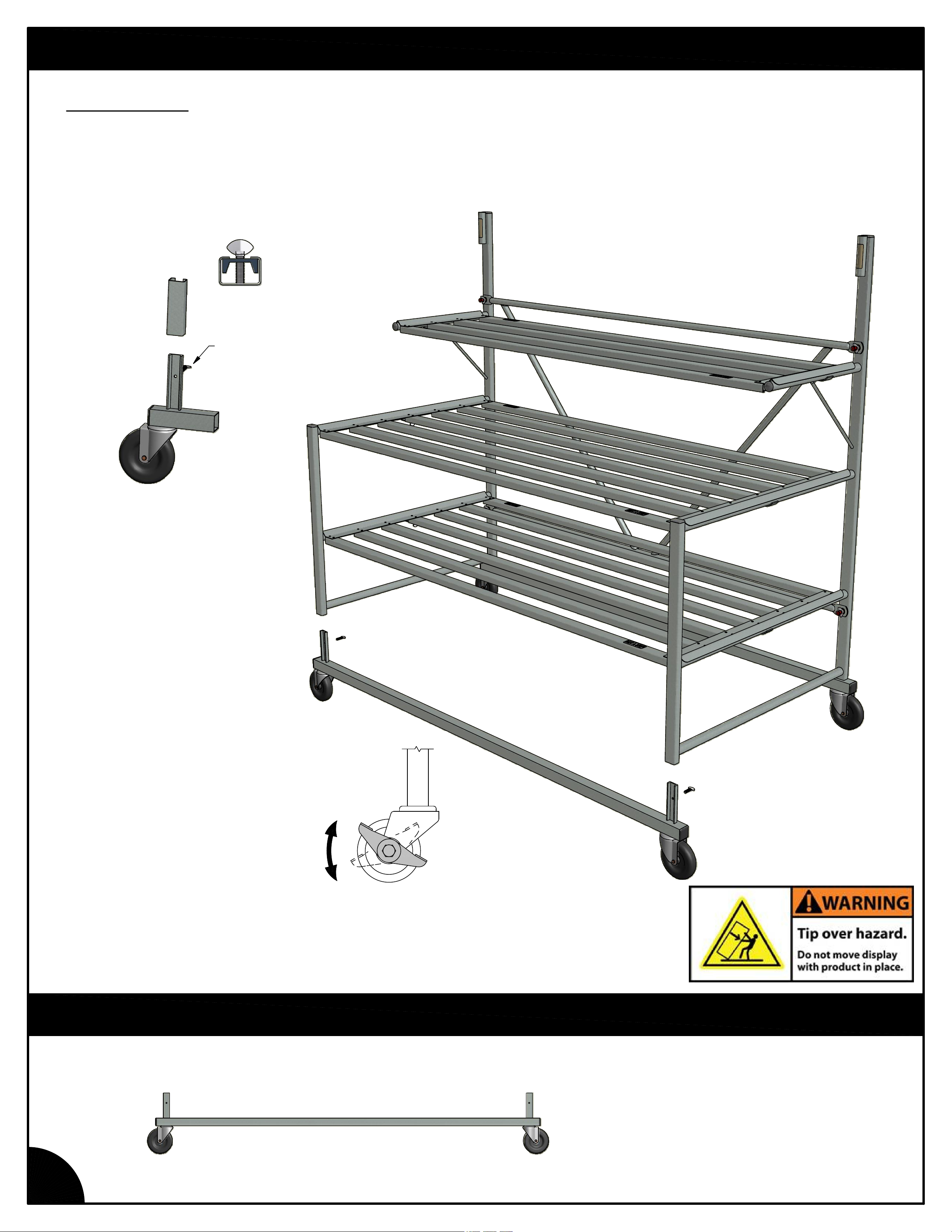

OPTIONAL CASTER ASSEMBLY INSTRUCTIONS
INSTRUCTIONS:
1. REMOVE BOTTOM PLUGS.
2. INSTALL CASTER RAIL.
3. FASTEN WITH THUMB SCREWS. BE SURE CASTER STUB IS INSTALLED AS SHOWN IN ILLUSTRATION.
THUMB
SCREW
ONCE DISPLAY IS IN PLACE,
ALL CASTERS MUST BE
LOCKED TO PREVENT
MOVEMENT. THE BRAKE IS
ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON"
POSITION.
12
PARTS IDENTIFICATION
FB2004
SWIVEL/LOCK CASTER
(2)
Page 13

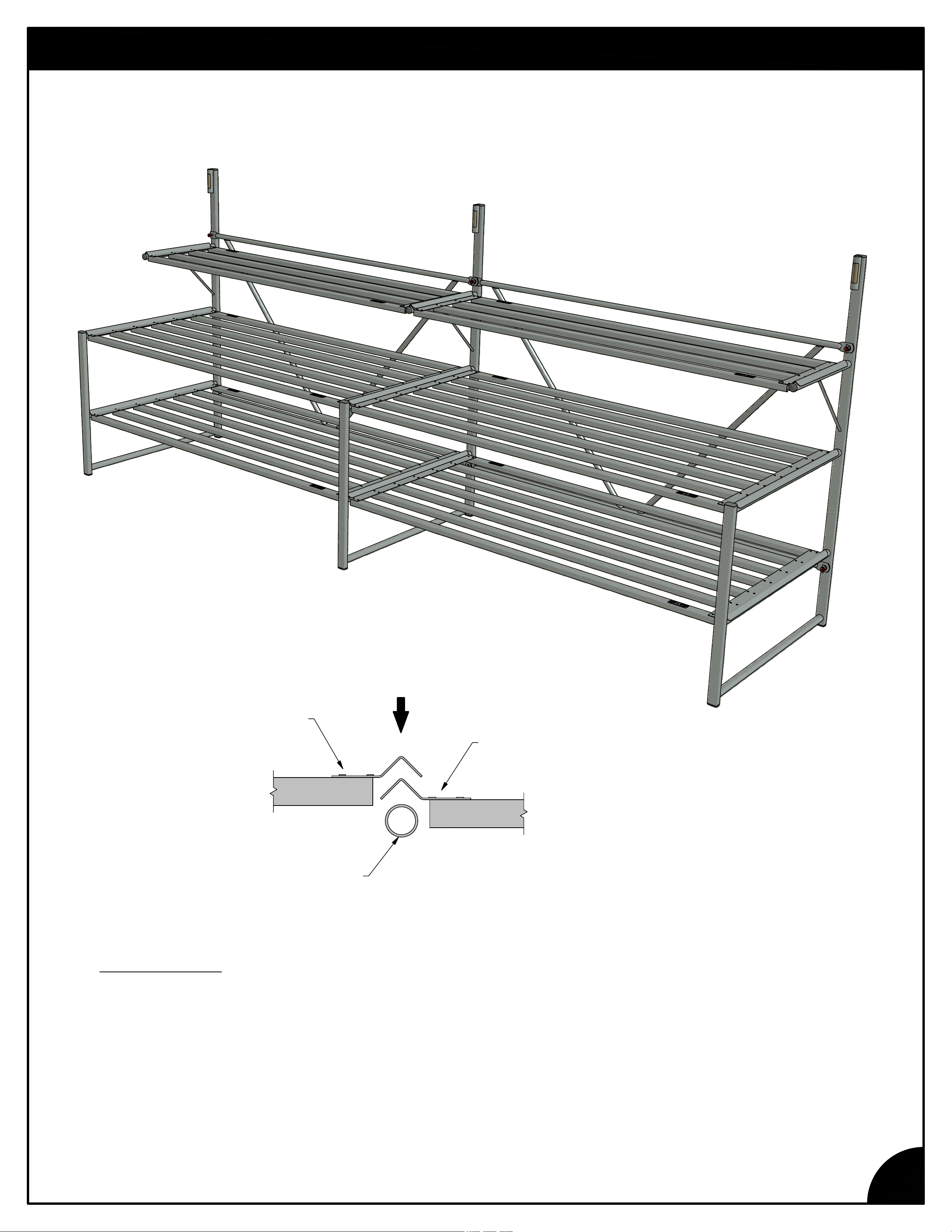

ASSEMBLY INSTRUCTIONS - CONNECTED RUNS
*
*
*
*
*
BENCH TOP
(ADJOINING)
BENCH END
*
BENCH TOP
(EXISTING)
BENCH TOP
SUPPORT TUBE
INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZERS AND END STAND TO THE EXISTING UNIT'S
END STAND.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS SHOWN BELOW.
3. SECURE CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED TOGETHER ( ).
*
13
Page 14
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
