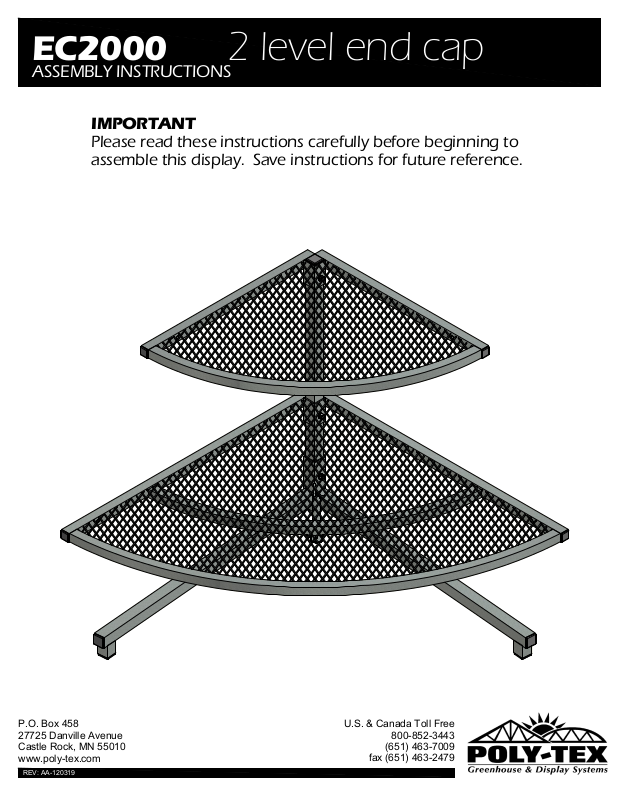

EC2000 2 level end cap
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AA-120319
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2
PARTS IDENTIFICATION
EC2011
END CAP
BOTTOM BENCH
(1)
EC2004
END CAP
MIDDLE BENCH
(1)
EC2001
END CAP BASE
(1)
EC2007
EC2012
BOTTOM BENCH
END CAP VERTICAL
SUPPORT
(1)
(1)
NB1850
5/16" x 2-1/2" HEX BOLT
(2)
NB1763
1/4" x 1" HEX BOLT
(1)
NB1848
5/16" x 2" HEX BOLT
(3)
1/4" LOCK WASHER
(NB1860)
QTY (2)
NB1862
5/16" LOCK WASHER
(5)
1/4" HEX NUT
(NB1870)
QTY (2)
NB1872
5/16" HEX NUT
(5)
2
TOOLS & EQUIPMENT REQUIRED
7/16", 1/2", and 9/16" open end wrenches and an adjustable wrench are required to
assemble this display.
Page 3
ASSEMBLY INSTRUCTIONS

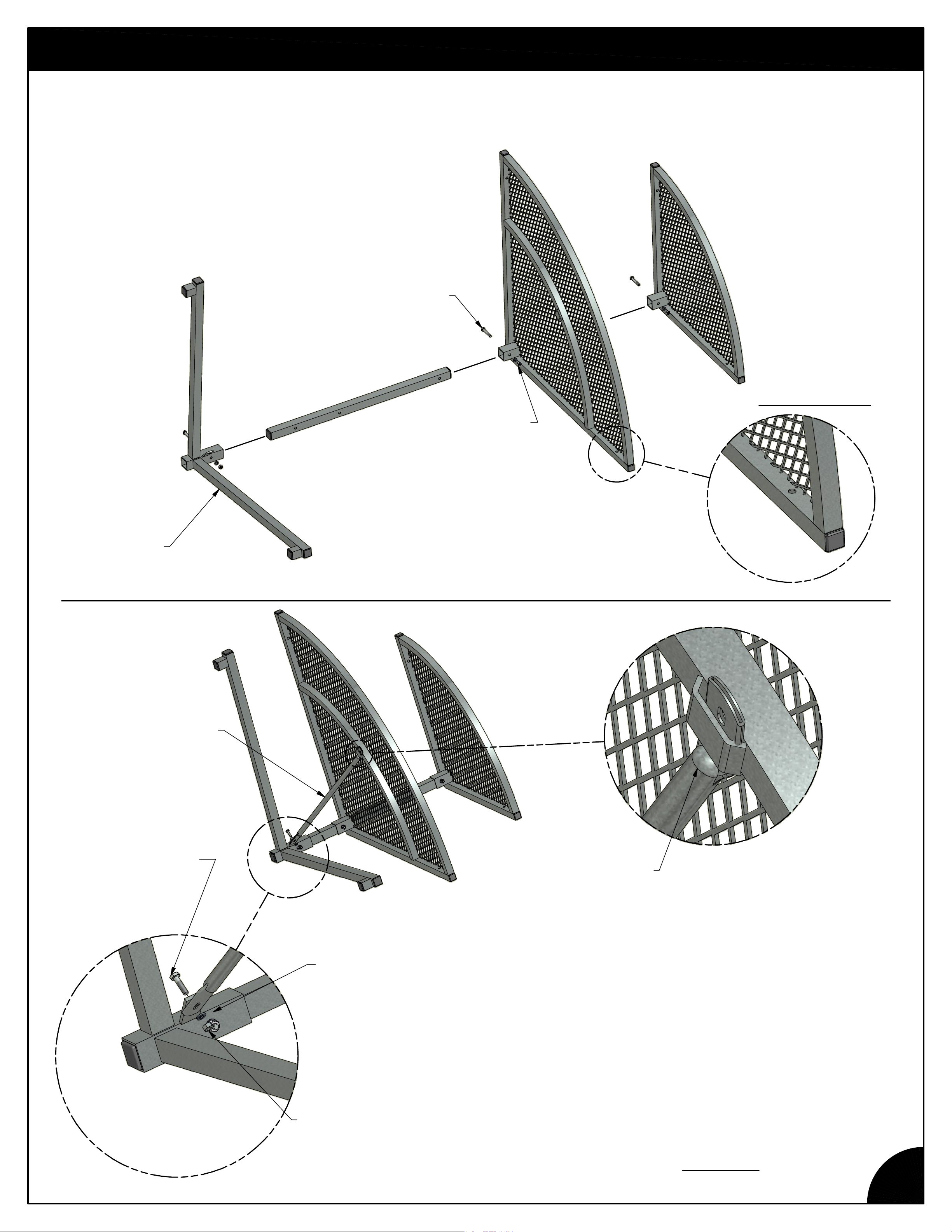

1. SLIDE END CAP VERTICAL INTO THE END CAP BASE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
2. SLIDE END CAP BOTTOM BENCH OVER END CAP
VERTICAL. ALIGN WITH MOUNTING HOLE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
3. SLIDE END CAP MIDDLE BENCH OVER END CAP
VERTICAL. ALIGN WITH MOUNTING HOLE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
5/16" x 2" HEX BOLT
5/16" LOCK WASHER
5/16" HEX NUT
DETAIL A
BASE
SUPPORT TUBE
1/4" x 1" HEX BOLT
STRAIGHT TAB
END OF
SUPPORT TUBE
BENT TAB END OF
SUPPORT TUBE
4. TO INSTALL THE BOTTOM BENCH SUPPORT INSERT
THE BENT TAB END OF THE TUBE INTO THE END CAP
1/4" LOCK WASHER
1/4" HEX NUT
BOTTOM BENCH.
5. ALIGN THE STRAIGHT TAB END OF THE BOTTOM BENCH
SUPPORT WITH MOUNTING HOLE IN MOUNTING TAB ON
THE END CAP BASE. FASTEN WITH 1/4" x 1" HEX BOLT,
LOCK WASHER, AND HEX NUT.
6. ATTACH TO ANOTHER EC2000 WITH BOLTS AT
CONNECTING HOLES SEE DETAIL A.
3
Page 4
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with water from a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
