Page 1
ASSEMBLY IN STRU CTIO N S
IMPO RT ANT
Please read these instructions carefully before you start to
assemble this display. Save these instructions for future reference.
CD8000 v1.0.2
Page 2
CD8005
16" SHELF
(4)
CD8004
32" SHELF
CD8006
SHELF EXTENSION 10"
(4)
CD8002
SHELF SUPPORT
(4)
CD8001
BASE
CD8003
POST
NB1979
5/32" HEX WRENCH
CD8008
SIGN POST 33"
NB1978
5/16" SET SCREW
(20)
CD4007
SIGN HOLDER, 3 SIDE
No additional tools are required.
Page 3
16" TOP SHELF
SHELF SUPPORT
32" BOTTOM SHELF
SHELF EXTENSION
POST
SHELF EXTENSION
BASE

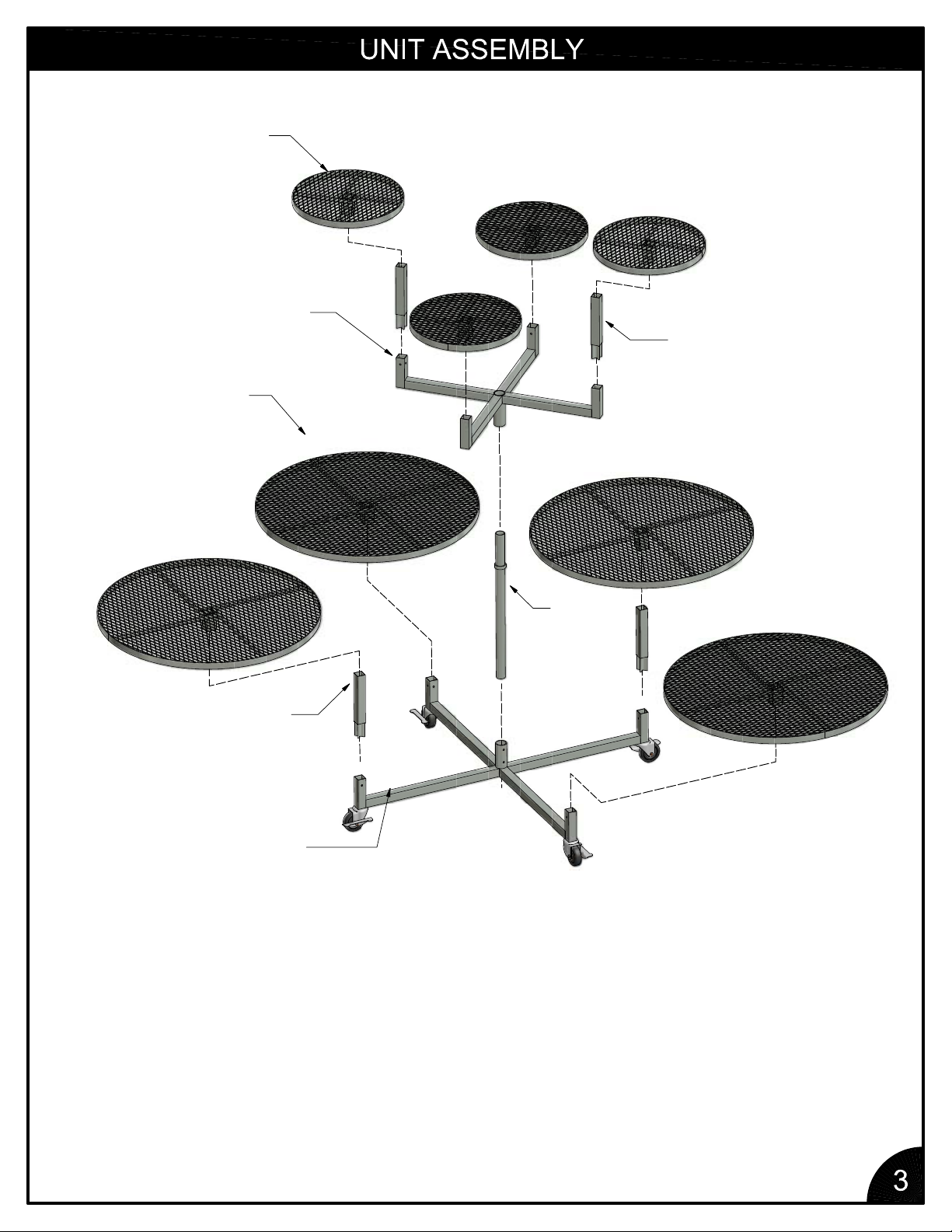

1. INSERT SHELF EXTENSION INTO BASE AND INSTALL OTHER SHELF EXTENSION ON
OPPOSITE SIDE, INLINE WITH FIRST ONE.
2. INSERT END OF POST INTO BASE (NOTE COLLAR POSITION). SLIDE SHELF
SUPPORT ONTO POST.
3. INSERT SHELF SUPPORT EXTENSION INTO SHELF SUPPORT AND INSTALL OTHER
SHELF SUPPORT EXTENSION ON OPPOSITE SIDE, INLINE WITH FIRST ONE.
4. INSTALL SHELVES.
Page 4

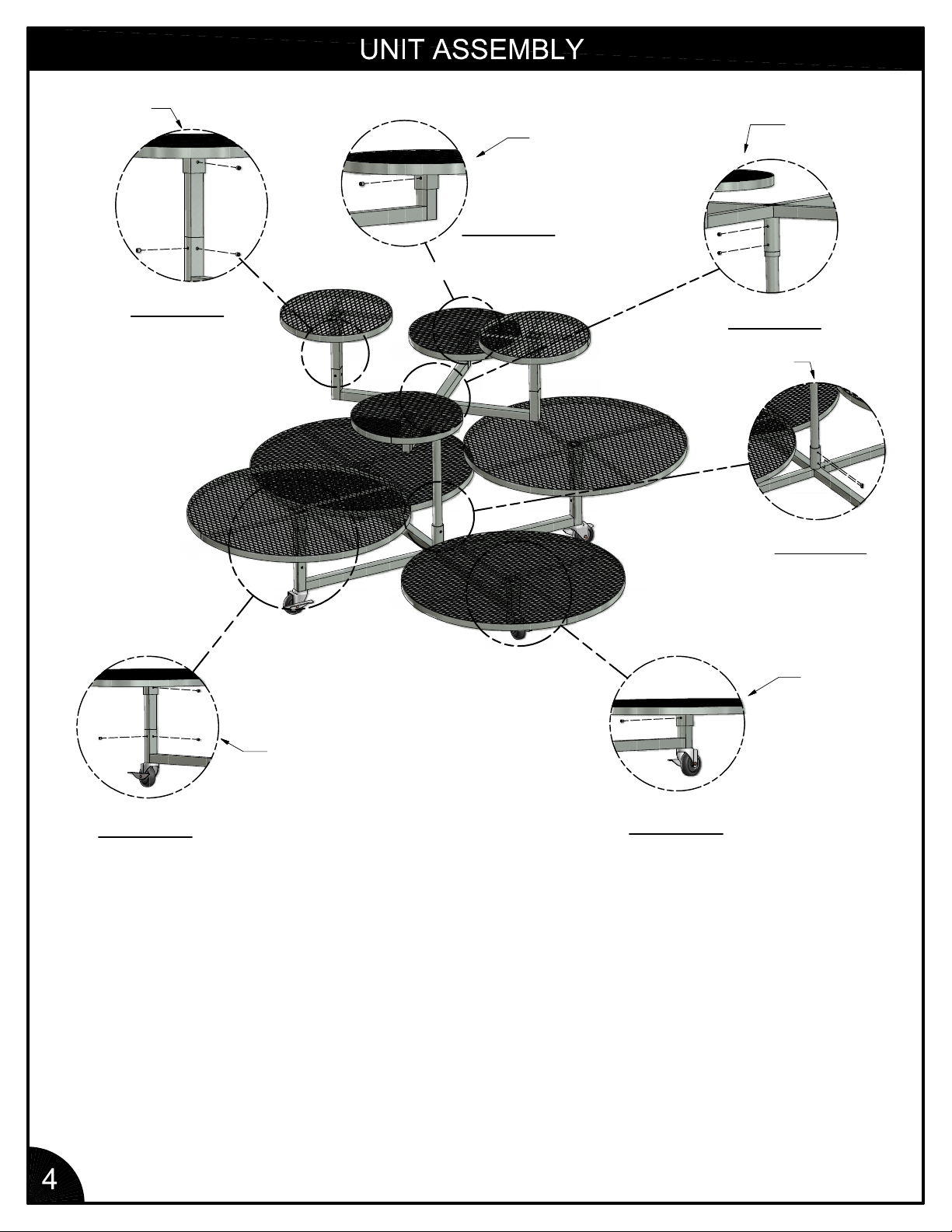

3SCREWS
(2 PL.)
1SCREW
FIGURE B
2SCREWS
(2 PL.)
FIGURE A
FIGURE E
2SCREWS
FIGURE F
1SCREW
(2 PL.)
3SCREWS
(2 PL.)
FIGURE C
FIGURE D
5. USE FOUR SET SCREWS TO ATTACH BASE (FIG. F) AND SHELF SUPPORT
(FIG. E) TO POST.
6. USE 16 SET SCREWS TO HOLD SHELVES (FIG. A, B, C, & D) FIRMLY IN PLACE.
Page 5

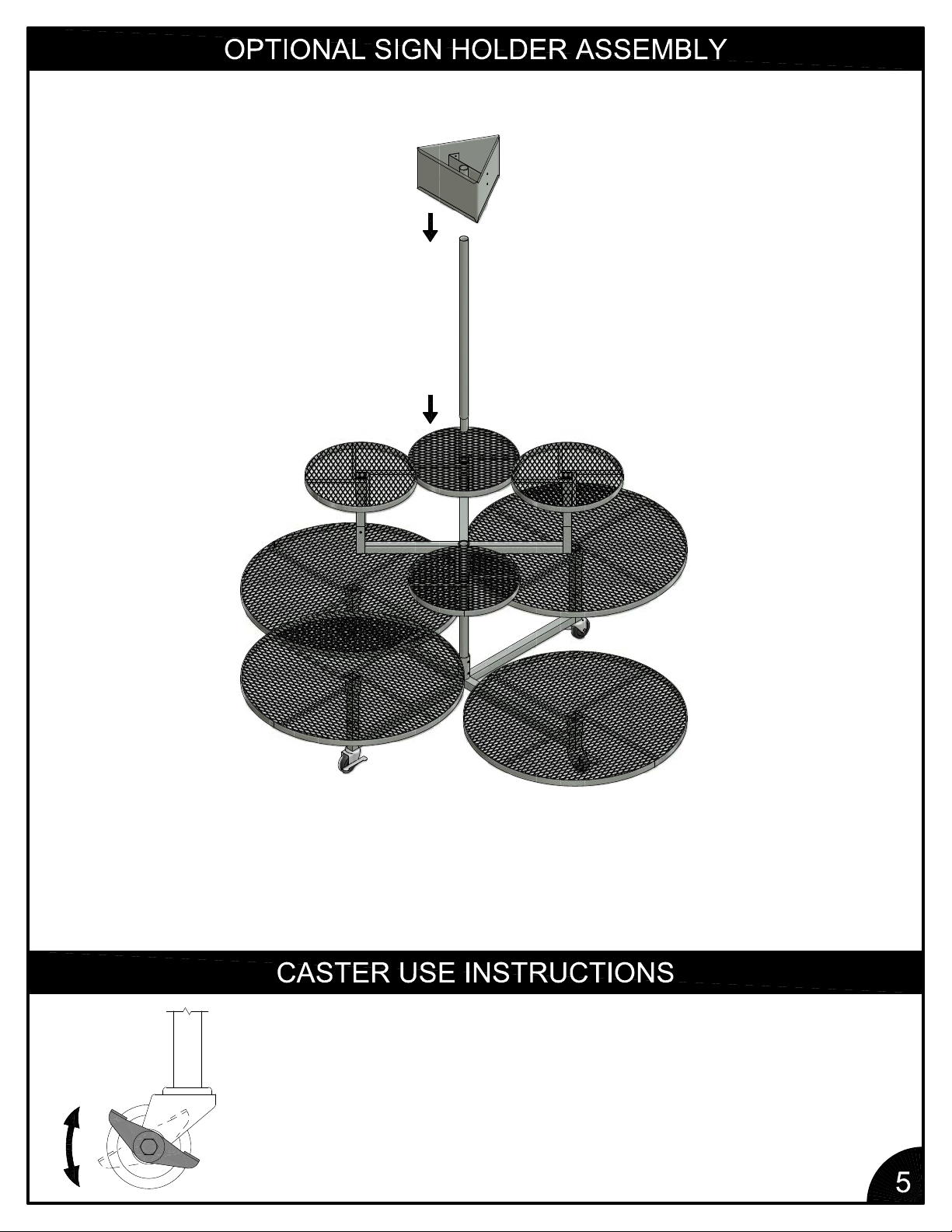

1. SLIDE SIGN POST INTO TOP OF DISPLAY. SLIDE SIGN HOLDER ONTO TOP OF
SIGN POST.
ONCE THE DISPLAY IS IN PLACE, ALL CASTERS MUST BE LOCKED
INTO PLACE USING THE CASTER BRAKES TO PREVENT DISPLAY
MOVEMENT. THE BRAKE IS ACTIVATED BY ROTATING THE LEVER
FROM THE "OFF" POSITION TO THE "ON" POSITION AS SHOWN.
Page 6
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products w ill not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED,WRITTENORORALINCLUDINGTHE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
Contact information
Poly-Tex, Inc. PO Box 458
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
www.poly-tex.com
