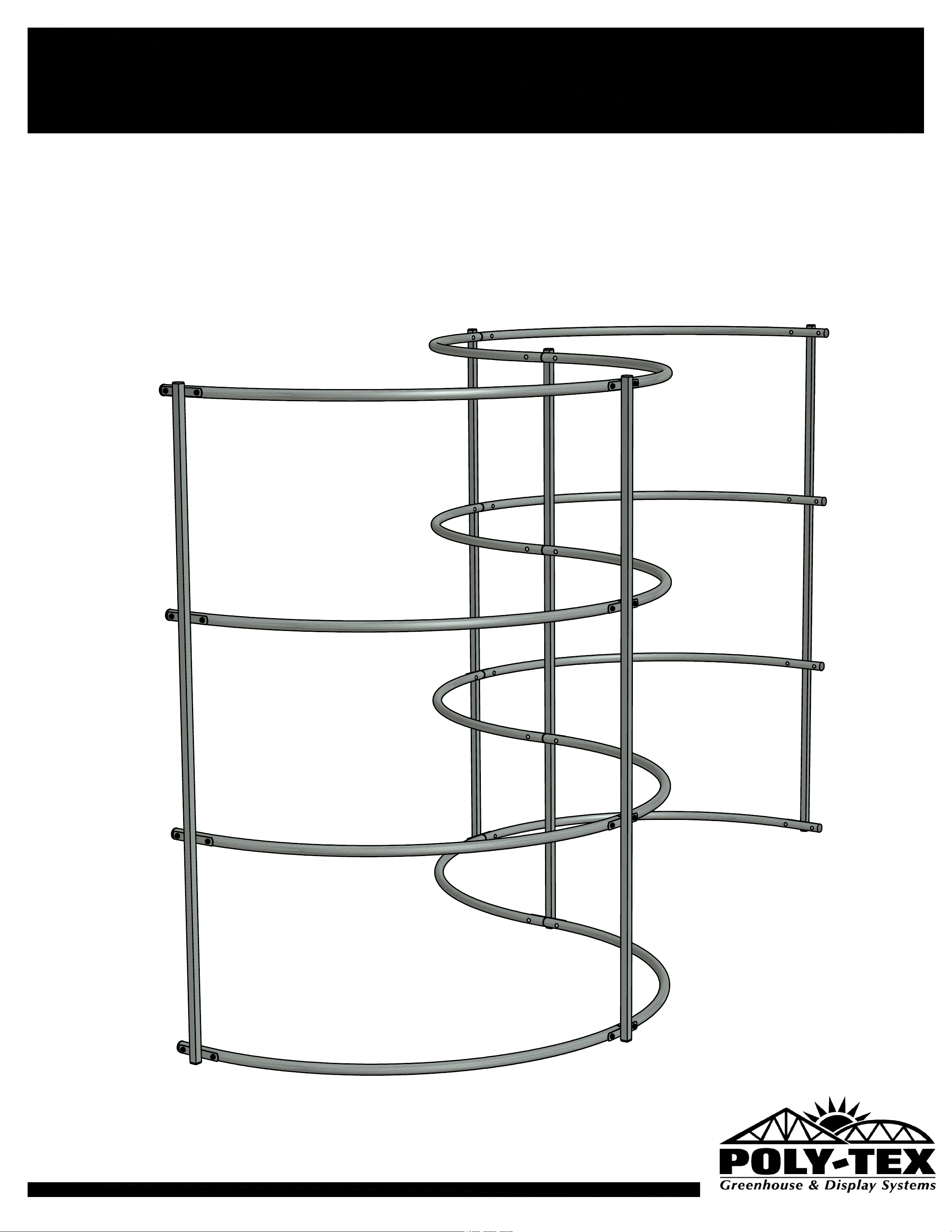

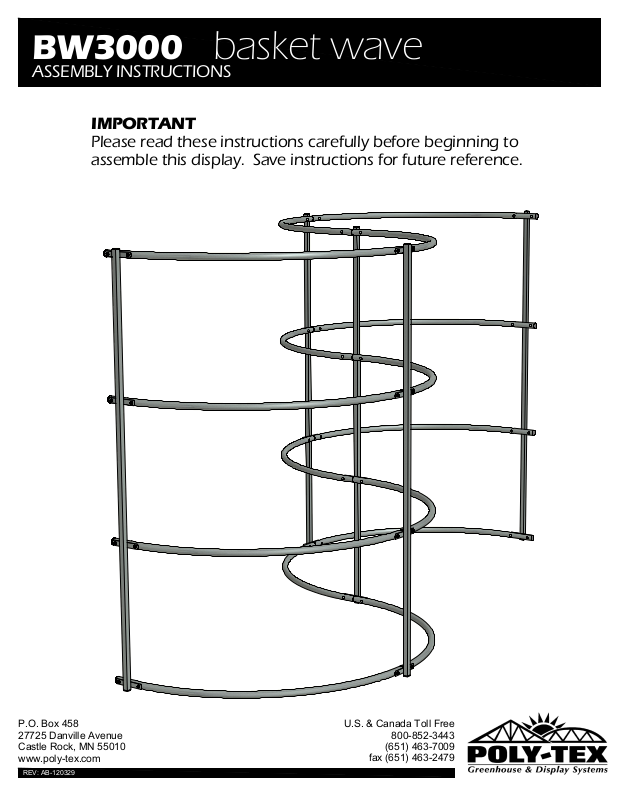

BW3000 basket wave
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AB-120329
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2

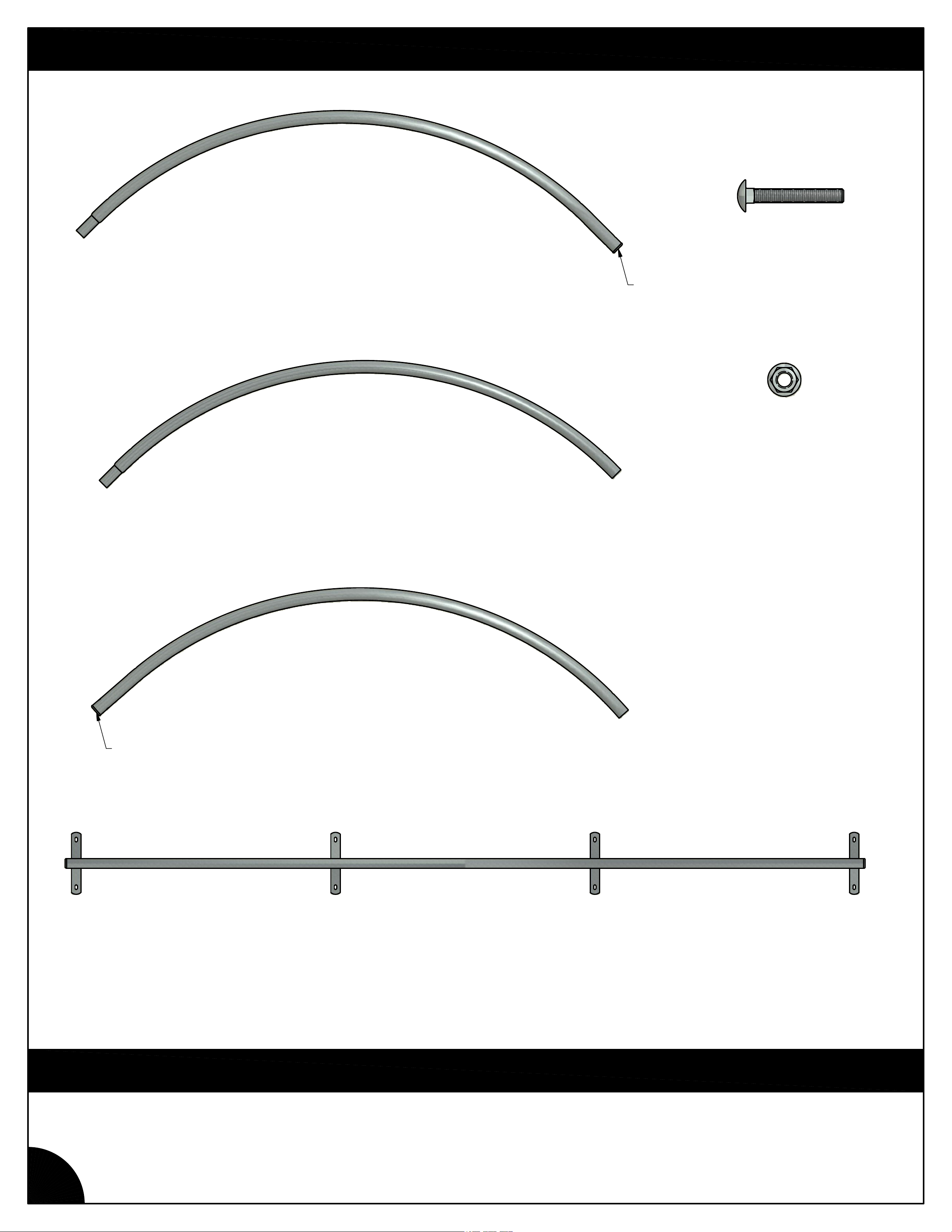

PARTS IDENTIFICATION
BW1000
END SECTION (SWEDGE)
NB1818
1/4" x 1 3/4"
BW1001
CENTER SECTION (SWEDGE)
BLACK
CAP
CARRIAGE BOLT
NB1754
1/4" SERRATED
HEX NUT
BLACK
CAP
BW1002
END SECTION (PLAIN)
BW1004
VERTICAL (83 3/4")
TOOLS & EQUIPMENT REQUIRED
2
7/16" SOCKET OR OPEN END WRENCH
Page 3
ASSEMBLY INSTRUCTIONS
BW1002
BW1001
BW1001
PLUG END
OF TUBE
PLUG END
OF TUBE

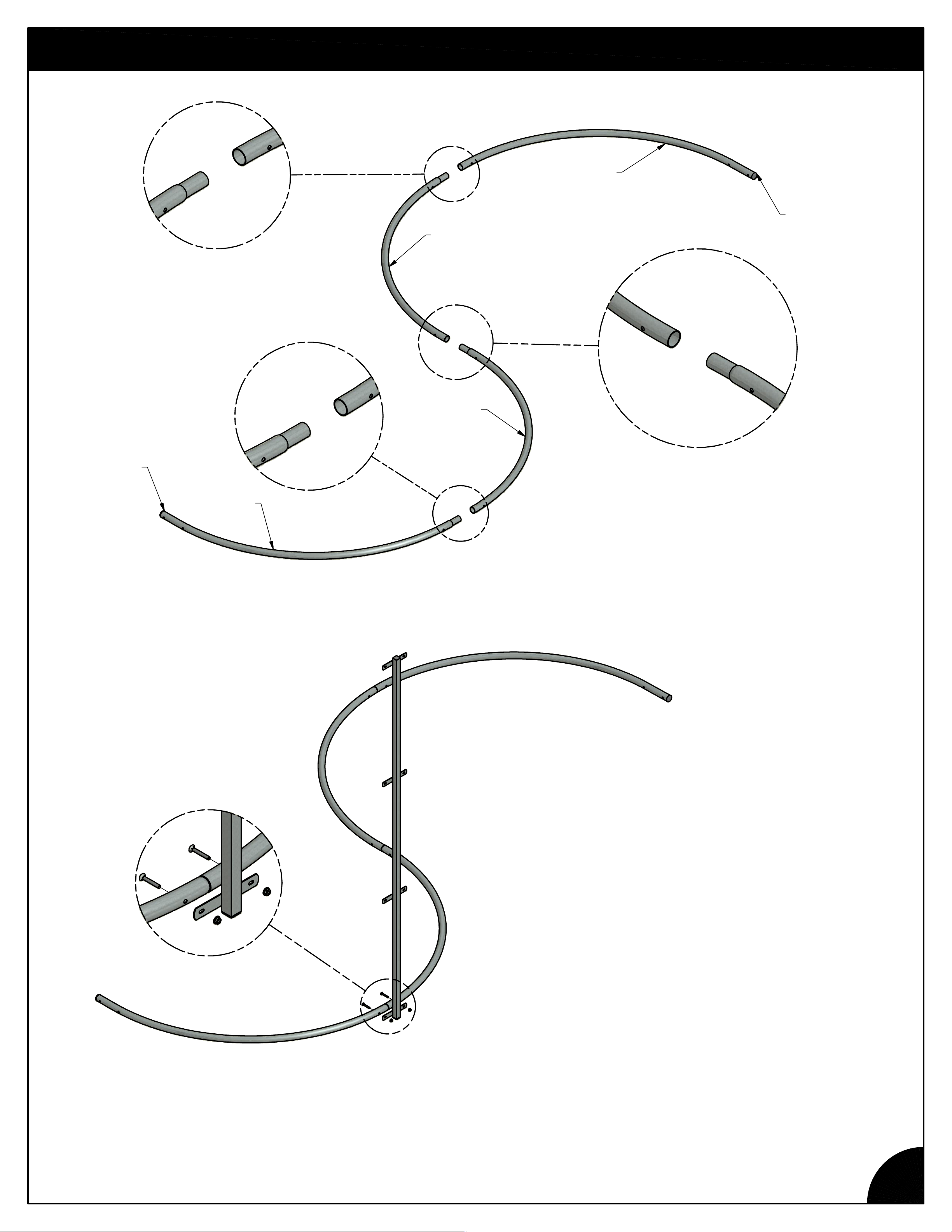

LAYOUT AND CONNECT ONE ROW OF COMPONENTS AS SHOWN.
BW1000
ATTACH A VERTICAL TO THE OUTSIDE OF
CURVE AS SHOWN USING CARRIAGE
BOLTS AND HEX NUTS.
FINGER TIGHTEN ONLY AT THIS TIME.
AN EXTRA PERSON WILL BE HELPFUL TO
STABILIZE THE VERTICALS DURING
ASSEMBLY.
3
Page 4
ASSEMBLY INSTRUCTIONS

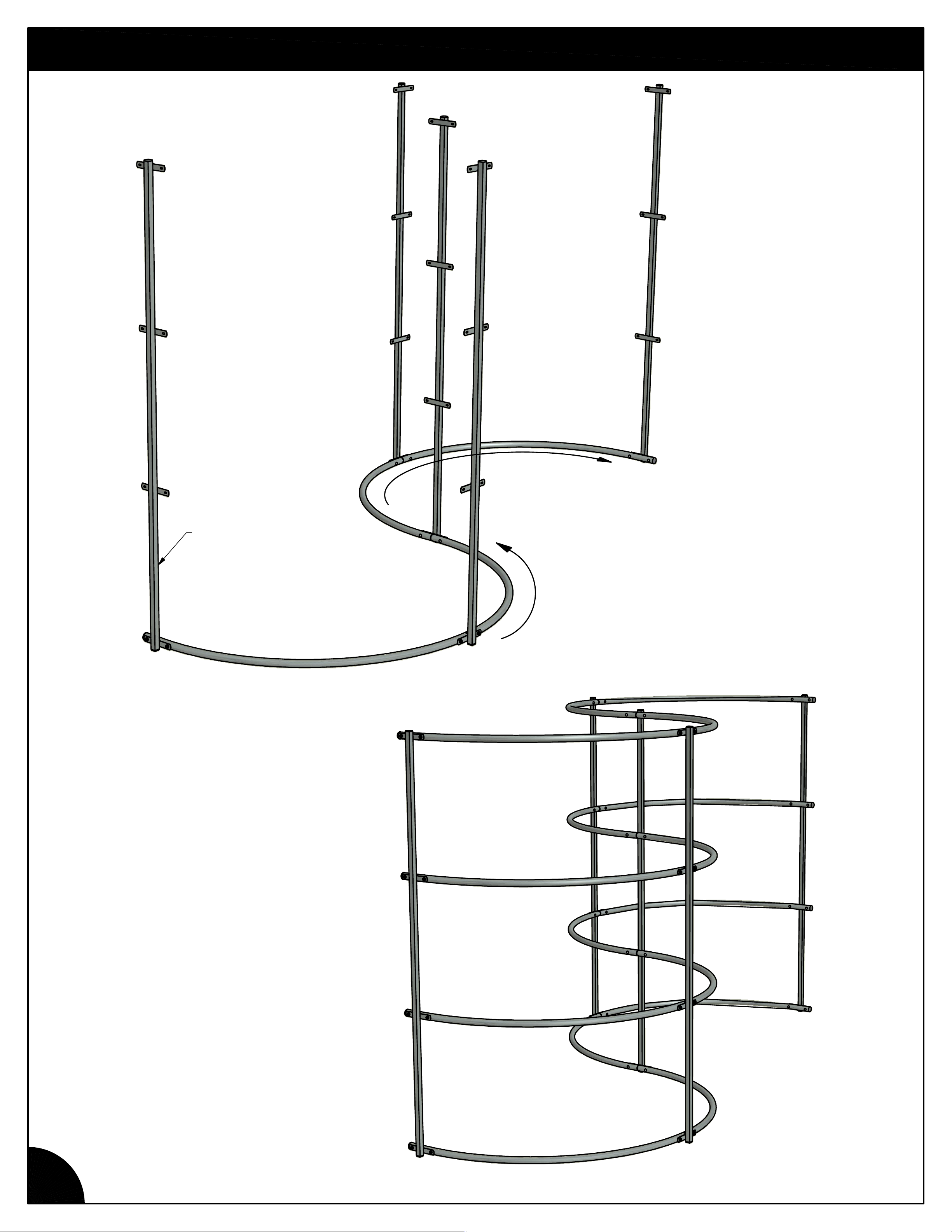

ATTACH THIS ONE LAST
ATTACH THE REMAINING
VERTICALS IN THE DIRECTION
OF THE ARROWS.
ATTACH THE 2ND, 3RD, AND 4TH
ROWS TO THE VERTICALS
USING THE SAME CONNECTION
SEQUENCE.
WHEN ASSEMBLY IS COMPLETE,
PLUMB THE VERTICALS AND
TIGHTEN SECURELY.
4
Page 5
6' ADD-ON ASSEMBLY INSTRUCTIONS
PORTION OF DISPLAY
CONTAINING BW1002
LOOSE END
OF DISPLAY
SECTIONS

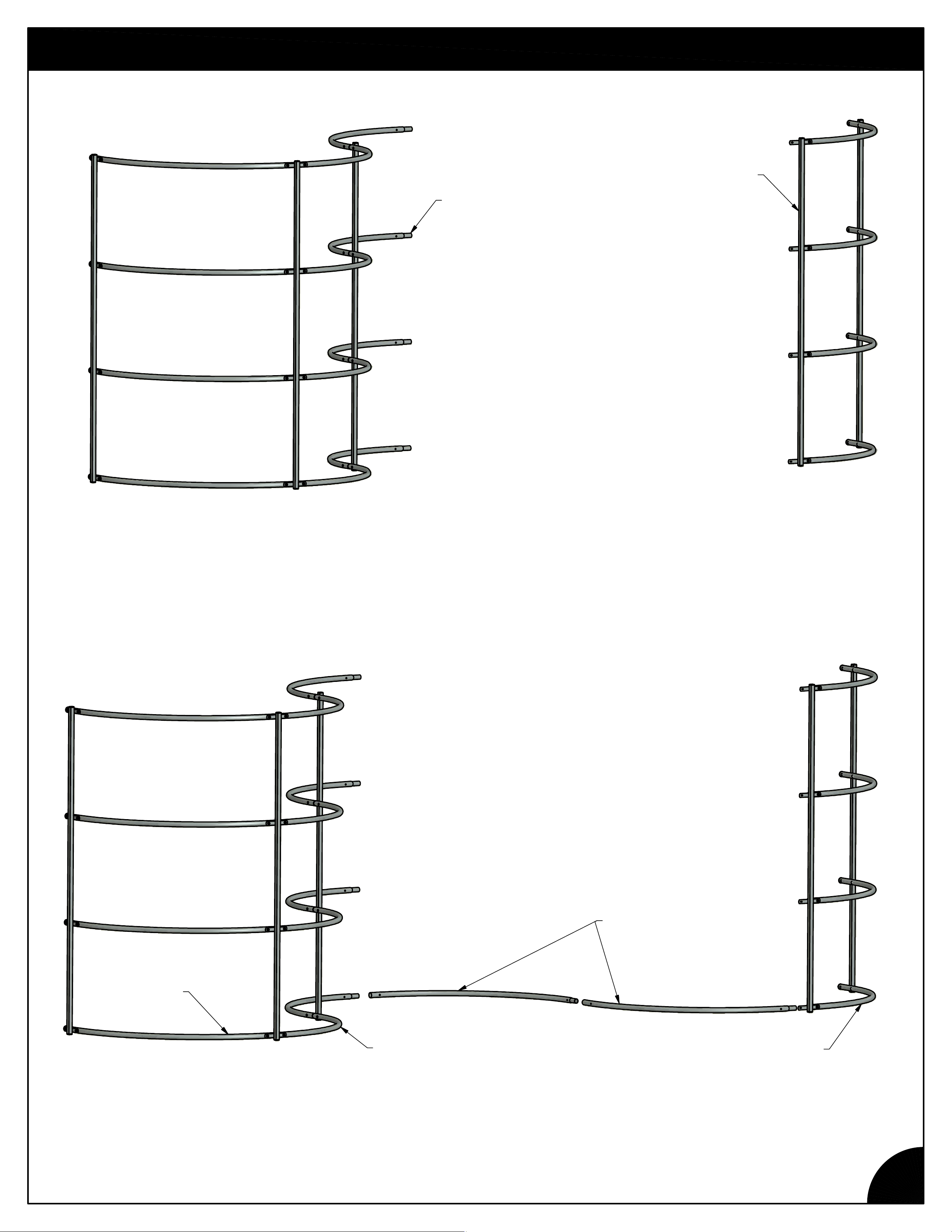

REMOVE 4 BOLTS FROM ONE GROUP OF BW1001 SECTIONS OF THE
DISPLAY AND SEPARATE FROM DISPLAY AS SHOWN. TURN THE BW1002
SECTION UPSIDE DOWN.
BW1000
BW1001
CONNECT TWO TUBES OF THE EXTENTION AS SHOWN.
BW1001
BW1002
5
Page 6
6' ADD-ON ASSEMBLY INSTRUCTIONS
PORTION OF DISPLAY
CONTAINING BW1002
SECTIONS
BW1004 VERTICAL
LOOSE END
OF TUBES
ATTACH THE BW1004 VERTICAL TO THE LOOSE ENDS OF TUBES
USING THE CARRIAGE BOLTS AND HEX NUTS AS DESCRIBED ON
PAGE 3. FINGER TIGHTEN AT THIS TIME.
6

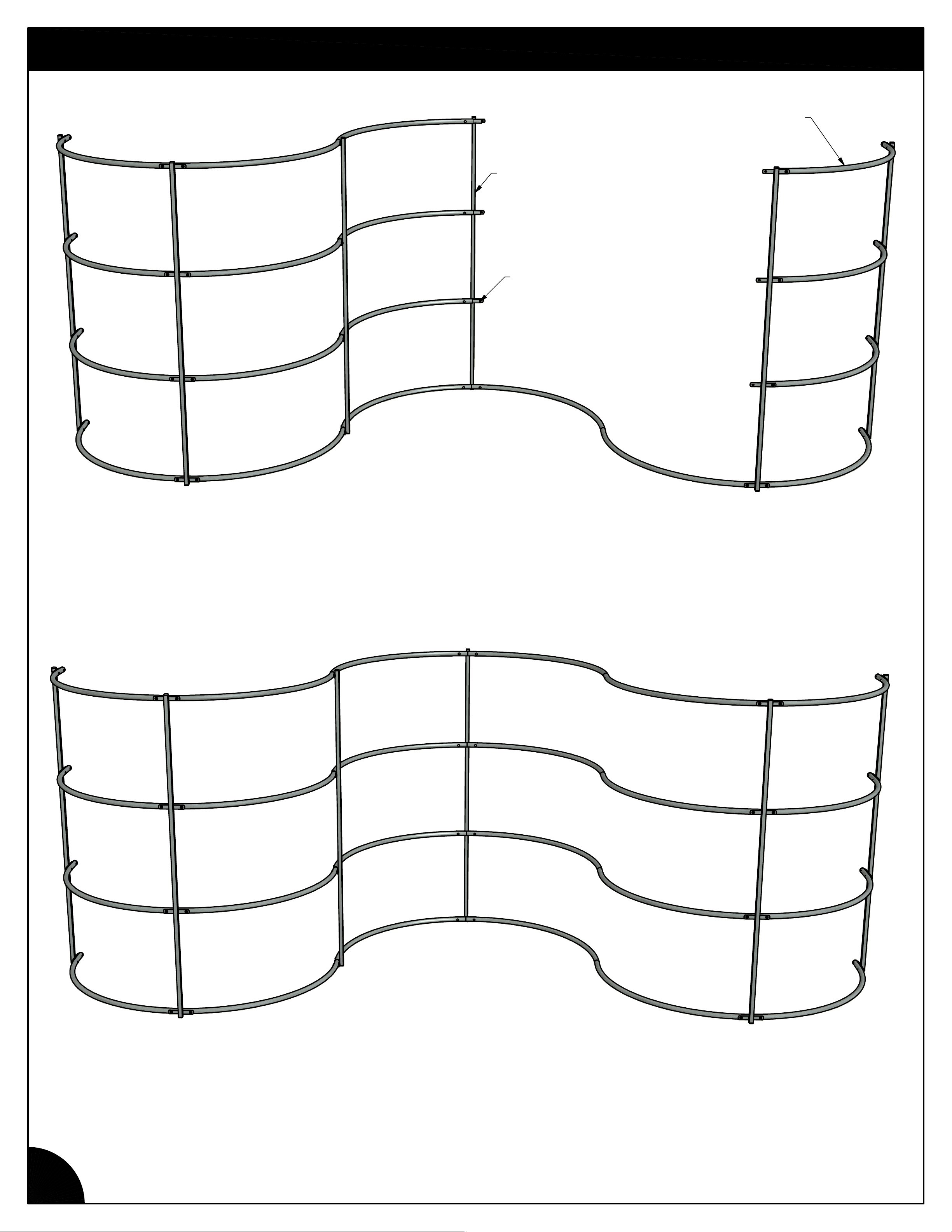

CONTINUE TO ASSEMBLE THE ROWS AND VERTICALS USING
THE CARRIAGE BOLTS AND HEX NUTS AS SHOWN.
Page 7
6' ADD-ON ASSEMBLY INSTRUCTIONS
BW1004
VERTICAL
A

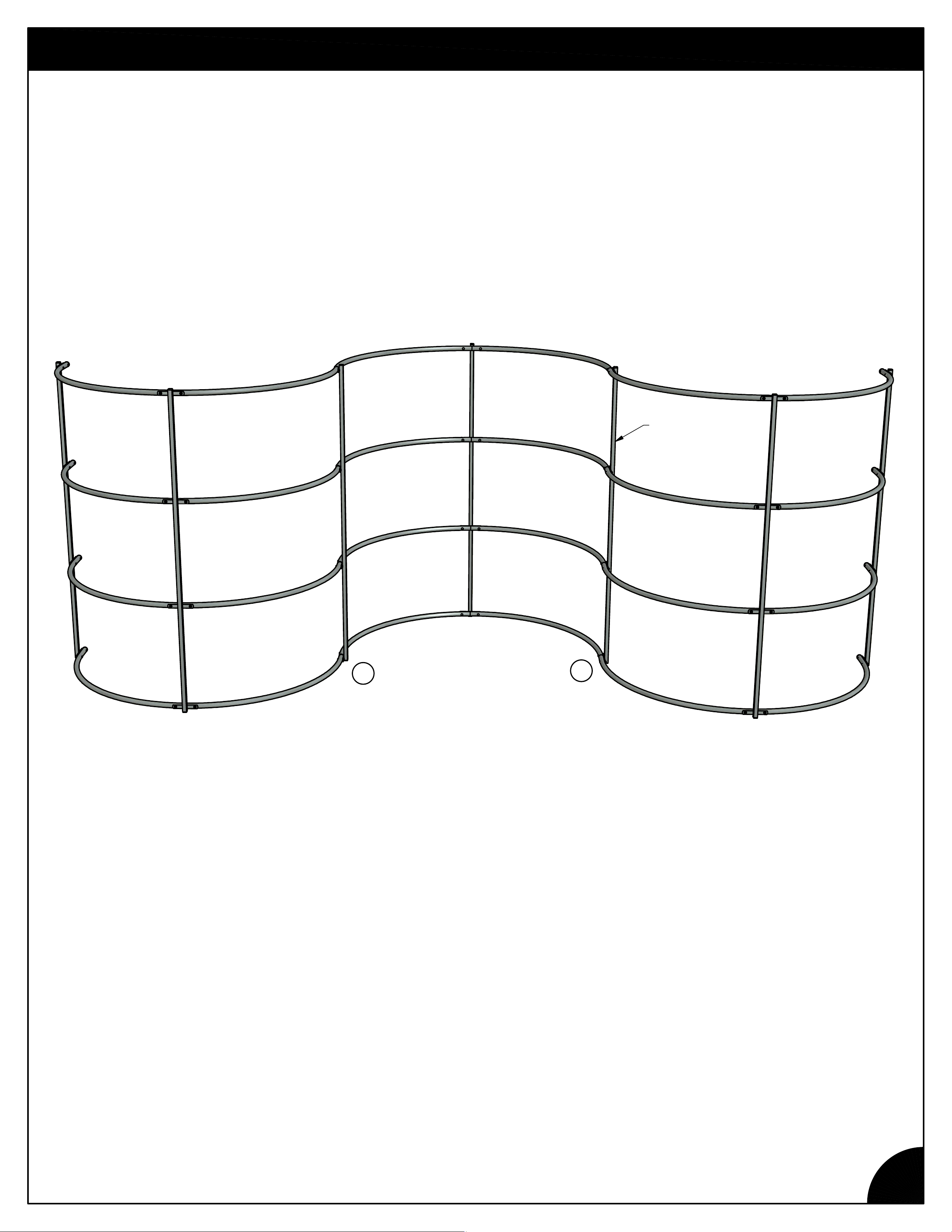

ATTACH THE FINAL BW1004 VERTICAL.
NOTE: VERTICALS AT POINTS A & B MAY BE IN EITHER
SIDE OF THE CURVES. ALL OTHER VERTICALS MUST BE
ON THE OUTSIDE OF CURVES.
B
WHEN THE ASSEMBLY IS COMPLETE PLUMB THE
VERTICALS AND TIGHTEN SECURELY.
7
Page 8
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with water from a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
Contact information
Poly-Tex, Inc. PO Box 458
www.poly-tex.com
