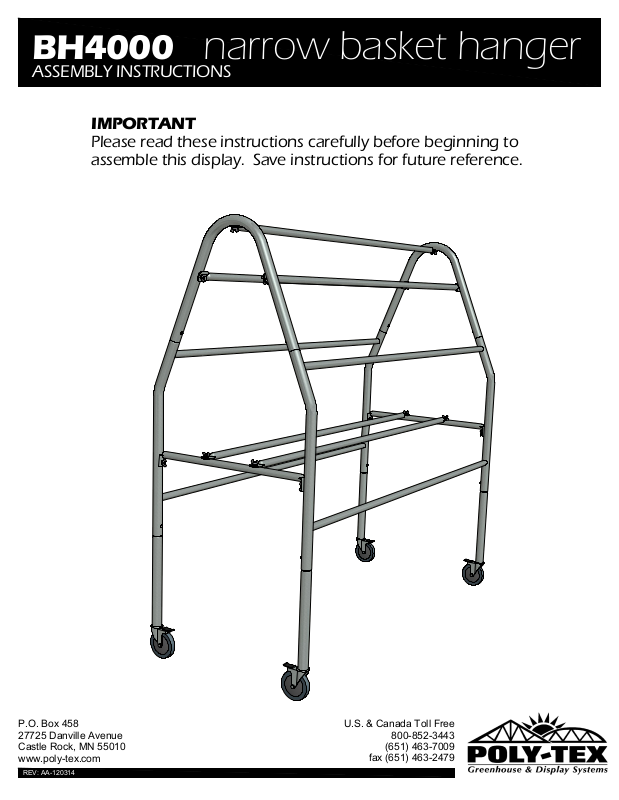

BH4000 narrow basket hanger
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AA-120314
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2
PARTS IDENTIFICATION
BH2005
PEAK
(2)
NB1923
NYLON WASHER
(14)
NB1901
3/8" WING NUT
(14)
BH2000
STABILIZER
(2)
BH2011
LEG W/CASTER
(4)
BH2015
SPREADER
(2)
GM4000
2
BASKET PURLIN
(5)
TOOLS & EQUIPMENT REQUIRED
No tools are required for the assembly of this display.
Page 3
ASSEMBLY INSTRUCTIONS
BASKET PURLINS
PEAK
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
1
4
PEAK
1
STABILIZER
STABILIZER
BASKET PURLINS
3
2
SPREADER
2
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
SPREADER
5
ONCE DISPLAY IS IN PLACE,
ALL CASTERS MUST BE LOCKED
LEG WITH CASTER
TO PREVENT MOVEMENT. THE
BRAKE IS ACTIVATED BY ROTATING
THE LEVER FROM THE "OFF"
POSITION TO THE "ON" POSITION.
FIGURE 1

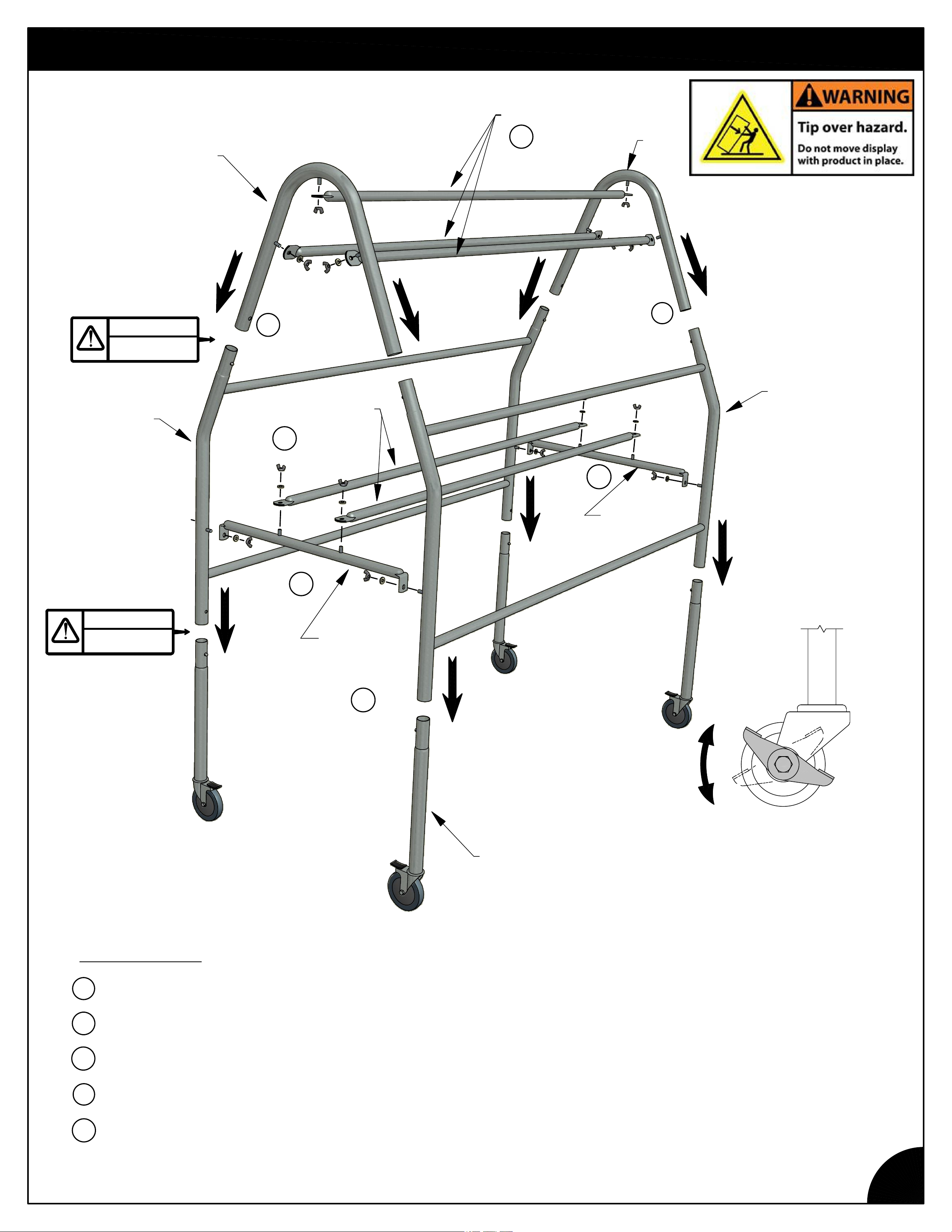

INSTRUCTIONS:
1 INSERT THE STABILIZERS INTO THE PEAKS. MAKE SURE THE SNAP BUTTONS SNAP INTO PLACE.
2 ATTACH BOTH SPREADERS TO THE STABILIZERS WITH NYLON WASHERS AND WING NUTS.
3 ATTACH BASKET PURLINS TO THE SPREADERS WITH NYLON WASHERS AND WING NUTS.
4 ATTACH REMAINING BASKET PURLINS TO PEAKS WITH NYLON WASHERS AND WING NUTS.
5 INSERT THE LEGS WITH CASTERS INTO THE STABILIZERS. MAKE SURE THE SNAP BUTTONS SNAP
INTO PLACE.
3
Page 4
WREATH HANGER OPTION
4

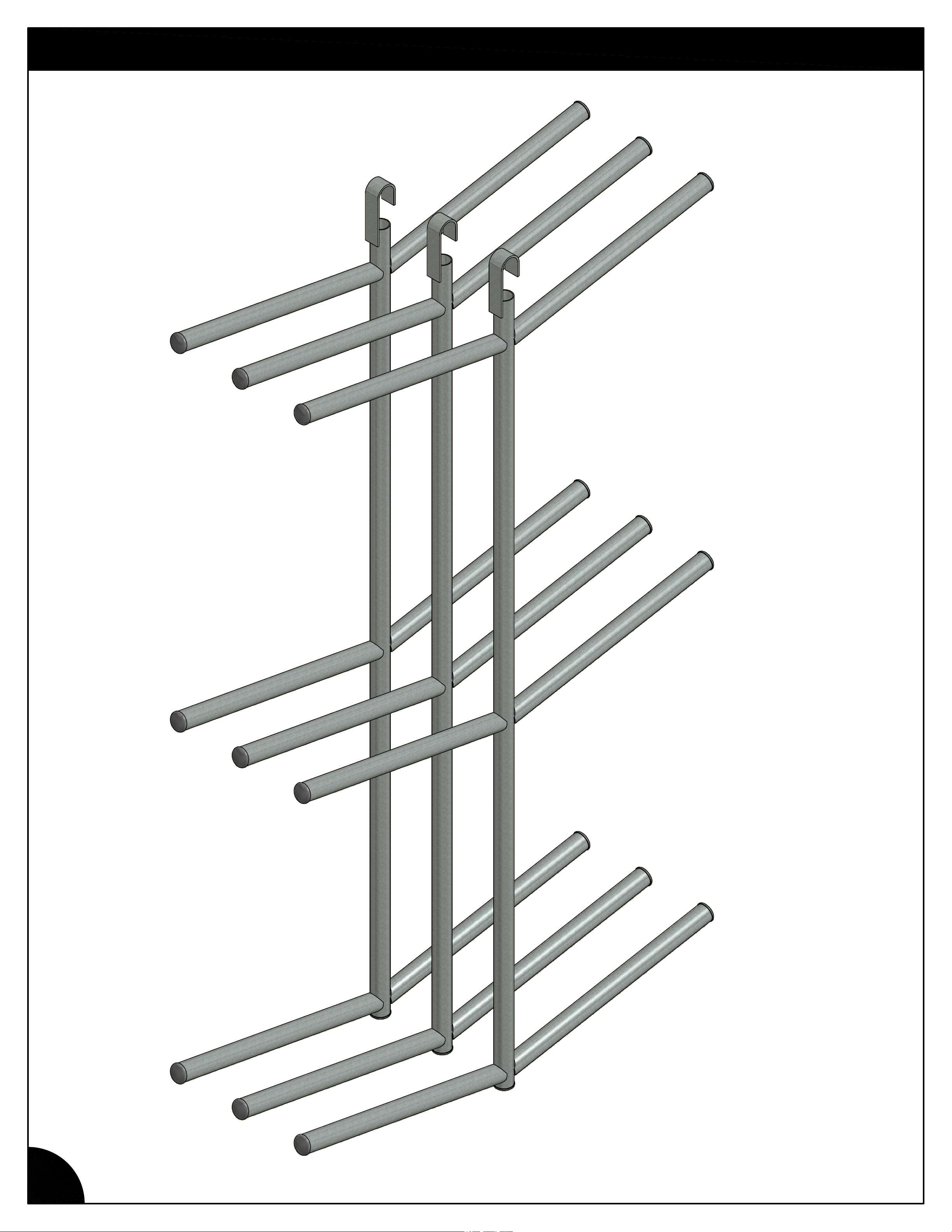

BH1036
WREATH HANGER
Page 5
WREATH HANGER OPTION

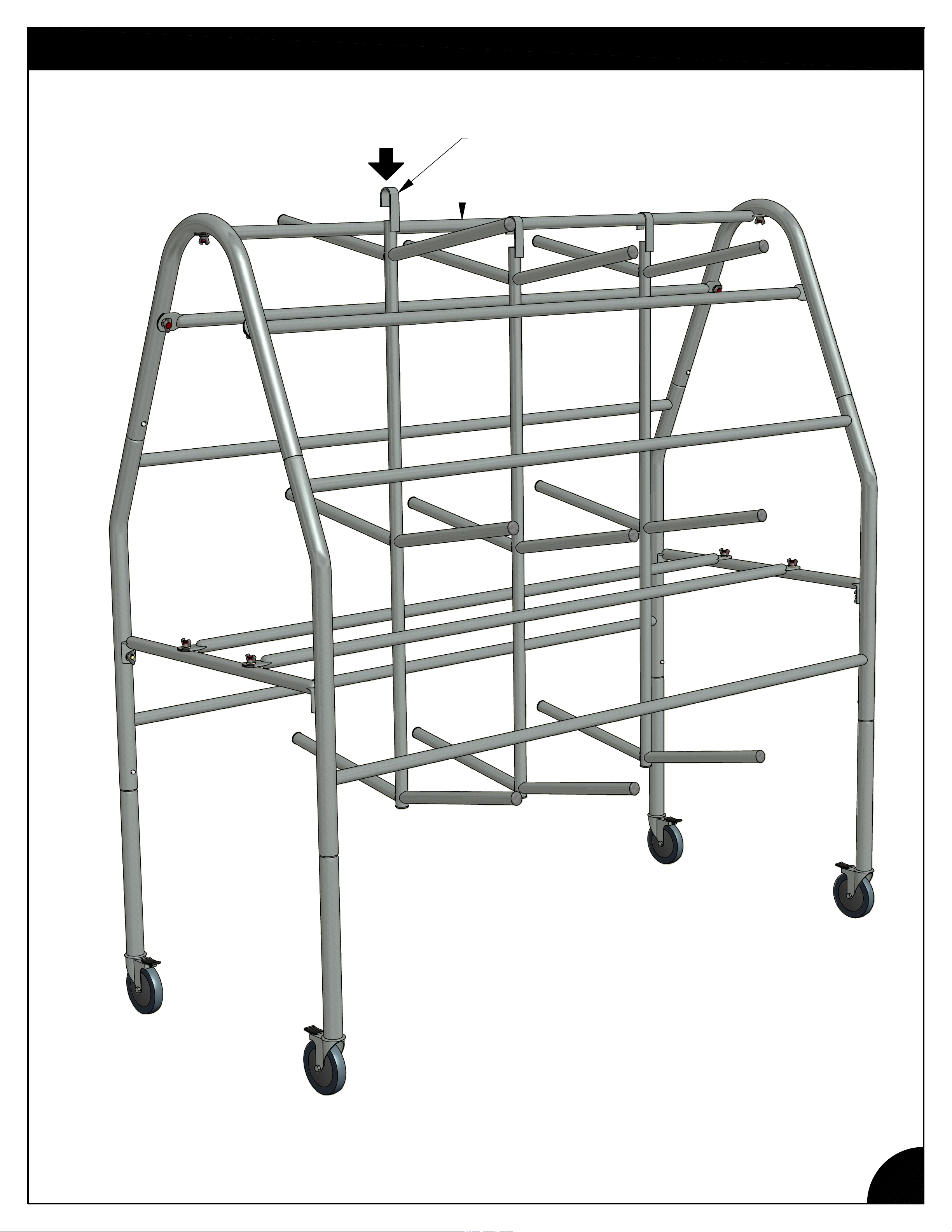

HOOK "J" FITTING
ONTO TOP PURLIN
5
Page 6
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
