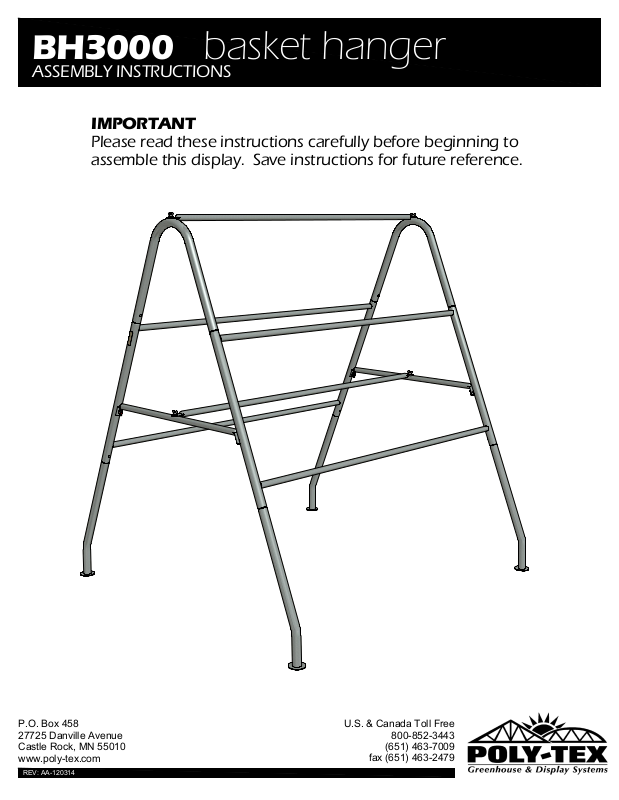

Page 1
BH3000 basket hanger
ASSEMBLY INSTRUCTIONS
IMPORTANT
Please read these instructions carefully before beginning to
assemble this display. Save instructions for future reference.
P.O. Box 458
27725 Danville Avenue
Castle Rock, MN 55010
www.poly-tex.com
REV: AA-120314
U.S. & Canada Toll Free
800-852-3443
(651) 463-7009
fax (651) 463-2479
Page 2
PARTS IDENTIFICATION
GM4000
6'-1 1/2" BASKET PURLIN
(2)
BH1000
BASKET HANGER STABILIZER
(2)
BH1005
BASKET HANGER PEAK
(2)
BH1010
BASKET HANGER LEG
(4)
NB1901
3/8" WING NUT
BH1015
(8)
40 1/2" SPREADER
(2)
NB1923
NYLON WASHER
(8)
GM2970
HOOP PAD
(4)
TOOLS & EQUIPMENT REQUIRED
OPTIONAL PARTS
BH1011
BASKET HANGER LEG W/CASTER
(4)
2
No tools are required for the assembly of this product.
Page 3
ASSEMBLY INSTRUCTIONS
2
2
1
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
1
PINCH HAZARD
USE CAUTION
DURING ASSEMBLY
3
3
4
1 INSERT STABILIZERS INTO PEAKS, MAKING SURE THE
SNAP BUTTONS ARE SECURE.
2 ATTACH SPREADERS AND BASKET PURLIN USING
WINGNUTS AND NYLON WASHERS AS SHOWN.
3 INSERT LEGS INTO STABILIZERS MAKING SURE SNAP
BUTTON PROTRUDES THROUGH THE HOLES.
4
4 INSERT HOOP PADS INTO LEGS.
3
Page 4

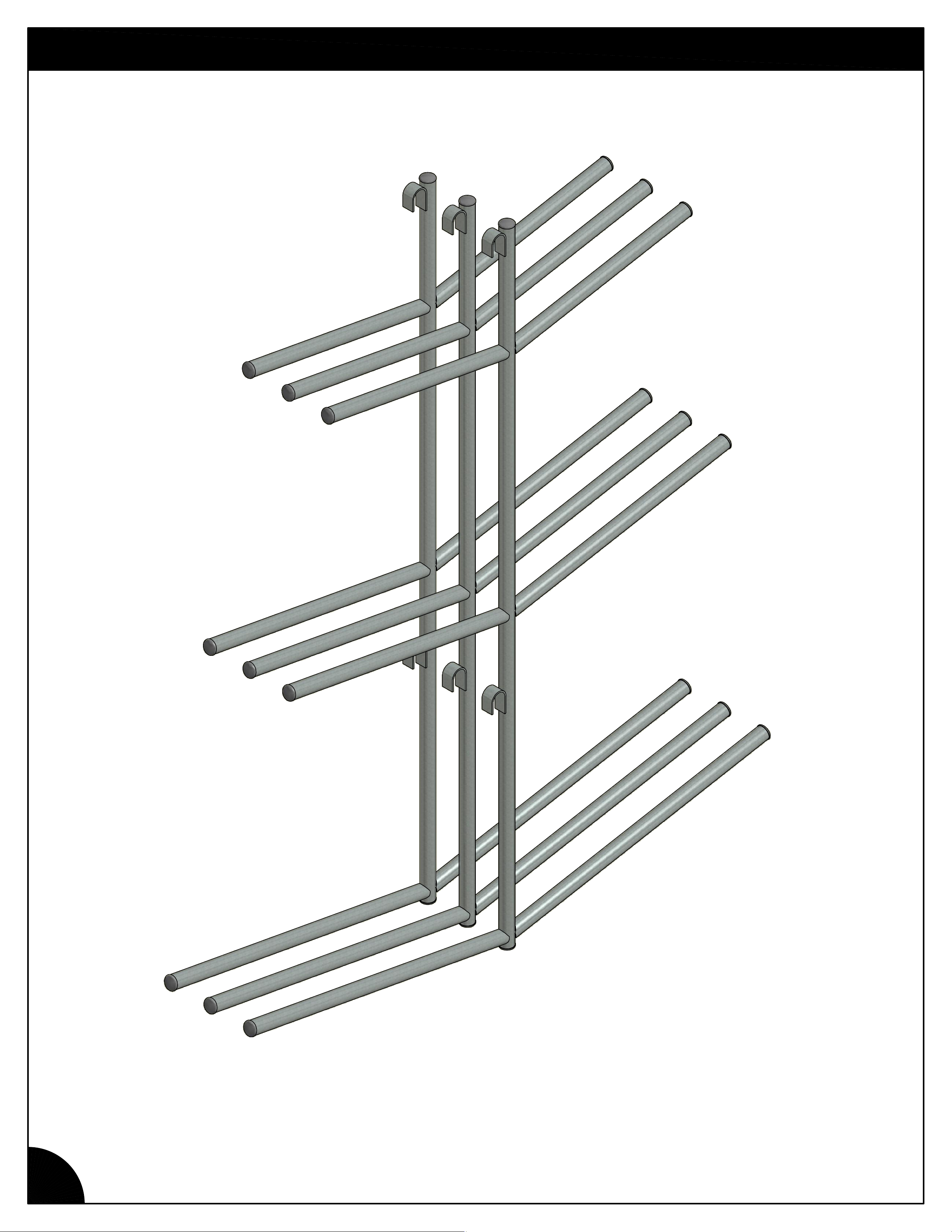

WREATH HANGER OPTION
4
BH3005
STANDARD WREATH HANGER KIT
Page 5

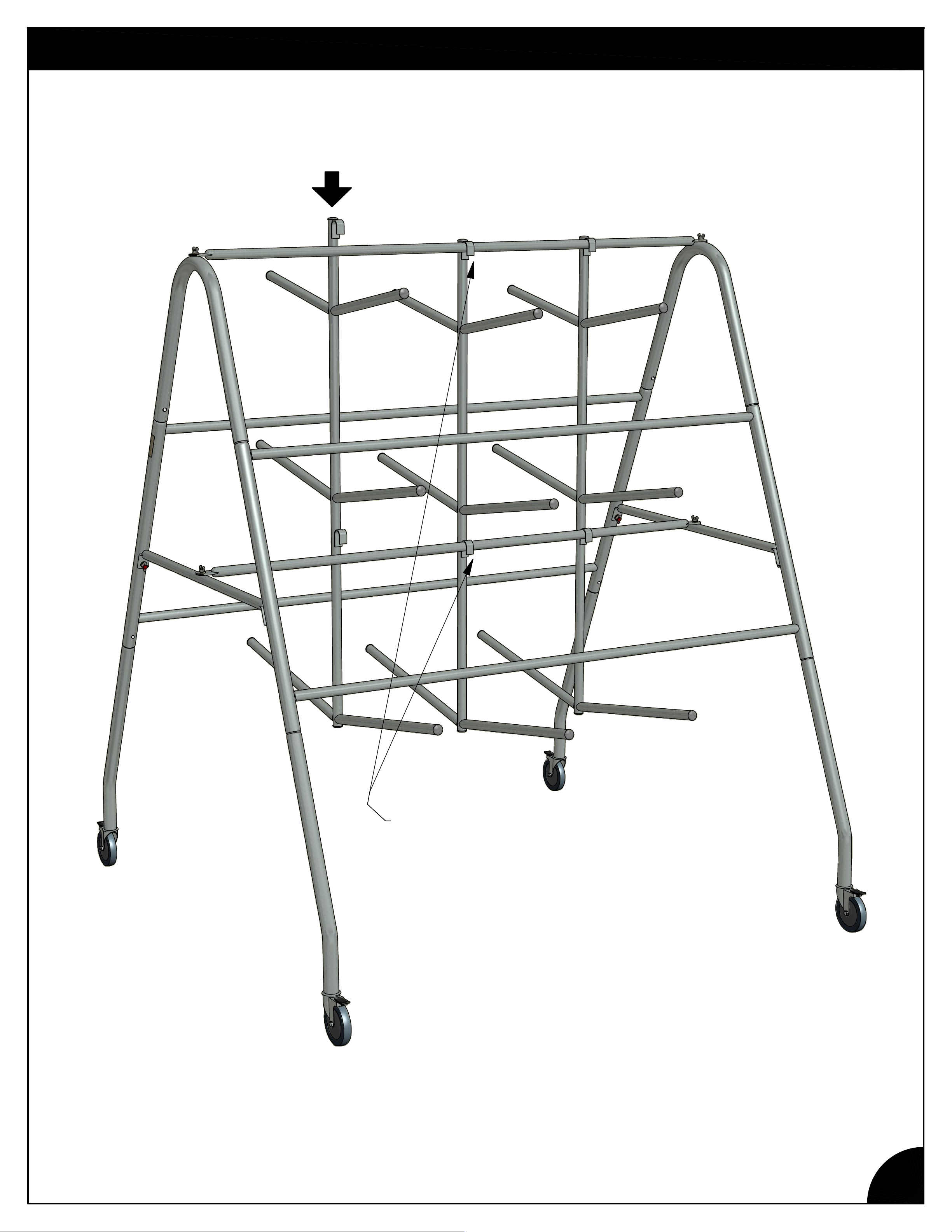

WREATH HANGER OPTION
ENSURE THAT BOTH
"J" FITTINGS REST
ON THE BASKET PURLIN
5
Page 6
SAFETY GUIDELINES
Do not climb, sit on, or use this product as a ladder. Injuries may occur.
Do not place or install electrical items on this product. Wet conditions are typical and
electrical shock may occur.
Do not place this product on a slope that exceeds 3 degrees.
Do not move this display after product is in place. Damage to display and injuries may occur.
Lock casters (when provided) once display is in place to prevent movement.
Remove all debris or obstacles from caster's path before moving.
CARE & MAINTENANCE
To remove loose soil and debris, simply spray the soiled areas with with water from a garden hose.
Prior to storage, all surfaces of this product should be sprayed down with water and allowed to dry
completely.
Limited Warranty
Poly-Tex, Inc. warrants its products to be free from defects in material and workmanship for a
period of (1) year from date of invoice. This warranty is provided to the original purchaser of the
product and is not transferable. Poly-Tex does not warrant parts not manufactured by Poly-Tex,
but does assign any transferable manufacturer or supplier warranties. Should any defect be
found, full repair or replacement will be rendered to the customer at no cost following inspection
by a Poly-Tex representative and the return of the defective product to our Castle Rock, MN
factory. Expenses for removal or reinstallation of defective products will not be covered by the
warranty.
POLY-TEX SHALL NOT BE HELD RESPONSIBLE FOR ANY SPECIAL OR
CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN PERFORMANCE OF THIS
WARRANTY BEYOND OUR CONTROL. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES WHETHER IMPLIED, WRITTEN OR ORAL INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty does not cover damage from customer abuse, misuse, improper installation,
customer modifications, customer negligence in performing normal maintenance, damage
resulting from acts of nature.
27725 Danville Ave Castle Rock, MN 55010
Toll free (800) 852-3443 Fax (651) 463-2479
Contact information
Poly-Tex, Inc. PO Box 458
www.poly-tex.com
