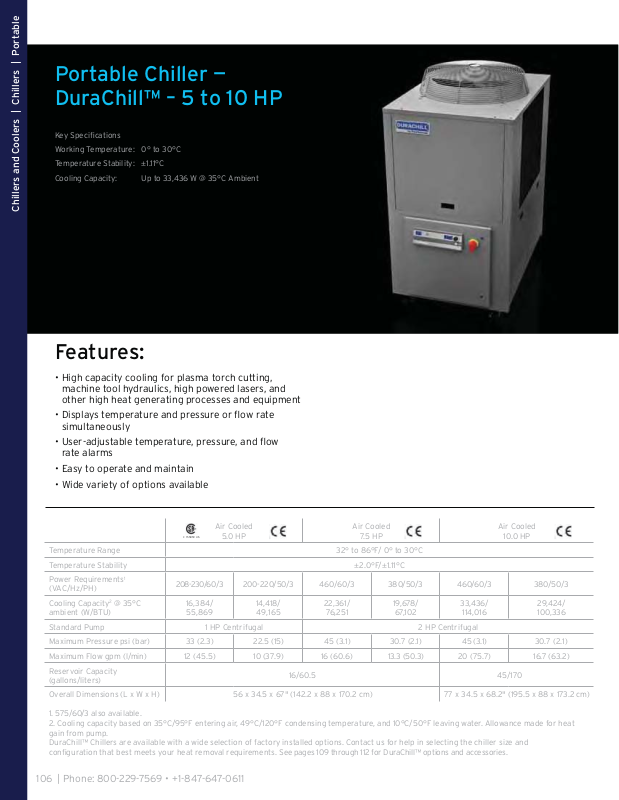

PolyScience 208-230-60-3, 200-220-50-3, 460-60-3, 380-50-3 Data sheet

Chillers and Coolers | Chillers | Portable

Portable Chiller —
DuraChill™ – 5 to 10 HP

Key Specifications

Working Temperature: 0° to 30°C

Temperature Stability: ±1.11°C

Cooling Capacity: Up

to 33,436 W @ 35°C Ambient

Features:

 High capacity cooling for plasma torch cutting,

machine tool hydraulics, high powered lasers, and
other high heat generating processes and equipment

 Displays temperature and pressure or flow rate

simultaneously

 User-adjustable temperature, pressure, and flow

rate alarms

 Easy to operate and maintain
 Wide variety of options available

16,384/
55,869

Air Cooled

5.0 HP

14,418/
49,165

16/60.5

C 155859 US

Temperature Range 32° to 86°F/ 0° to 30°C

Temperature Stability ±2.0°F/±1.11°C

Power Requirements1
(VAC/Hz/PH)

2

Cooling Capacity
ambient (W/BTU)

Standard Pump 1 HP Centrifugal

Maximum Pressure psi (bar) 33 (2.3) 22.5 (15) 45 (3.1) 30.7 (2.1) 45 (3.1) 30.7 (2.1)

Maximum Flow gpm (l/min) 12 (45.5) 10 (37.9) 16 (60.6) 13.3 (50.3) 20 (75.7) 16.7 (63.2)

Reservoir Capacity
(gallons/liters)

Overall Dimensions (L x W x H) 56 x 34.5 x 67" (142.2 x 88 x 170.2 cm) 77 x 34.5 x 68.2" (195.5 x 88 x 173.2 cm)

@ 35°C

208-230/60/ 3 200-220/50/3 460/60/3 380/50/3 460/60/3 380/50/3

22,361/

76,251

Air Cooled

7.5 HP

19,678/

67,102

2 HP Centrifugal

33,436/

114,016

Air Cooled

10.0 HP

29,424/
100,336

45/170

1. 575/60/3 also available.

2. Cooling capacity based on 35°C/95°F entering air, 49°C/120°F condensing temperature, and 10°C/50°F leaving water. Allowance made for heat
gain from pump.
DuraChill™ Chillers are available with a wide selection of factory installed options. Contact us for help in selecting the chiller size and
configuration that best meets your heat removal requirements. See pages 109 through 112 for DuraChill™ options and accessories.
