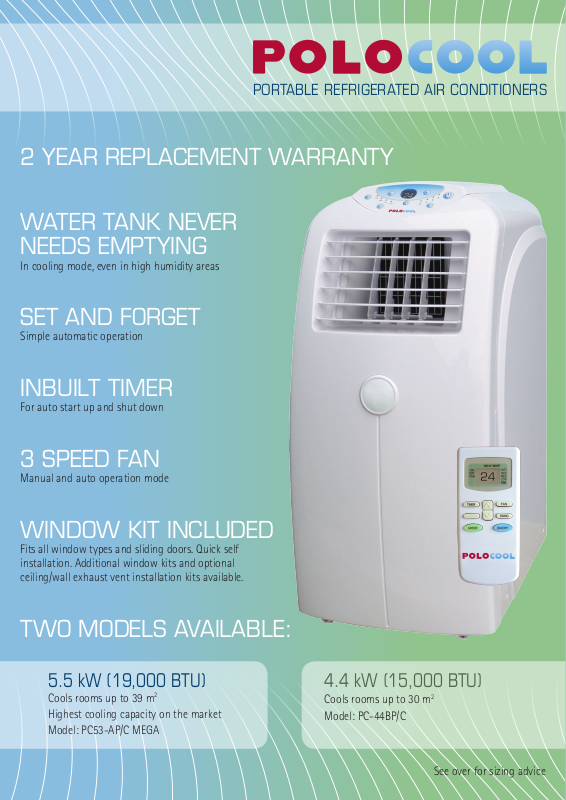

Polo Cool PC-53AP, PC-53AC, PC-44BP, PC-44BC User Manual

PORTABLE REFRIGERATED AIR CONDITIONERS

2 YEAR REPLACEMENT WARRANTY

WATER TANK NEVER
NEEDS EMPTYING

In cooling mode, even in high humidity areas

SET AND FORGET

Simple automatic operation

INBUILT TIMER

For auto start up and shut down

3 SPEED FAN

Manual and auto operation mode

WINDOW KIT INCLUDED

Fits all window types and sliding doors. Quick self
installation. Additional window kits and optional
ceiling/wall exhaust vent installation kits available.

TWO MODELS AVAILABLE:

5.5 kW (19,000 BTU)

Cools rooms up to 39 m
Highest cooling capacity on the market
Model: PC53-AP/C MEGA

2

4.4 kW (15,000 BTU)

Cools rooms up to 30 m
Model: PC-44BP/C

2

See over for sizing advice

PORTABLE REFRIGERATED AIR CONDITIONERS

cool air

room air

hot air

(outside)

HOW YOUR POLOCOOL PORTABLE REFRIGERATED AIR CONDITIONER WORKS

- Air from the room is drawn into the air conditioner, cooled by refrigeration and blown into the
room through the front grill.

- Hot air is blown outside through the exhaust hose, using the window kit supplied with the
air conditioner.

- Hot air must be exhausted outside the room being cooled, or you will not cool the room.

WHICH MODEL IS RIGHT FOR ME?

The ability of an air conditioner to cool the air in a room depends on a number of factors including:

- The orientation of the room and windows to the sun – rooms facing North and West are exposed to the midday and afternoon sun
and are the hottest in the house.

- How well the room is insulated and windows protected from direct sun light.

- How well protected the room is from draughts.

- If the room is located in an upper storey of a multi-storey building.

Use the following table as a guide when choosing which model is right for you.

IDEAL CONDITIONS: Well insulated and sealed ground floor room with external walls facing East and/or South.

ADVERSE CONDITIONS: Uninsulated, draughty, upper storey room with one West facing external wall.

EFFECTIVELY COOLS ROOMS OF FLOOR AREA (square metres)

MODEL

COOLING CAPACITY

UNDER IDEAL CONDITIONS UNDER ADVERSE CONDITIONS

PC-53AP/C MEGA 5.5 kW (19,000 BTU) 39 m

PC-44BP/C 4.4 kW (15,000 BTU) 30 m

2

2

The higher the cooling capacity (measured in kW or BTU) of an air conditioner, the bigger the room it will cool. If in doubt, select the model
with the highest cooling capacity.

18 m

9 m

2

2

PLEASE CONSULT WITH YOUR RETAILER FOR FURTHER ADVICE IF YOU ARE UNCERTAIN WHICH MODEL BEST
SUITS YOUR CIRCUMSTANCES.

SPECIFICATIONS

Model PC-53AP/C PC-44BP/C

Function Cooling Only Cooling Only

Power Supply 240 Volts, 50 Hz 240 Volts, 50 Hz

Input Power 2300 Watts 1750 Watts

Cooling Capacity 5.5 kW (19,000 BTU) 4.4 kW (15,000 BTU)

Refrigerant Charge R410a / 0.79 kg R410a / 0.70 kg

Weight 45 kg 41 kg

Dimensions (WxHxD) - mm 365 x 775 x 565 365 x 775 x 565

Exhaust Tube Length 1500 mm fully extended 1500 mm fully extended

Exhaust Tube Diameter 150mm 150mm
