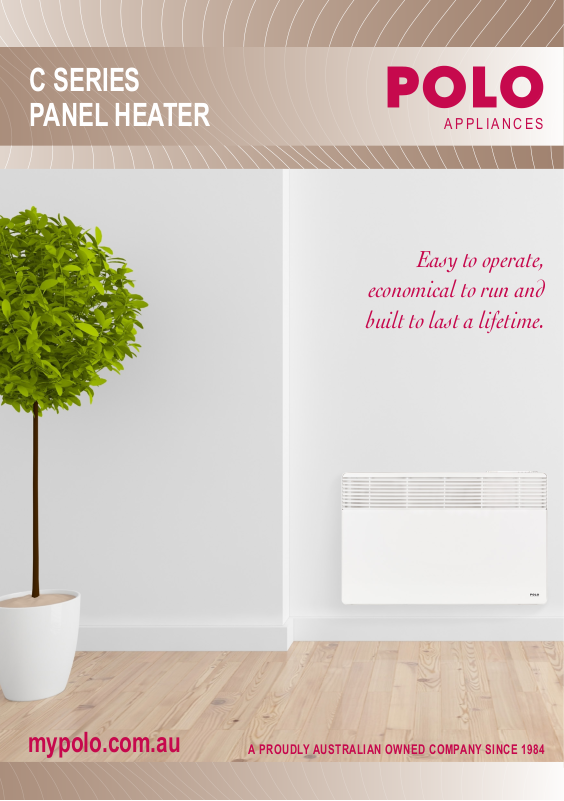

Polo Cool C100 User Manual
POLO
APPLIANCES
C SERIES
PANEL HEATER
Easy to operate,
economical to run and
built to last a lifetime.
mypolo.com.au
A PROUDLY AUSTRALIAN OWNED COMPANY SINCE 1984
POLO
APPLIANCES
FEATURES
Designed in Australia to exacting standards
World’s best quality components
Heavy-duty cabinet designed to last a lifetime
Lifetime warranty
Top mounted controls for ease of access
Portable or wall mounted
Ultrafast heat up time
Temperature dial marked in degrees C
Economical to run with 100% efficiency
Cabinet size designed to optimise air intake
and dispersion
Standby power usage less than $3 per year
Safe front surface temperature
Safety cutout switches for overheat and tilt
Lockable childproof control panel cover
IP24 approval for use in bathrooms
One piece aluminium element
Completely silent
Perfect for use in bedrooms
Electronic 7 day timer models with manual
override
Temperature range 5-30°C accurate to +/- 0.1°C
Time always displayed and programs
always retained even when not plugged in to
mains power
WHAT SIZE DO I NEED?
The Polo ‘C’ series range of panel heaters consists of four different heating capacities and 8 models – four manual
‘C’ models and four with a 7 day digital timer ‘CT’ models.
Determining the correct sized heater will ensure optimum performance and economical running. As a rough guide use 100
watts per square metre of floor area (with standard ceiling insulation). For accurate sizing consult your heating dealer.
MODEL
C without timer
CT with timer
C100, CT100
C150, CT150
C200, CT200
C240, CT240
Note (1) Running cost calculations assume cycling of 50%. Your tariff rate (see your latest power bill) and hourly running
costs may be different to the ones stated.
Note (2) Slightly less or greater areas may be covered depending upon ceiling height, window area and coverings, building
construction and insulation properties. If in doubt select a higher rated heater, as undersizing will result in higher
running costs.
RATING
1000 w 10 13 15
1500 w 15 19 23
2000 w 20 25 30
2400 w 24 30 36
APPROX RUNNING
COST c/kWh
Tariff c/kWh
20 25 30
DIMENSIONS
WxHxD (mm)
545 x 452 x 75
700 x 452 x 75
890 x 452 x 75
1035 x 452 x 75
APPROX
AREA
HEATED
10 m2Bathroom, ensuite, study, small bedroom
15 m2Medium bedroom, home ofce
20 m2Living area, large bedroom
24 m2Larger living area, hallway
SUGGESTED PLACEMENT
WALL MOUNTED OR MOBILE
All POLO ‘C’ series panel heaters are supplied with a metal mounting bracket designed for permanent fixing to a wall and feet
with castors for portability.
POLO ABN 80 749 103 558
Designers, manufacturers and importers of heating and cooling products.
17 Brett Drive, Carrum Downs, VIC 3201
Phone: (03) 9775 1022 Fax: (03) 9775 1400
www.mypolo.com.au www.polocool.com.au
