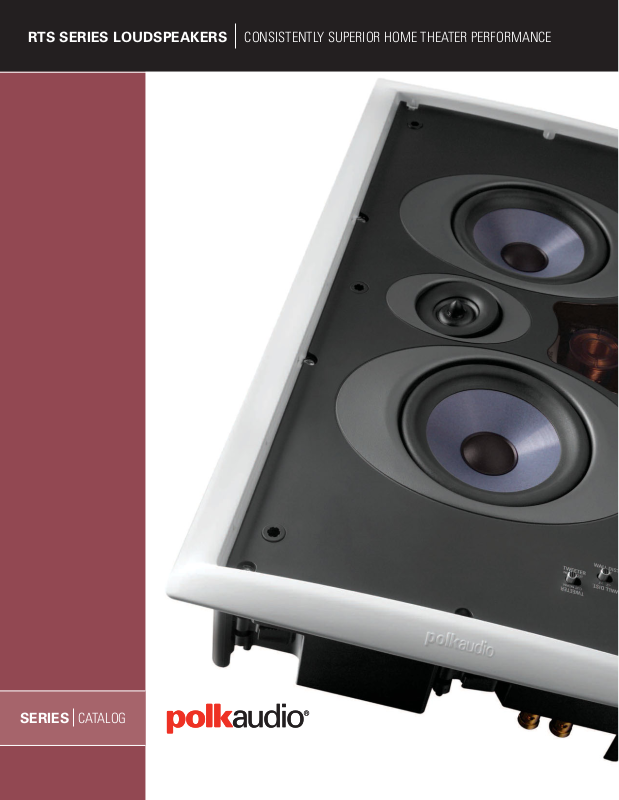

RTS SERIES LOUDSPEAKERS CONSISTENTLY SUPERIOR HOME THEATER PERFORMANCE
SERIES CATALOG
2 RTS SERIES LOUDSPEAKERS
LCi- RTS105, LCi -RTS100
Both the LCi-RTS105 and LCi-RTS100 feature a integrated
“perfect volume” performance enclosure to ensure superb
performance every time. Because the performance enclosure
is the same size as the cutout, each installs easily in a post
construction project.
Stud-Lock Mounting System
™
(patent pending-sold
separately) creates a rigid platform for the LCi-RTS105,
increasing bass performance, clarity and reducing
unwanted structure borne vibration.
®
THX
Ultra 2-certified, so you’re assured of great
surround sound performance and exceptional
dynamic range.
Aerated polypropylene Dynamic Balance
®
cones
(two 5 1/4" drivers) have lower excursion rates
and therefore less distortion for better sound.
They are stiff yet lightweight for superb mid-range
clarity, punchy bass and high efficiency. These cones
are 20% lighter than conventional polypropylene
and 35% lighter than aluminum cones.
The Ring Radiator tweeter design, found in
freestanding speakers, delivers smooth,
extended highs with excellent accuracy and
astonishing detail. A redesigned faceplate
geometry refines off-axis characteristics.
LCi- RTS105
OVERALL DIMENSIONS:
21 3/4" H X 12" W X 3 11/16" D (55.2CM H X 30.4CM W X 9.4CM D)
OVERALL FREQUENCY RESPONSE 50Hz - 27kHz.
LCi- RTS100
OVERALL DIMENSIONS:
14" DIAMETER X 8 3/4" DEPTH (35.6CM DIAMETER X 22.2CM DEPTH)
OVERALL FREQUENCY RESPONSE 50Hz - 27kHz.
SEE SPECIFICATIONS FOR MORE DETAILED PRODUCT INFORMATION.
MATTE WHITE (PAINTABLE)
polk
tec hnology
LCi-RTS105 LCi-RTS100LCi-RTS100
DYNAMIC BALANCE
Advanced laser imaging technology allowed Polk Audio engineers to see the entire vibrating surface of a driver
and tweeter; they could actually see the resonance develop on the speaker cones—resonance that is the root
cause of loudspeaker distortion (A). Being able to see the resonance develop, they determined the “Dynamic
Balance” of high-tech materials, geometry and construction that effectively tune out the offending resonance (B).
Exclusive Dynamic Balance Composite Material Technology delivers sound |that’s effortlessly clean and clear,
even at lifelike volume. See more about Dynamic Balance at www.polkaudio.com/catalog/technology/.
®
A
B
WWW.POLKAUDIO.COM 3
LCi-RTSF/X®,LCi-RTSC
Like the other models in the LCi-RTS Built-In Series, these new
loudspeakers have been “engineered for predictably superior
home theater performance.” Both models feature technologies
used in Polk’s critically acclaimed LSi Series of freestanding
speakers to deliver the sound quality of stand-alone models.
Integrated Performance Enclosure—(LCi-RTS
F/X) This feature
is the same proven integrated “perfect volume” performance
enclosure found on the LCi-RTS105.
Stud-Lock Mounting System
™
(LCi-RTSF/X) creates a rigid
platform, improving bass performance, clarity and
reducing unwanted structure-borne vibration.
®
THX
Ultra2 certified, so you’re assured of great surround
sound performance and exceptional dynamic range.
Aerated Polypropylene Dynamic Balancecones possess
an ideal balance of stiffness, damping and low mass
for superb clarity, detail and high efficiency.
Ring radiator tweeter design, found in freestanding
speakers, delivers smooth high frequency extension
with excellent clarity and detail.
Cascade Tapered Array—(LCi-RTS
C) employs two 5 1/4"
APP cone drivers. One driver plays only bass frequencies,
the other bass and midrange, for broad, even sound
coverage for off-axis listeners.
Rigid MDF Performance Enclosure (supplied with LCi-RTS
C)
helps ensure predictable high performance as it maximizes
sound isolation with adjacent rooms.
Two grilles—One cloth grille for maximum sonic performance,
one aluminum mesh for a more traditional appearance.
Room Environment Controls—Refined Wall Distance
(LCi-RTS
F/X) lowers output only in the low-midrange/upper
bass to eliminate “boomyness.”
Tweeter attenuation switches (LCi-RTS
F/X &LCi-RTSC) engage
a pass-band filter to compensate for overly reflective rooms,
decreasing unwanted glare and harshness without
decreasing the high-end frequencies.
Solid/diffuse switch (LCi-RTS
F/X) affords greater placement
flexibility for the surround effect you desire.
LCi-RTSF/X
OVERALL DIMENSIONS:
21 13/16" H X 12" W X 4 1/4" D (55.3CM H X 30.5CM W X 10.8CM D)
OVERALL FREQUENCY RESPONSE 50Hz - 27KHz.
LCi-RTS
C
OVERALL DIMENSIONS:
8 15/16" H X 15 5/8" W X 4 " D (22.60CM H X 39.7CM W X 9.4CM D)
OVERALL FREQUENCY RESPONSE 50Hz - 27kHz.
SEE SPECIFICATIONS FOR MORE DETAILED PRODUCT INFORMATION.
LCi-RTSF/X
MATTE WHITE (PAINTABLE)
LCi-RTS
C
RING RADIATOR TWEETER
The Ring Radiator Tweeter, usually found only in speakers costing thousands more than
Polk speakers, gives the LCi Series its incredible accuracy and astonishing detail, to reveal
the nuances of your favorite CDs, high definition discs and LPs. The ultra-light woven ring
radiator diaphragm is supported at two hinge points (A & B) and is driven by a centrally
positioned voice coil (C). With a higher ratio of supported material than conventional
tweeters, there’s less opportunity for performance-robbing resonance to develop. This
remarkable tweeter delivers accurate high frequencies with precise detail and wide
dispersion. See more about The Ring Radiator at www.polkaudio.com/catalog/technology/.
polk
technology
B
A
C
RTS SERIES LOUDSPEAKERS PRODUCT SPECIFICATIONS
CUSTOM INSTALL
LOUDSPEAKERS LCi-RTS105 LCi-RTS100
Driver Complement 2 - 5 1/4" (13.3cm) Aerated Polyproylene 2 - 5 1/4" (13.3cm) Aerated Polyproylene
Dynamic Balance mid/bass drivers, Dynamic Balance mid/bass drivers,
- 1" (2.5cm) Ring Radiator tweeter 1 - 1" (2.5cm) Ring Radiator tweeter
1
hape rectangle round
S
Frequency Response: Overall / -3db 50Hz - 27kHz / 80Hz - 26kHz 50Hz - 27kHz / 80Hz - 26kHz
Impedance compatible with 4 Ohms outputs compatible with 4 Ohms outputs
Recommended Amplification 10 - 250 Watts/channel 10 - 200 Watts/channel
Efficiency 92dB 92dB
vailable Finish matte white (paintable) matte white (paintable)
A
Product Weight / Shipping Weight 12.5 lbs /16.60 lbs each 12.5 lbs /17.0 lbs each
5.7 kg / 7.5 kg each) (5.7 kg / 7.7 kg each)
(
Overall Dimensions
the deepest component to the back of the baffle) (55.56cm H x 30.4cm W x 9.4cm D) (35.6cm Diameter x 22.2cm Depth)
Depth assuming 1/2" Drywall 3 1/4" (8.25cm) 8 1/4" (20.6cm)
CutoutDimensions 201/8"Hx105/8"W 121/2" Diameter x 8 3/4" Depth
Features Stud-Lock Mounting System, Stud-Lock Mounting System,
(Depth measured from 21 7/8" H x 12" W x 3 11/16" D 14" Diameter x 8 3/4" Depth
(51.12cm H x 27cm W) (31.8cm Diameter x 22.2cm Depth)
THX Ultra2 certified, THX Ultra2 certified,
Room Environment Controls Room Environment Controls
CUSTOM INSTALL
LOUDSPEAKERS LCi-RTSF/X LCi-RTSC
Driver Complement 2 - 3 1/2" Diameter (8.89cm) Aerated 2 - 5 1/4" Diameter (13.34cm) Aerated
Polypropylene Dynamic Balance driver cones, Polypropylene Dynamic Balance driver cones,
1 - 6 1/2" Aerated Polypropylene Dynamic 1 - 1" Diameter (2.54cm)
Balance driver cones, Ring Radiator tweeter
2 - 3/4" Diameter (1.91cm) Ring Radiator tweeters
Frequency Response: Overall / -3db 50Hz - 27kHz / 80Hz - 26Hz 50Hz - 27kHz / 80Hz - 26Hz
Impedance 4 Ohms 4 Ohms
Recommended Amplification 10 - 250 Watts/channel 10 - 250 Watts/channel
Efficiency 88 dB 92 dB
Available Finish matte white (paintable) matte white (paintable)
Product Weight / Shipping Weight 10.75 lbs each / 36.8 lbs pair 8.7 lbs / 36.65 lbs each
(4.88 kg each/ 16.69 kg pair) (3.97 kg / 10.73 kg each)
Overall Dimensions
the deepest component to the back of the baffle) (30.5cmWx55.3cmH) (39.7cm W x 22.60cm H)
(Depth measured from 12" W x 21 13/16" H 15 5/8" W x 8 15/16" H
Depth assuming 1/2" Drywall 3 3/4" (9.5cm) 2 7/8" (7.3cm)
Cutout Dimensions 10 3/4" W x 20 1/4" H 13 1/8" W x 7 5/8" H
(27.31cm W x 51.5cm H) (33.34cm W x 19.5cm H)
Overall Depth 4 1/4" (10.8cm) 3 3/8" (8.57cm)
Inputs heavy duty spring loaded terminals heavy duty spring loaded terminals
We’re fanatics when it comes to providing you useful, accurate information that can help you evaluate our products. But as we all know,
we live in an imperfect world. At least some of us do. That’s why performance specifications and product dimensions are subject to
change without notice. For the most current specifications see our website, www.polkaudio.com/home.
