HD-Ready Widescreen LCD TV with PAL/SECAM Tuner
©2006 by . All rights reserved.
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
Changes are periodically made to this document. Changes, technical inaccuracies, and
typographic errors will be corrected in subsequent editions.
For service, support and warranty information, visit www.polaroid.com.
This product contains electrical or electronic materials. The presence of these materials may,
if not disposed of properly, have potential adverse effects on the environment and human
health. Presence of this label on the product means it should not be disposed of as unsorted
waste and must be collected separately. As a consumer, you are responsible for ensuring that
this product is disposed of properly. To fi nd out how to properly dispose of this product, please
go to www.polaroid.com and click on “Company“ or call the customer service number for your
country listed in the instruction manual.
This TV incorporates High-Defi nition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Warnings and Precautions
Warnings and Precautions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
This symbol is intended to alert the user to avoid the risk of electric shock.
WARNING
CAUTION
This equipment must not be disassembled by anyone except qualifi ed service personnel.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
To reduce the risk of fi re or electric shock, do not expose this equipment to rain or moisture.
▪ TO REDUCE THE RISK OF ELECTRIC SHOCK,
▪ DO NOT REMOVE COVER (OR BACK).
▪ NO USER-SERVICEABLE PARTS INSIDE.
▪ REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls, adjustments or performance of procedures other than those specifi ed herein
may result in hazardous radiation exposure.
Important Safety Instructions
This symbol indicates caution points.
This symbol indicates actions that should not be done.
This symbol indicates actions that must be performed.
ENGLISHENGLISH
▪ Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
▪ Use only a cart or stand recommended by the manufacturer. This equipment and
recommended cart or stand should be handled with care. Quick stops, excessive force, and
uneven surfaces may cause the equipment and cart/stand to overturn.
▪ Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an
important feature. Removing the grounding pin will increase the risk of damaging the
equipment.
▪ If you can not fi t the plug into the electrical outlet, contact an electrician to install a grounding
outlet.
▪ Always operate this equipment from the type of power source indicated on the rear of the
serial/model information label.
▪ Never overload wall outlets and extensions.
1
Warnings and Precautions
▪ Use and handle the power cord with care. Do not place any heavy objects on the AC
power cord.
▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.
▪ Do not touch the power cord and antenna cable during lightning.
▪ Remove the plug from the wall outlet, if the equipment will not be used for a long period
of time.
▪ Do not place, use or handle this equipment near water.
▪ Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
▪ Do not expose the equipment to extreme temperature or to direct sunlight, as the
equipment may heat up and suffer damage.
▪ Do not install the equipment near any heat sources such as radiators, heat registers,
stoves, or any other apparatus that might produce heat.
▪ Do not attempt to service the equipment yourself.
▪ Opening and removing the covers may expose you to dangerous voltage or other
hazards and may void your warranty. Refer service to qualifi ed personnel.
▪ Do not place or drop any other objects on top.
▪ Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or fl ammable objects may result to fi re or electric shock.
▪ Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage
to the equipment itself. Always place the equipment on the fl oor or on a surface that is
sturdy, level, stable and strong enough to support the weight of the equipment.
▪ Do not block any ventilating openings. Leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
▪ Unplug this apparatus during lightning storms or when unused for long periods of time.
▪ Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
▪ Always remove the power cord from the outlet before cleaning the equipment.
▪ Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
▪ Only use attachments/accessories specified by the manufacturer.
2
Outdoor Antenna Safety Instructions
Warnings and Precautions
If an outdoor antenna is connected, follow the precautions below:
▪ An outdoor antenna should not be located in any area where it could come in contact with
overhead power lines, or any other electric light or power circuits.
▪ When installing an outdoor antenna system, extreme caution should be taken to prevent
contact with power lines. Direct contact with power lines may be fatal and should be avoided
at all costs.
Ground clamps
Electric service
equipment
ENGLISHENGLISH
Antenna lead-in wire
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
3
CONTENTS
Warnings and Precautions
Important Safety Instructions .......................................................................................1
Antenna Safety Instructions ......................................................................................... 3
Chapter 1 Introducing the LCD TV
Key Features ...............................................................................................................5
Package Contents .......................................................................................................6
Setting Up Your LCD TV ..............................................................................................7
Your LCD TV ................................................................................................................ 9
Your Remote Control ..................................................................................................11
Chapter 2 Installing the LCD TV
Connecting a TV Cable or an Antenna ......................................................................13
Connecting an A/V Device with Composite Connector .............................................. 18
Connecting an A/V Device with S-Video Connector ..................................................19
Connecting an A/V Device with Component(YPbPr) Connector................................20
Connecting an A/V Device with SCART Connector ...................................................21
Connecting an AV Equipment with HDMI Connector ................................................. 22
Connecting an AV Equipment with DVI Connector ....................................................23
Connecting a PC........................................................................................................ 24
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System........................26
Chapter 3 USING THE FEATURES
Operating the Menu ..................................................................................................................................... 26
Customizing the Picture Settings ...........................................................................................................29
Customizing the AUDIO Settings ...........................................................................................................31
Customizing the OSD SETUP Settings ..............................................................................................32
Customizing the TV Settings ....................................................................................................................33
Customizing the VGA Settings ................................................................................................................35
Troubleshooting .................................................................................................... 36
Specifi cations ........................................................................................................37
4
Chapter 1 Introducing the LCD TV
Chapter 1
Introducing the LCD TV
Key Features
Various Audio/Video terminals for external equipment connection
▪ 1 composite video input terminal
▪ 1 S-VIDEO terminal
▪ 1 SCART input terminal
▪ 1 set of component Video input terminals
▪ 1 VGA terminal
▪ 1 VGA LINE IN terminal
▪ 1 HDMI input terminal
▪ 1 set of Audio(L/R) output terminals for composite C-VIDEO/S-VIDEO
▪ 1 SPDIF output terminal
▪ 1 Headphone terminal
High De nition Multimedia Interface (HDMI)
▪ High Defi nition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(480p) and digital set-top-box (HD1080i, 720p)
connections.
ENGLISH
2D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection
▪ This function can automatically detect content derived from fi lm and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
5
Chapter 1 Introducing the LCD TV
Package Contents
Make sure all of the following contents are included.
LCD TV
Video Cable
Power Cord
The power cord type may be different
depending on your country’s power
type.
Remote Control/
AAA Batteries x 2
Component Cable
Audio Cable
Quick Guide
Warranty Card
User Guide
VOL. CH.
INPUT
S.MODE
SCALE
ENT
P.MODE
These items are all you need to set up and operate the LCD TV in its basic confi guration.
Make sure all of the following contents are included. If you are missing any items,
please return this product to the original place of purchase or contact Polaroid directly.
6
Setting Up Your LCD TV
Chapter 1 Introducing the LCD TV
How to install the TV Stand
Follow the instructions below to install the TV stand:
Open the box, and make sure all necessary parts are in the box. The package
contains:
Stand
LCD TV
Cover an even stable surface with a soft cloth. Place the LCD TV unit face-
down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown:
Then push until stand clicks into the LCD TV’s stand socket.
ENGLISH
To Remove the LCD TV’s stand socket for wall mounting:
Ensure the stand base is removed. For wall mounting the stand socket attached to the back of the TV should be
detached. Using a Phillips screwdriver remove the screw which is inside the stand socket. The stand socket section
should then slide off the locator rod connected to the TV.
To attach this LCD TV to a wall a standard 100x100 VESA mounting bracket is required.
7
Chapter 1 Introducing the LCD TV
How to setup the TV
Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal
(refer to page 15-18).
Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
Insert the 2 batteries supplied in remote control.
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Step2 Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner
etc.) on the remote, as it may su er damage.
Connect another external AV device (refer to page 18-25).
8
Your LCD TV
Chapter 1 Introducing the LCD TV
Front/Left /Right Side View and Controls
VOLUME
+-
Adjusts the volume up and down.
Selects the main-menu item and change
VOL.+
values for items when in the OSD mode.
Front View
IR
Infrared Receiver
LED
The LED light indicates when the
LCD TV is activated.
HEADPHONE
Connects to the external
headphone for private listening.
ENGLISH
Left Side ViewRight Side View
VOL.-
CH.
CH.
MENU
INPUT
CHANNEL▲▼
Scans up and down through channels.
Selects sub-menu item when in the OSD
mode.
MENU
Press once to display the OSD (on screen
display), press again to turn the OSD off.
INPUT
Chooses from different input signal sources.
Turns the LCD TV on and into standby mode.
9
Chapter 1 Introducing the LCD TV
Rear View and Jacks
VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable
to receive standard defi nition television.
S-VIDEO/VIDEO/AUDIO(L/R) IN
Connects to the S-Video/Composite VIDEO and AUDIO(L/R) output
jacks on external video equipment. (S-VIDEO and Video have a
common audio input.)
YPbPr IN
Connects to the DVD player, Digital Set-Top-Box, or
other AV equipment with component(YPbPr) video
and audio output jacks.
HDMI
YPbPr
LR
AUD IO IN
VIDEOS-VIDEO
COAXIAL
AUD IO IN
PC/VGA IN
PC AUDIO IN
AC IN
Connects to the AC
power cord.
POWER SWITCH
Turns the LCD TV on and off.
VGA IN/ VGA LINE IN
Connects the PC, or other AV
equipment with VGA and AUDIO
output jacks.
HDMI IN
Connects the all digital AV equipment with HDMI connector.HDMI
supports enhanced, high-defi nition video and two-channel digital audio.
SCART IN
Connect to external equipment with scart socket. This scart input allows video/
audio in+RGB+video/audio out from an external devise to be shown on your TV.
SPDIF OUT
Connects to the audio jack on the digital/standard 5.1 audio system.
SCAR T
LR
10
VHF/UHF IN
Your Remote Control
Chapter 1 Introducing the LCD TV
2
2
3
3
6
6
7
7
9
9
10
10
11
11
VOL. CH.
S.MODE
INPUT
SCALE
ENT
P.M OD E
POWER Turns the LCD TV on and off.
1
2
I-II Cycles through the TV sound options
2
ENGLISH
(NICAN) : MONO/DUAL/STEREO
3
1
1
4
4
5
5
Mutes and restores your LCD TV
sound.
SCALE Cycles through Wide mode settings :
4
In TV/AV/S-VIDEO/SCAR T mode:
NORMAL /FULL/ZOOM1/ZOOM2
In YPbPr/HDM mode, only 480i
and 576i mode can be adjusted :
NORMAL /FULL/ZOOM1/ZOOM2
8
8
In VGA/DVI mode,”Scale”
function is not available
Turns on and off the Teletext function.
5
SLEEP Cycles through the LCD TV sleep time.
12
12
6
DISPLAY Pressing once displays a variety of
7
information such as the current channel
and the input source.
0-9/ENT Pressing a number selects a channel.
8
Following selection, pressing ENT
activates the channel, or channel
activates automatically in 3 seconds.
JUMP Switches back and forth between the
9
TV TV Pressing enters the TV Mode.
10
current and previous channels.
VOL.+- Increases and decreases volume.
11
CH.+- Scans up and down the channels.
12
11
Chapter 2 Installing the LCD TV
VOL. CH.
INPUT
13
14
16
S.MODE
17
20
21
SCALE
ENT
P.M OD E
13
INPUT Pressing INPUT displays the source
list, use ▲▼ to select the video
equipment connected to the video
inputs of your LCD TV
TV
AV
S-VIDEO
YPbPr
SCART
HDMI
VGA
EXIT Exits the OSD menu.
14
MENU Displays the OSD menu on the screen.
15
▲▼►◄ Cycles through OSD options and
16
OK selects individual menu items. OK
confi rms option settings.
15
S.MODE Selects sound effect options: LIVE//
17
ROCK/POP/USER.
18
P. M O D E Selects picture mode: Vivid/Movie/
Game/Sport/User
18
Press the appropriate colour to direct
19
19
Displays the main index in TELETEXT
20
22
Reveals hidden information such as the
21
23
Freezes a multi-page passage on
22
Displays the top, bottom or all of page,
23
access the colour page.
mode.
answer to a quiz in TELETEXT mode.
screen in TELETEXT mode.
to easily read in TELETEXT mode.
E ective range:
The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver.
12
Chapter 2 Installing the LCD TV
Chapter 2
Installing the LCD TV
Refer to the owner’s manual of any external equipment to be connected.
When connecting any external equipment, do not connect any AC power cords to wall outlets
until all other connections are completed.
Connecting a TV Cable or an Antenna
Antenna Connection
The antenna requirements for good color TV reception are more important than those for a black &
white TV reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connection that is provided with the various antenna
systems.
■ A 75-ohm system is generally a round cable (not included) with IEC-
type connector that can easily be attached to a terminal without
tools.
IEC-type connector
75-ohm coaxial cable (round)
■ A 300- ohm system is a at twin-lead cable (not included) that can
be attached to a 75-ohm terminal through a 300 -75-ohm adapter
(not included).
ENGLISH
300-ohm twin-lead cable ( at)
13
Chapter 2 Installing the LCD TV
Use one of the following two diagrams when connecting an outdoor antenna.
A: Shows how to use a VHF/UHF combination outdoor antenna.
B: Shows how to use a separate VHF and/or UHF outdoor antenna.
A. Combination VHF/UHF antenna
VHF/UHF
Antenna
300-ohm twinlead cable
300/75-ohm adapter
(not included)
B. Separate VHF and/or UHF antennas
75-ohm
coaxial cable
VHF/UHF
Antenna
14
Combiner
(not included)
IN
OUT
300-ohm twinlead cable
75-ohm
coaxial cable
300-ohm twinlead cable
UHF
Antenna
VHF
Antenna
Cable TV (CATV) Connection
Chapter 2 Installing the LCD TV
■ A 75-ohm coaxial cable connector is built into the set for easy hookup.
When connecting the 75-ohm coaxial cable to the set, connect the 75-
ohm cable into the ANT. terminal.
■ Some cable TV companies o er premium pay channels. Since the
signals of these premium pay channels are scrambled, a cable TV
converter/descrambler is generally provided to the subscriber by the
cable TV company.
This converter/descrambler is necessary for normal viewing of scrambled channels.
(Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown,
consult your cable TV company.)
For more specifi c instructions on installing cable TV, consult your cable TV company.
One possible method of connecting the converter/descrambler provided by your cable TV
company is shown in the diagram below.
RF switch
(not included)
2 set signal
splitter
(not included)
Cable TV Line
VHF/UHF IN
OUT
A
IN
B
Cable TV converter/
descrambler
(not included)
ENGLISH
■ The RF switch (not included) is required to provide two inputs (A and B). Setting
the RF switch to position A allows viewing of all unscrambled channels by using
the TV channel keys.
■ Setting the RF switch to position B allows viewing of all scrambled channels via
the converter/descrambler by using the converter channel keys.
15
Chapter 2 Installing the LCD TV
Use a supplied antenna cable to connect the TV signal to the LCD TV’s TV CABLE
terminal.
VHF/UHF IN
Connect the AC power cord at the back of the TV and connect the power cord to wall
outlet. Turn on the POWER SWITCH on rear of TV.
Press the button on the remote to turn on the LCD TV.
Always disconnect the LCD TV from the power outlet when the LCD TV will
not be used for a long period of time.
The POWER button on the front panel is only used for switching the LCD TV
into standby, it does not disconnect the device from the main voltage. To
completely disconnect the main voltage, please remove the power plug from
the socket.
Press the INPUT button on the remote to display the Source List. Use the ▲▼ buttons to
select TV, and press the OK button.
TV
AV
S-VIDEO
YPbPr
SCART
HDMI
VGA
16
Chapter 2 Installing the LCD TV
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the TV.
ENGLISH
C
APS ►
Fine Tune ◄ 0 ►
Add / Erase ◄ Add ►
Channel Name ◄ CVBS ►
Channel Swap 3 ► 3
Channel Reset ►
TV Setup
Press the ▼ button to select APS and press the OK button to display the Start APS
menu:
C
Country ◄ UK ►
APS
TV Setup
Select your country by the ◄► buttons.
Press the ▼ button to select APS and press the OK button.
Use the ▲▼ buttons to select the YES. The Auto Programme Scan (APS)
automatically creates a list of receivable channels. Press the EXIT button at any
time to interrupt the memorization process. (The list cannot be created if interrupted)
66.22MHz CH 1
17
Chapter 2 Installing the LCD TV
Connecting an A/V Device with Composite Connector
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
LR
AUDIO IN
SCAR T
VIDEOS-VIDEO
COAXIAL
AUDIO IN
LR
AUDIO Cable
AV Cable
VHF/UHF IN
VIDEO OUT
L
R
GAME CONSOLE
DVD PLAY ER
Use a composite cable to connect the external A/V device’s composite video/audio jacks to
the LCD TV’s VIDEO IN jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote to
select AV.
Not all A/V devices have the ability to connect to a TV. Please check your A/V devices
user guide for compatibility.
18
Connecting an A/V Device with S-Video Connector
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
LR
AUDIO IN
SCAR T
VIDEOS-VIDEO
COAXIAL
AUDIO IN
LR
AUDIO Cable
S-VIDEO Cable
VHF/UHF IN
S-VIDEO OUT
L
R
Chapter 2 Installing the LCD TV
ENGLISH
GAME CONSOLE
DVD PLAY ER
Use an audio cable to connect the external A/V device’s audio output jacks to the LCD
TV’s audio inputs. Use a S-Video cable to connect the external A/V device’s S-Video
output jack to the LCD TV’s S-Video IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote
repeatedly to select S-VIDEO.
19
Chapter 2 Installing the LCD TV

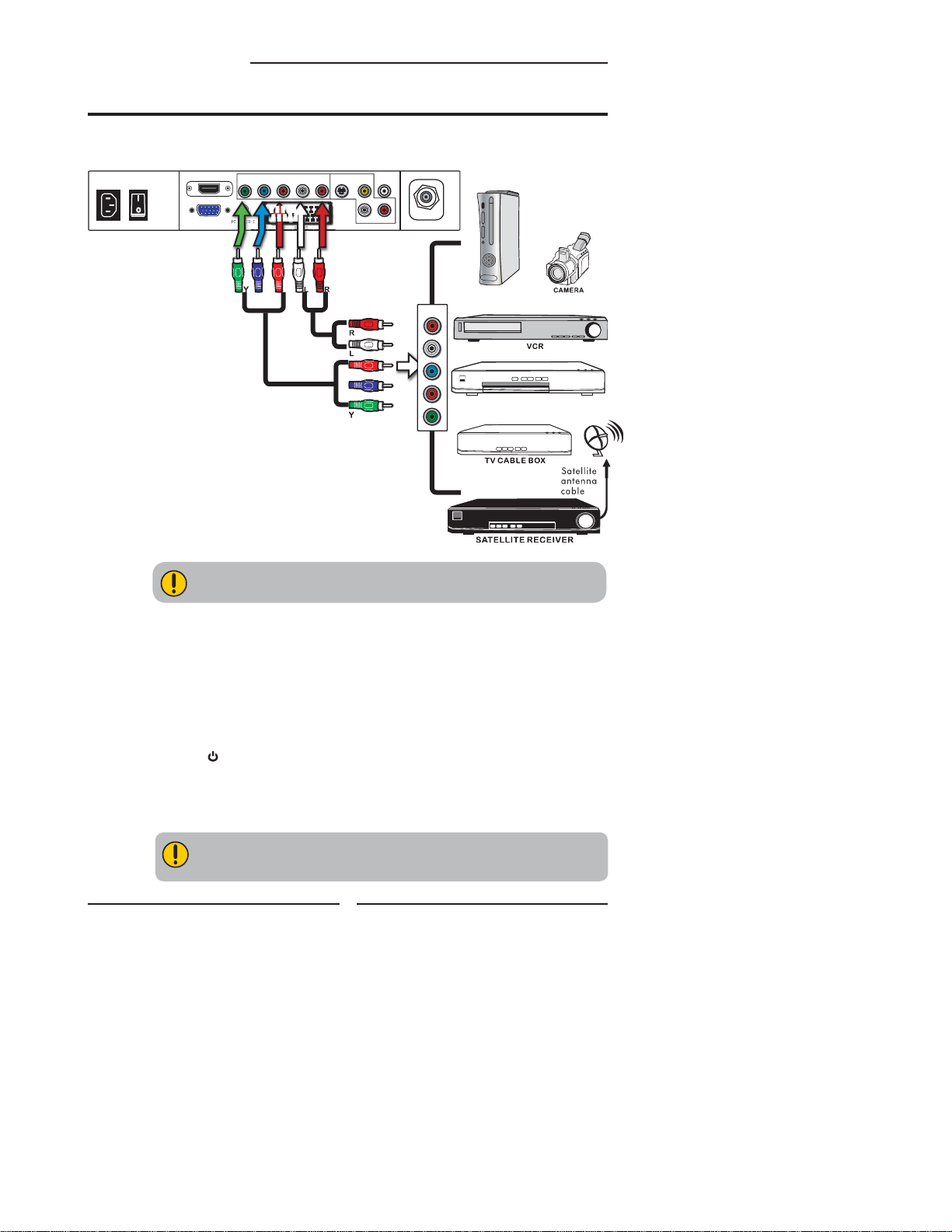

Connecting an A/V Device with Component(YPbPr) Connector
Rear of TV
HDMI
PC/VGA IN
PC AUDIO I
YPbPr
COMPONENT Cable
SCAR T
Pr
Pb
Cr
Cb
AUDIO Cable
LR
AUDIO IN
VIDEOS-VIDEO
Pr/Cr
Pb/Pb
COAXIAL
AUDIO IN
LR
VHF/UHF IN
COMPONENT
OUT
R
L
Pb
Pr
Y
GAME CONSOLE
DVD PLAY ER
Not all A/V device have the ability to connect to a TV. Please check your A/V
device user guide for compatibility.
Use a component cable to connect the external A/V device’s component output jacks to the
LCD TV’s YPbPr IN input jacks.
Use an audio cable to connect the external A/V device’s component audio jacks to the LCD
TV’s audio input jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote
repeatedly to select YPbPr.
The component video jacks on your A/V device are sometimes labeled YPbPr,
or YCbCr. For an explanation of component video, see your A/V device’s user
guide.
20
Connecting an A/V Device with SCART Connector
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
LR
AUDIO IN
SCAR T
SCART Cable
VIDEOS-VIDEO
AUDIO IN
LR
COAXIAL
VHF/UHF IN
Chapter 2 Installing the LCD TV
ENGLISH
DVD PLAYER
Use a SCART cable to connect the external A/V device’s SCART socket to the LCD TV’s
SCART IN jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the INPUT button on the remote to select SCART .
21
Chapter 2 Installing the LCD TV
Connecting an AV Equipment with HDMI Connector
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
HDMI Cable
LR
AUDIO IN
SCAR T
VIDEOS-VIDEO
AUDIO IN
LR
COAXIAL
VHF/UHF IN
AV EQUIPMENT

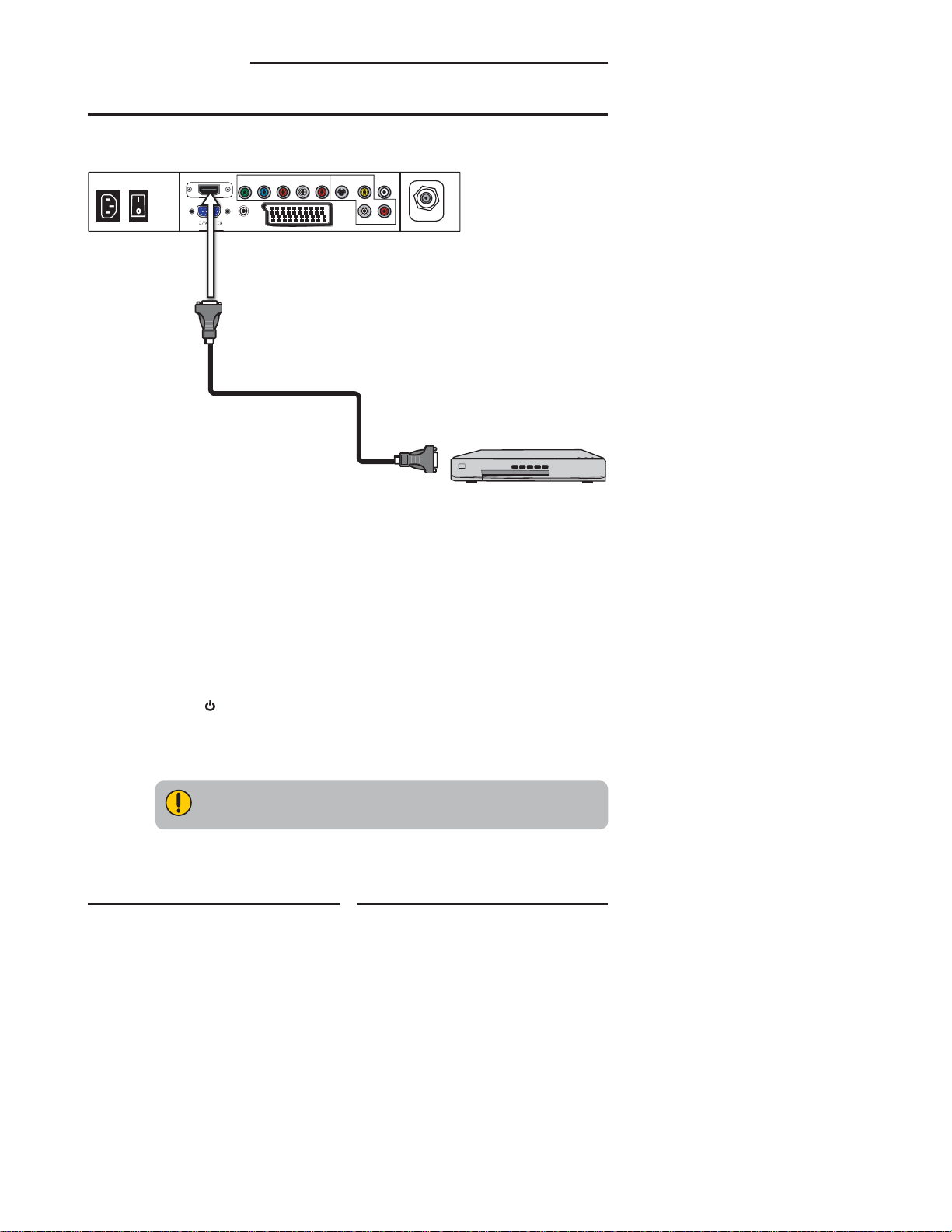

Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the Input button on the remote to select HDMI.
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
22
Connecting an AV Equipment with DVI Connector
Rear of TV
HDMI
YPbPr
PC/VGA IN
PC AUDIO IN
HDMI-to-DVI Cable
LR
AUDIO IN
SCAR T
AUDIO Cable
VIDEOS-VIDEO
AUDIO IN
LR
COAXIAL
VHF/UHF IN
Chapter 2 Installing the LCD TV
AUD IO
LR
DVI IN
ENGLISH
AV EQUIPMENT

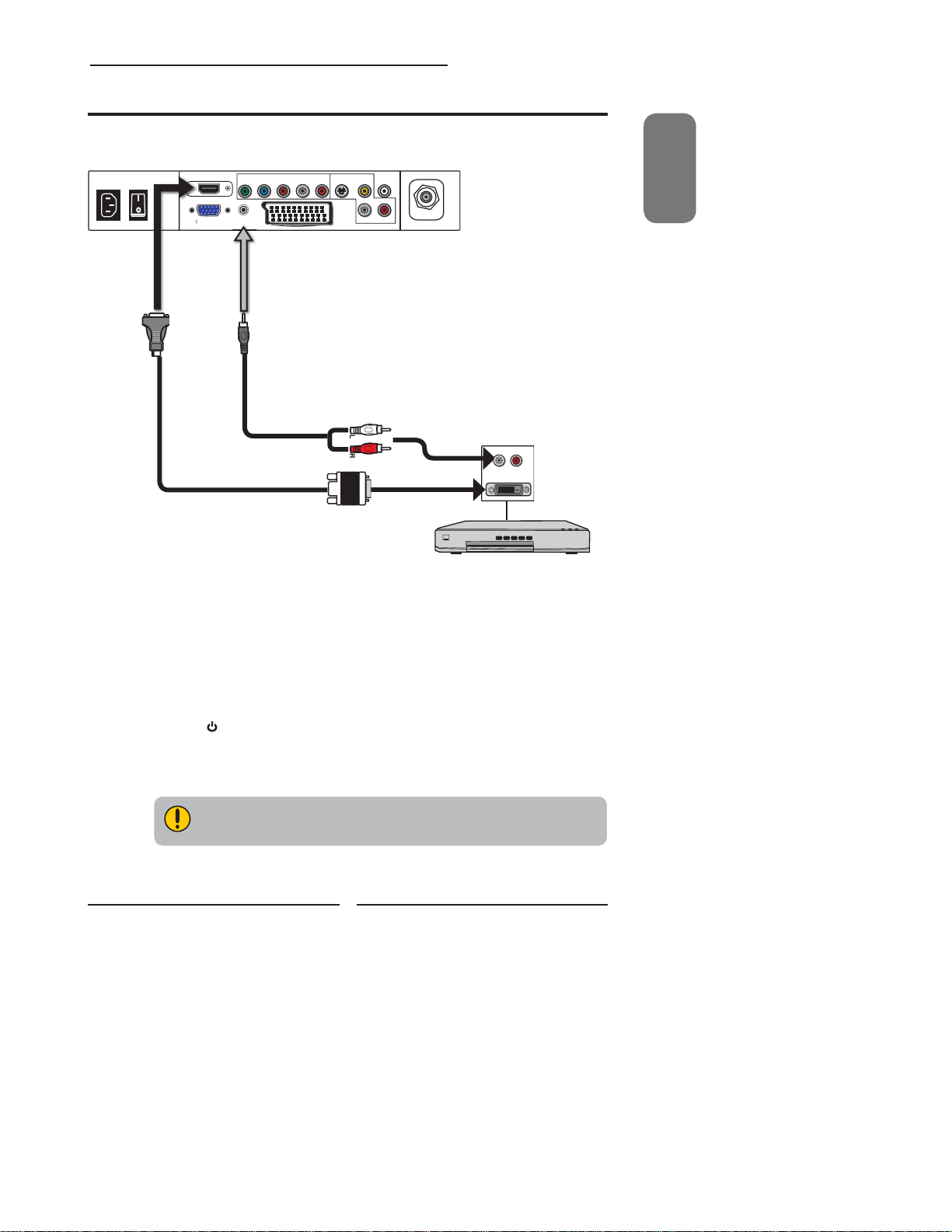

Use a HDMI-to-DVI cable to connect the AV equipment’s DVI output jack to the LCD TV’s
HDMI IN jacks.
Use an audio cable to connect the AV equipment’s audio output jacks to LCD TV’s HDMI
AUDIO jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the Input button on the remote to select HDMI.
If the LCD TV is connected to AV equipment’s DVI connector, you will need
an HDMI-to-DVI cable or an HDMI adapter(not supplied) and an audio cable.
23
Chapter 2 Installing the LCD TV
Connecting a PC
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
LR
AUDIO IN
SCAR T
AUDIO Cable
VGA Cable
VIDEOS-VIDEO
AUDIO IN
LR
COAXIAL
VHF/UHF IN
PC
Use a D-SUB cable to connect the PC’s D-SUB output jack to the LCD TV’s VGA input
jack. Use an audio cable to connect the PC’s audio output jacks to the LCD TV’s.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the INPUT button on the remote to select VGA.
24
Chapter 3 Using the LCD TV
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System
For better sound quality, you may want to play the LCD monitor audio through your stereo system.
Rear of TV
HDMI
PC/VGA IN
YPbPr
PC AUDIO IN
LR
AUDIO IN
SCAR T
Audio Receiver
VIDEOS-VIDEO
COAXIAL
AUDIO IN
LR
AUDIO Cable
VHF/UHF IN
ENGLISH
Use an audio cable to connect the audio receiver’s audio LINE IN jacks to LCD TV’s
SPDIF OUT jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
25
Chapter 3 Using the LCD TV
Chapter 3
USING THE FEATURES
Operating the Menu
Press the button to turn the LCD TV on.
Press the MENU button on the remote control, the on-screen menu will appear on the
screen. Use the ◄► buttons to select your main menu option.
PICTURE MENU:
Allows you to make adjustments to your picture settings.
▪ If the signal source is AV/S-VIDEO/YPbPr/
SCART, the Picture Menu appears as:
▪ If the signal source is TV, the Picture Menu appears
as:
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
▪ If the signal source is HDMI, the Picture Menu
appears as:
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
▪ If the signal source is VGA, the Picture Menu
appears as:
Brightness 50
Contrast 50
Scale ◄ 16 : 9 ►
Color Temp ►
26
AUDIO MENU:
Allows you to customize the audio options and effects.
▪ If the signal source is AV/S-VIDEO/YPbPr/HDMI/
SCART, the AUDIO Menu appears as:
▪ If the signal source is TV, the AUDIO Menu appears
as:
Chapter 3 Using the LCD TV
ENGLISH
Audio Setup
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
Audio Setup
▪ If the signal source is VGA, the AUDIO Menu appears as:
Audio Setup
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
OSD SETUP MENU:
Allows you to set up a variety of features: Language, factory reset, sleep timer.
▪ If the signal source is AV/S-VIDEO/YPbPr/HDMI/
SCART, the OSD Setup Menu appears as:
▪ If the signal source is TV, the OSD Setup menu
appears as:
Language ◄ English ►
OSD Setup
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
Language ◄ English ►
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
27
OSD Setup
Chapter 3 Using the LCD TV
▪ If the signal source is VGA, the OSD Setup Menu
appears as:
Language ◄ English ►
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
OSD Setup
TV SETUP MENU:
Allows you to edit and label channels.
▪ If the signal source is TV, the TV Setup Menu appears as:
C
APS ►
Fine Tune ◄ 0 ►
Add / Erase ◄ Add ►
Channel Name ◄ CVBS ►
Channel Swap 3 ► 3
Channel Reset ►
TV Setup
VGA SETUP MENU:
Allows you to setup the system function in VGA mode.
Auto Adjust ►
H-Position 50
V-Position 50
Clock 50
Phase 32
VGA Setup
Use the ▲▼ buttons to select an option of the sub-menu, and press the OK button. While in
adjustment mode, use the ◄► buttons to change the value of the item.
Press the EXIT button to exit the menu.
28
Customizing the Picture Settings
Chapter 3 Using the LCD TV
Press the button to turn the LCD TV on.
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the Picture.
Use the ▲▼ buttons to highlight an individual Picture option, use the ◄► buttons to
change the setting, and press the MENU to exit the menu
▪ If the signal source is AV/S-VIDEO/YPbPr/
SCART, the Picture Menu appears as:
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
▪ If the signal source is HDMI, the Picture Menu
appears as:
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
▪ If the signal source is TV, the Picture Menu appears
as:
PIC Mode ◄ User ►
Brightness 50
Contrast 50
Tint 50
Saturation 50
Sharpness 50
Scale ◄ Full ►
Color Temp ►
▪ If the signal source is VGA, the Picture Menu
appears as:
Brightness 50
Contrast 50
Scale ◄ 16 : 9 ►
Color Temp ►
ENGLISH
The Picture menu includes the following options:
PIC Mode Cycles among display types: Vivid/Game/Movie/Sport/User
Contrast Controls the difference between the brightest and darkest regions of
Brightness Controls the overall brightness of the picture.
Tint Controls the difference between the green and red regions of the
the picture.
picture.
29
Chapter 3 Using the LCD TV
Saturation Controls the color intensity.
Sharpness Increase this setting to see crisp edges in the picture; decrease it
for soft edges.
Scale Selects through Wide mode settings :
In TV/AV/S-VIDEO/SCART mode: NORMAL /FULL/ZOOM1/
ZOOM2
In YPbPr/HDM mode, only 480i and 576i mode can be
adjusted : NORMAL /FULL/ZOOM1/ZOOM2
In VGA/DVI mode,”Scale” function is not available
Color Temp Adjusts color components independently to achieve a warm or cool
effect: Cool/Warm/User
▪ Warm: Increases red tint
▪ Cool: Increases blue tint
▪ User: Allows the user to adjust red, green and blue color
component levels independently.
Color Temp ◄ User ►
R-Gain 50
G-Gain 50
B-Gain 50
30
Customizing the AUDIO Settings
Chapter 3 Using the LCD TV
Press the button to turn the LCD TV on.
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the AUDIO.
Use the ▲▼ buttons to highlight an individual AUDIO option, use the ◄► buttons to
change the setting, and press the MENU to exit the menu
▪ If the signal source is AV/S-VIDEO/YPbPr/HDMI/
SCART, the AUDIO Menu appears as:
Audio Setup
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
▪ If the signal source is VGA, the AUDIO Menu appears as:
Audio Setup
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
▪ If the signal source is TV, the AUDIO Menu appears
as:
Audio Setup
Sound Mode ◄ User ►
Volume 50
Bass 50
Treble 50
Balance 50
Mute ◄ On ►
ENGLISH
The AUDIO Setup menu includes the following options:
Sound Mode Allows selection of an audio-enhancement technique from among the
Volume Controls the volume.
Bass Controls the relative intensity of lower-pitched sounds.
Treble Controls the relative intensity of higher pitched sounds.
Balance Adjusts the relative volume of the speakers in a multiple speaker
Mute MUTE Allows you to mute and then restore your LCD TV sound.
following options: Live/Rock/POP/User.
system.
31
Chapter 3 Using the LCD TV
Customizing the OSD SETUP Settings
Press the button to turn the LCD TV on.
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the OSD SETUP.
Use the ▲▼ buttons to highlight an individual OSD SETUP option, use the ◄►
buttons to change the setting, and press the MENU to exit the menu.
▪ If the signal source is AV/S-VIDEO/YPbPr/HDMI/
SCART, the OSD Setup Menu appears as:
▪ If the signal source is TV, the OSD Setup menu
appears as:
Language ◄ English ►
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
▪ If the signal source is VGA, the OSD Setup Menu appears as:
Language ◄ English ►
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
OSD Setup
OSD Setup
Language ◄ English ►
Time Out 50
Transparency 50
Sleep timer ◄ 109 Min ►
Reset ►
OSD Setup
The OSD SETUP menu includes the following options:
Language Selects to display all on-screen menus in your language of choice.
Time Out Allows selection of the display time of the on-screen menu.
Transparency Controls the translucence of the OSD on-screen menus’s background.
Sleep Timer Allows selection of the time that elapses before the TV shuts off
Reset Restores factory settings.
automatically.
32
Customizing the TV Settings
Chapter 3 Using the LCD TV
Press the button to turn the LCD TV on.
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the TV Setup.
Use the ▲▼ buttons to highlight an individual TV Setup option, use the ◄► buttons
to change the settings, and press the MENU exits the menu.
C
APS ►
Fine Tune ◄ 0 ►
Add / Erase ◄ Add ►
Channel Name ◄ CVBS ►
Channel Swap 3 ► 3
Channel Reset ►
TV Setup
The TV Setup menu includes the following options:
APS
Press the OK button to display the Start APS menu:
C
Country ◄ UK ►
APS
TV Setup
ENGLISH
Press the ◄► buttons to select the country.
Country: Allows you select the country: UK, Ireland, Denmark,
Fine Tune Allows adjustment for the fi ne tune level by hand if signal is too weak or
Add/Erase Allows addition/removal of channels on the channel list.
Finland, Italy, Norway, Spain, Sweden, Luxemburg, France,
Czech., Poland, Hungary, Austria, Germany, Switzerland, Belgium,
Netherlands, other.
Press the ▲▼ buttons to select “Ye s” to start auto search and auto
sort process.
picture is blurry.
33
Chapter 3 Using the LCD TV
Channel Name Allows channel labels to be edited.
Use the ▼▲◄► buttons to select the characters (maximum of 5
characters).
Channel Swap Allows to change the TV station channel location.
Channel Reset Allows to restore default settings.
34
Customizing the VGA Settings
Chapter 3 Using the LCD TV
Press the button to turn the LCD TV on.
Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the VGA Setup.
Use the ▲▼ buttons to highlight an individual VGA Setup option, use the ◄► buttons
to change the setting, and press the MENU to exit the menu
Auto Adjust ►
H-Position 50
V-Position 50
Clock 50
Phase 32
VGA Setup
The VGA Setup menu includes the following options:
Auto Adjust Press the OK button to automatically adjust the display settings to
H-Position Adjusts the position of the picture left and right in the window.
V-Position Adjusts the position of the picture up and down in the window.
Clock Controls the width of the picture based on the VGA mode.
.
Phase Controls the signal phase, which can improve focus clarity and image
optimize performance based on the VGA mode.
stability based on the VGA mode.
ENGLISH
35
Speci cations
TROUBLESHOOTING
Before consulting service personnel, check the following chart for a possible
cause of problem and for a possible solution.
TV will not turn on
Make sure the power cord is plugged in, then press the button on the remote.
The batteries in the remote control may be exhausted.
Replace the batteries.
No picture, no sound
Check the interface cable between TV and antenna/cable TV.
Press the button on the remote.
Press the INPUT button on the remote repeatedly to select the connected video
sources.
Poor picture, sound OK
Check the interface cable between TV and antenna/cable TV.
Try another channel, the station may have broadcast diffi culties.
Adjust the Brightness/Contrast options in the VIDEO Menu.
Picture OK, poor sound
Sound may be muted. Press the button on the remote.
Press the VOL+ button to increase the volume.
Audio noise
Move any infrared equipment away from the TV.
36
Speci cations
SPECIFICATIONS
LCD Panel Panel Size 15.4”/39cm TFT LCD 19”/48cm TFT LCD
Brightness 200 300
Contrast Ratio 400:1 850:1
Max. Resolution 1280x800 1440x900
Input Connector
Power Source AC100~240V, 50/60HZ, 1.5A AC100~240V, 50/60HZ, 1.5A
Power Consumption 48 W, standby < 5 W 60 W, standby < 5 W
Dimension
WEIGHT 7 LB 10.8 LB
C-VIDEO/ S-VIDEO/
AUDIO IN(L/R)
YPbPr/ AUDIO IN(L/R) 1 1
SCART 1 1
VGA 1 1
HDMI 1 1
VGA LINE IN 1 1
SPDIF OUT 1 1
HEADPHONE 1 1
VHF/UHF IN 1 1
11
15.2”W x 13.6”H x 5.2”D
38.6cm W x 34.5cm H x 13cm D
18”W x 15.9”H x 5.2”D
45.7cm W x 40.4cm H x 13cm D
20070418
37
Loading...
