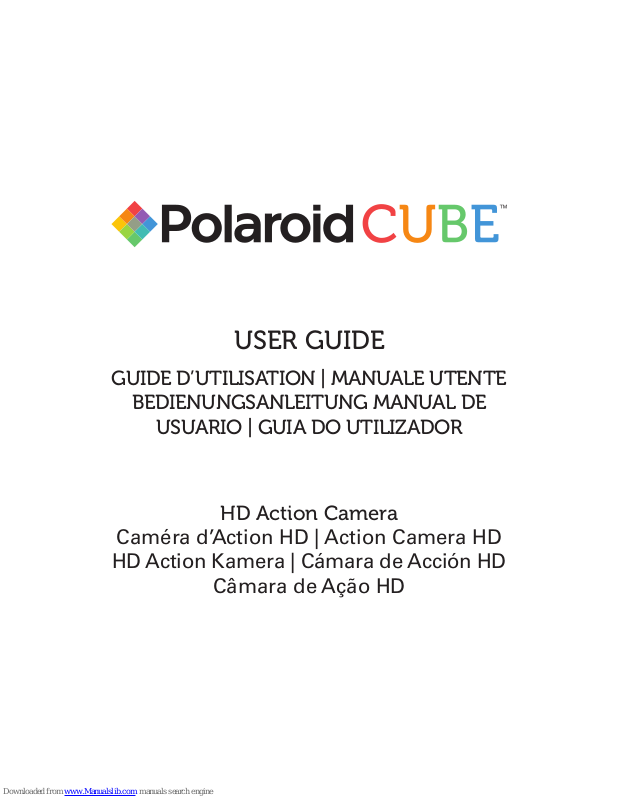

Polaroid CUBE, POLC3BL User Manual

HD Action Camera

Caméra d’Action HD | Action Camera HD

HD Action Kamera | Cámara de Acción HD

Câmara de Ação HD

USER GUIDE

GUIDE D’UTILISATION | MANUALE UTENTE

BEDIENUNGSANLEITUNG MANUAL DE

USUARIO | GUIA DO UTILIZADOR

Hello and welcome to the Polaroid Cube™
camera. Let’s get started.

Bonjour et bienvenue dans l’univers de la
caméra Polaroid Cube

™

. Démarrons.

Ciao, e benvenuto nel mondo Polaroid

Cube

™

. Cominciamo.

Herzlich Willkommen bei Ihrer neuen

Polaroid Cube

™

Kamera. Es kann losgehen.

Hola y bienvenido al mundo de Polaroid

Cube

™

. Empecemos.

Olá e bem-vindos ao mundo da Polaroid

Cube

™

. Vamos começar.

EN

FR

IT

DE

ES

PT

What’s in the Box
Get to Know Your Polaroid Cube Camera
Using Your Polaroid Cube Camera

Que trouve-t-on dans la boîte
Découvrez votre caméra Polaroid Cube
Utilisation de votre caméra Polaroid Cube

Cosa c’è nella confezione
Panoramica della Polaroid Cube
Utilizzare Polaroid Cube

6
7

10

18
19
21

32
33
36

Table of Contents

Was ist in der Box
Ihre Polaroid Cube Kamera
Bedienung Ihrer Polaroid Cube Kamera

Qué hay en la caja
Conozca su cámara Polaroid Cube
Usando su cámara Polaroid Cube

O que há dentro da caixa
Conheça a sua câmara Polaroid Cube
Usar a câmara Polaroid Cube

46
47
49

60
61
64

74
75
77

6 | EN

What’s in the Box

Polaroid Cube™

HD Action Camera

MicroUSB Cable

User Guide

EN | 7

1. Lens

2. Microphone

3. Magnet

Get to Know Your

Polaroid Cube

™

Camera

1

2

3

8 | EN

4. Multifunction Button

5. LED

Top View

4

5

EN | 9

6. Controls Cover

7. MicroSD Slot

8. 720p/1080p Switch

9. MicroUSB Port

Back View

7

8

9

6

10 | EN

Using Your

Polaroid Cube

™

Camera

On

Hold the multifunction button until the LED
turns green and you hear 3 beeps. All set!

Off

Hold multifunction button until the LED turns
off and you hear 1 long beep followed by
1 short beep.

Still Photos

Press the multifunction button once. You’ll hear
a short beep and the LED will blink red once.

EN | 11

Video

Double press the multifunction button. You’ll
hear two short beeps and the LED will blink
red while you are recording. To stop recording,
press the button. You’ll hear a single short beep
and the LED will return to a solid green.

Select Your Resolution

You have the option of capturing video at either
720p or 1080p. 1080p gives you more detail
in a higher resolution image, but uses more
storage space on your camera and shortens
the battery life.

To Select: Using a coin or other flat object, turn
the controls cover counterclockwise to open. Set
the 720p/1080p switch to your preferred setting.

12 | EN

Turn the controls cover clockwise to close.

SD Card

A microSD card must be present for your Polaroid
Cube to work. To insert a microSD card, use a

coin or other flat object to turn controls cover
counterclockwise. Insert card into slot and gently
push in until you hear a click. Turn the cover
clockwise to close. To remove a card, gently push
the card in, release and the card will slide back out.

If no microSD card is present, your camera will
continously beep and the LED will blink orange
until a new microSD card is inserted.

When your microSD memory is almost
full (1GB remaining), the LED will blink

EN | 13

alternating orange and red. Once the card is
completely full, the recording will stop and
you’ll hear a single short beep. Your camera
will blink orange and red until the microSD
card is removed or data is transfered from
the camera.

Your Polaroid Cube camera can accommodate
microSD cards with storage capacities up to
32GB. We suggest using microSD cards Class
10 and above. Cards lower than Class 6 may
cause slower recording/reading speed as well
as other unexpected issues.

Connect to Your Computer

Insert the included microUSB cable into the
microUSB port and the other end into your

14 | EN

computer. Double-click the Polaroid Cube camera
when it appears on the desktop. Your still photos
and videos are located in the DCIM folder.

Launch Your Settings Application

a) Windows users: Double-click on the
PolaroidCube.exe file.
b) Mac users: Double-click the PolaroidCube.app.
zip file, then double-click the Polaroid Cube icon.

In the application, you can change the settings
for Light Frequency, Timestamp, Cycle
Recording, Date & Time and Buzzer Volume.

Note: Quicktime player is required for correct
playback of video files with audio.

EN | 15

Battery & Charging

To charge your Polaroid Cube, plug one end of
the included microUSB cable into the microUSB
port and the other into either a computer or into
a wall plug using a wall adaptor. (The camera can
still be used when charging from the wall.)

While charging, the LED will blink orange.

When battery reaches 10% the LED will
glow orange. Your camera will automatically
shut down if battery level reaches 0%.

Magnet Safety Warnings

The magnet mount on your Polaroid Cube is a
low-powered magnet. As with any magnet, it is
best to follow these safety precautions.

16 | EN

Medical Devices

Some medical devices can be sensitive to
magnetic fields. If the user has a pacemaker,
defibrillator, implanted insulin pump, or other
electronic medical device or has health issues
that require the use of any such device, avoid
using the Polaroid Cube and/or any related
accessories until consulting a physician.

Pregnant Women

Pregnant Women should consult a physician
before using any magnetic device.

Damage to Electronics/ Magnetic
Storage Media

Direct contact to magnetic fields may cause
damage to magnetic storage media, hard

EN | 17

drives, electronic devices and credit cards/
items with electronic stripes. To avoid damage,
extend USB cord as far as possible from your
computer, or use a longer microUSB cord.

Disclaimer: During extended use, your Polaroid
Cube camera may feel warm to the touch. This

is a normal operating occurrence and does not
indicate any product defect or reason to slow
down the fun.

Have questions? Need technical support?
Want to know more? Get in touch at:
[e-mail]
www.polaroidcube.com

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply
with the limits for Class B digital devices, pursuant to Part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits
in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment
unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
Notice: If static electricity or electromagnetism causes data
transfer to discontinue midway (fail), restart the application
or disconnect and connect the communication cable (USB,
etc.) again.

Electronic Waste

PLR IP Holdings, LLC, its licensees and affiliates, fully supports
all electronic waste initiatives. As responsible stewards of
the environment, and to avoid violating established laws, you
should properly dispose of this product in compliance with all
applicable regulations, directives or other governances in the
area where you reside. Please check with local authorities or
the retailer where you purchased this product to determine

a location where you can appropriately dispose of the product.
You may also go to www.polaroid.com and reference Social
Responsibility www.polaroid.com/social-responsibility to learn
more about the specific laws in your area and to locate a
collection facility near your home.
If your electronic device has internal memory on which
personal or other confidential data may be stored, you may
want to perform a data sanitization process before you dispose
of your device to assure another party cannot access your
personal data. Data sanitization varies by the type of product
and its software, and you may want to research the best
sanitization process for your device before disposal. You may
also check with your local recycling facility to determine their
data sanitization procedures during the recycling process.

EN | Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo,
Polaroid Color Spectrum, and Polaroid Cube are trademarks of

PLR IP Holdings, LLC, used under license. All other trademarks
are the property of the respective owner, who has not sponsored,
endorsed or approved this product. PLR IP Holdings, LLC does
not manufacture this product or provide any Manufacturer’s
Warranty or support.

FR | Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo,
Polaroid Color Spectrum et Polaroid Cube sont des marques

déposées de PLR IP Holdings, LLC, utilisées sous licence.
Toutes les autres marques appartiennent à leurs propriétaires
respectifs qui n’ont pas sponsorisé, endossé, ou approuvé
ce produit. PLR IP Holdings, LLC n’est pas le fabricant de ce
produit et ne fournit aucune Garantie du Fabricant ou assistance.

IT | Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo,
Polaroid Color Spectrum e Polaroid Cube sono marchi

commerciali di PLR IP Holdings, LLC, utilizzati su licenza.
Tutti gli altri marchi commerciali sono proprietà dei rispettivi
titolari, che non hanno sponsorizzato, sostenuto o approvato il
prodotto. PLR IP Holdings, LLC non fabbrica questo prodotto e
non fornisce alcuna Garanzia del Produttore o supporto.

DE | Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo,
Polaroid Color Spectrum und Polaroid Cube sind Markenzeichen

der PLR IP Holdings, LLC und werden unter Lizenz genutzt. Alle
anderen Markenzeichen sind Eigentum der jeweiligen Inhaber,
die dieses Produkt nicht gefördert, unterstützt oder zugelassen
haben. PLR IP Holdings, LLC stellt dieses Produkt nicht her und
bietet keine Herstellergarantie und keinen Service.

ES | Polaroid, Polaroid & Pixel, Polaroid Classic Border
Logo, Polaroid Color Spectrum y Polaroid Cube son marcas

registradas de PLR IP Holdings, LLC, utilizadas bajo licencia.
Todas las demás marcas registradas son propiedad de sus
respectivos propietarios, que no han patrocinado, avalado ni
aprobado este producto. PLR IP Holdings, LLC no fabrica este
producto ni proporciona soporte o Garantía del Fabricante alguna.

PT | Polaroid, Polaroid & Pixel, Polaroid Classic Border
Logo, Polaroid Color Spectrum e Polaroid Cube são marcas

comerciais da PLR IP Holdings, LLC, utilizadas sob licença.
Todas as outras marcas comerciais são propriedade do
respectivo proprietário, que não patrocina, valida ou aprova
este produto. PLR IP Holdings, LLC não fabrica este produto
ou fornece qualquer Garantia ou Apoio do Fabricante.

Distributed by: | Distribué par: | Distribuito da: | Vertrieb durch: |
Distribuido por: | Distribuído por: C&A Licensing, LLC.
2 Bergen Turnpike, Ridgefield Park, NJ 07660, USA
www.polaroid.com

© 2014 All Rights Reserved | Tous droits réservés |
Tutti i diritti riservati | Alle Rechte vorbehalten |
Todos los derechos reservados | Todos os direitos reservados

Patent Pending

For Warranty information, go to: | Pour obtenir
des informations sur la Garantie, veuillez
visiter: | Per le informazioni sulla Garanzia,
andare su: | Informationen zur Garantie finden
Sie unter: | Para información sobre la Garantía,
vaya a: | Para informações de Garantia, visite: |

www.polaroidcube.com/support

WARRANTY

ГАРАНТИЯ | ⥂⥝䩛ⱃ

⥂鏾剅 | 쫂흫 | Ï(´

Warranty

Гарантия

⥂⥝

⥂鏾鋉㹀

쫂흫

Ï(´

4

10

17

20

24

28

Table of Contents

EN

RU

ZH

JA

KO

AR

4 | EN

This Product (including any accessories included in the original
packaging) as supplied and distributed new by an authorized
retailer is warranted by the Distributor to the original consumer
purchaser against defects in material and workmanship
(“Warranty”) as follows:

LIMITED WARRANTY

TO ORIGINAL CONSUMER

EN | 5

Camera

Camera

Camera

Camera

Camera

Product Territory Parts

Warranty

Labor
Warranty

North America

Central and
South America

Asia, Africa,
Australia,
New Zealand

Europe

Russia

1 Year

1 Year

1 Year

2 Years

2 Years

1 Year

1 Year

1 Year

2 Years

2 Years

6 | EN

To obtain Warranty Service and Troubleshooting contact
information: Visit our website at www.polaroidcube.com.

To receive Warranty service, the original consumer purchaser
must contact the Distributor, or an authorized service provider
of the Distributor, for problem determination and service
procedures. Proof of purchase in the form of a bill of sale
or receipted invoice, evidencing that the Product is within
the applicable Warranty period(s), MUST be presented to
Distributor, or an authorized service provider of the Distributor,
in order to obtain the requested service.

Shipping expenses to the Distributor’s service center or Return
Facility are not covered by this warranty, and must be paid by
the consumer.

Exclusions and Limitations

This Warranty covers manufacturing defects in materials and
workmanship encountered in the normal, noncommercial
use of the Product, and does not cover consumer instruction,
delivery, installation, set-up, adjustments, cosmetic damage
or damage due to acts of nature, accident, misuse, abuse,

EN | 7

negligence, commercial use or modification of, or to any part
of the Product. In addition, this Warranty does not cover images
“burnt” into the screen.

This Warranty applies to the original consumer only and
does not cover products sold AS IS or WITH ALL FAULTS,
sold as Reconditioned, Refurbished or Remanufactured, or
consumables (e.g., fuses, batteries, bulbs etc.). The Warranty
is invalid if the factory-applied serial number has been altered
or removed from the Product. This Warranty is valid only in
the country where the consumer purchased the product, and
only applies to products purchased and serviced in that country.

NO WARRANTIES, WHETHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY
DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR
FURTHER DISCLAIMS ALL WARRANTIES AFTER THE
EXPRESS WARRANTY PERIOD STATED ABOVE. NO
OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY

8 | EN

ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR,
REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE
PRICE – AT DISTRIBUTOR’S SOLE DISCRETION – ARE
THE EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO
EVENT WILL DISTRIBUTOR, ITS MANUFACTURERS, OR
PLR IP HOLDINGS, LLC BE LIABLE FOR ANY INCIDENTAL,
DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES
FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR
RECORDS) CAUSED BY THE USE, MISUSE OR INABILITY
TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO
OTHER WARRANTIES SHALL APPLY. NOTWITHSTANDING
THE FOREGOING, CONSUMER’S RECOVERY AGAINST
DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE
OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY
SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT
AND IS NOT TRANSFERABLE.

EN | 9

Some countries, states or provinces do not allow the exclusion
or limitation of incidental or consequential damages or allow
limitations on warranties, so limitation or exclusions may not
apply to you. This warranty gives you specific legal rights,
and you may have other rights that vary from state to state
or province to province. Contact your authorized retailer

to determine if another warranty applies.

Polaroid, Polaroid & Pixel, and Polaroid Cube are trademarks
of PLR IP Holdings, LLC, used under license. PLR IP Holdings,
LLC does not manufacture this product or provide any
Manufacturer’s Warranty or support.

-

MicroSD card

not

included (Class 10 or above recommended).
Carte microSD non incluse (Ciasse 10 ou superieure recommandee).
Scheda microSD non inclusa (consigliata Classe 10 o superiore).
Microso

..

Karte nicht enthalten (Kiasse 1 0 oder hoher empfohlen).
Tarjeta microSD no incluida (se recomienda Clase 1 0 o mayor).
Cartao microSD nao inclurdo (Ciasse 10 ou maior recomendado).

1

2

3

4

•

-

.:03

• 0

- -

j

x2

j

x1

()

()

0 0

-

j

x1

Polaroid

CUBE~

ACCESSORIES

ACCESSOIRES I ACCESSOR! I ZUBEHOR

ACCESORIOS

I ACESS6RIOS

polaroidcube.com

1

Bumper

Case

2

Helmet

Mount

3

Monkey

Stand

4

Waterproof

Case

5

Waterproof

Case

+

Suction

Mount

6

Bicycle

Mount

7

Tripod

Mount

8

Strap

Mount

1

Bumper

Case I Etui antichoc I Custodia antiurto \

Schutzgehause

I Funda

tipo

bumper

I Caixa amortecedora

2

Helmet

Mount

I Support en casque I Supporto casco I

Helmhalterung I Soporte para casco I Suporte

de

capacete

3

Monkey

Stand I Support en singe I Supporto scimmia I

Affen-Stander 1 Soporte

mono

1 Suporte macaco

4

Waterproof

Case I Etui etanche I Custodia impermeabile I

Wasserdichtes Gehause I Carcasa impermeable I
Caixa a prova

de

agua

5

Waterproof

Case + Suction

Mount

I Etui etanche + Support

ventouse

I Custodia impermeabile + Supporto a ventosa I

Wasserdichtes Gehause + Saughalterung I Carcasa

impermeable

+ Soporte

de

succi6n I Caixa a prova

de

agua +

Suporte

de

ventosa

6 Bicycle

Mount

I Support en vela I Supporto bicicletta I

Fahrradhalterung I Soporte para bicicleta I Suporte

de

bicicleta

7 Tripod

Mount

I Support trepied I Supporto treppiede I

Stativhalterung I Soporte para trlpode I Suporte para tripe

8 Strap

Mount

I Support en sangle I Supporto cinghia I

Gurthalterung I Soporte para correa I Suporte

de

cinto

FR

1

Polaroid~

Polaroid

&

Pixel,

Polaroid Classic Border

Logo,

Polaroid Color Spectrum

et

Polaroid

Cube

sont des marques

deposees

de

PLR

I

P Holdings, LLC, utili

sees

so us

licence. Toutes

les

autres marques appartiennent a

leurs proprietaires respectifs qui

n·ont

pas sponsorise, endosse, ou approuve ce produit.

PLR

IP

Holdings, LLC n·est

pas le fabricant

de

ce produit

et

ne fournit aucune Garantie du Fabricant ou assistance.

IT

1

Polaroid,

Polaroid

&

Pixel,

Polaroid Classic Border

Logo,

Polaroid Color Spectrum

e

Polaroid

Cube

sono marchi commerciali di PLR IP

Holdings, LLC, utilizzati

su

licenza.

Tutti gli altri

marchi commerciali sono proprieta dei rispettivi

titolari,

che non hanna

sponsorizzato, sostenuto o approvato

il

prodotto.

PLR

I P Holdings, LLC non fabbrica

questo prodotto e non fornisce alcuna Garanzia del Produttore o supporto.

DE

1

Polaroid, Polaroid

&

Pixel,

Polaroid Classic Border Logo, Polaroid Color Spectrum

und

Polaroid Cube

sind Markenzeichen

der

PLR

IP

Holdings, LLC und

werden

unter

Lizenz genutzt. Aile anderen Markenzeichen sind Eigentum

der

jeweiligen lnhaber,

die dieses Produkt nicht gefordert, unterstutzt oder zugelassen haben.

PLR

IP

Holdings, LLC stellt dieses Produkt nicht

her

und

bietet

keine Herstellergarantie

und keinen Service.
ES

1

Polaroid,

Polaroid

&

Pixel,

Polaroid Classic Border

Logo,

Polaroid Color Spectrum

y

Polaroid

Cube

son marcas registradas de

PLR

IP

Holdings, LLC, utilizadas bajo licencia.

Todas las demas

marcas

registradas son propiedad

de

sus respectivos propietarios,

quienes no han patrocinado, avalado o aprobado este producto.

PLR

IP

Holdings, LLC

no fabrica este producto o proporciona soporte o Garantfa

del

Fabricante alguna.

PT

I

Polaroid,

Polaroid

&

Pixel,

Polaroid Classic Border

Logo,

Polaroid Color Spectrum

e

Polaroid

Cube

sao

marcas comerciais

da

PLR

IP

Holdings, LLC, utilizadas sob licenca.

Todas as outras marcas comerciais sao

propriedade do respective proprietario, que

nao patrocina, val ida ou aprova este produto.

PLR

I P Holdings, LLC nao

fabrica este

produto ou fornece qualquer Garantia ou apoio

do

Fabricante.

'·

Polaroid,

Polaroid

&

Pixel,

Polaroid

Classic

Border

Logo,

Polaroid

Color Spectrum,

and

Polaroid

Cube

are

trademarks of

PLR

IP

Holdings,

LLC,

used

under license.

All

other trademarks

are

the property of the respective owner, who

has

not

sponsored, endorsed or approved this product.

PLR

I

P Holdings,

LLC

does

not manufacture this product

or

provide any Manufacturer's Warranty or support.

Distributed

by:

I

Distribue

par:

I

Distribuito

da:

I

Vertrieb durch:

I

Distribuido

por:

I

Distribufdo

por:

C&A

Licensing,

LLC,

2

Bergen

Turnpike,

Ridgefield

Park,

NJ

07~60,

USA

www.polaroid.com

e>

2014

All

Rights Reserved

I

Tous

droits

reserves

I

Tutti i diritti riservati

I

Aile

Rechte vorbehalten

I

Todos

los derechos reservados

I

Todos

os

direitos reservados

Instantly recognizable. Instantly
reassuring. The Polaroid Classic

Border

and

Polaroid Color Spectrum logos let you

know you've

purchased

a product

that

exemplifies

the

best

qualities

of

our

brand and that contributes

to

our

rich

heritage

of

quality

and innovation.

MADE

IN

CHINA

FABRIOUt

EN

CHINE

HERGESTELLT

IN

CHINA

HECHO

EN

CHINA

FEITO

NA

CHINA

EH[

~

-

Sku

No:

POLC3BL

8

40102 10513

1
