19”/ 48cm HD-Ready Wide-Screen LCD TV
FLA- 1911 B
2006051720060517
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of re or electric shock, do not expose this
equipment to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ENGLISH
Safety Instructions
This symbol is intended to alert the user to avoid the risk of
electric shock, do not disassemble this equipment by anyone
except a quali ed service personnel.
This symbol is intended to alert the user to the presence
of important operating and maintenance instructions
in the literature accompanying the appliance.
CAUTION
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
LCD TV User Guide
1
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
To prevent any injuries, the following safety precautions should be observed
in the installation, use, servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely,
Safety Instructions
and keep it nearby for future reference.
Do not place the equipment on any uneven or unstable carts,
stands, tables, shelves etc..
The equipment may fall, causing serious injuries to children or adults
and serious damage to the equipment itself.
Use only a cart or stand recommended by the manufacturer.
This equipment and recommended cart or stand should be handled
with care. Quick stops, excessive force, and uneven surfaces may
cause the equipment and recommended cart or stand to overturn.
Do not disable the 3-wire grounding type plug. The grounding pin
on the 3-prong plug is an important feature. Removing the grounding
pin will increase the risk of damaging the equipment.
If you can not fit the plug into the electrical outlet, contact an
electrician to install a grounding outlet.
Always operate this equipment from the type of power source
indicated on the rear of the serial/model plate.
Never overload wall outlets and extensions.
Use and handle the power cord with care.
Do not place any heavy objects on the AC power cord.
Do not pull the AC power cord. Do not handle the AC power cord
with a wet hand.
Do not touch the power cord and antenna cable during lightning.
When the equipment has not been used for a long period of time,
unplug it from the wall outlet.
Do not place, use or handle this equipment near water.
Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
Do not expose the equipment to extreme temperatures or
to direct sunlight, the equipment may overheat and can be damaged.
Do not install the equipment near any heat sources such as
radiators, heat registers, stoves, or any other apparatus
that might produce heat.
2
LCD TV User Guide
IMPORTANT SAFETY INSTRUCTIONS
Do not attempt to service the equipment yourself.
Opening and removing the covers may expose you to dangerous
voltage or any other hazards and may void your warranty.
Refer service from quali ed personnel.
Do not place or drop any other objects on top.
Do not insert anything into the ventilation holes of your
equipment.Inserting any metal or ammable objects may result to
re or electric shock.
Do not place the equipment on uneven or unstable carts, stands,tables, shelves etc..
The equipment may fall, causing serious injuries to children or adults and serious
damages to the equipment itself.
ENGLISH
Safety Instructions
Always place the equipment on the oor or on a surface that
is sturdy, level, stable and strong enough to support
the weight of the equipment.
Do not block any ventilating openings, leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces;
too close to drapes/curtains/walls, in a bookcase,built-in cabinet,
or any other similar places that may cause poor ventilation.
Always remove the cord from the outlet before cleaning the equipment.
Never use cleaners, harsh or abrasive chemicals or solvents on the
equipment. Clean only with a dry, soft, lint-free cloth.
LCD TV User Guide
3
ENGLISH
ANTENNA CONNECTION
ANTENNA CONN.
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
If an outdoor antenna is connected, follow the precautions below:
An outdoor antenna should not be located anywhere that can be
in contact of overhead power lines, or any other electric light or power
circuits.
When installing an outdoor antenna system, extreme caution should be
taken to prevent contact with power lines. Direct contact with power lines
may be fatal and should be avoided at all costs.
CAUTION: Antenna installation should only be carried out by a qualified
technician.
4
LCD TV User Guide
ENGLISH
ANTENNA CONNECTION
ANTENNA CONN.
A 75-ohm coaxial cable connector is built into the set for easy hookup.
When connecting the 75-ohm coaxial cable to the set, place the 75-ohm cable into
the ANT. terminal.
Some cable TV companies o er premium pay channels. Since the signals of these
premium pay channels are scrambled, a cable TV converter/descrambler is generally
provided to the subscriber by the cable TV company.
This converter/descrambler is necessary for normal viewing scrambled channels.
(Set your TV to channel 3 or 4, typically one of these channels are used.
If this is unknown, consult your cable TV company.)
For more speci c instructions on installing cable TV, consult your cable TV company,
One possible method of utilizing the coverter/descrambler provided
by your cable TV company is explained below.
Cable TV (CATV) Connection
RF switch
(Not included)
2 set signal
splitter
(Not included)
Cable TV Line
OUT
A
IN
B
Cable TV converter/
descrambler
(Not included)
Please note: the RF switch is required to provide two inputs (A and B) . (not included)
A position on the RF switch (not included) ; you can view all unscrambled channels
by using the TV channel keys.
B position on the RF switch (not included) ; you can view all scrambled channels via
the converter/descrambler by using the converter channel keys.
LCD TV User Guide
5
ENGLISH
ANTENNA CONN.
ANTENNA CONNECTION
ANTENNAS
The antenna requirements for good color TV reception are more important than those of
a black & white TV reception. For this reason, a good quality outdoor antenna is strongly
recommended.
The following is a brief explanation of the type of connection that is provided
with the various antenna systems.
A 75-ohm system is generally a round cable
PAL-type connector
with PAL-type connector that can easily
be attached to a terminal without tools (not included).
75-ohm coaxial cable (round)
A 300-ohm system is a flat twin-lead cable
that can be attached to a 75-ohm terminal
through a 300-75-ohm adapter (not included).
300-ohm twin-lead cable ( at)
OUTDOOR ANTENNA
Use one of the following two diagrams when connecting an outdoor antenna.
A: Use a VHF/UHF combination outdoor antenna.
B: Use a separate VHF and/or UHF outdoor antenna.
Connect the outdoor antenna cable lead-in to the ANT. terminal located on the rear
of the equipment.
A. Combination VHF/UHF antenna
VHF/UHF
Antenna
B. Separate VHF
and/or UHF Antennas
Rear
TV Tuner con nector
300-ohm
twin-lead cable
300/75-ohm adapter
(not included)
Combiner
(not included)
IN
OUT
75-ohm
coaxial cable
300-ohm
twin-lead
cable
75-ohm
coaxial cable
300-ohm
twin-lead cable
VHF/UHF
Antenna
UHF
Antenna
VHF
Antenna
6
LCD TV User Guide
CONTENT
PREPARATION .......................................................................................................................................................... 8
Features .................................................................................................................................................................................................................... 8
Package Contents ............................................................................................................................................................................................... 9
LCD TV .................................................................................................................................................................................................................. 10
Front View .......................................................................................................................................................................................................... 10
Rear View ............................................................................................................................................................................................................... 11
Remote Control ................................................................................................................................................................................................. 12
Using your LCD TV................................................................................................................................................................................. 14
INSTALLATION ........................................................................................................................................................ 15
ENGLISH
CONTENT
Connecting a TV Cable or an Antenna ......................................................................................................................................................... 15
Connecting a DVD Player ........................................................................................................................................................................... 16
Connecting a VCR & a Video Camera ................................................................................................................................................... 17
Connecting a TV Box and Satellite Receiver ............................................................................................................................. 18
USING THE FEATURES ............................................................................................................................................ 19
Basic Operation ................................................................................................................................................................................................. 19
OSD Menu Operation ....................................................................................................................................................................................... 20
Video ..................................................................................................................................................................................................................... 20
Audio ...................................................................................................................................................................................................................... 21
Tuner........................................................................................................................................................................................................................ 22
Setup .................................................................................................................................................................................................................... 23
TROUBLESHOOTING.............................................................................................................................................. 25
SPECIFICATIONS..................................................................................................................................................... 26.
LCD TV User Guide
7
ENGLISH
PREPARATION
Congratulations on the purchase of your new High Definition Compatible
Television. In order to maximize the potential of this television, you must use
it in conjunction with a High Definition Signal Source, utilizing a proper High
Definition receiving unit (often referred to as a “set-top” box). Only “true”
High Definition transmitted video will yield optimum picture quality.
Please contact your cable or satellite provider for more information on
how to receive High Definition programming.
Features
Features
High Brightness / Contrast Image
Brightness: 450 cd/m2
Contrast Ratio: 500:1
VGA Support:
720x400/70Hz~1792x1344/60Hz
PREPARATION
Multimedia Jack
S-Video Jack
HD Component Video Jack (YPbPr)
PC Jack
A/V Jack
WSS (Wide Screen Scale ) Function
This function can automatically convert and display any aspect ration (4:3 / 16:9) TV
broadcast signal.
Support For Teletext Function
This function can o er all sorts of information provided by TV company.
NICAM/ FM-Stereo Function
Searching channels
Auto search
Search
Sleep-Timer
User selectable color temperature settings
Enhance audio processing
Built-In CATV tuner
Faroudja DCDI Edge Processing
"DCDi® by Faroudja" is a registered trademark of Genesis Microchip Inc.
8
PREPARATION
Package Contents
Once you open the box, make sure all of the following contents are included.
If you’re missing any items, please return this product to the original place
of purchase.
LCD TV
ENGLISH
PREPARATION
Remote control/
AAA batteries
Power Cord
Video Cable
Audio Cable
Component Cable
Warranty Card
Quick Start Guide
User’s Manual
These items are all you need to set up and operate the LCD TV
in its basic con guration.
*Most devices (VCRs, DVD player, etc.) come with the necessary
cable for connection. If you want to set up a complex system, you may need to buy
extra cable, connector, etc.
PREPARATION
9
PREPARATION
ENGLISH
LCD TV
Front View
PHONES
VO L.
VO L.
CH
CH
ME NU
INPUT
ITEM DESCRIPTION
1 IR Infrared Receiver (IR)
2 POWER Turns the LCD TV on and o .
3 LED
The LED light indicates when the LCD TV
is activated (green light indicates on and amber indicates o ).
4 INPUT Chooses from di erent input signal sources.
5 MENU Press MENU to display the OSD (on screen display). Press again to turn the OSD o .
6 CHANNEL
7 VOLUME
Scans up and down through channels.
Selects sub-menu items when in the OSD mode.
Adjusts the volume up and down. Changes settings for items
and the value for items when in the OSD mode.
8 PHONES Connects to earphone.
10
PREPARATION
LCD TV
ENGLISH
Rear View
PREPARATION
ITEM DESCRIPTION
1 AC IN Connects the AC power cord.
2 AUDIO IN 1
3 COMPONENT
4 S-VIDEO
5 AUDIO IN 2
6 VIDEO
7 PC AUDIO IN
8 PC IN
9 RF/ANT. The RF input that connects to your VHF/UHF antenna or cable.
Connects to the audio or video equipment with left and
right audio output jacks of the component (Y, Pb/Cb, Pr/Cr).
Connects to the component (Y, Pb/Cb, Pr/Cr) video jacks
on your DVD player, HDTV Tuner source, or video equipment.
Connects to the S- VIDEO output jacks and Audio output
jacks on your video equipment.
Connects to the audio or video equipment with left and
right audio output jacks of the Composite or S-Video.
Connects to the composite Video output jack on
your video equipment.
Connects the audio input jack of the satellite receiver or
other AV equipment.
Connects the satellite receiver or other AV equipment
with D-Sub connector.
PREPARATION
11
PREPARATION
ENGLISH
1
2
3
4
5
6
7
8
9
Remote Control
POWER
Turns the LCD TV on and into standby mode .
PC
Press to select PC mode.
I-II
Cycles through the TV Sound options:
MONO/DUAL/STEREO
Turns on and o the Teletext function.
Mutes and restores your LCD TV sound.
SLEEP
Sets the sleep timer.
P. S I Z E
Selects from the following modes settings: 4:3, 16:9.
0-9 and ENTER
Select and switch to a channel
using 0-9 and ENTER buttons.
JUMP
Switches back and forth between
the current and previous channels.
CH. +/-
10
Changes the channels up and down .
11
VOL. +/Adjusts the volume.
12
INFO
Displays information on the LCD TV screen such as
channel and channel label.
13
SOURCE
Selects from di erent input signal source:
TV,AV1(VIDEO),AV2(S-VIDEO),AV3(HDTV),AV4(VGA).
14
EXIT
Exits the OSD menu (on-screen display).
MENU
15
Displays on screen menu one by one.
Exits the current menu.
16
Allows you to move,select and set up the OSD options.
SOUND MODE
17
Selects sound mode: Custom, Live, POP, Rock.
18
PIC MODE
Selects picture mode:Custom,Vivid, Standard, Mild.
DIRECT PAGE
19
Press the appropriate colour to direct access the
colour page.
20
Displays the main index in Teletext mode.
21
Reveals hidden information such as the answer to a
quiz in Teletext mode.
22
Displays the top, bottom or all of page, to easily
read in Telextext mode.
23
Freezes a multi-page passage on screen in Teletext
mode.
12
PREPARATION
Remote Control

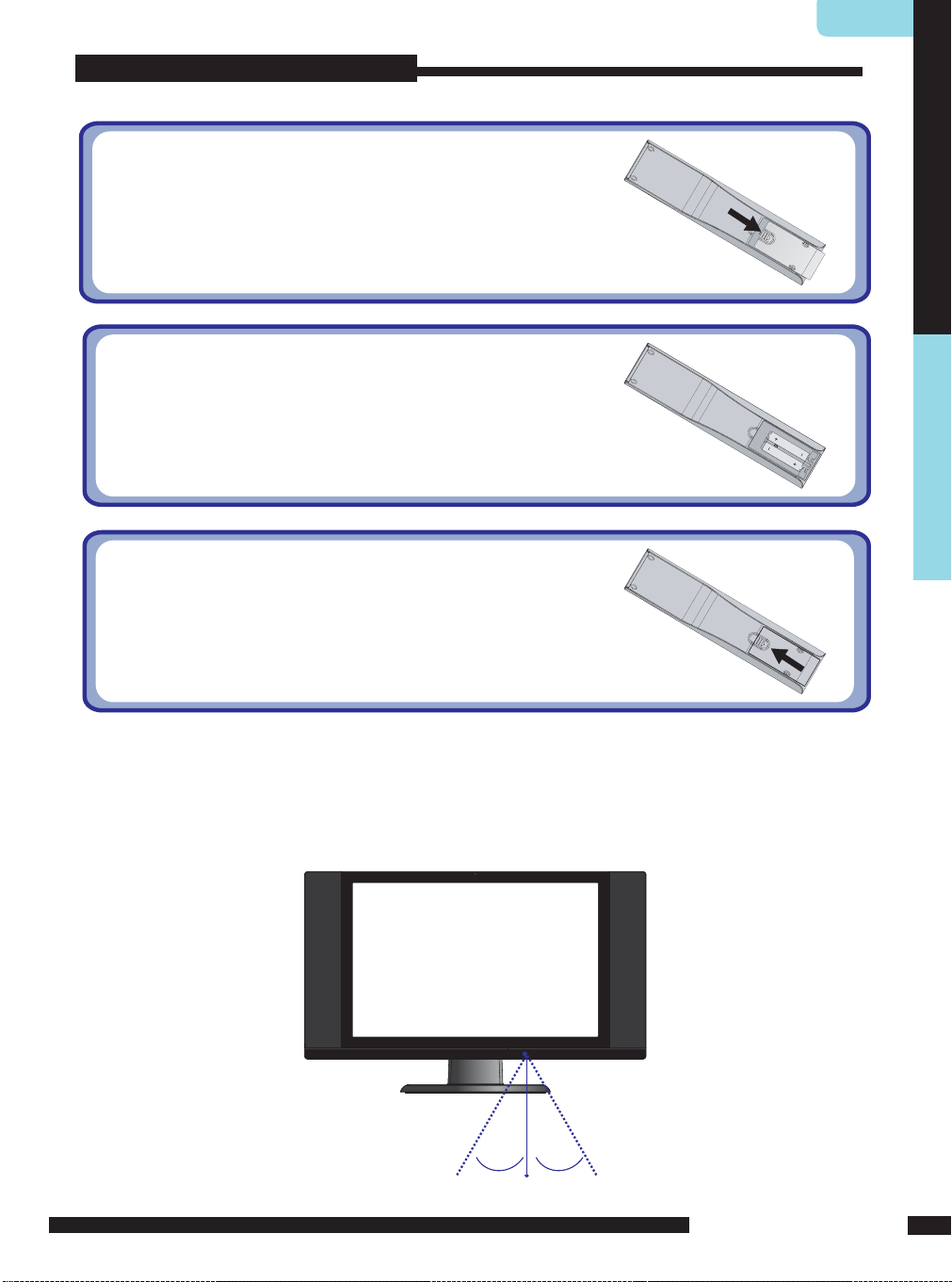

Installing the batteries in your remote control
Pull the tab of the back cover and pull up on
the cover to open the battery compartment
1
of the remote control.
ENGLISH
Insert two AAA size batteries.
2
Make sure to match the (+) and (-) ends of
the batteries with the (+) and (-) ends indicated
in the battery compartment.
Align the lower tabs of the back cover to the
3
remote control and snap the cover into place.
Note :
Do not use caustic cleaners( porcelain, stainless steel, toilet, or oven cleaner, etc...).
You may cause damage to your remote control.
E ective range
Your remote control can be activated from up to the LCD TV 5m away,
if pointed directly in front of the device.
PREPARATION
30
O
5M
30
O
PREPARATION
13
PREPARATION
ENGLISH
1
2
Using your LCD TV
You may adjust the tilt angle of the LCD TV about +15 deg. / -0 deg.
o
-0
o
15
Always turn the LCD TV off when the LCD TV is not in use for a long period.
The Power button is only used for switching the LCD TV into standby mode,
it does not disconnect the device from the main voltage.
To completely disconnect the main voltage, please switch off the power switch
on the rear, or remove the power plug from the socket.
14
PREPARATION
Un plug f ro m
a wa ll out le t
RPOWE
INSTALLATION
Refer to the owner’s manual of the external equipments to be connected.When connecting
external equipments, do not connect any AC power cords to wall outlets until you have completed
all the connections.
Connecting a TV cable or Antenna
Basic Connection: Connecting cable or an antenna .
ENGLISH
1
2
3
Antenn a
Connec t to a w all outlet
A
Antenna/75- ohm
coaxia l inpu t
A: Use a supplied antenna cable to connect the VHF/UHF to your LCD TV.
B: Connect all AC power sources before turning on the power for
the LCD TV or other connected equipments .
Press the POWER button to turn on your LCD TV.
B
INSTALLATION
4
Press the TV button directly enter TV mode.
INSTALLATION
15
ENGLISH
Connecting a DVD Player
For best picture quality, if your equipment has (RGB) video output,please use
component cable instead of a standard video or RGB cable.
INSTALLATION
1
METHOD A HDTV (AV3)
Use a Component cable to connect the Y/Pb(Cb)/Pr(Cr) jacks on the DVD player to your
LCD TV. Use an audio cable to connect the DVD’s audio jacks to your LCD TV.
METHOD B S-VIDEO (AV2)
Use an Audio cable to connect the DVD’s audio output jacks to your LCD TV.
Use a S-Video cable to connect your LCD TV and DVD player.
METHOD C VIDEO (AV1)
Use an A/V cable to connect the DVD’s composite output jacks to your LCD TV.
Connect all power sources before turning on the power for the LCD TV
2
or other connected equipments .
Press the POWER button to turn on your LCD TV.
3
To watch DVD, press the SOURCE button to select AV1, AV2 or AV3.
4
16
INSTALLATION
Connecting a VCR & a Video Camera
ENGLISH
METHOD A S-VIDEO (AV2)
1
Use an Audio cable to connect the VCR’s/ VIDEO CAMERA’s audio
output jacks to your LCD TV.
Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA.
METHOD B VIDEO (AV1)
Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’s. composite output jacks
to your LCD TV.
Connect all power sources before turning on the power for the LCD TV
2
or other connected equipments.
Press the POWER button to turn on your LCD TV.
3
To watch VCR or VIDEO CAMERA, press the SOURCE button to select AV1 or AV2.
4
Note: Not all cameras have the ability to connect to a TV. Please check your video
camera user guide for compatibility.
INSTALLATION
INSTALLATION
17
ENGLISH
Connecting a TV Box and Satellite Receiver
INSTALLATION
18
METHOD A VGA (AV4)
1
Use a D-SUB cable to connect the TV Cable Box D-SUB connector to your LCD TV.
Use an Audio cable to connect the TV Cable Box and your LCD TV.
METHOD B HDTV (AV3)
Use a component cable to connect the Y/Pb(Pb)/Pr(Cr) jacks on the satellite receiver
to to your LCD TV.
Use an Audio cable to connect the Satellite Receiver audio jacks to your LCD TV.
Connect all power sources before turning on the power for the LCD TV
2
or other connected equipments.
Press the POWER button to turn on your LCD TV.
3
To watch programs via satellite receiver, or to watch TV via TV cable box,
4
press the SOURCE button to select AV3 or AV4.
INSTALLATION
USING THE FEATURES
Basic Operation
Turning the TV On and O
1
After connecting a CATV or antenna to your LCD TV, and turn the POWER SWITCH of rear
TV on, an amber LED light indicates when the LCD TV is activated.
2 Press the POWER button, the LED green light indicates on.
3 Press the POWER button, the LED amber light indicates o .
Select Source
Press the SOURCE button to display the selection signal on the screen.
Select TV Channel
ENGLISH
1 Press the CH+/- button on the remote control and the CHANNEL ▲/▼ button on the LCD
TV to select channel.
2 Press the 0~9 buttons then press the ENTER button to input the channel No. and enter into
the selection channel No.
3 Press the JUMP button on the remote control to swap the channel between the current
channel No. and the previous channel No.
Adjusting the Volume
Press the VOL +/– button on the remote control or the VOLUME +/- button on the LCD TV to
adjust the volume.
To Mute the Sound
1 Press MUTE and the sound cuts o .
2 To turn mute o , press the MUTE button again, or simply press the VOL +/- buttons.
Sleep Timer
Press the SLEEP button continuously to select the sleep timer or turn the sleep timer from the
OFF,15,30,45,60,90 and 120 minutes; when the LCD TV has been reached the set time, it will
automatically turn o . If the TV has no input signal, the screen will appeared blue screen and
display NO Signal; The TV will automatically change stand by after 15 minutes.
USING THE FEATURES
USING THE FEATURES
19
ENGLISH
OSD Menu Operation
1 The main menu provides access to the following menus:
Video
Adjust picture setting such as brightness,
contrast,saturation and color temp.
Audio
Tun er
Adjust sound option and e ects.
Adjust channel searching such as auto
search, manual search.
Setup
Set up miscellaneous fetures.
2 Press the MENU button on the remote control. The main menu will appear on the screen.
3 Use ▲/▼ to highlight your main menu option, then press OK to enter your selected option.
Use ▲/▼ to highlight an option of the sub-menu. Use ◄/► to change the value of the
item.Press the EXIT button to exit MENU.

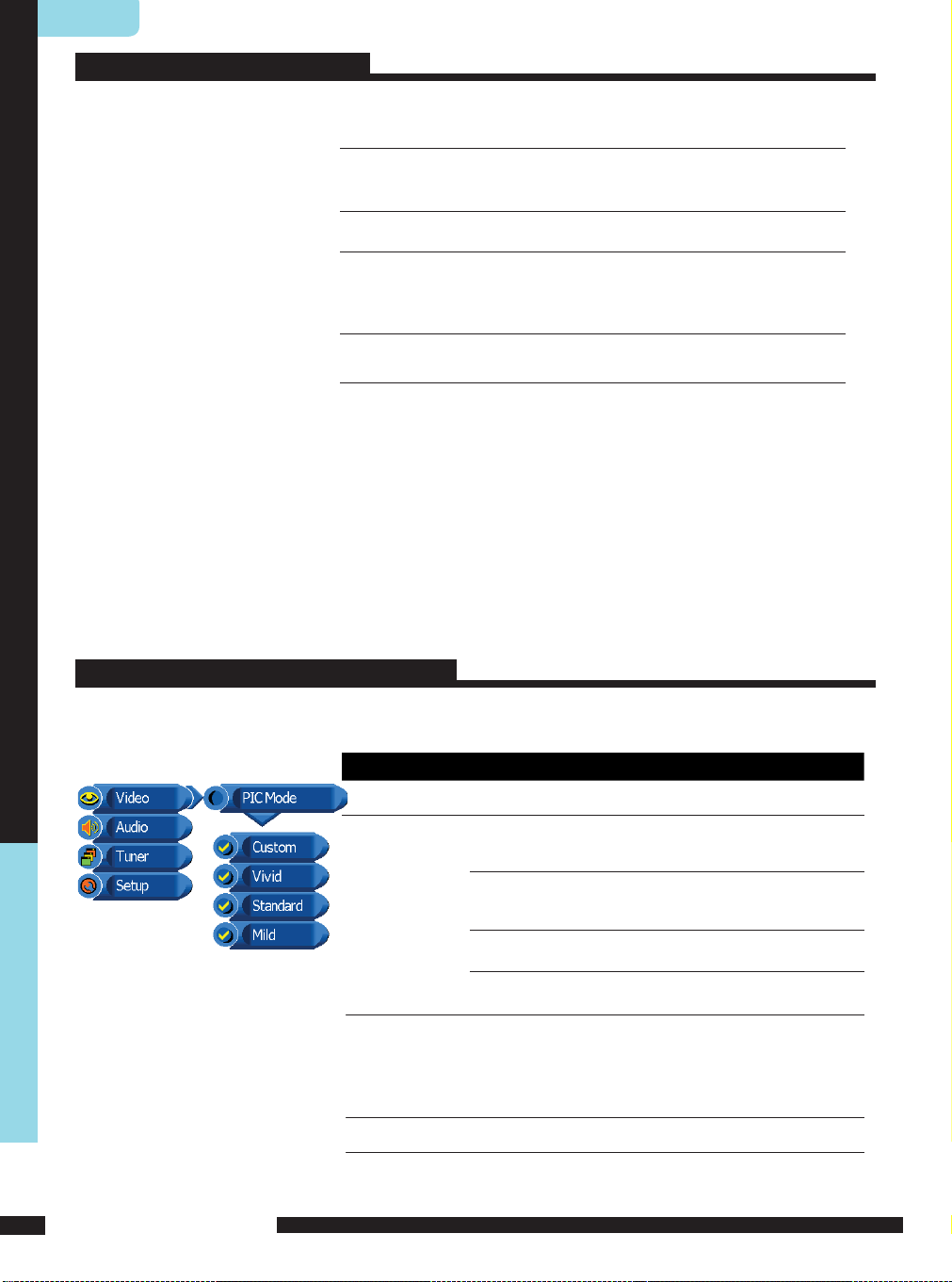

Video
Use this Video setting menu to adjust the picture quality which best corresponds to your
viewing requirements.The Video Menu includes the following options:
OPTION
PIC Mode
Custom:Select for user’s settings.
DESCRIPTION
USING THE FEATURES
20
USING THE FEATURES
Brightness
Contrast
Hue
Saturation
Vivid:Select for enhanced picture contrast and
sharpness.
Standard:Select for standard picture settings.
Recommended for home entertainment.
Mild:Select for mild picture settings.
Adjust to brightness or darken the picture.
Adjust the di erence between the brightness and
darknest regions of the picture.
For NTSC only.
Controls the color intensity.
Video
ENGLISH
Sharpness
OPTION
Color Temp.
Advanced
(VGA Mode
Adjust to sharpen or soften the picture.
DESCRIPTION
Standard:Select to give the white colors a neutral tint.
Warm:Select to give the white colors a reddish tint.
Cool: Select to give the white colors a bluish tint.
Auto Adjust: Allows you to select the image auto
adjust to be Yes or No.
only)
Image Pos Allows you to move the position of the
Phase Increase the focus clarity in the picture
picture in the window.
and image satbility.(Available only for
PC input.)
Audio
Use this AUDIO setting menu to adjust the sound quality which best corresponds to your
listening requirements.
OPTION DESCRIPTION
Volume
Bass
Tre bl e
Balance
Surround
Sound
Mode
Allows you to adjust the volume add or subtract.
Adjust low frequency audio response.
Adjust high frequency audio response.
Adjust to emphasize left or right speaker balance.
Allows you to select the surround to be ON or
OFF.
Allows you to select the sound mode to
Custom,Live,POP, or Rock.
USING THE FEATURES
USING THE FEATURES
21
ENGLISH
Tuner
Use this Tuner setting menu to select Color System,
Audio System, Auto Search, Manual Install, Prog
Organizer.
OPTION
DESCRIPTION
Color System Allows you to select the color
system : PAL,SECAM.
Audio
System
Auto Search
Allows you to select the audio system : I,
BG, DK.
I
BG
DK
Press to begin auto search. Auto search
completed.All receivable stations are stored.
PAL I/II (U.K. / Ireland / Hong
Kong / South Africa)
PAL B/G, SECAM B/G (Europe
/ East Europe / Asia / New
Zealand / M.East / Africa /
Australia)
PAL D/K, SECAM D/K (East
Europe / China /
USING THE FEATURES
22
USING THE FEATURES
Manual
Install
Press the ◄/► button to select Search,
Fine Tune, CH NO, Band.
Search
Fine Tune Allows you to adjust the ne
CH NO
Manual Search
tune level by hand if signal is
too weak or picture is blurry.
Allows you to display the
present program number.
Band
Select VHF-L, VHF-H, UHF.
Tuner
ENGLISH
OPTION DESCRIPTION
Prog
Organizer
This function enables you to delete or
skip the stored programme. Also you
can move some stations to other
programme numbers or copy a
programme to the selected programme
number.
Setup
Use this Setup setting menu to set up some features: Language, OSD Time Out, Sleep Time,
Reset.
OPTION DESCRIPTION
Language
Display English only.
OSD Time Out
Allows selection of the display time of
the on-screen menu:5 sec,10 sec,15
sec, 20 sec,25 sec, and 30 sec.
USING THE FEATURES
USING THE FEATURES
23
ENGLISH
Setup
OPTION DESCRIPTION
Sleep Time
Reset
Sets up a certain time to shut o
automatically:OFF/15/30/45/60/90/120
minutes.
Allows you to restore the factory
settings.
USING THE FEATURES
24
USING THE FEATURES
TROUBLESHOOTING
Before consulting service personnel, check the following chart for a possible cause
of the trouble you are experiencing and for a solution.
PROBLEM SOLUTION
ENGLISH
TV will not turn on
No picture, no sound
Poor pict u r e , sound OK
Picture OK, Poor sound
Audio noise
Make sure the power cord is plugged in.
The batteries in the remote control may be exhausted.
Replace t he ba tte ri es.
Check the interface cable between TV and antenna/cable TV.
Press the button on the remote.Powe r
Press the button on the remote, then press the
button repeatedly to select the connected video sources.
Check the interface cable between TV and antenna/cable TV.
Try a nother channel, the station may have broadcast difficulties.
Adjust the Brightness/Contrast options in the Image Menu.
Sound may be muted. Press the button on the remote.MUTE
Press the button on the remote, the n press the
button to increase t he volume.
Move any infrared equipment away from the TV.
TV INPUT
Video
TV VOL.+
Please Call 1300 366 144 for Please Call 1300 366 144 for
Service and Support. Service and Support.
TROUBLESHOOTING
TROUBLESHOOTING
25
ENGLISH
SPECIFICATIONS
Model
Panel System
Display Resolution
Televis ion System
Brightness
Contrast Ratio
Inputs/Output
Composite Video In
S-Video In
Component In
PC
PC Audio In
FLA-1911B
19 inch/48cm LCD panel
1440 pixels (horizontal) x 900 pixels (vertical)
PAL SECAM
400 cd/m
2
500:1
1
1
1
1
1
SPECIFICATIONS
26
Audio In
TV
Speaker Out
Power Source(MAX)
Dimension( W x D x H)
Weight(Net)
Please Call 1300 366 144 for Service and Support. Please Call 1300 366 144 for Service and Support.
SPECIFICATIONS
3
1
3 W+3 W
100-240 V~, 50/60 Hz, 50 W
22.6 inch x 6.7 inch x 14.6 inch
12.33 LBS
Display Mode
For the display modes listed below, the screen image has been optimized during
manufacture.
VGA TIMING
Dot X Line Horizontal Frequency(kHz) Vertical Frequency(Hz)
640 x 480 31.46 59.94
640 x 480 37.86 72.80
640 x 480 37.50 75.00
720 x 400 31.46 70.40
800 x 600 35.15 56.25
800 x 600 37.87 60.31
800 x 600 48.07 72.18
800 x 600 46.87 75.00
1024 x 768 35.52 86.95
1024 x 768 48.36 60.00
1024 x 768 56.47 70.06
1024 x 768 60.02 75.02
1152 x 864 67.50 75.00
1280 x 960 60.00 60.00
1280 x 1024 63.98 60.02
1280 x 1024 79.97 75.02
1440 x 900 55.93 59.88
1440 x 900 70.63 74.98
1600 x 1200 75.00 60.00
1600 x 1200 81.25 65.00
1600 x 1200 87.50 70.00
1600 x 1200 93.75 75.00
1792 x 1344 83.64 60.00
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
27
Loading...
