Polaroid FCM-1010 User Manual

10” Under-the-Cabinet LCD TV

FCM-1010

20060209

Important Safety Instructions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

POWER SUPPLY: Connect the supplied adapter to the side of the Under-the-Cabinet LCD TV in the slot marked “Power In”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over and reinsert it. If the unit will not be used for a long time, disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer to service manual for servicing instructions.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use near water.

6) Clean only with dry cloth.

Do not block any ventilation openings. Maintain well ventilated conditions around

the product, do not put product on bed, sofa or anything that blocks ventilation. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

Note: Do not touch the color TFT LCD screen by hand directly.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

FCC Notice

NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energ y and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Important Safety Instructions---------------------------------------------------------------------

Table of Contents

FCC Notice--------------------------------------------------------------------------------------------Table of Contents -----------------------------------------------------------------------------------Characteristic Features ---------------------------------------------------------------------------Front Panel --------------------------------------------------------------------------------------------- Rear Panel and Display Panel---------------------------------------------------------------------- Remote Control ---------------------------------------------------------------------------------------

Preparation ------------------------------------------------------------------------------------------Using the Remote Control------------------------------------------------------------------------System Connections -------------------------------------------------------------------------------Connecting To External AV Signal Source ---------------------------------------------------- Connecting To TV Signal Input Source---------------------------------------------------------Connecting To the Antenna ---------------------------------------------------------------------------------Connecting To the Power Adapter ------------------------------------------------------------------------

Radio Function------------------- --- -- ------ -- --- -- --- -- --- -- --- --- -- --- -- --- -- ----- --- --- -- --- -- --- -- TV Function ---------------------------------------------------------------------------------------------

Picture parameter setup--------------------------------------------------------------------------------------TV Setup----------------------------------------------------------------------------------------------------------

4 5 6 7 9 10

10 10 13 13 13 14 15

16 17

17 17

Timer Setup-------------------------------------------------------------------------------------------------------

AV Function ---------------------- --- ----- --- -- --- -- --- -- --- -- --- --- -- --- -- --- -- --- -- --- ----- --- -- --- -- Installing the Unit in Kitchen---------------------------------------------------------------------- Troubleshooting -------------------------------------------------------------------------------------- Specifications -----------------------------------------------------------------------------------------

19 21 22 24 25

Characteristic Features

This product incorporates LCD display, TV receiver and radio function in one system. It is designed for convenient use in the kitchen. Please refer to page 21 for the installation instructions.

Multiple Mode

• TV

• Radio

• External Audio & Video Input

mode

High Quality Property

Video Screen

Supports normal screen (4:3) and wide screen (16:9) aspect ratios.

AV Input

External Audio, Video input can be connected to most external AV sources.

LCD (Liquid Crystal Display) screen

Color video screen designed with LCD technology clearly shows video data.

Amplifier Function

Built-in 2x5w stereo amplifier with left and right speakers.

Switching Power Adapter

Automatically adapts to the voltage required.

TV Functions

• Receive TV signal clearly.

• Search for TV channels automatically.

• Automatically memorize the

channels.

Radio Functions

• Receive AM/FM signal clearly.

• Search for radio stations

automatically.

• Store radio stations easily.

• Search for radio stations in high or

low frequency range.

Front Panel

Front Panel Drawing

1. POWER Button

Press to enter or exit the STANDBY mode.

2. TV Button

Press to enter TV receiving mode.

3. FM Button

Press to shift to FM signal input mode.

4. AM Button

Press to shift to AM signal input mode.

5. AV Button

Press to shift to external AV input mode.

6. 16:9/4:3 Button

Press to switch the aspect ratio of the screen between 16:9 and 4:3.

7.  button

Under radio mode, press once to fine tune frequency backward. Press for about 1.5 seconds to search radio stations backward automatically.

8.  Button

Under radio mode, press once to fine tune frequency forward. Press for about

1.5 seconds to search radio stations forward automatically.

9. Remote Sensor

Receives remote control signal for operation.

- 7 -

Front Panel

10. TIME Button

Press to set the time when the time is displayed on the display panel. Use the buttons to select the editing position of hour or minute, use the  buttons to adjust the value of the hour or minute upward and downward. Under FM/AM radio status, press it once to display the time. Press it twice to set the time.

11. MUTE Button

Press to turn the speaker output on or off. The corresponding information will be displayed on the display panel.

12. SET Button

Press to enter or exit from the timer setup menu. Press to memorize the station under AM/FM status.

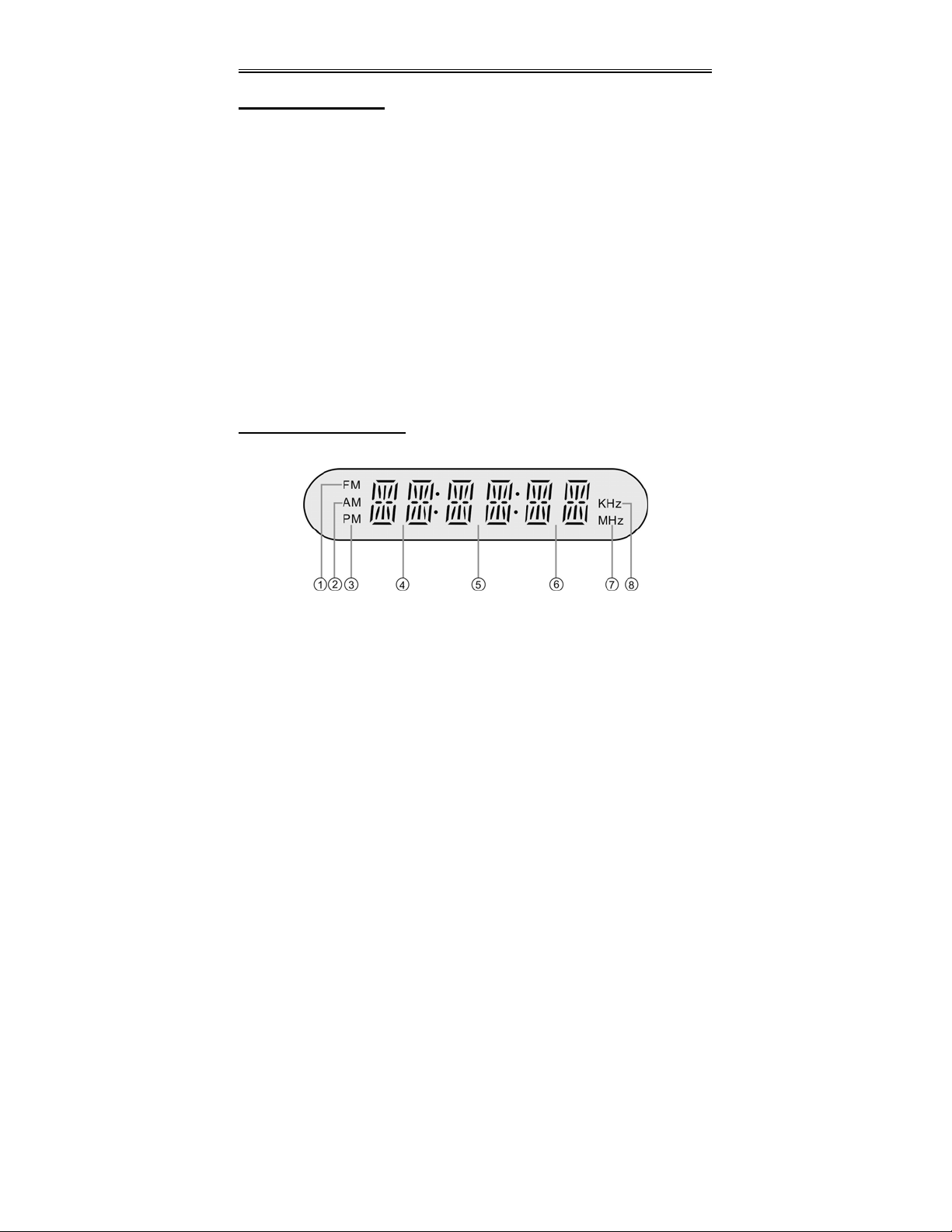

13. Display Panel

Displays the time, status, radio frequency and radio station number. When adjusting volume, the VOL and volume level will be displayed on the display panel for several seconds.

14. ▼/CH–

Press to select items in the setup menu. Press to select channels or radio stations backward under TV or radio mode. Press to adjust the value downward when setting the time on the display panel.

15. ▲/CH+

Press to select items in the setup menu. Press to select channels or radio stations forward under TV or radio mode. Press to adjust the value upward when setting the time on the display panel.

16. ◄ /VOL–

Press to select items in the setup menu. Or press to decrease the volume. Or press to decrease the value in the picture setup menu.

17. ► /VOL+

Press to select items in the setup menu. Press to increase the volume. Press to increase the value in the picture setup menu.

18. ENT Button

Press to confirm the time or selections in setup menu.

19. TV/LCD SETUP Button

Press once to enter the LCD setup menu. Then press  button again to enter the TV setup menu in TV mode.

20. LCD Screen

Presents a high resolution picture.

- 8 -
