Polaroid EZPRO 759 User Guide

PLEASE READ

We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of copyright. The copyright remains the property of their respective owners.

Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user manuals and much more.

Table of Contents

Table of Contents ....................................................................................... 1

Usage Notice .............................................................................................. 2

Precautions ......................................................................................................... 2

Introduction ................................................................................................ 4

Product Features ................................................................................................ 4

Package Overview ............................................................................................. 5

Product Overview ................................................................................................ 6

Main Unit ........................................................................................................................ 6

Control Panel ................................................................................................................ 7

Connection Ports .......................................................................................................... 8

Remote Control with Mouse Function & Laser Pointer ............................................... 9

Installation ............................................................................................... 10

Connecting the Projector .................................................................................. 10

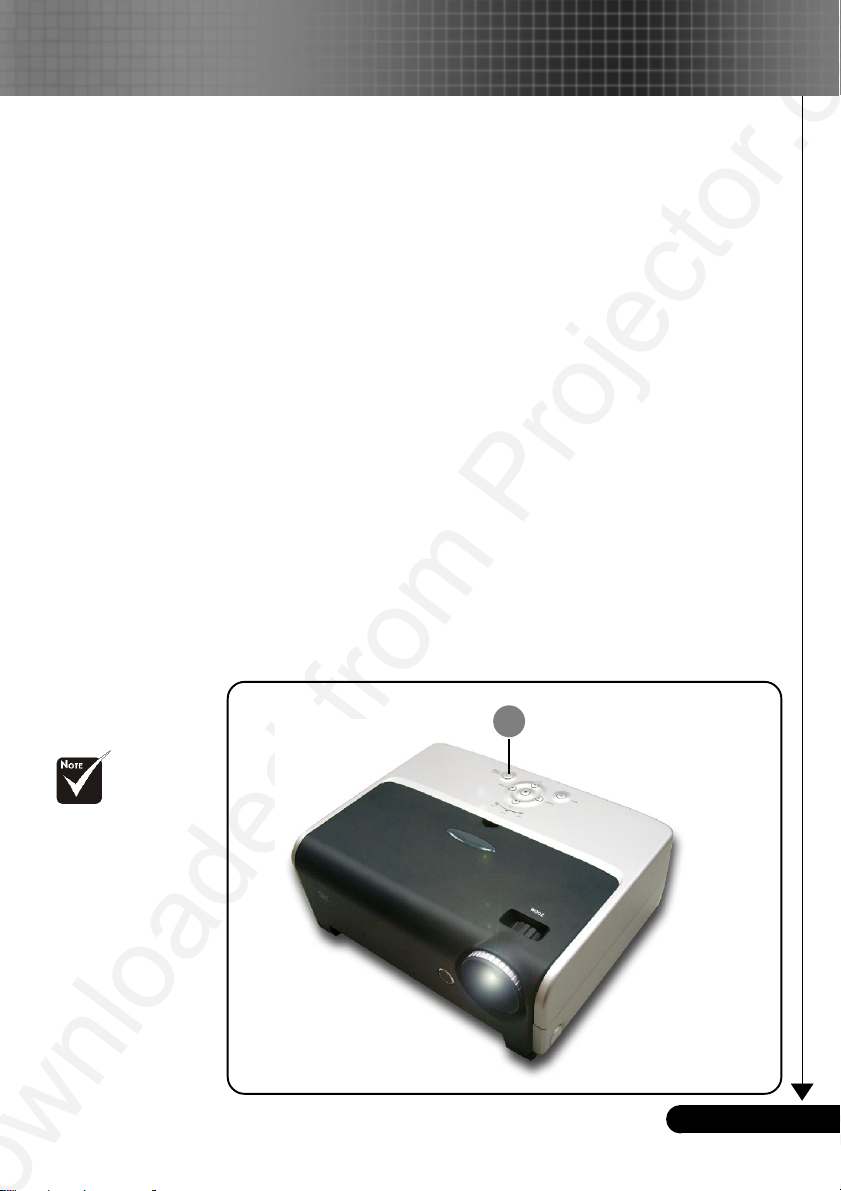

Powering On/Off the Projector .......................................................................... 11

Powering On the Projector ......................................................................................... 11

Powering Off the projector .......................................................................................... 12

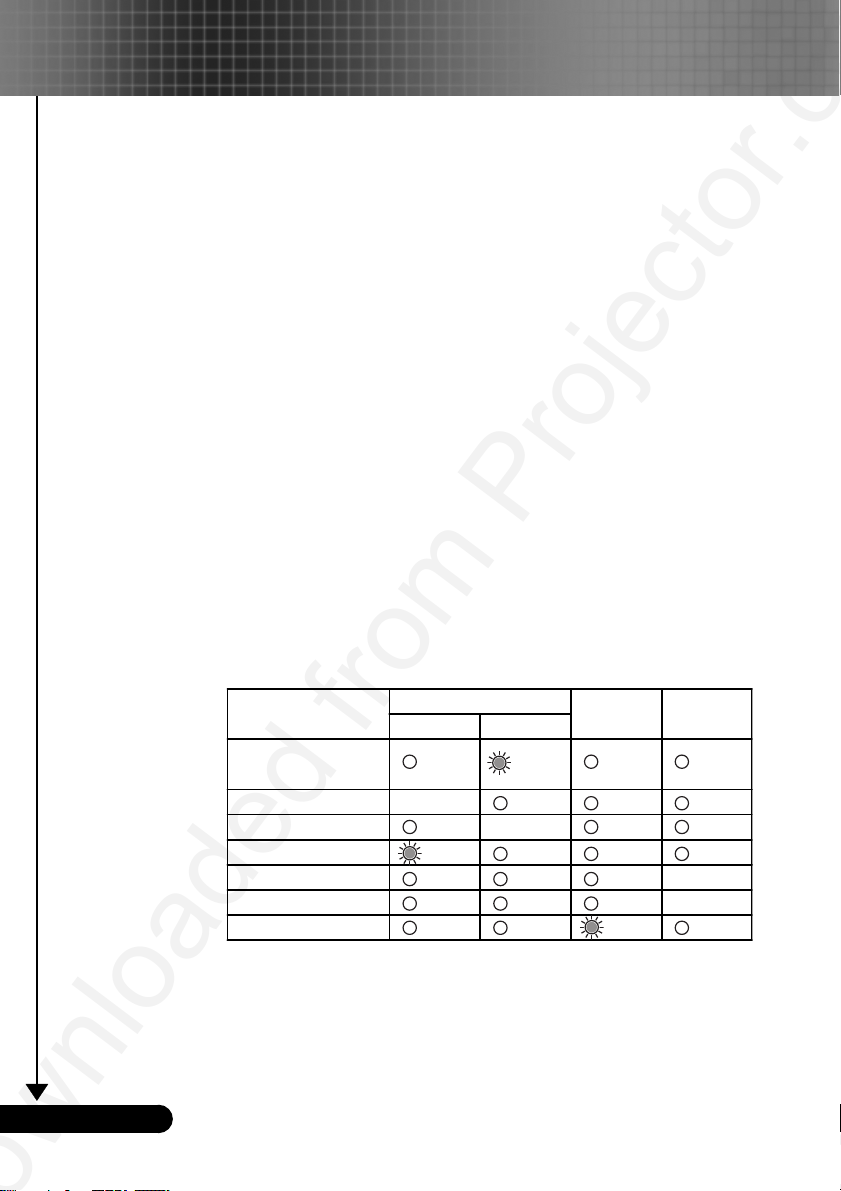

Warning Indicator ....................................................................................................... 12

Adjusting the Projected Image ......................................................................... 13

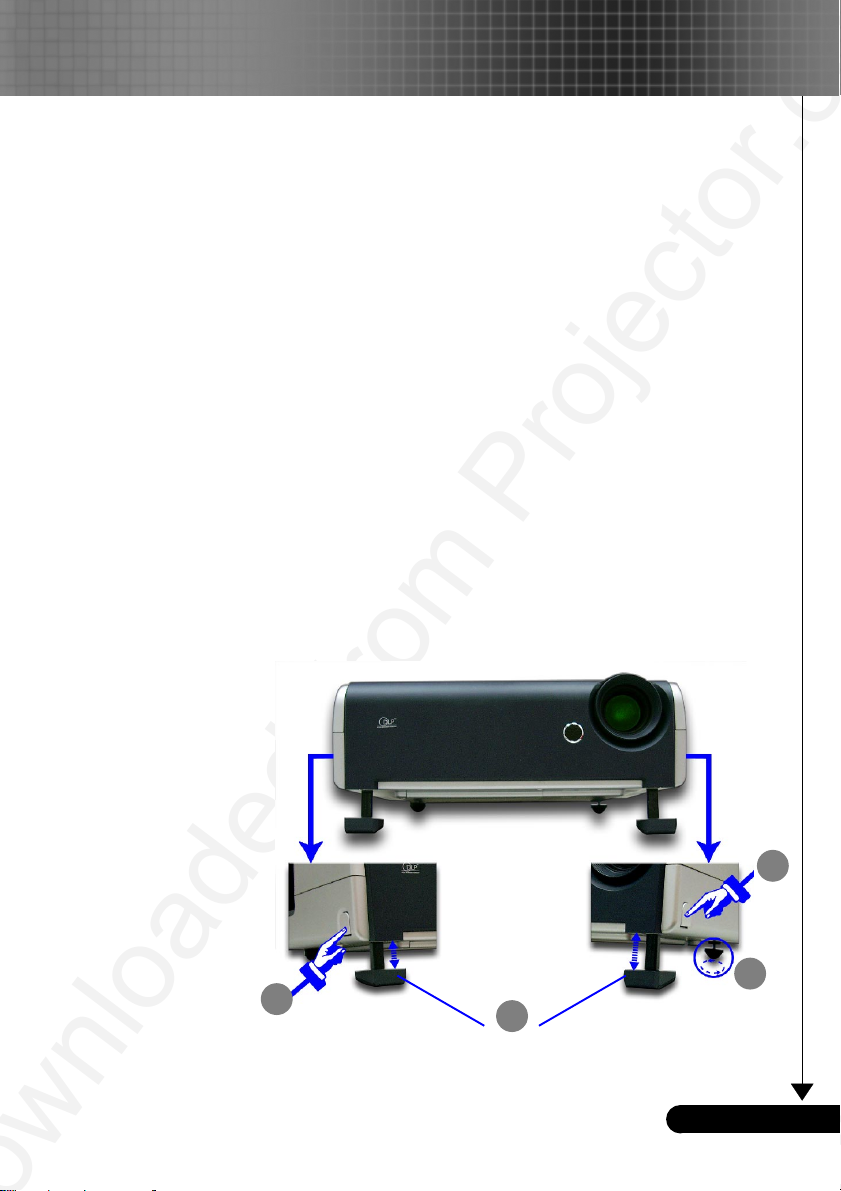

Adjusting the Projector Image Height ........................................................................ 13

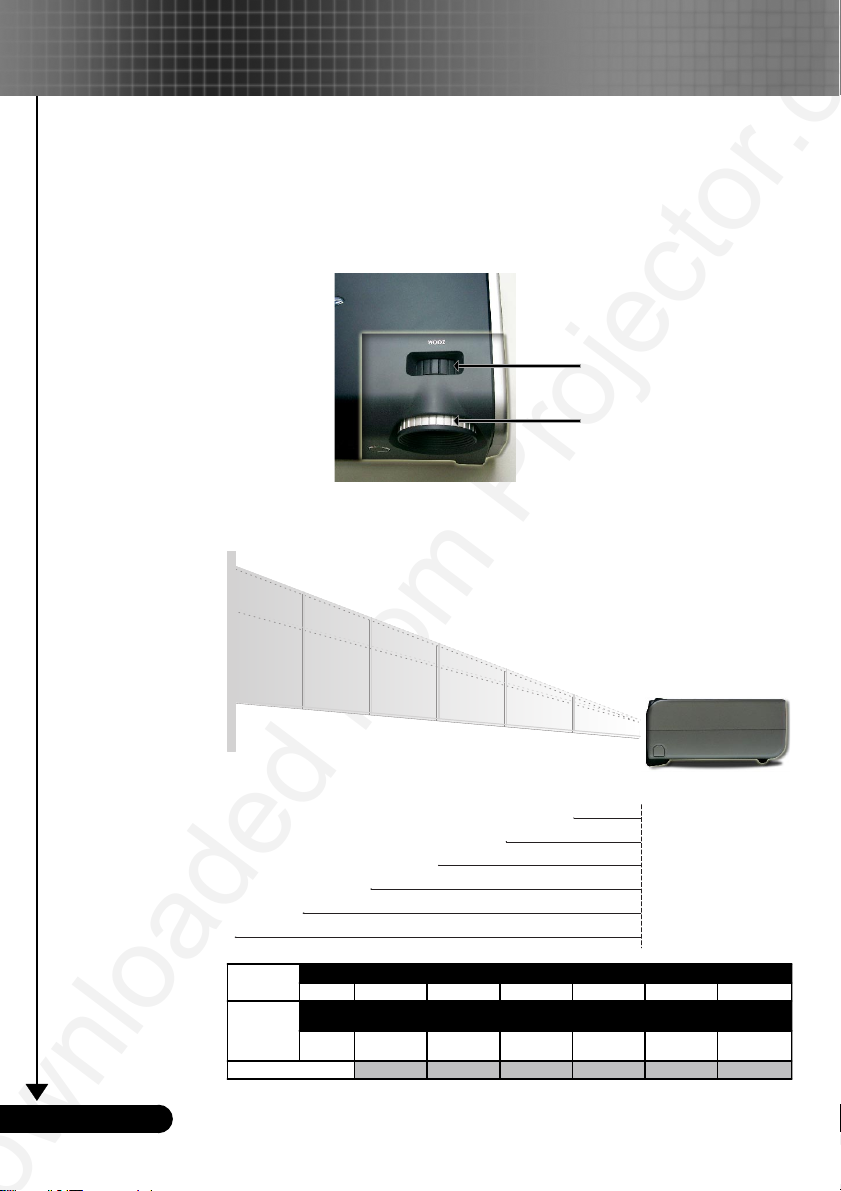

Adjusting the Projector Zoom / Focus ....................................................................... 14

Adjusting Projected Image Size ................................................................................. 14

User Controls ............................................................................................ 15

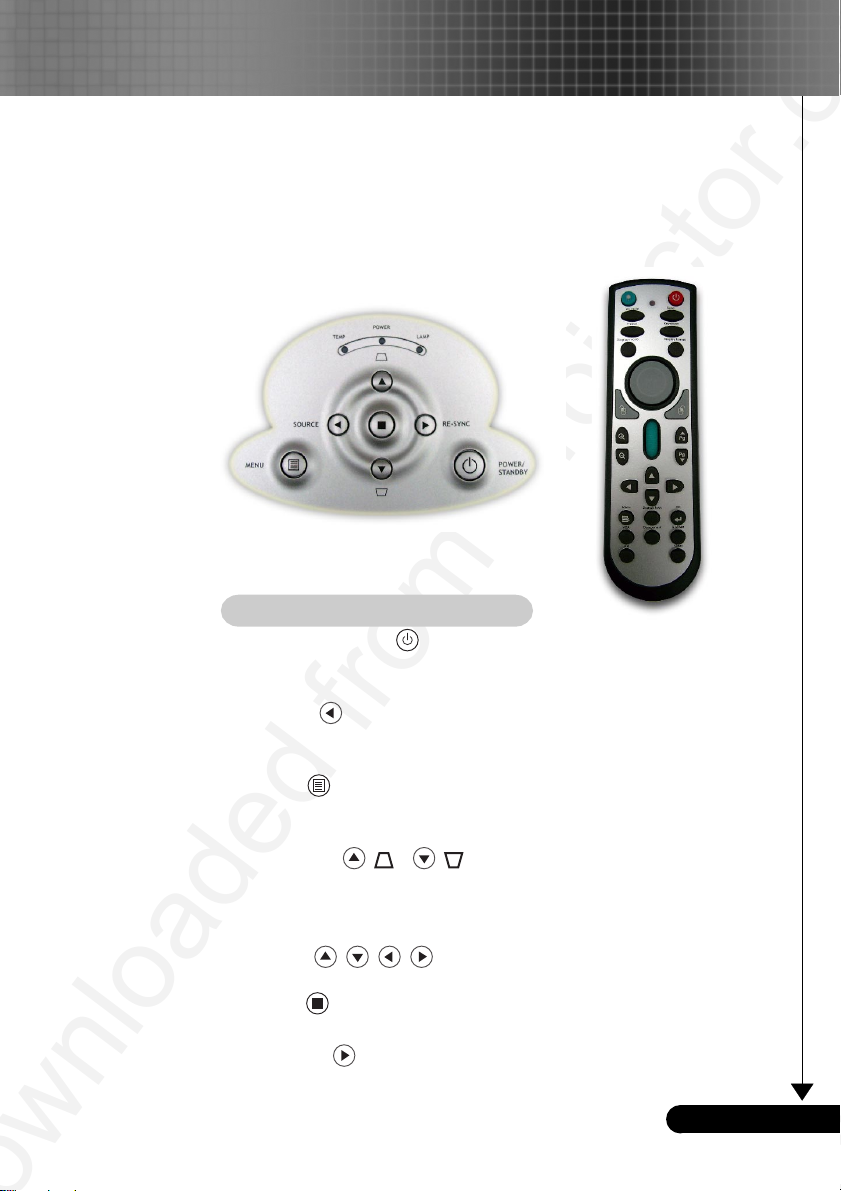

Control Panel & Remote Control ..................................................................... 15

On-Screen Display Menus ............................................................................... 18

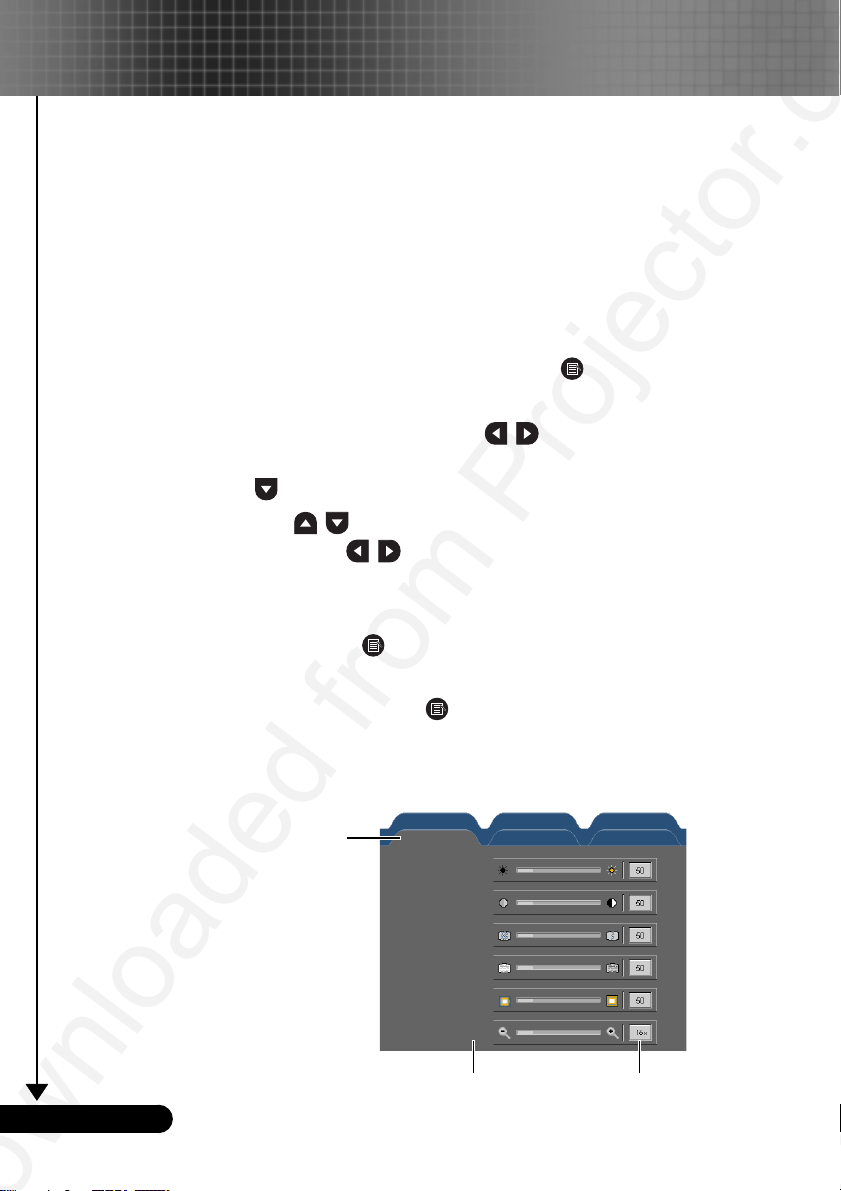

How to operate ............................................................................................................ 18

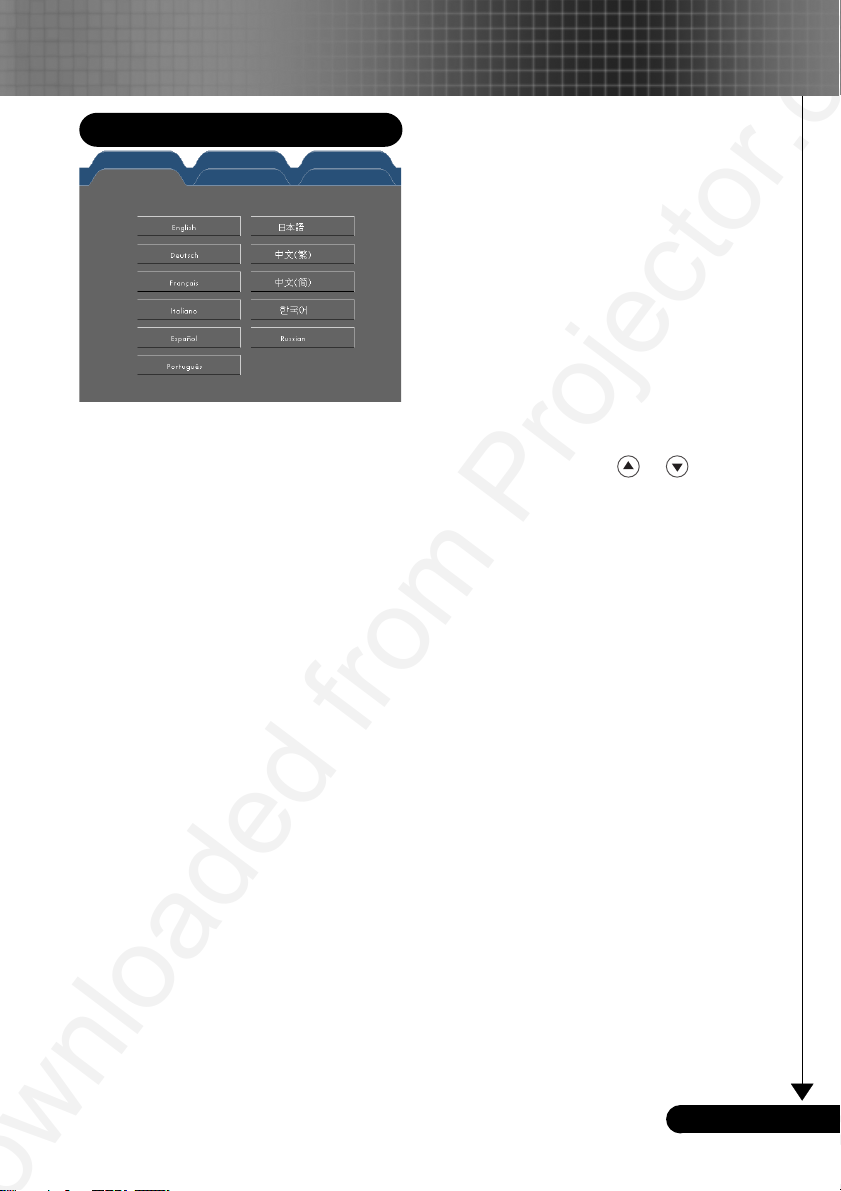

Language ..................................................................................................................... 19

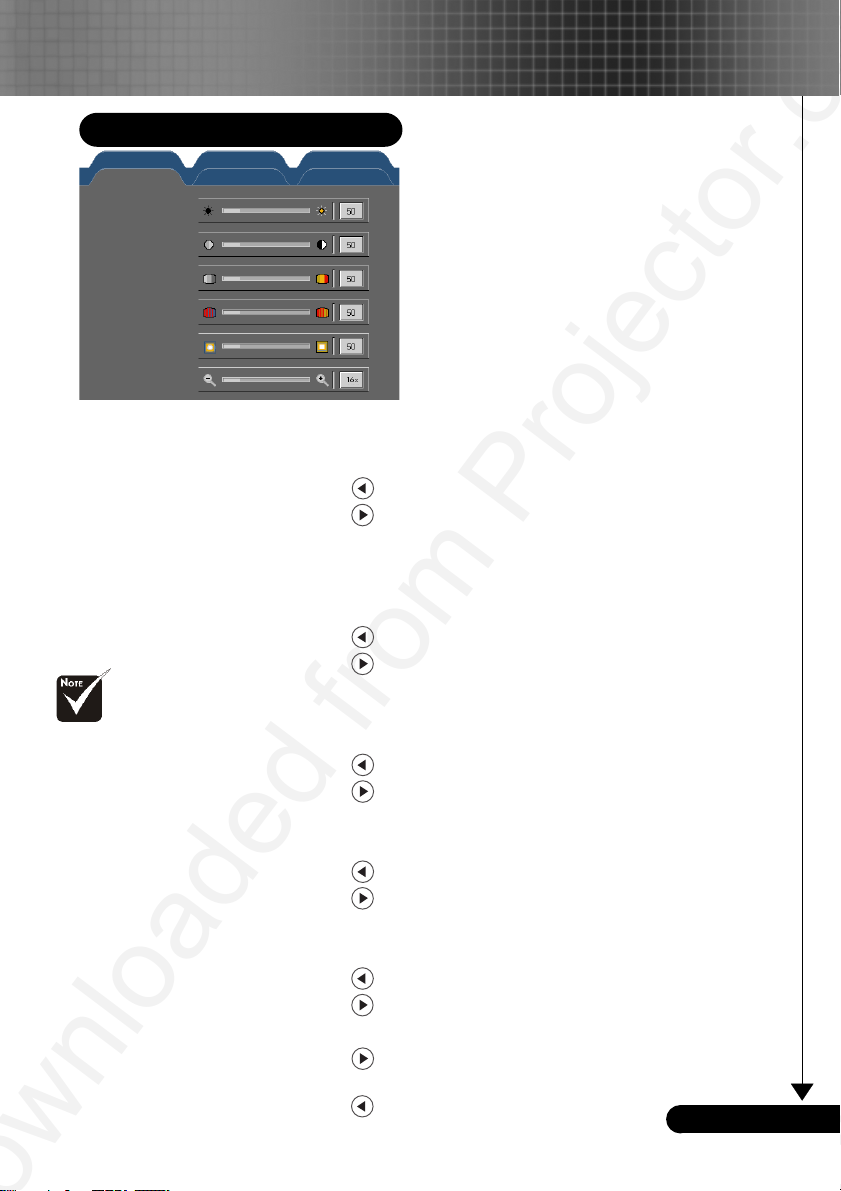

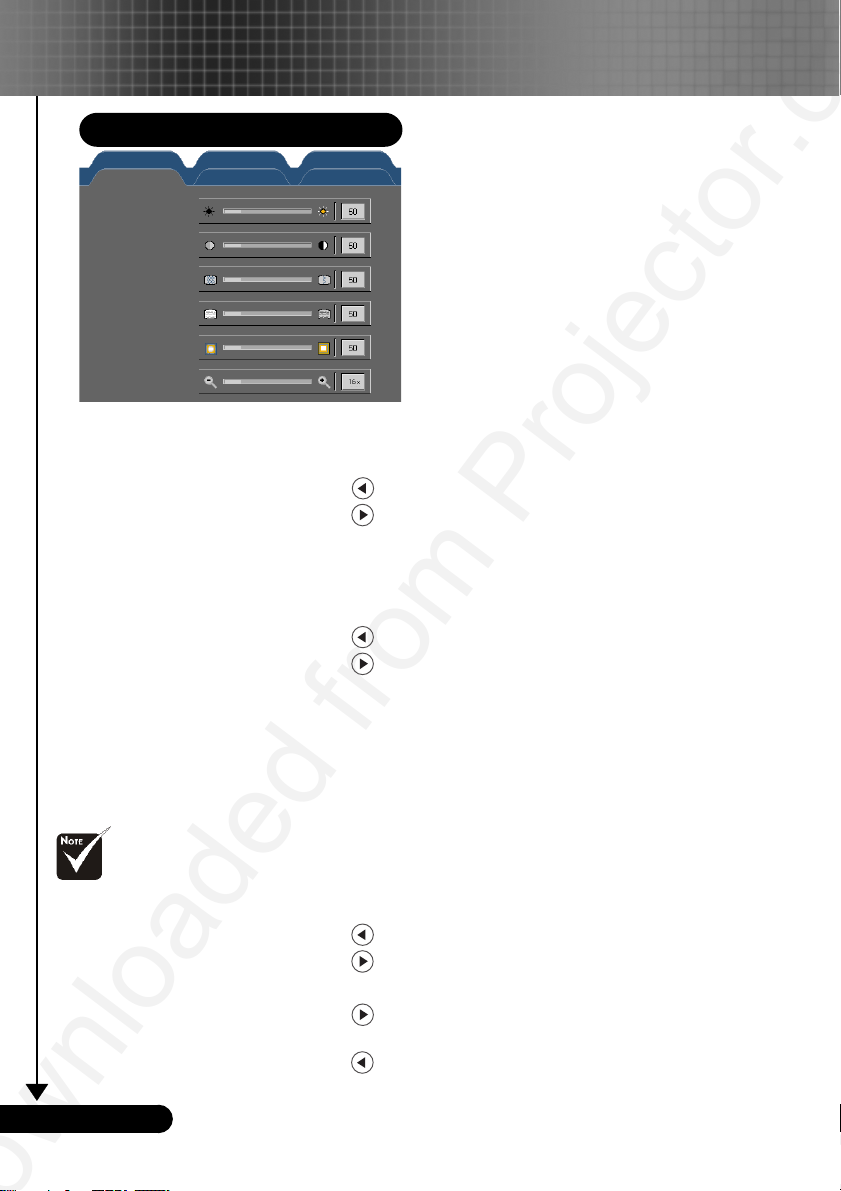

Image-I (Computer Mode) .......................................................................................... 20

Image-I (Video Mode) ................................................................................................. 21

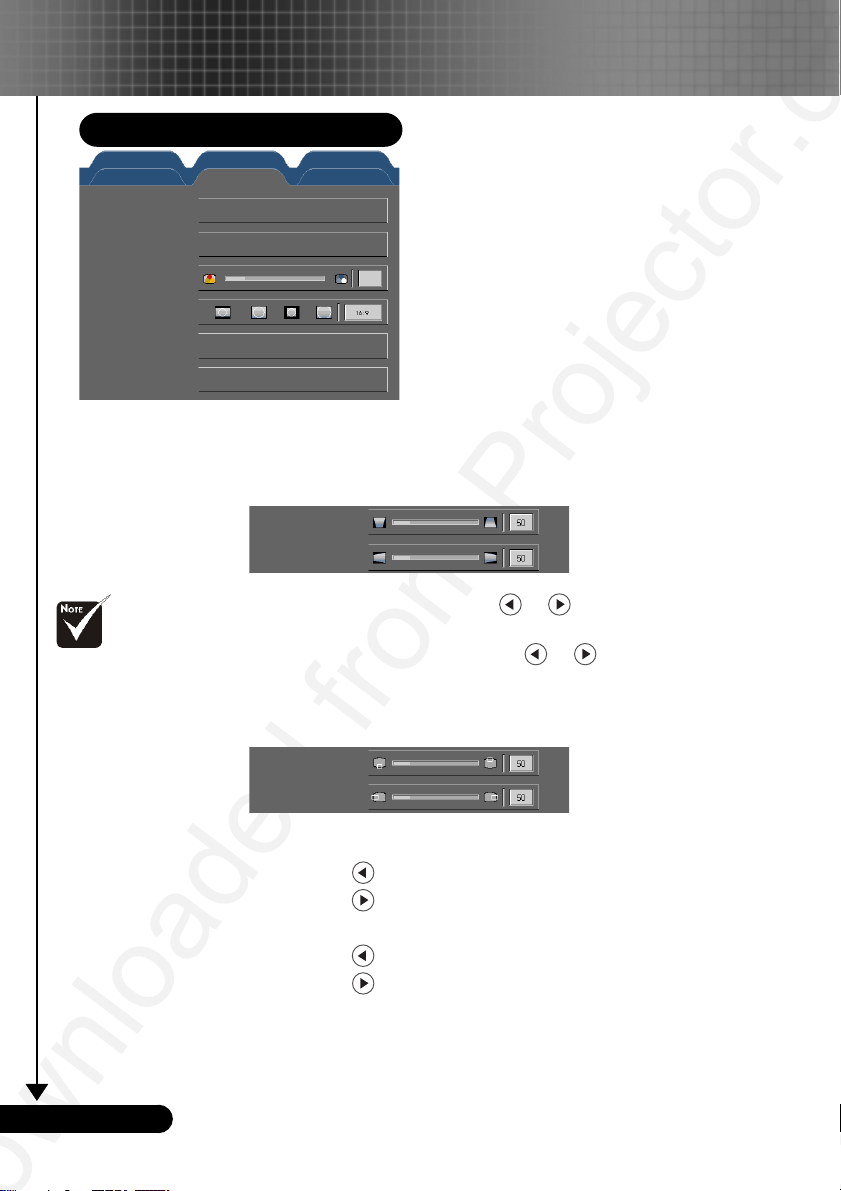

Image-II ........................................................................................................................ 22

Audio ............................................................................................................................ 24

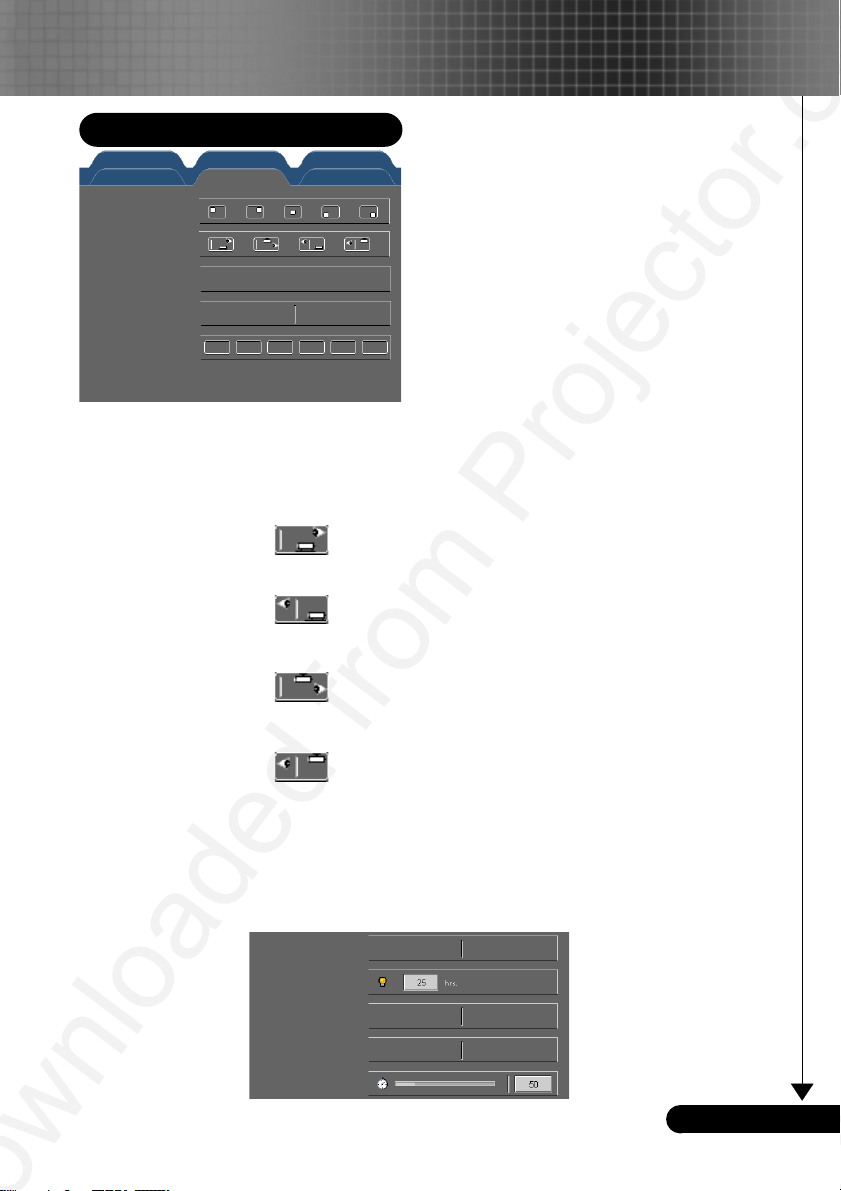

Management ................................................................................................................ 25

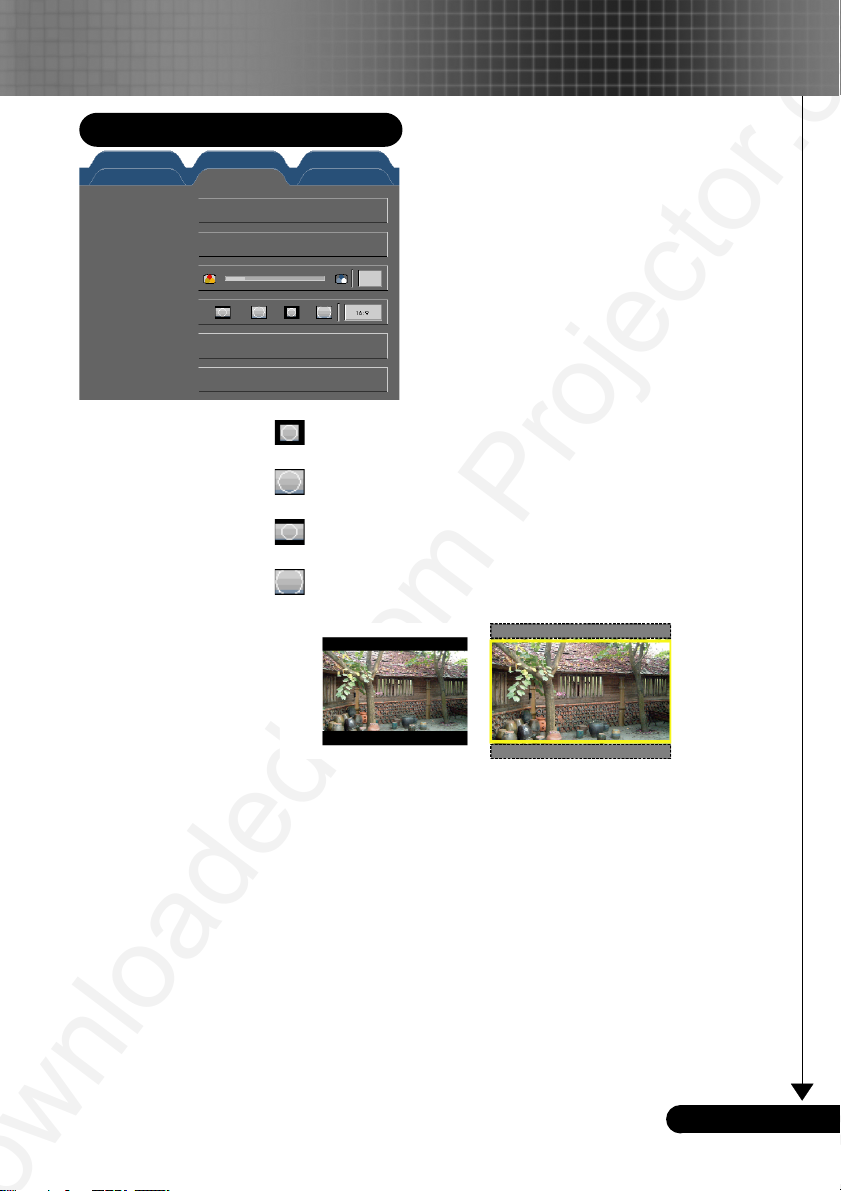

PIP ............................................................................................................................... 27

Appendices .............................................................................................. 28

Troubleshooting ............................................................................................... 28

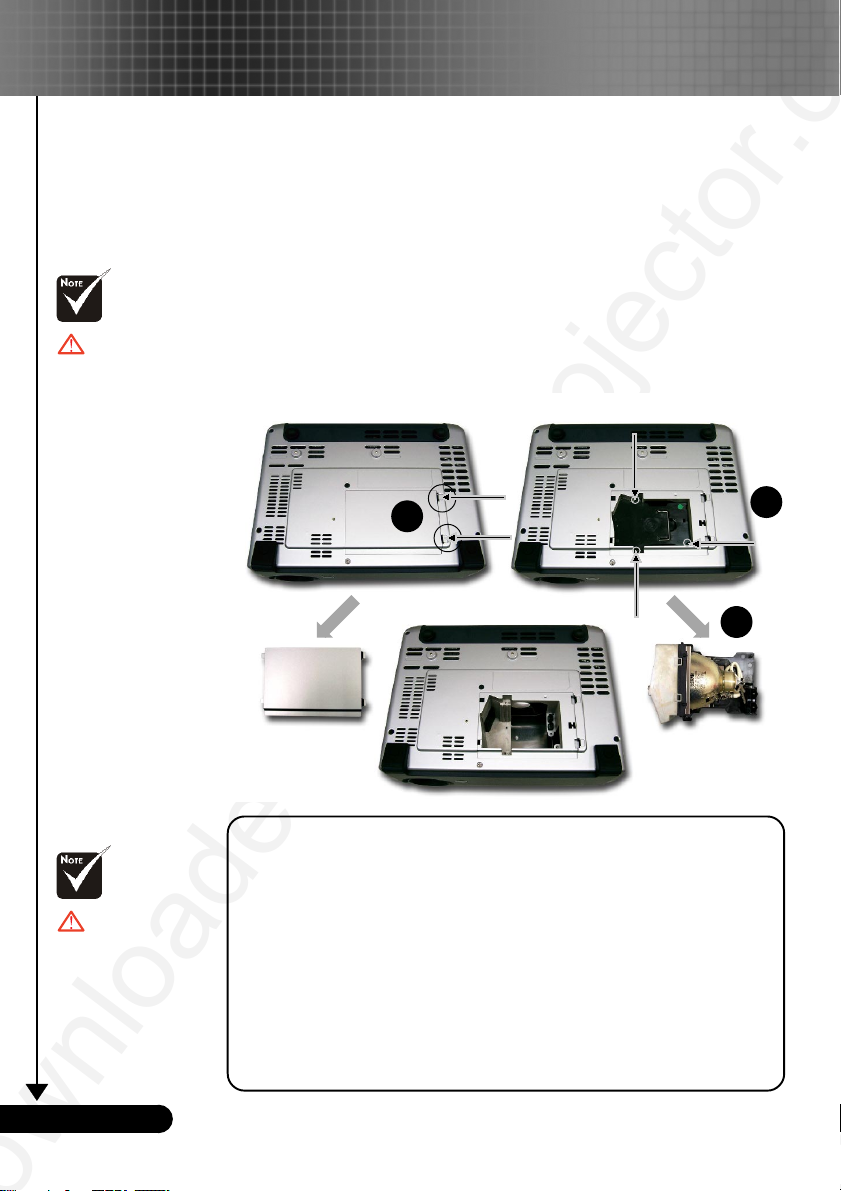

Replacing the lamp .......................................................................................... 32

Compatibility Modes ........................................................................................ 33

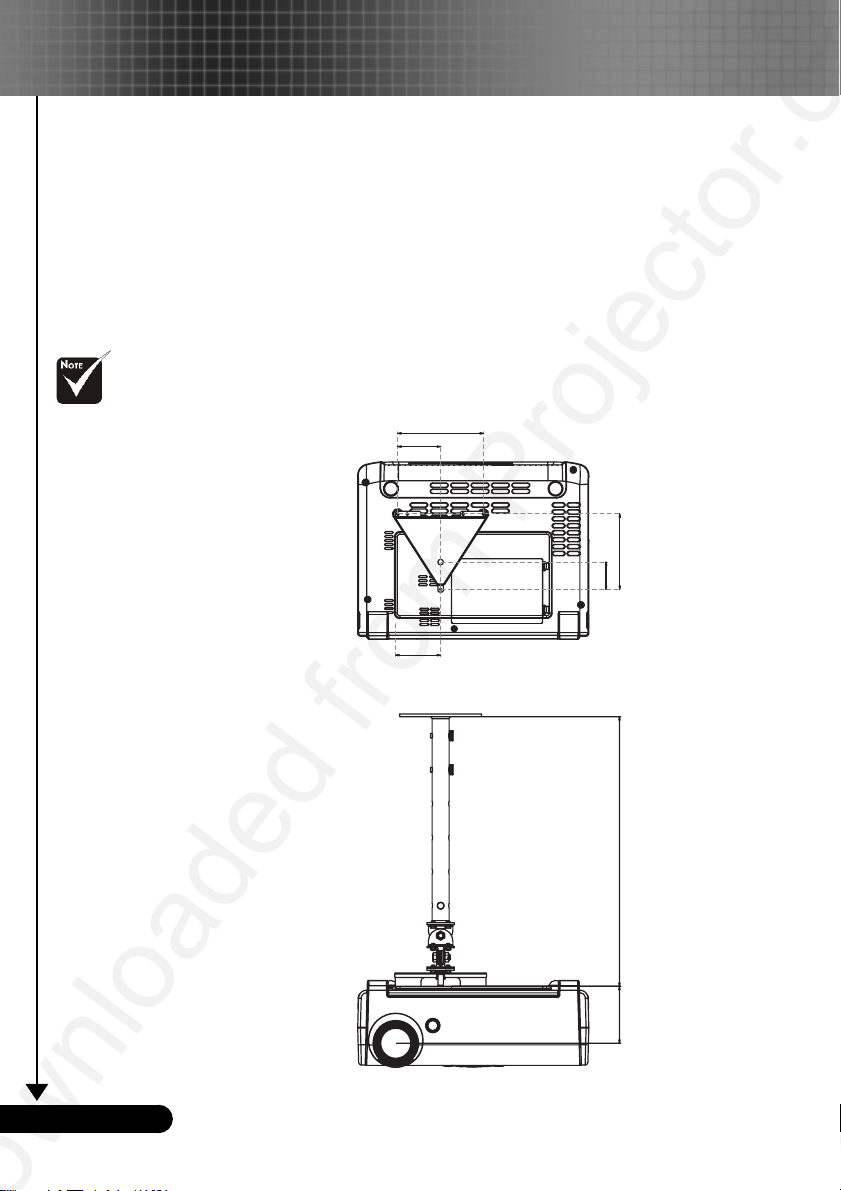

Ceiling Mount Installation ................................................................................. 34

... English

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit.

Warning- Do not look into the projector’s lens when the lamp is

on. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Warning- When changing the lamp, please allow unit to cool

down, and follow all changing instructions.

Warning- This product will detect the life of the lamp itself.

Please be sure to change the lamp when it shows warning messages.

English ...

Warning- Reset the “Lamp Reset” function from the On Screen

Display “Management-->Lamp” menu after replacing the lamp module (refer to page 26).

Warning- When switching the projector off, please ensure the

projector completes its cooling cycle before disconnecting power.

Warning- Turn on the projector first and then the signal sources.

Warning- Do not use lens cap when projector is in operation.

Warning- When the lamp reaches the end of its life, it will burn

out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the

Lamp”.

Usage Notice

Do:

 Turn off the product before cleaning.

 Use a soft cloth moistened with mild detergent to clean the

display housing.

 Disconnect the power plug from AC outlet if the product is not

being used for a long period of time.

Don’t:

 Block the slots and openings on the unit provided for

ventilation.

 Use abrasive cleaners, waxes or solvents to clean the unit.

 Use under the following conditions:

- In extremely hot, cold or humid environments.

- In areas susceptible to excessive dust and dirt.

- Near any appliance that generates a strong magnetic field.

- Place in direct sunlight.

... English

Introduction

Product Features

This product is an XGA single chip 0.7” DLPTM projector. Outstanding features include:

 True XGA, 1024 x 768 addressable pixels

 Single chip DLPTM technology

 NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and

HDTV compatible (480i/p, 576i/p, 720p, 1080i)

 HDCP compliant

 High-tech DVI-I connection for digital and analog video

connectivity

 Full function remote with mouse control and laser

pointer

 User friendly multilingual on screen display menu

English ...

 Advanced digital keystone correction and high

quality full screen image re-scaling

 User friendly control panel

 Picture-In-Picture dual image

 UXGA, SXGA compression and VGA, SVGA re-sizing

 Mac compatible

Introduction

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Projector with lens cap

Composite Video Cable

1.8m

S-Video Cable 1.8m

Documents :

User’s Guide

;

Quick Start Card

;

Warranty Card

;

Power Cord 1.8m VGA Cable 1.8m

DVI to D-Sub Cable

1.8m

Remote Control with

Mouse Function & Laser

Pointer

RCA Component Cable

for YPbPr 1.8m

2 x Battery

Carrying Case

... English

Introduction

Product Overview

Main Unit

English ...

1. Focus Ring

2. Zoom Ring

3. Elevator Button

4. Zoom Lens

5. Remote Control Receiver

6. Connection Ports

7. Power Socket

8. Control Panel

Control Panel

Introduction

1. Temp Indicator LED

2. Power Indicator LED

3. Lamp Indicator LED

4. Power/Standby

5. Source

6. Four Directional Select Keys

7. Enter

8. Keystone Correction

9. Menu (On/Off)

10. Re-sync

... English

Introduction

Connection Ports

1. DVI-I Input Connector (PC Digital and Analog signal/HDTV/ HDCP/Component Video Input )

2. VGA Connector (PC Analog Signal/HDTV/Component Video Input)

3. USB Input Connector

4. RS232 Input Connector

5. Monitor Loop-through Output Connector

6. Component Video Input Conntector

7. S-Video Input Connector

8. Composite Video Input Connector

9. Audio Input Connector

10. Audio Output Connector

11. Power Socket

12. Kensington

Lock Port

10 12

English ...

Introduction

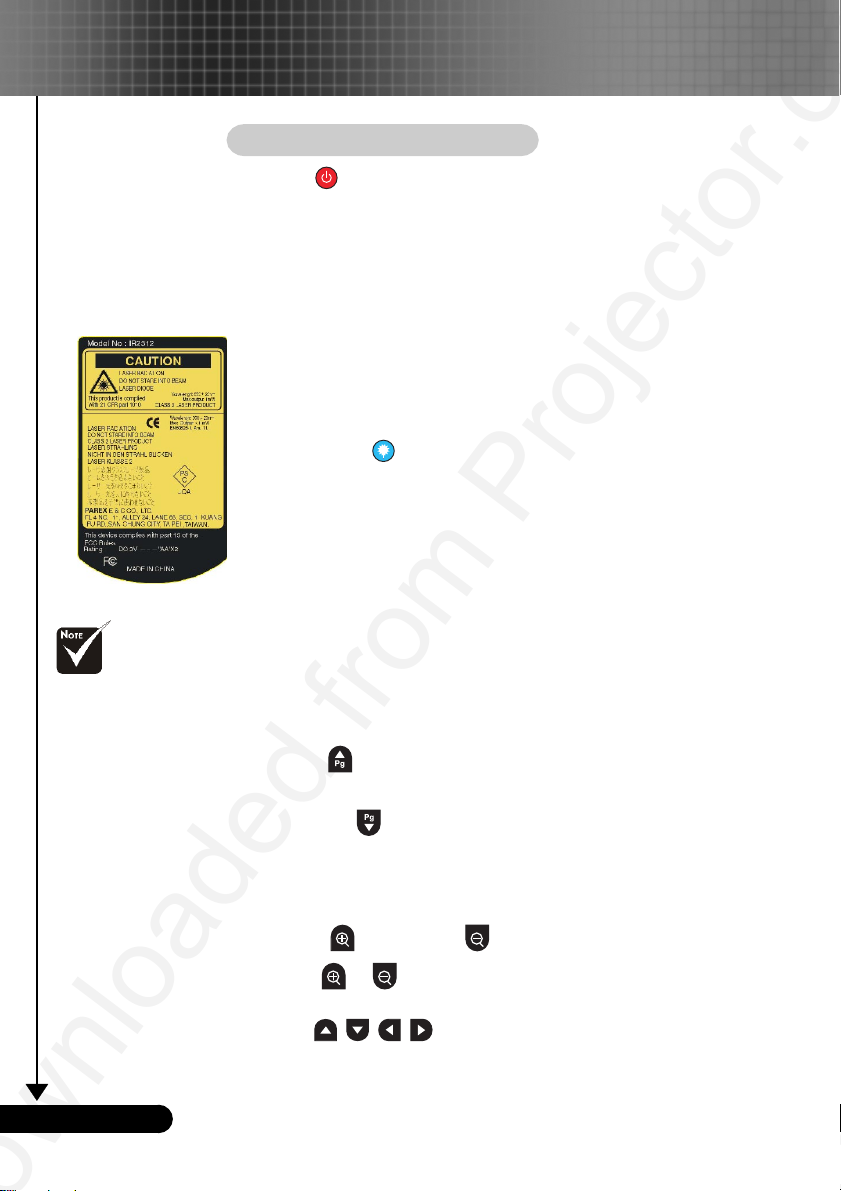

Remote Control with Mouse Function & Laser Pointer

1. IR LEDS

6 9

2. Power

3. Sync

4. Keystone Correction

5. Display Format

6. Laser Button

7. Laser Pointer

8. Laser Indicator LED

9. A/V Mute

10. Freeze

11. Display Mode

12. Mouse

13. Mouse Right Click

14. Mouse Left Click

15. Page Up / Page Down

16. Page Scrolling

17. Zoom In/Zoom Out

18. Four Directional Select Keys

19. OK (Enter)

13 14

20. Source Lock

21. Menu

22. VGA Source

23 DVI-I Source

24. Component Video Source

25. S-Video Source

26. Composite Video Source

20 24

25 22

... English

Installation

Connecting the Projector

Digital Tuner Output

DVI

8 4 2 9

RGB

USB

RS232

English ...

S-Video Output

1. ................................................................................................................... Power Cord

2. .................................................................................................................... VGA Cable

3. ............................................................................................. Composite Video Cable

4. ................................................................................................... DVI to D-Sub Cable

5. .............................................................................................................. S-Video Cable

6. .......................................................................... RCA Component Cable for YPbPr

7. ............. D-Sub to RCA Cable for HDTV/Component (Optional Accessory)

8. ............................................................... DVI to DVI Cable (Optional Accessory)

9. ......................................................................... RS232 Cable (Optional Accessory)

Video Output

 To ensure the projector works well with your computer, please

set the display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the projector. Refer to the “Compatibility Modes” section on page 34.
