Portable DVD Player with Two 7” LCD Screens
User’s Manual
20070328
Important Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightening fl ash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of suffi cient magnitude to constitute
a risk of electrical shock.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Power Supply:
Connect the supplied power adapter to the side of the DVD player in the slot marked “Power In”. Plug the twoprong end of the power cord to an AC outlet. If you have diffi culty inserting the plug, turn it over and reinsert
it; if the player will not be used for a long time, disconnect the power from the outlet.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
Caution: Laser radiation when open. Do not stare into beam.
Note: before plugging in the power cord to an AC outlet, make sure that all the connections have been made.
2
Important Safety Instructions
CAUTION: These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the operating instructions unless you
are qualifi ed to do so.
Refer to service manual for servicing instructions.
Read these instructions.
1.
Keep these instructions.
2.
Heed all warnings.
3.
Follow all instructions.
4.
Do not use near water.
5.
Clean only with dry cloth.
6.
Do not block any ventilation openings. Maintain well-ventilated conditions around the product. Do not
7.
place on bed, sofa, or anything that blocks ventilation. Install in accordance with the manufacturer’s
instructions.
Do not install near any hear sources such as radiators, heat registers, stoves, or other apparatus (including
8.
amplifi ers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
9.
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong is provided for your safety. If the provided plug does not fi t in your outlet,
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
10.
at the point where they exit the apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
11.
Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer or sold with the
12.
apparatus. When a card is used, use caution when moving the car/apparatus to avoid injury from tip-over.
Unplug this apparatus during lightening storms or when unused for long periods of time.
13.
Refer all servicing to qualifi ed personnel. Servicing is required when the apparatus has been damages in
14.
any way, which as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids such as vases,
15.
shall be placed on the apparatus.
Note: Do not touch the color TFT LCD screen by hand directly.
3
Important Safety Instructions
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,
and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
IMPORTANT FOR LASER PRODUCTS
CLASS 1 LASER PRODUCT
1.
DANGER: Visible laster radiation when open and interlock failed or
2.
defected. Avoid direct exposure to beam.
CAUTION: Do not open the top cover. There are no user serviceable
3.
parts inside the player. Leave all servicing to qualifi ed personnel.
Region Code Information
DVD players and discs are coded by region. If the region number described on the DVD disc does not
correspond to the region number of this product, this product cannot play the disc.
WEEE
This product contains electrical or electronic materials. The presence of these
materials may, if not disposed of properly, have potential adverse effects on the
environment and human health. Presence of this label on the product means it
should not be disposed of as unsorted waste and must be collected separately. As a
consumer, you are responsible for ensuring that this product is disposed of properly.
To fi nd out how to properly dispose of this product, please go to www.polaroid.
com and click on “Company“ or call the customer service number for your country
listed in the instruction manual.
4
High-quality Audio and Video
Excellent Sound: Dolby Digital Decoder delivers great sound.
•
AV Input: External audio, video can be connected to most external AV sources.
•
AV Output: Analog audio output can be connected to external amplifi er.
•
Advanced Playing Functions
Compatibility: Compatible with DVD, CD, and JPEG discs, etc.
•
On-Screen Display: You can choose English, French, Spanish, etc. for the on-screen display language.
•
Particular Performance: Multi-speed, fast forward, fast backward, slow playback, and repeated
•
playback.
Search by Time: Search for a certain track of a disc by selected time.
•
Last Memory Playback: Memorizes the stopped playback track and continues playing the disc from
•
this spot when the power remains on. (Only available for DVD and CD discs.)
Special Functions: Supports screen multi-angle viewing and zooming functions.
•
Features
Other Special Functions
High Resolution: MPEG-2 decoding format archieves more than 500 lines of horizontal resolution.
•
Power Adapter Switch: Automatically adapts to voltage requirements in UK and other countries.
•
5
Accessories
ITEM
NAME
Your portable DVD player may not include all accessories listed below.
To purchase additional accessories for your player, visit www.polaroid.com.
ITEM
NAME
Remote Control (with battery)
Power Supply Cord with AC Adaptor
DC Adapter (Car Adapter)
Audio/Video Cord
Headphone
Note: Accessories and their parts numbers are subject to change without prior notice.
Straps
Operation Manual
Game Controller
6
Contents
Important Safety Instructions 2
Features 5
Accessories 6
View of Front Panel 8
View of Side Panels 9
Remote Control 10
System Connections 12
Power Supply 13
Notes on Discs 14
Playback Operation 15
DVD Playback 16
CD Playback 17
JPEG Playback 18
System Setup 20
Straps 24
Defi nitions 25
Troubleshooting 26
Specifi cations 27
7
View of Front Panel*
/ button: press to play or pause the playback
1.
button: press to stop playback or press it twice to
2.
stop completely
SLOW button: press and hold to activate the slow
3.
playback function
A/B button: press to play a section of the disc from
4.
point A to point B. Press once to select the starting
point, A, and press again to select the stop point, B.
SETUP button: press to access or exit the system
5.
setup menu
ZOOM button: press to see various zoom functions
6.
MENU button: press to access the DVD disc menu
7.
during playback
TITLE button: press to display the title menu
8.
/+/ ZOOM button: press to select different
9.
items; press the LCD MODE button and this button
to increase the levels of brightness, contrast, or color;
press ZOOM to see various zoom functions Disc
tray: when the disc tray is loaded, gently press the
cover to close it
// button: press to select different items;
10.
press and hold to search forward fast; press to
go to next list/track/chapter.
ENT/ (PLAY) button: press ENT to confi rm
11.
selection; press (PLAY) to start playback
/-/ SLOW button: press to select different
12.
items; press the LCD MODE button and then this
button to decrease
// button: press to select different items;
13.
press and hold to search backwards fast; press
to go to previous list/track/chapter.
OPEN switch: push to open the disc tray cover
14.
Disc tray cover
15.
Indicator light: will light when the unit is on
16.
Remote sensor
17.
MODE button: press to enter the brightness,
18.
contrast, or color adjusting mode.
+ button: press to increase adjustments
19.
- button: press to decease adjustments
20.
Standby button
21.
* Your portable DVD player may differ from the player shown.
8
Side View of Screen
Volume Control Knob: Used to adjust the volume of headphones and speaker
1.
Headphone Jack: Used to connect to headphones for private listening. When headphone is plugged in,
2.
the speakers will automatically turn off.
Audio/Video Input: For connecting to an external monitor or audio source
3.
DC Input: For connecting to DC9/12V on the base DVD loader
4.
View of Side Panels*
Back View of Base DVD Loader
Power ON/OFF Switch: Switch the power on or off
1.
DC 9/12V Input Jack: Used to connect the DC 9/12V adaptor
2.
AV1 and DC1 OUT: Used to connect to AV and DC of a monitor
3.
AV2 and DC2 OUT: Used to connect to AV and DC IN of second monitor
4.
* Your portable DVD player may differ from the player shown.
9
Remote Control*
MUTE button: press to turn speakers on or off
1.
INFO button: press repeatedly to display or cancel the detailed information of the disc during playback
2.
TITLE button: press to display the title menu if it exists on the disc
3.
Direction button: press to select different options
4.
ENTER button: press to access playback or confi rm your selection
5.
SETUP button: press to enter the player’s setup menu
6.
0-9 number buttons: press to select numbers
7.
NEXT button: press to skip to the next list, track, or chapter
8.
PREV button: press to return to the previous list, track, or chapter
9.
SUBT button: press to select a subtitle language or to turn the subtitles on or off (when playing a disc coded
10.
with subtitles)
ANGLE button: press to access various camera angles if the DVD disc contains multiple camera angles
11.
A-B button: press to play a section of the disc from point A to point B. Press once to select the starting point A,
12.
press again to select the end point B. During A-B repeat playback, press this button to stop the repeat
ZOOM button: press to realize different zoom functions
13.
REP button: press to repeat a chapter, title, or entire disc
14.
MENU button: press to access the DVD disc menu during playback
15.
PAUSE button: press to pause playback, press the PLAY button to resume normal playback
16.
STOP button: press stop to stop playback, press twice to stop completely. Press the PLAY button to resume
17.
playback.
PLAY button: press to start playback
18.
+10 button: press the 10+ button followed by another number to select a number greater than 9
19.
GOTO button: press to select the desired disc starting time, title, or chapter
20.
REV SCAN button: press to search backward during playback
21.
FWD SCAN button: press to search forward during playback
22.
SLOW button: press to activate slow playback function
23.
AUDIO button: press to select different languages when a DVD disc with multiple audio languages is being
24.
played; press to select different audio tracks when a CD disc is being played
* Your portable DVD player may differ from the player shown.
10
Remote Control

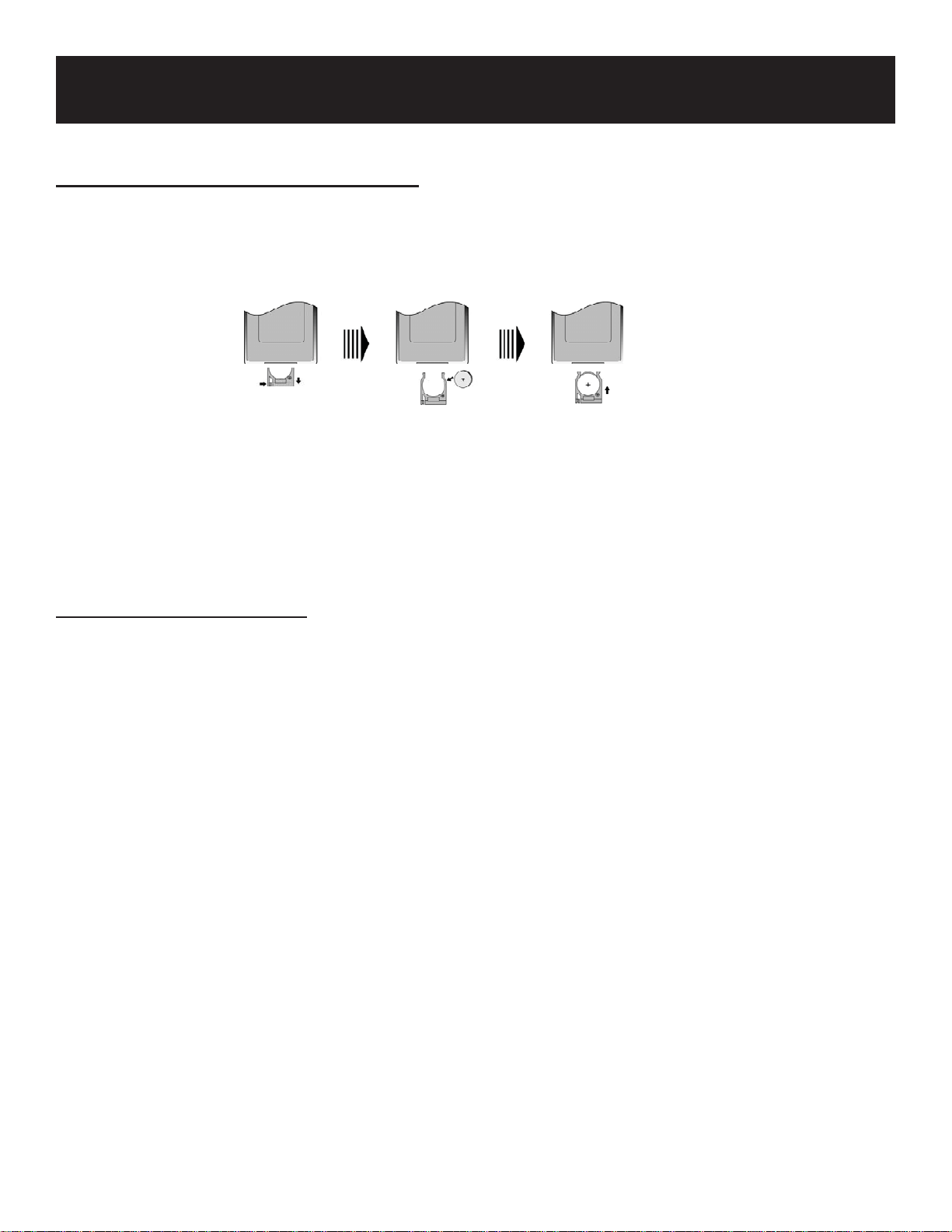

Installing the Remote Control Battery
1.
2.
3.
Battery Type: CR2025 3V
Battery service life: approximately 1 year under normal use (at room temperature)
Pull the battery holder out from the remote control as shown below.
Load a new battery properly with the (+) side up.
Insert the battery holder back into the remote control.
Using the Remote Control
Point the remote control to the remote sensor on the player within a 5-meter range and 60-degree angles, without obstacles between the remote control and remote sensor.
Notes:
Improper use of the battery may cause overheating, explosion or ignition, which can result in an injury or
•
fi re. Battery leakage may damage the remote control.
Do not expose the remote control to direct sunlight.
•
Do not recharge, disassemble, deform, or heat the battery.
•
Immediately replace the exhausted battery.
•
Take out battery when the remote is not being used for a long period of time.
•
11
System Connections
Always ensure that the DVD player, TV, and any other electrical equipment to be connected are switched off
•
and unplugged from the power supply.
Ensure that you observe the color coding when connecting audio and video cables.
•
Connecting to a LCD screens
Follow the drawing below to connect the DVD player
to the LCD screens.
Connecting to Game Controller
Follow the drawing below to connect the DVD player
to the game controller.
Connecting to the Headphones
Connect the headphones to the headphone jack on
either side of the player. When headphones are
connected, the speakers will automatically turn off.
12
Power Supply
Using the AC Adapter
The player is supplied with an AC adapter for powering the player and charging the battery.
Connect the AC adapter to the left side of the DVD player marked DC 9/12V IN.
1.
Plug the two-prong end of the power cord into a grounded electrical outlet. The power indicator lights red
2.
when charging the battery and green when complete.
Notes:
Turn the player’s power off before unplugging.
•
When using the adapter, the LCD screen will be brighter than using the rechargeable battery.
•
Using the Car Adapter
The player is supplied with a car adapter for powering the player and charging the battery in a vehicle.
Connect the car adapter power plug to the player’s power jack and the other end to the vehicle’s 12V accessory/
cigarette lighter socket.
Attention:
Do not operate the player or view video software while driving a vehicle.
•
Place the player in a proper viewing position.
•
Detach the battery pack when using the AC or car adapter as a power source.
•
Disconnect the player from the car adapter when starting the vehicle.
•
13
Compatible Disc Formats
DVD 12 cm
CD 12 cm 74 min
Notes on Discs
DISC LOGO DIAMETER PLAYBACK TIME /
PLAYABLE SIDES
8 cm
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
150 min (DS-DL)
8 cm 20 min
JPEG 12 cm
Operation methods of some DVD discs are specifi ed by the software manufacturer. Please follow the
instructions of the disc.
Care of Discs
Holding Discs
•
When loading or removing discs, try not to touch their play surfaces.
Cleaning Discs
Fingerprints or stains on the disc may affect the quality of sound and picture. To clean your discs, use a soft
•
clean cloth to wipe them. If necessary, moisten a soft cloth with neutral detergent to remove heavy dirty or
fi ngerprints.
Do not wipe in a circular direction (concentric scratches on the disc groove tend to cause noise). Gently
•
wipe from center of the disc to the outer edge.
14
Playback Operation*
Please read the following instructions carefully before using your
DVD player for the fi rst time.
Warning: To avoid damaging the lens, do not play poor quality discs.
Pre-Operation
1.
Connect the player to power supply through the provided AC adaptor.
2.
Switch POWER ON/OFF to ON to turn the DVD player on.
3.
Push the OPEN switch on the player to open the disc tray cover. Put a disc in the disc tray with printed side up. Close
the disc cover.
4.
The player will search the disc and play it automatically.
5.
Adjust the volume with the VOLUME control on the right panel to the desired level.
6.
To turn the player off, switch the POWER ON/OFF to off.
Basic Operation
MODE button: press the MODE button and then press the /+ or /- button to adjust brightness, contrast, and color of
the screen. Press and hold several seconds to change the aspect ratio among 16:9, 4:3, 16:9 overturn, and 4:3 overturn.
* Your portable DVD player functions may differ from the player shown.
15
Playback Operation
Features are available on both the DVD player and remote control unless otherwise noted.
DVD Playback
When you load a disc in, the player will search the disc and play it
ENTER/ENT button
automatically. Press the direction buttons () to highlight the item you
want to play and press the ENTER/ENT button to confi rm.
PAUSE/button
STOP/ button
MENU button
TITLE button
ZOOM button
& buttons
Press the PAUSE/button to pause during playback and the PLAY button to
resume normal playback.
Press the STOP/ button once to stop playback. Then press the PLAY
button to resume normal playback from the place where the STOP buton was
pressed. Press the STOP/ button twice to stop playback completely.
Press the MENU button during playback. The root menu will appear on the
screen. Press the direction buttons () to select the item you want to
play and press the ENTER/ENT button to confi rm. You can also press the 0-9
and +10 buttons to select the item you prefer.
In general, the content of a DVD disc can be divided into several titles. There
are also several menus in a title. Press the TITLE button during playback. The
title menu will appear on the screen. Press the direction buttons () to
select the title or disc menu item you want to watch and then press the ENTER/
ENT button to confi rm. You can also press the 0-9 and +10 buttons to select the
item you prefer. (remote only)
Press the ZOOM button repeatedly to shift among 1x - 2x - 3x - 4x zooming
effect and normal playback.
Press the button to go to the previous chapter.
Press the button to go to the next chapter.
& buttons
SLOW button
REP button
A-B button
GOTO button
Press the / button (and hold it for several seconds) to start fast forward/
rewind playback. Press it (and hold it for several seconds) repeatedly to fast
forward/rewind at the speed of 2x, 4x, 8x, 16x, and normal playback. Press
PLAY to return to normal playback.
Press the SLOW button repeatedly and slow playback will at the speed of 1/2,
1/4, 1/8, 1/16, and normal playback. During slow playback, press the PLAY
button to resume normal playback.
Press the REP button to repeat a Chapter, All, or cancel repeat in sequence.
(remote only)
In normal playback, press the A-B button to select the segment you want to play
repeatedly. Press once to select the starting point A, press again to select the end
point B; the player will play the segment between A and B continuously. Press
the A-B button a third time to cancel the repeat segment.
During playback, press the GOTO button repeatedly to enter the menu to select
desired TITLE, CHAPTER, or TIME. Use the direction buttons to select
the item you want to set. Use the 0-9 and +10 buttons to select directly and then
press the ENTER/ENT button to confi rm. Press the GOTO button again to exit.
(remote only)
16
DVD Playback (continued)
INFO button
AUDIO button
SUBT button
ANGLE button
Press to display or cancel the detailed information of the disc during playback.
(remote only)
DVD discs can contain up to 8 audio bit streams. For example: English, French,
etc. To select the audio bit stream you prefer, press the AUDIO button during
playback. The DVD player will play the next audio bit stream every time you press
the AUDIO button in succession. (remote only)
When a DVD is playing, press the SUBT button to select a subtitle language or to
turn subtitles off. A DVD disc can be recorded with at most 32 subtitles. Note: this
function is only available for discs recorded with multi-subtitles. (remote only)
Press the ANGLE button to play the disc in multi-angle. Multi-angle means that
a scene is shot from different angles so the audience can watch from any angle.
If there are multiple angles in a scene, you can use the ANGLE button to select
the angle you enjoy. Press the ANGLE button repeatedly to view different angle
options.
Note: this function is only available for DVD discs coded with multi-angle.
Playback Operation
CD Playback
PAUSE/ button
STOP/ ■ button
& buttons
& buttons
GOTO button
INFO button
REP button
Press the PAUSE/ button to pause during playback. Press the PLAY/ button
to resume normal playback.
During playback, press the STOP/ ■ button once to stop and then press the PLAY/
button to resume normal playback from the place where the STOP/ ■ button is
pressed. Press the STOP/ ■ button twice to stop playback completely.
Press the / (and hold it for several seconds) to play fast forward/rewind. Press
it (and hold it several seconds) repeatedly, the fast forward/rewind playback will be
play at the speed of 2x, 4x, 8x, 16x, 32x in sequence. Press the PLAY/ button to
return to normal playback.
Press the button to play the previous chapter.
Press the button to play the next chapter.
During playback, press the GOTO button repeatedly to enter the menu to select
desired track, time track, or disc time. Use the direction buttons to select the
item you want to set. Use the 0-9 and +10 buttons to select directly and then press
the ENTER/ENT button to confi rm. Press the GOTO button again to exit. (remote
only)
Press the INFO button repeatedly to display or cancel detailed information during
playback. (remote only)
Press the REP button repeatedly to repeat a Track, All, or cancel repeat in sequence.
(remote only)
AUDIO button
Press the AUDIO button to select the desired sound effect. Press it repeatedly and
the display will be as follows: Left Right Stereo. (remote only)
17
Playback Operation
JPEG Playback
Pre-Operation
Load a JPEG in the disc tray and the player will search and play the disc automatically.
1.
The screen displays the root folder with several subdirectories/sub-folders. Use the buttons to select
2.
desired folder. Then press the ENTER/ENT button to confi rm your selection.
The screen enters the sub-folder with several fi les. Use the buttons to select desired fi le. Then press
3.
the ENTER/ENT button to confi rm your selection.
Press the button to return to the previous folder or directory.
4.
Note: many discs have other items besides pictures.
Buttons Operation
Press the STOP / ■ button to return to the previous folder. Press the direction
STOP/ ■ button
buttons () to select the picture you prefer and then press the ENTER/
ENT button to resume normal playback.
PAUSE/ button
MENU button
& buttons
ZOOM button
GOTO button
REPEAT function
Press the PAUSE/ button to pause during playback. Press the PLAY/
button to resume normal playback.
Press the MENU button to return to the previous folder. Press the direction
buttons () to select the picture you prefer and then press the ENTER/
ENT button to resume normal playback.
Press the button to play the previous chapter.
Press the button to play the next chapter.
Press the ZOOM button repeatedly to shift among 4/3, 3/2, 7/4, 2, 1/4, and 1/2
zooming in and out effect and normal playback.
During playback, press the GOTO button to select the desired fi le. Press the 0-9
buttons directly to select according to your preference. (remote only)
Under folder status, press the button to enter REPEAT setup. Then press
the ENTER/ENT button repeatedly to set the repeat mode and the screen
will display as follows in sequence: DISC NORMAL
SHUFFLE SINGLE TRACK REPEAT TRACK FOLDER
NORMAL FOLDER REPEAT. Press the button to exit. (remote only)
DISC REPEAT
18
Playback Operation
JPEG Playback (continued)
Rotating Pictures
While viewing a picture, use the direction buttons to rotate the picture.
Press the ◄ button to rotate the current picture counterclockwise:
Press the ► button to rotate the current picture clockwise:
Press the button to rotate the current picture up and down:
Press the button to rotate the current picture left and right:
19
System Setup*
You can change the default settings of this player to customize its performance to your own preferences.
Note: Program the system while playback is stopped completely or there is no disc in the payer.
To Set up your system:
Press the SETUP button and the setup menu will appear on the screen. It includes General Setup, Audio
1.
Setup, Video Setup, and Preferences Setup.
Press the direction buttons to select a sub-menu to program and press the ENT/ENTER button to access. In
2.
the sub-menu, use the button to highlight the “MAIN PAGE” and press the ENT/ENTER button to exit.
Press the SETUP button again to exit the setup menu at any time during setting.
3.
General Setup
TV DISPLAY
This item is used to set the TV display mode.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
It includes 4:3 PS, 4:3 LB, and 16:9.
•
Press the buttons to choose the desired language.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
Note: Select 4:3 PS or 4:3 LB when a 4:3 TV is connected. Select
16:9 when a 16:9 wide screen TV is connected.
ANGLE MARK
This item is used to set the angle mark on or off.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
Press the buttons to select ON or OFF.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
OSD LANGUAGE
This item is used to set the OSD (on-screen display) language.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
There are several languages for you to choose.
•
Press the buttons to choose the desired language.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
* Your portable DVD player functions may differ from the player shown.
20
General Setup (continued)
System Setup
SCREEN SAVER
This item is used to turn on and off the screen saver.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
The default setting of this player is on.
•
Press the buttons to choose on or off.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
LAST MEMORY
This item is used to set the last memory state.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
The default setting of this player is on.
•
Press the buttons to choose on or off.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
Speaker Setup
Note: the last memory refers to resume playback from the point
that you last stopped the disc.
DOWNMIX
This item is used to set the downmix mode.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
It includes Lt/Rt and stereo, stereo by default.
•
Press the buttons to choose the proper setting.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
Note: the function of Lt/Rt is to output mixed audio in the format
provided by Dolby. The function of stereo is output signal.
21
Dolby Digital Setup
System Setup
DUAL MONO
This item is used to set the channel output mode.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
It includes L-mono, R-mono, and Mix-mono, Stereo by default.
•
Press the buttons to choose on or off.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
DYNAMIC
This item is used to adjust the linear dynamic compression rate
•
to get a different signal compression effects.
Press the buttons to highlight this item.
•
Press the button to access.
•
Press the buttons to choose the proper level.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
Video Setup
SHARPNESS
This item is used to set the sharpness of the screen.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
It includes High, Medium, Low, Medium by default.
•
Press the buttons to choose the proper setting.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
BRIGHTNESS
This item is used to set the brightness of the screen.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
The default is 10.
•
Press the buttons to choose the proper setting.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
22
Preferences Setup (continued)
System Setup
SUBTITLE/DISC MENU
This item is used to set the menu language
•
Press the buttons to highlight this item.
•
Press the button to access.
•
There are several languages for you to choose.
•
Press the buttons to choose the desired language.
•
Press the ENT/ENTER button to confi rm your selection.
•
Press the button to exit.
•
DEFAULTS
This item is used to reset the player.
•
Press the buttons to highlight this item.
•
Press the button to access.
•
Press the ENT/ENTER button to reset. All settings to your unit
•
are now set back to its original state.
Press the button to exit.
•
23
Straps
To attach the DVD player to the car seat headrest:
Place the DVD player on a soft and smooth surface with the bottom facing up.
1.
Loosen the strap and remove the buckle.
2.
Insert the strap through the holes (fi g. 1). Make sure the inside of the strap faces up.
3.
Thread the strap into the buckle (fi g. 2 and 3). After threading, make sure the outside of the buckle faces up.
4.
Repeat these steps for the other strap.
5.
Adjust the length of the strap according to the backrest of the seat.
6.
Fasten the straps on the headrest of the seat (fi g. 4). Make sure the two straps are between the headrest and
7.
the headrest support rods.
24
Defi nitions
Letterbox screen
This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides.
Pan & Scan screen
This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running
along the top and bottom.
Title, Chapter (DVD)
DVDs are divided into some large sections (titles) and some small sections (chapters). Each section is numbered as chapter or title numbers
Title 1 Title 2
Chapter 1 Chapter 1
Chapter 2
........ .......
Track (CD)
CDs are divided into some sections (tracks). Each section is numbered as tracks.
Track 1 Track 2 Track 3 ..........
JPEG
JPEG is a common picture format that has small fi le size and low quality-loss rate of picture. Hundreds of pic-
tures can be stored in a disc in this format. In order to utilize the real digital album, use fi lm to make a picture
CD in JPEG format.
25
Troubleshooting
If you suspect there is something wrong with the DVD player, immediately turn off the power. Disconnect the
power connector and check that there is no smoke or excessive heat coming from the player.
Never open or try to repair the player yourself. There are no user serviceable parts inside.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The disc cover may not be
•
closed.
There may be no disc in the
•
DVD drive.
The disc may not be put in the
•
The player cannot play
There is no sound
There is no picture
Poor AV performance The disc may be dirty or warped.• Clean or change the disc.•
The remote control does not work
right way.
The disc may be dirty or warped.
•
The player’s region code may
•
not be the same as the disc’s
region code.
•
There may be water on the lens.
The system connection may be
•
incorrect.
The speakers may be turned
•
down.
The sound setup of the DVD
•
may be incorrect.
The disc may be dirty or warped.
•
The LCD may not be in correct
•
video mode.
The system connectivity may be
•
incorrect.
The player may not be in AV
•
OUT mode.
There may be some obstructions
•
between the remote control and
the player.
The remote control may not be
•
pointed at the player.
The remote control battery may
•
be inserted incorrectly.
The remote control batteries may
•
be out of power or weak.
Close the disc cover.
•
Put a disc in to the DVD drive.
•
Put the disc in with the label side
•
up.
Clean or change the disc.
•
Make sure the player’s region
•
code is the same as the DVD’s
region code.
Remove the disc and keep the
•
player turned off for at least two
hours.
Connect the system correctly.
•
Turn on the speakers.
•
Setup the sound of the DVD
•
correctly.
Clean or change the disc.
•
Choose the correct video mode.
•
Connect the system correctly.
•
Switch the AV IN/OUT on the
•
right panel to OUT.
Remove the obstruction between
•
the remote control and the
player.
Point the remote control directly
•
at the player.
Make sure the polarity of each
•
battery is correct.
Replace the batteries.
•
Other possibilities: Static or external interference may cause the player to function abnormally. In order to
recover normal status, please unplug the power-supply cord and then plug it into the outlet again to reset the
player. If the problems still exist, please cut off the power supply and consult your service center or qualifi ed
technician.
26
Specifi cations
TFT Screen Size 7 inches (16:9)
Laser Wavelength 780/650nm
Frequency
Response
Audio Signal-toNoise Ratio
Audio
Distortion+Noise
Channel Separation ≥ 70dB (1kHz)
Dynamic Range ≥ 80dB (1kHz)
Audio Out Out Level 2V±0.2 1.0, Load 10kΩ
Video Out
Dimensions 230mm x 170mm x 43mm
20Hz-20kHz
± 2.5dB
≥ 85dB
≤ -70dB (1kHz)
Out Level 1V±0.2, Load 75Ω
Unbalanced Negative
Weight Approximately 0.93kg
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confi dential unpublished works. © 1992-1997 Dolby Laboratories, Inc.
All rights reserved.
For service, support and warranty information, visit www.polaroid.com.
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
27
Loading...
