Poketbook Touch User Manual

Touch

User Manual

Tap here

to open

Table of Contents

SAFETY PRECAUTIONS ......................................... 4

APPEARANCE .........................................................10

Front View 10
Side View 11

TECHNICAL CHARACTERISTICS .......................12

GETTING STARTED ..............................................13

Charging Battery 13
Power Management 14
Loading Files 16
Gestures 17
Working with On-Screen Keyboard 19
Connecting to the Internet 21

Table of Contents 2

MAIN MENU ............................................................24

Recent Events 26
Library 26
Favorites 32
Notes 32
Dictionary 33
Applications 33
Music 38
Search 39
Status Bar 39
Task Management 40
Installing Extensions 41

READING BOOKS ..................................................43

Reading Gestures 44
Turning Pages 45
Contents 45
Bookmarks 47
Following Links 48

Table of Contents 3

Search 48
Scaling 49
Dictionary 51
Notes 52
Screen Orientation 54
Text-to-Speech 55
Closing a Book 56

CONFIGURATION ..................................................57

FIRMWARE UPDATE .............................................68

TROUBLESHOOTING ...........................................72

CUSTOMER SUPPORT..........................................75

COMPLIANCE WITH INTERNATIONAL

STANDARDS ...........................................................76

Safety Precautions

Before start working with the Device, please, read
this section carefully. Following these instructions
will help you ensure your safety and extend service
life of the Device.

Storage, Carriage and Usage Conditions

Device operating temperature range is 0°С to 40°С,

so don’t expose the Device to excessively high or
low temperatures. Never leave cables near heat
sources. Heated cables or their insulation may be­come deformed or damaged, which could lead to

re or electric shock.

Try to avoid next impacts:

• direct sunlight

• direct ame or smoke (cigarette, lighter,

open re etc.)

Safety Precautions 5

• exposure to liquids or damp (do not use the

Device in the rain, in the street at higher humidity,

near bodies of water etc.)

• penetration of liquids or moisture

• exposure to strong electromagnetic elds,

electrostatic charges and articial sources of UV

electromagnetic radiation

• excessive mechanical pressure on the screen,

connectors and keys of the Device.

Do not leave the Device for a long time in poorly
ventilated environment, e.g. in a car or in closed
tight boxes/packaging.

Neither drop nor try to bend the Device. Protect the
screen from objects that may scratch or damage it.
To ensure adequate protection of the screen, we rec­ommend storing the Device in a protective and/or
hard cover.

Safety Precautions 6

Keep away from children.

Maintenance

Do not disassemble or modify the book reader.

Do not use the Device with a damaged battery, char-

ger (broken case, poor contact, broken feed cable)
or SD card. If the battery is damaged (cracked case,
leakage of electrolyte, off-shape etc.) it should be
replaced by the authorized personnel. Usage of
home-made or modied batteries may cause an ex-

plosion and/or damage the Device.

Do not use organic or inorganic solvents (e.g. ben­zoyl etc.) to clean the screen/case. Use a soft cloth

to remove dust from the Device’s surface. Apply a
few drops of distilled water to remove dirt.

Safety Precautions 7

Up to ve faulty pixels are acceptable in the screen

and do not constitute a warrantable defect of the
screen.

By the end of product guarantee term, please con­tact the nearest authorized service facility for ex­amination on the subject of security is maintained.

For detailed information about service centers in
your region please visit the ofcial website of Pock­etBook International: http://www.pocketbook-int.
com.

RF Safety

The Device receives and transmits radio frequen­cies and may interfere with radio communications
and other electronic equipment. If you use personal

medical Devices (e.g. a pacemaker or hearing aid)

please contact your doctor or the manufacturer to

Safety Precautions 8

learn whether or not such medical devices are pro­tected against external RF signals.

Do not use wireless communication in places where
it is prohibited, e.g. onboard a plane and in hospi­tals – this may affect airborne avionics or medical
equipment.

Utilization

Incorrect disposal of this Device may have adverse
impacts on the environment and public health.
To prevent such consequences follow the device-

specic disposal requirements. Recycling of these

materials helps preserve natural resources. For
more information regarding recycling issues please
contact local municipal authorities, your domestic
waste collection service, store where you purchased
the Device, or the authorized service center.

Safety Precautions 9

Disposal of electric and electronic compo-

nents (the Directive is applicable to the EU
and other European countries where sepa-

rate waste disposal systems exist). In other coun-

tries dispose batteries accordingly to local laws.

Do not destroy the battery by burning it to avoid the
danger of explosion!

Appearance

FRONT VIEW

1. Home – return

to Main menu

2. Backward –

turn page backward

3. LED Indicator –

displays Device powerfng it

glows green, when battery is

charged, it turns off. During

the Device usage green light

indicates power consuming

(screen refresh, music play-

back, Wi-Fi connection etc.)

4. Forward – turn

page forward

5. Menu – open

context menu (if available)

Appearance 11

SIDE VIEW

6. 3.5 mm audio jack

7. Micro-USB port – connect the Device to a PC or a charger using

USB-cable

8. Reset – restart the Device

9. MicroSD-card slot – to install external microSD/SDHC card (up

to 32 GB)

10. On/Off (power button) – continuous press turns the Device on/

off.

Technical Characteristics

Display 6” E Ink Pearl™ capacitive multi-sensor

Processor 800 МHz

Internal Storage 2GB (up to 1,5GB available for user)

Operating system Linux®

Communications Wi-Fi™ (802.11 b/g/n)

Memory slot microSD/SDHC up to 32Gb

Audio output 3.5 mm earphones jack

Book formats PDF, EPUB (including Adobe DRM-

Image formats JPEG, BMP, PNG, TIFF

Audio format MP3

Battery Li-Polymer, 3.7 V, 1100 mAh

Dimensions 175×114.5×9.5 mm

Weight 195 g

display, 600×800, 166 dpi, black/white

RAM 128 МB

USB 2.0 (up to 480 Mb/s, micro-USB
port)

protected), FB2, TXT, DjVU, RTF, HTML,
CHM, DOC, TCR, FB2.ZIP, PRC, DOCX

Getting Started

In this chapter you will learn how to prepare the
Device to work and about its main control features.

CHARGING BATTERY

To extend battery lifetime, it’s recommended to

charge the Device for the rst time from 8 to 12

hours in the off state. You can charge the battery

from PC using USB-cable or from the power line us­ing a charger (optional).

To charge the battery for the rst time, do the

following:

• Connect the Device to a computer or charger

with USB-cable. Indicator will glow green as soon,

as the charging starts

Getting Started 14

• When the battery is fully charged, indicator

goes off. Now you can disconnect the Device and

turn it on for the rst use.

If the Device is on when you connect the cable to
PC, a dialog window asking to select action – PC link
or Charge – will appear.

POWER MANAGEMENT

To turn on the Device, press and hold On/Off button
until startup logo will appear. When the Device is
ready to operate, an image will be changed to Main
menu or last opened book, depending on settings

(Settings > Open at startup).

To turn off the Device, press On/Off button continu­ously until the Device goes off. In addition, you can
set automatic key lock or power off: go to Settings

Getting Started 15

> Clock > Lock keyboard after or Power down after,

respectively, and set the idle time before locking
keyboard or power off.

In case if your Device ‘freezes’ (don’t respond to keys

presses or screen touches and perform no actions

for 2-3 minutes), you can restart it by pressing Re­set button on side panel with some thin item (e.g.

unbent paper clip).

CAUTION! Don’t use sharp items, such as needles, to

press Reset button to avoid Device case damage! Don’t

use this feature frequently, because it affects the elec-

tronic components of the Device.

Getting Started 16

LOADING FILES

Connect the Device to the PC using micro-USB cable.

NOTE The Device should be kept on while transferring

les.

You will be prompted to select USB mode: PC Link

or Charge either. Select PC Link. Operating system
of computer will detect Device’s storage as remov-

able disk (if SD card installed – as two ones). Now
you can copy les to the Device or SD card using
Explorer or other le manager.

ATTENTION After copying les safely remove the Device

before disconnect the cable!

Getting Started 17

GESTURES

CAUTION! Touch screen of the Device is sensitive enough

and is a fragile detail. To avoid its damage, please, touch it

carefully while controlling the Device with gestures.

Tap

Opens an element (book, le, folder appli­cation or menu item).

Touch & hold

Opens context menu of an element (if
available).

Getting Started 18

Slide

Turns pages of a book or a list; moves

an image: slide your nger across the

screen.

Flick

Scrolls lists: move your nger across the

screen rapidly.

Scaling

Changes the image scale:

place two ngers on a screen

and pinch them together to
zoom out or spread them
apart to zoom in.

Getting Started 19

WORKING WITH ON-SCREEN KEYBOARD

On-screen keyboard is used when it’s necessary to
enter text information, for example, for search or
network connection credentials.

To type a symbol, press a key.

To switch to another input language, press the cur­rent language button. To add the language to the
onscreen keyboard layout go to Conguration >

Keyboard.

Getting Started 20

1. Change input language

2. Change case

3. Enter the typed text

4. Close the on-screen keyboard

5. Erase last typed symbol.

As you type a password (e.g. Wi-Fi credentials)
icon will appear on a text eld. Touch it to see typed

symbols.

Getting Started 21

CONNECTING TO THE INTERNET

The Device can connect to the Internet using Wi­Fi networks. If you will open an application, which
requires Internet access (e.g. Browser, PocketNews)
the Device will open a list of available Wi-Fi con­nections. If the network you select is protected, you
will be suggested to enter network key using the
on-screen keyboard.

You can pre-congure a connection and set it as

preferred one. To proceed, follow next steps:

1. Go to Settings > Connectivity > Wireless

Connections

2. Select a slot to ll. Empty slots are named as

<connection #>

3. Press Network name (SSID) and select one of
the available networks or enter its SSID from on­screen keyboard. By default eld Connection name

Getting Started 22

will turn to the same as Network name (SSID). If you’d

like to change connection name (for example, Home
or Ofce) enter it as you’d like it to be displayed on

the Device

NOTE Connection name eld species only the display

name of the connection. For correct communication Net-

work name (SSID) must be the same as network transmits

4. Select security type in the corresponding list:

• None – for open network

• Simple (WEP) – after you select this option,

you will need to specify WEP Authentication

type – Open System or Shared Key either. The

Device cannot recognize authentication type
automatically

• WPA/WPA2 Enterprise – you will need to

specify username, password and domain (if
necessary)

Getting Started 23

• WPA/WPA2 PSK – you will need to enter

network key (up to 64 symbols)

5. Select the idle time before disconnection in
the corresponding section

6. By default Network settings are set to DHCP
(dened by network). If it’s needed to congure net­work settings manually, go Network settings, change

IP address conguration to Manual and enter network

conguration from on-screen keyboard

7. If the network you need to connect to has a

proxy server, you can specify its parameters in Proxy

conguration section

8. To check network conguration press Test

connection.

You can select one of pre-congured connections to

be used by default. To proceed, select Preferred con-

nection and select one from the list.

Main Menu

In this chapter you will learn about basic elements
of user interface of the Device.

After turning on the Device Main menu will be dis-

played on the screen (if Settings > Open at startup
corresponding option was set). To return to the Main

menu from any application, press key.

Main menu consists of Recent Events section and ap-
plication panel.

See the gure on next page.

Main Menu 25

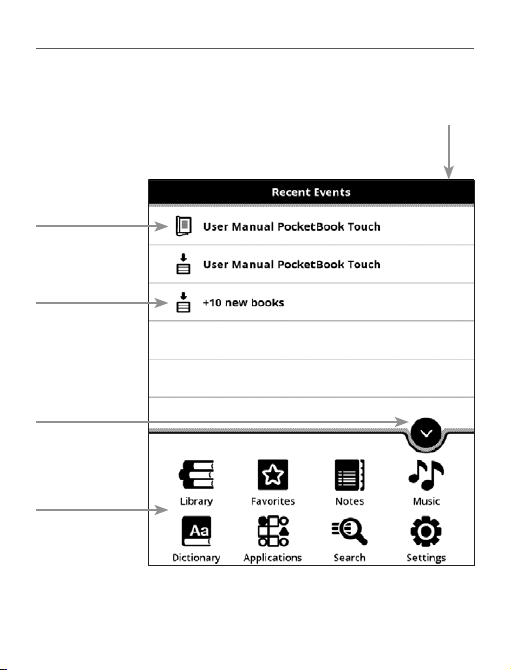

Main menu overivew

Recent Events is a list of recently

opened and downloaded books

Last read book

Open
Library to view
books added

Expand

Recent Events

Applications
panel

Main Menu 26

RECENT EVENTS

This section displays last actions on the Device,
namely last opened and recently loaded books.

After you touch recently opened book title, it will be

opened on a page you’ve nished reading before.

After touching a message about recently added
books, Library will be opened displaying added
books. Books will be grouped by creation date.

LIBRARY

Library is e-books le manager. Library menu allows
to lter, group, sort, change appearance of the sec-

tion and perform search.

Main Menu 27

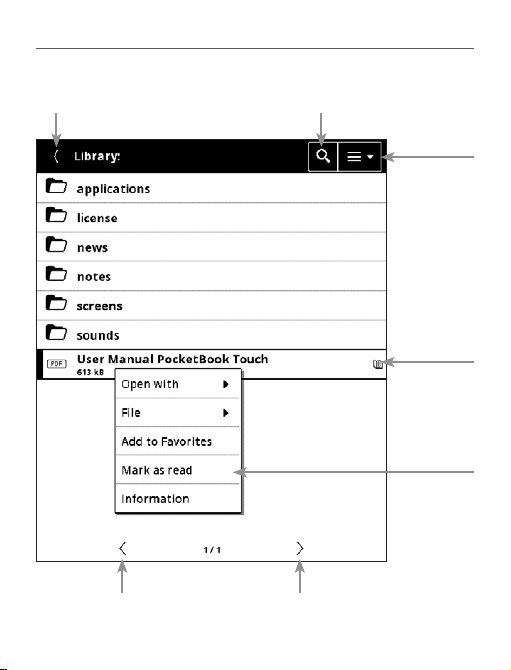

Library Overview

Exit

Search

Menu

Reading

state

Touch and

hold for

context

menu

Turn Library pages

Main Menu 28

Filtration criteria

• All Books – all books on selected storage are

displayed

• Now reading – books were opened and read

more than one page

• Favorites.

Grouping criteria

Depending on selected grouping next parameters
are displayed as folders’ titles:

• Folder – real folder name

• Author – an alphabet is added at the top of

the screen

• Series

• Genre

• Format

• Creation date.

Main Menu 29

Sorting criteria

• File names

• Book titles

• Last opened

• Creation date

• Series

• Author.

Sorting can be ascending or descending.

Books list views

Simple – in this mode next information is

displayed:

• Folder or le format icon

• Book title

• Location icon (if le is located on memory

card)

• Status icons and read percentage:

• Now reading

Main Menu 30

• Read

• Favorite.

Detailed – in this mode information about au-

thor and le size added

Thumbnails – in this mode book cover, status

icons and le size are displayed

Storage-dependent appearance has three options:

• Internal + memory card

• Internal

• Memory card.

Context menu allows proceeding with next le and

folder operations:

• Open (if item can be opened with alternative

reader program – Open with…)

Main Menu 31

• File – le operations

• Rename

• Move to folder

• Delete

• Add to/Remove from Favorites

• Mark as read/unread

• Information – brief information about book/

folder.

Information bar at the bottom of the screen displays
read books count and storage status.

Main Menu 32

FAVORITES

After selecting this section Library opens, displaying
the books, added to Favorites.

NOTES

In this section you can view all the notes made dur­ing reading. After you select a note, the table of
contents of the book, where it was made, will open.
Please, read more about notes creation and edit­ing in Reading Books > Making Notes section of this
Manual.

Main Menu 33

DICTIONARY

Enter a word from on-screen keyboard, and the ap­plication will nd its translation. To change diction-

ary, press button or touch icon at the right top
corner, and select the dictionary from a list.

APPLICATIONS

This section contains games and additional software.
To exit an application, press key continuously.

Calculator

Engineering calculator supports a wide range of

mathematical operations, such as different numeric
systems, trigonometric, logarithm, power and logi­cal operations.

Main Menu 34

Clock

Turns on the full-screen mode clock.

Klondike

Classic solitaire.

PocketNews

Application for adding and reading RSS feeds.

To add RSS news feeds, open RSS setup. Select the

Add RSS feed option. Enter the feed address using

the on-screen keyboard.

To delete the feed, select it, open the context menu
and select Delete command.

To edit the feed, select it, open the context menu
and select Edit command. Edit the feed address us-
ing the on-screen keyboard.

Main Menu 35

To update feed, select Update in the application

menu. Updated content is added to the le with
.hrss extension, and the le will be accessible for

reading after updating. The news downloading sta-

tus is displayed while updating. After the update le

is available for reading off-line using the browser.

To read latest feeds, select Read the latest news op-
tion in the application’s menu. The latest download­ed RSS feed updates open in browser.

News Archive: by selecting this option you can

choose to read the previously stored updating RSS
feeds.

Scribble

Application for drawing. To use this application your
touch screen must be precisely calibrated. You must

Main Menu 36

draw on the screen with the stylus held perpendicu­lar to the screen surface.

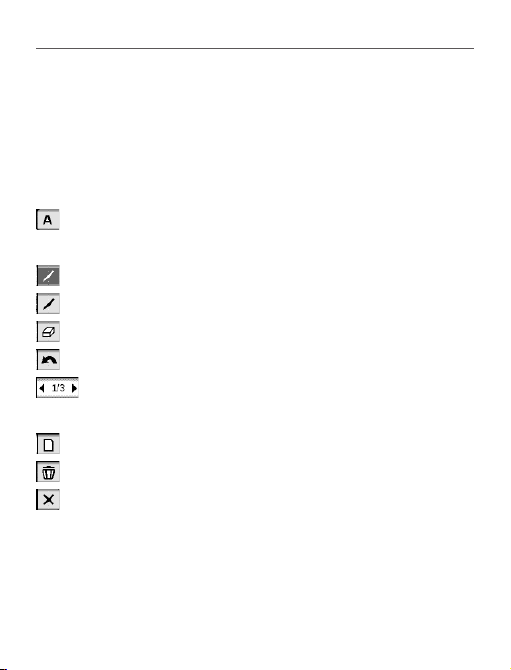

To select the drawing tool, use the application con­trol panel:

Text: select the position and size of the text box.

Text is entered with the on-screen keyboard

Pencil: a tool for drawing thin lines
Marker: a tool for drawing thick lines

Eraser: a tool for removing lines and text

Back: cancel the last operation

Current drawing/total number of drawings:

change the current drawing

New: start a new drawing
Delete drawing

Exit application.

Main Menu 37

To save a picture, touch icon. The current picture
will be saved to the My Pictures folder in the root
folder of the Device.

In addition, Scribble application is used for editing
graphic notes.

Sudoku

Popular Japanese puzzle. After pressing on an empty

eld, selection window will appear. You can select a

digit you think should stand in the cell or set labels
– digits, you suggest may stand in the cell.

Browser

Application for viewing web-pages. After opening
the browser, you will be asked to connect to one of
the available networks. To enter web-addresses and
other text information use the on-screen keyboard.

Main Menu 38

MUSIC

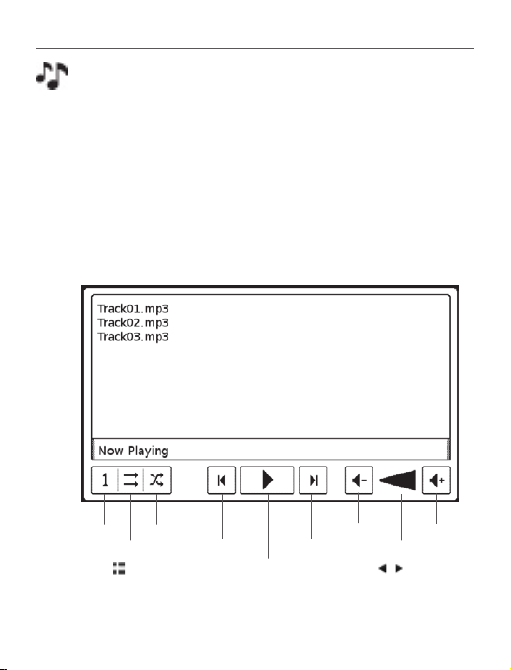

Music player for playing .mp3 media les.

After opening player, internal storage of the Device
and external microSD card will be scanned for mu-

sic les. Files found will be displayed as playlist.

Play

current once

Press to switch

Shufe

Normal Previous

Play/Pause

Next

+-

Volume

Press / to switch

Main Menu 39

SEARCH

After selecting this item the on-screen keyboard will
be opened, so you will be able to type in a search

query – a part from le name, book title or author’s

mane. After entering the query Library, displaying
search results, will open.

STATUS BAR

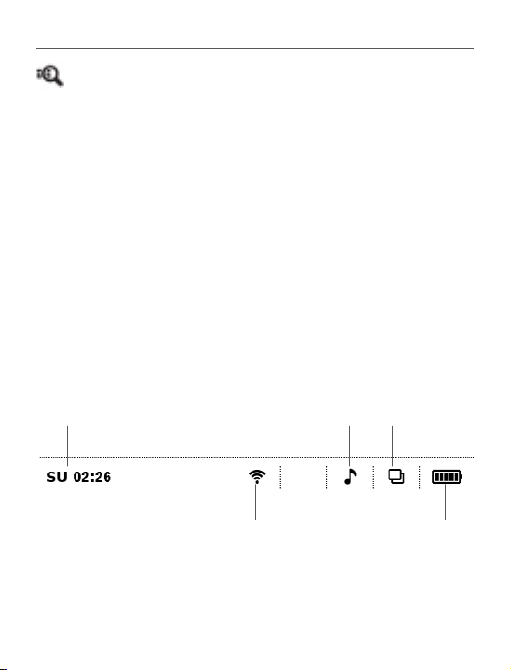

Status bar is located at the bottom of the screen

and briey displays system info.

Date & time

Music is played
Touch to open player

Wi-Fi is connected
Touch to view info

Touch to open
task list

Battery charge

In reading mode status bar displays current page
and total page count.

Main Menu 40

TASK MANAGEMENT

Device software supports multitasking, and you can
quickly switch between running applications in sev­eral ways:

• by touching status bar icon

• by opening task manager on continuous

key press.

Except task switching, you can force close running

applications: select an application, bring up context
menu by pressing button or touching continu­ously and select Delete task. Besides task manage­ment, you can also access quickly some Device con­trol features:

• Lock keyboard. To unlock, touch key icon

or press On/Off button

• Open wireless connections list

Main Menu 41

• Make screenshot. The images are saved in

screens folder of the internal storage of the Device

• Open music player

• Switch off the Device.

NOTE Return to Main menu by pressing button doesn’t

close application, it is still running in background. That

causes, for example, that read percentage displayed in

Library doesn’t change after you exit the book by press-

ing . To close application completely, press button

continuously.

INSTALLING EXTENSIONS

You can install additional Text-to-Speech packages
(available for download on PocketBook website in

Support section) and dictionaries (you can purchase

dictionaries in Obreey Store).

Main Menu 42

1. Copy extension le with .pbi extension to ap-

plications internal Device storage folder

2. Disconnect the Device from PC

3. Open Applications Main menu section

4. Launch copied extension le as an applica-

tion and conrm installation.

Reading Books

In this chapter you will learn how to read e-books
and congure reader software for the most comfort­able reading.

The Device supports next book formats: FB2, FB2.

zip, TXT, PDF, RTF, HTML, MOBI.PRC, CHM, DJVU,
DOC, DOCX, EPUB, TCR.

To open a book, touch its title Last opened or Li-

brary section. If you opened a book before, it will be

opened at the page you’ve nished reading.

In some book formats (e.g. ePub) after opening a

book reader application will count pages – this is
indicated with ‘…’ sign instead of a page count in a
status bar. During page calculation some features
will not be available.

Reading Books 44

To bring up reading menu, touch the center of the
screen.

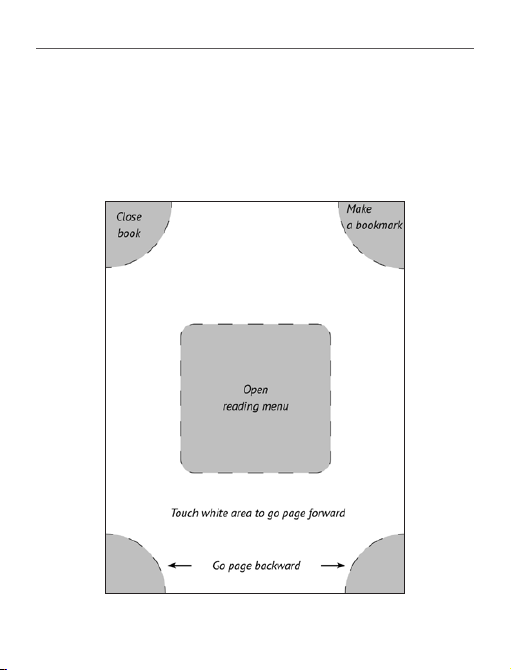

READING GESTURES

Reading Books 45

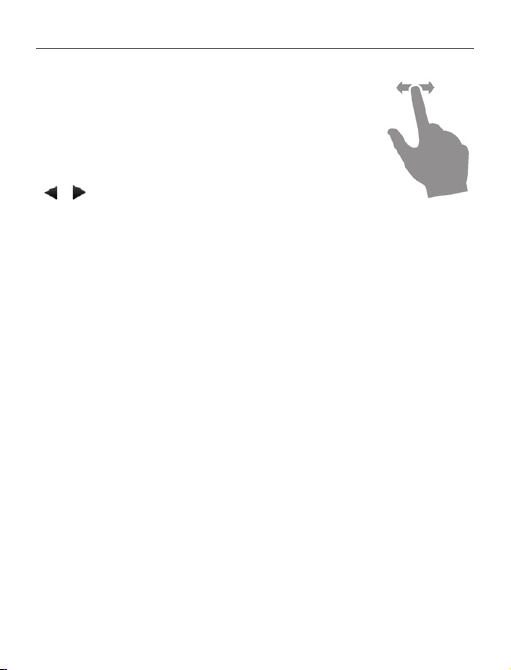

TURNING PAGES

To turn pages use sliding gesture (like
turning pages in a paper book) or

/ Device keys.

CONTENTS

If a book has table of contents, you can open it by
selecting the corresponding reading menu item.

Except table of contents itself, this section displays

all the notes and bookmarks made during read­ing a book. If table of contents has more then one
level, higher level entry will be marked with ‘+’ sign
– touch it to expand. ‘+’ sign will be changed to ‘-‘ –
touch it to collapse.

Reading Books 46

To open contents menu touch and hold your nger
on the screen or press key. Using the menu you
can open contents entry, edit or delete notes (text or
graphic either) and bookmarks. Under Settings sec­tion you can congure which elements to display:

• Contents

• Bookmarks

• Markers

• Comments

• Pens

• Snapshots.

In addition, you can expand or collapse all the table
of contents entries.

You can go to a specic page by pressing status bar

or selecting the Open page reading menu item. That
will open a dialog window, where you will be able

Reading Books 47

to enter the page number you want to go to and
view recent opened pages thumbnails.

BOOKMARKS

To create a bookmark, touch right top corner of the
screen. A dog ear mark will appear. To delete a book-

mark, touch this mark again and conrm deletion.

Also you can add/remove bookmarks by selecting
the corresponding reading menu item.

All the bookmarks are displayed in book contents.

Reading Books 48

FOLLOWING LINKS

To follow a footnote or an external link, touch to
enter links mode. To exit this mode, touch top left
corner of the screen or press key.

If a link follows to a web-site, it will be opened with
Device built-in browser. To return to reading, press

key.

SEARCH

To search in book text open Search reading menu
section. After entering a query from on-screen key­board, results found will be highlighted. To move
between search results, touch on arrow buttons at
the right bottom corner of the screen.

Reading Books 49

SCALING

Text Format Books

In text format books (ePub, FB2, DOC etc.) you can

change font size using the scaling gesture: pinch

two ngers together to reduce font size and spread
ngers apart to enlarge. Also you can change font

size by sliding on right side of the screen: upwards
to increase and downwards to decrease.

Settings reader menu section provides more op-

tions to congure reader software: font, font size,
spacing, page margins width, hyphenations (on/off)
encoding, refresh mode (Best Quality or High Speed).

PDF & DjVu

You can change only the whole page scale only (ex­cept Reow mode for PDF).

Reading Books 50

Pinch two ngers together to zoom out or spread
them apart to zoom in or slide a nger upwards the

right side of screen to zoom in or downwards – to
zoom out, respectively.

Under Zooming reading menu section you can se­lect zooming mode:

• Normal – one page scaling

• Columns – for reading books with columns.

To navigate the page use navigation buttons. A
page will be turned after bottom edge of the sheet
reached

• Reow – in this mode text is formatted to

display completely on the screen. Reow mode is

supported for PDF books only

• Fit width – scaling page to the screen width.

Margins cropping mode allows to decrease margins
width. Move arrow buttons to set margins width

Reading Books 51

and select cropping settings: whole document, odd
pages, even pages or current page only.

You can move page on a screen – slide your nger in

the direction you need.

DICTIONARY

Touch and hold a word to open a context menu al­lowing you to search for translation using one of

installed dictionaries or nd a word in Google or

Wikipedia.

After selecting Dictionary item, a window with
dictionary entry of a selected word. Next tools are
available:

• – exit dictionary

• – toggle dictionary to list view

Reading Books 52

• – toggle to single-word view

• – brings up on-screen keyboard to type in

the word to translate

• – change dictionary.

After selecting Search in Google or Search in Wiki-

pedia a browser will be opened on a corresponding

search query web-page. To return to reading, press

key.

NOTES

Notes allows you to save favorite book fragments
and make handwritten records directly in the text.
All the notes will be displayed in book’s table of
contents. To enter notes mode, select Note read­ing menu section.

NOTE Handwritten notes are not available for DjVu books.

Reading Books 53

After you will enter Notes, a tooltip window will
appear.

Tools:

Marker – use to highlight text: touch the begin­ning of the fragment and slide to the end. If you
select area, which already contains marker, they will
be merged. Continuous touch opens context menu,
where you can add text comment or remove marker.
If the selection already has comment, you will be
able to edit it by selecting Show Comment option.

Pencil – use to draw notes in the text.

Eraser – clears markers and pencils. Slide the sty-

lus across the area with note to erase it.

Screenshot – saves selected text fragment as a
picture.

Reading Books 54

Table of Contents – opens the book’s Table of

Contents.

Help – opens a window with instructions on us-

ing the tools.

Close notes mode.

All notes are visible from Main menu (section Notes).

SCREEN ORIENTATION

To change screen orientation, select Rotate reading
menu section and select orientation you need.

Reading Books 55

TEXT-TO-SPEECH

Text-to-Speech (TTS) software is designed to trans­form text into speech.

To start TTS, open reading menu and select Voice.

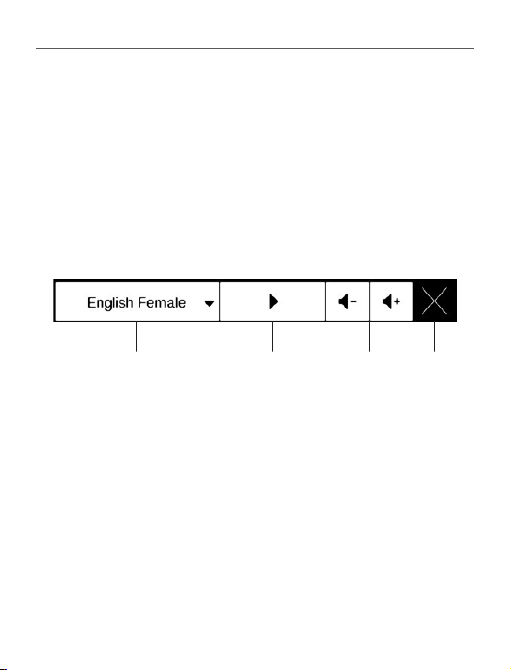

TTS control panel will appear:

Select voice package

Play/Pause Volume Exit

Progress bar indicates a fragment read currently,
pages are turned automatically as you listen.

Initially there are 4 TTS packages are installed on

the Device.

Reading Books 56

CLOSING A BOOK

To close a book, touch left top corner of the screen
or continuously press key.

Conguration

In this chapter you will learn how congure the in­terface and software features of the Device for the
most comfortable usage. Select Settings Main menu

section to congure the Device. All changes will be

applied after exiting the section.

If you will encounter any problems with new set­tings, you will be able to start the Device in safe
mode with factory defaults. To start in a safe mode,
press and hold key during the Device boot.

Registration

This menu item is displayed only if the Device is not
registered at Obreey Store online bookstore (www.
store.obreey.com). The Device will be registered au-

tomatically during the rst Internet connection.

Con guration 58

NOTE During the registration only serial number of the

Device is sent. Registration is related to the particular De-

vice only and is not related to BookLand account.

About device

The following information about Device will be dis­played: model, serial number, software version, RAM

size, E-ink parameters, Wi-Fi MAC address, total and

free memory on the internal storage and on SD-card.

After pressing More… button the information about
software will be displayed.

Language

Select the Device’s interface language.

Keyboard

Under this section you can add up to 3 keyboard

layouts.

Con guration 59

UserProles

Here you can congure up to 6 user proles (5 can

be stored on the internal storage and 1 – on mi-

croSD card). Each prole stores individual books’

status, last opened books, bookmarks, notes, favor-

ites and precongured network connections.

To add new prole, open the corresponding item. You
will be suggested to set destination (local memory
or SD card) and to enter the name from on-screen

keyboard. After this current above-mentioned pa-

rameters will be stored at this prole.

To activate prole open the one you need. In prole

context menu you can change avatar, duplicate pro-

le to a new one (to the SD card or internal storage
either), rename or delete prole.

Con guration 60

Appearance

Here you can select the appearance parameters:

• Theme

• Interface font. If you’d like to use your own

font, copy its les to the system/fonts internal stor­age folder

• Screen orientation – select the most suitable

for you

NOTE The navigation key map may change as you change

orientation from portrait to landscape.

• Orientation settings – remember orientation

for all applications, different for library and reader

or different for PDF & DjVu

• Boot logo – image displayed during the De-

vice starts. Logos are stored in system/logo internal
storage folder, so you can copy an image you’d like
to be displayed during startup

• Power-off logo – the image will be displayed

when the Device is off

Con guration 61

• Text rendering – good quality or high speed

• Full page update – select the amount of page

turned before the screen will be updated complete­ly. Always provides the best quality, but consumes
the most power. Less frequency may cause some ar­tifacts from previous pages on a screen

• Warn if the le is too large – if this setting is

on, the Device will show a notication when you try
to open le larger than 20 MB

• LED indication – you may disable LED indica-

tion by selecting off in this section.

Key mapping

In this section you can remap hardware keys. To
change key action, select it from the list and select
action from the list.

Con guration 62

Clock

In this section you will be able to set date, time,
time zone and clock format. Update clock item de­nes how often the clock at status bar will be up­dated during reading: on page turn, every time or
disabled at all. Also you can set idle time before
locking keyboard and automatic power off.

Open at Startup

Here you can set either open last opened book or
main menu.

Connectivity

In this section you can set parameters needed for

network and USB connections.

• Device name – set the Device name for other

network equipment

Con guration 63

• Access to network – dene, if the network

connection is on, off or ask user, when it’s necessary

(e.g. for browser)

• Preferred connection – the connection will be

used by default

• USB mode – set how the Device handles USB

connection by default: PC link, charge or ask user.

Read more about network connections in Connect-

ing to Internet section.

Speech Synthesis

In this section you can set parameters for TTS:

• Language and voice – select the TTS package

• Speed of Speech

• Tone.

Con guration 64

Maintenance

This section allows you to congure system

parameters.

• Update software – the Device will search for

updates in the following order: internal storage, mi-

croSD card (if installed) and Internet.

• Removing packages – remove dictionaries.

Check items to uninstall, press Backward to exit the

section and conrm removal in dialog window

• Congure dictionaries – under this section
you can uncheck dictionaries you don’t want to be
displayed in the list during the translation or in Dic-

tionary application

• Format internal memory – this action will

erase all data, except system les.

CAUTION! If you need to erase all data on the Device, use

this feature only, don’t try to format the Device internal

memory via PC.

Con guration 65

• Format SD-card – this action will erase all
data on external microSD-card

• Backup conguration to SD – this action will
create a backup folder on an external microSD­card and will save there system settings. You will

be suggested to enter the le name from on-screen

keyboard

• Restore conguration – select the congura­tion le to restore from a list

• Clean state – the Device state will be reset to

factory default settings, erasing user settings. Other

data (e.g. books, photos) won’t be lost

• Update interval – set the interval to check for

updates automatically

• Calibrate touch panel – touch crosses appear-

ing on a screen

• Remove ADE authorization.

Con guration 66

Library

This section is intended for optimization of Library
databased.

• Library Data Update – set the parameters for

Library database update:

• Off – database won’t be updated

• Once – database will be updated after exit

from Conguration section, the parameter will
be set to Off after update

• Automatically – database would be up-

date after each Library opening and copying/

removal of books (including microSD card
change).

• Optmize Database – remove old database en-
tries. To run optimization set the parameter to Once
and exit Conguration. The parameter will be set to

Off after optimization.

Con guration 67

Protectcongurationsbypassword

In this section you can protect your setting by pass­word. Select Set password section and type the pass­word from on-screen keyboard. Now each time you
try to enter Conguration section, you will be asked
to enter the password. You can remove or change
password by selecting the corresponding item. To
proceed, you will be asked to enter the password
once more.

Firmware Update

WARNING! Firmware Update is a responsible operation,

during which management software of the Device will be

changed. In case of improper execution control program

may be damaged and will require treatment in the service

center. Please perform the upgrade procedure in accor-

dance with the instructions below.

There are two ways to update the rmware.

Automatic Update

To start automatic software update select Settings >

Maintenance > Update software.

The Device will begin to check available update
sources in the following order:

• internal memory

• microSD card

Firmware Update 69

• Internet.
If default Internet connection is not set, the De­vice will ask to connect to one of available wireless
networks.

Also you can set period of automatic updates check

(Settings > Maintenance > Update interval). In this

case, the Device will use Wi-Fi connection only.

Manual Update

1. Open site www.pocketbook-int.com. Select

your country

2. Click the Support button on top menu. Select

hardware model of your Device

3. Download the Firmware to your PC

4. Unpack the content of the archive, le SW-

UPDATE.BIN and copy it to the root folder of Mi­croSD-Card or internal Device storage

Firmware Update 70

5. Switch off the Device by pressing button On/

Off

6. Switch on the Device by pressing On/Off

7. During boot press and hold both and

buttons simultaneously until the message Firmware

update… is displayed on the screen

8. Follow the on-screen instructions

9. Wait for the message on the screen: Please

connect power cable, and then connect USB cable to

the Device

NOTE You can check your Firmware ver-

sion in Main menu > Conguration > About device

If the rmware le is located in the Device’s root folder,

it will have a higher priority in comparison with the le

stored on the SD card during the update process.

Firmware Update 71

Troubleshooting

Error

Message

No upgrade image
found

Upgrade image is
corrupted or Image
is empty

File read error MicroSD card error

Error. A different

rmware version

is installed on the
device

Reason Correction Method

File SWUPDATE.BIN

cannot be found on
the microSD card.

Make sure the le is

in the root folder of
the card.

SWUPDATE.BIN le is

damaged or there is
no space available on
the microSD card.

A rmware le of

an older version is
stored in the device
internal memory.

Try to format your

MicroSD card (make a

backup copies of all its
content prior to format-

ting) and copy the le

to the root of the empty
card. If this error per­sists, use another card.

Delete some les from

your card and copy

SWUPDATE.BIN le on it

one more time. Repeat
the download from
www.pocketbook-int.
com. If this error repeats,
use other card.

Try to use another
MicroSD card

Delete the old version

of the rmware le from

the Device’s internal
memory root folder

Troubleshooting

Malfunciton Possible Reason Solution

Device does not
turn on or turns on
but only the logo is
loaded

A book does not open

- the message Book

is probably damaged
or protected appears,

or nothing happens
at all

Html book opens
but is displayed
incorrectly.

For example, there
are empty pages,
some part of the text
is missing etc.

Battery is low Charge the battery

The book is damaged If the book was

HTML-les contain

non-text elements

(frames, JAVA-scripts,
ash-elements)

downloaded from the
online store try to
re-load it again. If the

le opens on your PC,

but does not open
on the Device, save
the book in another
format.

Save the page in TXT

format

Troubleshooting 73

Malfunciton Possible Reason Solution

Book opens but
various symbols,
question marks etc.
are displayed instead
of letters

No response when
you press any key

After connection to
PC disks are not dis-

played in Explorer

Incorrect encoding Switch to reading

Sometimes (e.g.,

when downloading
damaged or too large

books) the Device

may freeze

Your Device is in
the battery charging
mode.

mode, select Settings
and change encoding

Close the frozen ap­plication by pressing

key for 1–2 sec.
If this doesn’t help,
press Reset on the
rear panel to reload
your device.

Check USB mode in

Conguration Main

Menu item. Set Con-

nection to PC or Ask at
Connection

No signal in connec­tion cable

Check USB cable

condition and its
proper connection to
connector. Try to con-

nect the USB-cable

to another port

Troubleshooting 74

Malfunciton Possible Reason Solution

Bookmarks, settings
and current position

in le cannot be

saved

File system damaged Connect the device to

Internal memory
is full

a PC and check disks.
To proceed, open My

Computer, right-click

on the selected disk
and select Properties

>Service > Check Disk

Delete books, images

and/or music les

that you do not need

Battery discharges
too fast

Disabled automatic
turning off

Conguration > Clock

in Main Menu. Select
automatic turn off
time in Auto Turn Off

in… item

Customer Support

For detailed information about service centers in
your country please use contacts below:

Deutschland 0-800-183-39-70
USA 1-877-326-01-96

Российская Федерация 8-800-700-00-34
Україна 0-800-304-800
Қазақстан 8-800-333-35-13
Беларусь 8-820-0011-02-62

www.pocketbook-int.com/support/

[email protected]

Compliance with International Standards

Model name PocketBook 622

Product name PocketBook Touch

The EUT should be supplied by USB port from com­plied Limited Power Source of personal computer
or notebook.

The EUT should be suppled by Adapter from com­plied Limited Power Source.

Rated output voltage: DC 5V 1A

This equipment is marked with the 0984 symbol and
can be used throughout the European community.

Compliance with International Standards 77

This indicates compliance with the R&TTE Directive
1999/5/EC and meets the relevant parts of follow­ing technical specications:

Electromagnetic compatibility and Ra­dio spectrum Matters (ERM); Wideband

Transmission Systems; Data transport

EN 300 328 V1.7.1

EN 301 489-1

V1.8.1

EN 301 489-17

V2.1.1

equipment operating in the 2.4 GHz

ISM band and using wide band modu-

lation techniques; Harmonized EN

covering essential requirements under

article 3.2 of the R&TTE Directive

Electromagnetic compatibility and Ra­dio spectrum Matters (ERM); Electro­Magnetic Compatibility (EMC) standard

for radio equipment and services; Part
1: Common technical requirements

Electromagnetic compatibility and
Radio spectrum Matters (ERM); EMC

standard for radio equipment and

services; Part 17: Specic conditions
for 2.4 GHz wideband transmission

systems and 5 GHz high performance
RLAN equipment

Compliance with International Standards 78

EN60950-

1:2006+A11:2009

EN 62311: 2008

Information technology equipment –
Safety – Part 1: General requirements

Assessment of electronic and electrical
equipment related to human exposure

restrictions for electromagnetic elds
(0 Hz-300 GHz)

France – 2.4GHz for Metropolitan France.

In all Metropolitan departments, wireless LAN fre­quencies can be used under the following condi­tions, either for public or private use:

• Indoor use: maximum power (EIRP*) of 100

mW for the entire 2400-2483.5 MHz frequency

band

• Outdoor use: maximum power (EIRP*) of 100
mW for the 2400-2454 MHz band and with maxi­mum power (EIRP*) of 10 mW for the 2454-2483

MHz band.

IMPORTANT: Changes or modications to this prod-

uct not authorized could void the EMC and wireless

Compliance with International Standards 79

compliance and negate your authority to operate the

product. This product has demonstrated EMC compli-

ance under conditions that included the use of compli-

ant peripheral devices and shielded cables between sys-

tem components. It is important that you use compliant

peripheral devices and shielded cables between system

components to reduce the possibility of causing interfer-

ence to radios, televisions, and other electronic devices.

Certicationinformation(SAR)

The device meets guidelines for exposure to radio
waves.

Your device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to
radio waves recommended by international guide­lines. These guidelines were developed by the inde-

pendent scientic organization ICNIRP and include

Compliance with International Standards 80

safety margins designed to assure the protection of
all persons, regardless of age and health.

The exposure guidelines for devices employ a unit

of measurement known as the Specic Absorption

Rate or SAR. The SAR limit stated in the ICNIRP

guidelines is 2.0 watts/kilogram (W/kg) averaged

over 10 grams of tissue. Tests for SAR are conducted
using standard operating positions with the device

transmitting at its highest certied power level in

all tested frequency bands. The actual SAR level of
an operating device can be below the maximum
value because the device is designed to use only
the power required to reach the network.

Compliance with International Standards 81

The highest SAR value under the ICNIRP

EU 10g SAR Limit Highest 10g SAR Value

2 W/kg 0.678 W/kg

This equipment compies with the European Coun­cil Recommendation of 12 July 1999 on the Limita-

tion of Exposure of the General Public to Electro­magnetic Fields [1999/519/EC].

Designed by Obreey. Assembled in China

Contains Reader® Mobile

technology by Adobe Systems

Incorporated
