PLX Devices R-300 User Guide

R-300 Wideband Computer Users Guide

R-300 Users Guide (V1.1) February 21, 2006

Users Guide: R-300 Wideband Computer

R-300 Wideband Computer

Users Guide

(Firmware Version 1.01)

© PLX Devices 2005 All Rights Reserved

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

WARNINGS

Oxygen sensor gets HOT during operation. Do not touch or expose to
combustible materials. Serious injury and damage to property may occur.

To prevent fire or shock hazard, do not expose this product to rain or moisture.

Do not operate this product under direct sunlight or in high temperatures.
Damage and malfunction may occur.

Unit gets warm during operation. Do not obstruct the ventilation holes on the
rear of the unit. This may cause overheat, fire or unit malfunction.

Do not operate this product while driving. This may interfere with driving
operations, resulting in an accident.

Do not use this product and its accessories in any way other than specified by
PLX Devices. PLX Devices is not liable for accidents or damage cause by misuse
of this product.

Do not tamper, disassemble, or modify this product. This may cause an
accident, fire, electric shock, or product malfunction.

Do not operate this product without a protective fuse. (5-10 Amps)

INTRODUCTION

Your PLX R-300 is not just a wideband controller, it is a wideband computer! Utilizing the latest computer
technologies, your R-300 is equipped with a powerful 32 bit microprocessor giving you the ability to
regularly update your operating system with new and exciting features.

KEY FEATURES

1. Measures Wideband Air/Fuel Ratio

2. 6 inputs for data logging (2 Speed, 3 Analog, 1 AFR)

3. 90 minutes of datalogging

4. Fully customizable warning light / shift light

5. High speed USB interface

6. Powerful PC analysis software included

7. Field firmware upgradeable (New features added regularly)

8. Powerful 32 bit integrated processor, RAM, and FLASH technologies

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

9. 2 analog outputs for 3rd party interface

10. Large dot matrix display with blue backlight

11. 100% backwards compatible with M-Series controllers

12. Compact dash mountable design (4.75 x 2.25 x 1 inch) (120 x 57 x 15 mm)

13. Sensor soft start circuitry, prolongs o2 sensor life

PACKAGE CONTENTS

• R-300 dash mountable compact wideband controller

• Bosch LSU 4.2 Wideband O2 Sensor

• 3ft Bosch O2 Sensor Harness (Controller side)

• 8ft Bosch O2 Sensor Harness (O2 sensor side)

• 3ft Main Harness (controller side)

• 3ft Main Harness (user side)

• 3ft Main Harness Power Wires (user side)

• 6ft USB interface cable (R-300 -> PC connectivity)

• PLX parallel port firmware re-flash card

• Two 0.1uF 50V capacitors

• CD with USB device driver, operating manual in PDF, Latest version of PLX Logger, firmware re-

flash utility.

PLX LOGGER SYSTEM REQUIREMENTS

Recommended System Requirements:

Windows 95 or higher operating system
Pentium 4/III/II Celeron 1GHz+
Athlon/Duron 1GHz+
256MB Ram

Minimum System Requirements:

Windows 95 or higher operating system
Pentium 4/III/II Celeron 500MHz
Athlon/Duron 500MHz
128MB Ram

*A 1Ghz+ system will improve real-time data logging performance only. Slower systems may be used if
data is downloaded directly from the R-300.

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

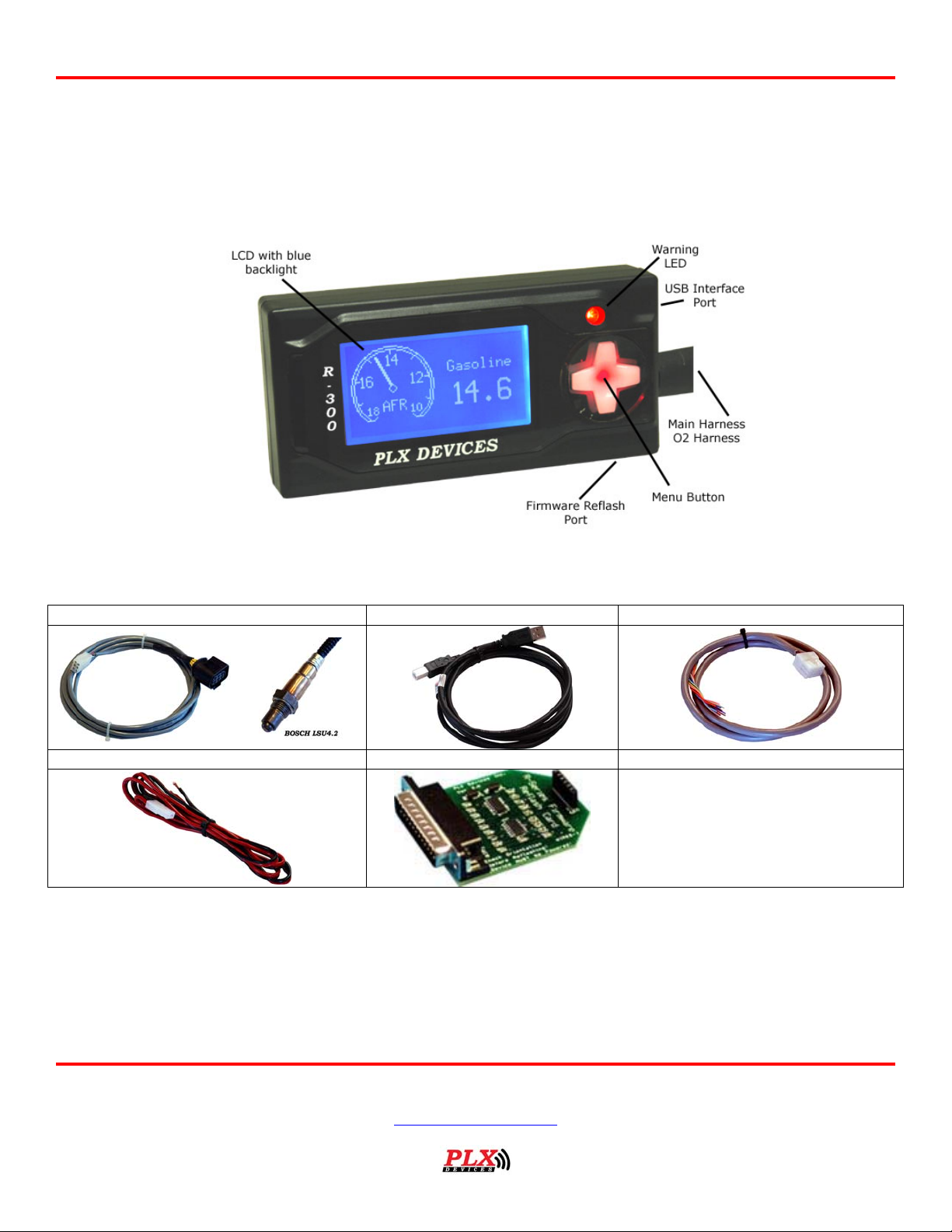

1.0 R-300 Unit

Users Guide: R-300 Wideband Computer

CHAPTER 1

BASICS

1.1 R-300 Cables/Accessories

O2 Sensor Harness/Bosch Sensor USB Cable User Harness

Power Harness Firmware Re-flash Card

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

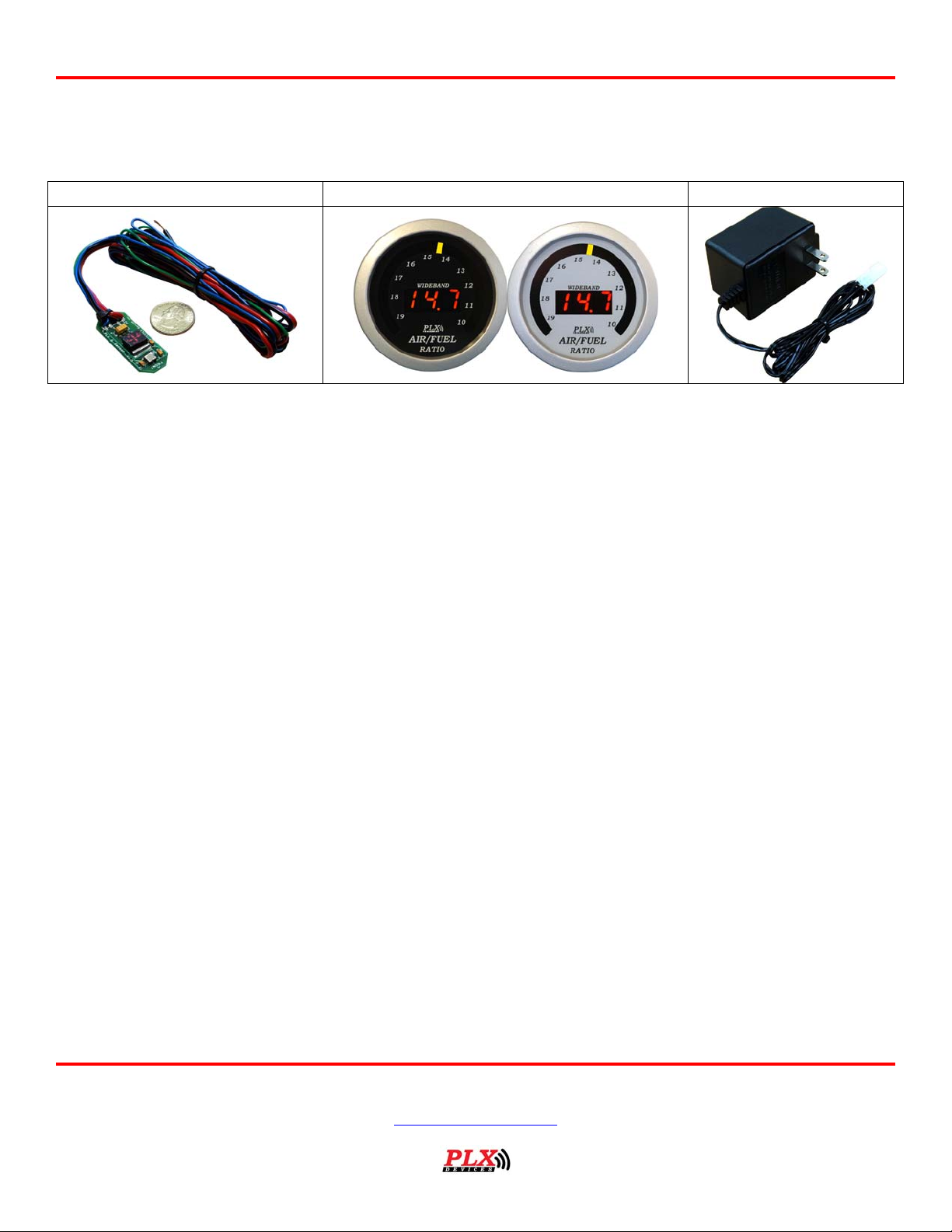

1.2 R-300 Cables/Accessories

G Sensor 2 1/16” (52mm) AFR Gauge AC Adapter (12VDC)

Users Guide: R-300 Wideband Computer

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

CHAPTER 2

INSTALLATION

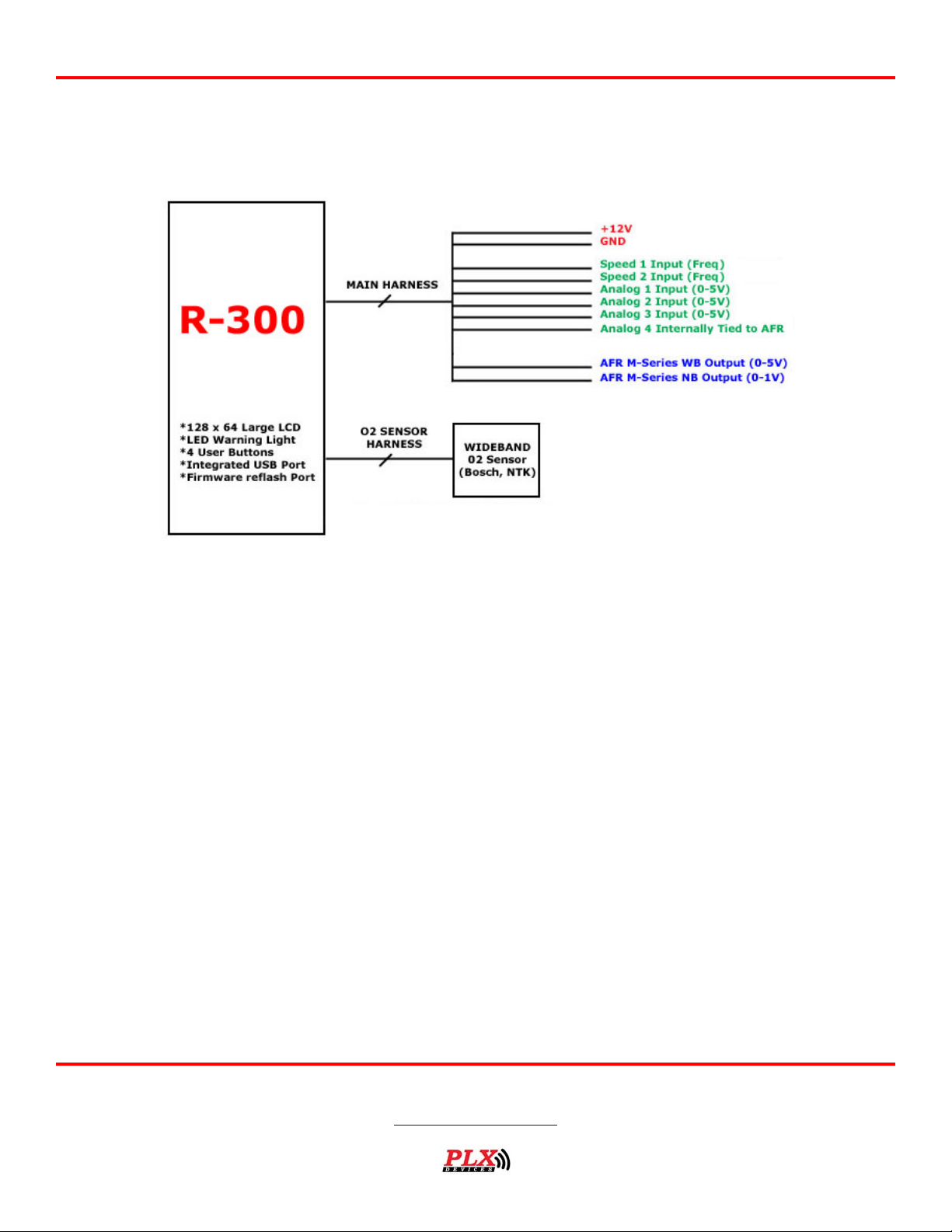

R-300 Connection Diagram

Main Harness Wire Colors

+12V – Red (18 gauge)
GND – Black (18 gauge)

Speed 1 – Brown/Black
Speed 2 – Orange
Analog 1 – Red/Black
Analog2 – Orange/Black
Analog3 – Purple
Analog4 – Blue (Unused, analog 4 internally tied to AFR)

AFR M-Series Linear Wideband Output – White
AFR M-Series Narrowband 0-1V - Gray

2.0 Connecting Power and Ground

Connecting your R-300 wideband computer to a reliable power and ground is perhaps the most important
procedure to ensuring your unit functions at full potential. Your unit comes included with a 3ft, 18 gauge
red and black power cables. Connect the red wire to your vehicle’s ignition power (9V-18V). Ignition
power is only supplied when your key is turned passed a specific position and power should not be
supplied when your key is removed. Connect the black wire to your vehicle’s chassis ground.

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

If you plan to integrate the R-300 with stand alone engine management systems or aftermarket data
loggers, make sure that the black wire is connected physically as close as possible to your device’s ground
to ensure that the same reference ground is seen by both the R-300 and your application. A large voltage
offset may be seen if the device is poorly grounded.

Mate the power cable with the R-300 main harness and turn on your ignition power. Verify that your R-

300 wideband computer properly powers up before proceeding with the remainder of the
installation. You should see the PLX Devices splash screen with firmware version number animate on the

LCD screen.

2.1 Mounting Your R-300

Your R-300 wideband computer gets warm during operation. Mount your unit in a location where the
ventilation holes in the rear are not obstructed and air can easily flow to and from the unit. In the case of
in-dash mounts where the area behind the unit is small, it is a good idea to install a small DC brushless
fan to circulate air out.

2.2 Installing the Wideband O2 Sensor

Install your wideband oxygen sensor in a Metric 18mm x 1.5mm pitch O2 sensor bung and torque to 45
N*m or 35 ft-lb. Your sensor should be mounted at least 24 inches (609.6mm) downstream from your
engine block or turbo for optimal performance. The sensor element will fail if it is exposed to temperatures
above 850 degrees Celsius (1,562 degrees Fahrenheit). Mate the provided O2 sensor harness with the
wideband sensor and the R-300. If you plan to replace your stock narrowband sensor by utilizing the
narrowband output, please read

PLXApp004 online for more detailed information.

2.3 Data Logging Inputs

The R-300 is capable of 6 inputs for data logging, 2 speeds, 3 analog, and 1 AFR. The R-300 data logger is
NOT vehicle specific and was designed to be compatible with most, but not all, signals to and from your
ECU. It is up to the user to determine the viability and compatibilit y with the intended vehicle to be used
based on the descriptions below.

A compatible speed input is defined as an oscillating pulse which switches between a high voltage and a
low voltage. A valid high voltage is 2V-25V with respect to ground (black wire) and a valid low voltage is
0-0.8V with respect to ground (black wire). (*Caution: When measuring the voltage of a speed signal,
your Voltmeter may not be quick enough to realize that the sign al is oscillating, and may take the average
of the high and low voltage values of the oscillating signal, so a “15V” signal may damage your signal
because the voltmeter is seeing the average of a 30 V peak and a 0 V low.*)

A compatible analog input is defined as a voltage between 0-5V with respect to ground (black wire). Any
voltage between 5-25V will be capped to 5V and voltage above 25V will cause damage to the logger.

• Speed1 (Brown/Black)

•

Speed2 (Orange)

• Analog1 (Red/Black)

•

Analog2 (Orange/Black)

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

• Analog3 (Purple)

•

Analog4 (Tied to AFR)

rd

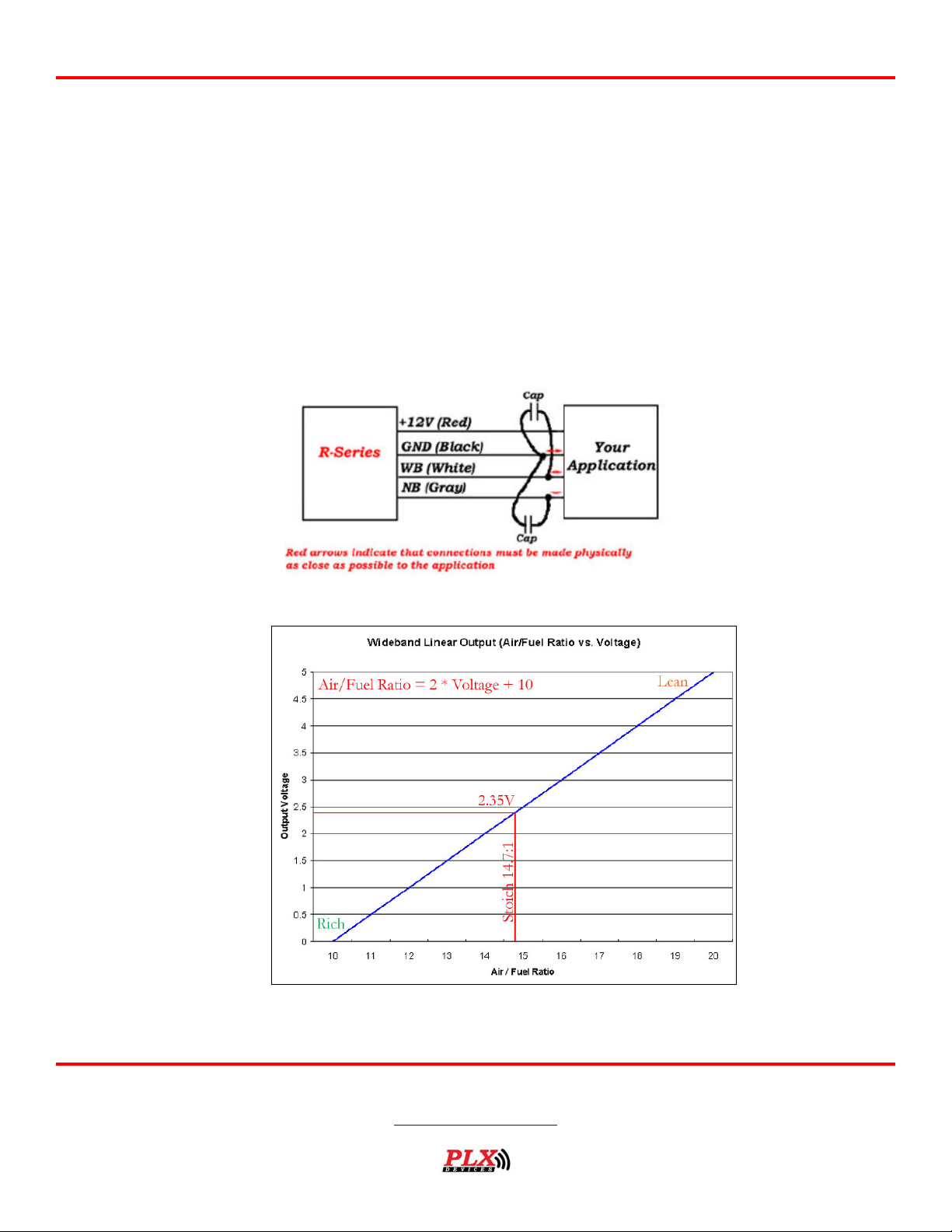

2.4 Output for 3

The R-300 has 2 analog outputs. These outputs are low impedance and can drive a load up to 20mA.

It is highly recommended that 0.1uF 50V capacitors (included) are installed with every analog output you
choose to use. These capacitors filter out unwanted electrical noise from your vehicle and provide you with
a reliable analog output to interface to your application. The capacitor should be installed physically as
close as possible to your application with one leg connected to the output signal and the other leg
connected to your device’s ground. If you only choose to use two output signals, 2 capacitors are used (1
for each output). Here is an example.

Party Interface

1. M-Series Wideband 0-5V Output (White)

(Gasoline 14.7)

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

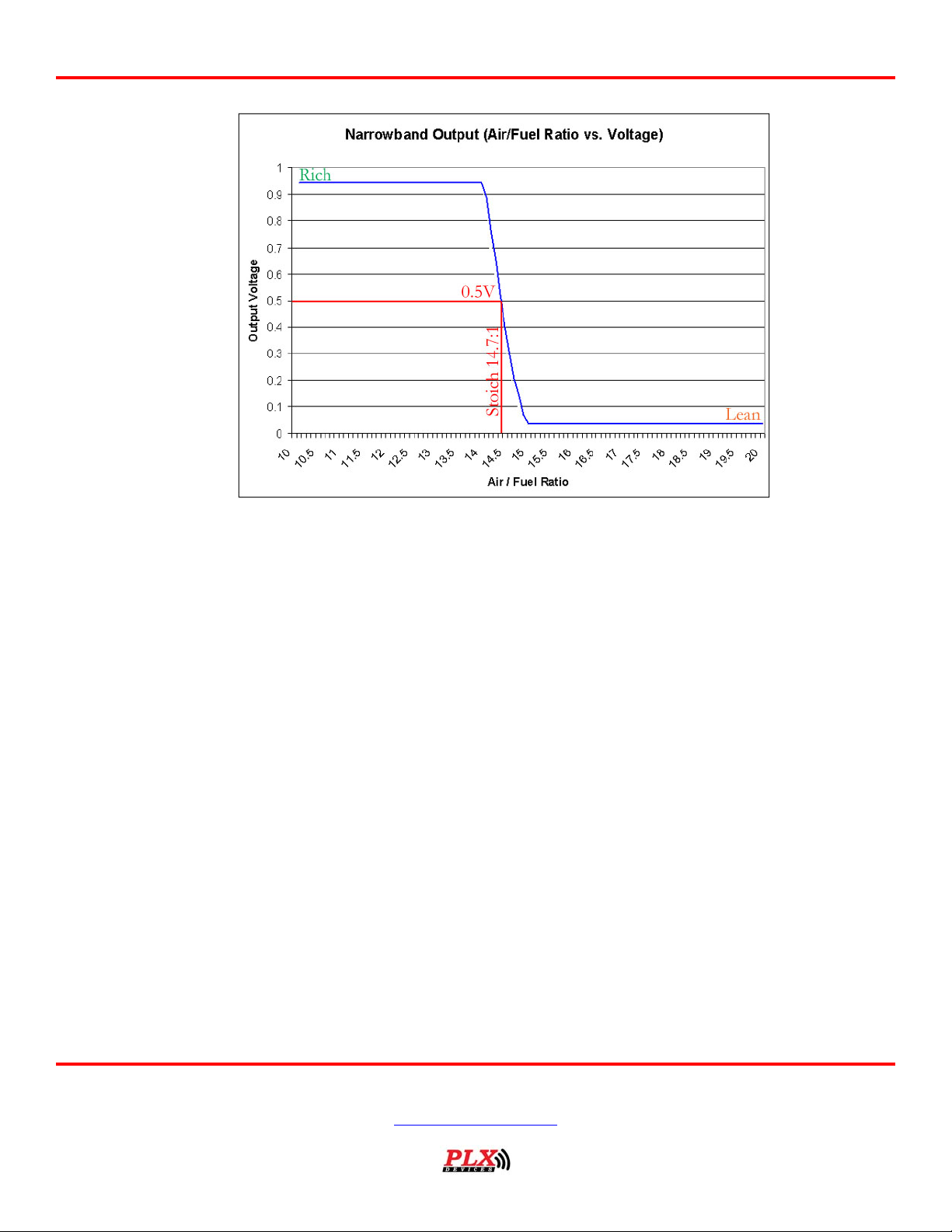

2. Narrowband 0-1V Output (Gray Wire)

(Gasoline 14.7)

The above graphs assume that the device will be used with gasoline (14.7). The M-Series controllers are
also compatible with the following fuels.

a. Diesel 14.6
b. Methanol 6.4
c. Ethanol 9.0
d. LPG 15.5
e. CNG 17.2

To find the new relationship of AFR to output voltage, simply multiply the lambda value by the specific
fuel’s stoichiometric air/fuel ratio.

Example: If your engine uses methanol instead of gasoline. The conversion will be as follows.

1) Divide the AFR value by 14.7 (gasoline) to obtain a lambda value

2) Multiply the lambda value by 6.4 (methanol)

If your engine is running methanol and the M-300/M-200 display readout shows 13.00. Your actual
air/fuel ratio is 13.0/14.7*6.4 = 5.66AFR

2.5 USB Port

Proper device drivers must be installed for windows to recognize the R-300 as a valid USB device. Insert
the USB cable into the R-300 and your PC’s USB port. Specify the location of your device driver when

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

Windows prompts. The device driver can be found on the CD included with the kit. Windows will recognize
this device as “USB Serial Port (Com3-8)” in your Device Manager -> Ports if everything is properly
installed. You will only need to install the device driver once.

*Always connect the USB cable 10 seconds before starting PLXLogger. This gives time for Windows to
properly detect the R-300 as a valid device. Always close PLXLogger and wait 10 seconds before the USB
cable is removed. This allows the software enough time to properly shutdown the PLXLogger USB
resources.

2.6 PLXLogger

Insert the included CD into your computer’s CD Rom drive. Open the PLXLogger folder and run setup.exe.
If you have an old version of PLXLogger installed, the installation w iz a rd will automatically uninstall the
older version. After completing the installation, start PLXLogger. Set the USB Port# to match the assigned
com port number in step (2.5).

CHAPTER 3

USER INTERFACE

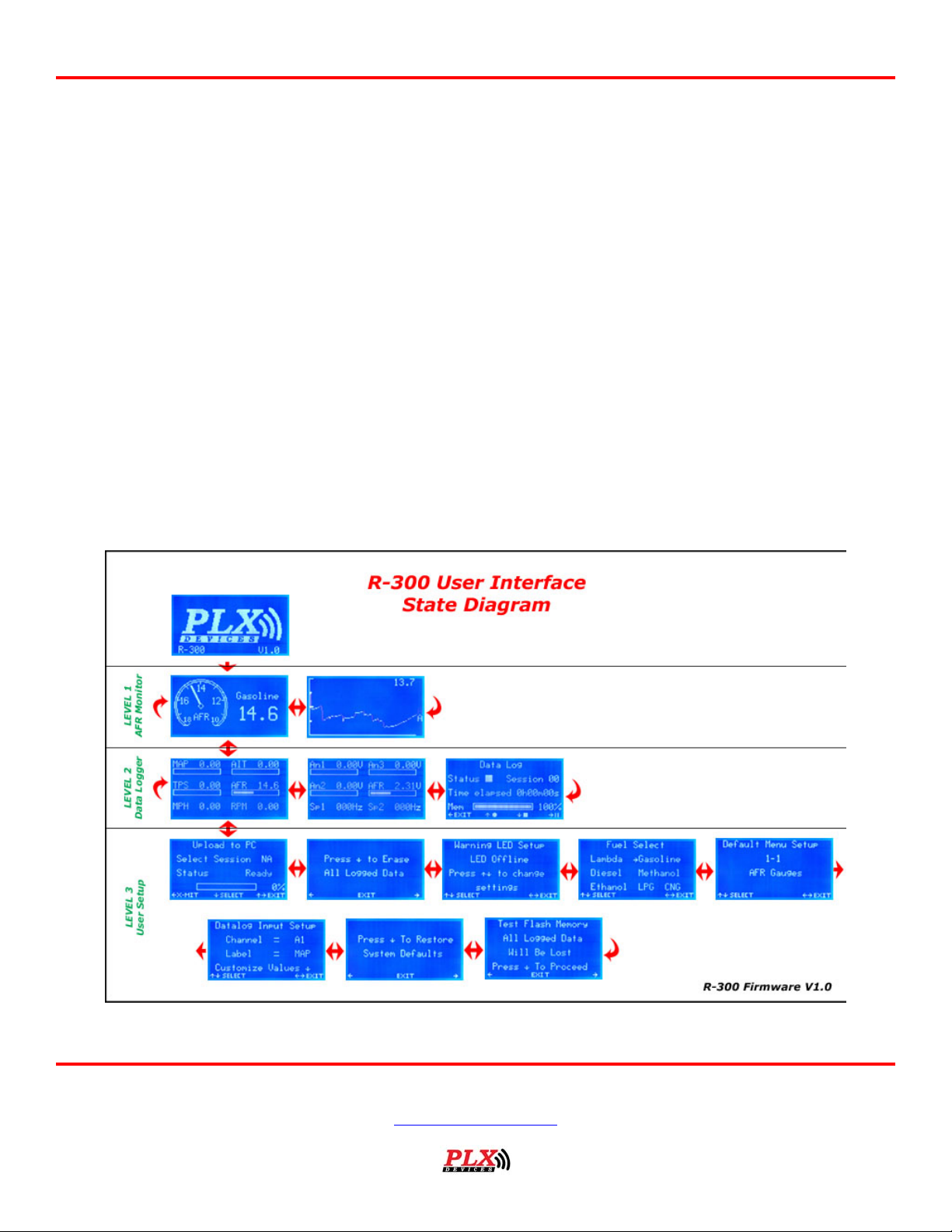

3.0 State Diagram

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

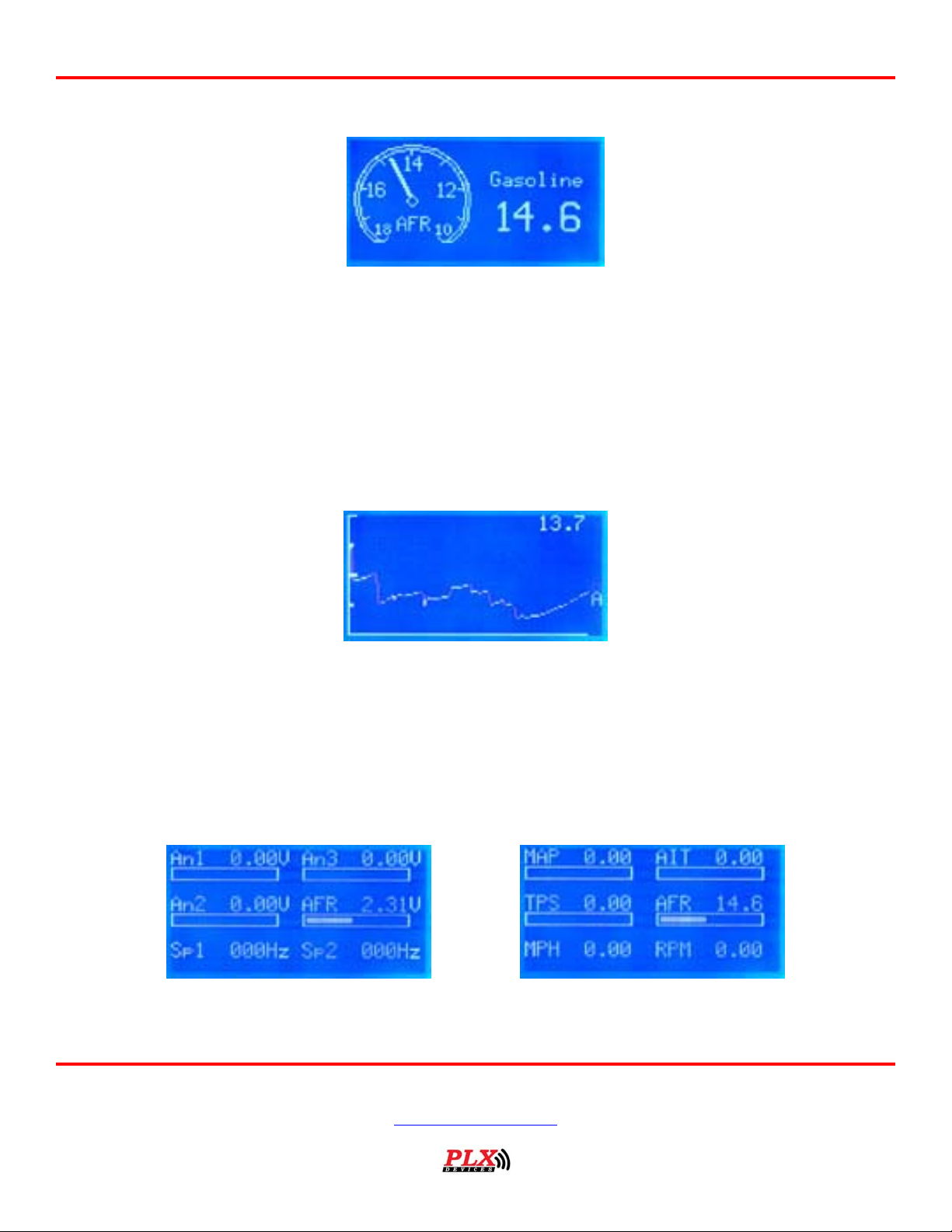

3.1 Level 1: External Sensors Graphical Display (1-1)

The R-300 defaults to this menu upon unit power up after the PLX logo splash screen if no changes are

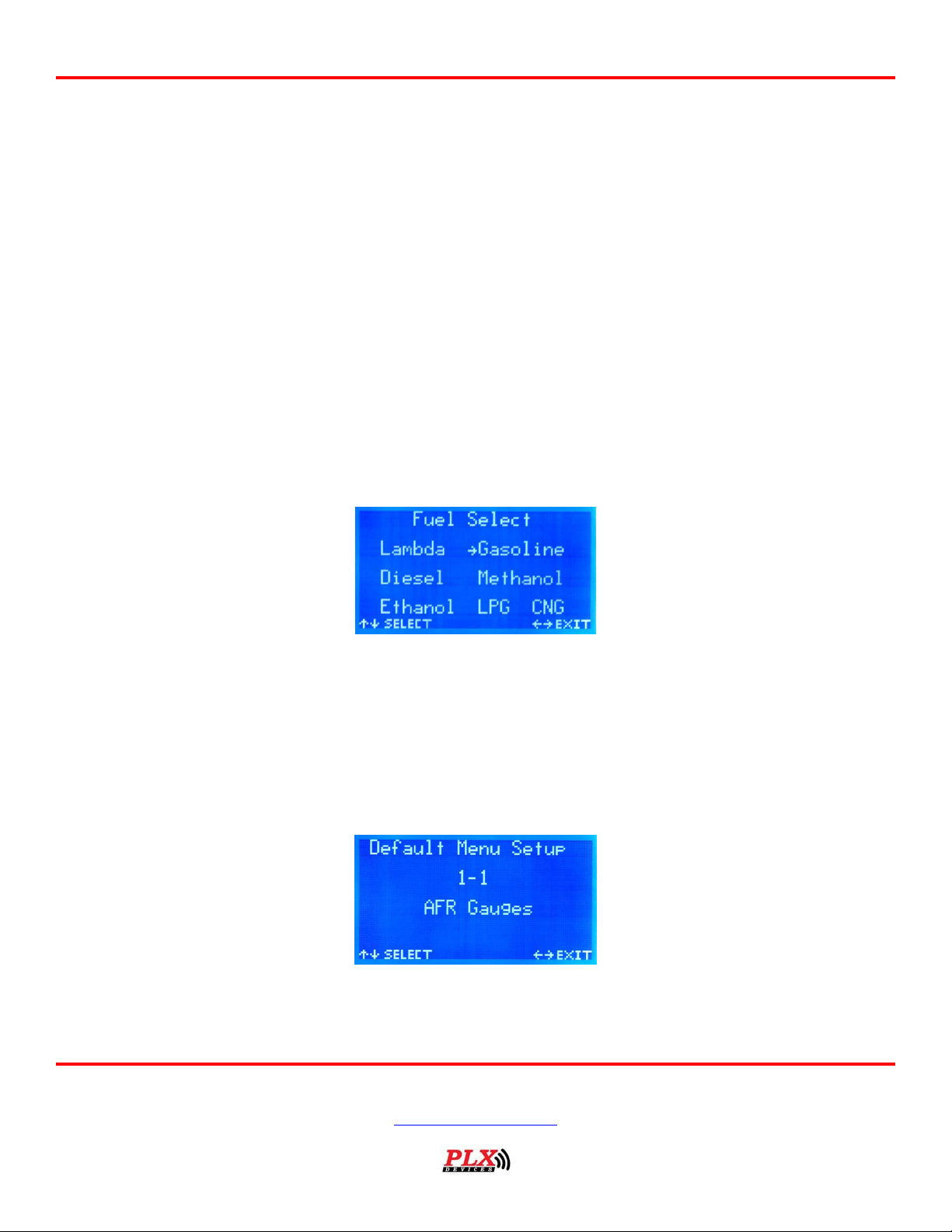

made to menu (4-5) AFR. The AFR gauge will display a different range depending on the fuel setting
selection found in menu (4-4).

The AFR is shown graphically on the gauge on the left side of the screen and also numerically on the right
hand corner of the screen.

Pressing the down button on the R-300 brings you to the Level 2 menus.

3.2 Level 1: External Sensors Graph (1-2)

This menu displays a graphical representation of your AFR. This graph draws one pixel at the rate of
about 6 Hz (6 pixels a second). The scale for AFR is from .68 to 1.36 lambda (10-20 AFR in gasoline
settings). The AFR line has an “A” letter next to it. The graph may be cleared by pushing the up button on
the R-300.

Pressing the down button on the R-300 brings you to the Level 2 menus.

3.3 Level 2: Data logger Input Signal Monitor (2-1)

There are two settings to the data logger input signal monitor menu:

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

1. In its default state this menu graphically and numerically displays the voltage measurements from the
analog data logger inputs and also the numeric values from the speed inputs (in Hz).

The voltage representation bars correspond to the analog signal directly above them. If the bar is empty
the voltage =0 V, if the bar is full the voltage = 5 V

You may use this menu to verify that you have the data logger inputs properly set-up. To toggle to the
user configured data push the left button on the R-300.

2. The secondary state of this menu displays the customized labels for all the data logger inputs (3
characters) and also converts the signals into data that is easily readable. The labels and conversion
values for each signal can be configured in menu (4-6). To toggle to the raw data logger input data push
the left button on the R-300.

The R-300 will prompt you to save the settings of this state (raw or customized data) upon exit if you
have changed between the two settings.

Pressing the down button on the R-300 brings you to the Level 3 menus.

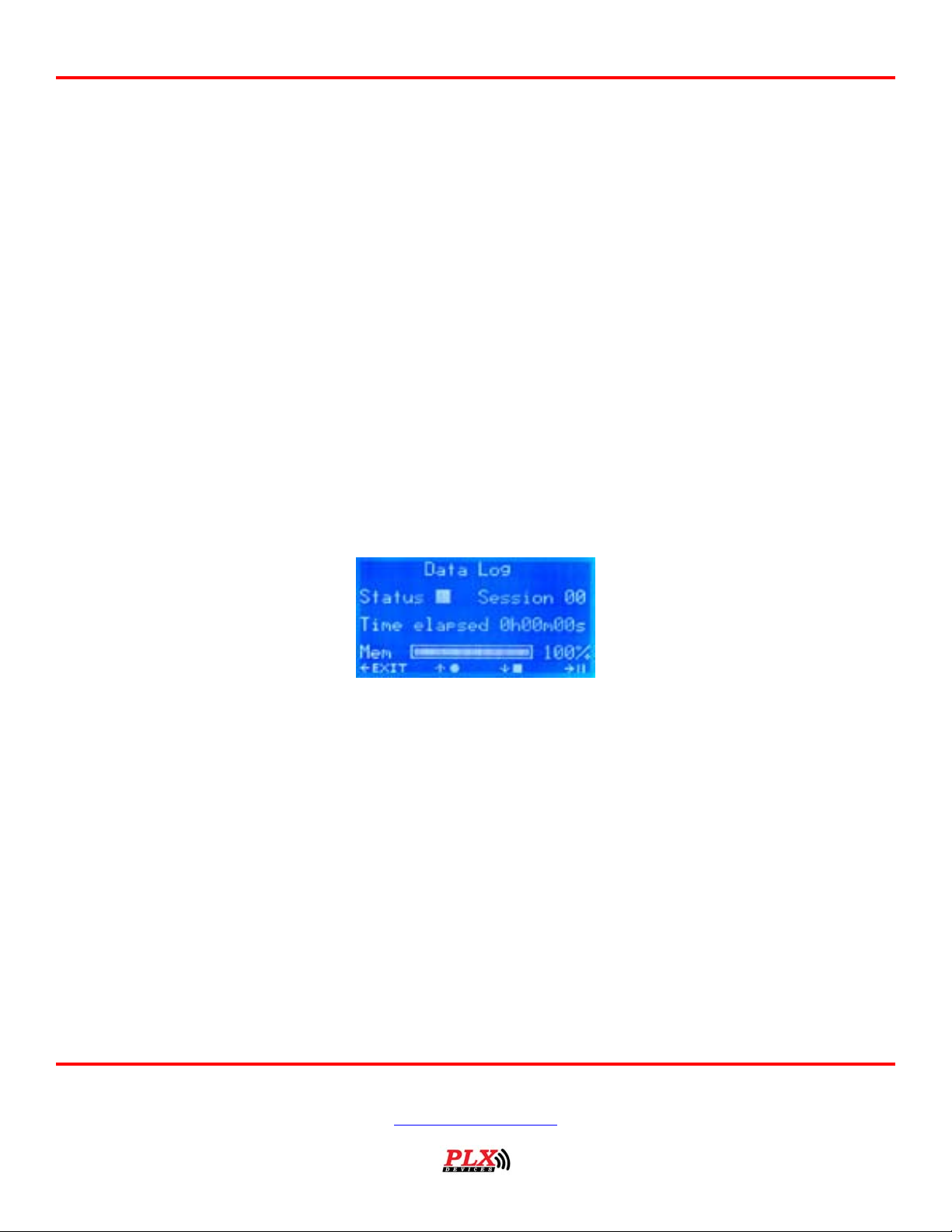

3.4 Level 2: Data logger Recorder (2-2)

This menu is used to control the data logger’s recording functions. Pushing the left button exits this menu
to return to menu (2-1). Pressing the up button will start the recording of the signals displayed
in menu (2-1) into the internal flash memory. Pressing the right button will pause/resume the data
recording without creating a new data log session. Pressing the down button will stop/terminate the data
logging session. Starting the data logger after pushing the stop button will create a new session.

The shape to the right of the “Status” text displays a square if the data logger is not recording, a Circle if
the data logger is recording, and two parallel lines if the data log session is paused.

The number to the right of the “Session” text displays the current data logger session that is being
recorded to. The maximum number of sessions that can be recorded is 99.

The string of numbers next to the “Time elapsed” text states the length of the current data log session in
hours, minutes, and seconds.

The graphical bar and percentage number to the right of the “Mem” text displays a graphical and
numerical representation of the amount of memory left in the R-300s internal memory bank. The bar will

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

empty and the percentage number will decrement as memory is depleted. The R-300 is capable of
recording up to 90 minutes of data. Be aware that you are limited to 99 recording sessions regardless of
the amount of memory you have left.

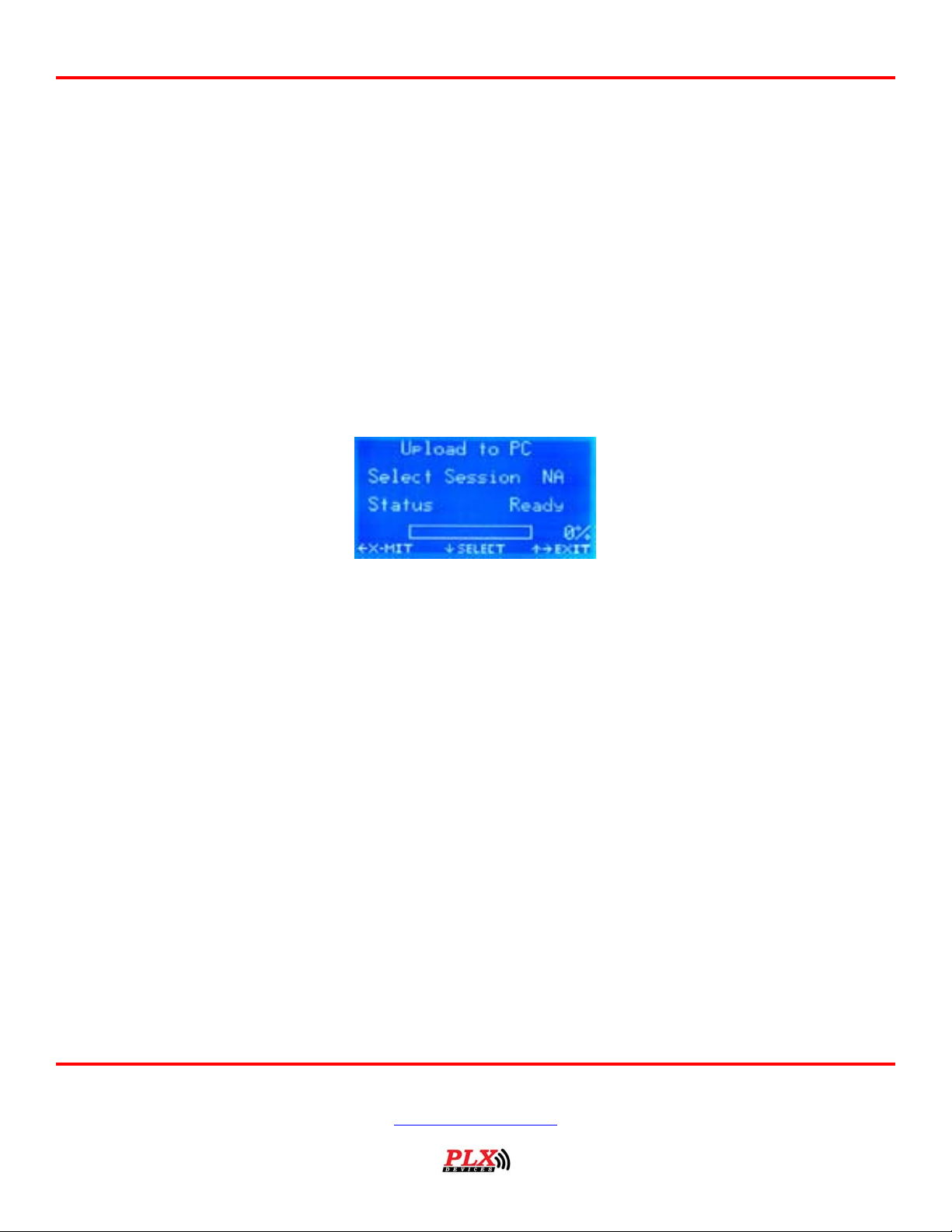

3.5 Level 3: PC Upload (3-1)

This menu is used to select a data log session to upload to the PC. Here are the procedures of how upload
sessions to the PC:

Before uploading to the PC, verify that your PLXLogger gauges display in real-time the correct information.
For example, if you have speed 1 connected to your RPM signal; make sure that the PLXLogger software
displays the correct RPM on your gauge.

Be aware: If you do not configure your gauges on the PLX Logger on the PC, your R-300 will then send
raw voltages and frequencies to the PC that may be difficult to decipher. The R-300 will stream data
continuously through the USB port in any state other than the PC Upload Menu (4-1 this menu).

1. Push the down button to toggle through all the saved data logger sessions resident in the R-300s
memory.

2. Start the PLXLogger software on the PC.

3. On the toolbar for the PLX Digital Dash, select File Æ R-Series Flash Download an d click it. A blue
window should pop up prompting you to upload the data logged state. Do not u pload sess ion
until this window is opened! Failure to do so will result in data corruption!

4. Press the left button on the R-300 to transmit the session to the PC.

5. Upon successful transmission, PLXLogger Software will prompt you to en ter the file name of the
data logger session that was just uploaded. The file can now be analyzed using the 2D and 3D
logger on the PLXLogger software.

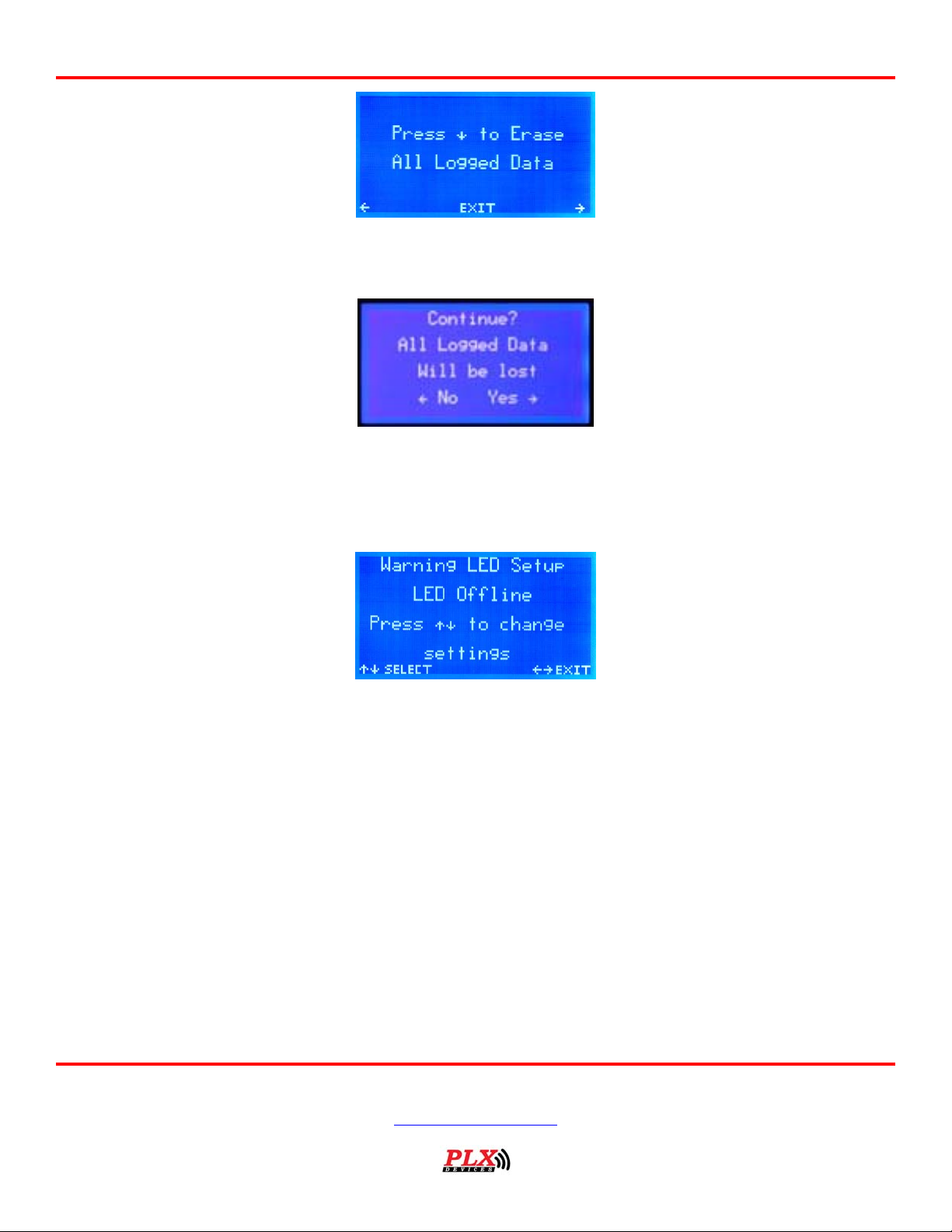

3.6 Level 3: Clear Data logged Sessions (3-2)

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

This menu is used to delete all data logged sessions stored in the R- 300’s internal memory. Push the
down button to delete all logged sessions. You will be prompted to confirm your decision.

Press the right button then to confirm your intent to permanently delete all your logged data. Press the
left button to cancel the erasing process.

3.7 Level 3: Warning LED Setup (3-3)

This menu configures the Red Warning LED found on the top of the R-300. The second line of text
displays the current function of the warning LED. If no parameters are set, it will display “LED Offline”. If
one parameter is set for the warning LED, it will display “1 variable”. If two parameters are set, it will
display “2 variables”.

From the default entry position of this menu press the up or down button to gain access to the two
warning LED trigger parameters. Once you have chosen the variable that needs to be modified, use the
Left/Right button to navigate the cursor to the proper location of the parameter/number that needs to be
adjusted. To change the parameter directly over the cursor push the Up/Down button toggle the value.

The warning LED will illuminate if th e statements of all active variables are “true”.

Here are two examples of how to use the warning light.

1. To configure the warning LED to trigger when the AFR is greater than 14.7 AFR and

when throttle position is greater than 50%:
Hook up the throttle position signal wire to one of the analog signal inputs on the data

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

logger. In this example the throttle position voltage is 0.15V for 0%, 0.5V for 50%, .85
V for 100% throttle, and the throttle position signal from the ECU is connected to A2. To
set this up, the variable 1 parameter would be set to “AFR > 14.7” and variable 2 would
be set to “A2 > 0.50 V”.

2. To use the warning LED as a shift light:

Hook up the tachometer signal to one of the speed inputs on the data logger. In this
example, the tachometer signal is attached to S1 (speed 1) and the redline/shift point is
at 200 Hz. To set this up, the variable 1 parameter would be set to “S1 > 0200 Hz”.
This setup would turn on the warning LED if the pulse signal from the tachometer signal
exceeds the entered value in the selected variable.
*FYI: To find the proper frequency for the shift point, rev the engine of the car to the
desired RPM and look to see the speed signal that the R-300 is receiving. Knowing the
conversion modifier for HzÆRPM may also be helpful in deriving this number.

You will be prompted to save your settings upon leaving this menu if you have changed any of the values.

3.8 Level 3: Fuel Selection (3-4)

This menu is used to set the fuel type being used by the vehicle. Press the up/down button to select the
correct fuel type. Press the right/left button to exit this menu. The settings in this state affect the gauge
in menu (1-1) and also the numeric readout in menu (1-2). For your reference, here are the stoic values
for each type of fuel:
CNG 17.2. You will be prompted to save your settings upon leavin g this menu if you have changed any of
the values.

3.9 Level 3: Default Menu Selection Menu (3-5)

This menu is used to select the menu that the R-300 defaults to upon boot-up (power-on). Press the
up/down button to move the selection arrow down next to the 2

Version 1.1 February 21, 2006

Lambda 1.0, Gasoline 14.7, Diesel 14.6, Methanol 6.4, Ethanol 9.0, LPG 15.5, and

nd

line with numbers. After doing so,

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

press the left/right button to select the menu that you wish to be vectored (directed) to upon boot-up.
These are the possible selections for starting menus:

1-1 AFR Gauges (Default)

1-2 AFR Graph Numeric

2-1 Datalogger Monitor

2-2 Data logger Recorder

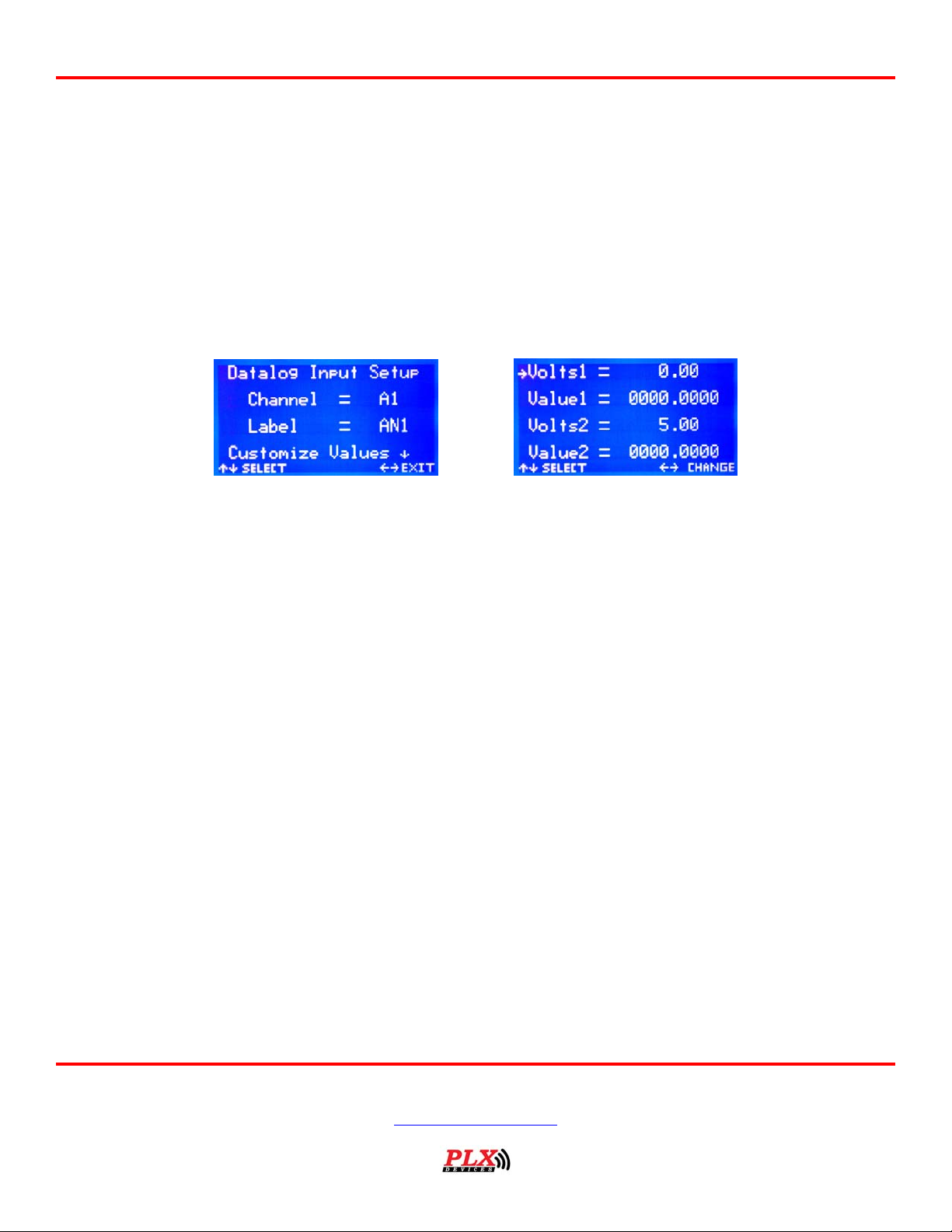

3.10 Level 3: Data logger Input Setup (3-6)

This menu allows you to convert the voltage and pulses coming in f r om the data logger harness into
values that are easily readable and understandable by the end user. Making changes in this state will
affect the labels and data on the secondary setting of the Data log Inputs Menu (Menu 2-1).

Press the up/down button to move the pointer arrow to the parameter that needs to be adjusted.
Pressing the left/right button next to the “Channel” text toggles through the R-300’s analog and speed
channels (A1-A3, S1, S2). Pressing the left/right button next to the “Label” button moves a cursor under
the 3 character label that you can customize. The valid characters that you can choose from are: capital
A-Z, 0-9, Å, Æ, and a blank spac e.

Pressing the down button while the pointer arrow is pointing to “Label” will bring you into the submenu
which allows you to configure the relationship between voltage (or frequency) and value by enterin g to
voltage (or frequencies) and two corresponding values.

Press the up/down button to move the cursor to the parameter to be modified, then press the right/left
button to move the cursor under the numeric value to be modified. To modify a number push the
up/down button while the cursor is under the number.

Be advised that the “values” entries only have 6 digits of precision. If the event that you run into any
floating point glitches you may solve this problem by maxing out the value number to either -9999 or
9999 (repeatedly increment or decrement the thousands unit. Once you max it out, this will effectively
clear the decimal point values) and then re-entering the value that you wish to input.

Attempting to leave this submenu will bring you to the linear relationship display and prompt you to save
your changes. You will be prompted to save your settings upon leaving this menu if you have changed
any of values.

Here’s an example on how to customize your signals:

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

1. Let us just say that you want to have RPM shown on S1 (where tach signal is attached)

Set the Channel to S1 and change the label to: “RPM”

Let’s just say your tach signal pulses at 20 Hz at 600 RPM, and 150 Hz at 4500 RPM. Enter these values:

/*--------------------------*/

Freq.1 = 0020

Value1 = 0600.000

Freq.2 = 0150

Value2 = 4500.00

/*--------------------------*/

Using the up/down buttons to leave this configurat ion menu will direct you to the linear relationship
display and show the following:

/*--------------------------*/

Linear Relationship

Value = mV + b

m= 30.00

b= 0000.0000

/*--------------------------*/

Thus, (30*frequency)+0= RPM

Press any button to exit. Be sure to save your settings (right button).

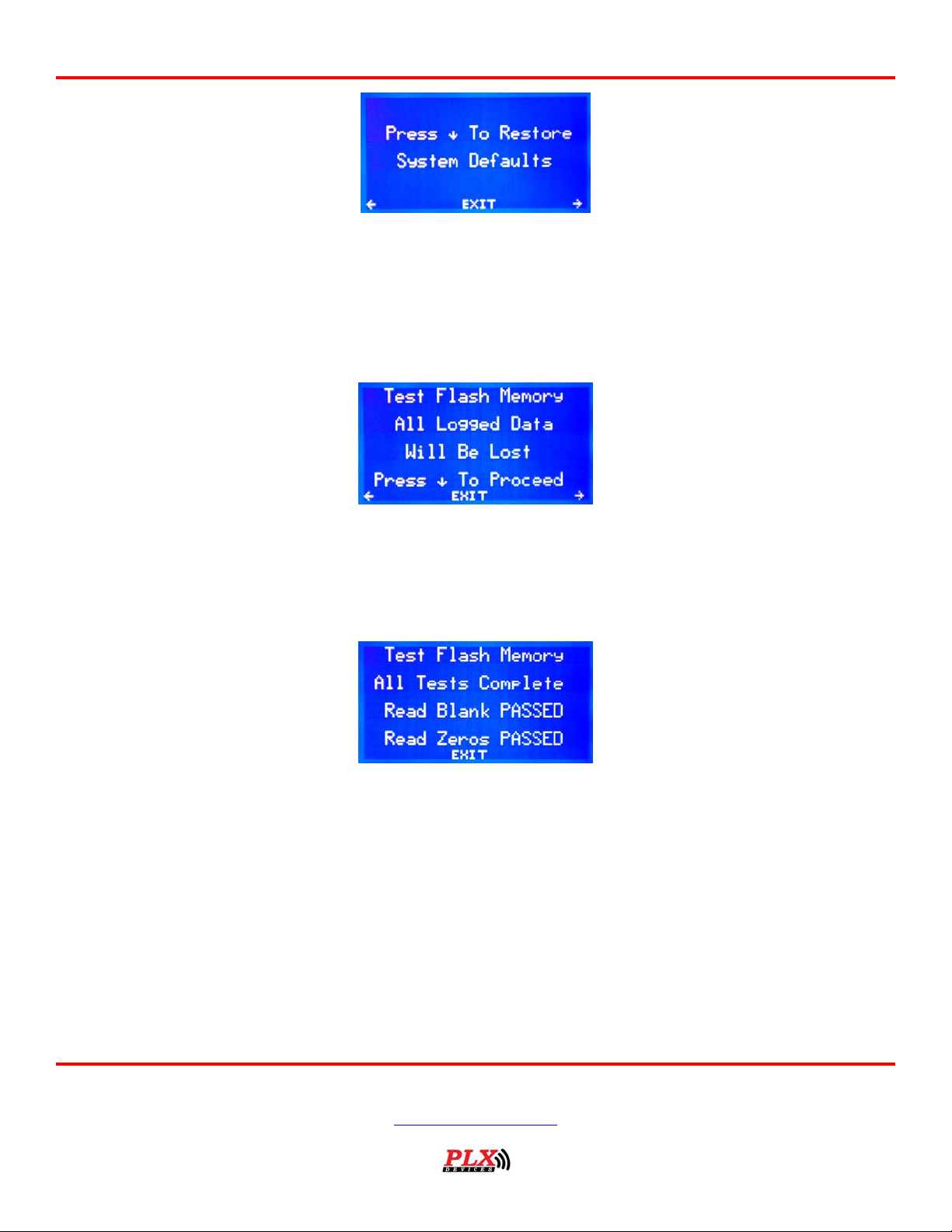

3.11 Level 3: Restore Defaults Menu (3-7)

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

This menu is used to restore all user settings to the system defaults. Press the down button to restore
system defaults.

3.12 Level 3: Flash Memory Test Menu (3-8)

This menu is used to test the integrity of the flash memory in the R-300. Upon pressing the down button
the R-300 proceeds to test the erase, read, and write functions in each data cell of the R-300. The results
of the test are then posted for review. Press the left/right button to exit this menu. Be advised: all logged
data will be permanently deleted from flash memory when this test is executed! Test takes 6 minutes to
complete. Do not power the unit down during this operation.

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

g

g

g

g

g

g

g

gradeabl

g

g

g

gg

g

g

g

ling

)

R-300 Technical Specifications

Operatin

Power Consumption 25 Watt Max, 15 Watt Typical

Power Supply Technolo

Operating Temperature 0 – 70 Degrees Celsius (0-158 Degrees Fahrenhe it)

Physical Dimensions 4.75 x 2.25 x 1 inch (120.65 x 57.15 x 15.4 mm)

USB Interface Hi

Warnin

Analo

Firmware Up

O2 Sensors Bosch LSU4.2, (NTK L1H1, L2H2 versions available)

Useful Lambda Range 0.68 Lambda - 1.36 Lambda

Wideband O2 Technolo

Wideband O2 Accuracy < 0.1AFR (Gasoline)

O2 Sensor Soft Start Yes (Prolon

Voltage 9V – 18V

yHi

CPU Custom PLX 32 Bit Microprocessor

Clock 32 MHz

Display 128 x 64 Pixel Blue Backlit LCD

Light High Intensity Red LED

Outputs Linear AFR, Narrowband AFR

eYes

yDi

Users Guide: R-300 Wideband Computer

Overview

h Efficiency Switchin

h Speed USB 2.0

External Sensors

ital PID (Fast response)

s O2 Sensor Life)

er

*(1 dedicated for AFR)

Inputs 2 Speed, 4 Analo

Speed Input Ran

Analo

Input Range 0-5V (25V Max Voltage Protection)

Data Lo

e 4Hz - 10KHz

Flash Memory ~80 Minutes

Samp

TERMS OF USE

PLX Devices Inc. does not guarantee the M-200/M-250/M-300’s functionality with any ECU, data logger or other devices that uses
the output signals. Implementation and integration of the M-200/M-250/M-300 with any other device(s) must be done at your own
risk. Improper installation and usage may lead to engine damage. Mount and install the M-200/M-250/M-300 in a location where it
does not obstruct the driver’s view and/or ability or safely control the vehicle.

LIMITED WARRANTY

PLX Devices Inc. warrants this product to be free from defects for 90 days from the date of purchase. If applicable, Oxygen sensors
and other non-serviceable items are excluded from stated warranty. S erviceable goods must be determined by PLX Devices to be
defective before any warranty or replacement is issued. PLX Devices’ ob ligation under warranty shall be limited to repairing or
replacing, under the discretion of PLX Devices, any part proven defective. This warranty is limited to the repair or replacement of
parts in the manufactured good and the necessary labor done to affect its repair or replacement.

Rate 10 Samples/Sec (10 Hz

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]

Users Guide: R-300 Wideband Computer

SERVICE UNDER WARRANTY

In the unlikely event that your PLX Devices hardware should fail during the warranty period, a Return Material Authorization number
(RMA) must be first retrieved from PLX Devices Customer Support. Support can be contacted through email:
or by phone: [phone]. All serviceable goods must be packaged securely with proof of purchase, RMA number, with all shipping
charges prepaid and shipped to PLX Devices Inc. Goods returned under warranty must be received by PLX Device s Inc. within ten
(10) business days after the RMA number has been issued. Goods received after this period is subject to fees for the service of repair
or replacement. All repaired or replaced items shall be warranted for the remainder of the original product warranty.

RETURNS AND RESTOCKING FEE

A 15% restocking fee will apply to applicable PLX Devices products for refund. All returns are to be packed in original condition
including packaging, documentation, m a nuals, and accessories. Returns that do not include all the accessories and components may
be returned to the customer or charged on a per item basis. The customer assumes responsibility for product until receipt at PLX
Devices Inc., shipping via an insurable carrier is recommended. Any unauthorized shipping charges will be billed to the customer or
shipment will be refused.

DISCLAIMER

PLX Devices Inc. shall not be liable for direct, special, incidental, or consequential damages resulting from any legal theory including,
but not limited to, lost profits, downtime, goodwill, damage, injury to persons, or replacement of equipment and property due to
improper installation, integra tion and/or misuse of any PLX Devices Inc.’s product(s). This warranty applies to the original purchaser
of product and is non-transferable. All i mplied warranties shall be limited in dura tion to the said 90 day warranty period.

[email protected]

Revision History

Version 1.0 (10/6/05) Initial release
Version 1.1 (2/9/06) Added detailed information for Warranty and returns

Added information regarding firmware version 1.01

Version 1.1 February 21, 2006

www.plxdevices.com

[phone]
