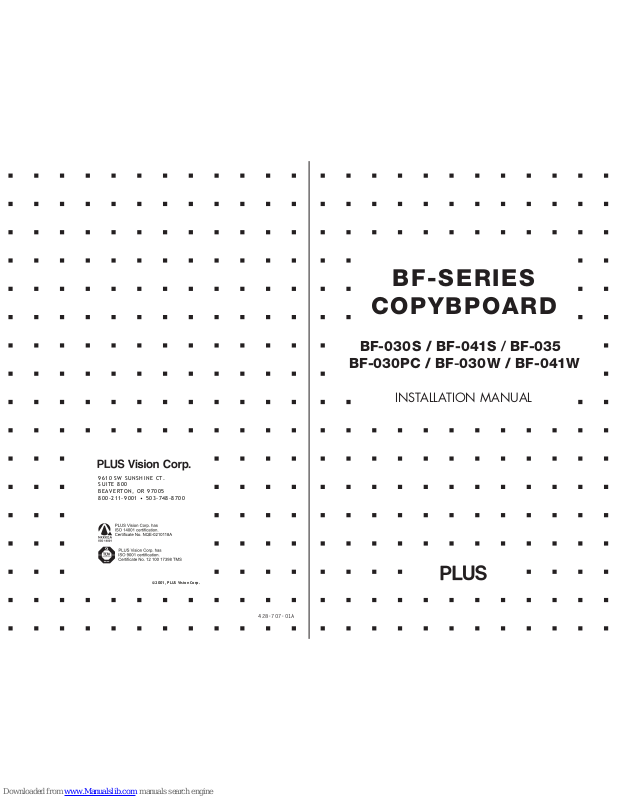

Plus BF-030 S, BF-041S, BF-035, BF-030PC, BF-041W Installation Manual

BF-SERIES

COPYBPOARD

BF-030 S / BF-041S / BF-035

BF-030PC / BF

-030 W / BF-041W

INSTALLATION MANUAL

96 10 SW S UNS HI NE CT .
SU ITE 8 00
BE AVE RT ON , O R 97 005
80 0-2 11 -9 001 • 5 03- 74 8- 870 0

©2001, P LUS Vision Corp.

428-707-01A

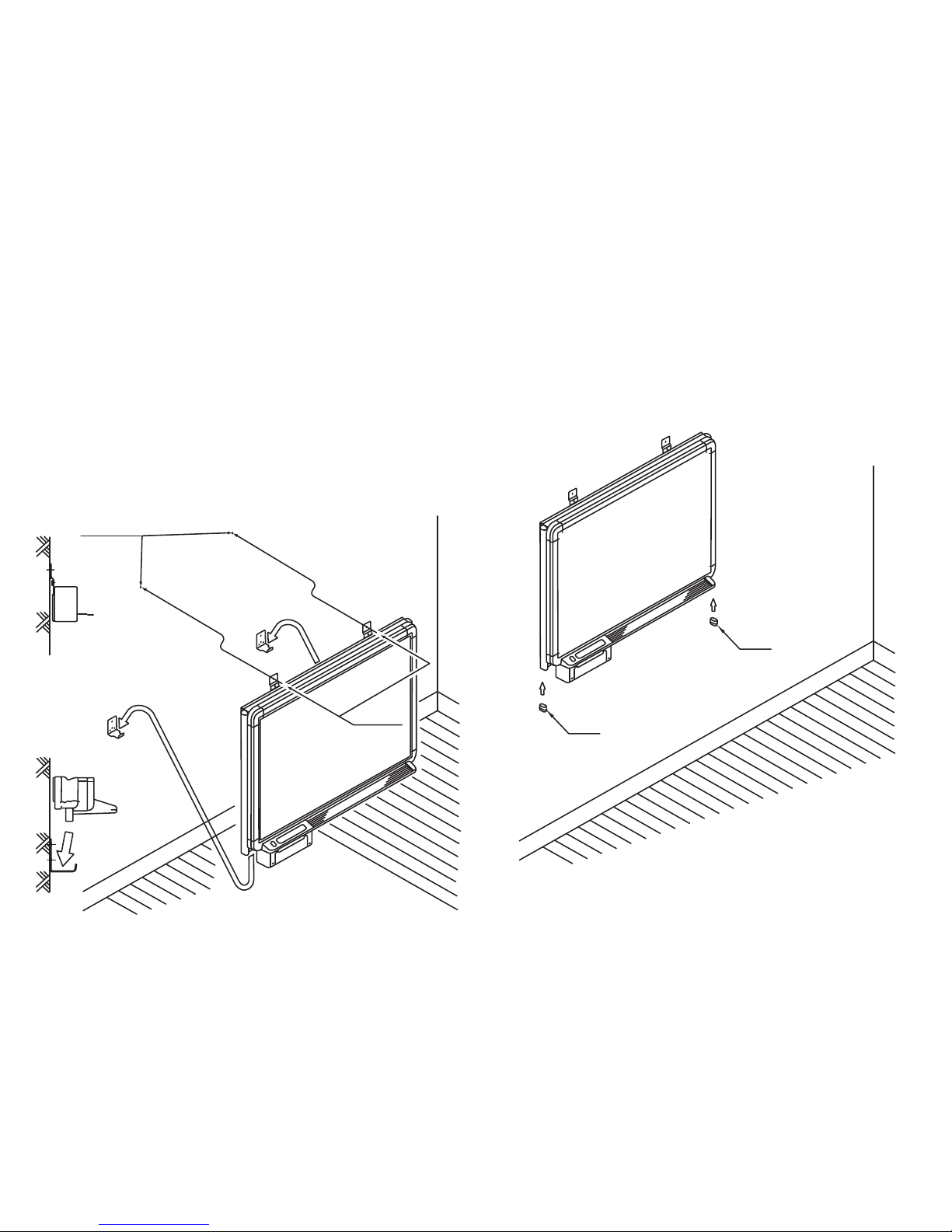

• To prevent electrical shock and insure safe wall mounting, please consult your authorized
PLUS dealer on the copyboard assembling and wall mounting methods.

• The following parts are contained in the accessory box. Be sure to check them before
starting installation work.

• Before installation: Prepare the anchor set and screws suitable for the type of wall.
(* The wall and its internal structure must be checked because they differ depending
on the building.)

M4x 15mm (19/32”)

Tap tight screw

M6x 15mm (19/32”)

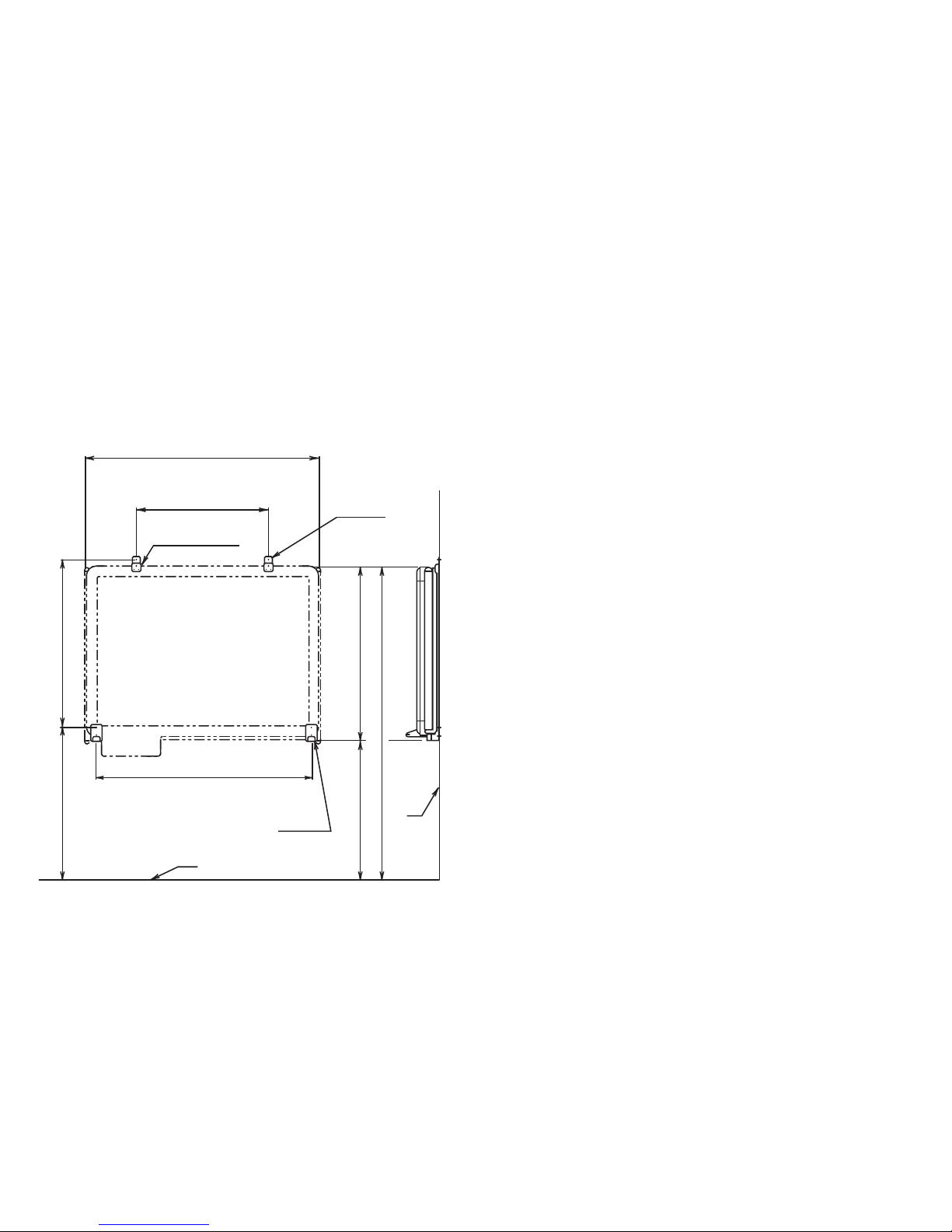

Note: The wall must be capable of holding an object weighing more than 1010N [103 kgf
(about 227 lbs)] for BF-030S, BF-030PC, BF-041S or 1137N [116 kgf (about 256 lbs)]
for BF-030W, BF-035, BF-041W.

Note: Use anchor set and screws suitable for the type of wall to which to copyboard will
be mounted.
(* The wall and its internal structure must be checked because they differ depending
on the building.)

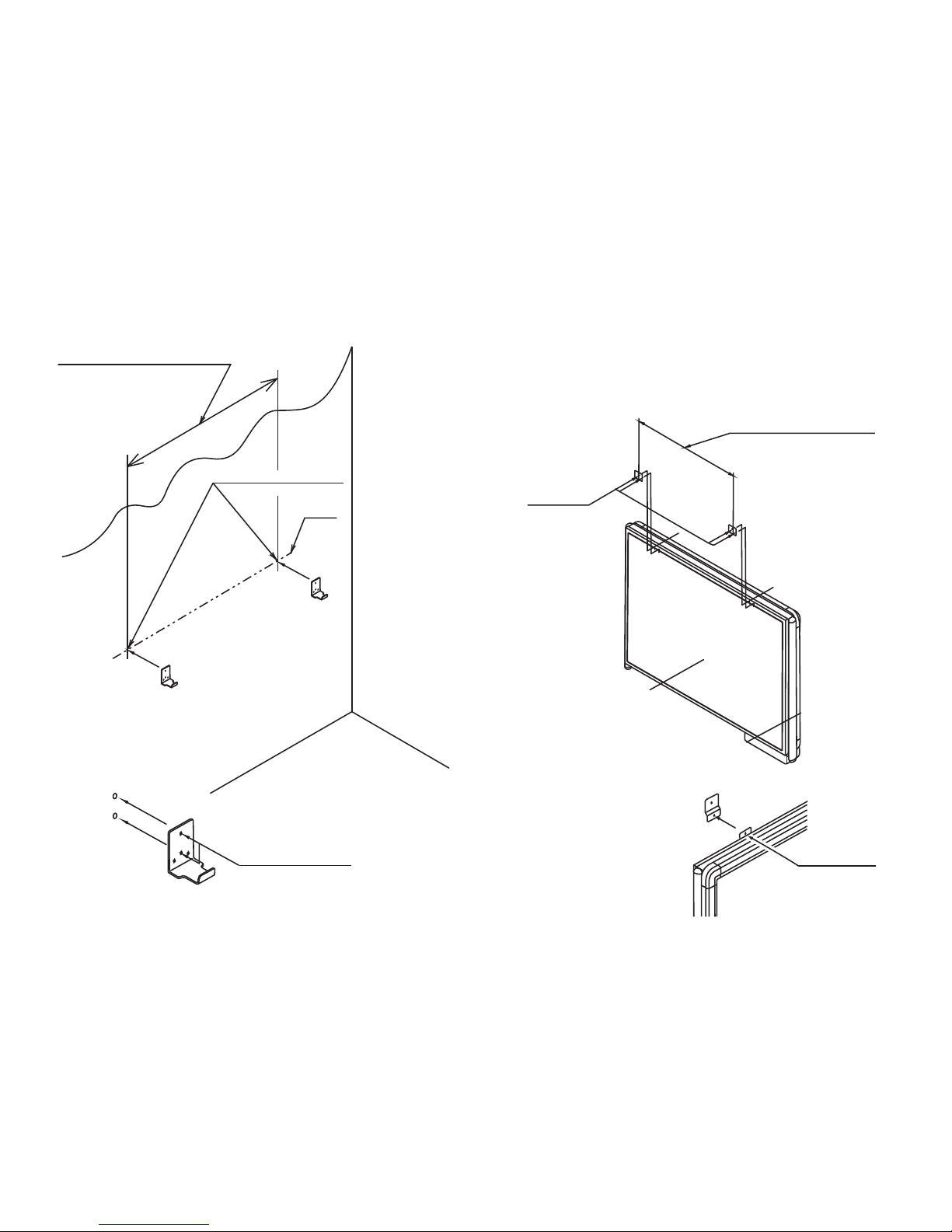

[Accessories for Mounting to Wall]

Plate

Plate fitting screw Plate/upper bracket fitting screw

Upper bracket Lower bracket

Pipe frame cap

– 1 –

X 4 X 2

X 2

X 2X 2X 2
