Ployer Electronics CM008 User Manual

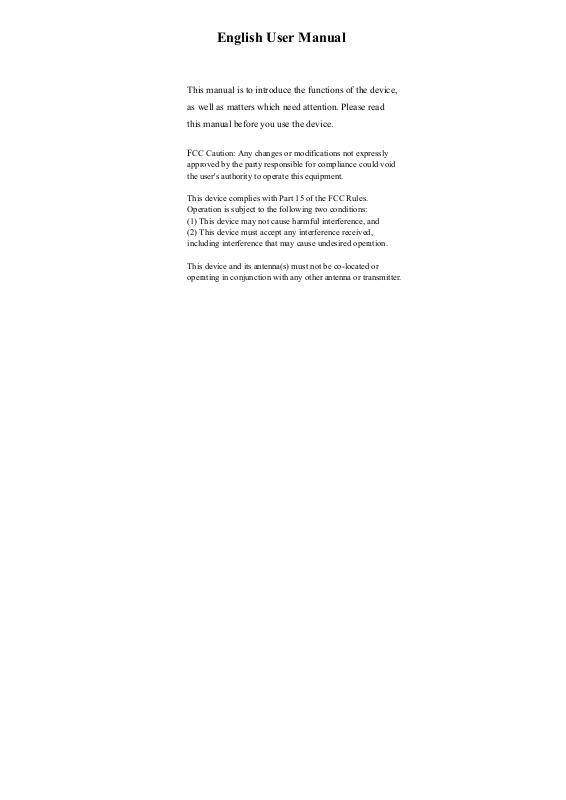

English User Manual

This manual is to introduce the functions of the device,

as well as matters which need attention. Please read

this manual before you use the device.

FCC Caution: Any changes or modifications not expressly

approved by the party responsible for compliance could void
the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Content

1. Announcements …………………………………Page 1

2. Introduction ……………………………………Page 3

2.1 Packing Details………………………………Page 3

2.2 Instructions on Keys. ……………………Page 3

2.3 Features Overview……………………………Page 4

2.4 Technical Specifications…………………Page 6

3. Quick Guidance ………………………………Page 7

3.1 About Touch Panel…………………………Page 7

3.2 Switch On/Off. ……………………………Page 7

3.3 Power Save Modes and lock screen…………Page 8

3.4 Battery management and charging. ………Page 9

3.5 Definition for the icons of the Functions…Page 10

3.6 USB HOST Function…………………......... Page 12

3.7 TF Card Storage…………………………....Page 12.

4. Network Access …………………………..…Page 13

4.1 Network Access by Wi-Fi……………….. Page 13

4.2 Network Access by 3G…………………....... Page 13

5. Storage File Copy & Delete from PC…………Page 14

6. Main Functions Introduction …………………Page 15

6.1 Audio Function……………………..………Page 15

6.2 Video Function………………………………Page 17

6.3 Picture Function……………………….……Page 17

6.4 Record Function………………………….. Page 18

6.5 File Manager……………………………Page 19

6.6 E-book Function…………………………Page 19

6.7 Internet Browser………………………Page 19

6.8 Email Function…………………………Page 20

6.9 Calendar…………………………….…Page 22

6.10 Calculator…………………………………Page 23

6.11 Alarm Clock……………………………Page 24

6.12 APK Installer…………………………Page 24

7. System Settings………………………………Page 26

8. FAQ……………………………………………Page 29

1. Announcements

1. Please keep the device away from moist and dust.

2. Do not put the device in high-temperature environment,

especially closed car in hot weather.

3. Do not drop or strike the device.

4. Do not shake the device violently, especially the LCD

Screen part. Or, it will cause abnormal display on the
screen.

5. Please choose a proper volume when using the

earphone which will be good for your ear.

6. Please charge the device when
(1) The power icon shows lowest power.
(2) The device is turned off automatically, and when

you turn on it, it is turned off automatically
again.

(3) No response when operating the buttons.

Attention: Please use the charger offered by
manufacturer to charge, other charges may causes
damage to the device.

7. Do not disconnect the device from PC when

downloading, uploading or formatting, or it will cause

-- Page 1 --

programming errors of the device.

8. Do not dismounting the device privately without

professional guidance.

9. Do not use alcohol, thinner or benzene-chemical to

clean the surface of the device.

10. Do not use the device in forbidden place, like airplane.

11. Please back-up your files in device’s memory always.

The manufacturer is not responsible for the clear of
files after damage or repair of the device.

12. The manufacture reserves all right of device’s

technology and design, and will have no obligation to
inform the user if there are new versions or designs
been developed.

13. The device is NOT water-proof, please keep it away

from water.
The turn on time of this device is about 30 seconds, please
don’t operate the device when it is turned on in 30
seconds.

-- Page 2 --

2. Introduction

2.1 Packing Details.

Each unit has the following items: Tablet PC device*1,
charger*1, earphone*1, USB cable*1, and user manual*1. All
items are packed in gift box.

2.2 Instructions on Keys.

Name Description

RESET

POWER

MENU

Press this button shortly to reset the
system when the device is halted
Press this button shortly to enter
sleeping/wake up mode, long press to
switch ON/OFF
Press this button shortly to enter the
submenu

-- Page 3 --

ESC

TF Card Slot For external TF card, 1GB to 16GB

Stereo Earpieces

Jack

DC Socket Connect with 5V DC charger

USB Port MINI_5 PIN USB Port/USB2.0

USB Host Port

Display HD Display area

Long Press: Press the item for more than 1.2 seconds.

2.3 Features Overview

 CPU: ALLWINNER, Cortext A8, 1.2GHz. With

ANDROID 2.3.4 operation system.

 10.1" TFT touch panel LCD display, 1024*600 pixel

resolution.

Press shortly to return, long press to the
touch screen calibration

Stereo earpieces jack for earphone

Port for external USB Driver,3G
Dongle, Mouse, keyboard, etc

-- Page 4 --

 Support 2~32GB built-in Flash Memory, support

128MB-32GB external TF card.

 Support Medias playing: Video, audio, pictures,

Ebooks, etc.

 Built-in Wi-Fi. Support external 3G USB-DONGLE

wireless network card (3G card or USB-Dongle are not
provided by the Tablet PC manufacturer).

 Various applications are available in the ANDROIED

2.3 OS. (APK applications only).

 Support built-in microphone record function

(optional).

 Support USB-HOST and external U-disk, MP3, MP4,

Mouse, keyboard, etc.

 Support G-sensor screen rotation function.
 Support Stereo Earpieces and speaker.
 Supports multiple languages.
 The device can be used as USB portable hard disk,

driver not needed for WIN2000 or above.

-- Page 5 --

2.4 Technical Specifications

CPU Chipset: ALLWINNER; Cortex A8; 1.2GHz

RAM DDR3 512 MB

Built-in Flash. ( 4GB-16GB be opti onal )

Storage

System Android 2.3.4

Network Wifi: Built-in Wifi Module. 3G: External 3G

Applications APK format applications

Video

Music

Pictures JPG, BMP, PNG, TIFF, etc.

Ebooks

Office Files Supported files: Word, Excel, PDF, etc.

PC Connection USB 2.0

Battery Built-in Lithium Battery: 8500 mAh.

External Micro SD Card extendable: 1GB to 32
GB.

RM, RMVB, AVI, MOV, WMV, MP4, ASF, 3GP,
TS, MKV, MPEG, etc.
MP3, WMA, WAV, APE, FLAC, AAC, OGG,
etc.

TXT, PDF, CHM, HTML, PDB, UMD, FB2,
LRC,

-- Page 6 --

3. Quick Guides

3.1 About Touch Panel

The touch screen is capacitive touch screen, you can use five
fingers to touch the screen at the same time.

3.2 Switch On/Off.

Switch On and Unlock: When the device is in the OFF mode,
press and hold “Power” key for 3 seconds to enter the
Android startup progress bar, it need about 20 seconds enter
to the system desktop, when the LCD is under locked mode,
please press and pull the
LCD will unlocked automatically, see the figures below,

icon to the green point, then the

-- Page 7 --
